Product Introduction

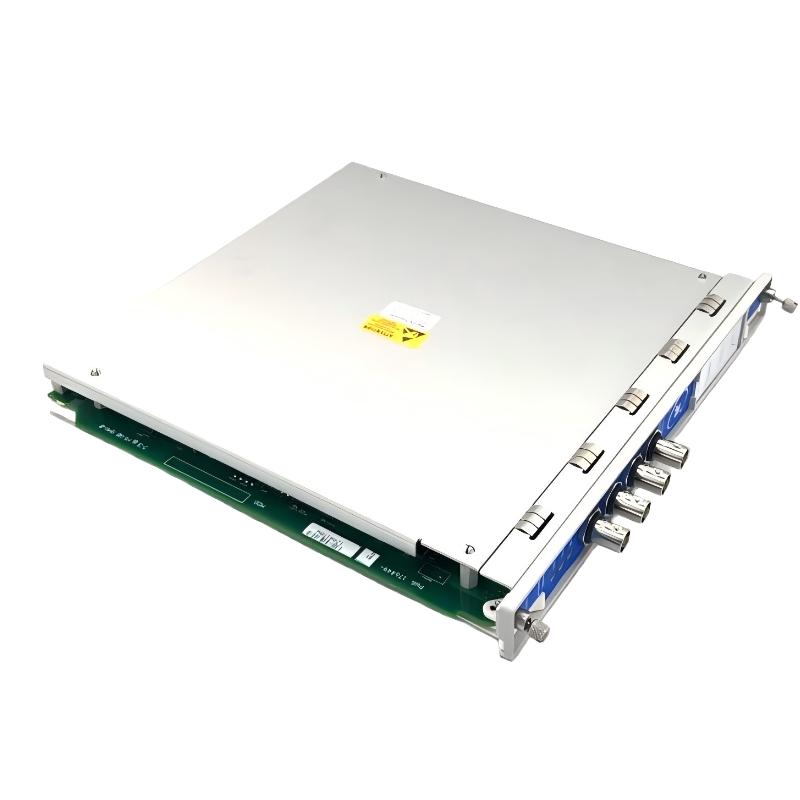

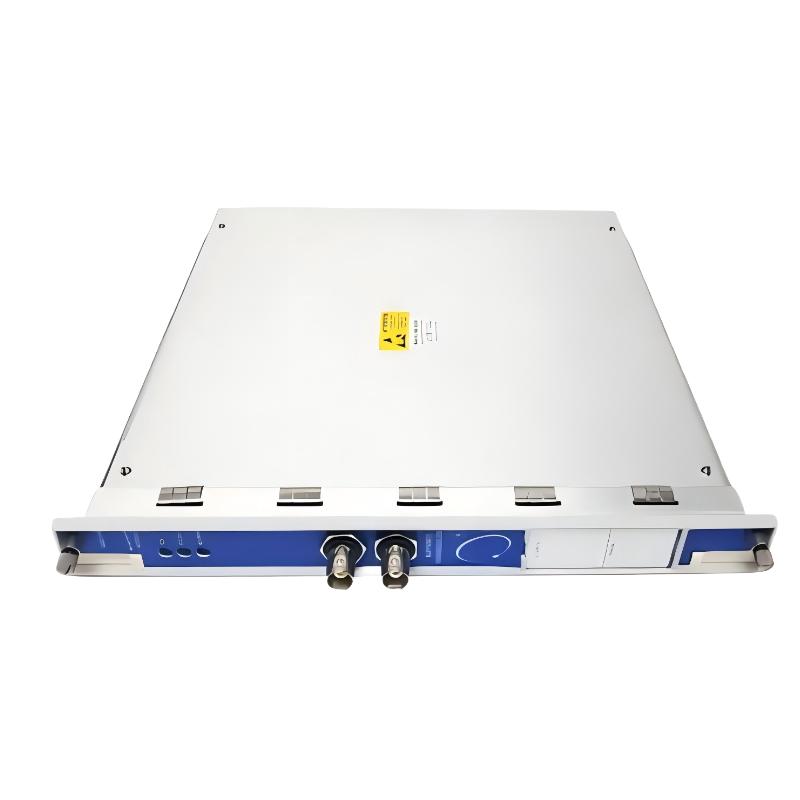

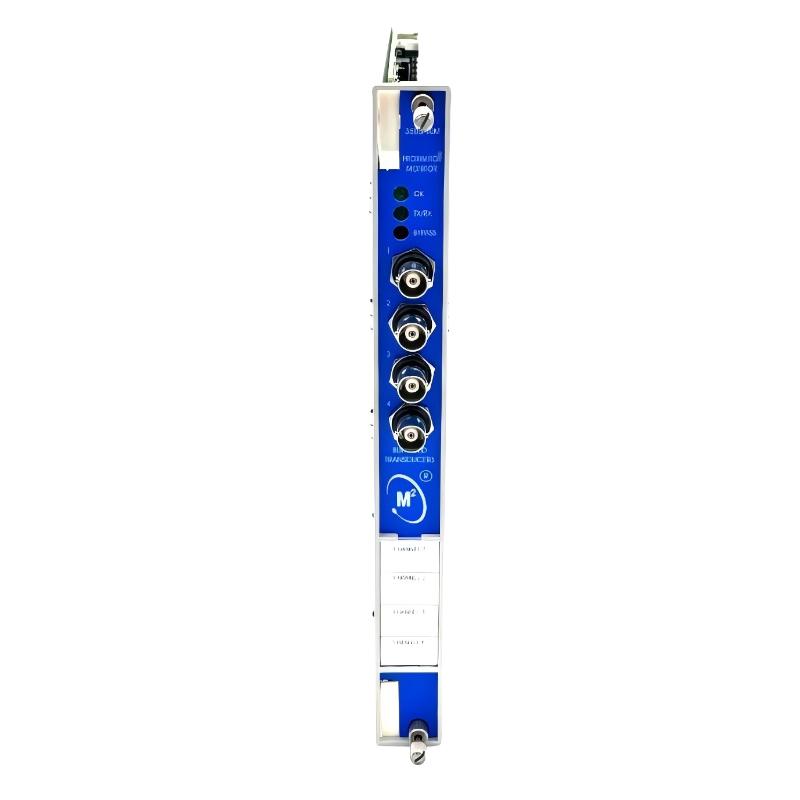

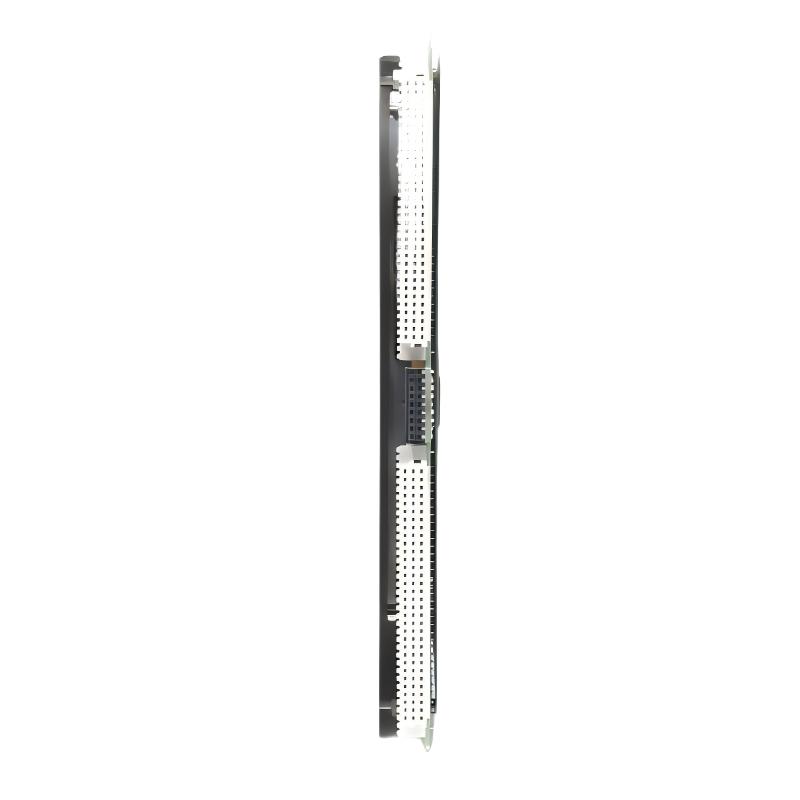

The Bently Nevada 3500/40 (176449-01) Proximitor Monitor is a precision monitoring module developed for the 3500 Machinery Protection System, designed to deliver accurate measurement of vibration, displacement, and shaft position.
As a core monitoring unit, it processes signals from proximity probe systems and converts them into actionable data for machine protection, condition monitoring, and predictive maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/40 |
| Part Number | 176449-01 |
| Product Type | Proximitor Monitor |
| System Platform | 3500 Machinery Protection System |
| Monitoring Channels | Up to 4 channels |
| Input Type | Proximity probe signals |
| Measurement Capabilities | Vibration, displacement, shaft position |
| Power Consumption | Approx. 7.7 W |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Mounting | Rack-mounted |
| Operating Environment | Industrial continuous operation |
| Function | Signal processing, monitoring, alarm management |
Technical Function Analysis
The 176449-01 module is designed to perform high-precision signal monitoring and system protection.
Primary Technical Functions:
- Continuous acquisition of proximity probe signals
- Real-time processing of vibration and displacement data
- Threshold comparison for alarm and shutdown logic
- Multi-channel monitoring for complex machinery
- Integration with system-wide protection strategies
Signal Processing Mechanism
The module operates within a structured signal chain:
- Proximity probes detect mechanical motion
- Signals are transmitted to the monitor module
- Internal processing converts signals into engineering values
- Data is analyzed against predefined limits
- Alarm or shutdown actions are triggered if necessary
This ensures accurate detection of early-stage mechanical faults.
Typical Use Cases
The Bently Nevada 3500/40 (176449-01) is suitable for a wide range of industrial monitoring applications:
- Steam and gas turbines
- Centrifugal compressors
- Industrial pumps
- Power generation equipment
- Oil and gas processing systems
It is particularly effective in applications requiring:
- High measurement accuracy
- Continuous monitoring
- Early fault detection
Selection Considerations
When selecting the 176449-01 Proximitor Monitor, consider the following factors:
1. Monitoring Requirements
- Number of channels needed
- Type of parameters (vibration, displacement, position)
2. System Configuration
- Compatibility with existing 3500 rack systems
- Required I/O module type (internal, external, or barrier)
3. Application Environment
- Standard industrial vs hazardous environments
- Need for redundancy or intrinsic safety
4. Maintenance Strategy
- Accessibility requirements
- Ease of replacement and system expansion
Compatible I/O Modules
The monitor typically operates with different I/O module configurations depending on system requirements:
| I/O Module | Feature | Best Use Case |
|---|---|---|
| 125680-01 | Internal terminals | Compact installations |
| 126615-01 | External terminals | Easy maintenance |
| 135489-04 | Internal barriers | Hazardous environments |
| 149716-01 | TMR module | High-reliability systems |
System Integration
The module integrates into the complete 3500 ecosystem:
- 3500/05 system rack
- 3500/15 power supply module
- Proximity probes and extension cables
- Communication and interface modules
This ensures seamless operation within a full machinery protection system.
Key Advantages
- High-precision monitoring performance
- Multi-channel capability for complex systems
- Supports predictive maintenance strategies
- Flexible configuration with multiple I/O modules
- Fully compatible with 3500 system architecture
- Designed for continuous industrial operation
Frequently Asked Questions
What does the 176449-01 monitor measure?
It measures vibration, shaft displacement, and position using proximity probe inputs.
Can it be used in hazardous environments?
Yes, when paired with appropriate barrier I/O modules.
Is it compatible with other 3500 modules?
Yes, it integrates seamlessly within the 3500 system.
Conclusion
The Bently Nevada 3500/40 (176449-01) Proximitor Monitor is a reliable and flexible monitoring solution for industrial machinery protection. With its advanced signal processing capabilities and compatibility with multiple I/O configurations, it provides a scalable and efficient approach to condition monitoring.
For engineers and system designers, this module offers a balanced combination of performance, flexibility, and reliability within the 3500 platform.
