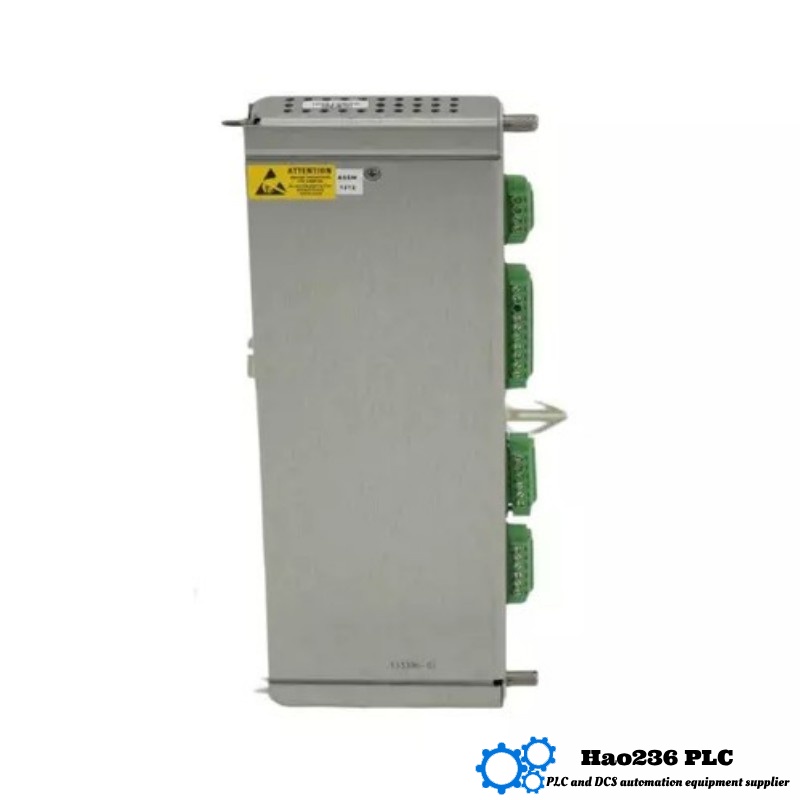

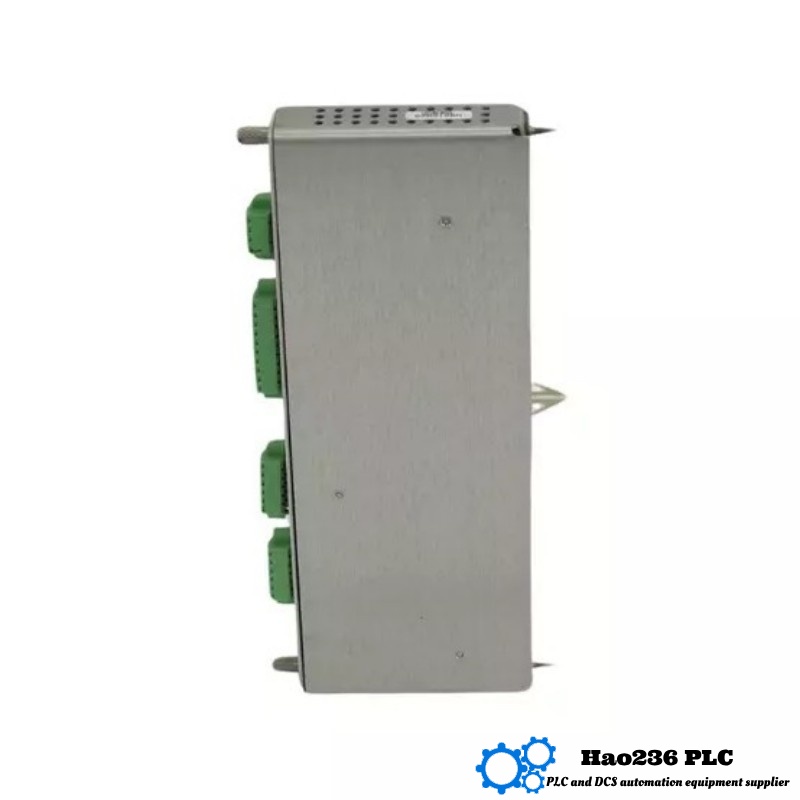

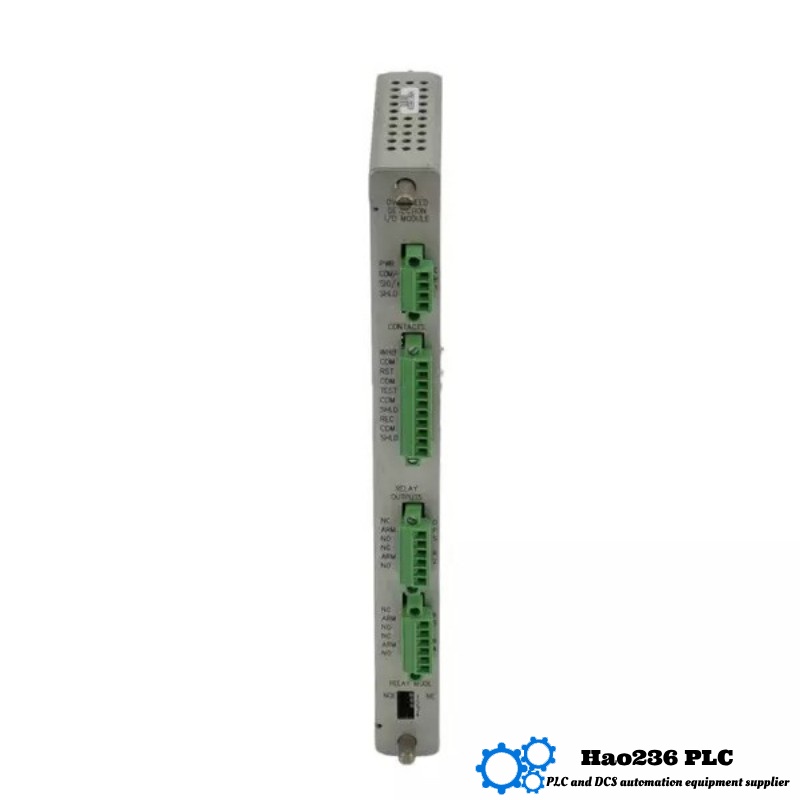

Product Overview: Bently Nevada 3500/33 133388-01 + 133396-01
Product Introduction:
The Bently Nevada 3500/33 133388-01 + 133396-01 is an advanced condition monitoring system designed to monitor the health of rotating equipment. Part of the 3500 Series by Bently Nevada, this system excels in monitoring critical parameters such as vibration, temperature, and displacement in machinery like pumps, compressors, turbines, and motors. The product provides real-time data that helps operators quickly identify and address potential faults before they lead to catastrophic failures or expensive downtime.
This model specifically targets applications in industries where continuous and real-time monitoring of critical rotating machinery is necessary to maintain operational efficiency and protect high-value assets. Whether in power generation, oil & gas, or chemical processing, the 3500/33 series provides comprehensive machinery protection.
Product Features:
-
Real-Time Monitoring: Continuously measures critical parameters like vibration, displacement, and temperature to ensure machinery is operating within safe limits.
-
Advanced Diagnostics: Provides detailed diagnostic information that helps detect potential issues early, reducing the risk of unplanned downtime and costly repairs.
-
Modular & Scalable: Designed for scalability, it can be configured to monitor multiple machines in a facility, making it suitable for both small and large-scale industrial operations.
-
Rugged Construction: Built to withstand harsh industrial environments, including extreme temperatures, humidity, and vibrations.
-
Easy Integration: Compatible with various industrial control systems, thanks to its support for industry-standard communication protocols like Modbus, Ethernet, and Profibus.
-
Preventative Maintenance: Helps operators implement predictive maintenance strategies, preventing unplanned downtime by identifying potential failures before they occur.
-
Flexible & Customizable: Configurable for different types of machinery, making it versatile for a wide range of industrial applications.
Product Specifications:
| Specification |
Details |
| Model Number |
3500/33 133388-01 + 133396-01 |
| Type |
Vibration, Displacement, and Temperature Monitoring System |
| Dimensions (L x W x H) |
280 mm x 170 mm x 60 mm |
| Weight |
1.8 kg |
| Input Voltage |
24V DC |
| Measurement Range |
0 – 1000 Hz |
| Operating Temperature |
-20°C to 60°C |
| Environmental Protection |
NEMA 4X / IP65 |
| Mounting Type |
Panel or DIN Rail |
| Communication Protocols |
Modbus, Profibus, Ethernet |
Product Application:
The 3500/33 model is particularly effective for industries that rely heavily on rotating machinery and require continuous condition monitoring. It is commonly used in the following applications:
-
Power Generation: For monitoring turbines, generators, and compressors.
-
Oil & Gas: Protects critical rotating equipment like pumps, motors, and compressors used in upstream and downstream operations.
-
Chemical & Petrochemical: Monitors vital equipment such as mixers, reactors, and pumps to ensure safety and efficiency.
-
Manufacturing: Used in large manufacturing facilities to monitor machinery like conveyor belts, fans, and motors.
-
Mining & Metals: Protects mining and refining equipment such as crushers and mills, where machinery failure can result in severe operational delays.
Product Advantages:
-
Early Detection of Issues: The 3500/33 continuously monitors key parameters and alerts operators to potential issues, providing an opportunity to intervene before the problem escalates.
-
Minimized Downtime: Early warning of mechanical problems helps minimize unplanned downtime, ensuring continuous, efficient operations.
-
Increased Equipment Lifespan: By identifying issues early, the system helps extend the operational life of critical machinery.
-
Reduced Maintenance Costs: Predictive maintenance reduces the need for costly, reactive repairs by identifying problems during their early stages.
-
Scalable and Modular: The system can be expanded to monitor additional machines as needed, making it ideal for both small and large installations.
-
Compatibility with Existing Systems: The 3500/33 is easily integrated into existing control systems thanks to its support for multiple communication protocols.
-
Built to Withstand Harsh Environments: With an IP65 rating, the system is highly durable and can operate effectively even in harsh industrial environments.
-
User-Friendly Interface: The system features an intuitive interface, simplifying setup and operation, even for complex installations.
-
Comprehensive Data Collection: Provides real-time, detailed data for decision-making, helping operators improve operational efficiency.
-
Versatility: Suitable for a wide range of industries and applications, the 3500/33 can be customized for various machinery monitoring needs.
Brand:
-
Brand: Bently Nevada
-
Brand Overview: Bently Nevada is a world leader in condition monitoring and protection systems for industrial machinery. They provide high-quality solutions that help industries across various sectors, including power generation, oil & gas, and manufacturing, to monitor the health of their critical assets.
