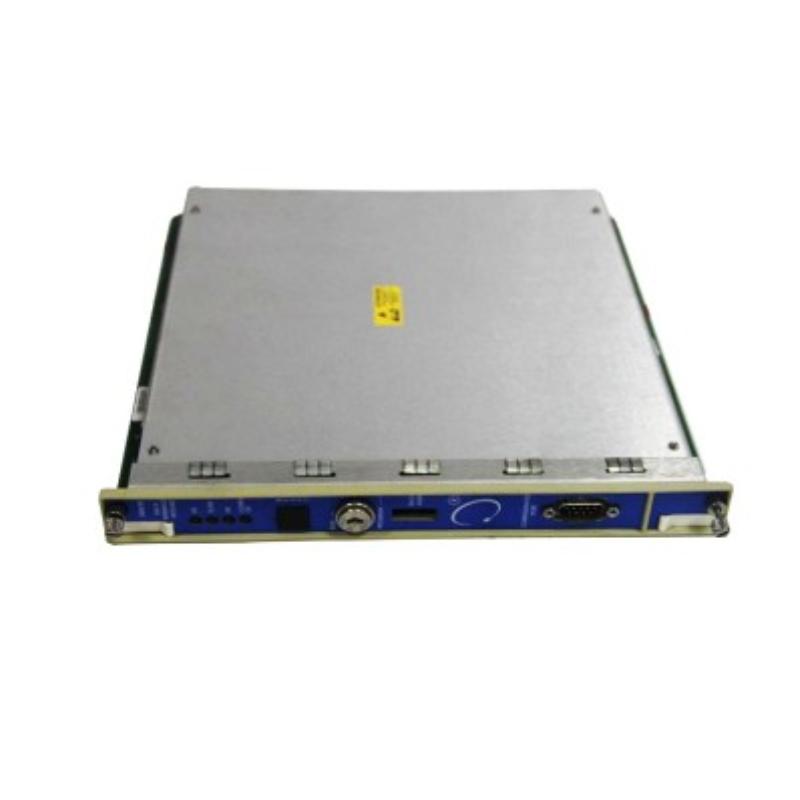

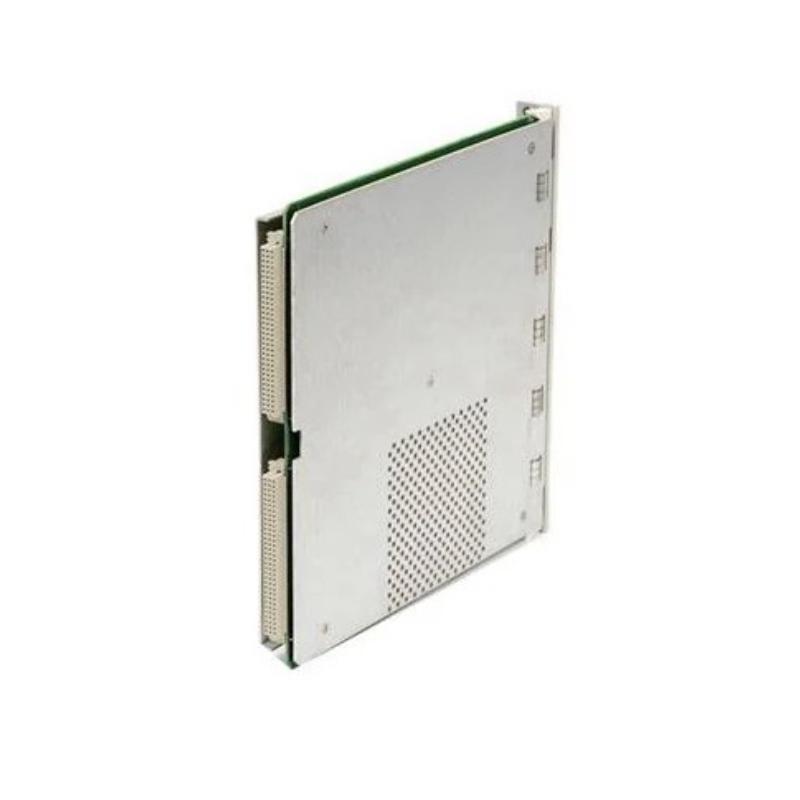

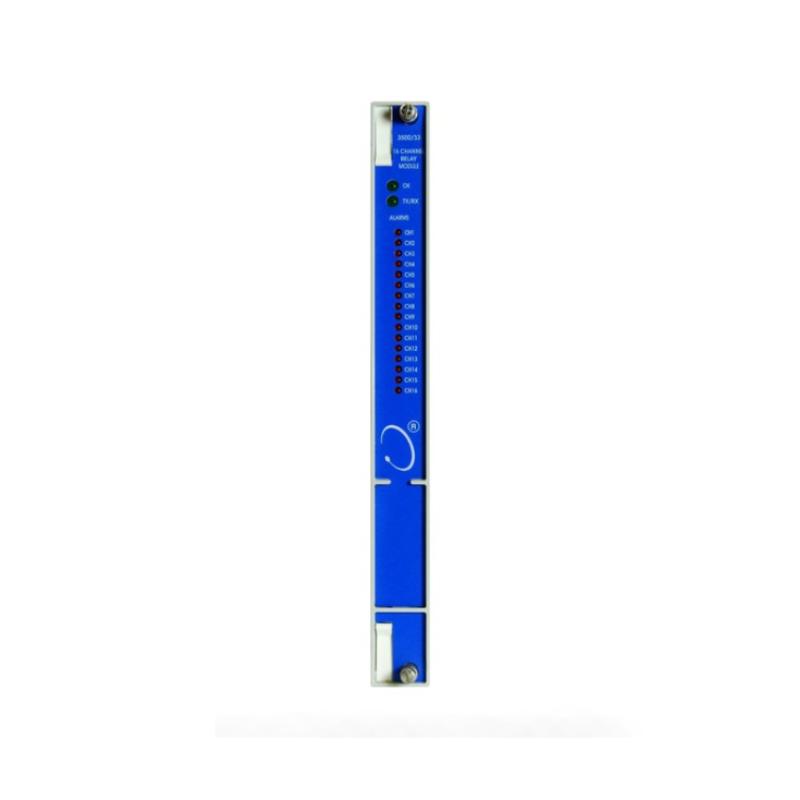

Bently Nevada 3500/33-01-01 Technical Specifications, Product Introduction, Applications, Advantages, Brand, Series, and Recommended Models
Product Introduction
The Bently Nevada 3500/33-01-01 is a high-capacity 16-Channel Relay Module designed for use within the 3500 Machinery Protection System. It provides a reliable and flexible interface between the machinery monitoring system and external plant equipment, including alarm systems, control systems, protective shutdown circuits, and equipment interlocking devices.
The main purpose of the 3500/33-01-01 is to convert internal monitoring conditions from the 3500 system into physical relay outputs. When abnormal machinery conditions are detected, the module can activate external circuits according to configured protection logic.
The module provides sixteen independent relay channels, allowing multiple alarm and shutdown functions to be managed from a single rack position. This high-density relay design is particularly useful for complex machinery protection systems that require numerous output signals.
Each relay channel can be configured independently according to different operational requirements. Users can assign relay outputs to specific monitoring events, including excessive vibration, high temperature, abnormal shaft position, overspeed conditions, and other machine protection parameters.
The 3500/33-01-01 is designed to improve system flexibility while reducing installation complexity. By integrating many relay functions into one compact module, it reduces the requirement for additional external relay devices and helps optimize control cabinet space.
The module communicates through the internal rack backplane, allowing fast and stable signal transmission between monitoring modules and relay outputs. This integrated architecture improves system reliability and reduces external wiring requirements.
Built for continuous industrial operation, the module provides dependable performance in environments where vibration, electrical interference, temperature variations, and long operating cycles are common.
The module is widely used for protecting critical rotating equipment such as turbines, compressors, generators, pumps, motors, and other industrial machinery where reliable alarm and shutdown response is essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/33-01-01 |
| Product Type | 16-Channel Relay Module |
| Brand | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Module Function | Multi-Channel Relay Output Interface |
| Relay Channels | 16 Independent Relay Outputs |
| Relay Type | Programmable Mechanical Relay |
| Input Source | 3500 Monitoring Modules |
| Output Function | Alarm, Shutdown, Control, Status Output |
| Relay Logic | Software Configurable |
| Contact Configuration | Normally Open / Normally Closed Configurable |
| Application Purpose | Machinery Protection and External Control Interface |
| Communication Interface | Internal Rack Backplane |
| Installation Method | Rack Mounted Plug-In Module |
| Configuration Method | Software Configuration |
| Status Indicators | Front Panel LED Indicators |
| Power Supply | Supplied Through Rack Power Module |
| Operating Mode | Continuous Online Operation |
| Switching Application | Industrial Control and Protection Circuits |
| Environmental Capability | Industrial Environment |
| Cooling Method | Natural Air Cooling |
| Housing Material | Industrial Metal Enclosure |
| Maintenance Method | Modular Replacement |
| Dimensions | Approximately 241 × 24 × 250 mm |
| Weight (kg) | Approximately 0.95 kg |
Product Features
The 3500/33-01-01 is designed to provide a large number of relay outputs within a compact rack-mounted module. It is suitable for applications where multiple protection actions need to be controlled simultaneously.
The sixteen independent relay channels allow users to manage a wide range of machinery protection functions from one module. Each channel can operate independently and can be assigned to different alarm or shutdown conditions.
The module supports flexible relay configuration, allowing engineers to customize protection logic according to individual machine requirements.
The relay outputs can be used for different functions, including:
- High vibration alarms
- Shutdown commands
- Equipment status indication
- Process control signals
- Safety interlocks
- External annunciation
The module receives information from monitoring modules installed in the 3500 rack and converts these signals into reliable electrical relay outputs.
The internal rack communication design improves response speed and reduces the amount of external wiring required between monitoring equipment and plant control systems.
Front-panel LED indicators provide convenient visual monitoring of module operation and relay status. This helps maintenance personnel quickly identify system conditions during inspection and troubleshooting.
The industrial-grade relay design provides stable switching performance for long-term operation in demanding environments.
The modular plug-in structure allows simple installation and replacement, reducing maintenance time and minimizing equipment downtime.
Product Advantages
The major advantage of the 3500/33-01-01 is its ability to provide sixteen relay outputs in a single compact module. This high channel density simplifies machinery protection system design and reduces cabinet space requirements.
The module reduces the need for multiple separate relay devices, helping lower installation complexity and improving system organization.
The programmable relay architecture provides excellent flexibility. Different relay channels can be assigned to different protection functions depending on machinery requirements.
The module improves operational safety by providing fast and dependable relay responses when abnormal machine conditions occur.
It can directly support alarm systems, emergency shutdown systems, control systems, and equipment protection circuits.
The module is fully compatible with the 3500 platform, allowing easy integration into existing protection systems without major modifications.
The robust industrial construction provides reliable operation in harsh environments where vibration, electrical noise, and continuous operation are present.
The modular design improves maintenance efficiency by allowing quick replacement during service activities.
The combination of high output capacity, flexible configuration, and dependable performance makes the module suitable for large and complex machinery protection applications.
Product Applications
The 3500/33-01-01 is widely used in industries requiring multiple relay outputs for machinery monitoring and protection.
Typical applications include:
- Steam turbine protection systems
- Gas turbine monitoring systems
- Generator protection systems
- Centrifugal compressor units
- Turbo machinery applications
- Large industrial motor protection
- Pump protection systems
- Gearbox monitoring systems
- Power generation facilities
- Oil and gas production equipment
- Petrochemical processing plants
- Refinery rotating machinery
- Offshore platforms
- LNG processing systems
- Chemical processing equipment
- Mining machinery
- Steel production equipment
- Cement manufacturing systems
- Marine propulsion systems
- Industrial automation systems
- Process control systems
The module is especially suitable for large machinery installations where multiple alarm, trip, and control signals are required.
Brand
Bently Nevada
Bently Nevada is a specialized industrial technology brand focused on machinery protection and condition monitoring solutions.
Its technologies are designed to improve the reliability of rotating equipment, increase operational safety, reduce unexpected failures, and support predictive maintenance strategies.
The product portfolio includes machinery protection systems, vibration monitoring modules, relay modules, communication interfaces, proximity sensing products, position monitoring devices, speed monitoring equipment, and diagnostic solutions.
These technologies are widely used in power generation, oil and gas, petrochemical processing, mining, marine engineering, and heavy manufacturing industries.
Product Series
3500 Machinery Protection System
The 3500 Machinery Protection System is a modular online monitoring platform designed for continuous monitoring and protection of critical rotating equipment.
The system uses a rack-based architecture where multiple monitoring and protection modules can operate together.
Each module performs a specific function, including signal acquisition, monitoring, communication, relay control, and equipment protection.
The major module categories include:
- Rack Interface Modules
- Power Supply Modules
- Keyphasor Modules
- Vibration Monitoring Modules
- Relay Modules
- Position Monitoring Modules
- Temperature Monitoring Modules
- Speed Monitoring Modules
- Communication Modules
- Process Monitoring Modules
The modular architecture provides flexibility for different industrial applications and allows easy expansion, maintenance, and system upgrades.
Recommended Models from the Same Series or Related Series
| Model | Product Type | Main Parameters | Dimensions | Weight (kg) |
|---|---|---|---|---|
| 3500/33-01-00 | 16-Channel Relay Module | Multi-channel relay output, programmable alarm and shutdown logic | Approximately 241 × 24 × 250 mm | Approximately 0.95 |
| 3500/32-01-00 | 4-Channel Relay Module | Four programmable relay outputs | Approximately 241 × 24 × 250 mm | Approximately 0.90 |
| 3500/32M-01 | Enhanced Relay Module | Flexible relay interface and protection output | Approximately 241 × 24 × 250 mm | Approximately 0.90 |
| 3500/34-01-00 | Relay Interface Module | Extended relay control functions | Approximately 241 × 24 × 250 mm | Approximately 0.92 |
| 3500/92-01-01-00 | Communication Gateway Module | Ethernet communication and system integration | Approximately 241 × 24 × 250 mm | Approximately 0.82 |
Five Popular Models from the Same Brand
| Model | Product Type | Main Parameters | Dimensions | Weight (kg) |
|---|---|---|---|---|
| 3500/40M-01-00 | Proximitor Monitor | Multi-channel radial vibration monitoring | Approximately 241 × 24 × 250 mm | Approximately 0.88 |
| 3500/42M-04-00 | Proximitor/Seismic Monitor | Shaft vibration, position monitoring, seismic measurement | Approximately 241 × 24 × 250 mm | Approximately 0.90 |
| 3500/50M-01-00 | Tachometer Module | Speed measurement and overspeed protection | Approximately 241 × 24 × 250 mm | Approximately 0.85 |
| 3500/45-01-00 | Position Monitor | Differential expansion and shaft position measurement | Approximately 241 × 24 × 250 mm | Approximately 0.89 |
| 3300 XL 8 mm Proximitor Sensor | Proximity Sensor System | Shaft displacement measurement and vibration detection | Probe dependent | Approximately 0.45 |
Conclusion
The 3500/33-01-01 is a high-capacity 16-Channel Relay Module designed for the 3500 Machinery Protection System. It provides a reliable connection between internal machinery monitoring functions and external alarm, control, and shutdown systems.
With sixteen independent relay channels, flexible software configuration, industrial-grade construction, and seamless integration with the 3500 platform, the module provides an effective solution for complex machinery protection requirements.
The module is widely used in power generation, oil and gas, petrochemical, marine, and heavy industrial environments where reliable protection response, multiple control outputs, and continuous equipment monitoring are essential.
Its high relay density, flexible configuration capability, compact structure, and dependable performance make the 3500/33-01-01 an important component for modern industrial machinery protection systems.
