- Bently Nevada

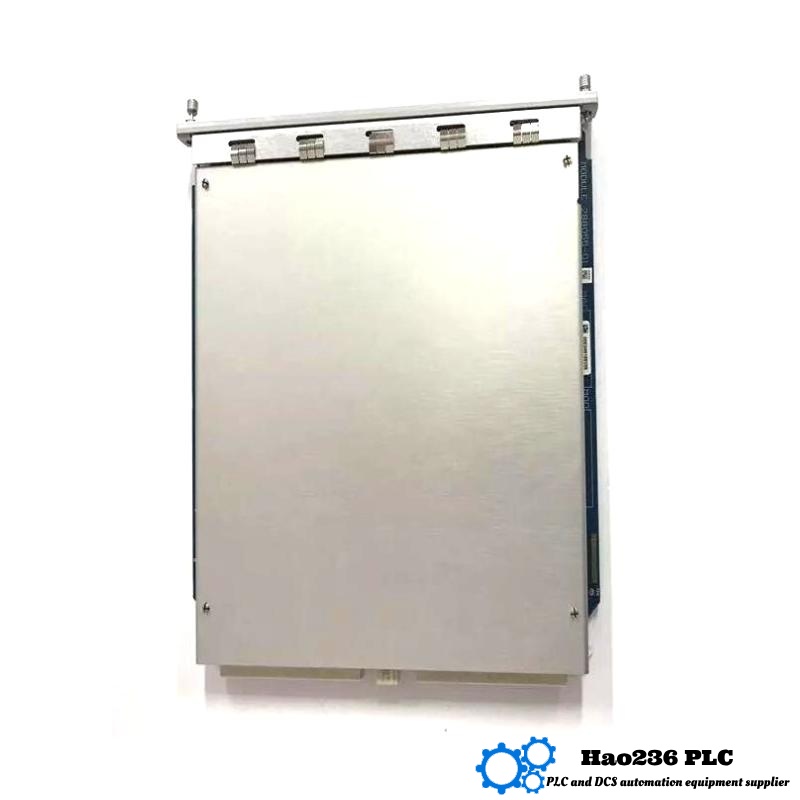

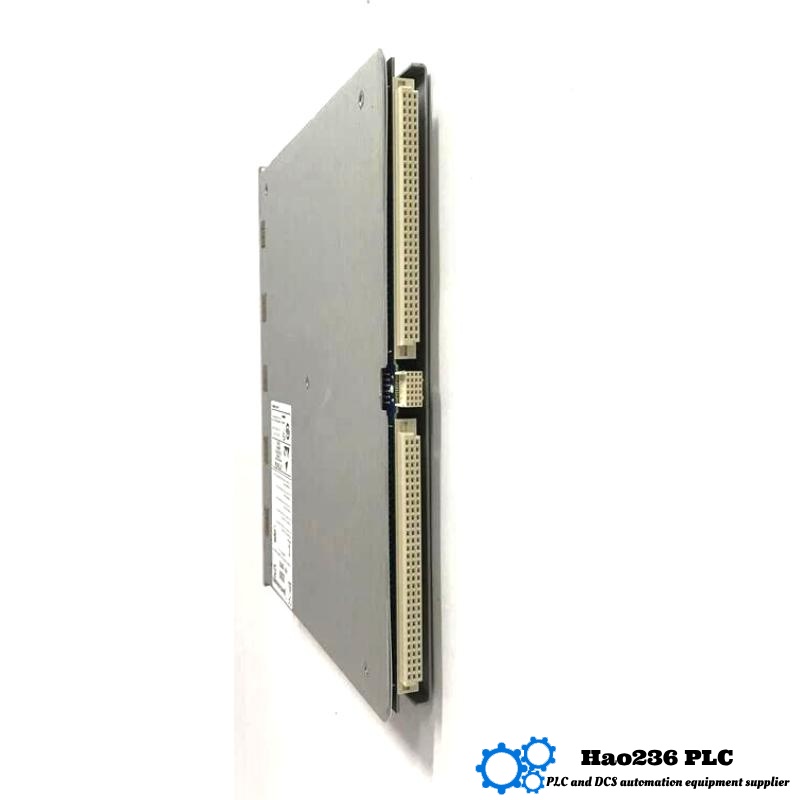

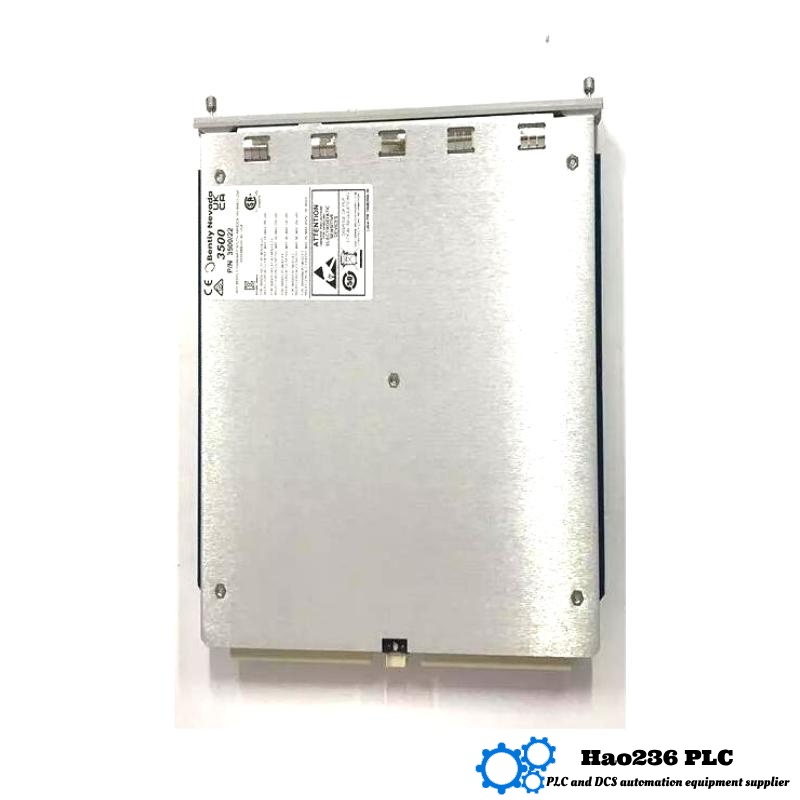

- 3500/22M 288055-02
- Transient Data Interface I/O Module
- USA
- 24.1 cm × 3.8 cm × 23.1 cm
- 0.47kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 48
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview: Bently Nevada 3500/22M 288055‑02
The 3500/22M 288055‑02 is a high-reliability System Interface Module (SIM) designed for the 3500 Machinery Protection System. It serves as the vital communications gateway, ensuring that condition monitoring data from the rack is seamlessly conveyed to control and diagnostic systems. Enhanced with dual Ethernet for redundancy and modern networking, this version supports continuous data flow even during primary network interruptions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3500/22M 288055‑02 |
| Module Type | System Interface Module |
| Series | 3500 Series Machinery Protection System |
| Form Factor | Half‑height, rack‑mounted module |
| Communication Ports | 2 × Ethernet (redundant paths) |
| Supported Protocols | Modbus TCP/IP, Proprietary TCP, HTTP (for configuration) |
| Configuration Method | Web browser via Ethernet IP |
| Power Requirement | Approx. 4.5 W (via rack backplane) |
| Redundancy Support | Yes – dual Ethernet for failover |
| Firmware Upgrade | Yes – remote via network |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Rating | Up to 95% non‑condensing |
| Shock & Vibration | Industrial‑grade ruggedized |
| Weight | 0.47 kg |
| Dimensions (HxWxD) | 24.1 cm × 3.8 cm × 23.1 cm |
Product Description
The 3500/22M 288055‑02 module functions as a communication conduit, linking machine monitoring data within the 3500 rack to external systems that manage analytics and control. Designed for mission-critical environments, its dual Ethernet paths guarantee data delivery even if one network fails. The module supports secure, fast transport of vibration, temperature, alarm, and event data, while its web interface allows intuitive configuration, diagnostics, and firmware updates. Robust by design, it thrives in harsh industrial spaces.
Applications
This interface module is deployed extensively across sectors that demand continuous monitoring and fast response capabilities:
-
Power Plants (gas, steam, hydro turbines)
-
Oil & Gas Facilities (exploration, processing, refining)
-
Petrochemical Processing Operations
-
Mining & Metal Industries
-
Marine and Naval Propulsion Systems
-
Paper & Pulp Production Lines
-
Water & Wastewater Treatment Facilities
-
High‑Volume Industrial Manufacturing
Product Advantages
-
Redundant Ethernet Architecture – Ensures network resilience and uninterrupted data flow.
-
Optimized for Real-Time Monitoring – Enables low-latency transmission of vital machine data.
-
Browser-Based Setup – Streamlined configuration, diagnostics, and updates without specialized tools.
-
Sleek and Efficient Design – Occupies minimal rack space while providing powerful functionality.
-
Remote Firmware Upgrade Capability – Simplifies updates without physical intervention.
-
Industrial Environment Compatibility – Operates reliably under tough thermal and humidity extremes.
-
Versatile Protocol Support – Friendly to both open and proprietary system integrators.
Related or Similar Models (Same Series)
| Model | Function | Key Features | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
| 3500/22M 146031‑01 | System Interface Module | Single Ethernet port interface | 0.42 | 24.1 × 3.8 × 23.1 |
| 3500/22M 146031‑02 | System Interface Module | Dual Ethernet with firmware enhancements | 0.43 | 24.1 × 3.8 × 23.1 |
| 3500/22M 147364‑01 | System Interface Module | Advanced diagnostics and reliable networking | 0.44 | 24.1 × 3.8 × 23.1 |
| 3500/22M 149986‑02 | System Interface Module | Enhanced network throughput and dependability | 0.44 | 24.1 × 3.8 × 23.1 |
| 3500/22M 161580‑01 | System Interface Module | Modernized user interface with simplified setup | 0.45 | 24.1 × 3.8 × 23.1 |
Popular Models of the Same Brand
| Model | Function | Key Features | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
| 3500/42M | Vibration Monitoring Module | Tracks vibration for rotating components | 0.48 | 24.1 × 3.8 × 23.1 |
| 3500/05 | Rack Chassis | Houses system modules | 3.50 | 33.0 × 48.0 × 30.0 |
| 3500/15 | Power Supply Module | Delivers power to system modules | 0.55 | 24.1 × 3.8 × 23.1 |
| 3500/53 | Overspeed Detection Module | Captures overspeed events for turbine protection | 0.50 | 24.1 × 3.8 × 23.1 |
| 3500/94M | Touchscreen Display Module | Interactive visual status interface | 0.62 | 24.1 × 3.8 × 23.1 |
FAQ – Frequently Asked Questions (Q&A)
Q1: What is the function of the 3500/22M 288055‑02 module?
A1: It connects machine health data from the 3500 rack to external SCADA, DCS, or monitoring systems via networked communication.
Q2: Does it support redundancy?
A2: Yes—it has dual Ethernet ports to maintain uptime if one network fails.
Q3: How does the setup process work?
A3: It is configured using a standard web browser via its IP interface—no extra software needed.
Q4: Can firmware be updated remotely?
A4: Yes, firmware updates are supported over the network without module removal.
Q5: Which types of data are transmitted?
A5: The module handles vibration, temperature, alarm, event, and static monitoring data.
Q6: How heavy is the module?
A6: It weighs approximately 0.47 kg.
Q7: What environmental conditions can it tolerate?
A7: Rated for operation between –30 °C and +65 °C, with up to 95% non-condensing humidity.
Q8: Is it compatible with all versions of the rack?
A8: Yes—it is designed to integrate with standard 3500 Series rack systems.
Q9: Does it introduce complexity in system handling?
A9: No—its browser interface simplifies use and redundancy adds reliability without complexity.
Q10: What is its power draw?
A10: Power consumption is around 4.5 watts, supplied through the rack’s internal backplane.
