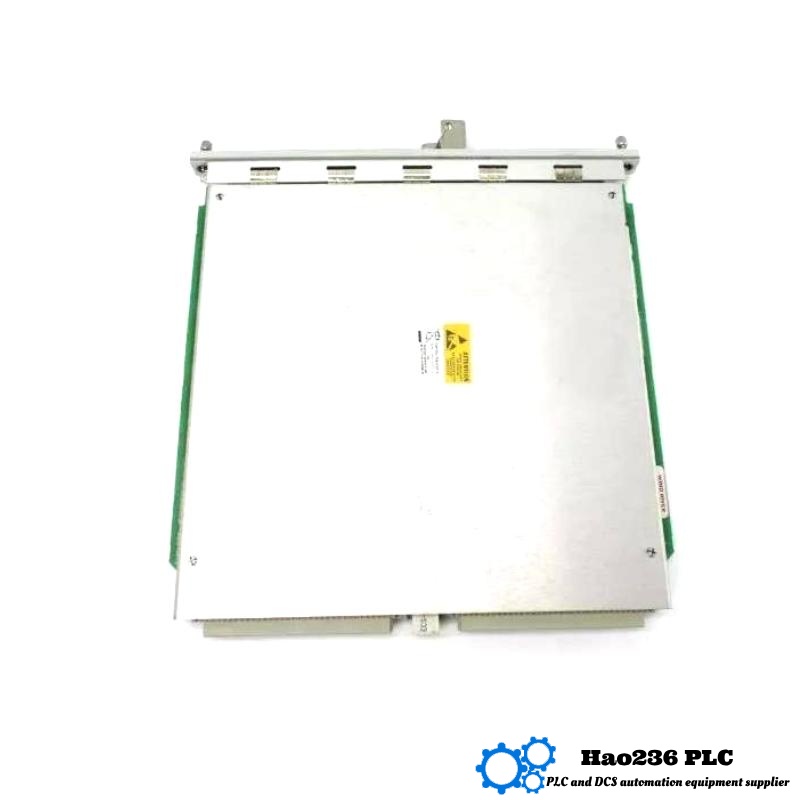

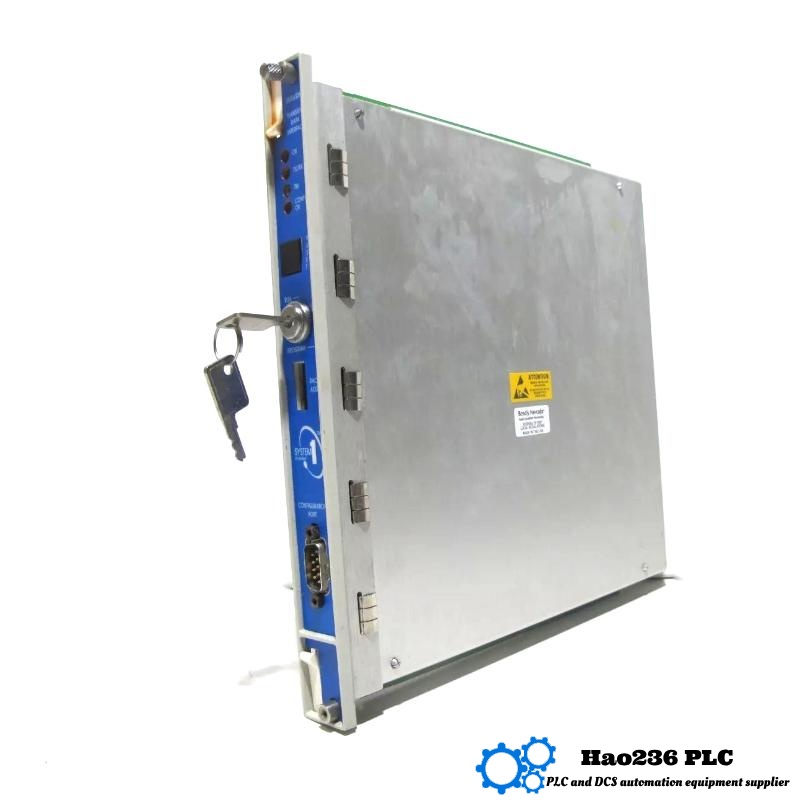

📦 Product Overview: Bently Nevada 3500/22M 161580-01
The 3500/22M 161580-01 is an industrial-grade System Interface Module (SIM), engineered as part of the renowned 3500 Series Machinery Protection System. Its main function is to establish a communication bridge between the monitoring rack and external control systems such as DCS (Distributed Control System), SCADA, or historian platforms.
This version incorporates enhanced communication protocols, dual-redundant Ethernet connectivity, and supports real-time system diagnostics. Designed for continuous operation in critical rotating machinery environments, the 161580-01 ensures system data is safely and efficiently transmitted for analysis and predictive maintenance purposes.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3500/22M 161580-01 |
| Type | System Interface Module (SIM) |
| Series | 3500 Series Machinery Protection System |
| Form Factor | Half-height rack-mounted module |
| Communication Ports | 2 x Ethernet (RJ45) |
| Supported Protocols | Modbus TCP/IP, Proprietary TCP, HTTP (for configuration) |
| Configuration Interface | Web browser (remote or local) |
| Power Requirement | ~4.5 W (powered via rack backplane) |
| Redundancy | Yes – dual-port Ethernet with failover |
| Firmware Upgradeable | Yes – remotely via Ethernet |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0–95% non-condensing |
| Vibration/Shock Resistance | Industrial-grade ruggedization |
| Weight | 0.45 kg |
| Dimensions (HxWxD) | 24.1 cm × 3.8 cm × 23.1 cm |
🧾 Product Description
The 3500/22M 161580-01 is a high-performance, Ethernet-enabled system interface that connects the internal signal processing of the 3500 rack to external control, monitoring, and diagnostic platforms. It is a critical module in enabling seamless machine condition monitoring, real-time data access, and preventive diagnostics.
With its dual Ethernet ports, the module ensures redundant data transmission to maintain continuous operation even during network disruptions. Its user-friendly web-based configuration allows for efficient setup and firmware management, reducing system commissioning time and support cost.
This model is particularly valuable in modern industrial facilities with demanding performance, uptime, and connectivity expectations.
🛠️ Applications
The 3500/22M 161580-01 is widely used in industrial environments where continuous machinery monitoring is required. Key application areas include:
-
Turbine Generator Monitoring Systems (Steam, Gas, Hydro)
-
Petrochemical and Refinery Operations
-
Oil & Gas Production and Transmission Facilities
-
Pulp and Paper Processing Lines
-
Large-Scale Water and Wastewater Treatment Systems
-
Marine Vessel Power and Propulsion Units
-
Steel Mills and Metallurgical Processes
-
Food and Beverage Industrial Automation
This module helps ensure that critical rotating equipment operates safely and reliably while maximizing availability and minimizing unplanned downtime.
💡 Product Advantages
-
Dual-Port Ethernet Redundancy: Ensures communication remains active during primary link failure, maintaining system integrity.
-
Real-Time Data Streaming: Supports high-speed, low-latency transmission of vibration, temperature, and alarm data.
-
Browser-Based Configuration: Streamlines setup with no specialized software needed.
-
Seamless Protocol Support: Easily interfaces with modern control platforms using open protocols like Modbus TCP/IP.
-
Compact and Lightweight Design: Occupies minimal rack space and fits into standard 3500 chassis.
-
Remote Firmware Updates: Simplifies maintenance, eliminating the need for physical intervention.
-
Industrial-Grade Durability: Withstands challenging environmental conditions common in field operations.
🏷️ Brand & Series
-
Brand: Bently Nevada
-
Series: 3500 Series
-
Product Role: Communications and Interface Module for 3500 monitoring racks
🔁 Related Models (Same Series or Function)
| Model | Function | Key Features | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
| 3500/22M 146031-01 | System Interface Module | Basic communication via single Ethernet port | 0.42 | 24.1 × 3.8 × 23.1 |
| 3500/22M 146031-02 | System Interface Module | Dual Ethernet with improved firmware capabilities | 0.43 | 24.1 × 3.8 × 23.1 |
| 3500/22M 147364-01 | System Interface Module | Advanced diagnostics and remote support | 0.44 | 24.1 × 3.8 × 23.1 |
| 3500/22M 149986-02 | System Interface Module | Enhanced data stability, expanded networking | 0.44 | 24.1 × 3.8 × 23.1 |
| 3500/25 | Keyphasor Module | Provides speed and phase reference for machinery | 0.50 | 24.1 × 3.8 × 23.1 |
🌟 Top Popular Models of the Same Brand
| Model | Function | Key Features | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|
| 3500/42M | Vibration Monitoring Module | Monitors shaft and bearing vibrations | 0.48 | 24.1 × 3.8 × 23.1 |
| 3500/05 | Rack Frame | Housing platform for 3500 modules | 3.50 | 33.0 × 48.0 × 30.0 |
| 3500/15 | Power Supply Module | Delivers main or redundant power to system | 0.55 | 24.1 × 3.8 × 23.1 |
| 3500/53 | Overspeed Detection Module | Turbine overspeed trip signal processor | 0.50 | 24.1 × 3.8 × 23.1 |
| 3500/94M | Touchscreen Display Module | LCD graphical interface with navigation | 0.62 | 24.1 × 3.8 × 23.1 |
❓ FAQ – Frequently Asked Questions (Q&A)
Q1: What is the purpose of the 3500/22M 161580-01 module?
A1: It serves as the communication gateway between the 3500 monitoring rack and external systems like SCADA, DCS, and monitoring software.
Q2: Can it be configured remotely?
A2: Yes, it supports full remote configuration via a web browser.
Q3: Does the module support redundant communication?
A3: Yes, its dual Ethernet ports allow for redundancy and automatic failover.
Q4: What kind of data can it transmit?
A4: It transmits static and dynamic data including vibration, speed, temperature, alarms, and system health status.
Q5: Is the module compatible with all 3500 racks?
A5: Yes, it is fully compatible with all standard 3500 Series rack systems.
Q6: How much does the module weigh?
A6: It weighs approximately 0.45 kg.
Q7: Can the firmware be upgraded?
A7: Yes, the module supports remote firmware updates via Ethernet.
Q8: Is it hot-swappable?
A8: No, the rack should be powered down before inserting or removing the module.
Q9: What protocols are supported for data transfer?
A9: It supports Modbus TCP/IP, HTTP for configuration, and proprietary TCP.
Q10: What environments can it operate in?
A10: It is rated for -30°C to +65°C with up to 95% non-condensing humidity.
