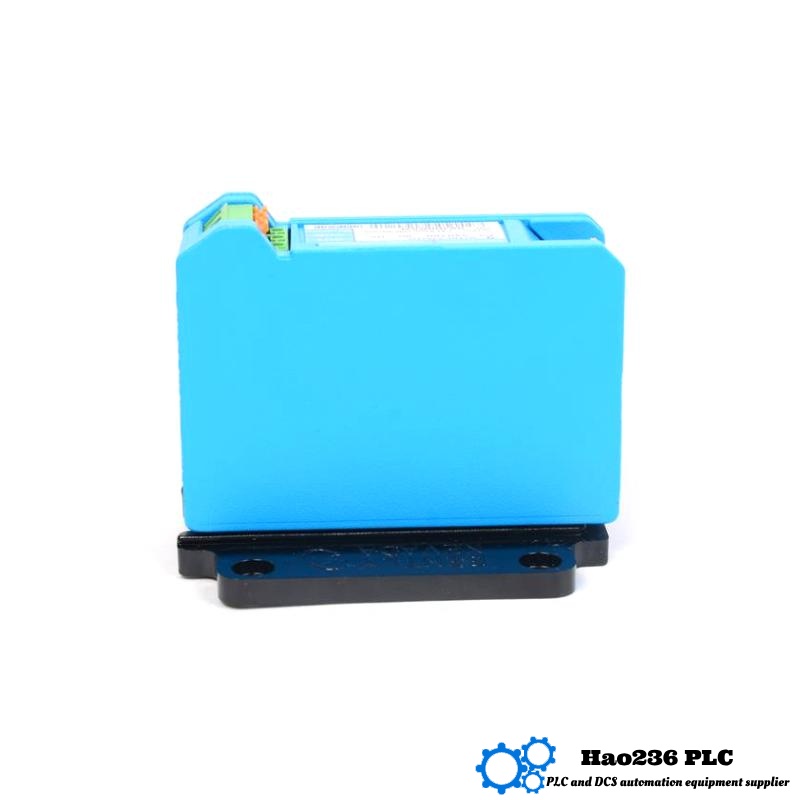

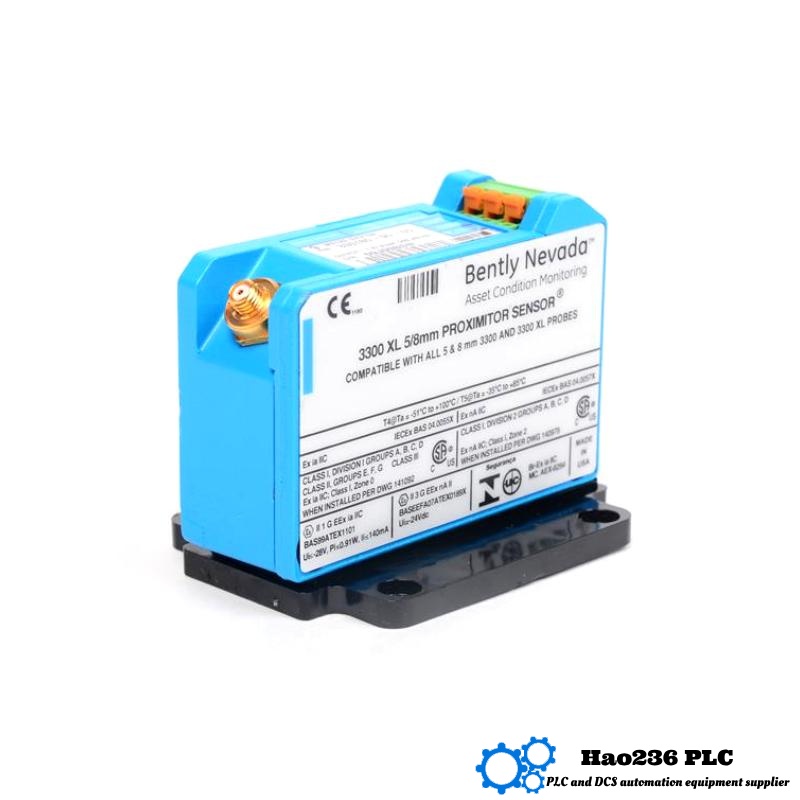

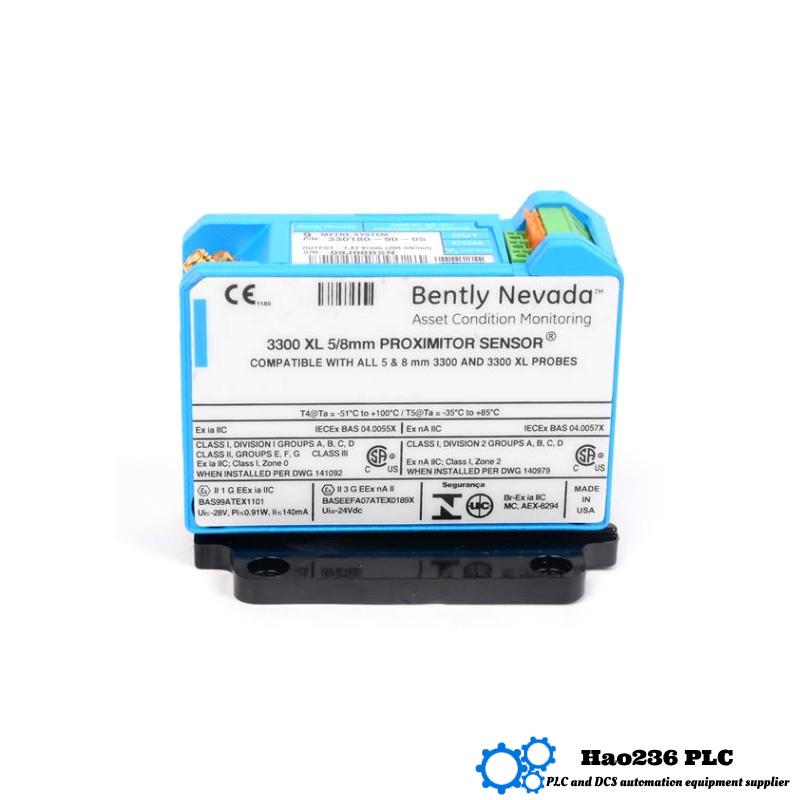

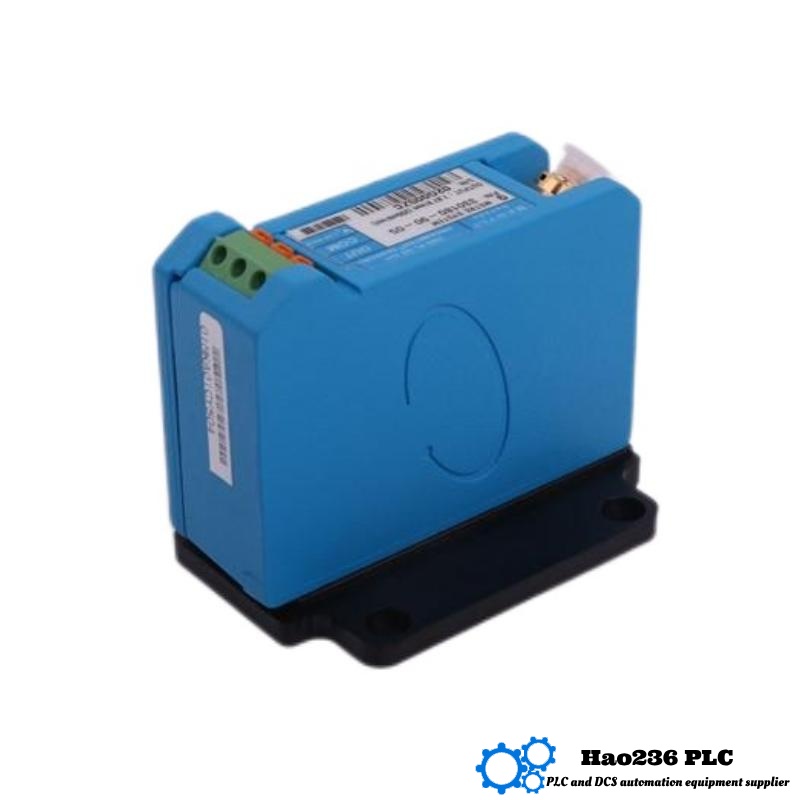

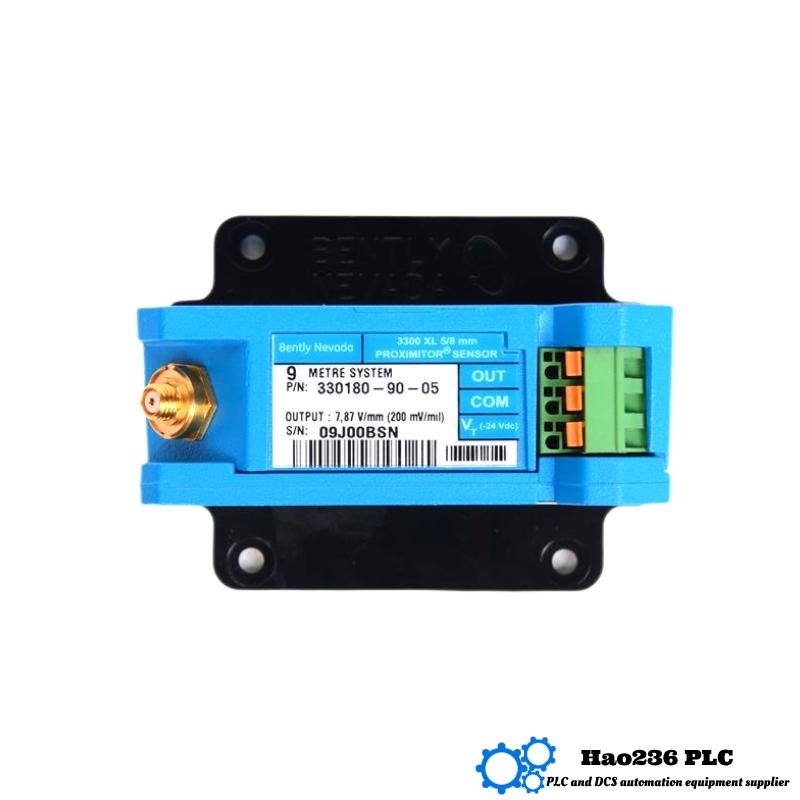

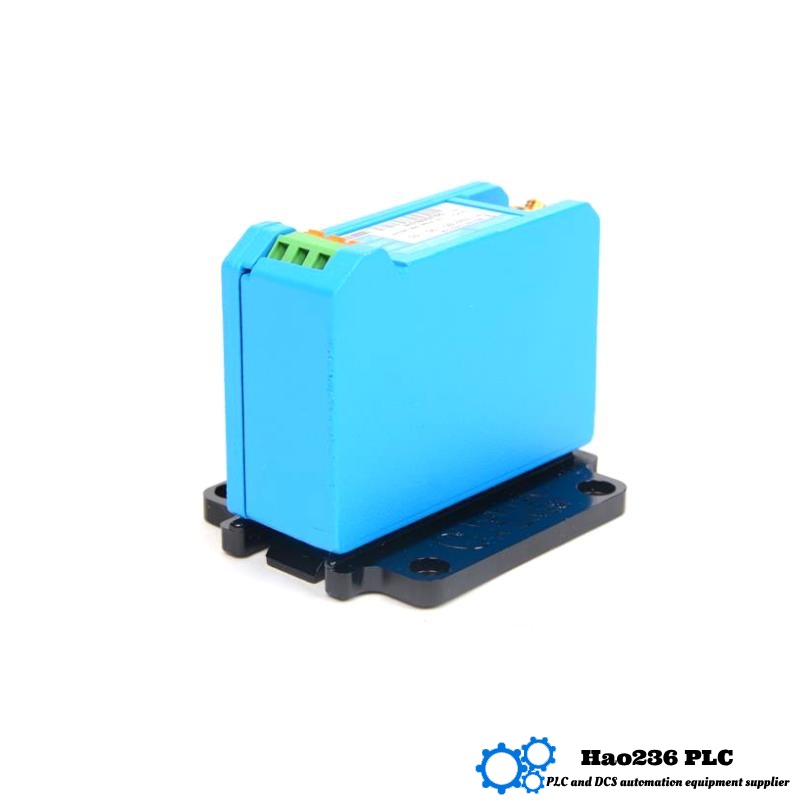

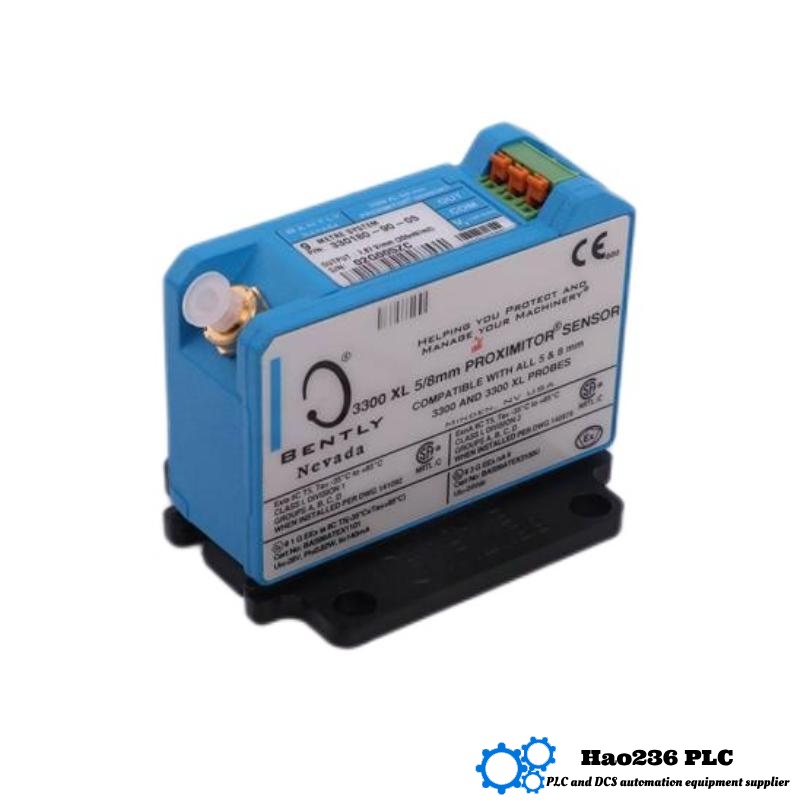

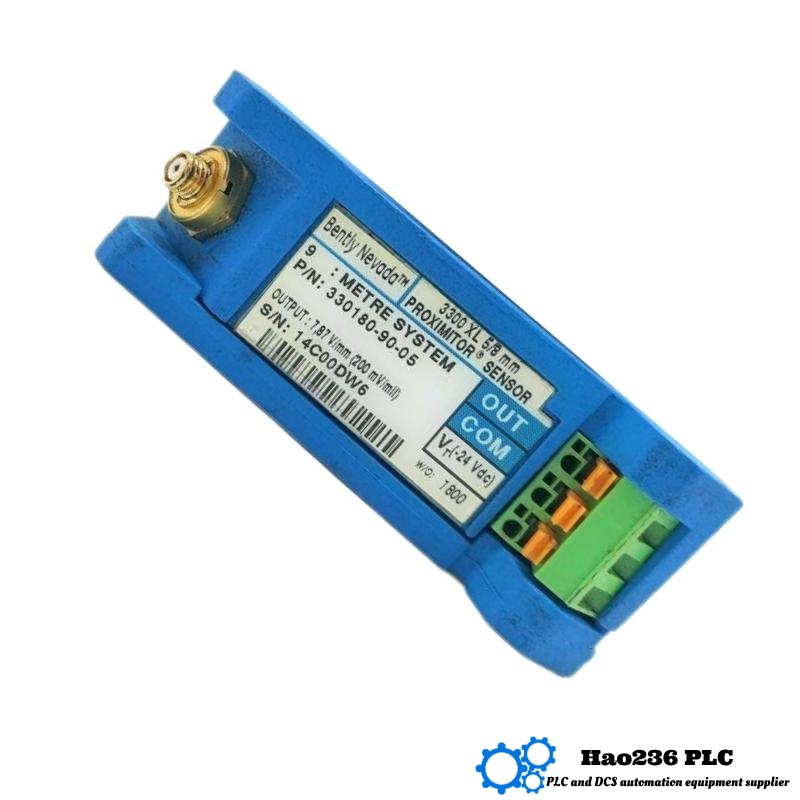

Product Overview: Bently Nevada 330180‑90‑05
Brand & Series
-
Brand: Bently Nevada
-
Series: 3300 XL Proximitor Sensor / Proximity Transducer System (5/8 mm probe compatibility)
Product Introduction
The 330180‑90‑05 is a Proximitor Sensor module in the Bently Nevada 3300 XL family. It is designed for measuring static (position) and dynamic (vibration) displacement with high precision in industrial rotating machinery. It accepts non‑contacting probes (5 mm or 8 mm, including 8 mm XL), and extension cables.
The “90” in its part number indicates a total system length of 9.0 metres with panel‑mounting option. The “05” suffix signifies that this unit carries multiple agency approvals (CSA, ATEX, IECEx).
It’s meant for environments where both vibration monitoring and position monitoring are needed, especially in fluid film bearing machines, compressors, turbines, etc.
Specifications
Here are the technical specifications, including dimensions and weight:
| Parameter | Specification |
|---|---|
| Model | 330180‑90‑05 |
| Series | 3300 XL Proximitor Sensor |
| Sensor Type | Proximity (non‑contact displacement & vibration transducer) |
| Probe Compatibility | 5 mm probe; 8 mm probe; 8 mm XL probe + extension cable |
| Total System Length | 9.0 meters (29.5 feet) |
| Mounting Option | Panel mount |
| Temperature – Operating | −51 °C to +100 °C |
| Temperature – Storage | −51 °C to +105 °C |
| Output Scale Factor (Sensitivity) | 7.87 V/mm (200 mV/mil) |
| Output Linearity | Within ~0.02 mm over calibrated range (system) (includes probe, cable, sensor) |
| Frequency Response | DC to 10 kHz |
| Power Supply | Typically −24 Vdc, ~12 mA consumption (with non‑incendive circuit) |
| Material / Enclosure | A308 aluminum body; panel‑mount design |
| Dimensions | Approx. 7.9 cm × 6.2 cm × 6.3 cm |
| Weight | Approx. 0.25 kg |
Applications
-
Monitoring vibration and static position in fluid‑film bearing machines (e.g., turbines, compressors, large pumps)
-
Speed measurement / Keyphasor signal generation
-
Machinery protection systems and condition monitoring regimes
-
Environments requiring explosion hazardous approvals (with the 05 suffix)
-
Retrofit or upgrade of older 3300 / Proximitor systems to the XL standard
Advantages
-
Extended system length of 9.0 meters supports flexible installation layouts
-
Multiple agency approvals (CSA, ATEX, IECEx) make it suitable for hazardous area installations
-
Complete interchangeability of sensor module, probes, extension cables across standard and XL components
-
High sensitivity and good linearity ensure accurate displacement/vibration readings
-
Wide operating temperature range, suitable for many industrial climates
-
Robust construction (aluminum body, proven design) for durability in harsh industrial conditions
Related Models: Same Series or Very Close Ones
Here are 5 comparable models in the same 3300 XL family or highly related, with key parameters, for comparison or substitution.
| Model | Key Specs / Differences | Weight |
|---|---|---|
| 330180‑90‑00 | 9.0 m system, panel mount, same probe compatibility, but without the multiple hazard approvals (05 suffix) | ~0.246 kg |
| 330180‑50‑05 | 5.0 m system, panel mount, same approvals (CSA/ATEX/IECEx), same probe compatibility | ~0.2‑0.3 kg |
| 330180‑51‑05 | 5.0 m or alternative mounting (e.g. DIN), same probe compatibility, same hazardous approvals | similar weight ~0.25 kg |
| 330780‑51‑05 | 11 mm probe / larger linear range, for larger gaps or thrust/axial displacement applications | ~0.4‑0.5 kg |
| 330780‑52‑00 | 11 mm probe, extended mechanical / thermal resilience; suited where larger movements happen | ~0.5 kg |
Popular Models from Same Brand (Bently Nevada)
Here are 5 popular or frequently used models across Bently Nevada (beyond just the exact 330180‑90‑05):
| Model | Use Case / Highlights | Weight |
|---|---|---|
| 330100‑90‑00 | Standard proximitor sensor, 9.0 m, non‑hazard version; widely used in basic vibration/position monitoring | ~0.25 kg |
| 330180‑90‑00 | Same mechanical specs as 330180‑90‑05 but without hazard approvals; good choice where approvals are not required | ~0.246 kg |
| 330180‑51‑05 | Shorter length (5.0 m) with hazardous approvals for confined installations | ~0.25 kg |
| 330901‑00‑XX | Probe / extension cable / accessory set; often used for replacement of probe portions where sensor body remains | ~0.2‑0.3 kg depending on probe cable combination |
| 330780‑X1‑CN | Large‑gap 11 mm probe version, higher temperature / more strenuous applications | ~0.45 kg |
FAQs (10 Questions & Answers)
Here are 10 common technical questions & answers about the 330180‑90‑05.
Q1: Does 330180‑90‑05 require separate certification to be used in hazardous environments?
A1: No extra certification is required since the “05” suffix indicates it includes multiple agency approvals (CSA, ATEX, IECEx). That makes it compliant for many hazardous area installations.
Q2: If I already have a 3300 XL probe and extension cable, will they work with this model?
A2: Yes. It is fully compatible with 3300 standard 5 mm and 8 mm probes, as well as 8 mm XL probes and extension cables.
Q3: What is the typical step response / frequency bandwidth?
A3: It supports a frequency response from DC (static) up to about 10 kHz, which covers most vibration monitoring needs for rotating machinery.
Q4: How accurate is the output? Can I trust the linearity?
A4: When calibrated as a full system (probe + cable + sensor), linearity is very good (on the order of ~0.02 mm of deviation over the calibrated range). Including interchangeability deviations, the error grows but remains acceptable for most monitoring applications.
Q5: What is the effect of operating temperature extremes?
A5: Within its operating range (approx. ‑51 °C to +100 °C), output drift is limited. Outside that, drift increases — care should be taken in hot or cold ambient conditions, especially for long‑term signal stability.
Q6: What power supply voltage is required, and what happens if voltage is marginal?
A6: It typically requires around −24 Vdc (with non‑incendive circuit). If voltage is closer to the lower bound, the linear range can suffer; sensitivity may drop or become nonlinear near ends of range.
Q7: Is this model discontinued?
A7: Many suppliers mark it as “discontinued by manufacturer”, though inventory remains available in many channels. If planning long‑term maintenance, consider stock or alternate replacement models.
Q8: What is the typical probe‑target gap, and what happens if gap is too large or too small?
A8: A common gap is ~1.27 mm (50 mils). If gap bigger than design, sensitivity reduces, signal weaker, linear range might be shorter; if too small, risk that probe might hit target, also increased nonlinearity or damage.
Q9: What is the weight and size for purposes of mounting and enclosure design?
A9: Approx. 7.9 cm × 6.2 cm × 6.3 cm; weight ~0.25 kg. Should be accounted for when designing panel cutouts or mounting brackets.
Q10: What failure modes are common, what to watch out for in field use?
A10: Some common issues: loose connectors, damaged or corroded probe tips or extension cable, power supply fluctuation, environmental contamination (oil, moisture), vibration or shock beyond design limits, misalignment or incorrect gap setup, insufficient cooling or ventilation around the sensor body.
