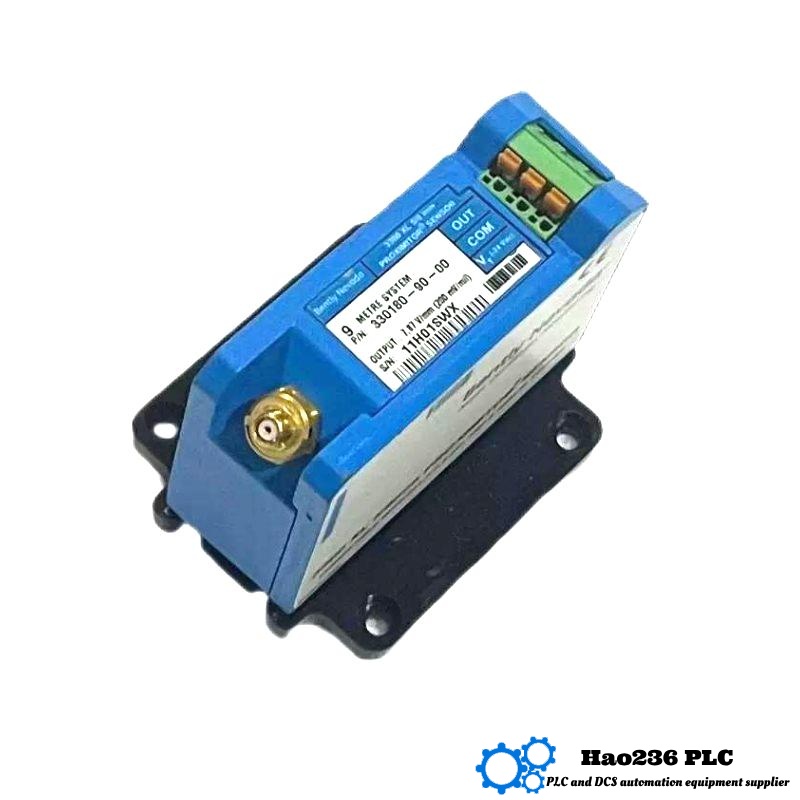

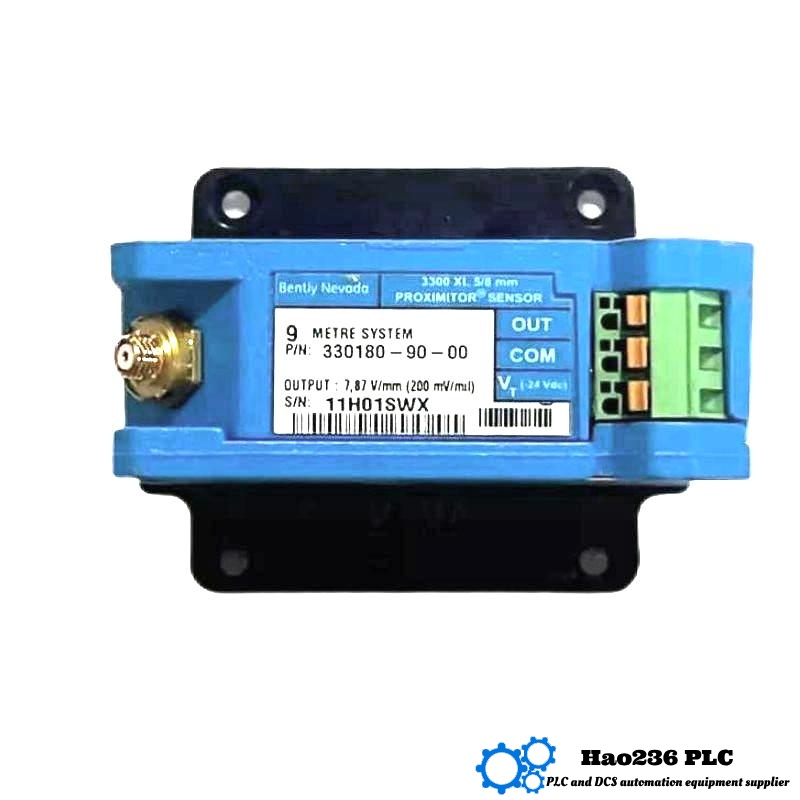

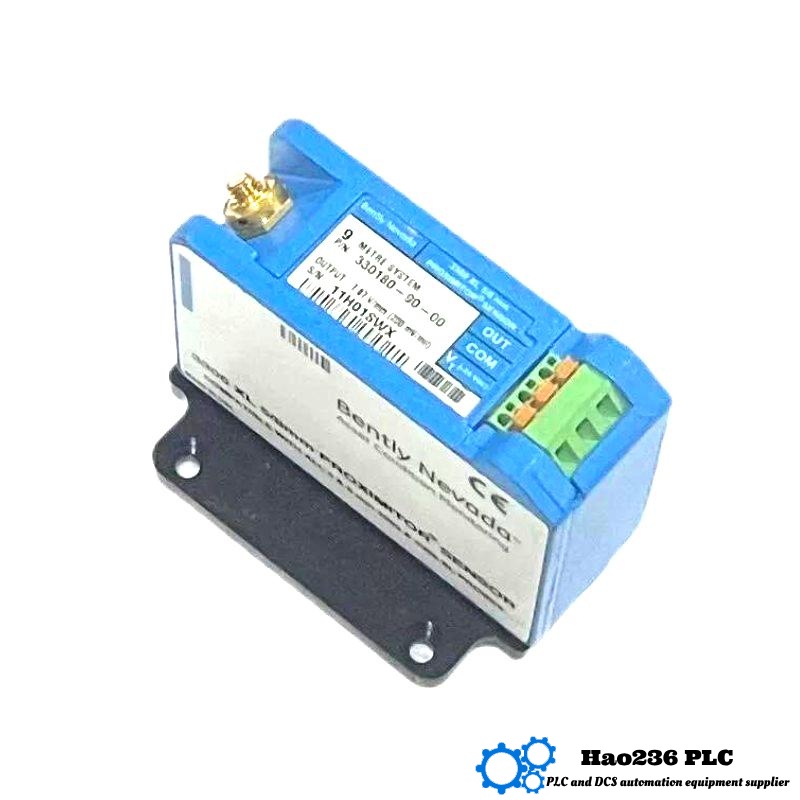

📘 Product Overview: Bently Nevada 330180-90-00
The 330180-90-00 is part of the 3300 XL Proximitor Sensor series from Bently Nevada, a high-precision vibration and position measurement solution used in critical rotating machinery. It’s engineered to monitor both static and dynamic motion (e.g., shaft vibration, position, speed, and Keyphasor signals) in machines with fluid-film bearings like turbines, compressors, and pumps.
This model is designed to be used with 3300 XL probes and extension cables to form a complete proximity transducer system. It features a system length of 9.0 meters, panel mount configuration, and voltage output proportional to the distance between the probe tip and the target.
🧾 Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330180-90-00 |
| Series | 3300 XL Proximitor Sensor |
| Sensor Type | Proximity (Non-contact displacement and vibration measurement) |
| System Length | 9.0 meters |
| Mounting Style | Panel mount |
| Compatible Probes | 5 mm, 8 mm, and 8 mm XL probes |
| Extension Cable Compatibility | Fully compatible with XL extension cables |
| Output Type | Voltage (linear proportional to distance) |
| Scale Factor (Sensitivity) | 7.87 V/mm |
| Power Supply | Typically –24 Vdc |
| Target Material for Calibration | AISI 4140 Steel (standard) |
| Environmental Resistance | Designed for industrial applications |
| Weight | Approx. 0.246 kg |
| Shipping Weight | Up to 2.0 kg including packaging |
| Typical Gap Setting | ~1.27 mm (50 mils) |
🌍 Applications
-
Rotating machinery monitoring: Turbines, compressors, pumps, and motors
-
Fluid-film bearing machinery: Measures shaft radial vibration and axial position
-
Keyphasor signal generation
-
Speed and eccentricity monitoring
-
Machine protection systems
-
Condition monitoring in harsh industrial environments
🏆 Product Advantages
-
True component interchangeability across 5 mm and 8 mm XL probe systems
-
Long system cable length (9.0 meters) supports flexible installation
-
Panel mount + DIN-rail compatibility, suitable for retrofit and new installations
-
Stable scale factor output (7.87 V/mm) for reliable displacement readings
-
Backwards compatibility with older 3300 systems
-
Highly durable for industrial conditions
-
No special agency approvals required, simplifying procurement and installation
📊 Comparable Models in the Same Series (3300 XL)
| Model | Description | Key Differences | Weight |
|---|---|---|---|
| 330180-50-00 | 5.0m system, panel mount | Shorter system length | Approx. 0.22 kg |
| 330180-91-05 | 9.0m system, DIN-rail mount | Alternative mounting style | ~0.25 kg |
| 330780-51-05 | 11mm system, large linear range | Designed for axial/thrust monitoring | ~0.4–0.5 kg |
| 330780-52-00 | 11mm proximity sensor | High-temp, long-range detection | ~0.5 kg |
| 330180-12-05 | 9.0m, panel mount | Alternative probe compatibility | ~0.24 kg |
📈 Top 5 Popular Models from Bently Nevada
| Model | Series / Use Case | Description | Weight |
|---|---|---|---|
| 330100-90-00 | 3300 Series | Standard Proximitor module, 9.0m system | ~0.25 kg |
| 330780-X1-CN | 3300 XL, 11mm | Extended range for axial positioning | ~0.4–0.5 kg |
| 330180-51-05/CN/00 | 3300 XL | Precision proximity sensor | ~0.24 kg |
| 330901-00-XX | NSv Probe Series | For narrow-gap and sensitive installations | ~0.20–0.24 kg |
| 330180-12-05 | 3300 XL | Standard probe system, 9m length | ~0.24 kg |
❓ Frequently Asked Questions (FAQ)
Q1: Is the 330180-90-00 still in production?
A1: While some sources list it as discontinued, it is widely available through aftermarket and industrial suppliers. It’s still a staple in many facilities due to its compatibility and reliability.
Q2: Can I use older 3300 series probes with this module?
A2: Yes. It is compatible with both legacy and XL versions of 5 mm and 8 mm probes and extension cables. However, performance is optimized with XL components.
Q3: What is the output signal of this sensor?
A3: The sensor outputs a linear voltage signal proportional to the gap between the probe and the target. Typical sensitivity is 7.87 V/mm.
Q4: What material should the target be made of?
A4: The system is calibrated for AISI 4140 steel. Using other materials may affect linearity and sensitivity.
Q5: Can it be used in high-temperature environments?
A5: Yes, but within industrial temperature ranges. For extremely high temperatures, consider the 330780 series or sensors with extended temperature certifications.
Q6: What is the recommended probe gap setting?
A6: Around 1.27 mm (50 mils) is typical. Incorrect gaps can cause signal saturation or nonlinear outputs.
Q7: Does it support Keyphasor signal generation?
A7: Yes. It is often used in setups that require Keyphasor signals for shaft phase or speed reference.
Q8: What happens if I use a non-standard target material?
A8: Output voltage may deviate from expected values, affecting measurement accuracy. Always validate against calibration standards.
Q9: Does this sensor require agency certifications like ATEX or CSA?
A9: No, this specific model does not require additional agency approvals. It simplifies installation in non-hazardous zones.
Q10: What are common failure points in this system?
A10:
-
Loose probe or extension cable connections
-
Incorrect gap settings
-
Power supply issues
-
Electromagnetic interference (EMI)
-
Surface corrosion on target
-
Improper shielding or grounding
Routine maintenance and inspections can mitigate these issues.
