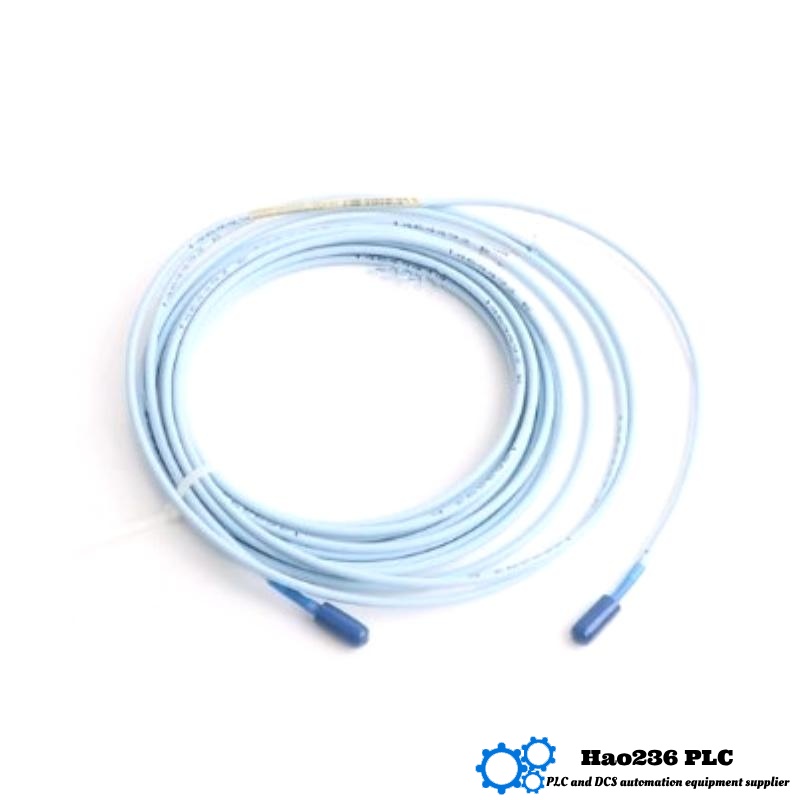

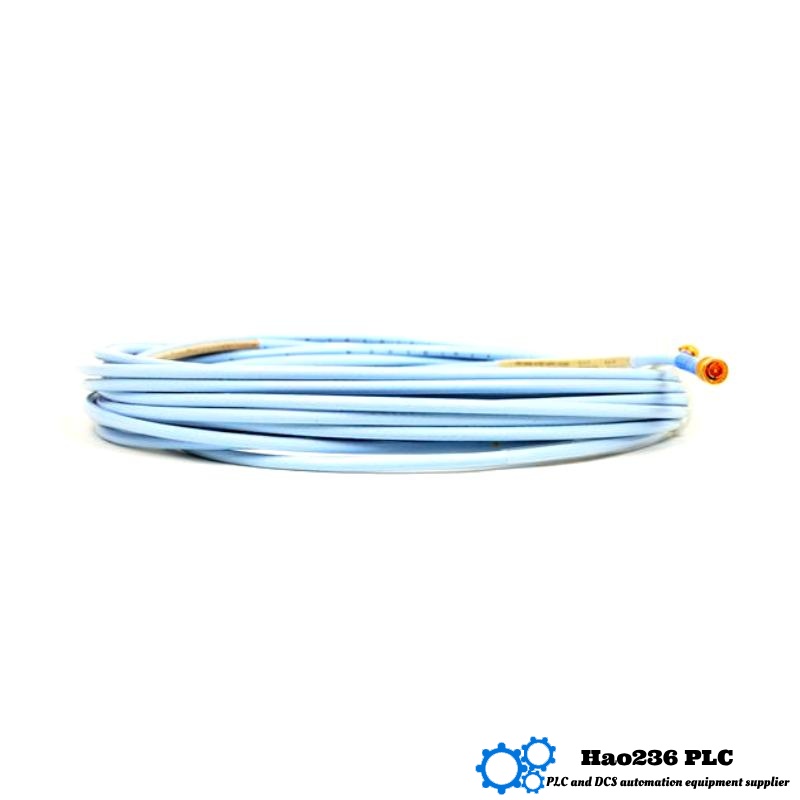

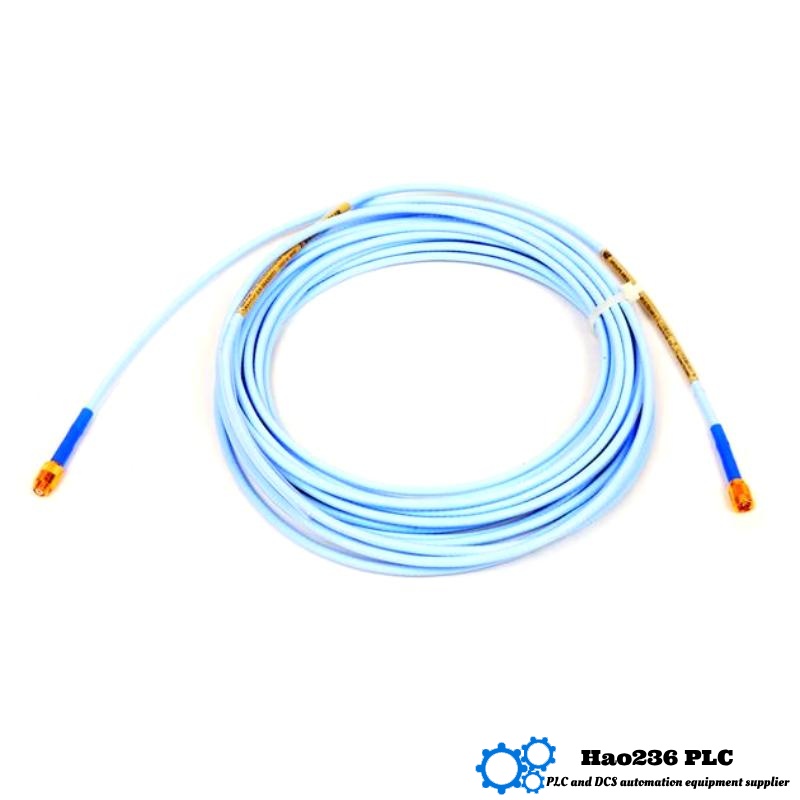

📘 Product Overview: Bently Nevada 330130-045-02-05
The 330130-045-02-05 is a proximity extension cable used in non-contact vibration and position measurement systems. It is part of the 3300 XL Series, which includes probes, extension cables, and Proximitor sensors. This specific model features a 45-foot length, high-integrity coaxial shielding, and a ClickLoc™ connector designed for secure, vibration-resistant installation.
This extension cable is engineered to transmit analog signals from the probe to the Proximitor sensor without introducing signal degradation or electromagnetic interference. Its durable construction and precise impedance matching make it ideal for long-distance cable routing in harsh industrial environments, including power plants, refineries, and manufacturing facilities.
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330130-045-02-05 |
| Cable Type | Coaxial Extension Cable |
| Series | 3300 XL Series |
| Cable Length | 45 feet (13.72 meters) |
| Cable Diameter | 4.2 mm (nominal) |
| Connector Type (Probe End) | Miniature coaxial with ClickLoc™ |
| Connector Type (Sensor End) | Coaxial bayonet-style |
| Impedance | 95 Ohms (nominal) |
| Capacitance | <30 pF/ft |
| Temperature Range | -51°C to +177°C |
| Voltage Rating | Up to 30 VDC |
| Cable Jacket Material | Fluoropolymer |
| Shielding | Braided copper shield |
| Compliance | RoHS, CE compliant |
| Use Case | Connects probe to Proximitor sensor |
| Dimensions (L×W×H) | 13720 mm × 4.2 mm × 4.2 mm |
| Weight (kg) | 0.48 kg |
🏭 Applications
-
Gas and Steam Turbines
Extends reach from probe to monitoring cabinet in large rotating machines. -
Compressors and Pumps
Suitable for mounting sensors away from heat or vibration sources. -
Industrial Motors and Generators
Helps in isolating signal paths from electrical noise zones. -
Gearboxes and Blowers
Facilitates routing through complex machine geometries. -
Critical Machinery Installations
Used in systems where cable integrity is essential for reliable data.
🌟 Product Advantages
-
Extended Reach
The 45-foot length is ideal for installations where long-distance cable routing is necessary. -
Signal Integrity
Maintains high signal quality and consistent impedance for accurate measurements. -
ClickLoc™ Security
Vibration-resistant connector prevents disconnection and signal loss. -
High-Temperature Durability
Operates reliably in extreme temperatures up to +177°C. -
Robust Jacket and Shielding
Fluoropolymer coating with braided shielding offers superior environmental protection. -
Flexible Routing
Compact diameter allows for easy installation in tight or curved conduits. -
Compatible System Integration
Fully interoperable with Bently Nevada 3300 XL probes and Proximitor sensors.
🏷️ Brand Information
-
Brand: Bently Nevada
-
Core Expertise: Machinery protection and condition monitoring
-
Reputation: Trusted worldwide for industrial reliability and sensor performance
📂 Series Description
-
Series: 3300 XL Series
-
Includes: Proximity probes, extension cables, Proximitor sensors
-
Design Focus: High linearity, EMI resistance, and extreme environmental durability
-
Primary Function: Non-contact vibration and position sensing in rotating machinery
-
Key Strength: Modular, field-serviceable components for flexible installation
🔁 Recommended Related Models (Same Series or Compatible)
| Model | Type | Length | Connector Type | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-045-02-05 | Extension Cable | 45 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.48 |
| 330130-025-02-05 | Extension Cable | 25 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.38 |
| 330130-015-02-05 | Extension Cable | 15 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.31 |
| 330130-010-02-05 | Extension Cable | 10 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.28 |
| 330130-060-02-05 | Extension Cable | 60 ft | ClickLoc™ + Bayonet | -51°C to +177°C | 0.54 |
🔝 Popular Models from the Same Brand
| Model | Type | Length / Size | Application Use | Temp Range | Weight (kg) |
|---|---|---|---|---|---|
| 330130-045-02-05 | Extension Cable | 45 ft | General industrial use | -51°C to +177°C | 0.48 |
| 330105-02-12-10-02-05 | Proximity Probe | 305 mm | Vibration/position sensing | -51°C to +177°C | 0.26 |
| 330106-05-30-10-02-05 | Proximity Probe | 762 mm | Large machinery | -51°C to +177°C | 0.38 |
| 330500-02-00 | Proximitor Sensor | – | Signal processing | – | 0.30 |
| 3500/42M | Vibration Monitoring Card | – | System diagnostics | – | 1.20 |
❓ Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the 330130-045-02-05 cable?
A1: It extends the signal path between a proximity probe and a Proximitor sensor, allowing for flexible installation and improved accessibility.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, it supports continuous operation at temperatures up to +177°C.
Q3: What makes the ClickLoc™ connector special?
A3: It provides a secure, vibration-resistant connection that prevents signal loss or accidental disconnection.
Q4: Is the cable shielded against electrical noise?
A4: Yes, it includes a braided copper shield to minimize electromagnetic interference.
Q5: Can I route this cable in tight bends or narrow pathways?
A5: Absolutely. Its flexible diameter and robust jacket allow for easy routing in confined spaces.
Q6: Is this cable compatible with all 3300 XL series probes and sensors?
A6: Yes, it is designed specifically to integrate with the 3300 XL Proximity Transducer System.
Q7: Does this cable require calibration?
A7: No, it is factory-tested and does not require field calibration.
Q8: What happens if the cable is too long?
A8: Using a cable that exceeds recommended lengths can lead to signal attenuation or phase delay. Always match with proper system design.
Q9: What’s the difference between “02-05” and other connector codes?
A9: “02-05” refers to the connector style and field orientation for specific routing preferences.
Q10: Can this cable be used outdoors?
A10: While the jacket is durable, for outdoor or wet environments, additional protection such as conduit is recommended.
