- Bently Nevada
- 330106-05-30-10-02-05

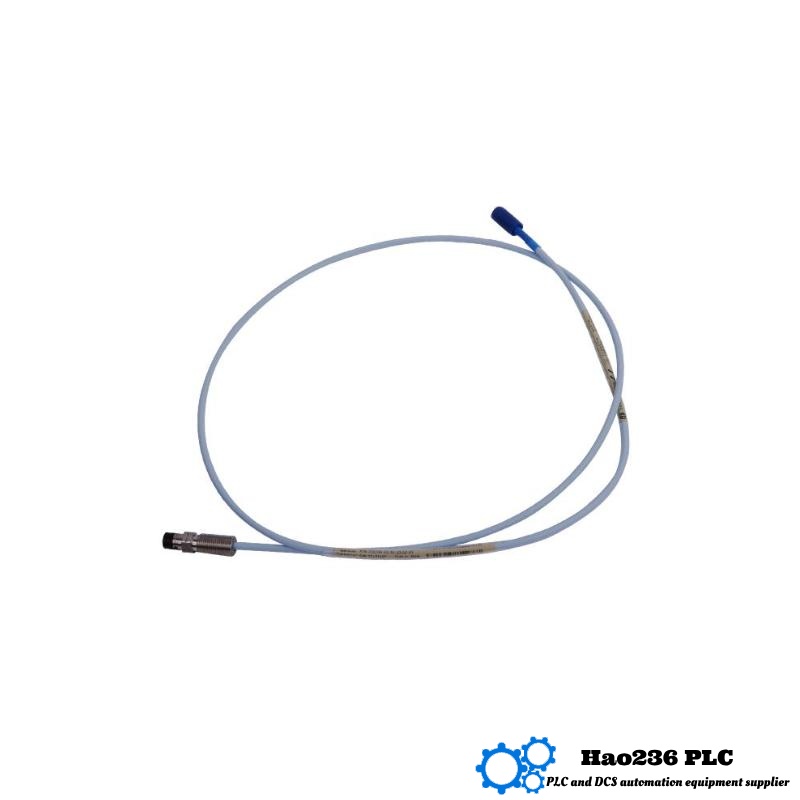

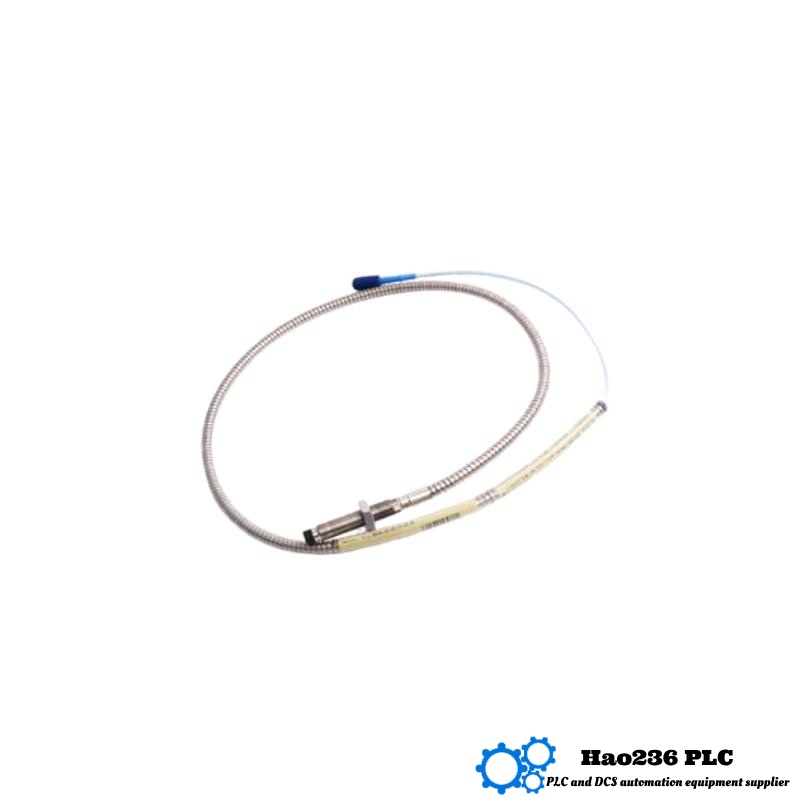

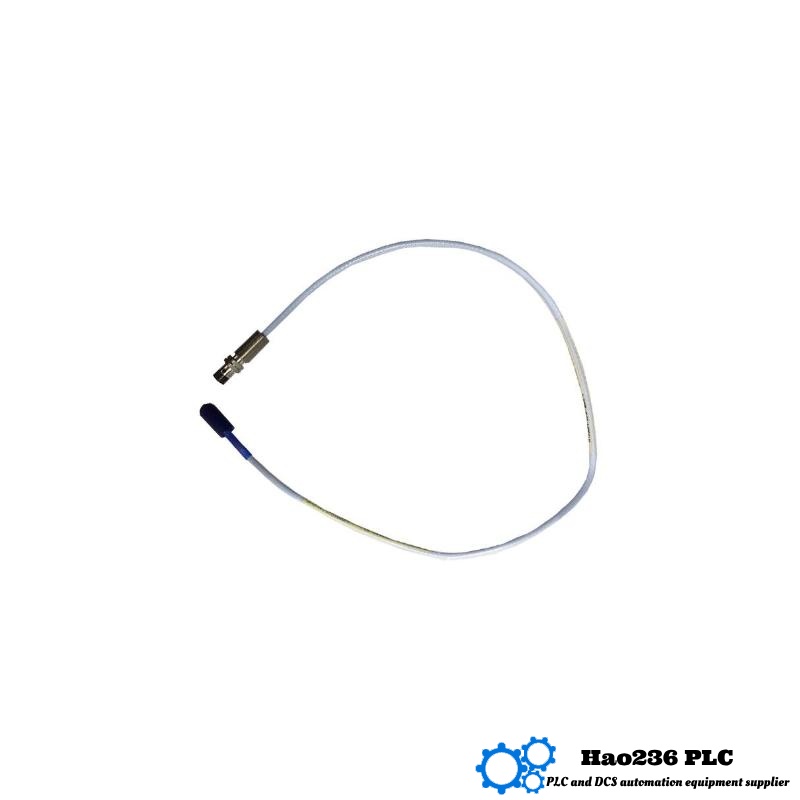

- 3300 XL 8MM Proximity Sensor Probe Reverse Mount Probe
- Sweden
- 762 mm
- 0.38kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 45
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
📘 Product Overview: Bently Nevada 330106-05-30-10-02-05
The 330106-05-30-10-02-05 proximity probe is a rugged, precision-engineered eddy current sensor designed to monitor the vibration and axial position of rotating machinery. It is part of the trusted 3300 XL Series, which is known for providing high accuracy, long-term stability, and robust performance in extreme industrial environments.
This particular model features an 8 mm probe tip, a 30-inch (762 mm) probe length, and a 10-foot extension cable, making it suitable for installations where deeper insertion or longer reach is required. The connector configuration designated by “05” ensures compatibility with field routing preferences and installation flexibility.
This probe is ideal for use in critical assets such as large turbines, compressors, and high-speed equipment where accurate shaft monitoring is essential for safety and operational efficiency.
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330106-05-30-10-02-05 |
| Probe Type | Eddy Current Proximity Probe |
| Series | 3300 XL Series |
| Probe Tip Diameter | 8 mm |
| Thread Type | 1/2-20 UNF |
| Probe Length | 762 mm (30 inches) |
| Cable Length | 3.0 m (10 feet) |
| Connector Type | ClickLoc™ Coaxial Connector |
| Connector Code | 05 (field-specific orientation) |
| Sensing Range | 2 mm nominal |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -51°C to +177°C |
| Pressure Rating | Up to 2000 psi |
| Vibration Limit | 50 g peak |
| Insulation Resistance | >10 MΩ |
| Compliance Certifications | CE, RoHS compliant |
| Probe Housing Material | Stainless Steel |
| Cable Jacket Material | Teflon or Polyethylene |
| Dimensions (L×W×H) | 762 mm × 8 mm × 8 mm |
| Weight (kg) | 0.38 kg |
🏭 Typical Applications
-
Gas and Steam Turbines
Shaft vibration and axial thrust measurement under high load conditions. -
Large Centrifugal Compressors
Accurate rotor movement tracking to prevent contact or rub events. -
Electric Generators and Motors
Vibration and position monitoring to maintain operational efficiency. -
Industrial Gearboxes
Supports diagnostics for gear wear, misalignment, and imbalance. -
Critical High-Speed Equipment
Designed for continuous monitoring in safety-critical assets.
🌟 Key Advantages
-
Extended Reach Design
With a 30-inch probe length, this model is ideal for deep housing or large machine designs. -
Robust Industrial Build
Stainless steel body and sealed construction make it suitable for high-pressure and high-vibration environments. -
Accurate Non-Contact Sensing
Eddy current technology ensures precise vibration and displacement measurements without physical contact. -
Excellent Thermal Stability
Reliable operation across a wide temperature range for both hot and cold environments. -
Easy Field Integration
The “05” configuration provides flexible mounting options, ensuring smoother installation in confined setups. -
Low Maintenance
Designed for long-term reliability with minimal calibration or servicing required. -
Secure Locking System
ClickLoc™ connector prevents accidental disconnections caused by vibration.
🏷️ Brand Information
-
Brand: Bently Nevada
-
Specialty: Condition monitoring, diagnostics, and protection for rotating assets.
-
Reputation: Known for reliability in harsh and critical industrial applications.
📂 Series Description
-
Series Name: 3300 XL Series
-
Type: Proximity Transducer System
-
Core Function: Measures shaft vibration, axial displacement, and rotor position
-
Performance: High linearity, rugged design, enhanced thermal and mechanical resilience
-
Compatibility: Fully integrates with Proximitor 3300 XL sensors and compatible monitoring systems
🔁 Recommended Models from Same Series
| Model | Probe Tip Size | Length | Thread Type | Temp Range | Frequency Range | Weight (kg) |
|---|---|---|---|---|---|---|
| 330106-05-30-10-02-05 | 8 mm | 762 mm | 1/2-20 UNF | -51°C to +177°C | DC to 10 kHz | 0.38 |
| 330106-05-18-10-02-05 | 8 mm | 457 mm | 1/2-20 UNF | -51°C to +177°C | DC to 10 kHz | 0.32 |
| 330106-05-12-10-02-05 | 8 mm | 305 mm | 1/2-20 UNF | -51°C to +177°C | DC to 10 kHz | 0.29 |
| 330105-02-12-10-02-05 | 5 mm | 305 mm | 3/8-24 UNF | -51°C to +177°C | DC to 10 kHz | 0.26 |
| 330104-00-06-10-02-05 | 5 mm | 152 mm | 1/4-28 UNF | -51°C to +177°C | DC to 10 kHz | 0.21 |
🔝 Other Popular Models from the Same Brand
| Model | Type | Cable Length | Tip Size | Frequency Range | Primary Use | Weight (kg) |
|---|---|---|---|---|---|---|
| 330106-05-30-10-02-05 | Proximity Probe | 3.0 m | 8 mm | DC to 10 kHz | Turbine and large machinery | 0.38 |
| 3500/42M | Vibration Monitor | – | – | – | Critical asset monitoring | 1.2 |
| 330500-02-00 | Proximitor Sensor | – | – | DC to 10 kHz | Compatible with 3300 XL probes | 0.30 |
| 330105-02-08-10-02-05 | Proximity Probe | 203 mm | 5 mm | DC to 10 kHz | Compact machinery | 0.23 |
| 330104-00-08-10-02-00 | Proximity Probe | 203 mm | 5 mm | DC to 10 kHz | Motors and pumps | 0.22 |
❓ Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 330106-05-30-10-02-05 probe?
A1: It measures shaft vibration and displacement in rotating machinery using non-contact eddy current technology.
Q2: Why choose an 8 mm probe over a 5 mm one?
A2: 8 mm probes offer a larger sensing area and are ideal for larger machinery or applications requiring greater measurement precision at longer distances.
Q3: What does “05” indicate in the model number?
A3: It refers to a specific connector orientation suited for field installation requirements.
Q4: Can I use this probe in high-pressure environments?
A4: Yes, it is rated for up to 2000 psi, making it suitable for sealed and pressurized systems.
Q5: Is the probe compatible with existing 3300 XL systems?
A5: Absolutely. It is designed for full compatibility with 3300 XL Proximitor sensors and extension cables.
Q6: What materials are used in its construction?
A6: The probe housing is made from stainless steel with a high-temperature resistant cable jacket.
Q7: Does the probe require frequent calibration?
A7: It is factory-calibrated and generally requires minimal recalibration if used in stable conditions.
Q8: Can this be used in horizontal or vertical installations?
A8: Yes, it is versatile and supports various mounting orientations depending on machine layout.
Q9: How secure is the connection?
A9: The ClickLoc™ connector design ensures a tight, vibration-resistant connection in industrial conditions.
