- Bently Nevada
- 330105-02-12-10-02-00
- 3300 XL 8MM Proximity Sensor Probe Reverse Mount Probe
- USA
- 305 mm
- 0.25kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 51
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |

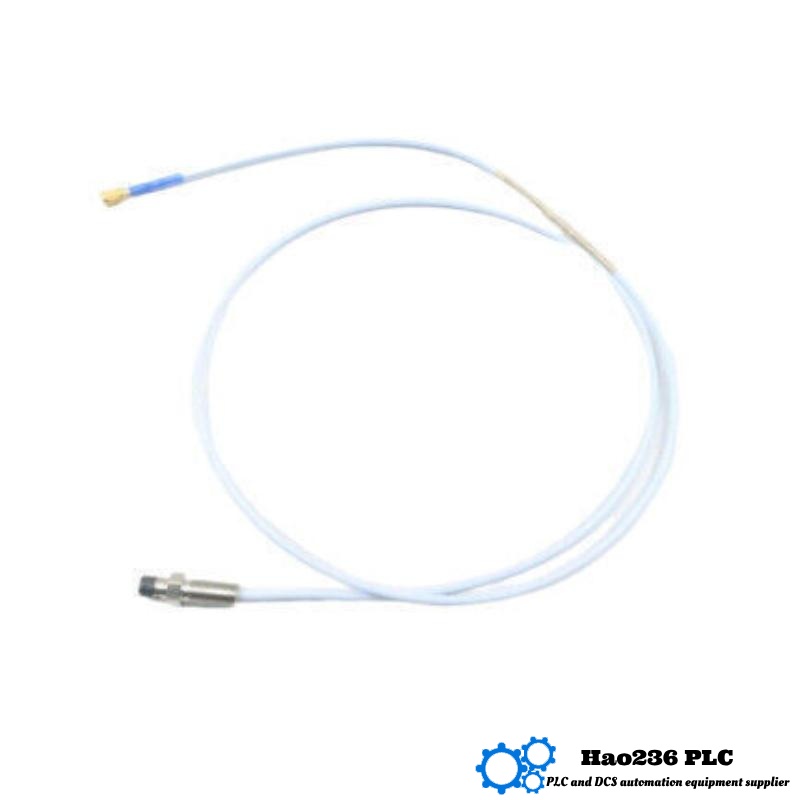

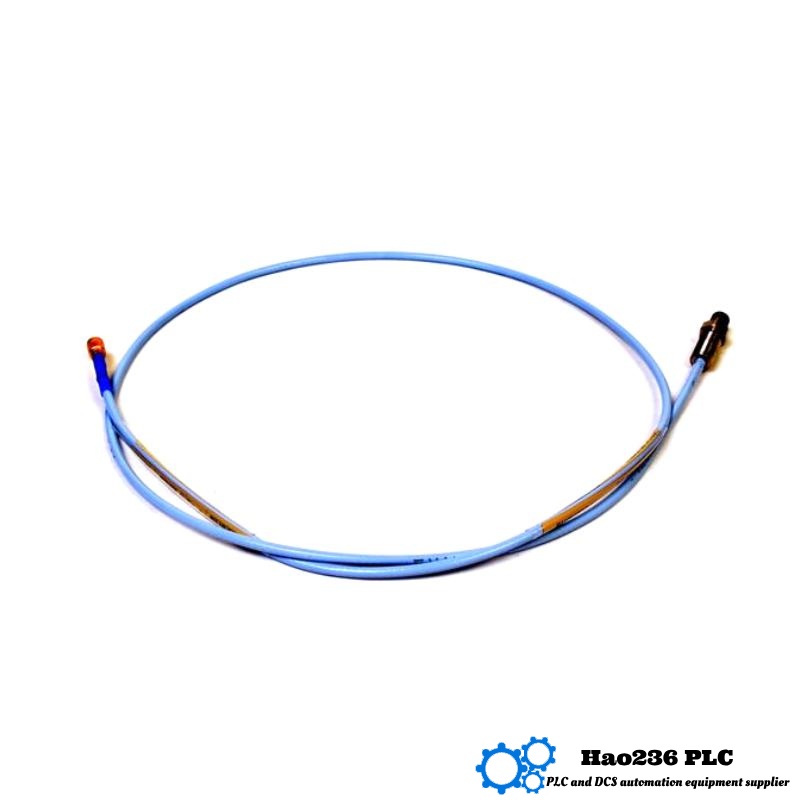

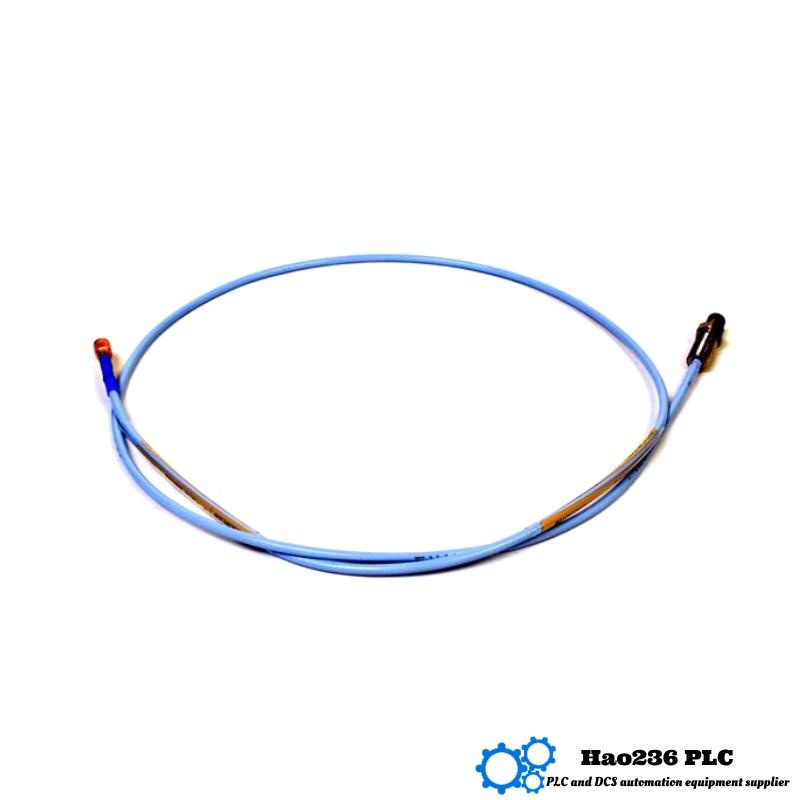

📘 Product Introduction: Bently Nevada 330105-02-12-10-02-00
The Bently Nevada 330105-02-12-10-02-00 is a high-performance proximity probe designed for precise non-contact vibration and position measurements. It belongs to the 3300 XL Series, known for its durability, reliability, and advanced signal processing capabilities. This model is engineered for applications in critical rotating machinery, ensuring real-time monitoring to prevent unexpected downtimes and optimize performance.
The 3300 XL probes are designed to meet the demanding conditions of industrial environments, with features that support excellent linearity, high-temperature tolerance, and superior mechanical robustness. The 330105-02-12-10-02-00 model, in particular, provides excellent frequency response and is commonly paired with compatible extension cables and Proximitor sensors for complete transducer systems.
🔍 Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330105-02-12-10-02-00 |
| Probe Type | Proximity Probe |
| Series | 3300 XL Series |
| Sensing Technology | Eddy Current (Non-contact) |
| Tip Diameter | 5 mm |
| Thread Size | 3/8-24 UNF |
| Length | 305 mm (12 inches) |
| Cable Type | Miniature coaxial cable |
| Cable Length | 10 feet (3.0 meters) |
| Connector Type | ClickLoc™ connector |
| Operating Temperature Range | -51°C to +177°C |
| Frequency Range | DC to 10 kHz |
| Linearity | ±0.25 mils |
| System Accuracy | ±5% of full scale |
| Pressure Rating | Up to 2000 psi |
| Compliance Standards | CE, RoHS compliant |
| Material | Stainless Steel (probe body) |
| Dimensions (L×W×H) | 305 mm × 5 mm × 5 mm |
| Weight (kg) | 0.25 kg |
🏭 Applications
-
Turbines (Gas/Steam)
-
Compressors
-
Pumps
-
Generators
-
Fans and Blowers
-
Motors with high-speed rotors
-
Gearboxes and couplings
These probes are ideal for machinery where accurate shaft vibration, axial thrust position, and rotor dynamics measurements are critical.
🌟 Product Advantages
-
High Precision: Offers excellent accuracy in both vibration and position measurements.
-
Robust Design: Built with rugged materials to endure harsh industrial environments.
-
Temperature Resistance: Operates efficiently under extreme temperatures, making it suitable for high-temperature applications.
-
Easy Integration: Compatible with Bently Nevada’s full monitoring systems and Proximitor sensors.
-
Reliable Performance: Minimal drift over time ensures long-term accuracy and reduced maintenance costs.
-
Secure Connection: Uses ClickLoc™ connector that resists loosening due to vibration.
-
Field Proven: Widely deployed in critical industrial applications around the world.
🏷️ Brand: Bently Nevada
-
Brand Specialty: Vibration monitoring and diagnostics systems for rotating machinery.
-
Known For: High-performance, long-lasting monitoring equipment with industrial reliability.
📂 Product Series
-
Series Name: 3300 XL Series
-
Focus: Proximity transducer systems for vibration and position measurement
-
Compatibility: Integrates with Proximitor 3300 XL and monitoring systems
🔁 Recommended Related Models (Same Series or Similar)
| Model | Probe Tip Size | Length | Thread Size | Temperature Range | Frequency Range | Weight (kg) |
|---|---|---|---|---|---|---|
| 330105-02-12-10-02-00 | 5 mm | 305 mm | 3/8-24 UNF | -51°C to +177°C | DC to 10 kHz | 0.25 |
| 330105-02-18-10-02-00 | 5 mm | 457 mm | 3/8-24 UNF | -51°C to +177°C | DC to 10 kHz | 0.29 |
| 330105-02-08-10-02-00 | 5 mm | 203 mm | 3/8-24 UNF | -51°C to +177°C | DC to 10 kHz | 0.23 |
| 330106-05-30-10-02-00 | 8 mm | 762 mm | 1/2-20 UNF | -51°C to +177°C | DC to 10 kHz | 0.35 |
| 330104-00-06-10-02-00 | 5 mm | 152 mm | 1/4-28 UNF | -51°C to +177°C | DC to 10 kHz | 0.20 |
🔝 Top 5 Popular Models from Bently Nevada
| Model | Type | Cable Length | Tip Size | Frequency Range | Application Use | Weight (kg) |
|---|---|---|---|---|---|---|
| 330105-02-12-10-02-00 | Proximity Probe | 3.0 m | 5 mm | DC to 10 kHz | General rotating machinery | 0.25 |
| 330500-02-00 | Proximitor Sensor | – | – | DC to 10 kHz | Integrates with 3300 probes | 0.30 |
| 330104-00-08-10-02-00 | Proximity Probe | 2.4 m | 5 mm | DC to 10 kHz | High-speed motors | 0.22 |
| 3500/42M | Vibration Monitor | – | – | – | Advanced machinery monitoring | 1.2 |
| 330106-05-12-10-02-00 | Proximity Probe | 3.6 m | 8 mm | DC to 10 kHz | Large turbines and compressors | 0.34 |
❓ FAQ – Frequently Asked Questions
Q1: What does the part number 330105-02-12-10-02-00 indicate?
A1: This part number encodes specifications such as probe length (12 inches), cable length (10 feet), connector type, and other configuration options.
Q2: What is the typical application of this probe?
A2: It’s used in rotating machinery to measure shaft vibration and position without direct contact.
Q3: Is this probe compatible with other monitoring systems?
A3: It is specifically designed to be used with Bently Nevada Proximitor sensors and monitoring systems.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, it is rated for continuous operation in temperatures up to 177°C.
Q5: How is the probe connected to the system?
A5: The probe uses a ClickLoc™ coaxial connector for secure and reliable connections.
Q6: How do I determine if the probe is functioning properly?
A6: Monitoring output voltage and signal stability from the connected Proximitor can help determine probe condition.
Q7: Can this probe be used underwater or in high-pressure environments?
A7: Yes, it is rated up to 2000 psi, suitable for sealed systems and pressure conditions.
Q8: Is calibration required before installation?
A8: Factory-calibrated, but system calibration is recommended for optimal accuracy.
Q9: What materials are used in its construction?
A9: The probe body is constructed of corrosion-resistant stainless steel.
Q10: Can I replace the probe without replacing the entire transducer system?
A10: Yes, the probe can be replaced individually if it matches the configuration of the system.
