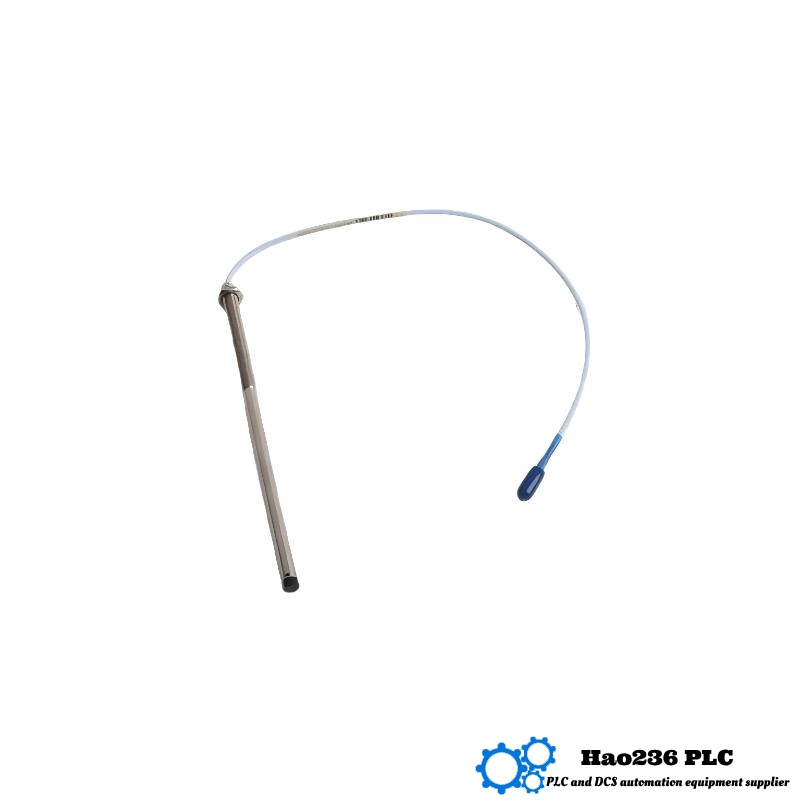

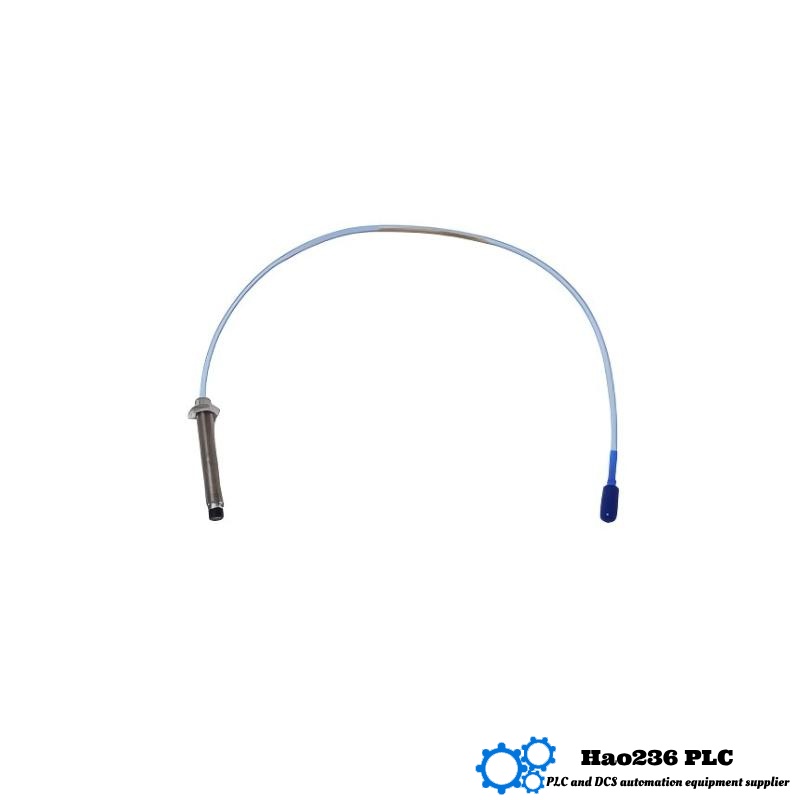

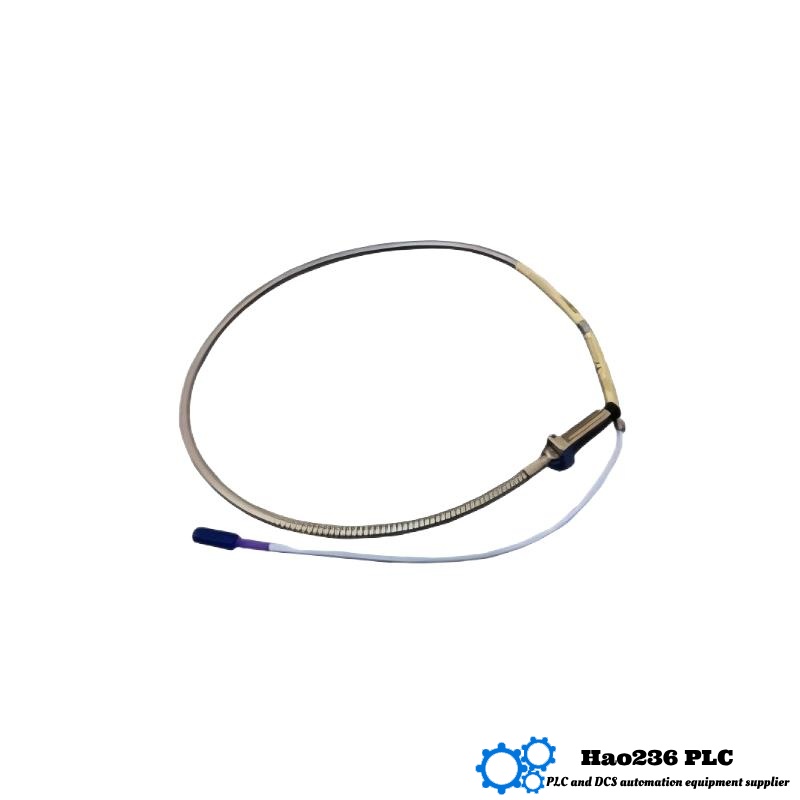

Bently Nevada 330103-17-23-05-02-05 8 mm Proximity Probe (Metric) – 3300 XL Series
Product Overview
The Bently Nevada 330103-17-23-05-02-05 is a high-precision, 8 mm proximity probe designed for industrial condition monitoring and vibration measurement applications. As part of the 3300 XL Series, this probe delivers outstanding accuracy and stability in non-contact displacement sensing of rotating machinery. It is engineered to operate in harsh environments, with resistance to oil, moisture, and high temperatures.
This model comes with a total system length of 0.5 meters, making it ideal for compact installations where space is limited. With metric threading and full compatibility with Bently Nevada proximitor systems, it offers a trusted solution for real-time shaft vibration and position monitoring.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 330103-17-23-05-02-05 |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 x 1 (Metric) |
| Tip Material | Stainless Steel |
| Total Length | 0.5 meters (probe + cable + connector) |
| Weight | 0.161 kg |
| Connector Type | Miniature coaxial connector |
| Measurement Range | 2 mm nominal |
| Frequency Response | DC to 10 kHz |
| Temperature Range | -35°C to +177°C |
| Pressure Rating | Suitable for industrial sealed environments |
| Insulation Resistance | >10⁹ Ohms |
| Cable Sheath Material | PFA-coated |
| Vibration Resistance | 50 g peak, 10–2000 Hz |
| Compatible System | 3300 XL Proximitor Sensors |
| Series | 3300 XL Series |
| Measurement Standard | Metric |
Product Description
The 330103-17-23-05-02-05 proximity probe is built using eddy-current sensing technology, enabling it to detect minute shaft movements and positions without direct contact. Its 0.5-meter total system length makes it suitable for installations in tight or constrained equipment spaces, such as inside bearing housings or enclosed pump units.
The stainless steel probe body ensures excellent corrosion and wear resistance, while the sealed cable assembly guards against contaminants like oil, water, and industrial dust. This probe is part of a complete transducer system when used with an extension cable and a 3300 XL Proximitor Sensor, enabling continuous, high-resolution shaft vibration and axial position monitoring.
Applications
-
Shaft vibration and radial displacement monitoring in gas turbines
-
Axial thrust monitoring in compressors and expanders
-
Position sensing in high-speed pumps and motors
-
Condition-based maintenance and predictive diagnostics
-
Integration into distributed control and safety shutdown systems
Advantages
-
High accuracy and sensitivity for early detection of mechanical faults
-
Short system length ideal for restricted-access installations
-
Durable construction for long-term performance in harsh environments
-
Seamless integration with the 3300 XL system architecture
-
Backed by Bently Nevada’s legacy of excellence in machinery protection
Brand
Bently Nevada – A world leader in condition monitoring and vibration analysis.
Product Series
3300 XL Series – Known for its robustness, industry-leading reliability, wide operating range, and superior electromagnetic shielding. Ideal for use in demanding industrial conditions.
Recommended Models from the 3300 XL Series
| Model | Description | System Length | Weight |
|---|---|---|---|
| 330103-00-10-10-02-00 | Standard 8 mm probe with 1.0-meter system length | 1.0 meter | 0.290 kg |
| 330103-00-15-10-02-00 | 8 mm probe for moderate-length applications | 1.5 meters | 0.330 kg |
| 330103-00-25-10-02-00 | Long cable version for remote sensing | 3.0 meters | 0.400 kg |
| 330103-00-30-10-02-00 | Extra-long 8 mm probe system | 9.0 meters | 0.450 kg |
| 330104-00-05-10-01-00 | 5 mm probe for higher spatial resolution | 1.0 meter | 0.280 kg |
Popular Models from the Bently Nevada Portfolio
| Model | Description | System Length | Weight |
|---|---|---|---|
| 330103-09-15-05-02-00 | 8 mm probe with 1.5 m probe length and 5 m extension cable | 6.5 meters | 0.390 kg |
| 330103-10-14-10-02-05 | 8 mm probe, 1.4 m probe length with 10 m extension, ruggedized | 11.4 meters | 0.460 kg |
| 330103-10-15-10-02-05 | 8 mm probe with 1.5 m probe and 10 m extension, armored | 11.5 meters | 0.470 kg |
| 330103-08-10-05-02-00 | Short probe with standard 5 m cable for compact installs | 5.8 meters | 0.360 kg |
| 330103-10-25-10-02-05 | Long-range 8 mm probe with 2.5 m probe and 10 m extension | 12.5 meters | 0.480 kg |
Frequently Asked Questions (FAQ)
Q1: What does this probe measure?
A1: It measures non-contact displacement (position) between the probe tip and a rotating shaft surface using eddy current sensing.
Q2: What makes the 330103-17-23-05-02-05 different from other probes?
A2: It has a compact system length of 0.5 meters, making it ideal for installations where space is limited.
Q3: Is this probe suitable for high-speed machinery?
A3: Yes. Its frequency response up to 10 kHz makes it suitable for high-speed rotating equipment.
Q4: Can this probe handle oil or moisture exposure?
A4: Absolutely. It is sealed and designed to perform reliably in oily and damp industrial environments.
Q5: What sensor does this probe connect to?
A5: It connects to a 3300 XL Proximitor Sensor to form a complete transducer system.
Q6: Is it compatible with older Bently Nevada systems?
A6: While designed for the XL series, it maintains backward compatibility with most traditional systems.
Q7: Can this probe be field-replaced without full system recalibration?
A7: Yes, as long as probe-to-target alignment is maintained and compatible calibration is used.
Q8: What is the operating temperature limit?
A8: The probe can operate continuously in environments up to +177°C.
Q9: Does the short cable length affect performance?
A9: No. The performance remains consistent as long as it’s matched with the appropriate proximitor and cable.
Q10: What material is the cable jacket made of?
A10: The cable is coated with PFA, providing chemical resistance and high flexibility.
