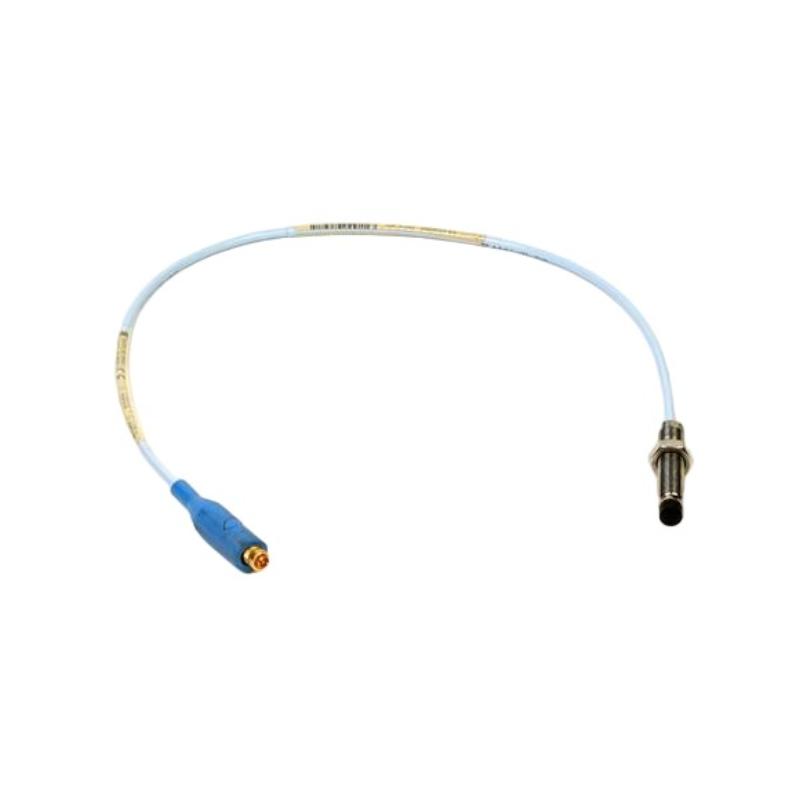

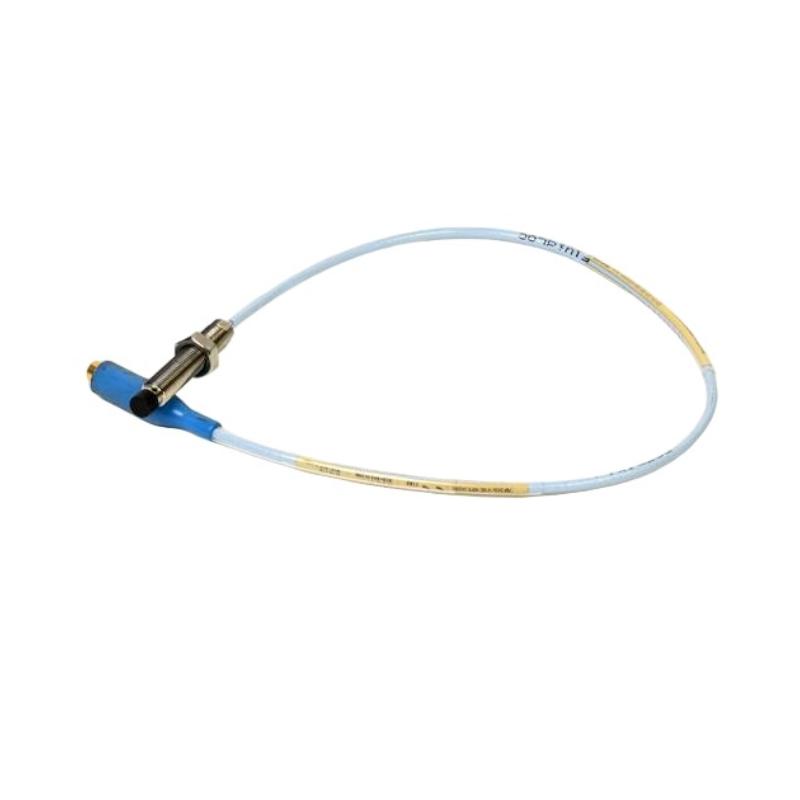

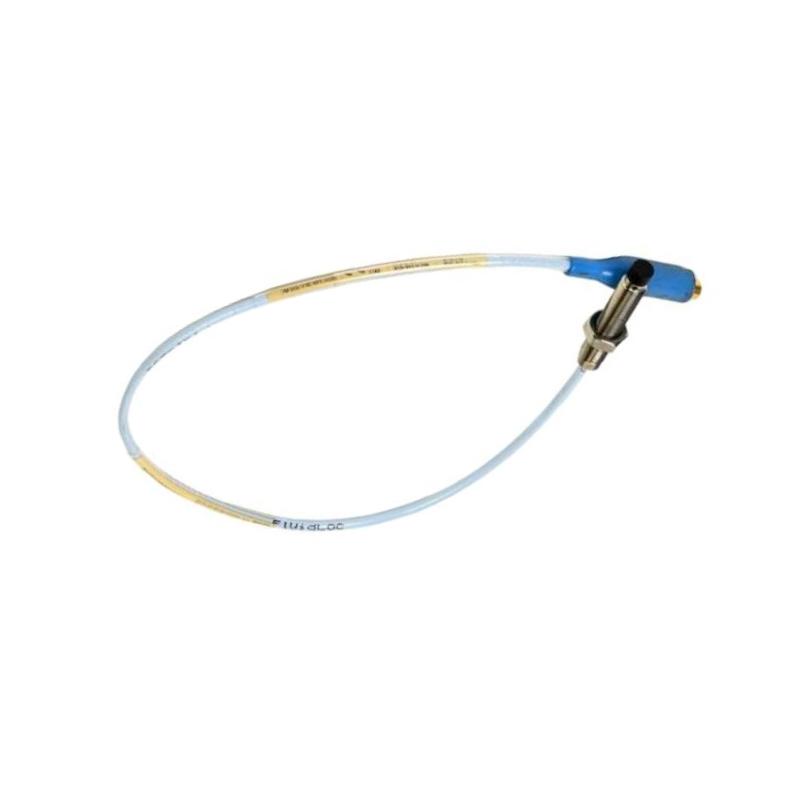

Bently Nevada 330101-00-15-05-02-00 Proximity Probe
1. Product Overview
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Transducer System
-
Model Number: 330101-00-15-05-02-00
-
Type: Eddy-current proximity probe
-
Purpose: Measures shaft vibration, displacement, and position of rotating machinery for condition monitoring.
-
Industries: Power generation, oil & gas, petrochemical, manufacturing, and industrial machinery.
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-15-05-02-00 |
| Probe Type | Eddy-current proximity sensor |
| Series | 3300 XL 8 mm |
| Case Length | 1.5 in (38.1 mm) |
| Cable Length | 2.0 m (6.56 ft) |
| Connector Type | Miniature Coaxial ClickLoc with Connector Protector |
| Measurement Range | 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm ±5% |
| Linearity | ±0.025 mm (±1 mil) |
| Electrical Resistance | Approx. 7.45 Ω (for 2 m cable) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature | Probe tip: up to +218°C (+425°F) |
| Sealing System | Viton® O-ring for pressure sealing |
| Humidity Resistance | Less than 3% ASF change at 93% humidity |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Weight | 0.32 kg (0.71 lbs) |
| Dimensions | Diameter 8 mm; Length 38.1 mm |
3. Product Description
The 330101-00-15-05-02-00 proximity probe is designed for precise shaft displacement and vibration measurement in demanding industrial environments. It operates based on eddy-current technology, providing accurate, non-contact measurements that help prevent equipment failure by enabling condition monitoring.
Its rugged construction, featuring stainless steel housing and a PPS probe tip, offers resistance to corrosion, wear, and high temperatures. The extended cable length (2 m) provides flexibility in installation and is suitable for larger equipment setups.
4. Applications
-
Power Generation: Monitoring turbines, generators, and related rotating machinery for early fault detection.
-
Oil & Gas: Equipment such as compressors, pumps, and turbo-expanders.
-
Petrochemical: Monitoring pumps, mixers, and reactors for reliable operation.
-
Manufacturing: Electric motors, blowers, and gearboxes.
-
Marine: Shaft monitoring in marine propulsion systems.
-
Research and Development: Used in test rigs and experimental machinery for accurate vibration analysis.
5. Advantages
-
High Accuracy & Sensitivity: Offers precise monitoring essential for condition-based maintenance.
-
Wide Temperature Range: Suitable for operation in harsh environments, including elevated temperatures up to +218°C at the probe tip.
-
Robust Construction: Stainless steel and PPS materials ensure durability and longevity.
-
Non-Contact Measurement: Prevents wear on shafts and components, extending machine life.
-
Extended Cable Length: 2.0 m cable facilitates flexible installations and ease of maintenance.
-
EMI Resistant Design: Shielded construction reduces interference, enhancing signal reliability.
-
Pressure Sealing: Viton® O-ring sealing maintains probe integrity in challenging conditions.
6. Related Models — Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-15-05-02-00 | 1.5 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-15-05-01-00 | 1.5 in | 0.5 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-12-10-02-05 | 1.2 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-20-10-02-05 | 2.0 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.33 kg |
| 330101-00-40-10-02-00 | 4.0 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.34 kg |
7. Other Popular Bently Nevada Models
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signals to usable outputs |
| 330180-X1-05 | Advanced Proximitor | High-Performance Conditioning | Low noise, wide dynamic range |
| 330100-50-0 | Proximitor Module | Compatible with 5mm/8mm probes | Modular, reliable, easy to replace |
| 3300 XL Standard | 8mm Probe | General Use | Durable, versatile installation options |
| 3300 XL 5/8 in | Larger Diameter Probe | For larger shafts | Accurate for heavy-duty machinery |
8. FAQs (Q&A Format)
Q1: What is the typical measurement range of the 330101-00-15-05-02-00?
A: The measurement range is approximately 0.25 mm to 2.3 mm, suitable for most industrial shaft monitoring applications.
Q2: Can this probe be used in environments with high humidity?
A: Yes, it maintains less than 3% ASF change at 93% humidity, making it suitable for humid environments.
Q3: What is the maximum cable length recommended?
A: This model comes with a 2.0 m cable, optimized for signal quality. Longer cables may affect accuracy due to capacitance.
Q4: Is the probe suitable for explosive atmospheres?
A: Certain certified variants of this model are approved for hazardous locations, but always verify specific certifications before use.
Q5: How resistant is the probe tip to wear?
A: The PPS tip is abrasion-resistant and designed for long service life in tough environments.
Q6: How do I maintain this probe?
A: Routine visual inspection, cleaning of the probe tip, and ensuring cable integrity are recommended.
Q7: What materials are used in the housing and tip?
A: Stainless steel housing and PPS (polyphenylene sulfide) tip materials are standard for durability and chemical resistance.
Q8: Can this probe withstand high temperatures?
A: Yes, it operates up to +177°C generally, with the tip able to tolerate up to +218°C.
Q9: How does the ClickLoc connector benefit installation?
A: ClickLoc connectors provide secure, quick connections, minimizing installation time and potential connection issues.
Q10: What are common signs that the probe needs replacement?
A: Physical damage, inconsistent or noisy signal output, and sudden changes in baseline measurements are indicators for replacement.
