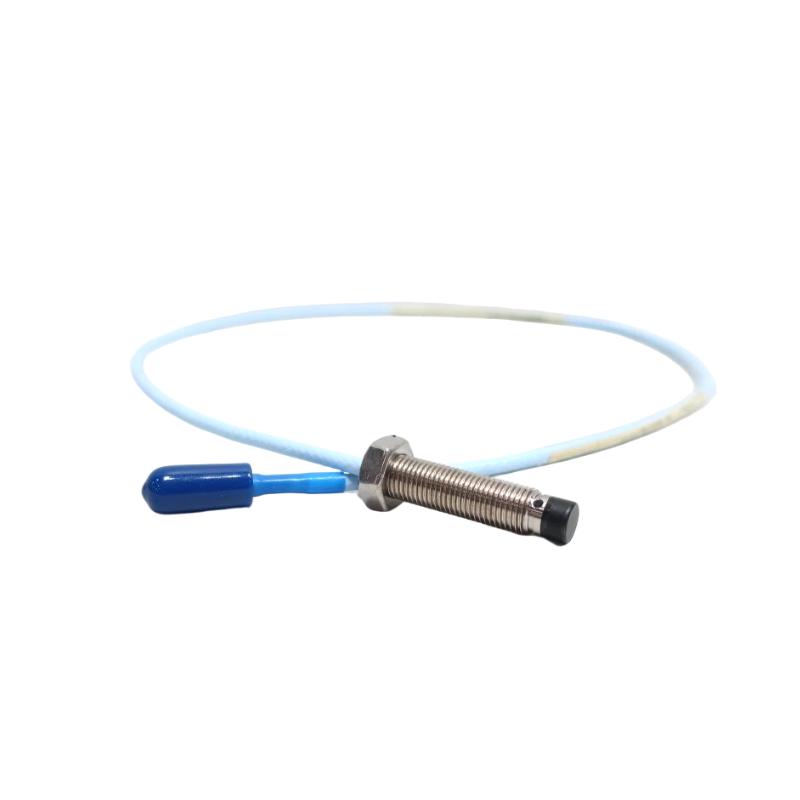

Bently Nevada 330101-00-15-05-01-00 Proximity Probe
1. Product Overview
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Transducer System
-
Model Number: 330101-00-15-05-01-00
-
Type: Eddy-current proximity probe
-
Function: Measures shaft vibration, displacement, and position in rotating machinery
-
Industry Applications: Power generation, oil & gas, manufacturing, and other industrial sectors
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-15-05-01-00 |
| Probe Type | Eddy-current proximity sensor |
| Series | 3300 XL 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 1.5 in (38.1 mm) |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc with Connector Protector |
| Measurement Range | 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Linearity | Less than ±0.025 mm (±1 mil) |
| Electrical Resistance | 7.45 Ω ± 0.50 (for 0.5 m cable length) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature | Probe tip: -52°C to +218°C (-62°F to +425°F) |
| Sealing System | Viton® O-ring for differential pressure sealing |
| Humidity Resistance | Less than 3% ASF change at 93% humidity |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Weight | 0.32 kg (0.71 lbs) |
| Dimensions | 190 mm x 162 mm x 80 mm (7.5 in x 6.4 in x 3.2 in) |
3. Product Description
The 330101-00-15-05-01-00 proximity probe is part of the 3300 XL 8 mm Proximity Transducer System, designed to provide precise and reliable measurements of shaft vibration and displacement in rotating machinery. Utilizing eddy-current technology, this probe offers non-contact measurement capabilities, ensuring accurate data collection without physical wear on components.
Constructed with high-quality materials, including a stainless steel case and PPS tip, the probe is built to withstand harsh industrial environments. Its wide operating temperature range and robust sealing system make it suitable for various applications, from power generation to manufacturing.
4. Applications
The 330101-00-15-05-01-00 proximity probe is ideal for monitoring:
-
Steam and Gas Turbines: Ensures optimal performance and early detection of potential issues.
-
Compressors and Pumps: Monitors shaft alignment and vibration to prevent mechanical failures.
-
Electric Motors: Tracks displacement and vibration to maintain efficiency.
-
Gearboxes: Detects misalignment and wear, reducing downtime.
-
Blowers and Fans: Measures shaft displacement to ensure smooth operation.
-
Test Rigs: Provides accurate data for experimental setups and R&D.
5. Advantages
-
High Accuracy: Offers precise measurements with minimal deviation.
-
Wide Temperature Range: Operates effectively in extreme temperatures.
-
Durable Construction: Resistant to corrosion and wear, ensuring longevity.
-
Non-Contact Measurement: Prevents physical wear on components, extending service life.
-
Easy Integration: Compatible with existing monitoring systems, facilitating seamless installation.
-
Certified Performance: Meets industry standards for reliability and accuracy.
6. Related Models — Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-15-05-01-00 | 1.5 in | 0.5 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-20-20-02-05 | 2.0 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-12-10-02-05 | 1.2 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-40-10-02-00 | 4.0 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.34 kg |
| 330101-00-60-05-02-00 | 6.0 in | 0.5 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
7. Other Popular Bently Nevada Models
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signal to usable output |
| 330180-X1-05 | Advanced Proximitor | High-performance conditioning | Low noise, wide dynamic range |
| 330100-50-0 | Proximitor Module | Compatible with 5mm/8mm probes | Modular and reliable |
| 3300 XL Standard | 8mm Probe | Universal application | Durable, multiple mounting options |
| 3300 XL 5/8 in | Larger Diameter Probe | For larger shaft diameters | High accuracy on large shafts |
8. FAQs (Q&A Format)
Q1: What is the standard measuring range for this probe?
A: The linear measurement range is approximately 0.25 mm to 2.3 mm.
Q2: What is the recommended shaft gap voltage for this model?
A: The typical shaft gap voltage is about -9 Vdc at a 1.27 mm gap to ensure accurate readings.
Q3: What temperatures can this probe safely operate in?
A: It operates reliably within -52°C to +177°C (-62°F to +350°F), with the probe tip able to withstand up to +218°C (+425°F).
Q4: How does the cable length affect the probe’s signal?
A: Longer cables increase capacitance, which can reduce signal quality. The standard 0.5 m cable length is optimized for performance and minimal signal loss.
Q5: Can this probe be used in hazardous or explosive environments?
A: Yes, variants of this model are certified for hazardous environments, ensuring safety and compliance.
Q6: What maintenance is recommended for this proximity probe?
A: Periodic inspection and cleaning are advised to prevent contamination. The probe and cable can be replaced independently if damaged.
Q7: How is the probe connected to the monitoring system?
A: The probe uses a miniature coaxial ClickLoc connector with a protective cover for secure and reliable connections.
Q8: What materials are used in the construction of this probe?
A: The probe tip is made of durable polyphenylene sulfide (PPS), and the housing is constructed of corrosion-resistant stainless steel.
Q9: Is the probe resistant to electromagnetic interference (EMI)?
A: Yes, the probe design includes shielding and grounding to minimize EMI, ensuring stable and accurate signal output.
Q10: What symptoms indicate that the probe might be malfunctioning?
A: Erratic or noisy output signals, unstable voltage readings, or physical damage to the probe tip or cable are common signs of failure.
