Bently Nevada 330101‑00‑13‑05‑02‑00 — Technical & Functional Overview

Technical Specifications

Note: Because official published specs for this exact model were not found, many values are drawn by analogy with other 3300 XL 8 mm probes (such as the 330101‑00‑12‑10‑02‑05) and standard family traits.

Product Introduction

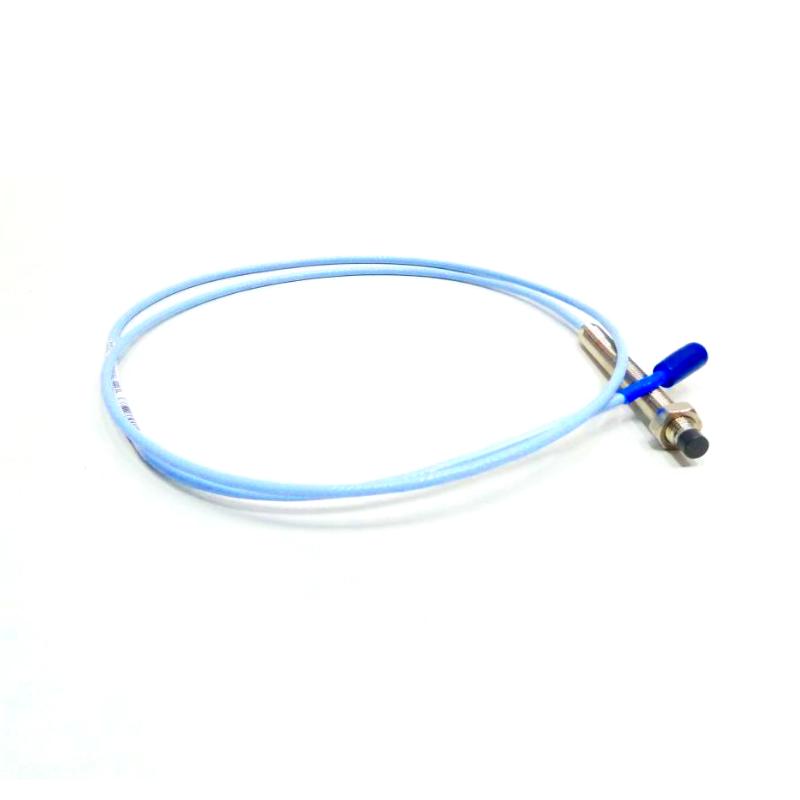

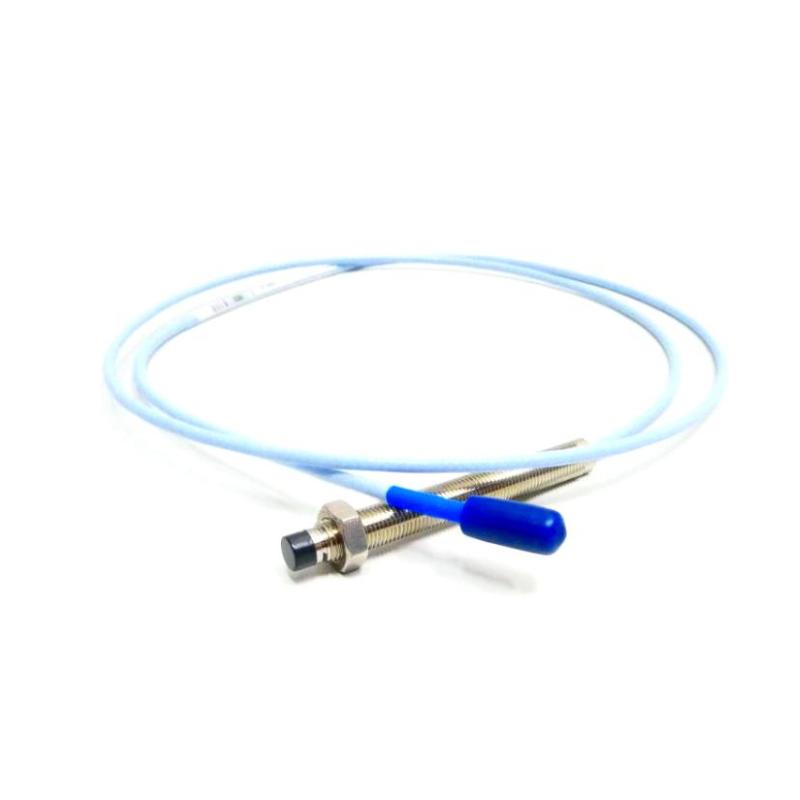

The 330101‑00‑13‑05‑02‑00 proximity probe is a variant in the 3300 XL 8 mm probe family designed for vibration and shaft displacement measurement in industrial rotating machinery. The “13” case length gives a slightly longer probe body compared to the 12 code models, which may help in certain mounting or clearance configurations. With a 0.5 m cable length (“05”) and ClickLoc connector (“02”), this model is intended for relatively short wiring runs and compatibility with existing 3300 XL infrastructure.

It aims to deliver accurate motion sensing in turbines, motors, compressors, and pumps, especially in retrofit or upgrade scenarios where the standard 12‑series probe cannot physically reach or mount cleanly. Its design leverages known characteristics of the 3300 XL family: good temperature tolerance, stable sensitivity, and proven mechanical robustness.

Applications

• Vibration/shaft displacement monitoring in turbines, compressors, pumps, and motors.

• Retrofit into existing monitoring systems where extra case length is beneficial (e.g. to clear obstacles or enable tip clearance).

• Condition‑based monitoring: detecting imbalance, misalignment, bearing wear, rotor eccentricity, or clearance shift.

• Use in industrial environments under thermal cycling, dust, moisture, or vibration stress.

• As replacement or backup probe in 3300 XL systems where dimensions differ slightly from standard 12‑series.

Key Advantages

• Extended case design: The “13” case length allows additional clearance or mechanical flexibility in tight installations.

• Family compatibility: Maintains electrical and mechanical compatibility with 3300 XL probes—ease of integration.

• Stable performance: Inferred sensitivity and tolerance align with family norms, supporting predictable behavior across probes.

• Compact cable design: 0.5 m cable is adequate for many installations without excess slack or complexity.

• Rugged construction: Stainless steel body and PPS tip provide durability in industrial settings.

• Thermal robustness: Likely able to operate from –52 °C to +177 °C like siblings in the 3300 XL family.

Related / Alternative Models (Same or Similar Series)

Here are five 8 mm 3300 XL proximity probe models you may consider (with varying case, cable lengths, or certification), for comparison or substitution:

These models differ primarily in case length (“12”, “24”, “36”, “44”, “40”) or certification suffix, offering more flexibility in mechanical layout or safety zones.
