Bently Nevada 330101-00-12-15-02-05 8 mm Proximity Probe
Product Overview

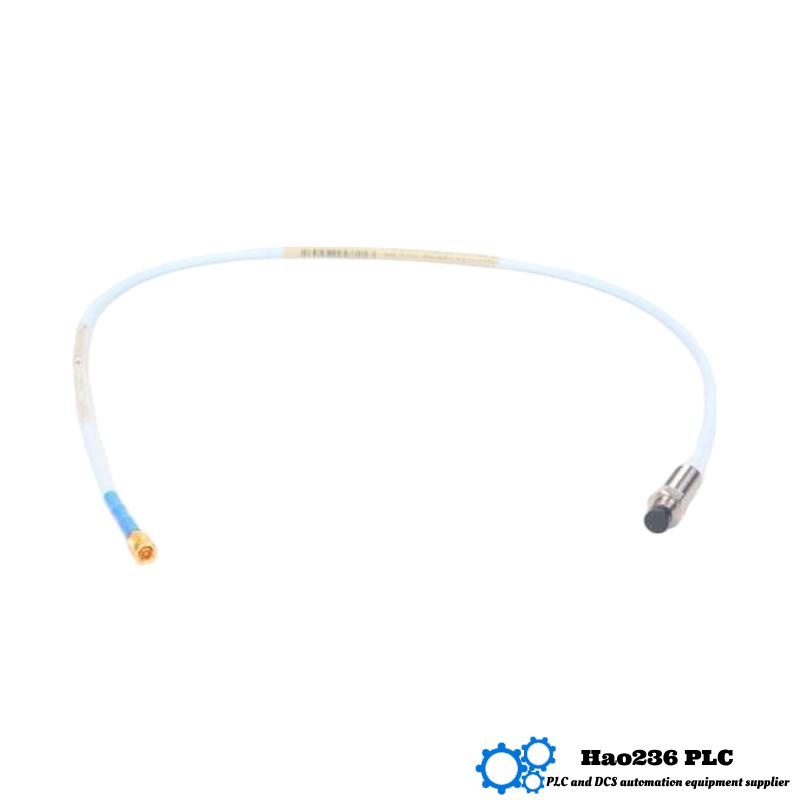

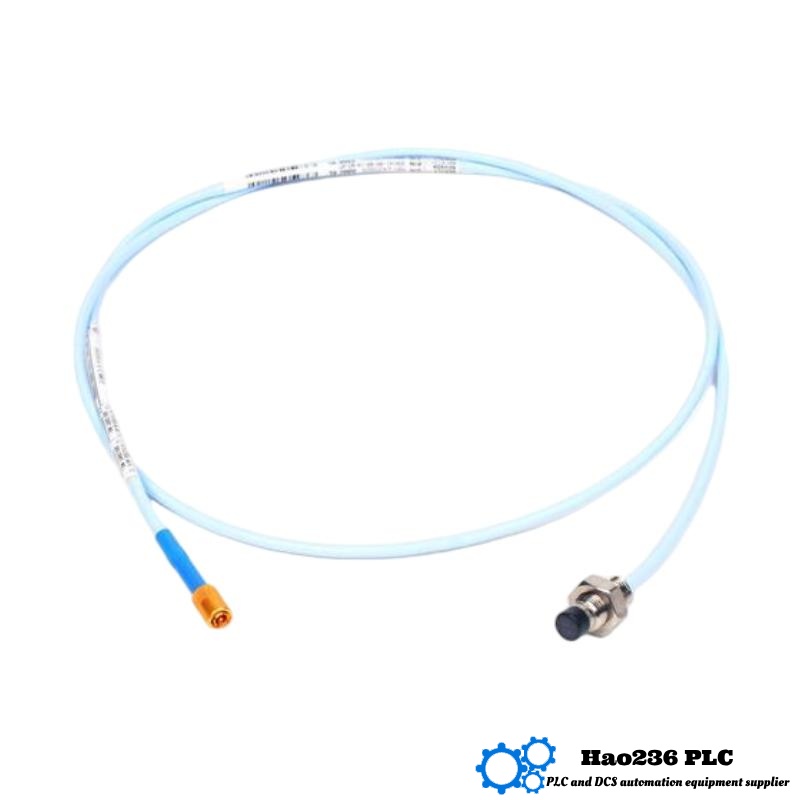

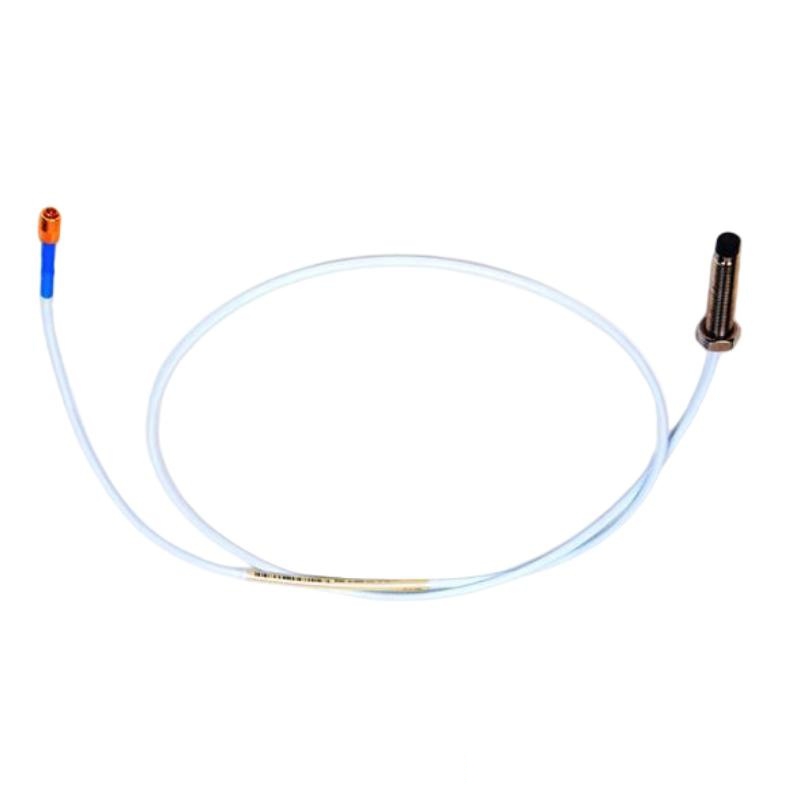

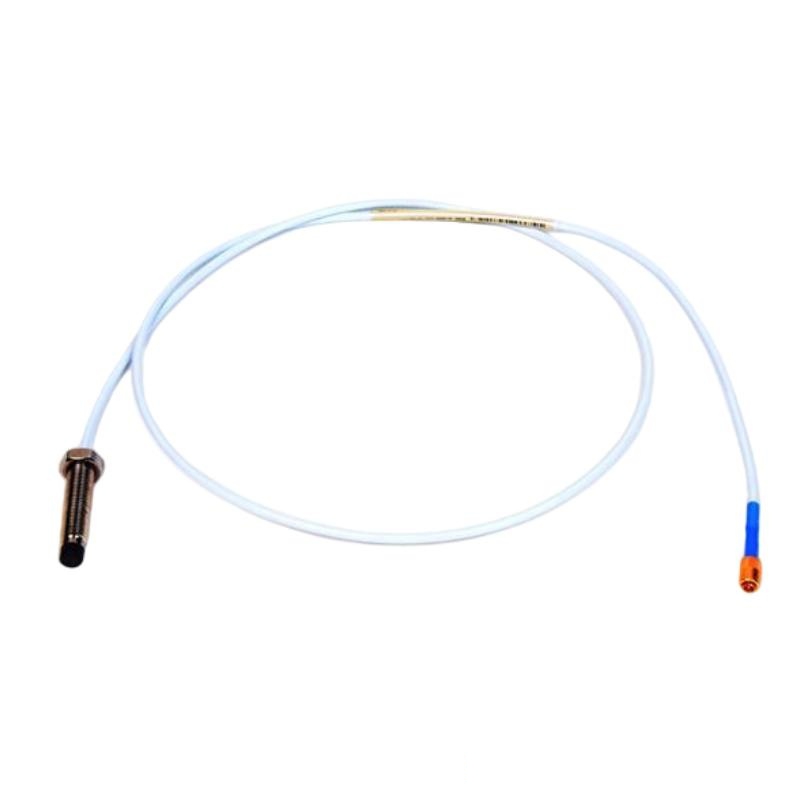

The Bently Nevada 330101-00-12-15-02-05 is a rugged, non-contacting eddy-current proximity probe featuring an 8 mm sensing tip and 1.5 m cable. Designed for use with the 3300 XL series machinery protection platform, it provides high-resolution position and vibration measurements to enable advanced condition monitoring and asset protection. Its stainless-steel probe, integrated spring assembly, and PTFE-insulated shielded cable ensure reliable performance under harsh industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-12-15-02-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Gap Range | 0.25–2.54 mm |
| Output Signal | ±10 V proportional to gap |
| Total Length | 1.5 meters |
| Cable Type | PTFE-insulated, shielded coaxial |
| Connector | 10-pin MIL-C-26482 stainless steel |
| Operating Temperature | –40 °C to +120 °C |
| Shock Resistance | 100 g, 11 ms half-sine |
| Weight | 0.485 kg |
| Material | 316 stainless steel |
| EMI Immunity | Integrated grounding spring and braid shield |
Applications
-
Turbine & Compressor Monitoring: Continuous shaft vibration and position tracking for early fault detection.
-
Generator Protection: Real-time clearance and displacement measurement to prevent rubs and shaft bow.
-
Pump & Fan Condition Monitoring: Detect imbalance, misalignment, and bearing wear.
-
Oil & Gas Flowlines: Vibration analysis on pipelines and rotating equipment in extreme climates.
-
Gearbox & Motor Protection: High-resolution displacement sensing for predictive maintenance.
Advantages
-
Precision & Linearity
Delivers better than 1 % full-scale linearity across the recommended gap range for accurate diagnostics. -
Durable Construction
Stainless-steel probe and robust cable withstand mechanical shock, vibration, and corrosive atmospheres. -
EMI-Resistant Design
Shielded PTFE cable with grounding spring ensures clean signals in high-EMI environments. -
Hot-Swap Capability
Standard 10-pin connector and spring assembly allow rapid field replacement without system shutdown. -
Extended Temperature Range
Operates reliably from –40 °C up to +120 °C, suitable for extreme process and outdoor applications.
Brand
Bently Nevada is a leading expert in machinery protection and condition monitoring. The 3300 XL series is famed for its modular architecture, hot-swappable electronics, and advanced diagnostic capabilities that safeguard critical rotating assets worldwide.
Related Models in the 3300 XL Series
| Model | Part Number | Probe Dia. | Total Length | Weight (kg) |
|---|---|---|---|---|
| 330101-00-12-15-02-05 | 330101-00-12-15-02-05 | 8 mm | 1.5 m | 0.485 |
| 330101-00-08-20-02-CN | 330101-00-08-20-02-CN | 8 mm | 2.0 m | 0.646 |
| 330101-00-11-20-02-05 | 330101-00-11-20-02-05 | 8 mm | 2.0 m | 0.646 |
| 330100-00-18-20-02-CN | 330100-00-18-20-02-CN | 18 mm | 2.0 m | 0.680 |
| 330101-00-08-30-02-CN | 330101-00-08-30-02-CN | 8 mm | 3.0 m | 0.700 |
Popular Bently Nevada Models
| Model | Part Number | Description | Key Spec |
|---|---|---|---|
| 330100-00-18-00-02 | 330100-00-18-00-02 | 18 mm probe, 2 m cable | Weight 0.680 kg |
| 330100-00-58-60-02 | 330100-00-58-60-02 | 58 mm probe, 6 m cable | Weight 0.980 kg |
| 330101-00-08-60-02 | 330101-00-08-60-02 | 8 mm probe, 6 m cable | Weight 0.850 kg |
| 330100-00-18-12-02 | 330100-00-18-12-02 | 18 mm probe, 12 m cable | Weight 1.10 kg |
| 305472-00-02-10-02 | 305472-00-02-10-02 | Expansion cable, 10 m | Weight 1.25 kg |
Frequently Asked Questions (FAQ)
Q1: What sensing principle does this probe use?
A1: Eddy-current induction converts shaft proximity into a proportional AC voltage signal.
Q2: Can I order a different cable length?
A2: Yes, variants are available in 0.1 m, 1.5 m, 2 m, 3 m, 6 m, and custom lengths.
Q3: How is the probe mechanically mounted?
A3: It uses an integrated spring assembly that maintains consistent air-gap and allows slight axial movement.
Q4: What is the optimal sensing gap?
A4: 0.25–1.0 mm provides the best balance of linearity and sensitivity.
Q5: Does this probe require external power?
A5: No, it is powered and conditioned by the 3300 XL monitor electronics.
Q6: How resistant is it to electromagnetic interference?
A6: The PTFE-insulated, shielded cable and grounding spring deliver robust EMI immunity.
Q7: What temperature extremes can it handle?
A7: Rated for continuous operation from –40 °C to +120 °C.
Q8: Can it withstand mechanical shocks and vibrations?
A8: Yes, it’s rated for shocks up to 100 g (11 ms half-sine) and industrial vibration levels.
Q9: How often should it be calibrated?
A9: Factory-calibrated; recommended field recalibration intervals depend on operating hours and environmental stress.
Q10: Where can I access detailed installation guides?
A10: Full datasheets, installation manuals, and calibration certificates are available through Bently Nevada’s support portal.
