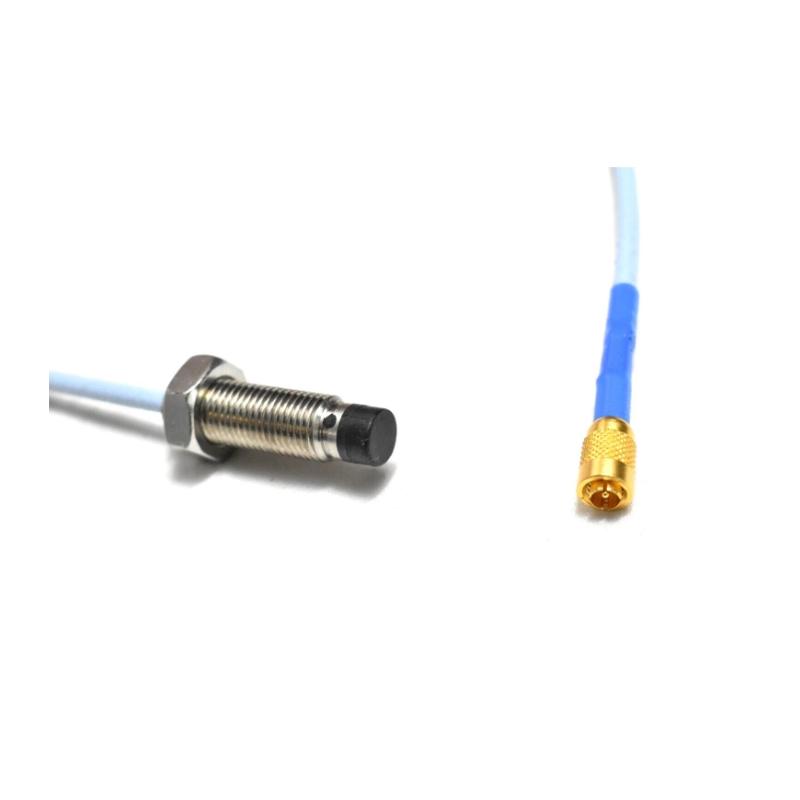

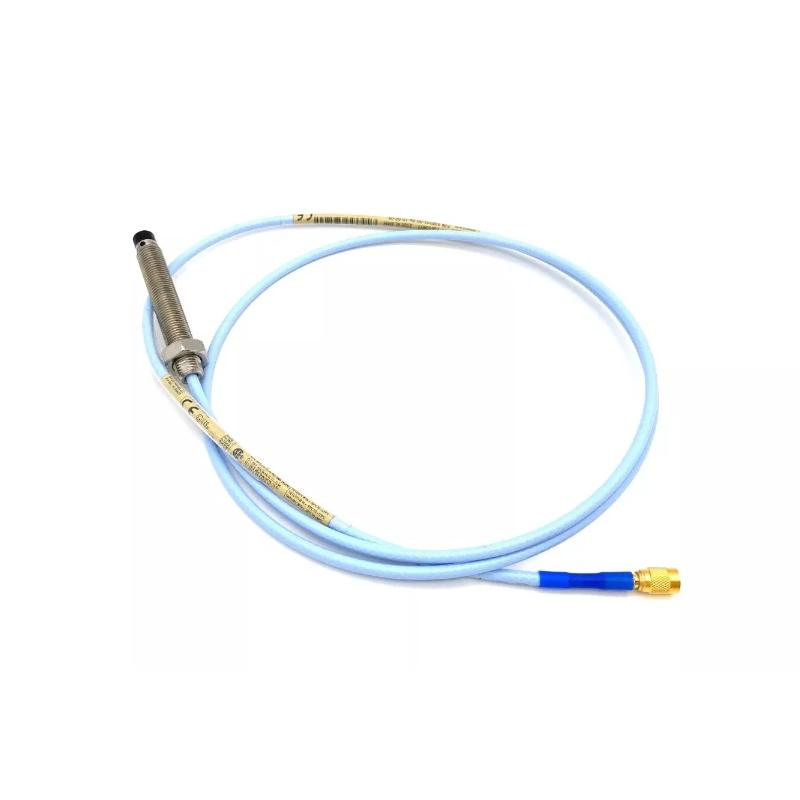

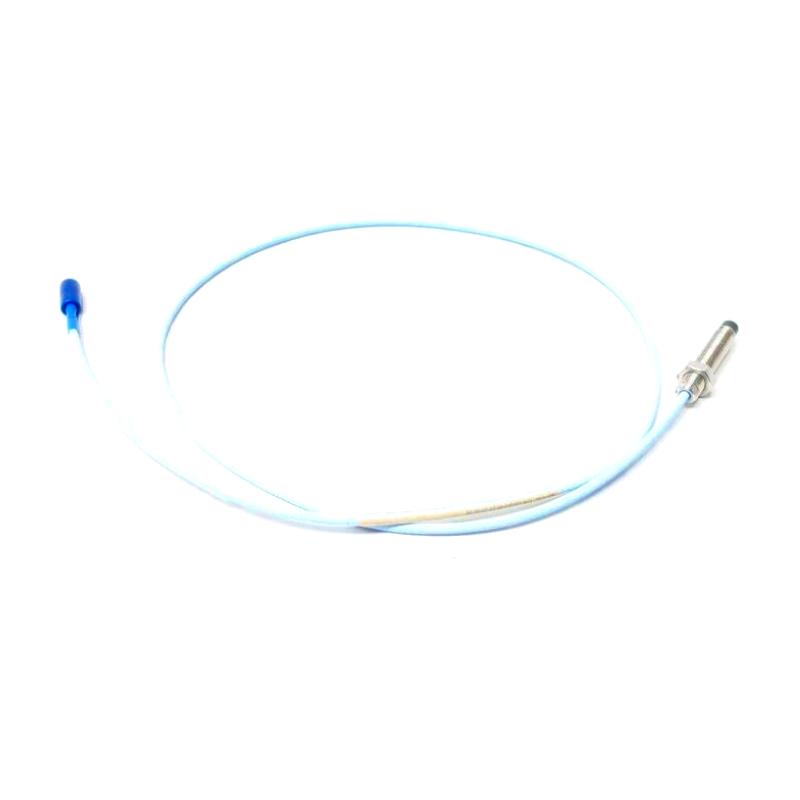

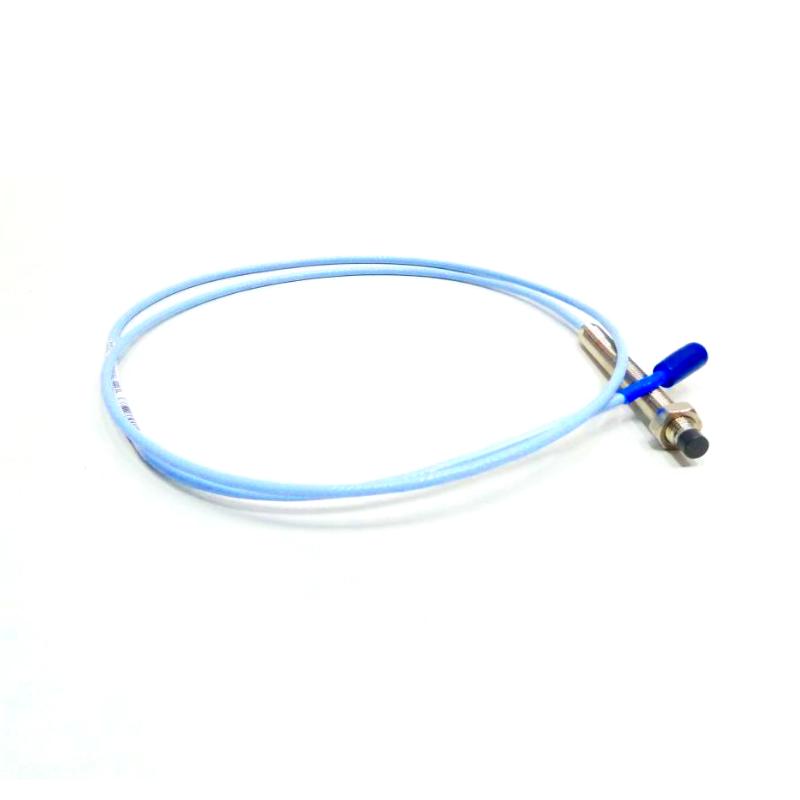

Bently Nevada 330101‑00‑12‑15‑02‑05 Proximity Probe
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 330101‑00‑12‑15‑02‑05 |
| Series | 3300 XL 8 mm Proximity Probe Series |
| Probe Diameter | 8 mm |
| Thread Size / Mounting | 3/8‑24 UNF |
| Measurement Linear Range | ≈ 0.38 to 3.81 mm (≈15 to 150 mils) — typical for “15” variant |
| Sensitivity (Scale Factor) | ≈ 7.87 V/mm (≈200 mV/mil) ±5% |
| DC Resistance (1 m cable) | ~7.59 Ω ±0.50 Ω |
| Cable Capacitance | ~69.9 pF per metre |
| Weight | Approx. 0.323 kg/m (probe + cable) |
| Operating Temperature Range | –52 °C to +177 °C (standard) |
| Case & Tip Materials | Case: Stainless Steel (AISI 303/304) Tip: PPS Plastic |
| Connector / Interface | Miniature Coaxial ClickLoc™, standard cable |
| Certifications / Approvals | “05” suffix indicates CSA / ATEX / IECEx certified version |
Product Introduction
The Bently Nevada 330101‑00‑12‑15‑02‑05 is engineered as a high‑performance proximity probe belonging to the 3300 XL 8 mm family. It is designed for precision monitoring of shaft vibration and displacement in industrial rotating machinery. With its robust stainless steel body, PPS plastic tip, and certified construction (CSA / ATEX / IECEx), it offers a reliable solution for safety‑critical and hazardous‑area applications.
In this variant, the “15” typically designates the probe is supplied with a 1.5 metre cable length, offering flexibility in installation. The “02” connector code indicates a miniature coaxial ClickLoc interface, and “05” denotes full hazardous‑area certification. The combination of high sensitivity (≈200 mV/mil) and a broadened linear range (~15–150 mils) makes it suitable for applications requiring both fine resolution and a large measurement window.
Its standardized 3/8‑24 UNF mount and compatibility with the 3300 XL monitoring ecosystem enable straightforward integration or replacement in existing systems. Moreover, the material choices and environmental ratings ensure durability in harsh, high‑temperature, dusty or moisture‑prone industrial conditions.
Applications
-
Shaft vibration and displacement monitoring in turbines, generators, compressors, pumps, and motors.
-
Condition‑based maintenance systems aiming to detect imbalance, misalignment, bearing wear, rotor eccentricity, or clearance changes.
-
Heavy‑duty industrial plants: power generation, oil & gas, petrochemical, mining, and manufacturing where early fault detection is crucial.
-
Hazardous or explosive environments where CSA/ATEX/IECEx certification is required.
-
Retrofit projects where existing 3300 XL probes are in place, enabling a like‑for‑like upgrade with higher cable length or certification grade.
Advantages
-
Wide measurement range: With ~0.38 to 3.81 mm span, this probe accommodates larger shaft excursions while still providing fine resolution.
-
High sensitivity: Approx. 200 mV/mil ensures subtle movements are captured, improving early‑fault detection.
-
Certified design: The “05” version supports use in hazardous classified zones, broadening installation options.
-
Robust construction: Stainless steel body and PPS tip deliver mechanical durability and resistance to corrosion, vibration and thermal stress.
-
Standard interface: 3/8‑24 UNF mount and ClickLoc connector simplify installation and replacement.
-
Predictable mechanical weight/size: Around 0.323 kg per metre allows installation planning for support and routing in infrastructure.
-
Compatibility: Seamless integration into existing 3300 XL systems reduces implementation risk and cost.
Brand & Series
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Probe Series
Related Models (Same Series or Similar)
Here are five other models in the same family or closely related, with key parameters for comparison:
| Model | Measurement Range | Sensitivity | Temp Range | Weight (kg/m) |
|---|---|---|---|---|
| 330101‑00‑12‑10‑02‑05 | ~0.25–2.3 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
| 330101‑00‑12‑10‑02‑00 | ~0.25–2.3 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
| 330101‑00‑12‑05‑02‑05 | ~0.13–1.27 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
| 330101‑00‑11‑10‑02‑05 | ~0.25–2.3 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
| 330101‑00‑20‑05‑01‑00 | ~0.13–1.27 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
Popular Models from the Same Brand
Here are five widely used or “hot” models from the Bently Nevada brand that are comparable or commonly specified:
| Model | Measurement Range | Sensitivity | Temp Range | Weight (kg/m) |
|---|---|---|---|---|
| 330101‑00‑11‑15‑02‑05 | ~0.38–3.81 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.330 |
| 330101‑00‑60‑10‑02‑CN | ~0.25–2.3 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
| 330101‑00‑12‑05‑01‑00 | ~0.13–1.27 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.320 |
| 330101‑00‑30‑15‑02‑CN | ~0.38–3.81 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.330 |
| 330101‑00‑11‑10‑02‑05 | ~0.25–2.3 mm | ~200 mV/mil | –52 °C to +177 °C | ~0.323 |
Frequently Asked Questions (FAQ)
Q1: What does the “15” in the model number signify?
A1: In this model, “15” typically refers to a 1.5‑metre cable length supplied with the probe, offering added reach compared to standard lengths.
Q2: Is this probe suitable for hazardous (explosive) areas?
A2: Yes — the suffix “05” indicates this variant is certified for CSA, ATEX and IECEx hazardous‑area use, allowing deployment in Zone 1/21 or equivalent.
Q3: How heavy is the probe including cable per metre?
A3: Approximately 0.323 kg per metre of cable plus probe. This weight is important for mounting and cable‑routing planning.
Q4: What measurement range does this probe cover?
A4: The linear range is approximately 0.38 to 3.81 mm (15 to 150 mils), which is larger than many standard probes — useful where greater shaft movement is anticipated.
Q5: What is the sensitivity of this probe?
A5: The scale factor is roughly 200 mV per mil (≈7.87 V/mm), with ±5% tolerance, allowing fine measurement of small shaft movements.
Q6: What are the tip and housing materials?
A6: The tip is Polyphenylene Sulfide (PPS) for durability, and the body/housing is AISI 303/304 stainless steel, providing corrosion and mechanical resistance.
Q7: What is the temperature rating of the probe?
A7: The standard version is rated from –52 °C to +177 °C, suitable for most industrial environments; extreme‑temperature versions may go higher.
Q8: Is this probe compatible with existing monitoring systems?
A8: Yes — it is part of the 3300 XL family and designed to interface seamlessly with modules and controllers built for that series, easing retrofit.
Q9: What mounting configuration does it use?
A9: It mounts via a 3/8‑24 UNF threaded fitting; the connector is a miniature coaxial ClickLoc interface for robust signal connection.
Q10: What are the typical applications for this probe?
A10: It’s used in rotating equipment—turbines, compressors, pumps, motors—for vibration/displacement monitoring, defect detection, and predictive maintenance in heavy industry.
