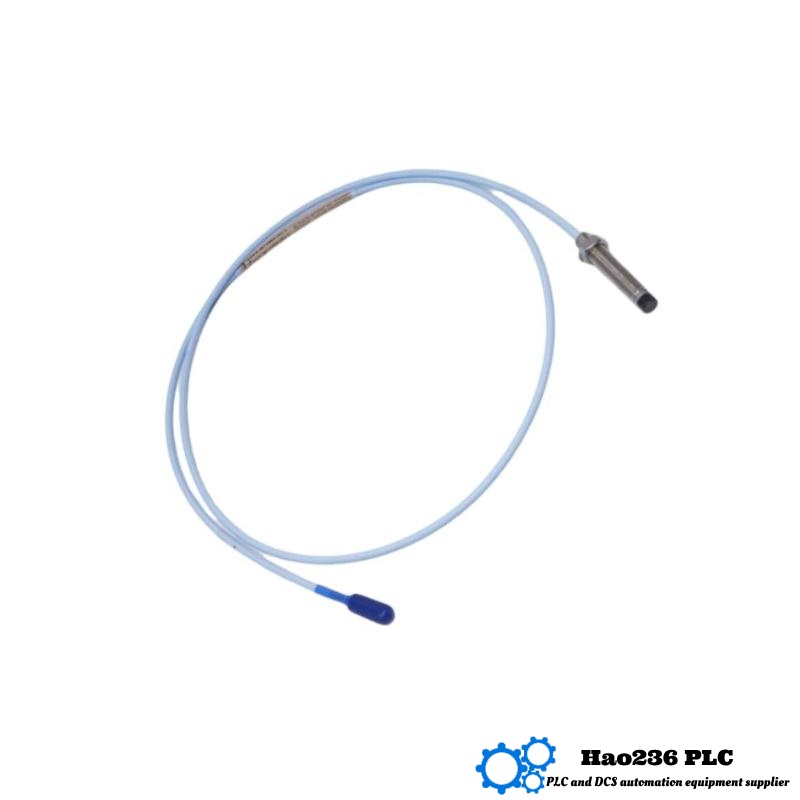

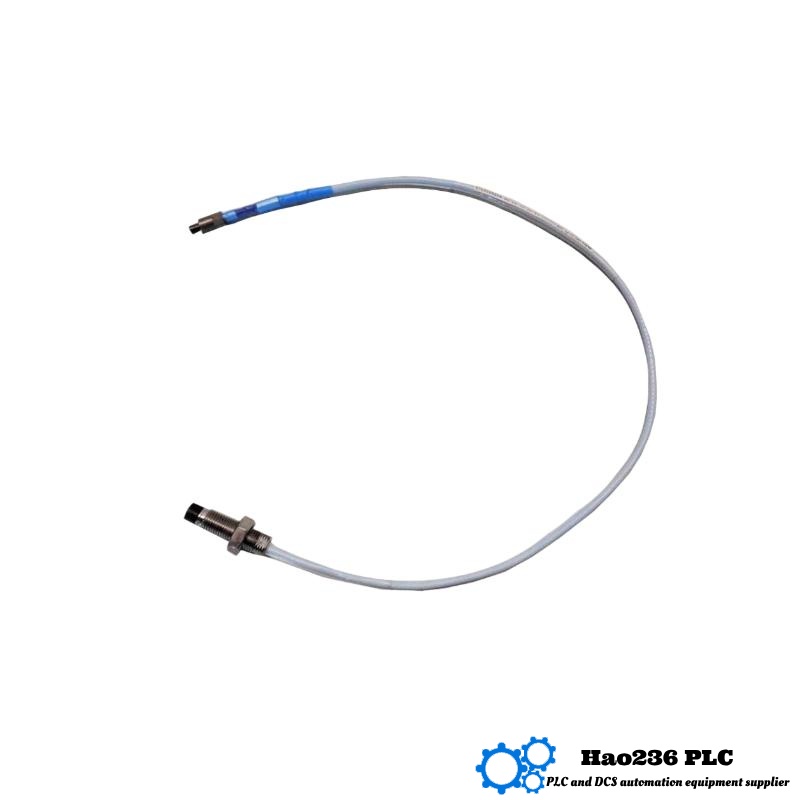

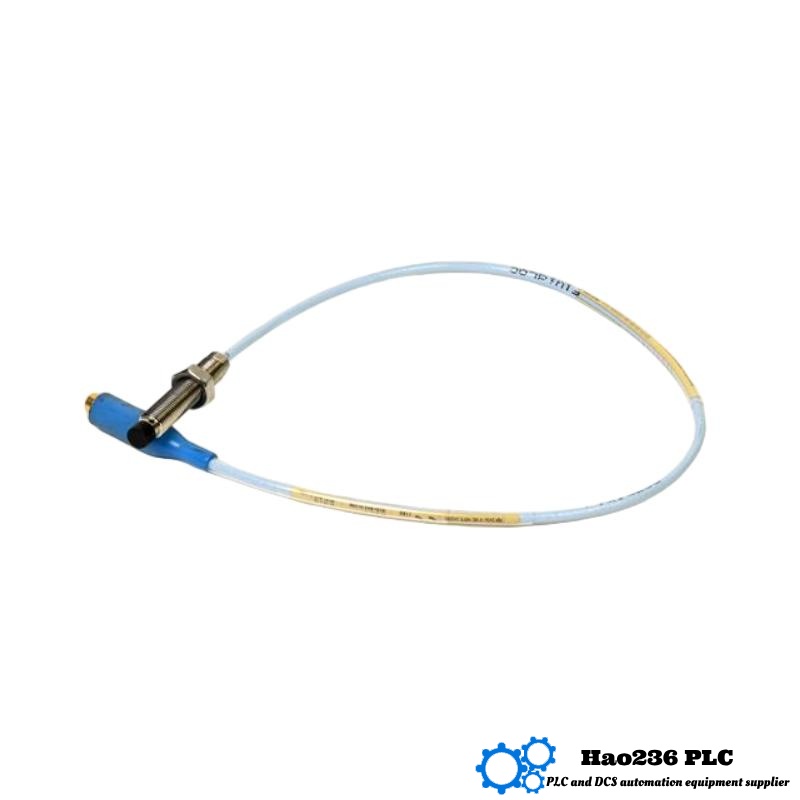

Bently Nevada 330101-00-11-20-02-05 8 mm Proximity Probe
Product Overview
The Bently Nevada 330101-00-11-20-02-05 is an 8 mm non-contacting eddy-current proximity probe engineered for use with the 3300 XL series of machinery protection systems. Designed for precision monitoring of shaft position and vibration, this probe delivers repeatable, high-resolution measurements in harsh industrial environments.
Equipped with a stainless-steel probe tip and integrated spring assembly, the unit ensures stable air-gap maintenance and resistance to mechanical shock. Its PTFE-insulated, shielded coaxial cable conveys a clean ±10 V signal proportional to shaft displacement, supporting advanced diagnostics and predictive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-11-20-02-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Gap Range | 0.25–2.54 mm |
| Output Signal | ±10 V proportional to gap |
| Total Length | 2.0 meters |
| Cable Type | Shielded PTFE-insulated coaxial |
| Connector | 10-pin MIL-C-26482, stainless steel |
| Operating Temperature | –40 °C to +120 °C |
| Shock Resistance | 100 g, 11 ms half-sine |
| Weight | 0.646 kg |
| Material | 316 stainless steel |
| EMI Immunity | Integrated grounding spring and shield |
Applications
The 330101-00-11-20-02-05 proximity probe is commonly used for:
-
Continuous vibration monitoring of rotating machinery
-
Shaft position measurement in turbines, compressors, and motors
-
Rub detection and clearance verification in turbo-machinery
-
Condition monitoring in power generation plants
-
Flow-induced vibration analysis in oil & gas pipelines
Advantages
-
High Accuracy & Linearity
Maintains better than 1 % full-scale linearity across the operating gap. -
Rugged Durability
Stainless-steel construction and robust cable withstand mechanical shock and harsh environments. -
EMI-Resistant Design
Shielded cable and grounding spring minimize electromagnetic interference. -
Hot-Swap Friendly
Standard connector and spring assembly allow rapid field replacement without re-calibration. -
Wide Temperature Range
Operates reliably from –40 °C up to +120 °C, suitable for extreme industrial settings.
Brand
Bently Nevada is renowned for its pioneering work in machinery protection and condition monitoring. The 3300 XL series has earned industry trust for modular design, hot-swappable electronics, and advanced diagnostics to safeguard critical rotating equipment.
Related Models in the 3300 XL Series
| Model | Part Number | Probe Dia. | Total Length | Weight (kg) |
|---|---|---|---|---|
| 330101-00-08-20-02-CN | 330101-00-08-20-02-CN | 8 mm | 2.0 m | 0.646 |
| 330101-00-11-20-02-05 | 330101-00-11-20-02-05 | 8 mm | 2.0 m | 0.646 |
| 330100-00-18-20-02-CN | 330100-00-18-20-02-CN | 18 mm | 2.0 m | 0.680 |
| 330101-00-08-30-02-CN | 330101-00-08-30-02-CN | 8 mm | 3.0 m | 0.700 |
| 330100-00-58-20-02-CN | 330100-00-58-20-02-CN | 58 mm | 2.0 m | 0.950 |
Popular Bently Nevada Models
| Model | Part Number | Description | Key Spec |
|---|---|---|---|
| 330100-00-18-00-02 | 330100-00-18-00-02 | 18 mm probe, 2 m cable | Weight 0.680 kg |
| 330100-00-58-60-02 | 330100-00-58-60-02 | 58 mm probe, 6 m cable | Weight 0.980 kg |
| 330101-00-08-60-02 | 330101-00-08-60-02 | 8 mm probe, 6 m cable | Weight 0.850 kg |
| 330100-00-18-12-02 | 330100-00-18-12-02 | 18 mm probe, 12 m cable | Weight 1.10 kg |
| 305472-00-02-10-02 | 305472-00-02-10-02 | Expansion cable, 10 m | Weight 1.25 kg |
Frequently Asked Questions (FAQ)
Q1: What sensing principle does this probe use?
A1: It employs eddy-current induction to convert shaft gap into an AC voltage signal.
Q2: Can the cable length be customized?
A2: Yes, variants are available in 2 m, 3 m, 6 m, and longer upon request.
Q3: How is the probe connected?
A3: Via a standard 10-pin MIL-C-26482 stainless-steel connector to the 3300 XL monitor card.
Q4: What is the optimal sensing gap?
A4: Recommended gap is 0.25–1.0 mm for best linearity and sensitivity.
Q5: Does it need periodic calibration?
A5: Calibration is typically set at installation; re-calibration intervals depend on usage and operating conditions.
Q6: How does it handle electromagnetic interference?
A6: Shielded PTFE cable and grounding spring assembly provide robust EMI protection.
Q7: What environmental standards does it meet?
A7: Rated –40 °C to +120 °C, 100 g shock, and complies with IEC EMC requirements.
Q8: Can it tolerate occasional contact with the shaft?
A8: It can withstand light rubs at low speed but should not be forced into heavy contact.
Q9: How is linearity specified?
A9: Linearity is better than 1 % of full scale within the recommended gap range.
Q10: Where can I obtain technical documentation?
A10: Full datasheets and installation guides are available through Bently Nevada’s official support channels.
