Product Overview

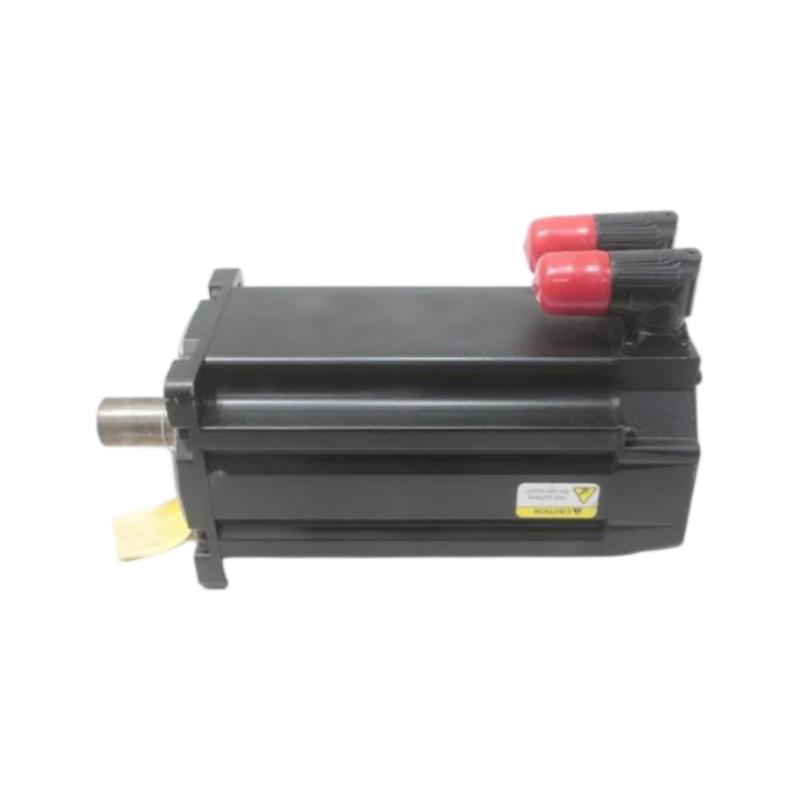

The Allen Bradley MPL-B4530K-MJ74AA Servo Motor is an industrial motion-control component designed for applications that require controlled rotation, accurate positioning, and coordinated mechanical movement. As identified by its MPL-series model designation, this motor belongs to the Allen-Bradley servo motor product family used in industrial automation environments where motor performance must be coordinated with a compatible servo drive and motion controller.

Servo motors are commonly used in automated manufacturing equipment because they support controlled movement based on command signals and feedback from the motion-control system. Depending on the selected drive, feedback configuration, and application requirements, a servo system can regulate motor position, speed, and torque to support repeatable machine operations.

The MPL-B4530K-MJ74AA is specified with a 130 mm frame size and a weight of 7.3 kg. These physical characteristics are useful when evaluating motor mounting arrangements, machine-space requirements, replacement logistics, and mechanical integration.

A servo motor should always be selected as part of a complete motion-control system. The motor’s electrical characteristics, feedback device, shaft and mounting configuration, brake requirements, and drive compatibility must be verified against the exact catalog specification before installation or replacement.

Technical Specifications

Note: Rated power, continuous stall torque, peak torque, rated speed, operating voltage, feedback type, shaft dimensions, brake configuration, and connector details are not included in the supplied data. These specifications should be confirmed for the exact MPL-B4530K-MJ74AA model before engineering or purchasing decisions.

What Is the Allen Bradley MPL-B4530K-MJ74AA?

A servo motor is an electromechanical device used in a closed-loop motion-control arrangement. Unlike a motor operated only through a simple start-and-stop command, a servo motor typically works with a servo drive and a motion controller to achieve a defined movement profile.

The controller generates motion commands, and the servo drive regulates the electrical power supplied to the motor. A compatible feedback system provides information about motor position or movement, allowing the control system to compare actual performance with the commanded target.

This arrangement can support precise positioning, controlled acceleration, repeatable movement, and coordinated operation with other machine axes.

The MPL-B4530K-MJ74AA is identified as an Allen-Bradley servo motor. Its suitability for a particular machine depends on matching the motor’s exact electrical, mechanical, and feedback specifications with the associated drive and application.

A typical servo system follows this operating sequence:

Motion Controller → Servo Drive → Servo Motor → Mechanical Load

Feedback Device → Servo Drive or Motion Controller

The feedback path and control architecture depend on the actual hardware configuration.

Function and Working Principle

1. Motion Command Reception

The motion controller defines the desired movement according to the machine sequence or production requirement. A command may specify a target position, travel distance, speed, acceleration, or coordinated movement with another axis.

The controller communicates these requirements to a compatible servo drive through the supported control interface.

2. Electrical Power Regulation

The servo drive regulates the electrical power supplied to the motor. It adjusts motor operation according to the requested motion and the feedback information available to the system.

The correct drive must be selected for the motor’s rated voltage, current, feedback arrangement, and other electrical requirements. These values should not be assumed from the frame size or model-family designation.

3. Electromagnetic Torque Generation

The motor converts electrical energy into mechanical rotation through electromagnetic interaction within the motor assembly. The generated torque moves the connected machine mechanism, such as a belt, ball screw, rotary table, or other mechanical transmission.

Actual torque and speed performance depend on the motor’s verified ratings, the drive configuration, and the mechanical load.

4. Feedback and Motion Regulation

In a closed-loop servo arrangement, the feedback system reports information about motor movement to the drive or controller. The control system uses this information to evaluate the difference between commanded and actual motion.

The drive then adjusts motor operation to reduce the tracking error within the capabilities of the system.

The exact feedback technology used by the MPL-B4530K-MJ74AA should be confirmed from the model-specific documentation.

5. Controlled Acceleration and Deceleration

Servo systems can execute programmed acceleration and deceleration profiles to reduce abrupt mechanical movement. This is useful when a machine must move quickly while maintaining positioning accuracy and avoiding unnecessary mechanical stress.

The achievable motion profile depends on motor performance, drive configuration, load inertia, and application tuning.

Role in Industrial Automation Systems

The Allen Bradley MPL-B4530K-MJ74AA can serve as the rotary actuator in a compatible industrial motion-control system. Its purpose is to transform electrical commands into controlled mechanical movement.

In an automated machine, the motor may be responsible for moving a component to a target location, rotating a mechanism, maintaining a commanded speed, or coordinating movement with other machine axes.

A typical system can include the following elements:

The exact controller, drive, cable, and feedback components must be chosen from the verified hardware specifications. A shared manufacturer or product family does not by itself establish compatibility.

Industrial Applications

Packaging Machinery

Servo motors are widely used in packaging systems that require repeatable movement and coordinated machine timing. Depending on the machine design, a servo axis may control product positioning, film feeding, indexing, or the movement of a mechanical assembly.

Accurate motion coordination can help maintain consistent production cycles and reduce positioning errors.

Automated Assembly Equipment

Assembly machinery often requires controlled movement to place, transfer, or position components. A servo motor can drive a mechanical axis that must follow a programmed motion profile.

The required motor torque, speed, and positioning performance should be calculated from the load and machine duty cycle.

Material Handling Systems

Servo-driven mechanisms can position products, move transfer assemblies, or control indexing operations in automated material handling equipment. The motor must be matched to the transmission, payload, and acceleration requirements.

Printing and Converting Equipment

Printing and converting machines may use servo motion for feed control, registration, indexing, or synchronized movement. Such applications require careful coordination between the controller, drive, motor, and other machine axes.

Robotics and Pick-and-Place Equipment

Servo motors are commonly used in robotic mechanisms and pick-and-place systems where controlled motion and repeatable positioning are required. Actual suitability depends on the motor’s torque, speed, inertia, and feedback characteristics.

Machine Tools and Automated Production Equipment

Servo systems can drive machine axes, rotary mechanisms, and automated positioning equipment. Correct motor sizing and tuning are important for achieving the required dynamic response without excessive vibration or mechanical stress.

Installation and Mechanical Integration

Correct installation is essential for achieving reliable motion performance and minimizing premature wear.

Verify the Motor Identification

Before installation, confirm the complete model number MPL-B4530K-MJ74AA and compare it with the equipment documentation. Record any additional nameplate information, revision markings, and connector identifiers.

Do not substitute a similar MPL-series motor solely because it has the same frame size.

Check Mounting Dimensions

The supplied frame size is 130 mm. Before fitting the motor, confirm the actual mounting-face dimensions, bolt pattern, shaft diameter, shaft length, and allowable installation clearances.

The frame-size designation alone is not sufficient to determine the complete mechanical interface.

Evaluate the Mechanical Load

Calculate the required torque, operating speed, acceleration, deceleration, and load inertia. Consider the transmission efficiency and the effect of the mechanical coupling, gearbox, belt, screw, or other connected mechanism.

A motor that is undersized may fail to achieve the required acceleration or may experience excessive current and thermal loading. An oversized or poorly tuned system may also introduce unnecessary cost or dynamic problems.

Align the Motor and Load

The motor shaft must be aligned with the driven mechanism according to the coupling manufacturer’s requirements. Misalignment can increase bearing loads, vibration, noise, and wear.

Check that the driven load rotates freely where appropriate and that the mounting assembly is mechanically secure before commissioning.

Inspect the Installation Environment

Verify the required environmental protection, ambient temperature, contamination limits, vibration conditions, and cooling requirements using the exact motor documentation.

Keep the motor and its connectors protected from liquids, conductive dust, and other contaminants that may affect insulation or feedback connections.

Electrical Connection and Servo Drive Integration

Confirm Drive Compatibility

The servo drive must support the motor’s electrical ratings and feedback configuration. Before connecting the motor, verify the rated voltage, current, power, feedback type, and supported motor parameters.

Do not choose a drive based only on physical size or a general product-family relationship.

Verify Motor Cable Requirements

Use the specified motor cable and connector arrangement. Confirm conductor sizing, grounding, shielding, cable length, and routing requirements for the application.

Where required, separate motor power cables from sensitive feedback and communication cables to reduce electromagnetic interference.

Check Grounding and Shielding

Follow the manufacturer’s grounding and shielding instructions. Proper protective grounding is essential for electrical safety, while appropriate cable shielding and routing can help reduce interference in the motion-control system.

Configure Motor Parameters

Enter or select the correct motor data in the compatible servo drive or engineering software. Verify that the selected motor identity matches the installed hardware.

Incorrect motor data may result in poor motion response, drive faults, overheating, or unexpected operation.

Validate Feedback and Motion Direction

Before normal operation, verify that the feedback connection is correct and that commanded movement produces the expected motor response. Test direction and feedback behavior at an appropriate commissioning speed and under controlled conditions.

If the motor moves in an unexpected direction or the feedback reading is inconsistent, stop the test and investigate the configuration and wiring.

Commissioning and Performance Optimization

A structured commissioning process helps identify problems before the machine enters production.

1. Complete a mechanical inspection. Confirm mounting security, shaft alignment, coupling condition, and freedom of movement.
2. Inspect the electrical installation. Verify the power connections, grounding, shielding, feedback wiring, and protective devices.
3. Confirm drive configuration. Check the motor identity, control settings, feedback selection, and applicable operating limits.
4. Perform controlled initial movement. Use an appropriate low-speed test to confirm rotation direction and basic response.
5. Check feedback behavior. Compare the commanded movement with the reported motor response.
6. Evaluate the load. Test acceleration, deceleration, and positioning under progressively representative operating conditions.
7. Review diagnostic information. Record faults, abnormal current behavior, vibration, noise, or excessive temperature.
8. Document the final settings. Save the approved configuration and record the commissioning results.

Tuning parameters should be adjusted according to the actual load and drive instructions. Excessive gain, unsuitable acceleration settings, or incorrect inertia estimates can cause oscillation, overshoot, or unstable operation.

Troubleshooting the MPL-B4530K-MJ74AA Servo Motor

Servo-system faults can originate in the motor, drive, feedback path, power supply, mechanical load, or control configuration. A systematic approach helps avoid unnecessary component replacement.

Motor Does Not Rotate

Possible causes include:

• Servo drive not enabled
• Active drive fault or inhibit condition
• Missing or incorrect power connection
• Incorrect motor configuration
• Feedback connection problem
• Motion command not being generated
• Mechanical obstruction or excessive load

Check the drive status and fault information first. Confirm that the controller is issuing a valid command and that the drive is configured for the installed motor. Inspect the mechanical load and wiring using approved isolation procedures.

Servo Drive Reports a Fault

Drive faults may relate to overcurrent, overvoltage, undervoltage, feedback errors, thermal conditions, or other system-specific problems.

Record the complete fault code and associated conditions before resetting the drive. Compare the fault with the applicable drive documentation, then investigate the relevant electrical, mechanical, and configuration factors.

Repeatedly resetting a fault without identifying its cause can damage equipment or create unsafe operating conditions.

Positioning Is Inaccurate

Positioning errors may result from unsuitable tuning, incorrect feedback configuration, excessive load inertia, mechanical backlash, coupling slip, or an improperly configured motion profile.

Compare commanded and actual position data where available. Inspect the mechanical transmission and verify that the controller, drive, and motor settings correspond to the installed equipment.

Excessive Vibration or Noise

Unusual vibration or noise can be caused by shaft misalignment, loose mounting hardware, an unsuitable coupling, mechanical resonance, damaged bearings, or incorrect servo tuning.

Inspect the mechanical assembly first. If the mechanical installation is correct, review the drive’s tuning and motion parameters according to the manufacturer’s procedure.

Motor Overheating

Potential causes include excessive load, frequent high-torque operation, insufficient cooling, unsuitable drive settings, or operation outside the motor’s specified duty cycle.

Check the actual load and operating profile against the motor ratings. Confirm that the motor is installed in the required environment and that the drive is configured correctly.

Intermittent Operation

Intermittent servo behavior can result from loose connectors, damaged cables, unstable power, electrical interference, feedback problems, or intermittent controller commands.

Inspect the motor and feedback connectors, review diagnostic history, and check the cable route for mechanical damage. Make changes only after the equipment has been placed in an appropriate safe state.

Maintenance Recommendations

Regular inspection helps maintain the reliability of the motor and the wider motion-control assembly.

Mechanical inspection: Check mounting bolts, shaft coupling, alignment, vibration, and any unusual noise.

Cable and connector inspection: Look for damaged insulation, loose connectors, contamination, or signs of overheating.

Thermal monitoring: Investigate abnormal temperature increases and verify that the motor operates within its specified limits.

Drive diagnostics: Review recurring faults and operating data to identify problems before they interrupt production.

Load assessment: Reassess the mechanical load if the machine cycle, payload, acceleration, or transmission changes.

Configuration backup: Maintain a record of drive parameters, motor identification, feedback settings, and approved tuning values.

Safe servicing: Follow the applicable lockout, power-isolation, and stored-energy procedures before mechanical or electrical maintenance.

Maintenance intervals should reflect the actual operating environment, machine duty cycle, and manufacturer’s recommendations.

Compatible System Components

The MPL-B4530K-MJ74AA should be integrated only with components confirmed to support its exact electrical and feedback specifications.

Exact accessory part numbers should be verified against the motor’s complete catalog specification. Do not assume that a cable, drive, or feedback accessory is compatible merely because it is associated with another MPL-series motor.

Replacement and Procurement Considerations

When sourcing a replacement motor, verify the full model designation MPL-B4530K-MJ74AA and compare the available unit with the motor currently installed in the machine.

Important checks include:

• Complete model and catalog number
• Frame size and mounting pattern
• Shaft dimensions and mechanical interface
• Rated power, speed, and torque
• Feedback device and connector configuration
• Brake requirements, if applicable
• Motor-drive compatibility
• Environmental and duty-cycle requirements
• Physical condition and testing records

The supplied frame size of 130 mm and weight of 7.3 kg are useful for preliminary mechanical planning, handling, and shipping calculations. They do not establish complete interchangeability with other motors.

For a replacement installation, confirm that the selected motor meets both the mechanical requirements of the machine and the electrical requirements of the servo drive. Following replacement, verify motor configuration, feedback behavior, movement direction, and positioning performance before returning the equipment to normal service.

Key Advantages

Controlled Industrial Motion

When correctly integrated with a compatible drive and controller, the motor supports commanded rotary motion for automated machinery and positioning applications.

Support for Repeatable Operations

Servo-based motion control can help machinery execute repeatable movement profiles when the motor, feedback system, drive, and control program are correctly configured.

Integration into Automated Equipment

A servo motor can form part of a larger automation architecture involving controllers, drives, mechanical transmissions, and operator interfaces.

Compact Mechanical Planning

The specified 130 mm frame size provides a useful initial reference for evaluating machine-space requirements, while detailed mounting dimensions must still be confirmed.

Maintainable Motion-Control Architecture

Documented wiring, verified motor parameters, and systematic fault analysis can help simplify service work and reduce avoidable downtime.

Technical FAQs

What is the Allen Bradley MPL-B4530K-MJ74AA?

It is identified as an Allen-Bradley MPL-series servo motor intended for controlled rotary motion in compatible industrial automation systems.

What is the frame size of the MPL-B4530K-MJ74AA?

The supplied frame size is 130 mm.

How much does this servo motor weigh?

The supplied weight is 7.3 kg.

What does a servo motor do in an industrial machine?

A servo motor converts electrical energy into controlled mechanical movement. When used with a compatible drive, controller, and feedback arrangement, it can support commanded position, speed, and torque behavior.

Which servo drive is compatible with this motor?

The exact compatible drive should be selected using the complete motor catalog specification, including rated voltage, current, power, and feedback requirements. Compatibility should not be inferred from the product family alone.

Why might the motor fail to move?

Possible causes include an inactive drive, an active fault, incorrect motor parameters, missing power, feedback problems, an absent motion command, or a mechanical obstruction.

What causes servo positioning errors?

Potential causes include tuning problems, mechanical backlash, coupling slip, excessive load inertia, feedback issues, or incorrect motion configuration.

Can another 130 mm servo motor replace this model?

Not automatically. Motors with the same frame size may differ in torque, speed, electrical ratings, feedback, shaft design, connectors, and brake configuration. All relevant specifications must be matched before substitution.

What should be checked before commissioning?

Confirm the motor identity, mechanical mounting, shaft alignment, power and feedback wiring, drive configuration, grounding, and protective measures. Then perform controlled movement tests and verify the actual motion against the required operating profile.

Conclusion

The Allen Bradley MPL-B4530K-MJ74AA Servo Motor is an industrial motion-control component identified for applications requiring controlled rotary movement. Used with a properly matched servo drive, controller, feedback system, and mechanical transmission, a servo motor can support repeatable positioning, coordinated machine sequences, and controlled acceleration and deceleration.

The supplied specifications identify a 130 mm frame size and a weight of 7.3 kg. These values assist with preliminary installation and handling planning, but they are not sufficient to determine complete mechanical or electrical compatibility.

For installation, maintenance, or replacement, verify the complete MPL-B4530K-MJ74AA model designation and confirm all motor ratings and interface requirements against the applicable product documentation. Correct sizing, secure mounting, proper cable installation, accurate drive configuration, and systematic commissioning are essential for reliable motion-control performance.
