Product Overview

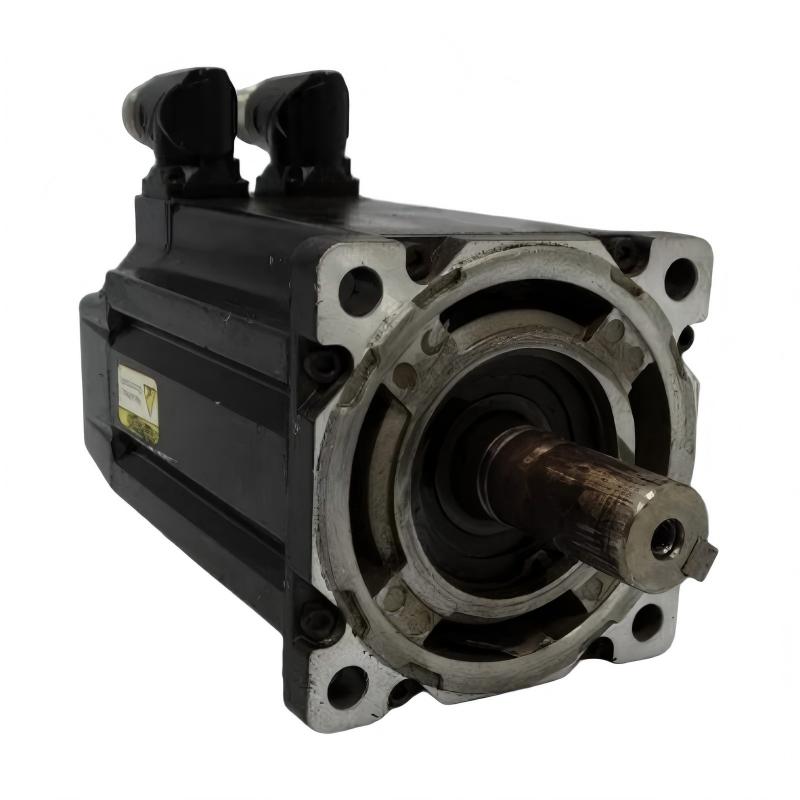

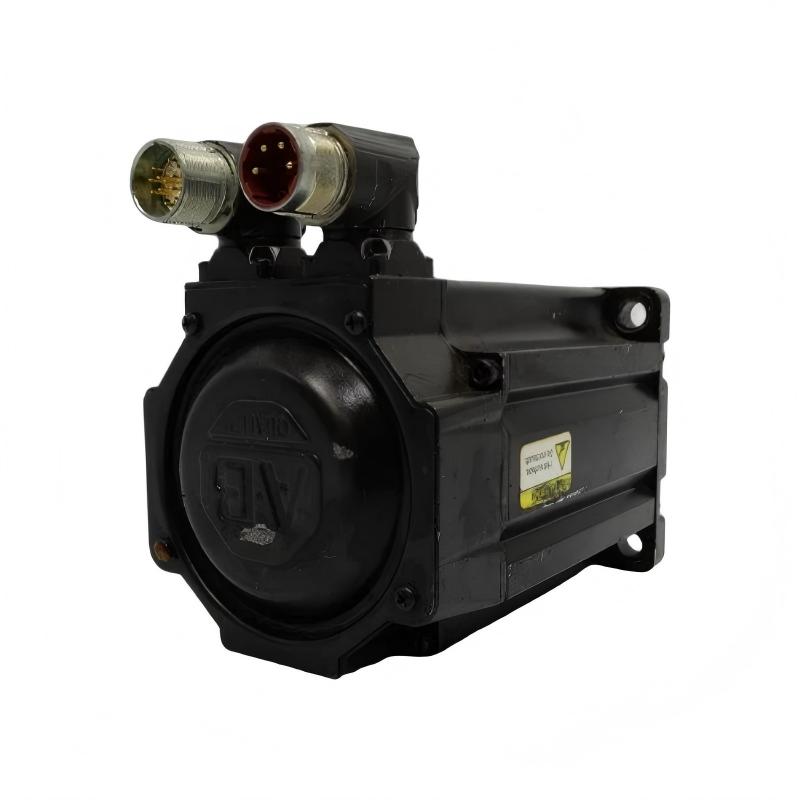

The Allen Bradley MPL-B4530F-HJ72AA Servo Motor is an industrial motion-control component designed for applications that require accurate positioning, controlled acceleration, and repeatable rotational movement. As part of the Allen Bradley Kinetix motion-control ecosystem, MPL-series servo motors are used in automated machinery where coordinated motor operation and precise motion response are important to production performance.

Servo motors differ from conventional induction motors because they are generally operated as part of a closed-loop motion-control system. A compatible servo drive supplies controlled electrical power to the motor, while feedback devices and the motion controller help regulate position, speed, and torque according to the application requirements. This arrangement allows machinery to execute programmed motion profiles and repeat positioning operations with high consistency.

The MPL-B4530F-HJ72AA is identified by the supplied product description as an Allen Bradley servo motor. Its stated frame size is 130 mm, and its stated weight is 7.3 kg. These physical details are useful when evaluating installation space, mechanical mounting, replacement logistics, and machine design requirements.

For an actual replacement or new installation, the complete catalog number must be verified against the motor nameplate and the applicable Allen Bradley technical documentation. Electrical ratings, winding configuration, feedback type, shaft dimensions, connector arrangement, brake configuration, and compatible drive models should be confirmed before equipment is selected or commissioned.

Technical Specifications

The table distinguishes the information supplied for this particular motor from specifications that require confirmation. The complete catalog number should be used when checking rated voltage, continuous and peak torque, rated speed, feedback resolution, and drive compatibility.

What Is the Allen Bradley MPL-B4530F-HJ72AA Servo Motor?

The MPL-B4530F-HJ72AA is described as a servo motor used in industrial motion-control applications. A servo motor converts electrical energy into controlled mechanical movement and is typically paired with a servo drive and controller to achieve the required motion profile.

In an automated machine, the controller defines a target position, velocity, or torque. The servo drive regulates the electrical power supplied to the motor, and feedback information is used by the control system to evaluate the motor’s response. The system can then correct deviations between the commanded and actual motion.

This closed-loop arrangement is useful when a machine must position a component accurately, move at a defined speed, or coordinate several axes. Typical examples include packaging mechanisms, pick-and-place equipment, automated assembly stations, and material-handling systems.

The motor alone does not provide the complete motion-control function. Its performance depends on the drive, feedback system, mechanical load, tuning parameters, wiring, and application design.

Function and Working Principle

1. Electrical Energy Conversion

The servo drive supplies controlled electrical power to the motor according to the motion command and the motor’s electrical characteristics. The motor converts this energy into rotary torque and movement.

The correct drive must match the motor’s rated electrical characteristics. An incompatible drive or incorrect parameter configuration can lead to poor performance, overcurrent faults, excessive heating, or equipment damage.

2. Commanded Motion

A motion controller or compatible automation controller generates commands based on the machine sequence. These commands may specify a target position, movement speed, acceleration, deceleration, or torque limit.

For example, a packaging machine may require a roller to advance a precise distance before a cutting or sealing operation begins. The controller coordinates the movement according to the programmed sequence.

3. Feedback and Motion Regulation

In a closed-loop servo system, a feedback device reports information about motor position or movement to the drive or control system. The system compares the measured response with the commanded motion and adjusts motor operation as needed.

The specific feedback technology and its capabilities depend on the exact motor configuration. These details should be verified for the MPL-B4530F-HJ72AA before designing the control system.

4. Acceleration and Deceleration Control

Servo systems can execute configured acceleration and deceleration profiles to help machinery transition between movement stages. Appropriate motion profiles can reduce abrupt mechanical loading and improve cycle consistency.

The permissible acceleration depends on the motor, drive, load inertia, coupling, gearbox, and machine mechanics. It should be calculated and configured for the actual application rather than assumed from the motor’s frame size.

5. Positioning and Repeatability

When used with a compatible drive and motion controller, the servo motor can support programmed positioning tasks. The overall positioning performance depends on feedback accuracy, control-loop tuning, mechanical stiffness, backlash, load characteristics, and operating conditions.

Correct installation and commissioning are essential to obtain stable and repeatable motion.

Role in Industrial Motion-Control Systems

Within an automated production system, the Allen Bradley MPL-B4530F-HJ72AA servo motor acts as the mechanical motion-producing element. It receives power from the servo drive and converts control commands into rotational movement.

A typical motion-control arrangement includes:

The exact arrangement depends on the machine design and the verified motor configuration. Cable assemblies, feedback interfaces, and drive accessories must be selected according to the actual catalog numbers and system requirements.

Industrial Applications

Packaging Machinery

Packaging machines often require synchronized movements for product feeding, indexing, sealing, cutting, and transfer. Servo-driven axes can execute repeatable motion profiles that help maintain consistent product spacing and machine timing.

Automated Assembly

Assembly equipment may require components to be moved into precise positions before fastening, insertion, inspection, or joining operations. A servo motor can provide controlled motion when paired with an appropriately designed drive and controller.

Material Handling

Automated transfer mechanisms, positioning tables, and handling systems may use servo motors to control movement between defined positions. The required motor and drive capacity must account for load mass, acceleration, travel distance, and duty cycle.

Pick-and-Place Equipment

Pick-and-place machinery relies on coordinated movement to transfer components between locations. Servo systems can support programmed positioning and synchronized axes where the application requires controlled and repeatable movement.

Printing and Converting Equipment

Printing, labeling, winding, and converting machinery may require coordinated rotation and precise speed control. Servo-based motion systems can help synchronize rollers and processing mechanisms according to the machine’s operating requirements.

Automated Production Lines

In production lines, servo motors may operate indexing units, positioning mechanisms, feeders, and transfer devices. Their suitability depends on the required torque, speed, dynamic response, environmental conditions, and mechanical interface.

Installation and Mechanical Integration

Correct installation helps maintain motor performance, reduce vibration, and prevent premature mechanical wear.

Confirm Motor Identification

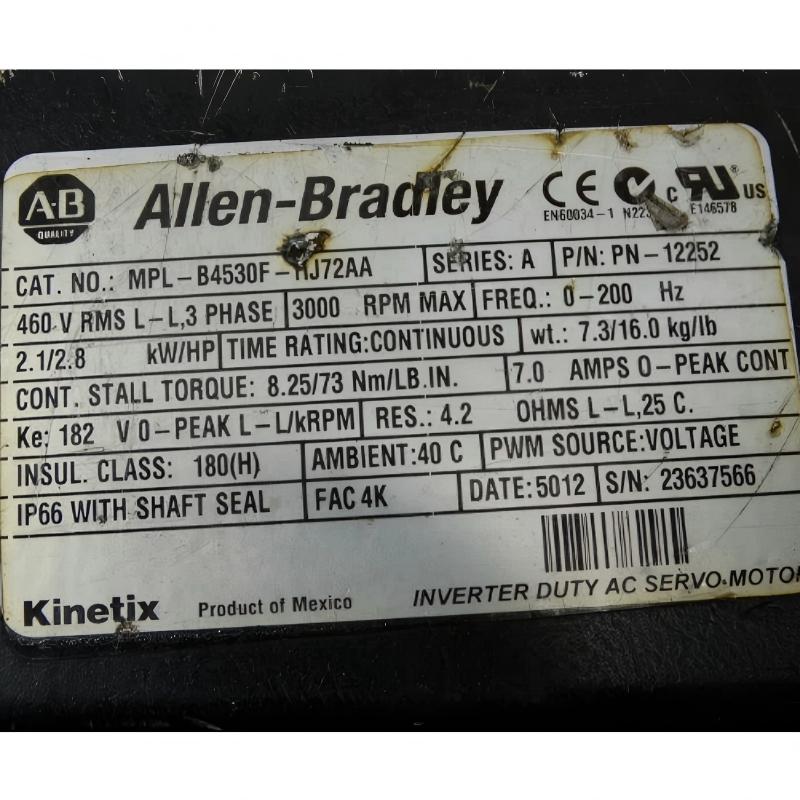

Before installation, inspect the nameplate and verify the complete model number MPL-B4530F-HJ72AA. Check that the catalog number matches the equipment records and the intended application.

Do not rely on appearance or frame size alone to establish interchangeability. Motors with similar housings may have different electrical ratings, feedback devices, shaft configurations, or connection arrangements.

Verify Mechanical Dimensions

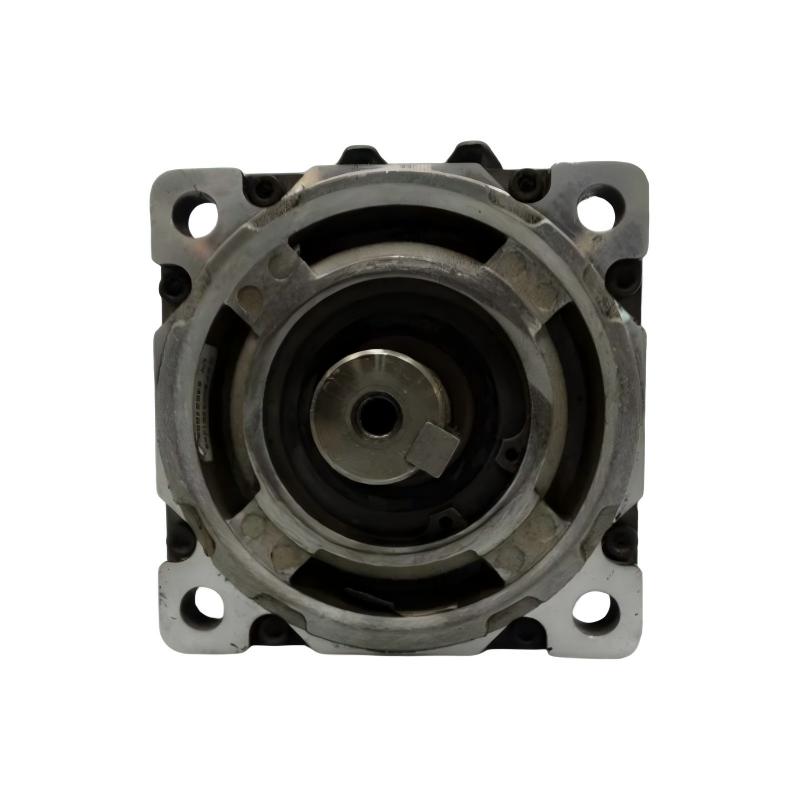

The stated frame size is 130 mm. Before mounting the motor, confirm the actual mounting-hole pattern, shaft diameter, shaft length, flange dimensions, and required clearances from the applicable mechanical drawing.

Check the driven machine’s coupling and mounting interface. Misalignment between the motor shaft and driven equipment can introduce vibration, excessive bearing loading, and premature component failure.

Inspect the Mounting Surface

The motor should be mounted to a suitable, rigid surface that can withstand the operating loads and vibration. Fasteners must be selected and tightened according to the relevant equipment specifications.

Check that the mounting arrangement allows adequate access for cabling, inspection, and maintenance.

Evaluate the Mechanical Load

Confirm that the motor is suitable for the driven load and required motion profile. Consider load inertia, friction, acceleration, deceleration, operating speed, duty cycle, and any external forces applied to the shaft.

Where gearboxes, belts, couplings, or other transmission components are used, verify their ratings and mechanical compatibility.

Electrical Installation and Drive Integration

Select a Compatible Servo Drive

The motor must be paired with a drive that explicitly supports the complete motor catalog number. Confirm the required power rating, voltage range, feedback interface, connector configuration, and supported motor parameters.

Do not select a drive solely because it belongs to the same manufacturer or product family.

Verify Power and Feedback Connections

Use the correct cable assemblies and connection methods specified for the motor and drive. Check conductor assignments, connector keying, grounding, shielding, and cable routing before energizing the system.

Incorrect power or feedback wiring can cause faults, uncontrolled behavior, or equipment damage.

Grounding and Electromagnetic Compatibility

Follow the applicable grounding and electromagnetic compatibility requirements. Route motor power cables appropriately in relation to sensitive signal wiring, and use the specified shielding and bonding arrangements.

Proper cable installation can reduce electrical interference and improve feedback reliability.

Configure Motor Parameters

Enter or select the correct motor data in the compatible drive configuration. Confirm the motor identification, feedback settings, operating limits, and control mode using the approved commissioning procedure.

Incorrect parameter settings may cause poor motion quality, excessive current, unexpected alarms, or thermal problems.

Commission at Low Risk

Before normal production operation, inspect the mechanical installation and verify the motor’s response using the manufacturer’s commissioning procedure. Confirm the commanded direction, feedback behavior, motion limits, and fault response.

Initial testing should be conducted with the machine in a controlled condition and with personnel clear of moving parts. Protective guards and machine-safety measures must remain effective throughout commissioning.

Troubleshooting the MPL-B4530F-HJ72AA Servo Motor

Motor-related problems should be investigated across the complete motion-control system. A symptom that appears to originate from the motor may instead be caused by the drive, feedback wiring, mechanical load, or configuration.

Motor Does Not Rotate

Possible causes include:

• Servo drive not enabled
• Missing or incorrect power connections
• Active drive fault
• Incorrect motor parameters
• Missing motion command
• Feedback connection problem
• Mechanical obstruction
• Incompatible motor and drive combination

Review the drive’s diagnostic information first. Confirm the control command, enable conditions, wiring, and motor configuration before considering motor replacement.

Servo Drive Reports a Fault

Drive faults may relate to electrical supply conditions, overcurrent, feedback errors, motor overload, excessive tracking error, or other system conditions.

Record the exact fault code and operating circumstances. Use the drive’s diagnostic instructions to identify the appropriate checks rather than replacing components based only on a general alarm description.

Positioning Is Inaccurate

Positioning errors may result from mechanical backlash, coupling slippage, incorrect feedback configuration, unsuitable tuning, excessive load inertia, or incorrect motion parameters.

Inspect the mechanical transmission and compare the commanded movement with the measured response. Review the drive configuration and tuning only after confirming that the mechanical system and feedback connections are correct.

Excessive Vibration or Noise

Potential causes include shaft misalignment, damaged bearings, loose mounting hardware, coupling problems, mechanical resonance, or inappropriate servo tuning.

Inspect the motor mounting and driven equipment. If the vibration began after a control adjustment, review the motion parameters and tuning procedure. Do not continue operating a motor that exhibits signs of severe mechanical damage.

Motor Overheating

Overheating can be associated with excessive load, frequent acceleration, insufficient cooling, incorrect motor parameters, mechanical friction, or operation outside the rated duty cycle.

Compare the actual operating conditions with the motor and drive specifications. Check load sizing, mechanical resistance, and the application’s motion profile before returning the system to service.

Intermittent Motion or Feedback Faults

Intermittent operation may be caused by loose connectors, damaged cables, electrical interference, unstable power, feedback-device problems, or vibration affecting connections.

Inspect the power and feedback cables according to the approved isolation procedure. Check connector condition and cable routing, then verify the system’s diagnostic history.

Maintenance Recommendations

Inspect the Motor and Mounting

Check the housing, mounting fasteners, shaft coupling, and surrounding equipment for signs of damage, looseness, or abnormal vibration.

Check Cable Condition

Inspect motor power and feedback cables for abrasion, crushing, excessive bending, connector damage, or insecure connections. Replace damaged components with compatible parts.

Monitor Operating Performance

Record recurring drive faults, unusual noise, excessive temperature, and changes in positioning behavior. Trend information can help identify developing mechanical or electrical problems.

Keep the Installation Environment Suitable

Maintain the environmental conditions required by the motor and associated drive. Protect the equipment from contamination, moisture, excessive heat, and vibration beyond the specified limits.

Verify Motion Parameters After Changes

Following motor replacement, drive replacement, or mechanical modification, confirm that the correct motor data and motion parameters are configured. Perform the required commissioning tests before restoring normal production.

Maintenance intervals and procedures should follow the applicable equipment documentation and the operating conditions of the machine.

Compatible System Components

The MPL-B4530F-HJ72AA may be integrated into a motion-control installation containing the following component types, provided each item is confirmed as compatible.

Specific drive, cable, and controller catalog numbers should be selected only after checking the exact motor configuration and the intended control architecture.

Replacement and Procurement Considerations

When purchasing or replacing the Allen Bradley MPL-B4530F-HJ72AA Servo Motor, verify the complete catalog number against the installed motor and the machine’s engineering records.

Important considerations include:

• Exact catalog number and nameplate details
• Frame size and mechanical mounting dimensions
• Shaft and coupling configuration
• Rated voltage and current
• Rated speed and torque
• Feedback device and interface
• Brake configuration, if applicable
• Compatible servo drive and cable assemblies
• Environmental and duty-cycle requirements
• Condition, inspection history, and replacement requirements

The supplied frame size of 130 mm and weight of 7.3 kg are useful for preliminary mechanical planning, stock management, and shipping arrangements. They do not establish full mechanical or electrical interchangeability.

For replacement projects, document the existing motor wiring, drive parameters, mechanical coupling, and feedback configuration before removing the original equipment. After replacement, verify direction, feedback operation, movement limits, and system response under controlled conditions.

Key Advantages

Controlled Motion

When integrated with a compatible servo drive and controller, the motor can support programmed movement for applications requiring managed speed, torque, or position.

Support for Automated Machinery

Servo motors are suitable for many automated processes involving indexing, positioning, synchronization, and repeatable mechanical movement.

Integration into Motion-Control Architectures

The motor can form the mechanical output stage of a compatible industrial motion-control system, working with controllers, drives, feedback interfaces, and machine mechanics.

Compact Mechanical Planning

The supplied 130 mm frame size and 7.3 kg weight provide useful reference values for evaluating mounting arrangements and handling requirements.

Maintainability Through System Diagnostics

When the motor is used with a suitable drive and control platform, system diagnostics can help technicians investigate motion faults and identify potential causes of performance changes.

Technical FAQs

What is the Allen Bradley MPL-B4530F-HJ72AA?

It is identified as an Allen Bradley MPL-series servo motor intended for industrial motion-control applications. The complete motor specifications should be confirmed from the exact catalog number.

What is the frame size of this motor?

The supplied frame size is 130 mm. The mounting-hole pattern and shaft dimensions should be checked separately using the applicable mechanical drawing.

How much does the MPL-B4530F-HJ72AA weigh?

The supplied weight is 7.3 kg.

Does this motor require a servo drive?

For a typical industrial servo application, the motor is operated with a compatible servo drive and controller. The drive must support the motor’s exact electrical and feedback configuration.

What applications can use this servo motor?

Potential applications include packaging machinery, automated assembly, indexing systems, material handling, and other equipment requiring controlled rotary movement. Suitability depends on the motor’s verified ratings and the application’s load requirements.

Why is motor-drive compatibility important?

The motor and drive must have compatible electrical ratings, feedback interfaces, connectors, and configuration support. A mismatch can cause faults, unreliable motion, or equipment damage.

What should be checked if the motor fails to move?

Check the drive’s fault status, enable conditions, motion command, power wiring, feedback connections, motor parameters, and mechanical load. Follow the applicable diagnostic procedure before replacing the motor.

Can another MPL-series motor replace this model?

Not automatically. A replacement must match the required electrical characteristics, feedback configuration, mechanical dimensions, shaft interface, and drive compatibility. Similar frame sizes do not guarantee interchangeability.

Conclusion

The Allen Bradley MPL-B4530F-HJ72AA Servo Motor is described as an industrial servo motor for applications requiring controlled rotary movement and integration into an appropriate motion-control system. When correctly matched with a compatible servo drive, controller, feedback interface, and mechanical load, a servo motor can support repeatable positioning, coordinated movement, and automated machine sequencing.

The supplied specifications identify a 130 mm frame size and a weight of 7.3 kg, providing useful physical reference information for installation planning and replacement logistics. Actual performance and compatibility depend on the complete motor configuration, verified electrical ratings, mechanical installation, drive parameters, and operating conditions.

Before procurement, installation, or replacement, confirm the full catalog number and the applicable product specifications. Correct component matching, careful wiring, appropriate configuration, and controlled commissioning are essential for reliable operation in industrial automation systems.
