Product Overview

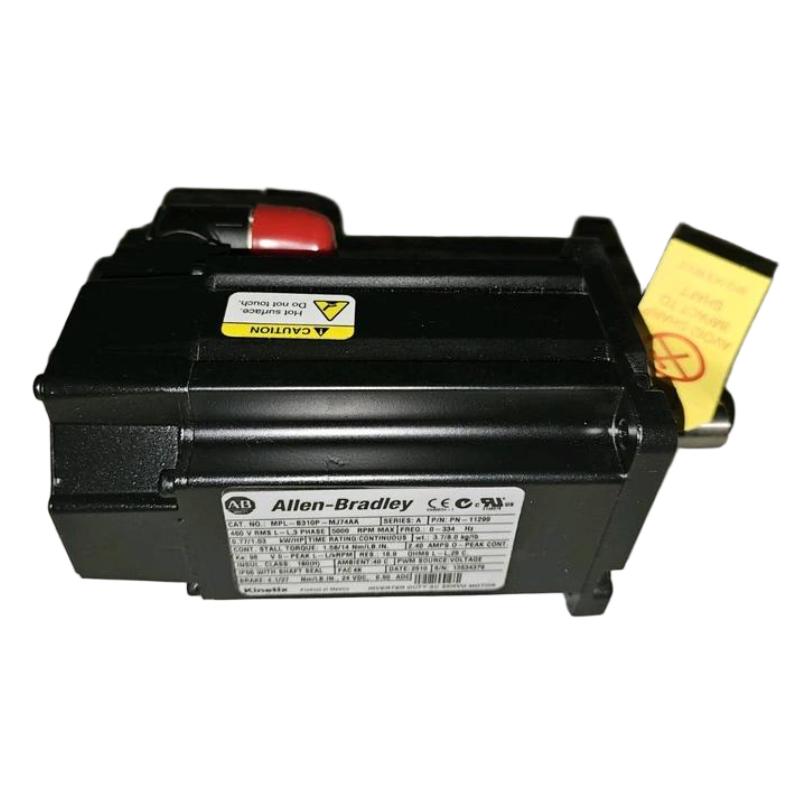

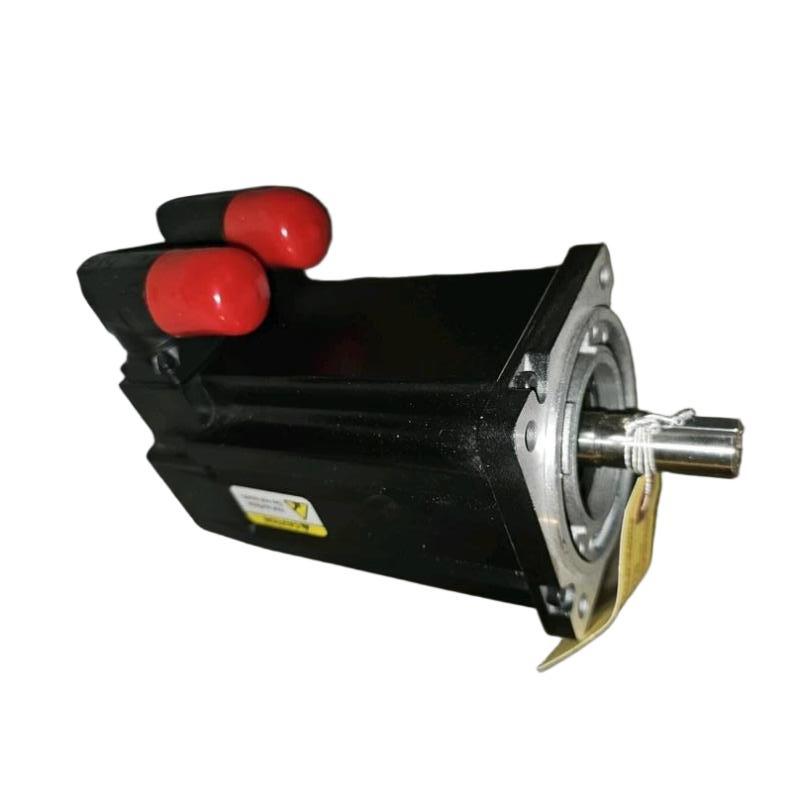

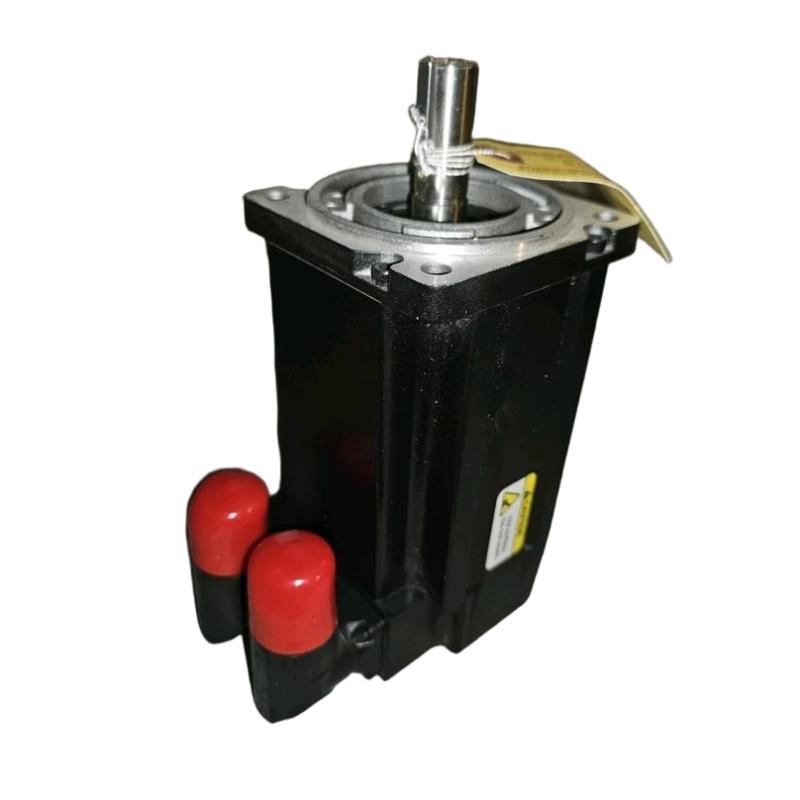

The Allen Bradley MPL-B310P-MJ74AA Servo Motor is an industrial motion-control component designed for applications requiring controlled rotation, accurate positioning, and coordinated mechanical movement. As part of the Allen-Bradley Kinetix motion-control ecosystem, compatible servo motors can be integrated into automated machinery to support repeatable motion profiles, synchronized operations, and responsive speed and torque control.

Servo motors are widely used in modern manufacturing because they enable a control system to regulate motor movement according to application requirements. When paired with a compatible servo drive, feedback device, controller, and mechanical transmission, a servo motor can support precise positioning and dynamic movement in equipment such as packaging machines, assembly systems, material-handling equipment, and automated production lines.

The MPL-B310P-MJ74AA is identified by the supplied product description as an Allen-Bradley servo motor with a 100 mm frame size and a weight of 2.7 kg. These physical characteristics are useful when planning machine layouts, assessing mounting requirements, and organizing replacement-part inventories.

Selecting a servo motor requires more than matching its physical dimensions. Motor voltage, rated speed, continuous and peak torque, feedback configuration, shaft design, connector arrangement, and drive compatibility must all match the intended application. These details should be verified against the exact motor nameplate and applicable product documentation before installation or replacement.

Technical Specifications

The table preserves the supplied model number, frame size, and weight. Detailed electrical ratings and mechanical dimensions beyond the stated frame size should be confirmed for the exact model rather than estimated from the product family.

What Is the Allen-Bradley MPL-B310P-MJ74AA Servo Motor?

A servo motor is an electromechanical device used in a closed-loop motion-control system. Unlike a conventional motor installation that may operate primarily at a fixed speed, a servo system can regulate motion according to commands from a controller and feedback from the motor or associated mechanism.

The servo drive supplies controlled electrical power to the motor. A compatible feedback device provides information about motor position, speed, or other supported operating parameters. The controller compares the required motion with the available feedback and adjusts the command as necessary.

This arrangement allows the machine to move to a target position, maintain a commanded speed, or follow a defined motion profile. Performance depends on the combined characteristics of the motor, drive, feedback system, controller, and mechanical load.

The MPL-B310P-MJ74AA should therefore be considered as one part of a complete motion-control arrangement rather than as an independent positioning solution.

A simplified servo-system structure is:

Motion Controller → Servo Drive → Servo Motor → Mechanical Load

Feedback Device → Servo Drive or Motion Controller

The precise feedback path and interface depend on the verified hardware configuration.

Function and Working Principle

1. Electrical Power Conversion

The servo drive receives electrical power and generates controlled motor output according to the motion command and supported control method. The drive must be correctly matched to the motor’s electrical characteristics.

An unsuitable drive or incorrect parameter configuration can result in poor motion performance, drive faults, or equipment damage. Compatibility should be established using the complete motor model and the applicable drive specifications.

2. Torque Generation

The motor converts electrical energy into rotational mechanical energy. The generated torque accelerates, decelerates, or holds the connected mechanism according to the commanded motion and the load conditions.

The required torque depends on factors such as load inertia, friction, acceleration, transmission efficiency, and operating duty. Motor sizing should account for both continuous operating requirements and temporary peak demands.

3. Position and Speed Regulation

In a properly configured servo system, the controller and drive regulate movement according to the commanded position or speed. Feedback allows the system to compare actual motion with the desired result.

This capability is useful when a machine must repeatedly move components to defined positions, maintain synchronized movement, or execute controlled acceleration and deceleration.

The accuracy achievable in a particular application depends on the complete system, including the feedback device, mechanical transmission, installation rigidity, tuning, and load characteristics.

4. Feedback-Based Control

Feedback provides information used by the servo system to monitor motor movement. Depending on the exact configuration, the system may use position or speed information to correct deviations from the commanded motion.

Feedback faults, loose connectors, damaged cables, and incorrect configuration can interfere with this process. These issues should be considered when diagnosing position errors or unstable movement.

5. Coordinated Machine Operation

When integrated with a compatible motion controller, a servo motor can participate in coordinated machine sequences. Multiple axes may be commanded to move in a defined relationship, provided that the controller, drives, feedback interfaces, and application software support the required functionality.

Examples include synchronized conveyor movement, automated cutting, indexing, pick-and-place operations, and product positioning.

Role in Industrial Motion-Control Systems

The Allen-Bradley MPL-B310P-MJ74AA can serve as the mechanical motion-producing element within a compatible industrial automation system. The controller defines the required movement, the servo drive regulates the motor, and the mechanical transmission transfers the motor’s output to the machine.

The major components of a typical servo system include:

The actual components and wiring depend on the drive family, motor configuration, controller architecture, and machine design.

Industrial Applications

Packaging Machinery

Servo motors can control indexing, product positioning, feeding mechanisms, and synchronized movement in packaging equipment. Controlled acceleration and deceleration can help improve repeatability and reduce unnecessary mechanical shock.

The suitability of the MPL-B310P-MJ74AA for a particular packaging axis depends on its verified torque, speed, inertia, and environmental ratings.

Automated Assembly

Assembly equipment often requires components to move to repeatable positions during insertion, fastening, inspection, and transfer operations. A properly sized servo system can support these movements under controller supervision.

Material Handling

Servo motion systems can be used in transfer mechanisms, positioning tables, sorting equipment, and automated handling systems. The motor must be selected according to load inertia, movement distance, acceleration, and required cycle time.

Indexing and Positioning Equipment

Rotary indexing tables and linear positioning mechanisms may use servo motors to move between defined positions. Mechanical backlash, coupling stiffness, and feedback resolution all influence final positioning performance.

Printing and Converting Machinery

Printing, labeling, and material-converting systems can require coordinated movement between rollers, feeders, cutters, and positioning mechanisms. Servo control can help maintain motion relationships when supported by the complete automation architecture.

General Manufacturing Automation

In suitable applications, servo motors provide controlled motion for automated fixtures, machine mechanisms, and production equipment. The correct selection depends on the machine’s electrical, mechanical, and performance requirements.

Installation and Mechanical Integration

Correct installation is essential for reliable servo-motor operation. Before mounting the MPL-B310P-MJ74AA, verify the motor’s identity and confirm that the mounting arrangement matches the machine design.

Confirm Motor Identification

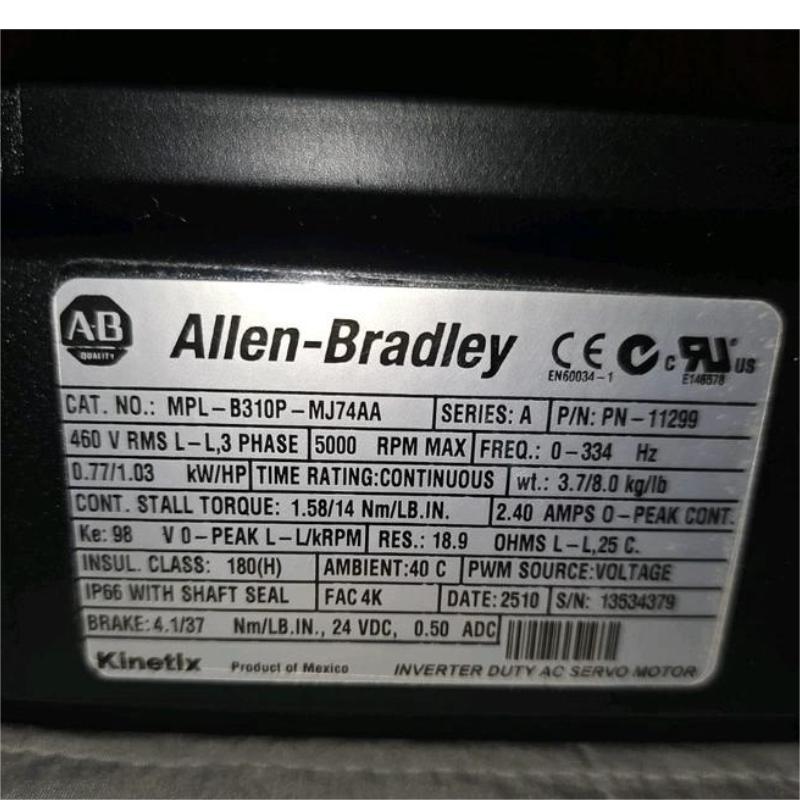

Check the complete nameplate designation, including MPL-B310P-MJ74AA. Record any applicable revision or additional identification information.

Do not assume that motors with similar model numbers share the same electrical ratings, feedback arrangement, connectors, shaft dimensions, or drive compatibility.

Verify Mechanical Mounting

The supplied frame size is 100 mm. Before installation, confirm the actual flange dimensions, mounting-hole pattern, shaft diameter, shaft length, and permissible installation orientation using the appropriate dimensional drawing.

The machine mounting surface should be rigid, clean, and suitable for maintaining alignment. Incorrect mounting can increase vibration, bearing loading, coupling stress, and positioning error.

Check the Mechanical Load

Confirm that the connected mechanism is suitable for the motor’s rated and peak operating capabilities. Consider load inertia, acceleration requirements, friction, shock loading, and the operating cycle.

Where a gearbox or coupling is used, verify its ratings and mechanical alignment. A poorly matched transmission can reduce performance even when the motor and drive are correctly selected.

Inspect the Shaft and Coupling

Before connecting the motor to the load, inspect the shaft and coupling for damage, contamination, and signs of wear. Use the specified mounting and fastening procedures.

Avoid applying excessive axial or radial force to the shaft. Permissible shaft loading should be checked against the motor’s applicable mechanical specifications.

Electrical Connection and Drive Integration

Electrical integration must follow the verified motor and drive documentation.

Confirm Drive Compatibility

Select a servo drive that explicitly supports the motor’s electrical and feedback configuration. Check rated voltage, current, power requirements, supported feedback interface, connector arrangement, and applicable firmware or configuration requirements.

A drive should not be selected solely on the basis of the motor’s frame size or physical appearance.

Inspect Motor Cables

Use the appropriate motor power and feedback cables for the exact installation. Check connectors, cable lengths, routing, and grounding arrangements.

Cables should be protected against abrasion, crushing, excessive bending, and interference from nearby power equipment. Follow the specified separation and shielding practices for the selected drive system.

Configure Motor Parameters

Before enabling the motor, verify the motor identification and parameter selection in the drive configuration. Use the correct motor data and supported commissioning procedure.

Incorrect parameters can produce poor speed regulation, unstable movement, excessive current, or drive faults.

Verify Protective Measures

Ensure that protective grounding, overcurrent protection, emergency-stop arrangements, and any required safety functions are designed and validated for the complete machine.

Do not treat a standard servo motor alone as a safety device. The machine-level safety design must use suitable components and validated control arrangements.

Perform Controlled Commissioning

Initial commissioning should be performed by qualified personnel using the applicable procedures. Confirm correct motor identification, cable connections, feedback operation, direction of rotation, and drive status before applying motion commands.

Begin with a controlled test appropriate to the machine, then verify movement, stopping behavior, load response, and fault handling before returning the equipment to production.

Troubleshooting the MPL-B310P-MJ74AA Servo Motor

Servo-system faults may originate in the motor, drive, feedback wiring, controller configuration, mechanical transmission, or external load. Troubleshooting should consider the complete system.

Motor Does Not Rotate

Possible causes include:

• Servo drive not enabled
• Missing or incorrect power connection
• Active drive fault
• Incorrect motor configuration
• Feedback connection problem
• Controller command not being issued
• Mechanical obstruction or excessive load

Start by checking the drive’s displayed status and fault information. Verify the controller command, motor identification, and cable connections according to the equipment documentation.

Do not repeatedly reset a fault without identifying its cause.

Positioning Error

Positioning errors may result from incorrect motion parameters, unsuitable mechanical alignment, excessive load inertia, coupling backlash, feedback problems, or inadequate system tuning.

Check whether the error occurs consistently or only under particular loads or speeds. Inspect the mechanical transmission and review the drive and controller diagnostics before changing tuning parameters.

Unstable Speed or Vibration

Potential causes include poor mechanical alignment, loose mounting hardware, load resonance, unsuitable control parameters, damaged couplings, or feedback-signal problems.

Inspect the machine mechanically and verify the configuration against the motor and drive requirements. Any tuning changes should be performed using the applicable commissioning procedure and validated under the intended operating conditions.

Motor Overheating

Excessive motor temperature may be associated with overload, frequent high-acceleration cycles, restricted cooling, unsuitable operating conditions, mechanical binding, or incorrect motor-drive configuration.

Check the load and duty cycle against the verified motor ratings. Inspect the installation environment and confirm that the mechanical system can move freely.

Do not continue operation if the motor exceeds its permitted temperature limits.

Feedback or Drive Fault

A feedback-related fault may result from a disconnected cable, damaged connector, incorrect feedback configuration, electrical interference, or a fault in the feedback device.

Inspect the feedback cable and connector using approved isolation procedures. Compare the fault indication with the drive’s diagnostic information and verify that the configured motor matches the installed unit.

Excessive Noise or Mechanical Wear

Unusual noise can indicate misalignment, bearing wear, coupling damage, excessive mechanical loading, or a problem elsewhere in the driven mechanism.

Stop the equipment when continued operation could cause damage. Inspect the motor mounting, shaft coupling, transmission, and load before returning the system to service.

Maintenance Recommendations

A suitable maintenance program should cover the motor, its electrical connections, the drive system, and the mechanical load.

Inspect the mounting hardware: Check for looseness, vibration, corrosion, or damage.

Examine cables and connectors: Look for damaged insulation, loose connections, worn cable jackets, or contamination around connectors.

Monitor operating trends: Review recurring drive faults, changes in current, abnormal temperature, and changes in motion performance where these values are available.

Check mechanical alignment: Inspect couplings, gearboxes, and driven mechanisms for wear, excessive play, or abnormal loading.

Maintain a suitable environment: Keep the installation within the motor’s specified temperature, humidity, contamination, and vibration limits.

Review drive configuration: Maintain records of motor parameters, controller settings, commissioning results, and approved configuration changes.

Follow manufacturer maintenance requirements: Bearing serviceability, lubrication requirements, permissible shaft loads, and other maintenance details must be determined from the exact motor documentation rather than assumed from the general servo-motor category.

Compatible System Components

The MPL-B310P-MJ74AA should be integrated only with components verified for its specific electrical and feedback configuration.

Specific drive models, cable catalog numbers, and controller part numbers should be selected only after confirming the complete motor designation and the relevant hardware documentation. Similar product-family names do not guarantee compatibility.

Replacement and Procurement Considerations

When sourcing an Allen-Bradley MPL-B310P-MJ74AA servo motor, exact identification is essential. A replacement must meet the electrical, mechanical, and feedback requirements of the existing system.

Before purchase, confirm:

• Full motor model and nameplate information
• Frame size and mounting arrangement
• Shaft dimensions and mechanical interface
• Rated voltage, current, speed, and torque
• Feedback device and connector configuration
• Compatible servo drive
• Required motor and feedback cables
• Operating environment and duty cycle
• Product condition and applicable inspection records

The supplied frame size of 100 mm and weight of 2.7 kg are useful for preliminary planning, handling, and inventory control. They do not establish that another motor with the same frame size is an interchangeable replacement.

After replacement, verify drive configuration, feedback operation, motor direction, mechanical alignment, and the required machine motion before resuming normal production.

Key Advantages of Servo Motor Technology

Controlled Motion

A properly configured servo system can regulate motor speed and position according to the needs of the application.

Repeatable Positioning

Feedback-based control helps the system correct motion deviations and achieve repeatable movement when the complete mechanical and control arrangement is appropriately designed.

Flexible Machine Sequencing

Servo motors can be integrated into automated sequences that coordinate motion with sensors, operator commands, and other machine axes.

Integration with Industrial Automation

When paired with compatible drives and controllers, servo motors can form part of a larger machine-control architecture.

Compact Installation Planning

The supplied 100 mm frame size and 2.7 kg weight provide useful initial information for assessing physical handling and machine-layout requirements.

Technical FAQs

What is the Allen-Bradley MPL-B310P-MJ74AA?

It is identified in the supplied product description as an Allen-Bradley servo motor intended for industrial motion-control applications.

What is the frame size of this servo motor?

The supplied frame size is 100 mm. The exact flange, shaft, and mounting dimensions should be confirmed from the applicable dimensional drawing.

How much does the MPL-B310P-MJ74AA weigh?

The supplied weight is 2.7 kg.

Does this motor operate independently?

A servo motor typically requires a compatible drive and control arrangement to regulate its operation. Feedback devices and associated cables may also be required, depending on the motor configuration.

Which servo drive is compatible with this motor?

The exact drive should be selected using the full motor model, electrical ratings, feedback configuration, and the applicable compatibility documentation. A specific drive model should not be assumed without verification.

What causes servo-motor positioning errors?

Common possibilities include incorrect tuning, feedback faults, mechanical backlash, misalignment, excessive load inertia, unsuitable motion parameters, or controller-configuration errors.

Can a motor with the same frame size replace this model?

Not necessarily. Electrical ratings, shaft dimensions, feedback interfaces, connectors, and drive compatibility must all match the application.

What should be checked before commissioning?

Verify the motor identity, drive compatibility, power and feedback connections, mechanical alignment, grounding, protective measures, parameter configuration, and expected direction of movement. Commissioning should be carried out by qualified personnel according to the applicable procedures.

Conclusion

The Allen-Bradley MPL-B310P-MJ74AA Servo Motor is a motion-control component intended for integration into suitable industrial automation systems. When correctly matched with a servo drive, motion controller, feedback arrangement, and mechanical load, a servo motor can support controlled movement, repeatable positioning, and coordinated machine operation.

The supplied specifications identify a 100 mm frame size and a 2.7 kg weight, providing useful information for initial installation planning and replacement logistics. Reliable performance depends on correct motor selection, electrical and mechanical compatibility, accurate configuration, appropriate commissioning, and ongoing inspection.

Before installing or replacing the MPL-B310P-MJ74AA, verify its complete model designation and all required electrical and mechanical parameters. Matching the motor to the existing drive and machine architecture is essential for safe operation, dependable motion control, and long-term equipment reliability.
