Product Overview

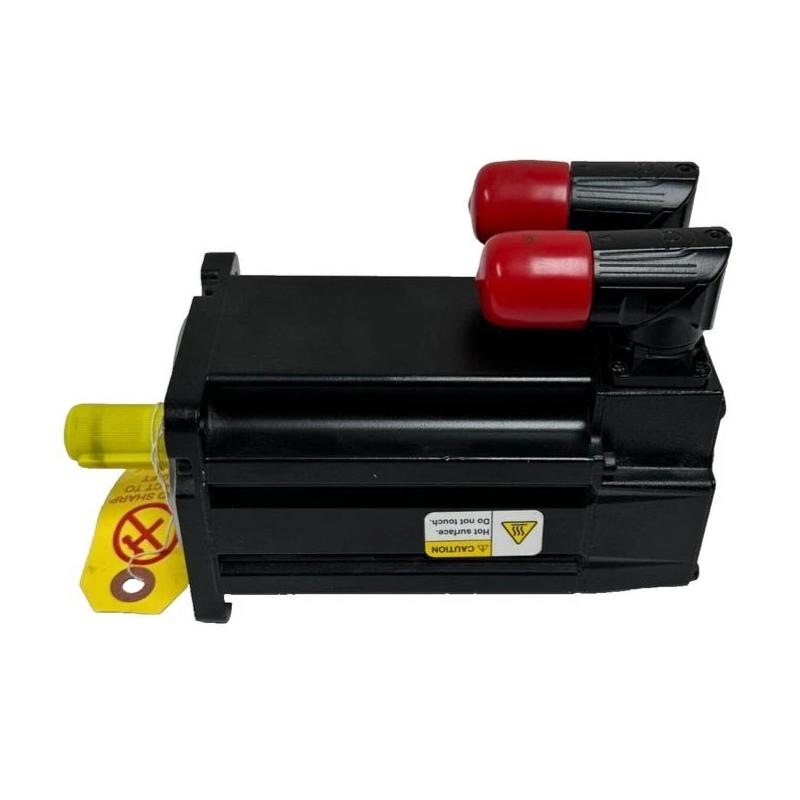

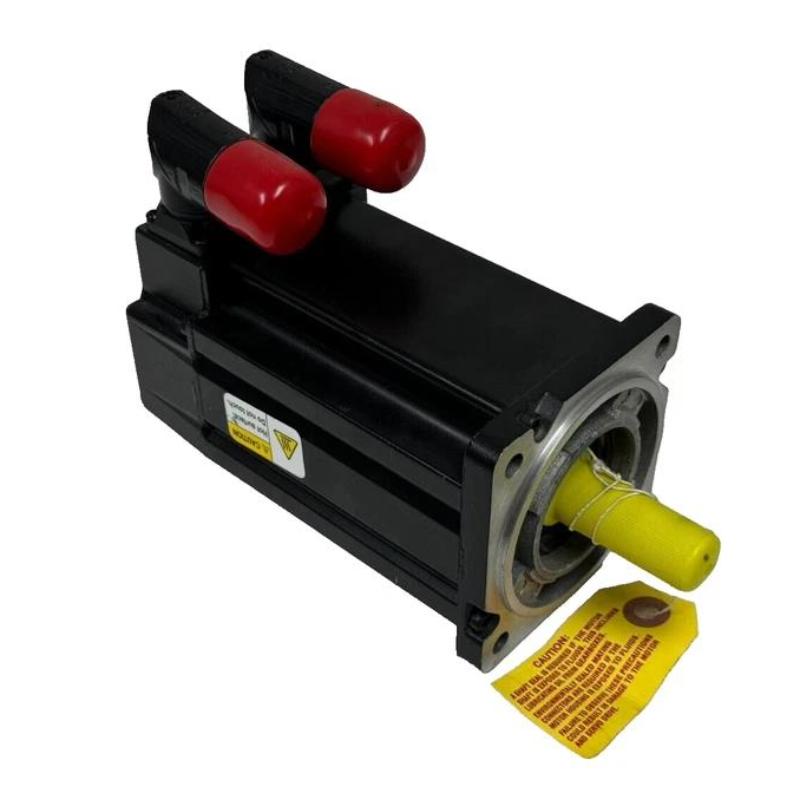

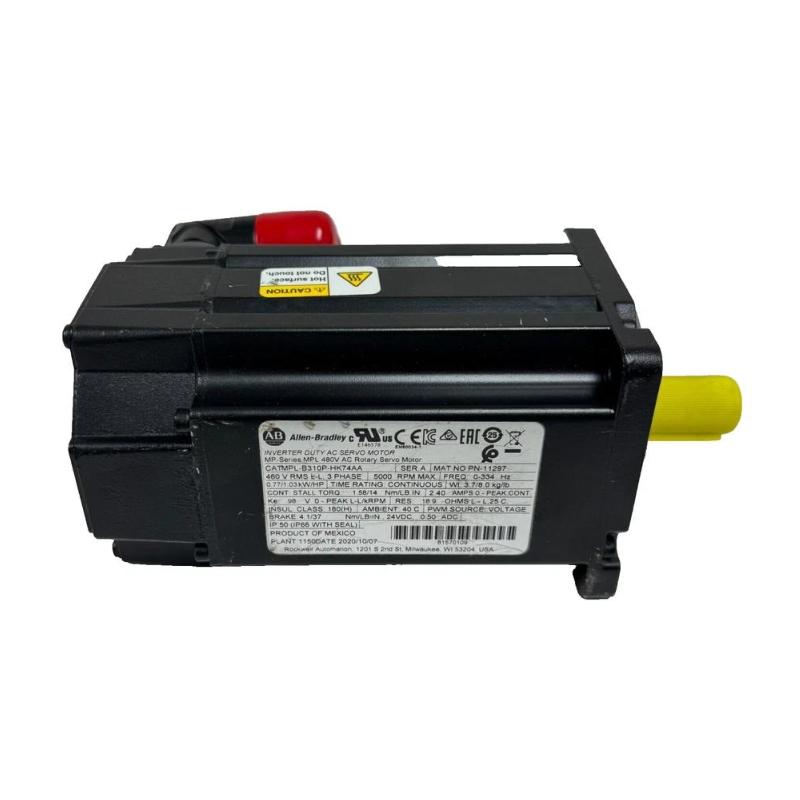

The Allen Bradley MPL-B310P-HK74AA Servo Motor is an industrial motion-control component designed for applications requiring controlled rotary movement, accurate positioning, and coordinated machine operation. As identified by its product description, this motor belongs to the Allen-Bradley MPL servo motor family and is intended for use in compatible servo-drive systems.

Servo motors are widely used in automated machinery where conventional motor operation alone may not provide the required positioning accuracy or dynamic response. When integrated with a compatible servo drive, feedback devices, motion controller, and mechanical transmission, a servo motor can support controlled acceleration, deceleration, speed regulation, and positioning according to programmed motion commands.

The MPL-B310P-HK74AA has a supplied frame size of 100 mm and a weight of approximately 2.7 kg. Its relatively compact form makes it relevant to machinery designers who must balance installation space, mechanical integration, and motion performance.

In a typical servo system, the motor converts electrical energy into mechanical rotation while the drive regulates motor operation. Feedback and control functions help the system compare actual motion with the commanded motion and make adjustments as required. The exact feedback arrangement, electrical ratings, shaft configuration, and drive compatibility of this particular model should be confirmed from its complete product identification and applicable technical documentation.

Technical Specifications

The frame size and weight above are based on the supplied product information. Electrical ratings, connector details, feedback type, brake configuration, and performance limits should not be inferred from the model number alone.

What Is the Allen Bradley MPL-B310P-HK74AA Servo Motor?

A servo motor is an electromechanical device used in systems that require controlled motion rather than simple continuous rotation. It operates as part of a coordinated control arrangement in which the controller generates motion commands, the servo drive regulates electrical power, and the motor produces the required mechanical movement.

The MPL-B310P-HK74AA is identified as an Allen-Bradley servo motor. In a compatible installation, it can be incorporated into a motion-control system for applications that require repeatable movement and controlled operating behavior.

Typical servo-system functions include:

• Controlled acceleration and deceleration
• Speed regulation
• Positioning according to motion commands
• Coordinated movement with other axes
• Repeatable machine-cycle operation
• Response to changing mechanical loads within system limits

The actual capabilities available in a particular installation depend on the motor’s verified specifications, the selected drive, feedback configuration, controller, and mechanical system.

Working Principle of the Servo Motor

1. Motion Command Generation

The motion controller determines the required movement according to the machine program. Depending on the application, the command may define a target position, operating speed, acceleration profile, or coordinated trajectory.

The controller communicates the appropriate command to the compatible servo drive using the supported control architecture.

2. Drive Power Regulation

The servo drive converts incoming electrical power into controlled motor output. It regulates the electrical conditions supplied to the motor in accordance with the motion command and available feedback.

Drive configuration must match the motor’s electrical characteristics. An incorrectly selected drive can cause commissioning failures, unstable operation, or equipment damage.

3. Electromagnetic Torque Production

The motor converts electrical energy into rotational mechanical energy. The resulting torque drives the connected machine mechanism, which may include a coupling, gearbox, belt, screw mechanism, or other transmission component.

The usable torque and speed depend on the exact motor ratings, operating conditions, drive configuration, and mechanical load.

4. Motion Feedback and Correction

Where the installed servo arrangement uses closed-loop feedback, the system compares actual motor behavior with the commanded motion. The drive can then adjust its output to reduce the difference between the requested and measured response.

Feedback-device type, resolution, and interface compatibility must be verified for the specific motor and drive combination.

5. Mechanical Load Movement

The motor’s shaft transfers rotational force to the driven mechanism. Proper coupling alignment, appropriate load sizing, and suitable mechanical support are essential for accurate motion and long-term reliability.

The final motion performance depends on the complete system rather than the motor alone.

Role in Industrial Automation Systems

The Allen Bradley MPL-B310P-HK74AA can serve as the motion-producing element within a compatible industrial servo architecture. In such a system, the motor, drive, controller, feedback components, and mechanical transmission work together to achieve the required machine movement.

Correct selection of each component helps prevent incompatibility and ensures that the motion system operates within its specified limits.

Industrial Applications

Packaging Machinery

Servo motors can support controlled movement in packaging equipment, including indexing mechanisms, product positioning, cutting systems, and material-handling operations. Accurate motion can help maintain repeatable machine cycles and product placement.

Assembly and Manufacturing Equipment

Automated assembly systems often require controlled movement to position components, operate mechanical fixtures, or coordinate several machine axes. A properly configured servo system can support these operations.

Pick-and-Place Systems

Pick-and-place equipment uses coordinated motion to move components between defined locations. Servo motors can provide the controlled movement needed for repeatable positioning, subject to the performance of the complete drive and mechanical system.

Material Handling

Servo-driven mechanisms may be used in automated transfer equipment, sorting systems, and positioning tables where movement must follow a programmed sequence.

Printing and Converting Machinery

Printing and converting equipment may require coordinated motion between rollers, feeders, cutters, and material transport mechanisms. Servo systems can support synchronized operation when appropriately selected and configured.

Machine Tools

Servo motors can be incorporated into suitable machine axes and auxiliary mechanisms that require controlled movement. Final suitability depends on the machine design, required torque, speed, precision, and environmental conditions.

Automated Production Lines

In production systems with multiple controlled axes, servo motors can provide the mechanical movement needed for coordinated equipment operation. Controller programming and system integration determine how individual axes interact.

These are general servo-motor application categories. They should not be interpreted as confirmation that every application is suitable for the MPL-B310P-HK74AA without checking its exact ratings and mechanical configuration.

Installation and Mechanical Integration

Correct installation is essential for achieving stable motion and protecting the motor from premature wear.

Verify the Motor Identification

Before installation, confirm the complete model number MPL-B310P-HK74AA on the motor nameplate. Record the product revision or other identification details where applicable.

Check the motor against the machine’s electrical drawings, bill of materials, and existing servo-drive configuration. Similar-looking servo motors may differ in electrical characteristics, connectors, feedback devices, and shaft arrangements.

Check the Mounting Arrangement

The supplied frame size is 100 mm. Confirm the actual mounting dimensions, bolt pattern, shaft position, and required clearances using the exact mechanical drawing.

The frame-size designation alone does not provide every dimension needed to prepare a mounting plate or machine interface.

Align the Motor and Load

Motor-shaft alignment is important when connecting the motor to a gearbox, coupling, screw mechanism, or other transmission. Incorrect alignment can increase bearing loads, vibration, mechanical noise, and wear.

Use a suitable coupling and follow the mechanical manufacturer’s alignment and fastening procedures. Avoid applying excessive radial or axial force to the shaft during installation.

Verify Load Requirements

Calculate the required torque, speed, acceleration, and inertia for the intended application. The selected motor must operate within its continuous and peak ratings under the actual duty cycle.

A motor that is undersized may overheat or fail to achieve the commanded motion. An oversized or poorly matched system may also increase cost and complicate tuning.

Protect the Motor Environment

Check the operating temperature, contamination level, moisture exposure, vibration, and other environmental conditions. Ensure that the installation complies with the motor’s actual environmental and enclosure requirements.

Electrical Connection and Servo Drive Integration

Electrical integration must be based on the exact motor and drive documentation.

Confirm Drive Compatibility

Before connecting the motor, verify that the servo drive supports the motor’s electrical ratings, feedback interface, connector arrangement, and any other required functions.

Do not select a drive solely because it is from the same manufacturer or servo family. Compatibility must be confirmed for the complete model combination.

Inspect Power and Feedback Connections

Inspect motor power wiring, feedback connections, grounding arrangements, and connector condition. Use the correct cables and accessories for the specified motor-drive combination.

Incorrect feedback wiring can prevent the drive from recognizing the motor correctly or may result in a feedback-related fault. Incorrect power wiring can damage equipment and create serious safety hazards.

Apply Grounding and Cable-Routing Practices

Follow the manufacturer’s grounding and electromagnetic-compatibility requirements. Route motor power and feedback cables in accordance with the applicable installation instructions, particularly where electrical noise could affect feedback signals.

Configure Motor Parameters

Enter or select the motor data required by the servo drive. Depending on the system, these parameters may include motor identification, feedback settings, current limits, speed limits, and other control settings.

Use only values appropriate to the exact motor and drive combination.

Perform Controlled Commissioning

Before enabling motion, verify mechanical clearances, load security, emergency-stop arrangements, protective guarding, and the intended direction of movement.

Start with an approved commissioning procedure and test the axis under controlled conditions. Confirm stable movement, expected feedback, and acceptable motor temperature before releasing the equipment for normal operation.

Troubleshooting the MPL-B310P-HK74AA Servo Motor

When a servo axis does not operate correctly, the fault may originate in the motor, drive, feedback system, controller program, wiring, or mechanical load. A systematic diagnosis helps identify the actual cause.

Motor Does Not Rotate

Possible causes include:

• Servo drive not enabled
• Missing or incorrect power supply
• Active drive fault
• Incorrect motor-drive configuration
• Feedback connection problem
• Motion command not being generated
• Mechanical obstruction
• Incorrect control or interlock state

Begin by reviewing the drive status and fault information. Confirm that the controller is issuing a valid command and that all required enabling conditions are satisfied.

Do not repeatedly reset the drive without identifying the reason for the fault.

Servo Drive Reports a Feedback Fault

A feedback-related fault may be associated with a damaged cable, loose connector, incompatible feedback configuration, wiring error, or defective feedback component.

Inspect the connectors and cables according to the applicable maintenance procedure. Verify that the drive configuration matches the actual motor and feedback system.

Positioning Is Inaccurate

Positioning errors may result from incorrect motion parameters, mechanical backlash, coupling slippage, unsuitable load sizing, feedback problems, or inadequate servo tuning.

Check the commanded and actual motion values, inspect the mechanical transmission, and verify the configured motion parameters. Changes to tuning should follow a controlled procedure and remain within the system’s specified limits.

Excessive Vibration or Noise

Possible causes include:

• Mechanical misalignment
• Loose mounting hardware
• Damaged coupling
• Excessive load inertia
• Poorly adjusted control parameters
• Bearing wear
• Mechanical resonance

Inspect the mechanical assembly and review drive diagnostics before making tuning changes. Unusual noise or vibration should be investigated before returning the machine to continuous service.

Motor Overheating

Motor overheating can result from excessive load, repeated high-torque operation, unsuitable acceleration settings, inadequate cooling, incorrect motor parameters, or mechanical friction.

Compare the application duty cycle with the motor’s verified ratings. Check the mechanical load and drive configuration, and inspect the installation environment.

Do not continue operating a motor that exceeds its specified temperature limits.

Intermittent Operation

Intermittent servo behavior can be caused by loose connectors, damaged cables, unstable power, electrical interference, intermittent feedback signals, or changing mechanical loads.

Record the conditions under which the fault occurs and review available drive diagnostics. Check wiring and connections using appropriate isolation and electrical safety procedures.

Maintenance Recommendations

Regular inspection helps maintain the performance of the motor and the wider servo system.

Inspect mechanical mounting: Check mounting hardware, coupling condition, alignment, and signs of vibration or movement.

Check cables and connectors: Inspect power and feedback cables for damage, loose connections, contamination, or strain.

Monitor operating temperature: Compare observed motor temperature with the permitted operating conditions and investigate abnormal increases.

Review servo-drive diagnostics: Record recurring alarms, feedback faults, overload conditions, and other abnormal operating events.

Check the driven mechanism: Mechanical friction, excessive inertia, and transmission wear can affect motor performance even when the motor itself is functioning correctly.

Maintain configuration records: Preserve motor identification, drive parameters, axis settings, and commissioning results to simplify future replacement and troubleshooting.

Follow safe maintenance procedures: Isolate hazardous energy sources and follow the machine’s approved lockout and maintenance procedures before working on the motor or its wiring.

The required inspection interval depends on the operating environment, duty cycle, mechanical load, and manufacturer recommendations.

Compatible System Components

The MPL-B310P-HK74AA should be integrated only with components confirmed to support its exact electrical and mechanical configuration.

Specific drive models, cables, feedback accessories, and controller families should be selected only after checking the motor’s full order number and applicable compatibility information.

Replacement and Procurement Considerations

When purchasing a replacement for the Allen Bradley MPL-B310P-HK74AA Servo Motor, accurate identification is essential.

Confirm the following details before ordering:

• Complete model number

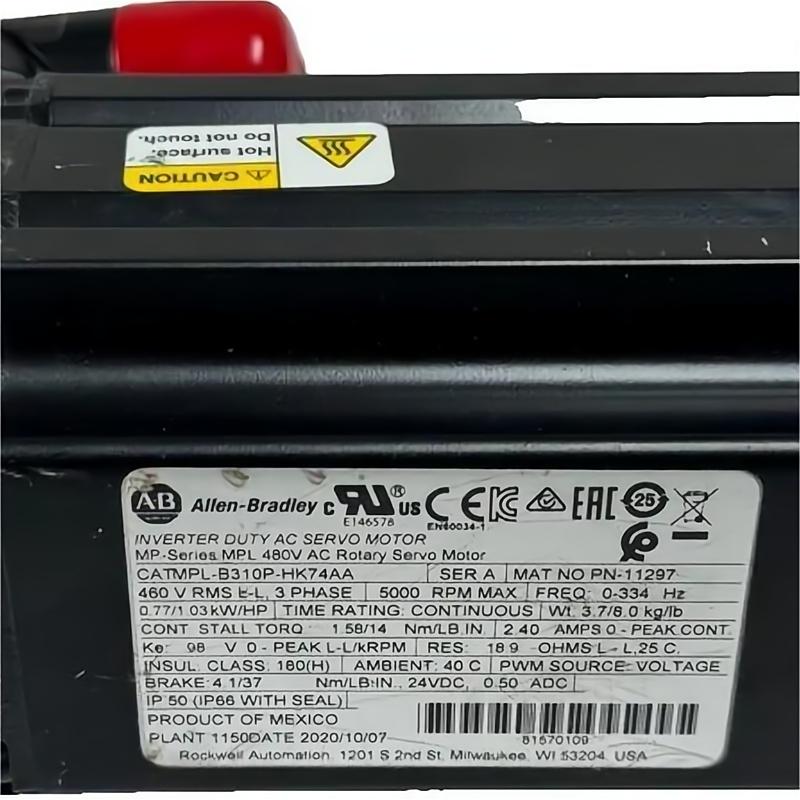

• Nameplate information and applicable revision details
• Frame size and mounting dimensions
• Shaft diameter and shaft length
• Rated voltage, current, speed, and torque
• Feedback-device configuration
• Connector type and orientation
• Brake configuration, if applicable
• Compatibility with the installed servo drive
• Mechanical load and application requirements

The supplied frame size of 100 mm and weight of 2.7 kg are useful for preliminary mechanical planning, handling, and inventory management. However, these values are not sufficient to establish full interchangeability.

A replacement motor should match the original system requirements, including feedback compatibility and mechanical interfaces. Even when two motors share a similar frame size, their electrical characteristics or connector arrangements may differ.

After replacement, verify the drive configuration, motor direction, feedback operation, motion limits, and machine response through an appropriate commissioning procedure.

Key Advantages of Servo Motor Integration

Controlled Motion

A compatible servo system enables controlled motor movement according to programmed speed, position, and acceleration commands.

Support for Repeatable Operations

Servo-driven machinery can perform repeatable movement sequences when the motor, feedback arrangement, drive, controller, and mechanical system are properly configured.

Integration with Automated Equipment

Servo motors can be incorporated into industrial machinery that requires coordinated motion between mechanical assemblies.

Compact Mechanical Profile

The supplied 100 mm frame size and 2.7 kg weight provide useful physical reference information for system planning and replacement logistics.

Diagnostic Support Through the Servo System

When supported by the installed drive and controller, diagnostic information can help maintenance teams investigate feedback faults, overload conditions, motion errors, and other abnormal operating states.

Technical FAQs

What is the Allen Bradley MPL-B310P-HK74AA?

The MPL-B310P-HK74AA is identified as an Allen-Bradley servo motor intended for integration into a compatible industrial motion-control system.

What is the frame size of this motor?

The supplied frame size is 100 mm.

How much does the MPL-B310P-HK74AA weigh?

The supplied weight is 2.7 kg.

Does this servo motor require a servo drive?

A servo motor requires a suitable motor-control arrangement to operate as part of a servo system. The selected drive must be compatible with the motor’s verified electrical and feedback characteristics.

What applications use servo motors?

Servo motors are commonly used in automated machinery, packaging equipment, positioning systems, assembly lines, material handling, and other applications requiring controlled movement.

Why might a servo motor fail to rotate?

Possible causes include a disabled drive, active fault, incorrect configuration, missing motion command, feedback problems, wiring faults, or mechanical obstruction. The drive status and system diagnostics should be checked first.

What causes inaccurate positioning?

Potential causes include mechanical backlash, coupling slippage, feedback faults, unsuitable load sizing, incorrect parameters, or inadequate servo tuning.

Can another Allen-Bradley servo motor replace the MPL-B310P-HK74AA?

Not automatically. The replacement must match the required electrical ratings, mechanical dimensions, shaft arrangement, feedback interface, and servo-drive compatibility.

What should be verified before installation?

Confirm the complete motor identification, mounting details, electrical ratings, feedback arrangement, cable compatibility, drive configuration, and application load requirements.

Conclusion

The Allen Bradley MPL-B310P-HK74AA Servo Motor is an industrial motion-control component intended to provide controlled rotary movement in a compatible servo system. Integrated with the appropriate servo drive, controller, feedback arrangement, and mechanical transmission, it can support automated positioning, coordinated movement, and repeatable machine operation.

With a supplied 100 mm frame size and a weight of 2.7 kg, the motor provides useful physical specifications for preliminary installation planning and replacement assessment. Successful operation depends on selecting compatible system components, confirming electrical and mechanical requirements, performing accurate commissioning, and maintaining the motor and its connected equipment.

For procurement, installation, or replacement, always verify the complete MPL-B310P-HK74AA model identification and the applicable technical specifications. Correct motor selection and systematic system integration are essential for dependable motion control and long-term industrial equipment performance.
