Product Overview

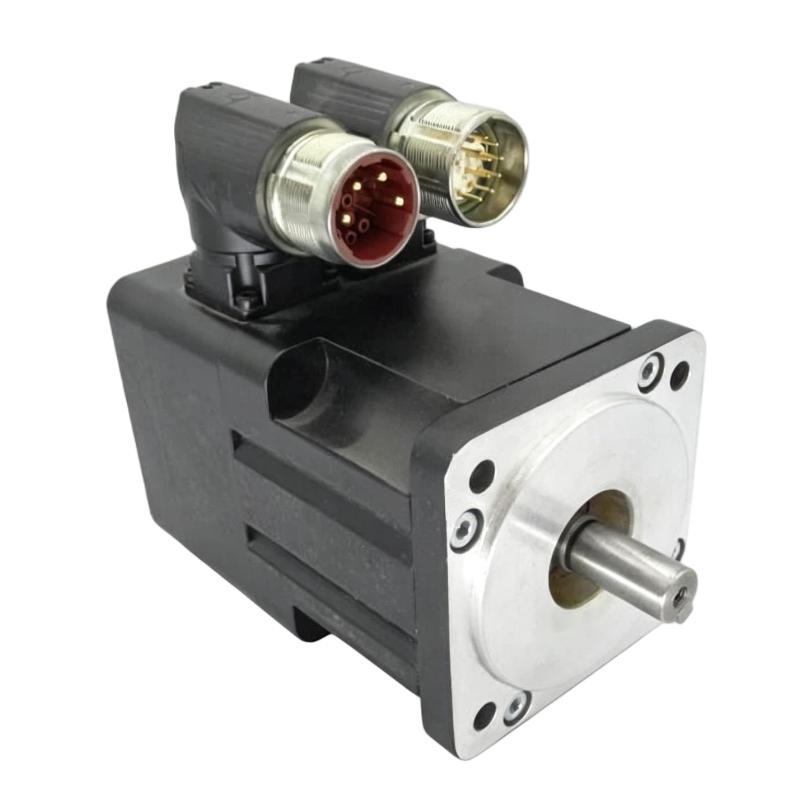

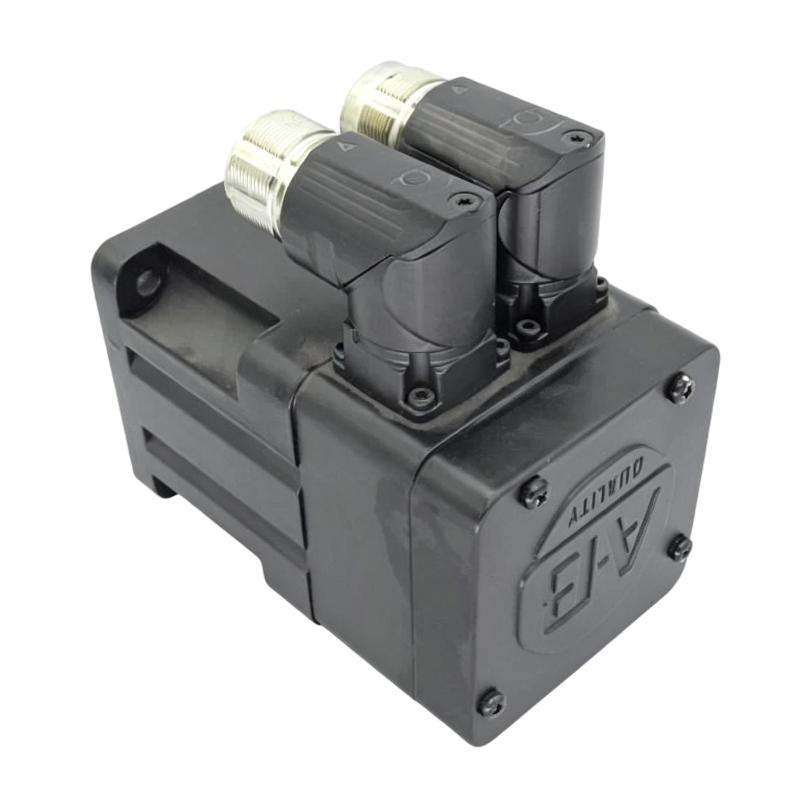

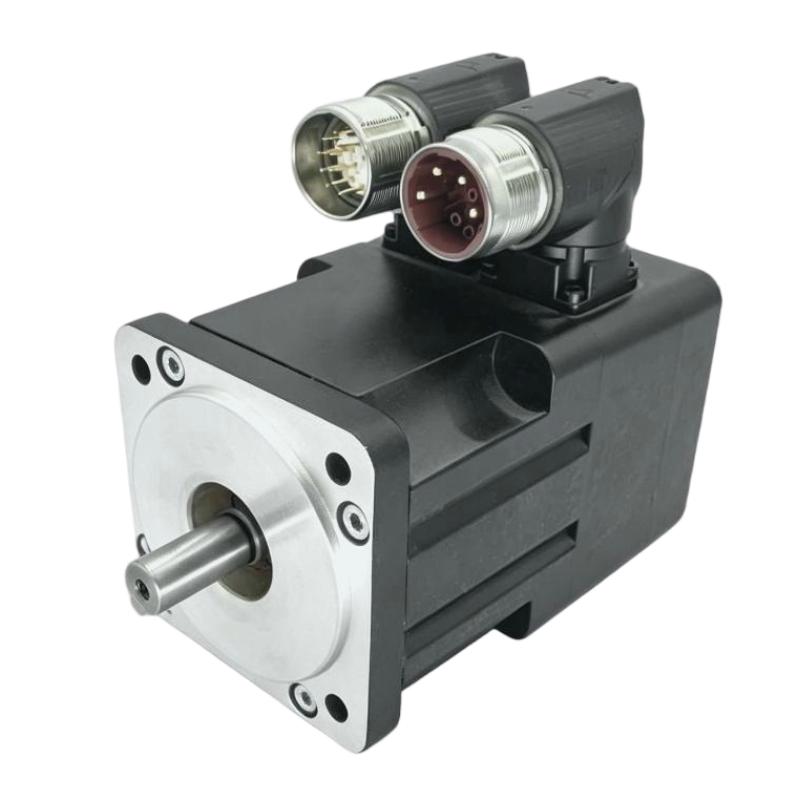

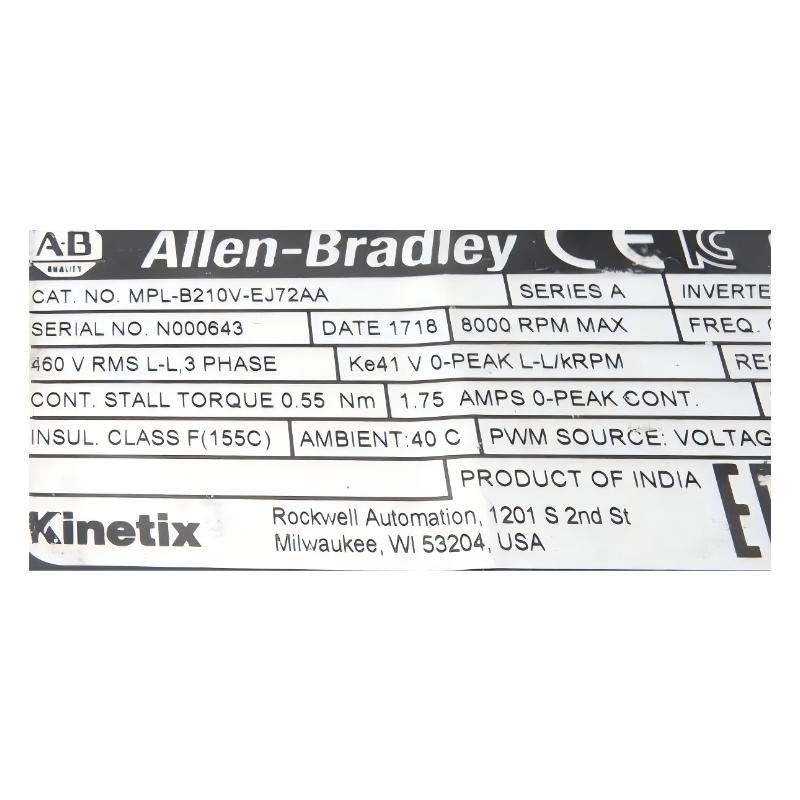

The Allen Bradley MPL-B210V-EJ72AA is an MP-Series rotary servo motor for closed-loop industrial motion control. It operates as part of a servo axis together with a compatible Allen-Bradley servo drive and motion controller, converting controlled electrical output into precise rotary movement.

The MPL motor family is used in machine applications that require repeatable positioning, controlled speed, and coordinated movement. Typical examples include indexing equipment, packaging machinery, assembly systems, conveyors, feeders, and automated production machinery.

In normal operation, the controller establishes the required motion profile, the servo drive regulates motor torque and speed, and feedback from the motor allows the control system to monitor actual movement. The motor therefore functions as part of a complete controller-drive-feedback-mechanical load loop rather than as an independent motor.

Technical Specifications

Product Features

• MP-Series MPL low-inertia construction for responsive servo-axis operation.
• Suitable for closed-loop rotary motion and machine positioning.
• Supports applications involving repeated acceleration, deceleration, and indexing.
• Incremental encoder feedback supports position and speed monitoring.
• Holding brake configuration can support shaft retention requirements.
• Suitable for integration with compatible Allen-Bradley servo drives.
• Can be used in single-axis or coordinated multi-axis motion systems.
• Suitable for automated machinery requiring repeatable rotary movement.

Working Principle

The MPL-B210V-EJ72AA operates within a closed-loop servo system. The motion controller generates the desired movement, while the servo drive converts the command into regulated electrical output for the motor.

1. Motion command

The controller establishes the required position, speed, acceleration, or indexing profile for the machine axis.

2. Servo drive regulation

The servo drive processes the command and controls motor current according to the required torque and motion response.

3. Motor torque generation

The motor converts electrical energy into electromagnetic torque, causing the rotor and output shaft to rotate.

4. Feedback measurement

The incremental encoder supplies rotational feedback to the servo system. Actual motor movement can be monitored against the commanded movement.

5. Closed-loop correction

The control system evaluates the difference between commanded and actual movement. The servo drive adjusts its output as required to maintain the desired axis response.

6. Mechanical load transfer

Motor torque is transferred through the machine coupling or transmission to the driven mechanism. Final positioning performance depends on the complete servo axis, including drive configuration, feedback, mechanical alignment, and load characteristics.

Role in a Servo Motion Control Architecture

The MPL-B210V-EJ72AA occupies the motor layer of an Allen-Bradley servo architecture. It works with the controller, servo drive, encoder feedback, and mechanical transmission to form a complete motion-control loop.

Industrial Applications

Installation and Maintenance

1. Confirm compatibility between the motor and the selected servo drive before installation.
2. Verify motor power and encoder feedback wiring before applying power.
3. Inspect connectors for contamination, damaged contacts, loose locking hardware, or cable stress.
4. Secure the motor properly to the machine mounting surface.
5. Align the motor shaft with the driven mechanism to minimize mechanical loading.
6. Use an appropriate coupling or transmission component and avoid impact during shaft installation.
7. Check the holding-brake circuit when the application requires shaft retention.
8. Confirm that the servo drive contains the appropriate motor and feedback configuration.
9. Begin commissioning at reduced speed and acceleration while checking rotation direction.
10. Monitor servo alarms, following-error conditions, and abnormal motor behavior during operation.
11. Inspect mechanical couplings and transmission components periodically for looseness, wear, or abnormal vibration.
12. When troubleshooting or replacing the motor, inspect the complete servo axis rather than the motor alone.

Related Components

Recommended Related Models

Key Advantages

• MP-Series MPL low-inertia servo motor architecture.
• Closed-loop operation with incremental encoder feedback.
• Suitable for positioning, indexing, and coordinated rotary motion.
• High-speed operation for repetitive machine cycles.
• Holding brake configuration for shaft retention applications.
• Suitable for Allen-Bradley servo motion architectures.
• Supports integration into automated machine-axis systems.

Technical FAQs

What type of applications is the MPL-B210V-EJ72AA suitable for?

It is suitable for industrial rotary motion applications requiring controlled speed, repeatable positioning, indexing, or coordinated movement with other machine axes.

How does the encoder feedback support servo operation?

The incremental encoder provides information about motor rotation to the servo system. This feedback allows the controller and drive to monitor actual movement and correct the axis when commanded and actual motion differ.

What can cause a following-error fault on this motor?

Following errors can result from excessive mechanical load, incorrect tuning, feedback problems, coupling or transmission issues, or incorrect servo-drive configuration. The complete axis should be checked during troubleshooting.

What should be checked before replacing this servo motor?

Check the servo drive configuration, feedback arrangement, motor power connections, mechanical mounting, shaft coupling, brake requirements, and machine load to ensure the replacement is suitable for the existing axis.
