Product Overview

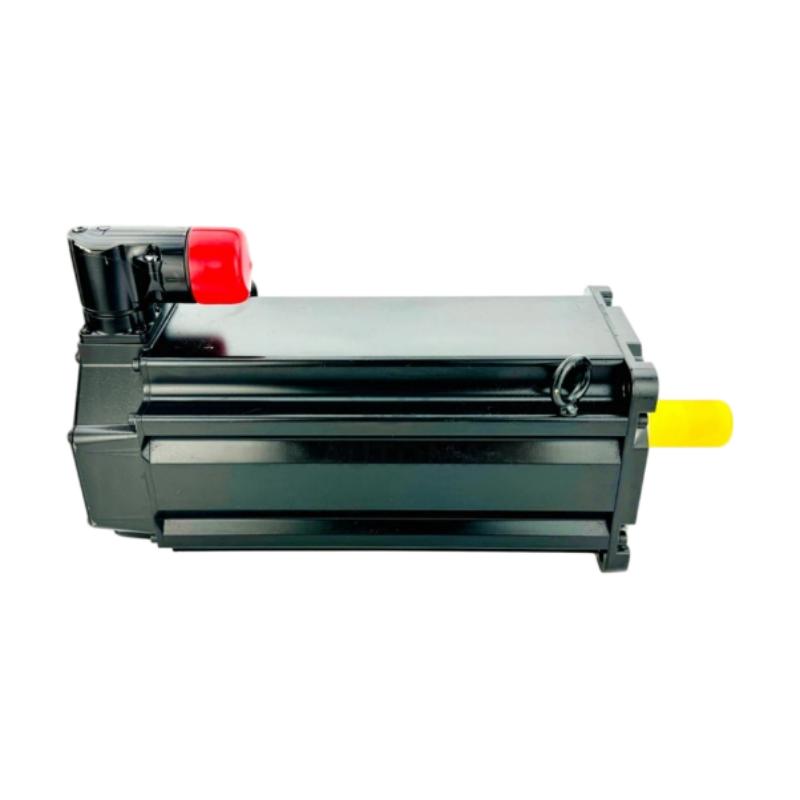

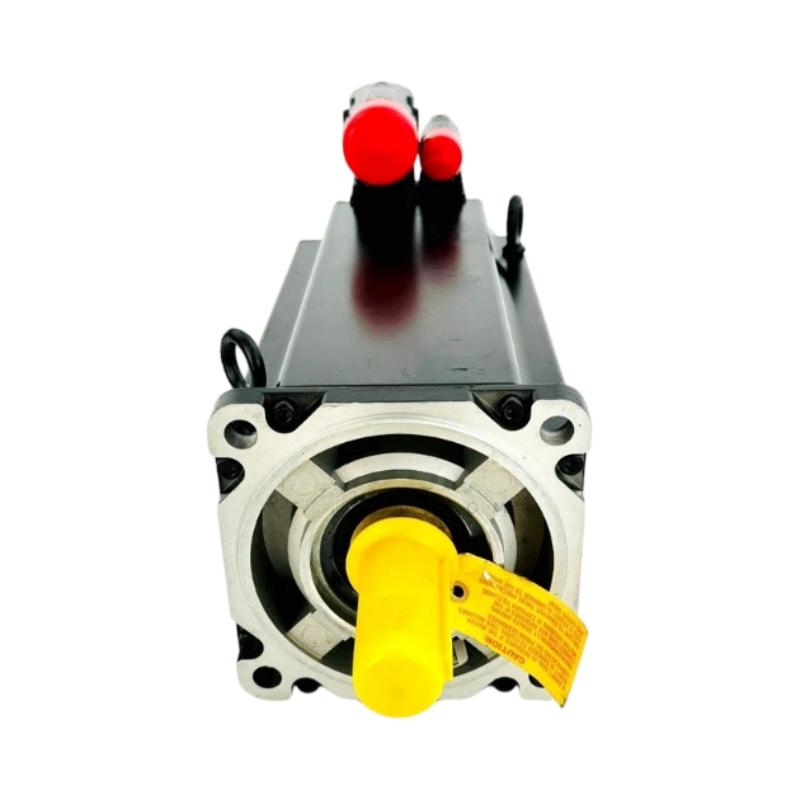

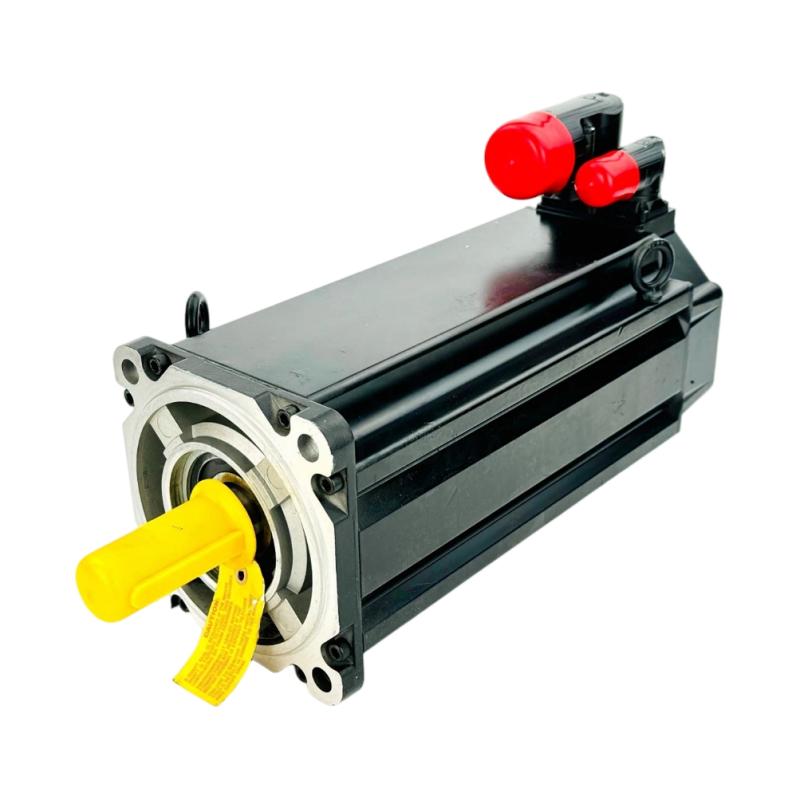

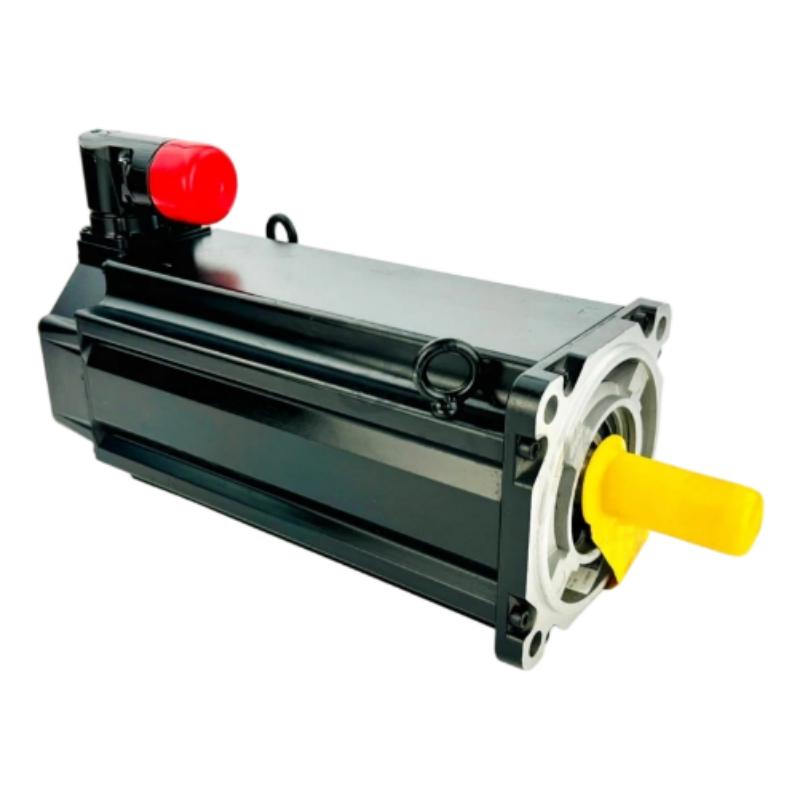

The Allen Bradley MPL-A560F-MJ74AA Servo Motor is an industrial AC servo motor designed for use in automated motion-control systems. As part of the Allen Bradley MPL servo motor family, it is intended for machine applications where controlled rotation, repeatable positioning, coordinated movement, and responsive axis control are required.

The MPL-A560F-MJ74AA has a specified 165 mm frame size and a 20.2 kg weight. These physical characteristics make it important to consider machine-frame rigidity, mounting arrangement, mechanical alignment, handling requirements, and available installation space when incorporating the motor into industrial equipment.

A servo motor normally operates as one element within a complete motion-control architecture. A compatible servo drive provides controlled electrical power, while a motion controller generates movement commands. Feedback from the motor allows the control system to monitor actual motion and maintain the required relationship between commanded and actual movement.

The MPL-A560F-MJ74AA can therefore be used as part of industrial machinery requiring controlled machine-axis movement. Typical application areas can include automated production equipment, packaging machinery, material handling, assembly systems, machine tools, converting machinery, and other motion-intensive automation equipment.

The exact electrical and mechanical characteristics of an individual motor should always be confirmed using the complete catalog number and applicable equipment documentation. The frame size and weight provided here should not be used as substitutes for a complete mechanical or electrical specification.

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A560F-MJ74AA
Product Type	AC Servo Motor
Product Family	Allen Bradley MPL Servo Motor
Frame Size	165 mm
Weight	20.2 kg
Application	Industrial Motion Control
Control Architecture	Servo Drive and Motion Controller
Feedback	Compatible feedback system required
Installation	Machine-mounted
Typical Applications	Packaging, Assembly, Material Handling, Machine Automation, Controlled Motion

The available identification information establishes the model, product category, frame size, and weight. Detailed values such as rated torque, peak torque, operating speed, electrical winding characteristics, feedback specifications, shaft dimensions, mounting-hole dimensions, connector configuration, brake configuration, and environmental limits should be verified for the exact MPL-A560F-MJ74AA configuration before engineering or replacement.

What Is the MPL-A560F-MJ74AA Servo Motor?

The MPL-A560F-MJ74AA is a servo motor intended to provide controlled mechanical motion within an industrial automation system.

Unlike a simple motor application in which the motor may be operated primarily at a commanded speed, a servo system can continuously monitor motor behavior and adjust operation according to feedback and motion commands.

The motor can be considered the mechanical output stage of a larger control loop:

Controller → Servo Drive → MPL-A560F-MJ74AA → Machine Mechanism

The feedback path provides information about actual motor movement to the servo control system.

This architecture allows a machine to perform controlled movement such as:

• Positioning
• Indexing
• Speed regulation
• Acceleration
• Deceleration
• Coordinated axis movement
• Repeated machine cycles

The actual control functions available depend on the servo drive, controller, feedback configuration, and application software used with the motor.

Servo Motion-Control Principle

The operation of the MPL-A560F-MJ74AA is based on the principles of closed-loop motor control.

The motion controller generates a command according to the machine program. The servo drive interprets the command and controls the electrical energy supplied to the motor. The motor then generates the mechanical rotation required by the machine.

At the same time, feedback information is used to determine actual motor behavior.

A simplified process is:

Motion Command → Servo Drive → Motor Rotation → Mechanical Load → Feedback → Control Correction

This continuous control process helps the automation system respond to changes in load and movement requirements.

For high-performance machinery, the ability to coordinate motor movement with other machine functions can be particularly important.

Role in Industrial Automation

The MPL-A560F-MJ74AA can be used as the drive element for a controlled machine axis.

An industrial motion system may include:

• PLC or motion controller
• Servo drive
• Servo motor
• Feedback system
• Motor power cable
• Feedback cable
• Mechanical coupling
• Gearbox or transmission
• Machine mechanism
• Safety circuit

The motor and drive must be appropriately matched to the mechanical and electrical requirements of the machine.

For example, an automated indexing system may require a motor to move a mechanism to a defined position, stop, and then repeat the operation many times. The controller determines the movement sequence, while the servo system manages the motor’s response.

This makes servo technology suitable for applications in which repeatability and coordinated machine movement are important.

Industrial Applications

Automated Packaging

Packaging equipment frequently requires precise and repeatable motion. Servo motors can operate machine axes involved in:

• Product indexing
• Film handling
• Feeding
• Cutting
• Sealing
• Positioning
• Synchronization

The suitability of the MPL-A560F-MJ74AA depends on the complete mechanical load and drive configuration.

Assembly Automation

Automated assembly equipment may require controlled movement of tooling, fixtures, feeders, and positioning mechanisms. Servo-based motion control allows machine movement to be coordinated with sensors and production sequences.

Material Handling

Material-handling equipment can use servo motors for controlled positioning of conveyors, transfer systems, lifting mechanisms, and automated handling axes.

Machine Tools

Servo motors can be integrated into machine-tool axes where controlled and repeatable motion is required. Proper motor selection requires consideration of machine inertia, load characteristics, acceleration, mechanical transmission, and duty cycle.

Printing and Converting

Printing, web-handling, and converting equipment can contain multiple synchronized axes. Servo control can help coordinate material movement and machine operations.

General Manufacturing

The MPL-A560F-MJ74AA can also be considered for general industrial machinery requiring controlled rotary motion within a compatible Allen Bradley automation architecture.

Mechanical Integration

The 165 mm frame size is an important mechanical reference when installing the MPL-A560F-MJ74AA.

Engineers should evaluate:

• Mounting arrangement
• Machine-frame rigidity
• Available installation space
• Shaft alignment
• Coupling selection
• Mechanical load
• Radial forces
• Axial forces
• Cable clearance
• Cooling conditions
• Service access

The specified motor weight is 20.2 kg. The machine structure must therefore provide adequate mechanical support.

The motor should be securely mounted to prevent movement during acceleration and deceleration. Dynamic forces may be significantly different from the static load represented by the motor’s weight.

Correct shaft alignment is also important. Poor alignment can increase mechanical stress and may contribute to vibration, coupling wear, and bearing loading.

Electrical and Servo Drive Integration

The MPL-A560F-MJ74AA should be connected to a compatible servo drive.

Drive selection should consider the motor’s complete electrical characteristics, feedback arrangement, machine load, and operating requirements.

Before commissioning, verify:

1. Complete motor catalog number.
2. Compatible servo drive.
3. Motor power connections.
4. Feedback connections.
5. Grounding.
6. Controller configuration.
7. Motion-axis configuration.
8. Mechanical load.
9. Safety functions.
10. Cable compatibility.

The motor should not be connected to an arbitrary drive simply because the drive belongs to the same general product family.

Feedback and Motion Accuracy

Feedback is an important part of servo operation.

The servo system compares commanded movement with actual motor behavior. This allows the control system to identify differences between the desired and actual motion.

Feedback-related problems can affect:

• Position accuracy
• Speed regulation
• Axis synchronization
• Servo stability
• Machine repeatability

When troubleshooting the MPL-A560F-MJ74AA, feedback cables and connectors should therefore be inspected along with the motor and drive.

The exact feedback device and feedback specifications should be verified for the specific motor configuration rather than inferred from the general MPL series.

Installation Procedure

1. Verify the Motor Model

Confirm the nameplate identification:

Allen Bradley MPL-A560F-MJ74AA

The complete catalog number should be documented before installation.

2. Inspect the Motor

Check for visible damage to:

• Housing
• Shaft
• Mounting surfaces
• Connectors
• Cables
• Protective components

3. Prepare the Mounting Location

Confirm that the machine has sufficient space for the motor and its cables.

The mounting structure should be rigid and properly aligned.

4. Install the Motor

Secure the motor using appropriate mounting hardware.

Because the motor weighs 20.2 kg, appropriate lifting and handling methods should be used.

5. Connect Power Wiring

Connect the motor power cables according to the compatible servo drive configuration.

6. Connect Feedback

Verify the feedback connection carefully.

Incorrect feedback wiring can result in servo faults or incorrect motor operation.

7. Verify Grounding

Confirm that protective grounding and electrical installation requirements have been satisfied.

8. Check the Mechanical Coupling

Verify shaft alignment and coupling installation before enabling motor movement.

Commissioning and Startup

A servo motor should be commissioned in a controlled sequence.

Initial Inspection

Before enabling the axis, check:

• Motor mounting
• Mechanical coupling
• Cable connections
• Feedback connection
• Grounding
• Machine safety
• Available travel

Drive Configuration

Confirm that the servo drive has been configured for the correct motor.

Feedback Verification

Verify that the drive receives valid feedback information.

Controlled Motion Test

Perform an initial low-speed movement where appropriate.

Check:

• Rotation direction
• Motor response
• Position feedback
• Abnormal noise
• Vibration
• Drive status

Normal Operation Test

After successful initial testing, gradually introduce normal operating conditions.

Monitor:

• Position error
• Speed
• Current
• Temperature
• Following error
• Fault status
• Mechanical behavior

MPL-A560F-MJ74AA Troubleshooting

Motor Does Not Start

If the motor does not move, inspect:

• Servo enable status
• Drive fault status
• Motor power connection
• Feedback connection
• Controller commands
• Mechanical obstruction
• Motor configuration

A drive fault should be investigated before replacing the motor.

Servo Drive Reports a Feedback Fault

Check:

• Feedback connector
• Feedback cable
• Connector locking
• Cable routing
• Drive feedback configuration
• Motor identification

A feedback fault does not necessarily mean the motor itself has failed.

Incorrect Rotation Direction

Unexpected rotation direction can be associated with axis configuration, command settings, or control-system configuration.

The machine should be placed in a safe state before modifying configuration or wiring.

Position Error

Positioning problems can be caused by:

• Mechanical backlash
• Coupling problems
• Mechanical misalignment
• Excessive load
• Servo tuning
• Feedback problems
• Incorrect motion parameters

The complete axis should be inspected.

Excessive Vibration

Potential causes include:

• Loose mounting
• Mechanical resonance
• Misalignment
• Coupling problems
• Incorrect tuning
• Excessive mechanical load

A mechanical inspection should be performed together with servo-system diagnostics.

Excessive Motor Temperature

Possible causes include:

• Excessive load
• High duty cycle
• Mechanical friction
• Insufficient cooling
• Incorrect operating conditions
• Drive configuration problems

The operating conditions should be compared with the requirements of the actual motor configuration.

Intermittent Operation

Intermittent behavior can result from:

• Loose connectors
• Damaged cables
• Electrical interference
• Feedback problems
• Mechanical vibration
• Drive faults

Cable and connector inspections should be included in the troubleshooting process.

Preventive Maintenance

Preventive maintenance helps maintain stable servo performance.

Mechanical Checks

Inspect:

• Motor mounting bolts
• Shaft coupling
• Machine structure
• Mechanical transmission
• Alignment
• Signs of abnormal wear

Electrical Checks

Inspect:

• Motor cables
• Feedback cables
• Connectors
• Grounding
• Cable routing
• Signs of insulation damage

Operational Monitoring

Track changes in:

• Motor temperature
• Vibration
• Noise
• Position error
• Current demand
• Servo alarms

A gradual increase in vibration, temperature, or positioning error can indicate a developing problem.

Motion System Optimization

The MPL-A560F-MJ74AA should be considered together with the complete machine-axis design.

Load Matching

The motor and servo drive should be matched to the actual machine load and required motion profile.

Mechanical Rigidity

Machine-frame flexibility can negatively affect positioning performance and servo stability.

Coupling Alignment

Correct alignment helps minimize unwanted mechanical stress.

Servo Tuning

Servo tuning should be performed according to the requirements of the machine. Excessive gain or unsuitable control parameters can result in instability or vibration.

Motion Profile

Acceleration, deceleration, speed, and positioning commands should be appropriate for the mechanical system.

Cable Installation

Motor power and feedback cables should be installed in a manner that minimizes mechanical stress and electrical interference.

Replacement Considerations

When replacing an existing motor with an MPL-A560F-MJ74AA, verify the complete model designation.

Important replacement checks include:

• Exact catalog number
• Frame size
• Weight
• Mounting arrangement
• Shaft configuration
• Feedback system
• Drive compatibility
• Motor cable
• Feedback cable
• Machine load
• Controller configuration

The specified 165 mm frame size is useful for initial mechanical planning, while the 20.2 kg weight should be considered during handling and structural design.

A visually similar servo motor should not automatically be considered an equivalent replacement.

Compatible Automation Architecture

The MPL-A560F-MJ74AA can be incorporated into a compatible Allen Bradley motion-control architecture that may include:

• Servo drives
• Motion controllers
• PLC controllers
• Industrial communication networks
• Feedback interfaces
• Motor power cables
• Feedback cables
• Machine couplings
• Gearboxes
• Linear mechanisms
• Safety systems
• Operator interfaces

In multi-axis applications, several servo motors may operate under coordinated control.

The controller can synchronize different axes according to the machine process, allowing individual motors to perform different but coordinated movements.

Physical Characteristics

The key physical specifications provided for the MPL-A560F-MJ74AA are:

Physical Parameter	Value
Frame Size	165 mm
Weight	20.2 kg

These values are useful for:

• Machine layout
• Motor support design
• Installation planning
• Replacement planning
• Handling requirements
• Equipment inventory

The 165 mm frame size should not be treated as a complete mechanical dimensional specification. Before manufacturing or modifying a machine, the exact mechanical drawing should be checked for mounting dimensions, shaft geometry, connector location, overall envelope, and clearance requirements.

Key Advantages

The Allen Bradley MPL-A560F-MJ74AA provides several characteristics suitable for industrial motion-control applications:

• Allen Bradley MPL servo motor platform
• 165 mm frame size
• 20.2 kg listed weight
• Designed for closed-loop motion applications
• Suitable for integration with compatible servo drives
• Applicable to automated machine axes
• Suitable for coordinated motion architectures
• Appropriate for packaging and assembly equipment
• Suitable for material-handling applications
• Applicable to industrial production machinery
• Supports integration into multi-axis automation systems

Technical FAQs

What is the Allen Bradley MPL-A560F-MJ74AA?

The Allen Bradley MPL-A560F-MJ74AA is an industrial AC servo motor intended for compatible closed-loop motion-control applications.

What is its frame size?

The specified frame size is 165 mm.

What is the weight of the MPL-A560F-MJ74AA?

The specified weight is 20.2 kg.

What is the function of the servo motor?

The motor converts controlled electrical power from a compatible servo drive into mechanical motion for an automated machine axis.

Where can the MPL-A560F-MJ74AA be used?

Potential applications include packaging machinery, assembly equipment, material handling, machine tools, converting equipment, and other automated production systems.

Is the MPL-A560F-MJ74AA suitable for multi-axis systems?

A compatible servo motor can form part of a multi-axis motion system. The exact suitability depends on the servo drive, controller, feedback system, mechanical load, and machine architecture.

What should be checked before installation?

The complete model number, drive compatibility, feedback configuration, mounting arrangement, shaft interface, cable connections, machine load, and safety requirements should be verified.

What can cause poor servo positioning?

Possible causes include mechanical backlash, misalignment, coupling problems, excessive load, feedback issues, unsuitable tuning, or incorrect motion parameters.

Why is the motor weight important?

The 20.2 kg weight affects machine-frame support, lifting requirements, installation procedures, and mechanical design.

Does the 165 mm frame size provide all mounting information?

No. Frame size is only one reference value. Complete mounting and dimensional information should be verified before machine fabrication or modification.

Conclusion

The Allen Bradley MPL-A560F-MJ74AA Servo Motor is an industrial servo motor designed to operate within compatible closed-loop motion-control architectures. With a specified 165 mm frame size and 20.2 kg weight, it is a substantial machine-mounted component requiring appropriate mechanical support, alignment, handling, and installation planning.

In an industrial automation system, the MPL-A560F-MJ74AA works together with a compatible servo drive, motion controller, feedback system, mechanical transmission, and machine safety architecture. Proper coordination among these components is essential for reliable and repeatable machine movement.

For replacement and new machine projects, the complete MPL-A560F-MJ74AA catalog number should be confirmed before installation. Engineers should also verify the exact electrical, feedback, mechanical, and environmental requirements applicable to the individual motor configuration.

By correctly matching the motor with the servo drive and machine mechanics, implementing proper commissioning procedures, and maintaining the complete motion-control system, the MPL-A560F-MJ74AA can be integrated into demanding industrial automation applications requiring controlled and repeatable motion.
