Product Overview

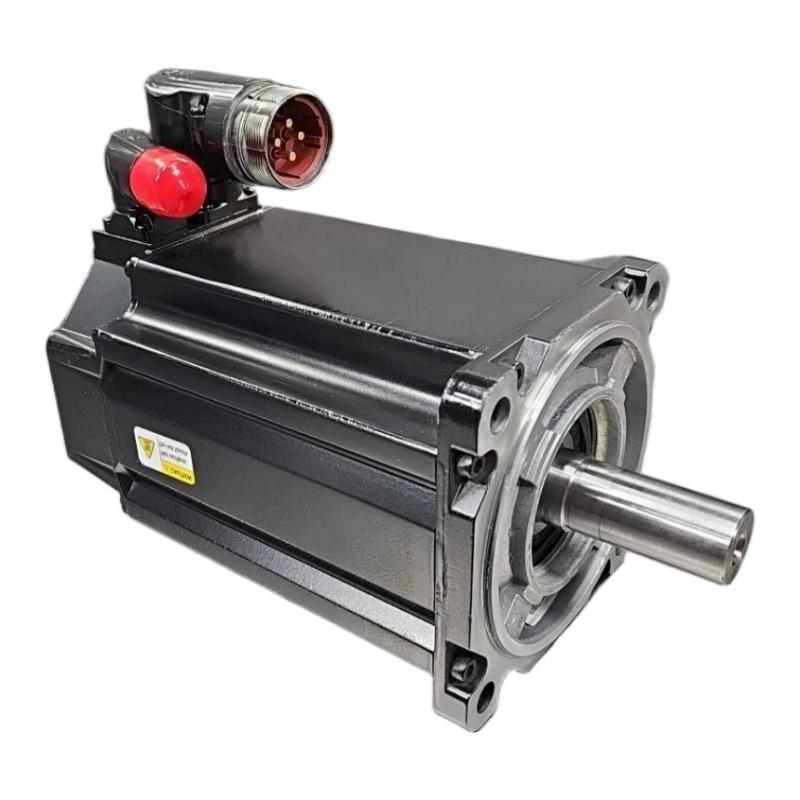

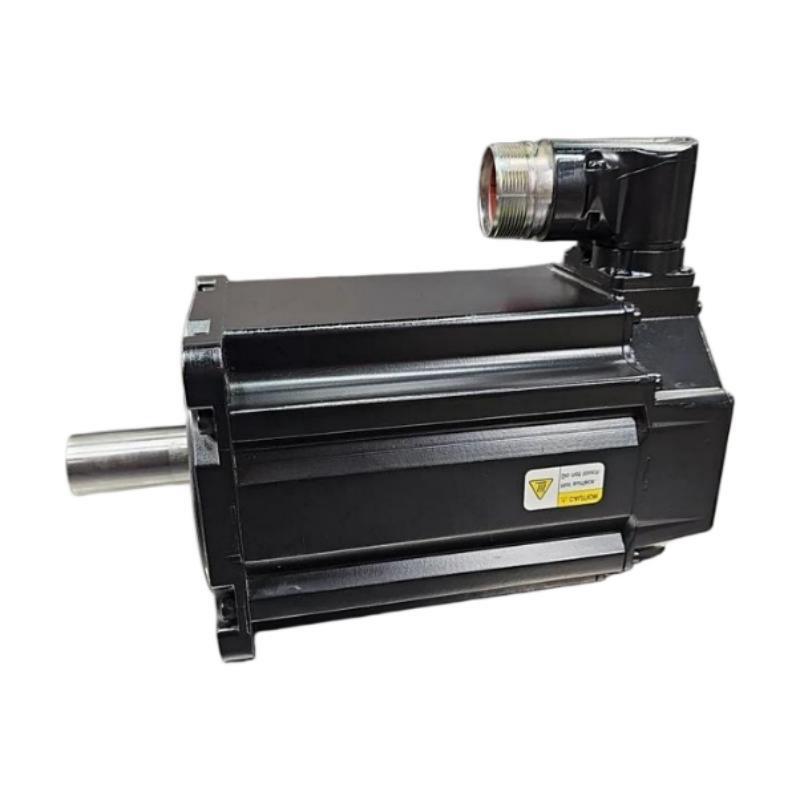

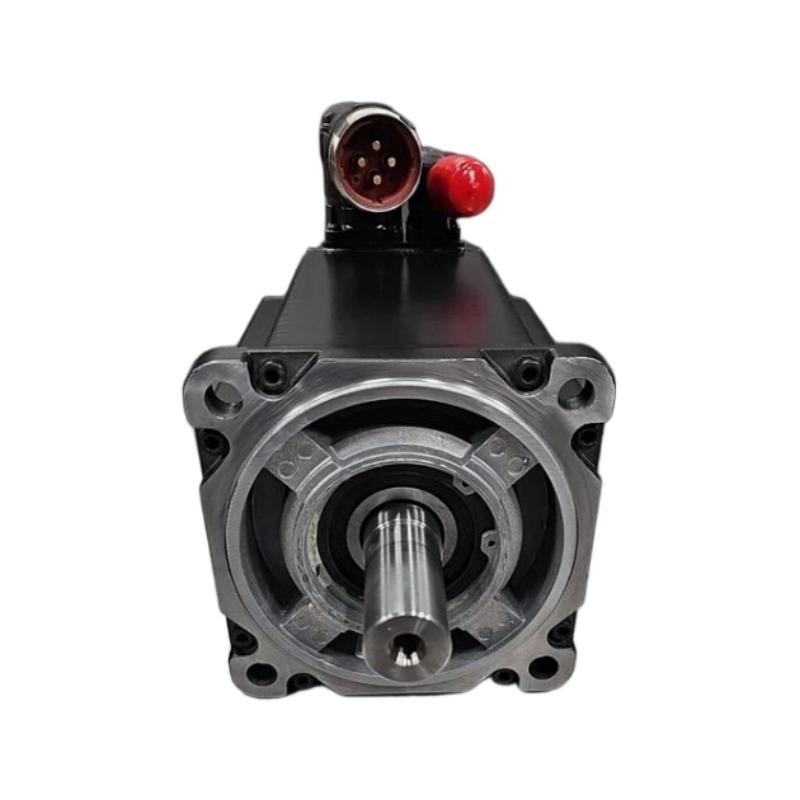

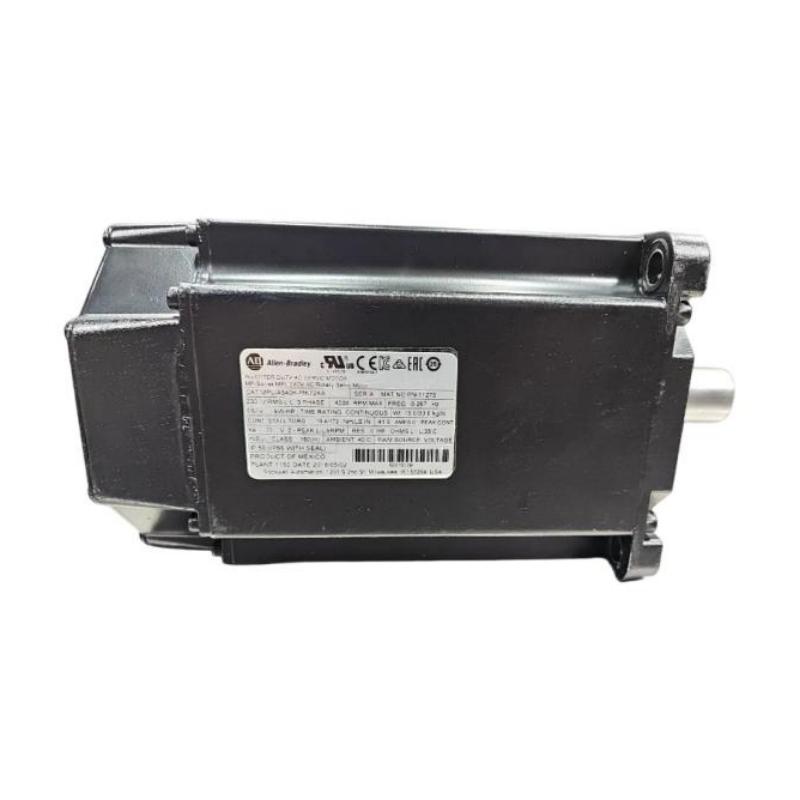

The Allen Bradley MPL-A540K-MK74AA Servo Motor is an industrial servo motor designed for integration into closed-loop motion-control systems. As a member of the Allen Bradley MPL servo motor family, it is intended for automated machinery that requires controlled rotary motion, repeatable positioning, coordinated axis movement, and stable operation under demanding production conditions.
The MPL-A540K-MK74AA has a supplied 165 mm frame size and a listed weight of 15 kg. These specifications are important when planning machine mounting, motor support, handling, replacement, and overall mechanical integration.
In an industrial automation system, the servo motor normally operates together with a compatible servo drive and motion controller. The controller generates the desired movement, while the drive regulates electrical power supplied to the motor. Feedback information is used to monitor actual motor behavior and maintain the required motion.
This closed-loop architecture makes the motor suitable for applications where a standard motor starter or open-loop motor arrangement would not provide sufficient control.
Potential applications include packaging machinery, automated assembly equipment, material handling, machine tools, converting equipment, indexing systems, and other industrial machines requiring controlled motion.
Because motor configurations can differ, exact electrical ratings, feedback characteristics, shaft details, brake options, and connector arrangements should be confirmed against the actual motor identification and applicable system documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Family | MPL Series |
| Model | MPL-A540K-MK74AA |
| Product Type | Servo Motor |
| Motor Technology | Permanent-Magnet Servo Motor |
| Frame Size | 165 mm |
| Weight | 15 kg |
| Application | Industrial Motion Control |
| Operating Architecture | Closed-Loop Servo System |
| Drive Interface | Compatible Servo Drive |
| Feedback | Verify according to exact motor configuration |
| Shaft Configuration | Verify according to exact motor configuration |
| Brake Configuration | Verify according to exact motor configuration |
| Connector Configuration | Verify according to exact motor configuration |
| Mounting | Machine Mounted |
| Typical Applications | Packaging, Assembly, Material Handling, Machine Automation |
The supplied product information specifies a 165 mm frame size and 15 kg weight. Other electrical and configuration-specific specifications should be verified from the exact motor nameplate and associated documentation before installation.
What Is the Allen Bradley MPL-A540K-MK74AA?
The MPL-A540K-MK74AA is an Allen Bradley industrial servo motor intended to provide controlled mechanical rotation within an automated motion system.
The motor is normally paired with a compatible servo drive. The drive receives commands from a motion controller and generates the appropriate electrical output for the motor.
The basic architecture can be represented as:
Motion Controller → Servo Drive → MPL-A540K-MK74AA → Mechanical Load
The feedback path closes the control loop:
Motor → Feedback System → Servo Drive / Controller
This arrangement allows the control system to compare commanded movement with actual motor behavior.
If the machine requires a particular position, speed, or movement profile, the controller can continuously coordinate motor operation to achieve the desired result.
The motor therefore serves as the mechanical motion-producing element within a larger industrial automation system.
Servo Motor Operating Principle
The MPL-A540K-MK74AA operates as part of a closed-loop servo system.
The process generally begins when the motion controller generates a movement command. The servo drive receives this command and controls electrical power delivered to the motor.
The motor converts the electrical input into mechanical torque and shaft rotation.
Feedback information is then returned to the drive or controller. The system can use this information to determine whether actual movement corresponds to the desired movement.
The basic process is:
- Motion command is generated.
- Servo drive processes the command.
- Controlled electrical power is supplied to the motor.
- Motor generates torque.
- Machine axis moves.
- Feedback reports actual motor behavior.
- Control system adjusts operation when necessary.
This continuous feedback process supports accurate and repeatable industrial motion.
Main Functions
The MPL-A540K-MK74AA can contribute to several motion-control functions.
Position Control
The servo system can move a machine axis to defined positions according to the programmed motion sequence.
Speed Regulation
The motor can participate in applications requiring controlled and repeatable rotational speed.
Acceleration and Deceleration
Controlled acceleration and deceleration profiles allow machine movement to be coordinated with other process functions.
Axis Synchronization
Multiple servo axes can be coordinated by a motion controller for synchronized machine operations.
Repeatable Motion
Feedback-based control allows the system to monitor actual movement and maintain consistent operation.
Dynamic Machine Control
Servo motors are particularly useful for machine axes that frequently start, stop, reverse, or change speed.
Role in Industrial Automation
The MPL-A540K-MK74AA can serve as an important motion-producing component within an Allen Bradley automation architecture.
A typical system may contain:
- Motion controller
- Servo drive
- MPL-A540K-MK74AA servo motor
- Feedback system
- Motor power cable
- Feedback cable
- Mechanical coupling
- Gearbox or transmission
- Machine axis
- HMI
The controller determines what the machine should do, while the servo drive regulates the motor to produce the required movement.
For example, a packaging machine may require a servo axis to move a product through a precise distance before another machine operation begins. The controller issues the motion command, the drive controls the motor, and feedback allows the system to monitor actual movement.
The same principle can be applied to indexing, feeding, cutting, positioning, assembly, and material-handling applications.
Industrial Applications
Packaging Machinery
Servo motors are commonly used in automated packaging systems where machine axes must operate with repeatable timing and positioning.
Applications can include:
- Product feeding
- Indexing
- Cutting
- Sealing
- Label positioning
- Conveyor synchronization
Automated Assembly
Servo-controlled axes can position components, tools, and workpieces during automated assembly operations.
Possible applications include:
- Component positioning
- Transfer mechanisms
- Insertion operations
- Indexing stations
- Automated pressing
Material Handling
Servo motion can be used in automated material-handling systems requiring controlled movement.
Typical equipment includes:
- Transfer systems
- Positioning units
- Automated conveyors
- Machine loading systems
- Pick-and-place equipment
Machine Tools
Servo motors can drive machine axes where controlled movement and repeatable positioning are required.
Printing and Converting
Servo systems can control feeding, registration, indexing, winding, cutting, and other machine movements.
General Industrial Automation
The motor can also be incorporated into custom machinery and automated production equipment requiring closed-loop motion control.
Mechanical Integration
The supplied 165 mm frame size should be considered carefully when designing the motor mounting arrangement.
The motor must be mounted on a rigid machine structure capable of supporting its 15 kg weight and handling the dynamic forces generated during operation.
Important mechanical considerations include:
- Mounting rigidity
- Shaft alignment
- Coupling selection
- Load inertia
- Radial loading
- Axial loading
- Mechanical resonance
- Motor clearance
- Cable routing
- Maintenance access
Shaft Alignment
Accurate alignment between the motor shaft and driven mechanism is important.
Misalignment can produce additional forces on the motor and coupling. This can increase vibration and mechanical wear and may reduce the service life of associated components.
Motor Support
The 15 kg motor weight should be considered when evaluating mounting brackets, machine frames, support plates, and installation hardware.
Mechanical Load
The driven load should be evaluated before commissioning to ensure that the motor and drive system are suitable for the intended machine operation.
Servo Drive Integration
The MPL-A540K-MK74AA should be paired with a compatible servo drive based on the exact motor configuration.
The drive controls the motor’s electrical operation and can manage functions such as:
- Current control
- Torque regulation
- Speed control
- Position control
- Feedback processing
- Acceleration
- Deceleration
- Fault monitoring
Before installation, engineers should verify:
- Complete motor catalog number
- Motor electrical requirements
- Feedback configuration
- Feedback connector
- Motor power connection
- Brake configuration
- Required motor cable
- Servo-drive compatibility
- Motion-controller compatibility
The MPL family contains multiple motor configurations, so model-family similarity alone should not be used to determine drive compatibility.
Installation Guidelines
Step 1: Verify the Motor
Confirm the complete catalog number:
MPL-A540K-MK74AA
The motor identification should match the machine documentation.
Step 2: Inspect the Unit
Before mounting, inspect for:
- Physical damage
- Connector damage
- Shaft damage
- Corrosion
- Contamination
- Loose components
- Improper storage or handling damage
Step 3: Prepare the Mounting Surface
The mounting surface should be clean, rigid, and correctly prepared for the motor’s frame configuration.
Adequate clearance should be provided for installation and maintenance.
Step 4: Mount the Motor
Secure the motor using the appropriate mechanical mounting method.
Because the motor weighs 15 kg, suitable handling practices should be followed during installation.
Step 5: Connect Motor Power
Connect the motor power wiring according to the compatible servo-drive arrangement.
Step 6: Connect Feedback
Install the feedback connection correctly and verify connector engagement.
Step 7: Establish Grounding
Confirm appropriate grounding and bonding before energizing the system.
Step 8: Verify Mechanical Alignment
Check shaft alignment and make sure the connected mechanism can move without abnormal resistance.
Commissioning Procedure
A controlled commissioning sequence helps reduce startup faults.
Motor Identification
Confirm the complete MPL-A540K-MK74AA catalog number.
Drive Setup
Verify that the servo drive is configured for the installed motor.
Wiring Inspection
Check motor power, feedback, grounding, and control connections.
Feedback Verification
Confirm that the drive receives valid feedback.
Mechanical Check
Verify that the driven mechanism is free of obstructions.
Controlled Jog
Perform an initial low-speed movement.
Direction Check
Confirm that the motor rotates in the intended direction.
Motion Profile Test
Gradually test acceleration, deceleration, speed, and positioning.
Load Test
Monitor motor and machine behavior under representative operating conditions.
During commissioning, monitor:
- Drive status
- Position error
- Motor temperature
- Vibration
- Noise
- Mechanical movement
Troubleshooting the MPL-A540K-MK74AA
Servo faults should be analyzed across the motor, drive, controller, feedback system, cables, and mechanical load.
Motor Does Not Rotate
Possible causes include:
- Servo drive disabled
- No motion command
- Drive fault
- Incorrect motor configuration
- Feedback problem
- Wiring fault
- Mechanical obstruction
- Safety-system condition
Check the drive and controller status before replacing the motor.
Feedback Fault
Potential causes include:
- Loose feedback connector
- Damaged feedback cable
- Incorrect configuration
- Connector contamination
- Feedback-system problem
Inspect the complete feedback path.
Excessive Position Error
Possible causes include:
- Excessive mechanical load
- Incorrect servo tuning
- Mechanical backlash
- Coupling problems
- Mechanical obstruction
- Incorrect acceleration settings
- Feedback problems
Both the mechanical system and servo configuration should be evaluated.
Excessive Vibration
Possible causes include:
- Shaft misalignment
- Mechanical resonance
- Loose mounting
- Coupling problems
- Excessive loading
- Incorrect servo tuning
Mechanical inspection should be performed before assuming the motor itself is defective.
Abnormal Noise
Possible causes include:
- Misalignment
- Coupling wear
- Bearing-related mechanical problems
- Resonance
- Excessive load
- Abnormal operating conditions
A change from normal motor sound should be investigated.
Motor Overheating
Potential causes include:
- Excessive load
- High-duty operation
- Mechanical resistance
- Insufficient cooling
- Environmental conditions
- Incorrect application configuration
The complete machine operating condition should be reviewed.
Preventive Maintenance
Regular maintenance can help maintain reliable servo operation.
Motor Mounting
Inspect mounting hardware for looseness or movement.
Power and Feedback Cables
Check cables for:
- Abrasion
- Crushing
- Excessive bending
- Connector damage
- Loose connections
Mechanical Coupling
Inspect the coupling for wear, looseness, and alignment problems.
Vibration Monitoring
Monitor changes in vibration compared with normal machine operation.
Temperature Monitoring
Track motor temperature and investigate unexpected increases.
Motor Cleanliness
Keep the motor and surrounding area free from excessive contamination that could affect cooling or mechanical performance.
Motion-Control System Architecture
The MPL-A540K-MK74AA normally operates within a larger industrial motion-control system.
| Component | Primary Function |
|---|---|
| Motion Controller | Generates motion commands |
| Servo Drive | Controls motor electrical operation |
| MPL-A540K-MK74AA | Produces mechanical rotation |
| Feedback System | Reports actual motor movement |
| Motor Power Cable | Transfers electrical power |
| Feedback Cable | Transfers feedback signals |
| Mechanical Coupling | Connects the motor to the machine |
| Gearbox | Adjusts mechanical speed or torque when required |
| Machine Axis | Performs the required machine movement |
| HMI | Provides operator monitoring |
The exact system architecture depends on the machine and the Allen Bradley control equipment selected for the application.
Physical Characteristics
The supplied physical information for the MPL-A540K-MK74AA is:
Frame Size: 165 mm
Weight: 15 kg
These specifications should be considered during machine design, transportation, installation, and replacement.
The 165 mm frame size can affect the available mounting area and mechanical clearance.
The 15 kg weight should be considered when designing or evaluating:
- Mounting brackets
- Support structures
- Machine frames
- Handling procedures
- Replacement equipment
- Installation tooling
The 165 mm frame size is not the same as the motor’s complete external dimensions. Exact overall height, width, length, shaft projection, and connector clearance should be verified separately whenever precise machine-space planning is required.
Replacement Considerations
When replacing the MPL-A540K-MK74AA, the complete catalog number should be verified.
Important parameters include:
- Full motor model
- Frame size
- Weight
- Feedback configuration
- Shaft configuration
- Brake configuration
- Connector arrangement
- Servo-drive compatibility
- Motor cable compatibility
- Machine mounting arrangement
Another MPL motor should not automatically be treated as a direct replacement simply because it has the same frame size.
Differences in feedback, shaft configuration, braking, connectors, or electrical characteristics can affect compatibility.
The original motor identification should therefore be compared with the proposed replacement before installation.
Engineering Best Practices
Maintain Correct Alignment
Accurate alignment helps minimize mechanical stress on the motor and coupling.
Protect Servo Cables
Route cables carefully to avoid excessive bending, abrasion, crushing, and mechanical interference.
Reduce Electrical Interference
Where appropriate, separate feedback and control wiring from high-power conductors according to industrial EMC practices.
Monitor Operating Trends
Monitor temperature, vibration, position error, and abnormal noise to identify changes in system performance.
Document Configuration
Maintain records of the motor model, drive setup, tuning parameters, cable configuration, and commissioning results.
Diagnose Before Replacing
A servo fault does not automatically indicate motor failure. The controller, drive, feedback circuit, cables, mechanical load, and motor should all be considered during troubleshooting.
Key Advantages
The Allen Bradley MPL-A540K-MK74AA Servo Motor provides several characteristics suitable for industrial motion-control applications:
- 165 mm frame size
- 15 kg listed weight
- Permanent-magnet servo motor technology
- Closed-loop motion-control architecture
- Precision positioning capability
- Controlled speed operation
- Controlled acceleration and deceleration
- Repeatable machine movement
- Support for coordinated servo applications
- Integration with compatible Allen Bradley motion systems
The actual performance of a complete servo system depends on correct motor-drive matching, feedback integration, mechanical design, tuning, and commissioning.
Technical FAQs
What is the Allen Bradley MPL-A540K-MK74AA?
The MPL-A540K-MK74AA is an Allen Bradley MPL-series industrial servo motor designed for integration into compatible closed-loop motion-control systems.
What is the frame size?
The supplied frame size is 165 mm.
What is the weight of the MPL-A540K-MK74AA?
The supplied weight is 15 kg.
What is the motor used for?
It can be used for controlled rotary motion in automated machinery, including positioning, indexing, packaging, assembly, material handling, and machine automation applications.
Does the MPL-A540K-MK74AA require a servo drive?
Yes. It is normally operated as part of a compatible servo system with a servo drive and motion controller.
What should be checked before installation?
The complete motor catalog number, feedback configuration, shaft arrangement, brake configuration, connectors, cable requirements, drive compatibility, and mechanical mounting should be verified.
Why might the motor not rotate?
Possible causes include a disabled drive, missing command, drive fault, feedback problem, incorrect configuration, wiring issue, mechanical obstruction, or safety-system condition.
What causes servo vibration?
Possible causes include misalignment, mechanical resonance, loose mounting, coupling problems, excessive load, or incorrect servo tuning.
Does 165 mm represent the complete motor length?
No. The supplied 165 mm specification identifies the frame size, not the complete external dimensions of the motor.
Is the motor weight 15 kg?
Yes. The supplied product specification lists the MPL-A540K-MK74AA weight as 15 kg.
Conclusion
The Allen Bradley MPL-A540K-MK74AA Servo Motor is an industrial servo motor designed for integration into closed-loop motion-control applications. With a supplied 165 mm frame size and 15 kg weight, it provides a substantial mechanical configuration for automated machine axes requiring controlled and repeatable movement.
The motor operates as part of a complete motion system that can include a compatible servo drive, motion controller, feedback system, motor cables, mechanical coupling, and machine axis. Correct coordination between these components enables controlled positioning, speed regulation, acceleration, deceleration, and synchronized machine movement.
The MPL-A540K-MK74AA can be applied in packaging machinery, automated assembly systems, material handling, machine tools, converting equipment, and other industrial automation applications.
For installation and replacement, the complete MPL-A540K-MK74AA catalog number should be verified carefully. Feedback configuration, shaft arrangement, brake options, connector configuration, cable requirements, drive compatibility, and mechanical mounting should all be checked before commissioning.
With appropriate mechanical alignment, electrical installation, servo-drive configuration, feedback integration, and preventive maintenance, the Allen Bradley MPL-A540K-MK74AA Servo Motor can form an important part of a reliable industrial motion-control system.
