Product Overview

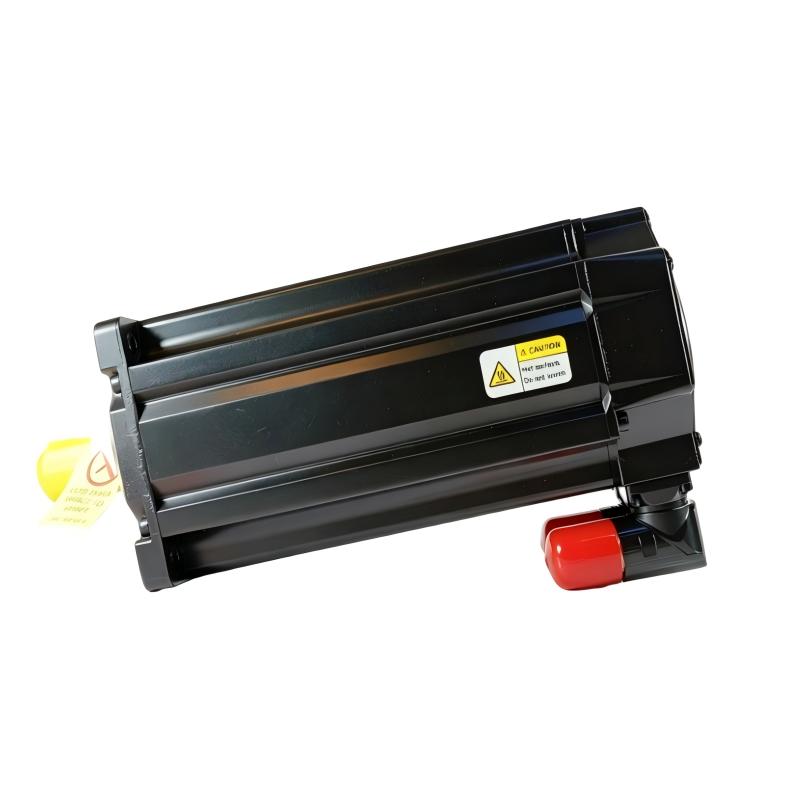

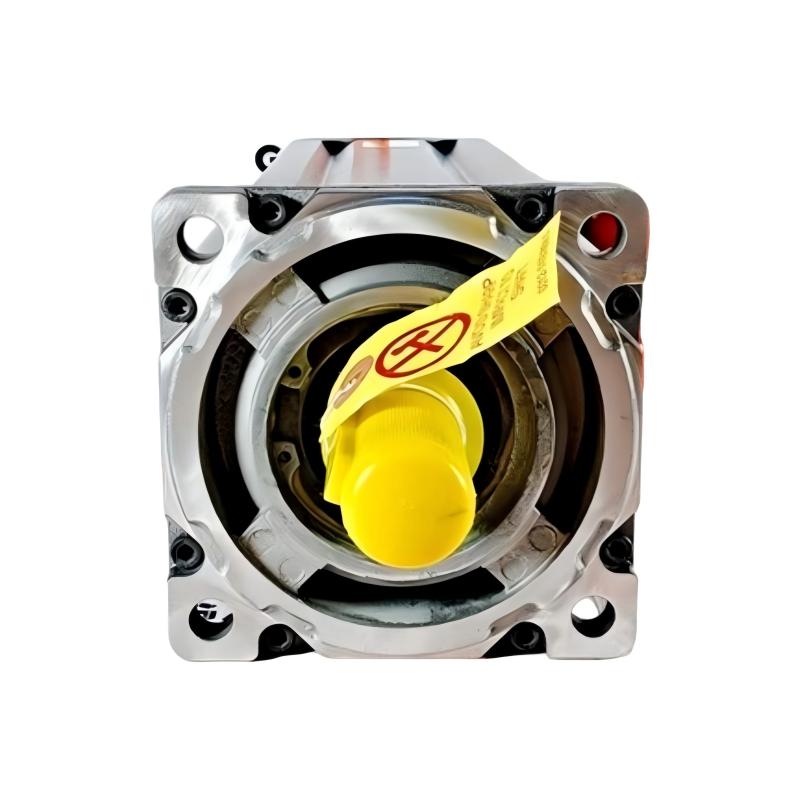

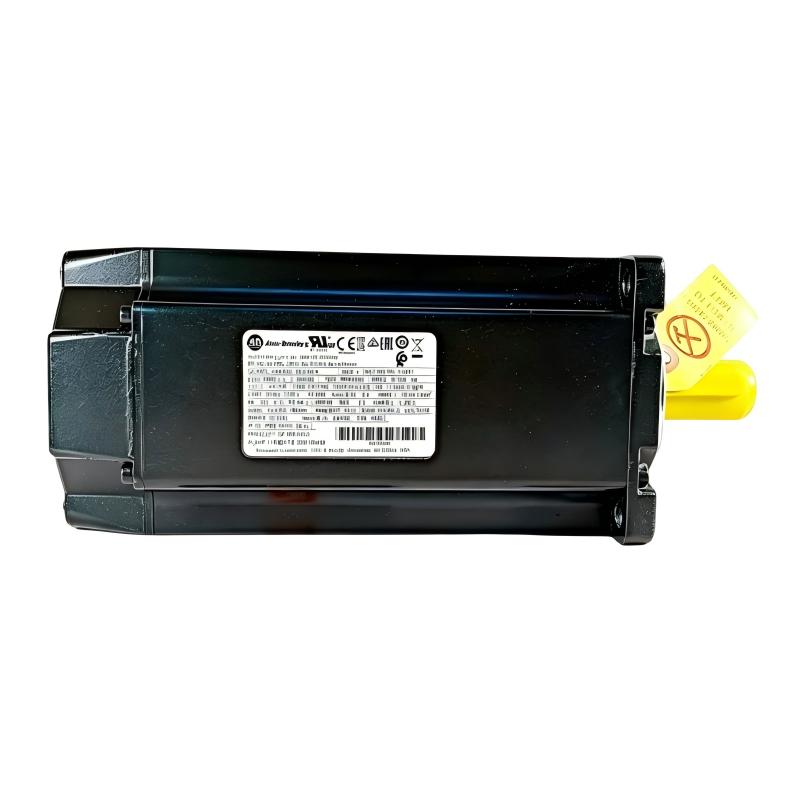

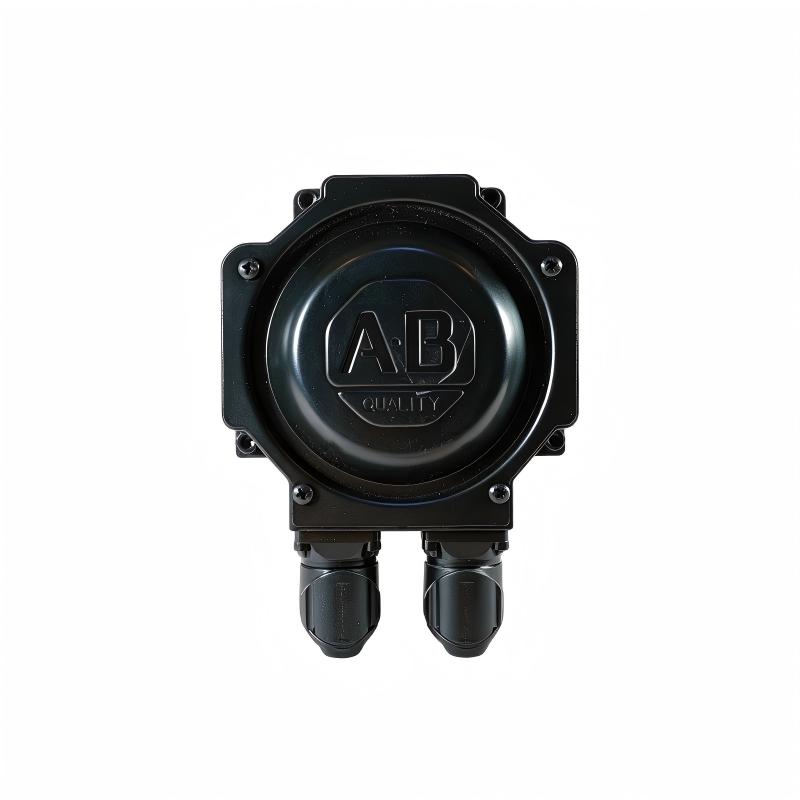

The Allen Bradley MPL-A4540C-HJ74AA Servo Motor is an industrial servo motor designed for integration into automated motion-control systems. As a member of the Allen Bradley MPL servo motor family, this model is intended for applications requiring controlled rotary motion, repeatable positioning, coordinated movement, and reliable machine-axis operation.
Servo motors are an important part of modern industrial automation because they work together with servo drives, motion controllers, feedback systems, and mechanical transmission components. Unlike a basic motor that may simply operate at a commanded speed, a servo motor is normally incorporated into a closed-loop system where the controller and drive continuously manage motor movement according to a programmed motion profile.
The MPL-A4540C-HJ74AA has a specified 130 mm frame size and a weight of 8.6 kg. These physical characteristics are important for machine design, mounting compatibility, equipment handling, replacement planning, and cabinet or machine-space considerations.
The complete catalog number should always be used when identifying this servo motor. Motors within the same MPL family can have different electrical and mechanical configurations, so parameters such as rated voltage, current, torque, speed, feedback arrangement, shaft configuration, connector type, and brake configuration should be confirmed from the motor nameplate and applicable equipment documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Family | MPL Servo Motor |
| Model | MPL-A4540C-HJ74AA |
| Product Type | AC Servo Motor |
| Application Category | Industrial Motion Control |
| Frame Size | 130 mm |
| Weight | 8.6 kg |
| Control Architecture | Closed-Loop Servo System |
| Typical System | Motion Controller + Servo Drive + Servo Motor + Feedback |
| Installation | Machine-Mounted |
| Typical Applications | Positioning, Packaging, Assembly, Material Handling, Automation |
| Motor Electrical Characteristics | Verify exact configuration |
| Feedback Configuration | Verify exact configuration |
| Shaft Configuration | Verify exact configuration |
| Brake Configuration | Verify exact configuration |
| Connector Configuration | Verify exact configuration |
The 130 mm frame size and 8.6 kg weight are the physical specifications supplied for this model. Other detailed characteristics should be verified against the exact motor configuration before engineering, commissioning, or replacement.
What Is the Allen Bradley MPL-A4540C-HJ74AA?
The Allen Bradley MPL-A4540C-HJ74AA is an industrial servo motor intended to provide controlled mechanical rotation within an automated motion axis.
In a typical automation system, the motor is not operated independently. Instead, it works with a servo drive and motion controller.
A simplified architecture is:
Motion Controller → Servo Drive → MPL-A4540C-HJ74AA → Mechanical Load
Feedback information is incorporated into the control loop so that the motion system can monitor motor operation and regulate the axis.
This architecture allows servo systems to perform tasks such as:
- Precise positioning
- Controlled speed changes
- Repetitive indexing
- Coordinated movement
- Acceleration and deceleration
- Synchronized multi-axis operation
- Automated production sequences
The motor therefore functions as the electromechanical actuator within a larger industrial control system.
Servo Motor Working Principle
The MPL-A4540C-HJ74AA operates according to the general principles of closed-loop servo control.
The motion controller first determines the required movement based on the machine program. The servo drive receives the motion command and controls the electrical power delivered to the motor.
The motor converts the electrical input into mechanical rotation. Feedback information is then used by the control system to determine the actual motion of the motor.
The overall process can be represented as:
Motion Command → Servo Drive → Motor → Mechanical Load → Feedback → Control System
This continuous control loop enables the machine to regulate motion according to the programmed requirements.
The exact feedback technology, electrical ratings, and configuration-specific characteristics of the MPL-A4540C-HJ74AA should be confirmed before installation rather than inferred from the general MPL family.
Main Functions
Controlled Rotary Motion
The primary function of the servo motor is to convert electrical energy from the servo drive into controlled mechanical rotation.
Precision Positioning
Servo systems are commonly used where a machine axis must repeatedly move to defined positions.
Speed Regulation
The servo drive can regulate motor speed according to the motion profile programmed by the control system.
Controlled Acceleration
Controlled acceleration allows the machine to increase speed according to the programmed motion sequence.
Controlled Deceleration
Controlled deceleration allows the motor to slow down in a managed manner before stopping or changing direction.
Coordinated Motion
Multiple servo axes can be synchronized by a suitable motion controller, allowing complex machine operations to be performed in a coordinated manner.
Role in Industrial Automation
The MPL-A4540C-HJ74AA can act as the motor component of an industrial motion-control axis.
A complete axis typically contains:
Motion Controller
The controller generates motion commands and manages the overall machine sequence.
Servo Drive
The servo drive receives commands and regulates electrical power supplied to the motor.
Servo Motor
The MPL-A4540C-HJ74AA produces the mechanical movement required by the machine.
Feedback System
Feedback provides information about motor movement to support closed-loop control.
Mechanical Transmission
The motor may be connected to a coupling, gearbox, belt, ballscrew, rotary table, conveyor, or another transmission mechanism.
Machine Load
The mechanical load determines the actual operating requirements of the servo axis.
For this reason, the performance of a servo motor cannot be evaluated independently of the rest of the motion-control system.
Industrial Applications
The Allen Bradley MPL-A4540C-HJ74AA can be integrated into a wide range of industrial machinery when its complete specifications match the application requirements.
Potential applications include:
- Packaging Machines
- Automated Assembly Equipment
- Material Handling Systems
- Conveyor Systems
- Pick-and-Place Machinery
- Positioning Equipment
- Indexing Machines
- Robotics
- Printing Machinery
- Labeling Equipment
- Machine Tools
- Automated Inspection Systems
- Production Machinery
- Multi-Axis Motion Systems
- General Industrial Automation
The final application must be evaluated according to the actual load, required motion profile, operating cycle, mechanical inertia, environmental conditions, and servo-drive compatibility.
Mechanical Integration
Mechanical integration is an important part of servo motor installation.
The 130 mm frame size should be considered when checking the available machine space and mounting arrangement.
Before installing the MPL-A4540C-HJ74AA, verify:
- Motor mounting arrangement
- Available machine clearance
- Shaft configuration
- Coupling compatibility
- Motor orientation
- Mechanical alignment
- Cable routing
- Cooling conditions
- Machine-frame strength
- Accessibility for maintenance
The motor shaft must be correctly aligned with the driven equipment.
Poor alignment can result in:
- Increased vibration
- Coupling wear
- Bearing loading
- Higher operating temperature
- Positioning instability
- Premature mechanical failure
The motor should therefore be installed using appropriate mechanical procedures rather than relying on visual alignment alone.
Servo Drive Integration
The MPL-A4540C-HJ74AA must be matched with a compatible servo-drive configuration.
Before commissioning, verify:
- Complete motor catalog number
- Servo-drive compatibility
- Motor electrical requirements
- Feedback configuration
- Motor cable
- Feedback cable
- Connector arrangement
- Brake configuration if applicable
- Drive parameters
- Motion-controller configuration
A servo drive should not be configured based only on the physical appearance or general family of the motor.
Incorrect motor parameters can result in poor motion performance, drive alarms, or improper operation.
Installation Guidelines
1. Confirm Motor Identification
Before installation, confirm the complete model:
Allen Bradley MPL-A4540C-HJ74AA
The motor nameplate should be compared with the machine documentation.
2. Inspect the Motor
Check for:
- Physical damage
- Shaft damage
- Connector damage
- Cable damage
- Contamination
- Moisture
- Loose hardware
- Storage-related damage
3. Verify Mounting Compatibility
Confirm that the machine mounting arrangement is compatible with the 130 mm frame size.
4. Secure the Motor
Install the motor using appropriate mounting hardware.
Because the specified motor weight is 8.6 kg, appropriate handling and mechanical support should be considered during installation.
5. Align the Mechanical Load
Check the alignment between the motor shaft and the driven component.
6. Connect Motor Wiring
Connect the motor cables according to the applicable servo-system design.
Keep motor and feedback wiring protected from mechanical damage and unnecessary electrical interference.
7. Verify Feedback Connections
Confirm that the feedback connection is correctly installed and securely connected.
8. Verify Grounding
Complete grounding and bonding according to the machine electrical design and applicable safety requirements.
Commissioning Procedure
A controlled commissioning process helps reduce the risk of incorrect configuration.
Motor Identification
Confirm the complete MPL-A4540C-HJ74AA catalog number.
Mechanical Inspection
Verify mounting hardware, shaft alignment, coupling installation, and mechanical clearance.
Drive Configuration
Confirm that the servo drive is configured for the correct motor.
Feedback Verification
Check that the feedback system is properly connected and recognized.
Initial Motion Test
Perform an initial controlled motion test where permitted by the machine design.
Observe:
- Motor direction
- Motion response
- Vibration
- Noise
- Drive status
- Feedback status
- Fault messages
Positioning Test
Verify that the axis reaches the programmed positions correctly.
Load Test
Gradually introduce the normal machine load after basic operation has been confirmed.
Production Cycle Test
Run the complete machine sequence and monitor the servo axis under representative operating conditions.
Troubleshooting the MPL-A4540C-HJ74AA
Troubleshooting should consider the motor, servo drive, controller, feedback system, mechanical transmission, and load.
Motor Does Not Rotate
Possible causes include:
- Servo drive disabled
- Missing motion command
- Incorrect motor configuration
- Drive fault
- Feedback problem
- Cable problem
- Mechanical obstruction
- Controller configuration error
Check the servo drive status and alarm information first.
Servo Drive Generates a Fault
Potential causes include:
- Incorrect motor parameters
- Feedback problems
- Wiring problems
- Excessive load
- Mechanical obstruction
- Incorrect configuration
- Motor temperature conditions
- Electrical connection issues
The exact drive alarm should be identified before replacing the motor.
Excessive Vibration
Potential causes include:
- Shaft misalignment
- Coupling problems
- Mechanical looseness
- Load imbalance
- Resonance
- Incorrect tuning
- Bearing problems
- Mechanical transmission issues
Mechanical inspection should be performed before assuming an internal motor fault.
Positioning Accuracy Is Poor
Possible causes include:
- Feedback problems
- Incorrect scaling
- Servo tuning problems
- Mechanical backlash
- Coupling slippage
- Excessive load
- Incorrect motion parameters
- Mechanical transmission wear
Both the electronic control system and mechanical system should be checked.
Motor Runs Hot
Potential causes include:
- Excessive load
- High duty cycle
- Insufficient cooling
- Mechanical friction
- Incorrect servo configuration
- Excessive acceleration
- Excessive deceleration
- Environmental conditions
Operating conditions should be evaluated against the requirements of the exact motor configuration.
Maintenance Recommendations
Regular maintenance can improve the reliability of the complete servo axis.
Inspect Mounting Hardware
Check motor mounting hardware for looseness or mechanical movement.
Inspect Couplings
Look for signs of coupling wear, slippage, or misalignment.
Check Motor Cables
Inspect for:
- Abrasion
- Crushing
- Excessive bending
- Loose connectors
- Contamination
- Physical damage
Monitor Temperature
Abnormal temperature changes should be investigated.
Monitor Vibration
Changes in normal vibration levels can indicate developing mechanical problems.
Review Servo Alarms
Repeated drive alarms should be analyzed instead of simply being reset.
Inspect the Machine Load
Problems in gearboxes, belts, bearings, ballscrews, or other transmission components can produce symptoms that appear to be motor-related.
Servo System Architecture
The MPL-A4540C-HJ74AA can form part of a larger motion-control architecture.
A typical system can be represented as:
PLC / Motion Controller
↓
Motion Network
↓
Servo Drive
↓
MPL-A4540C-HJ74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Load
Feedback information completes the control loop.
In multi-axis systems, several servo motors can be controlled simultaneously. The controller can coordinate their movement to perform complex machine operations.
Typical coordinated applications include:
- Electronic synchronization
- Indexing
- Multi-axis positioning
- Repetitive motion
- Coordinated acceleration
- Coordinated deceleration
- Automated production sequences
Physical Dimensions and Weight
The specified physical characteristics of the Allen Bradley MPL-A4540C-HJ74AA are:
- Frame Size: 130 mm
- Weight: 8.6 kg
The 130 mm frame size should be considered when checking the machine’s available mounting space.
The 8.6 kg weight is relevant to:
- Installation planning
- Motor handling
- Machine support
- Maintenance procedures
- Replacement logistics
- Equipment transportation
The total installed assembly may weigh more because of couplings, cables, mounting hardware, brakes, or connected mechanical components.
Replacement Considerations
When replacing an MPL-A4540C-HJ74AA, the complete catalog number should be verified.
Important comparison points include:
- Full motor model
- Frame size
- Weight
- Mounting arrangement
- Shaft configuration
- Feedback configuration
- Connector arrangement
- Brake configuration
- Motor cable
- Servo-drive compatibility
- Mechanical load requirements
A different 130 mm servo motor should not automatically be considered a direct replacement.
Physical size alone does not confirm compatibility.
Before ordering a replacement, compare the existing motor nameplate with the machine documentation and servo-drive configuration.
Engineering Best Practices
Correct Motor and Drive Matching
The motor and servo drive should be configured as a compatible combination.
Proper Mechanical Alignment
Careful shaft alignment reduces unnecessary mechanical stress and vibration.
Protected Feedback Wiring
Feedback wiring should be installed and routed appropriately to maintain reliable signal transmission.
Cable Protection
Motor and feedback cables should be protected against abrasion, crushing, excessive bending, and other mechanical hazards.
Continuous Performance Monitoring
Monitor changes in:
- Vibration
- Temperature
- Positioning behavior
- Drive alarms
- Operating noise
These changes can provide early indications of developing problems.
Systematic Fault Diagnosis
Repeated faults should be diagnosed using drive alarms, controller status, feedback information, and mechanical inspection.
Key Advantages
The Allen Bradley MPL-A4540C-HJ74AA provides several characteristics suitable for industrial motion-control applications:
- Industrial servo motor construction
- 130 mm frame size
- 8.6 kg weight
- Suitable for closed-loop motion-control architectures
- Suitable for automated positioning
- Applicable to coordinated machine movement
- Suitable for repetitive production operations
- Can be integrated into multi-axis automation systems
- Suitable for industrial machine-axis applications
- Supports integration with compatible servo-drive systems
Actual performance depends on the complete motor, drive, controller, feedback system, mechanical transmission, and machine load.
Technical FAQs
What is the Allen Bradley MPL-A4540C-HJ74AA?
The Allen Bradley MPL-A4540C-HJ74AA is an industrial servo motor designed for integration into closed-loop motion-control systems.
What is the frame size?
The specified frame size is 130 mm.
What is the weight of the MPL-A4540C-HJ74AA?
The specified weight is 8.6 kg.
What applications can use this servo motor?
It can be used in compatible industrial automation applications involving positioning, indexing, packaging, assembly, material handling, robotics, and other controlled motion operations.
Does the MPL-A4540C-HJ74AA require a servo drive?
A servo motor normally operates together with a compatible servo drive that regulates the electrical power supplied to the motor.
What is the role of feedback?
Feedback provides information about motor movement so the control system can regulate the servo axis.
What should be checked before installation?
Verify the complete motor model, mounting arrangement, servo-drive compatibility, feedback configuration, shaft arrangement, connector configuration, cables, and any applicable brake configuration.
Why might the servo axis have positioning errors?
Possible causes include feedback problems, incorrect scaling, servo tuning issues, mechanical backlash, coupling slippage, excessive load, or transmission problems.
Why might the motor vibrate excessively?
Possible causes include mechanical misalignment, coupling problems, load imbalance, resonance, loose mounting, bearing problems, or incorrect servo tuning.
Can another MPL motor with the same frame size replace it?
Not automatically. The complete electrical, feedback, mechanical, and drive-system requirements must be verified before using another motor as a replacement.
Conclusion
The Allen Bradley MPL-A4540C-HJ74AA Servo Motor is an industrial servo motor designed to provide controlled mechanical movement within automated motion-control systems. Its specified 130 mm frame size and 8.6 kg weight make these characteristics important considerations for machine mounting, mechanical support, handling, replacement planning, and system integration.
The motor operates as part of a larger servo architecture consisting of a motion controller, compatible servo drive, feedback system, mechanical transmission, and machine load. Reliable performance therefore depends on correct motor-drive matching, proper mechanical alignment, appropriate feedback connections, suitable cable installation, and correct commissioning.
For maintenance or replacement applications, the complete MPL-A4540C-HJ74AA catalog number should be verified carefully. Detailed electrical ratings, feedback characteristics, shaft configuration, connector arrangement, brake options, and other configuration-specific parameters should be confirmed from the applicable equipment documentation rather than assumed from the general MPL product family.
When correctly integrated and maintained, the Allen Bradley MPL-A4540C-HJ74AA can serve as a reliable servo-motor component for automated positioning, packaging, assembly, material handling, indexing, robotics, and other industrial motion-control applications.
