Product Overview

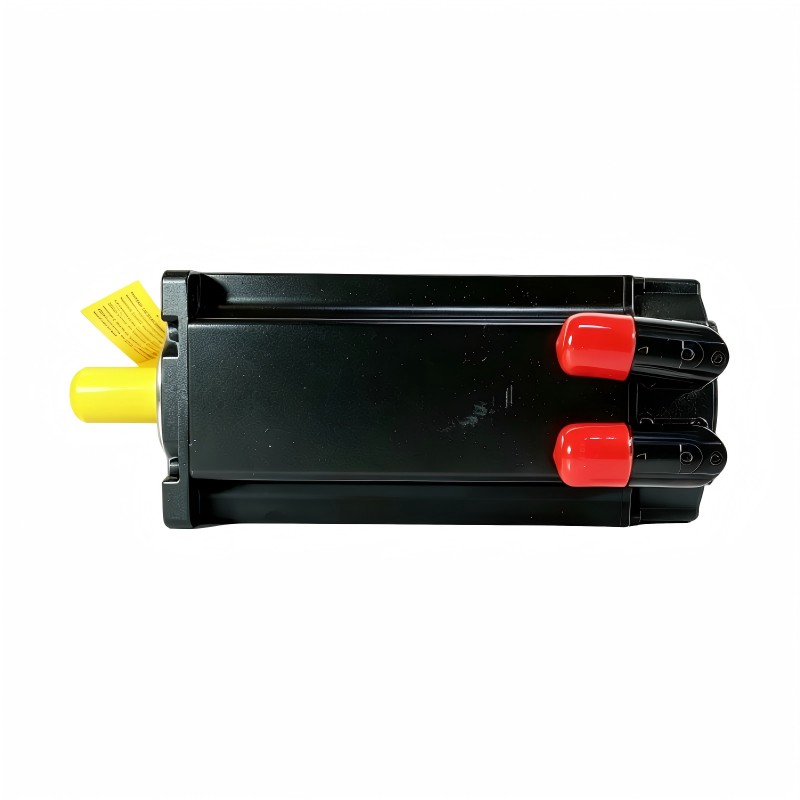

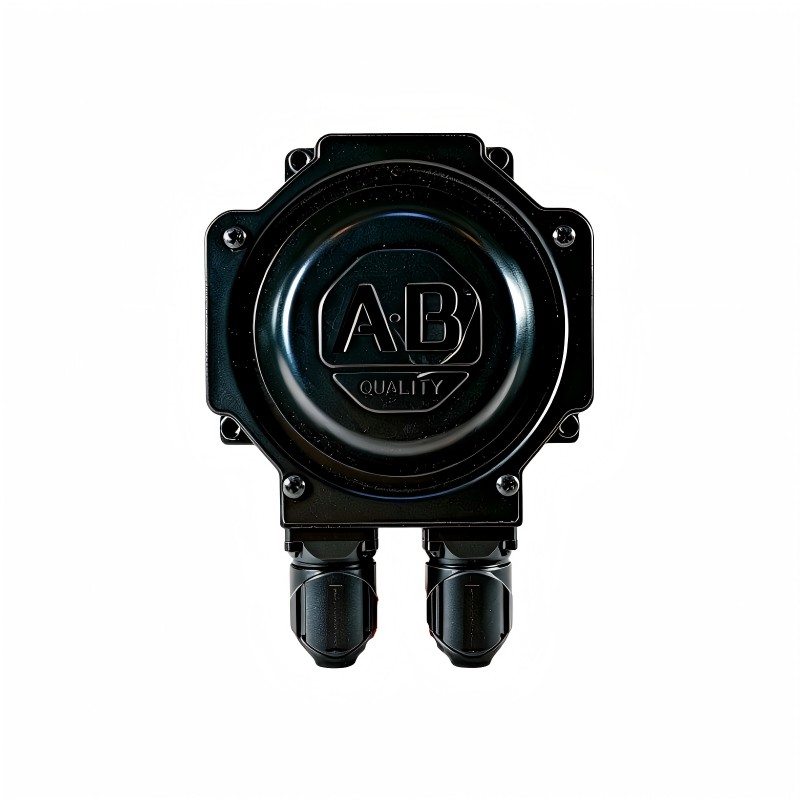

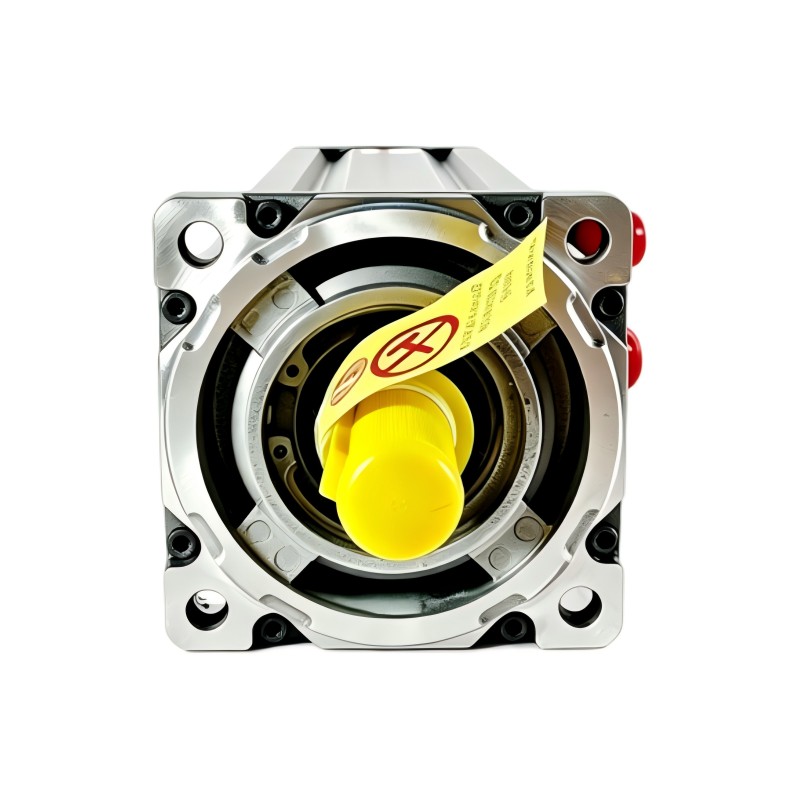

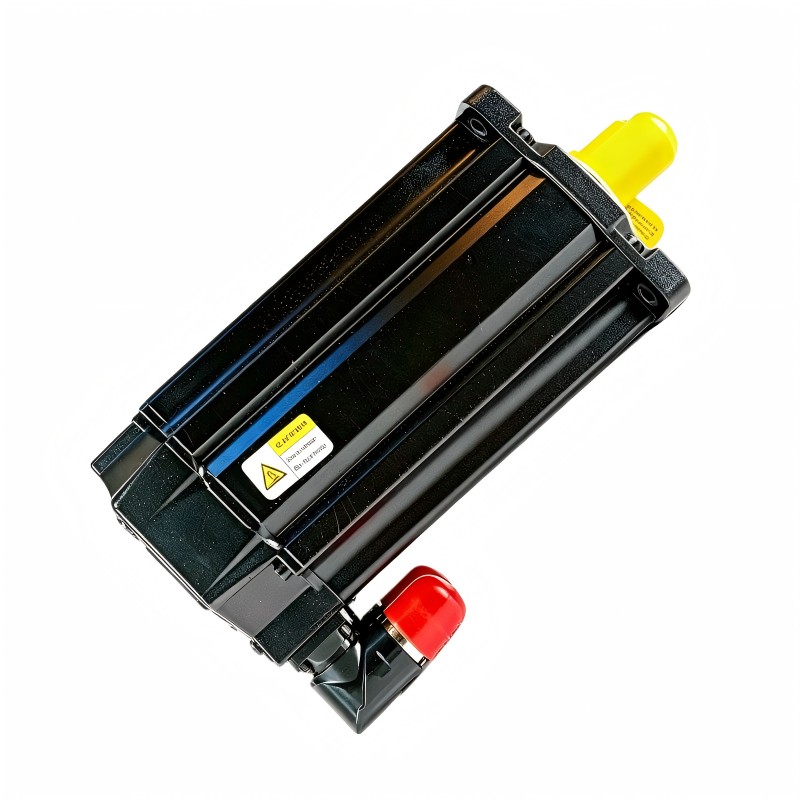

The Allen Bradley MPL-A4540C-HJ72AA Servo Motor is an industrial servo motor designed for integration into automated motion-control systems. As part of the Allen Bradley MPL servo motor family, the MPL-A4540C-HJ72AA is intended for machine applications that require controlled rotation, repeatable movement, accurate positioning, and coordinated motion.

Servo motors are commonly used in modern industrial automation because they operate as part of a closed-loop motion system. A controller generates the desired motion command, a servo drive regulates the electrical power supplied to the motor, and feedback information allows the control system to monitor motor movement. This architecture provides the control needed for applications involving positioning, indexing, acceleration, deceleration, and synchronized machine operation.

The MPL-A4540C-HJ72AA has a specified frame size of 130 mm and a weight of 8.6 kg. These physical characteristics are important when evaluating machine mounting space, mechanical support, handling requirements, and replacement compatibility.

The complete catalog number should always be retained when identifying or replacing this motor. Servo motors within the same product family may have different electrical characteristics, feedback configurations, shaft arrangements, connectors, or other options. Therefore, exact motor-specific information should be verified from the motor nameplate and applicable system documentation before installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Product Family	MPL Servo Motor
Model	MPL-A4540C-HJ72AA
Product Type	AC Servo Motor
Motor Category	Industrial Servo Motor
Frame Size	130 mm
Weight	8.6 kg
Application	Industrial Motion Control
Control Architecture	Closed-Loop Servo System
Typical System	Motion Controller + Servo Drive + Motor + Feedback
Mounting	Machine-Mounted Servo Motor
Typical Applications	Positioning, Packaging, Material Handling, Assembly, Automation
Electrical Characteristics	Verify from motor nameplate and applicable documentation
Feedback Configuration	Verify exact motor configuration
Shaft Configuration	Verify exact motor configuration
Brake Configuration	Verify exact motor configuration
Connector Configuration	Verify exact motor configuration

The supplied 130 mm frame size and 8.6 kg weight are the primary physical specifications provided for this model. Exact values for rated voltage, current, torque, speed, feedback type, shaft details, and other configuration-specific parameters should be confirmed before engineering or replacement work.

---

What Is the Allen Bradley MPL-A4540C-HJ72AA?

The Allen Bradley MPL-A4540C-HJ72AA is an industrial servo motor used as the motor element of a controlled motion axis.

A servo motor differs from a conventional motor primarily in the way it is integrated into the control system. Instead of simply receiving a start command and operating continuously, the servo motor is controlled according to a defined motion profile.

A typical system can be represented as:

Motion Controller → Servo Drive → MPL-A4540C-HJ72AA → Mechanical Load

Feedback information is incorporated into the control loop so that the system can monitor motor movement and make appropriate corrections.

This type of architecture is useful when a machine must perform repeatable movements rather than simply provide continuous rotation.

Typical motion requirements include:

• Precise positioning
• Controlled speed
• Repeatable indexing
• Coordinated movement
• Rapid acceleration
• Controlled deceleration
• Repeated production cycles
• Multi-axis synchronization

---

Servo Motor Operating Principle

The MPL-A4540C-HJ72AA operates as part of a closed-loop servo-control system.

The general sequence begins when a controller determines the required movement. The motion command is transferred to the servo drive, which controls the electrical power supplied to the motor.

The motor converts electrical energy into mechanical rotation. Feedback information is then used by the motion-control system to determine how the motor is responding.

A simplified control loop is:

Command → Servo Drive → Motor → Mechanical Load → Feedback → Controller

This continuous interaction enables the machine to maintain controlled motion according to the programmed operating sequence.

The exact feedback technology and electrical characteristics should be verified for the specific MPL-A4540C-HJ72AA configuration rather than assumed from the general MPL family.

---

Main Functions

The MPL-A4540C-HJ72AA can perform several important functions within an industrial motion-control system.

Controlled Rotation

The servo motor converts controlled electrical input from the servo drive into mechanical rotation.

Positioning

Servo systems can move a machine axis to programmed positions, making them suitable for automated positioning equipment.

Speed Regulation

The drive can regulate motor speed according to the motion profile required by the application.

Acceleration and Deceleration

Controlled acceleration and deceleration help the machine transition between operating speeds while reducing unnecessary mechanical shock.

Repeatable Motion

Servo systems are commonly selected for machines that must perform the same movement repeatedly during production.

Coordinated Axis Movement

When several servo axes are controlled together, the MPL-A4540C-HJ72AA can form one element of a synchronized motion system.

---

Role in Industrial Automation

The servo motor is one part of a complete automation architecture.

A typical industrial servo system includes:

Motion Controller

The controller creates motion commands and coordinates the machine sequence.

Servo Drive

The drive receives the motion command and regulates electrical power to the motor.

Servo Motor

The MPL-A4540C-HJ72AA converts electrical power into controlled mechanical movement.

Feedback System

Feedback information allows the control system to monitor motor operation.

Mechanical Transmission

The motor may drive a coupling, gearbox, belt, ballscrew, rotary mechanism, conveyor, or other machine component.

Machine Load

The final mechanical load determines the actual torque and motion requirements of the application.

The correct operation of the entire axis therefore depends on the interaction between electrical, control, and mechanical components.

---

Industrial Applications

The Allen Bradley MPL-A4540C-HJ72AA can be considered for industrial machinery requiring controlled servo motion when the motor’s complete specifications match the application.

Typical application categories include:

• Automated Assembly Machines
• Packaging Equipment
• Material Handling Systems
• Conveyor Equipment
• Pick-and-Place Machinery
• Machine Tools
• Printing Machinery
• Labeling Systems
• Automated Inspection Equipment
• Robotics
• Indexing Machinery
• Production Automation
• Precision Positioning Systems
• Multi-Axis Motion Systems

The suitability of the motor depends on the actual machine requirements, including load characteristics, required speed, torque, acceleration, duty cycle, inertia, environmental conditions, and servo-drive compatibility.

---

Mechanical Integration

Mechanical installation has a direct influence on servo-system performance.

The 130 mm frame size should be considered when determining mounting compatibility and available machine space.

Before installing the MPL-A4540C-HJ72AA, engineers should verify:

• Mounting arrangement
• Available installation space
• Shaft configuration
• Coupling compatibility
• Motor orientation
• Load alignment
• Mechanical clearance
• Cable routing
• Cooling conditions
• Structural support

The motor shaft should be aligned carefully with the driven machine component.

Incorrect alignment can introduce additional mechanical loading and may result in:

• Excessive vibration
• Coupling wear
• Bearing stress
• Increased temperature
• Positioning errors
• Reduced component life

Mechanical alignment should therefore be checked during both original installation and motor replacement.

---

Servo Drive Compatibility

The MPL-A4540C-HJ72AA should be used with a servo drive configuration that is compatible with the exact motor.

Before commissioning, technicians should verify:

• Complete motor catalog number
• Drive compatibility
• Motor electrical requirements
• Feedback configuration
• Motor cable
• Feedback cable
• Connector arrangement
• Brake requirements, if applicable
• Drive parameter configuration
• Controller configuration

A motor should not be connected to a drive based only on similar physical dimensions.

Different servo motor configurations can require different drive parameters and feedback settings.

---

Installation Guidelines

Verify the Motor

Confirm the complete motor identification:

Allen Bradley MPL-A4540C-HJ72AA

The motor nameplate should be checked before installation.

Inspect the Motor

Inspect the motor for:

• Physical damage
• Shaft damage
• Connector damage
• Cable damage
• Contamination
• Moisture
• Loose hardware
• Storage-related deterioration

Confirm Mechanical Compatibility

Check that the 130 mm frame size and mounting arrangement match the machine.

Do not force the motor into a mounting position if the mounting holes or shaft arrangement do not match the machine.

Install the Motor

Secure the motor using appropriate mounting hardware.

The motor should be adequately supported, particularly considering its 8.6 kg weight.

Align the Shaft

Check the alignment between the servo motor and driven equipment.

The coupling should be installed according to the requirements of the specific machine.

Connect Motor Wiring

Motor cables should be connected according to the applicable servo-system wiring requirements.

Cable routing should reduce exposure to electrical noise and mechanical damage.

Connect Feedback

The feedback connection should be installed correctly and checked before enabling the servo axis.

Verify Grounding

Appropriate grounding and bonding should be completed according to the machine electrical design.

---

Commissioning Procedure

A structured commissioning procedure can reduce the possibility of configuration and installation errors.

1. Confirm Motor Identification

Verify that the installed motor is the correct MPL-A4540C-HJ72AA model.

2. Check Mechanical Installation

Confirm that mounting hardware is secure and the motor is properly aligned.

3. Verify Drive Parameters

Confirm that the servo drive is configured for the correct motor.

4. Check Feedback

Verify that the drive and controller correctly recognize the feedback system.

5. Check Cable Connections

Inspect motor, feedback, grounding, and other relevant connections.

6. Perform a Controlled Motion Test

Where the machine design allows, perform an initial low-risk movement test.

Observe:

• Rotation direction
• Motor response
• Vibration
• Noise
• Drive status
• Feedback status
• Fault messages

7. Test Positioning

Verify that the axis reaches its intended positions correctly.

8. Introduce the Normal Load

After basic operation has been confirmed, gradually introduce the normal machine load.

9. Run the Complete Machine Cycle

Test the axis under representative operating conditions before returning the equipment to normal production.

---

Troubleshooting the MPL-A4540C-HJ72AA

Servo motor faults can originate from the motor, drive, controller, feedback system, mechanical transmission, or load.

Motor Does Not Start

Possible causes include:

• Servo drive not enabled
• Missing motion command
• Incorrect motor configuration
• Drive fault
• Feedback problem
• Cable connection problem
• Mechanical obstruction
• Controller configuration issue

Check the drive status and alarm information before replacing the motor.

---

Servo Drive Reports a Fault

A drive fault may be associated with:

• Incorrect motor parameters
• Feedback communication problems
• Wiring problems
• Excessive load
• Mechanical obstruction
• Incorrect drive setup
• Motor temperature conditions
• Electrical connection problems

The exact drive alarm should be identified before further troubleshooting.

---

Excessive Vibration

Possible causes include:

• Mechanical misalignment
• Coupling problems
• Mechanical looseness
• Load imbalance
• Resonance
• Incorrect servo tuning
• Bearing-related problems
• Mechanical transmission problems

A mechanical inspection should be performed before assuming that the motor itself is defective.

---

Positioning Error

Positioning problems may result from:

• Feedback problems
• Incorrect scaling
• Servo tuning
• Mechanical backlash
• Coupling slippage
• Excessive load
• Incorrect motion parameters
• Mechanical transmission wear

Both the electronic control system and mechanical system should be evaluated.

---

Motor Overheating

Potential causes include:

• Excessive load
• High duty cycle
• Insufficient cooling
• Mechanical friction
• Incorrect drive configuration
• Excessive acceleration
• Excessive deceleration
• Environmental conditions

The actual operating conditions should be compared with the requirements of the specific motor and machine.

---

Maintenance Recommendations

Regular inspection helps maintain reliable servo operation.

Motor Mounting

Check mounting hardware periodically to ensure that vibration has not loosened mechanical connections.

Shaft and Coupling

Inspect the shaft and coupling for signs of wear, looseness, or misalignment.

Motor and Feedback Cables

Check cables for:

• Abrasion
• Crushing
• Excessive bending
• Connector damage
• Loose connections
• Contamination

Vibration Monitoring

Changes in normal vibration behavior may indicate mechanical problems.

Temperature Monitoring

Abnormal temperature increases should be investigated rather than ignored.

Drive Diagnostics

Review recurring servo alarms and investigate their underlying causes.

Machine Load

Inspect the mechanical load because a problem in the driven equipment can create symptoms that appear to be motor-related.

---

Servo System Architecture

The MPL-A4540C-HJ72AA can be integrated into a multi-component automation system.

A typical architecture is:

Industrial Controller

↓

Motion Command / Industrial Network

↓

Servo Drive

↓

MPL-A4540C-HJ72AA Servo Motor

↓

Mechanical Transmission

↓

Machine Load

Feedback information completes the motion-control loop.

In multi-axis machines, several servo motors may be coordinated by the controller. Each axis can perform a specific movement while the control system manages the overall machine sequence.

This architecture is particularly useful for:

• Coordinated positioning
• Electronic gearing
• Indexing
• Synchronization
• Repetitive machine cycles
• Automated production sequences

The exact system architecture depends on the machine and control platform.

---

Physical Dimensions and Weight

The specified physical characteristics of the Allen Bradley MPL-A4540C-HJ72AA are:

• Frame Size: 130 mm
• Weight: 8.6 kg

The 130 mm frame size is an important consideration when checking mechanical mounting compatibility.

The 8.6 kg weight should be considered during:

• Motor installation
• Equipment handling
• Maintenance
• Machine-frame design
• Replacement planning
• Transportation
• Mechanical support

Additional components such as couplings, cables, mounting hardware, and transmission components may add to the overall weight of the installed servo assembly.

---

Replacement Considerations

When replacing an Allen Bradley MPL-A4540C-HJ72AA, technicians should verify the complete catalog number rather than relying only on the MPL family designation.

Important information includes:

• Complete motor model
• Frame size
• Weight
• Mounting arrangement
• Shaft configuration
• Feedback configuration
• Connector arrangement
• Brake configuration
• Motor cable
• Servo-drive compatibility
• Machine load requirements

The MPL-A4540C-HJ72AA should not automatically be replaced by another 130 mm servo motor.

Physical dimensions alone do not establish electrical or functional compatibility.

For reliable replacement planning, the existing motor nameplate and machine documentation should be checked before ordering or installing a replacement.

---

Engineering Best Practices

Maintain Correct Motor-Drive Matching

Use a servo-drive configuration that is appropriate for the exact motor.

Verify Feedback

Incorrect feedback configuration can prevent the axis from operating correctly.

Maintain Mechanical Alignment

Proper alignment reduces unnecessary mechanical loading.

Protect Cables

Motor and feedback cables should be protected from abrasion, excessive bending, crushing, and other mechanical hazards.

Monitor Axis Performance

Track changes in vibration, temperature, positioning accuracy, and drive alarms.

Avoid Repeated Fault Resets

A recurring fault should be investigated rather than repeatedly reset without determining its cause.

Verify Replacement Information

Always compare the complete catalog number before replacing the motor.

---

Key Advantages

The Allen Bradley MPL-A4540C-HJ72AA provides several characteristics relevant to industrial servo applications:

• Industrial servo motor design
• Suitable for closed-loop motion-control systems
• 130 mm frame size
• 8.6 kg weight
• Suitable for controlled rotary motion
• Applicable to automated positioning systems
• Suitable for coordinated motion architectures
• Can be integrated into multi-axis automation systems
• Suitable for repetitive industrial machine cycles
• Designed for integration with compatible servo-drive systems

Actual system performance depends on the complete motor, drive, controller, feedback, mechanical load, and machine configuration.

---

Technical FAQs

What is the Allen Bradley MPL-A4540C-HJ72AA?

The Allen Bradley MPL-A4540C-HJ72AA is an industrial servo motor intended for use in closed-loop motion-control systems.

What is the frame size?

The specified frame size is 130 mm.

How much does the MPL-A4540C-HJ72AA weigh?

The specified weight is 8.6 kg.

What applications are suitable for this servo motor?

It can be integrated into automated machinery requiring controlled rotary motion, such as packaging, assembly, positioning, material handling, indexing, and other motion-control applications, provided the complete system requirements are compatible.

Does the motor require a servo drive?

Yes. A servo motor normally operates as part of a servo-control system in which a compatible servo drive regulates motor operation.

Why is feedback important?

Feedback allows the motion-control system to monitor motor movement and regulate the axis according to the commanded motion.

What should be checked before installing the motor?

The complete catalog number, mounting arrangement, motor-drive compatibility, feedback configuration, shaft arrangement, connectors, cables, and any applicable brake configuration should be verified.

What causes servo positioning errors?

Potential causes include feedback problems, incorrect scaling, tuning issues, mechanical backlash, coupling slippage, excessive load, or mechanical transmission problems.

Can another 130 mm MPL motor replace this model?

Not automatically. Similar frame size does not guarantee electrical, mechanical, feedback, or drive compatibility.

How should the motor be maintained?

Maintenance should include inspection of mounting hardware, mechanical alignment, couplings, cables, connectors, temperature, vibration, drive alarms, and the connected machine load.

---

Conclusion

The Allen Bradley MPL-A4540C-HJ72AA Servo Motor is an industrial servo motor designed for integration into closed-loop motion-control systems used in automated machinery. With a specified 130 mm frame size and 8.6 kg weight, it can be incorporated into machine axes requiring controlled rotation, positioning, speed regulation, acceleration, deceleration, and coordinated motion.

The motor should be evaluated as part of a complete automation system rather than as an isolated component. The servo drive, motion controller, feedback system, mechanical transmission, and machine load all contribute to the performance and reliability of the finished motion axis.

For installation and replacement work, technicians should verify the complete MPL-A4540C-HJ72AA catalog number and compare the motor with the existing machine configuration. Electrical characteristics, feedback type, shaft configuration, connector arrangement, brake options, and other detailed parameters should be confirmed from the applicable equipment documentation rather than inferred from the general MPL product family.

With correct mechanical installation, compatible servo-drive configuration, reliable feedback connections, proper commissioning, and regular maintenance, the Allen Bradley MPL-A4540C-HJ72AA can serve as an important motor component in industrial automation, precision positioning, packaging, material handling, assembly, and multi-axis motion-control applications.
