Product Overview

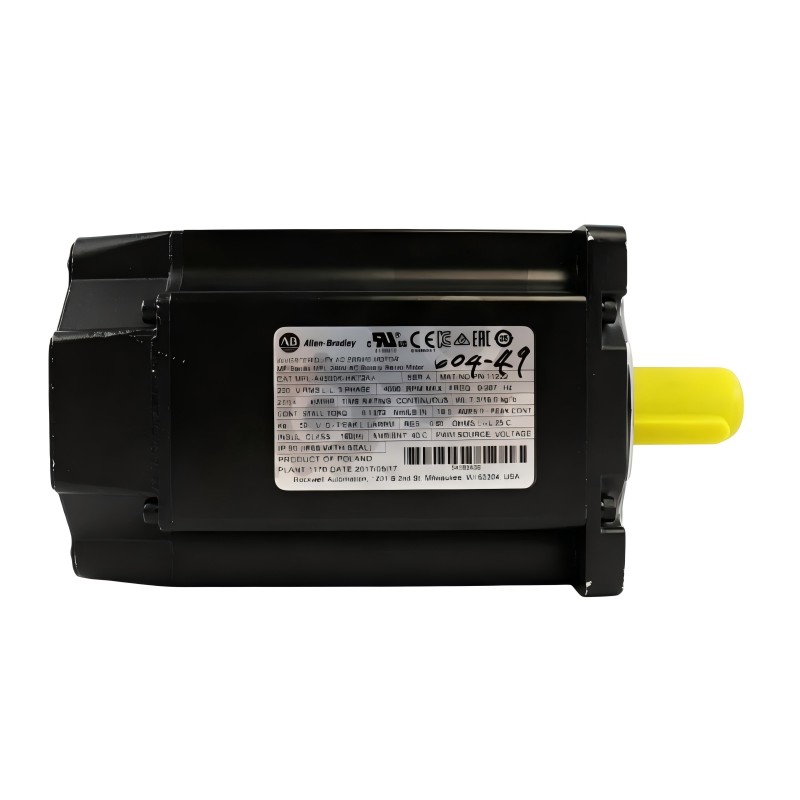

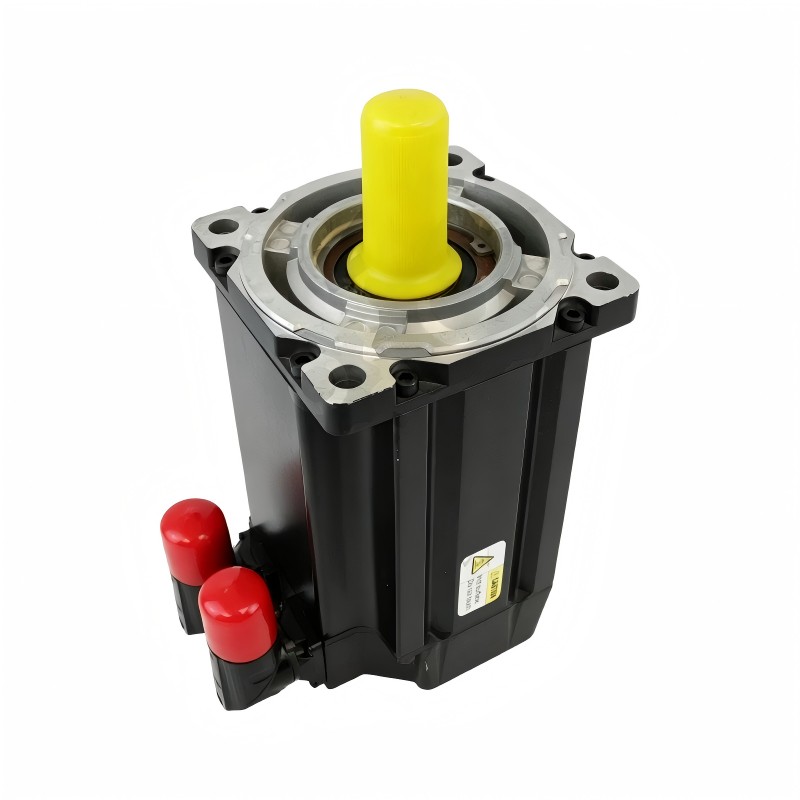

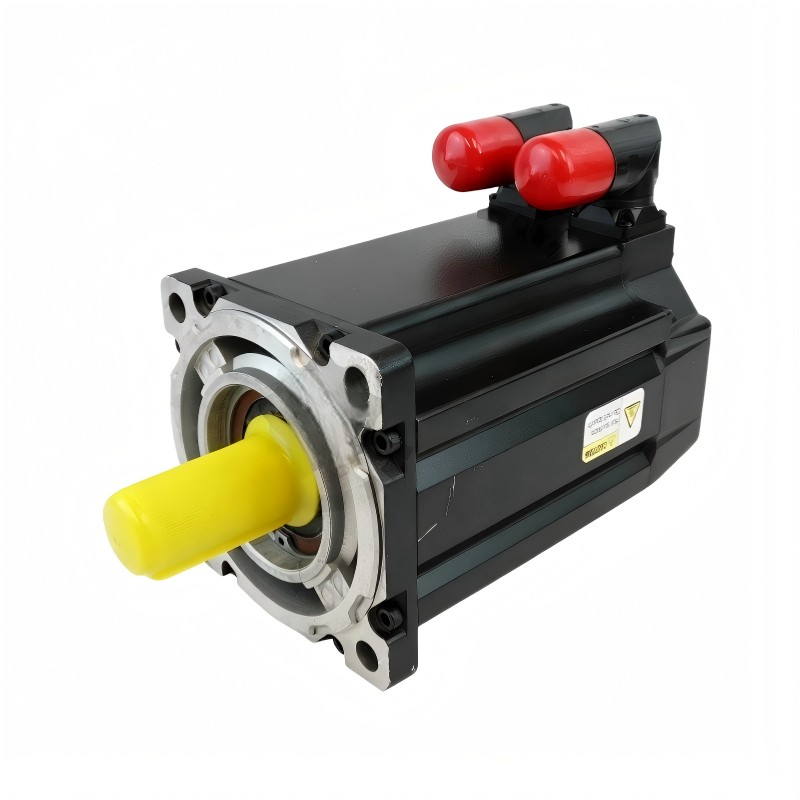

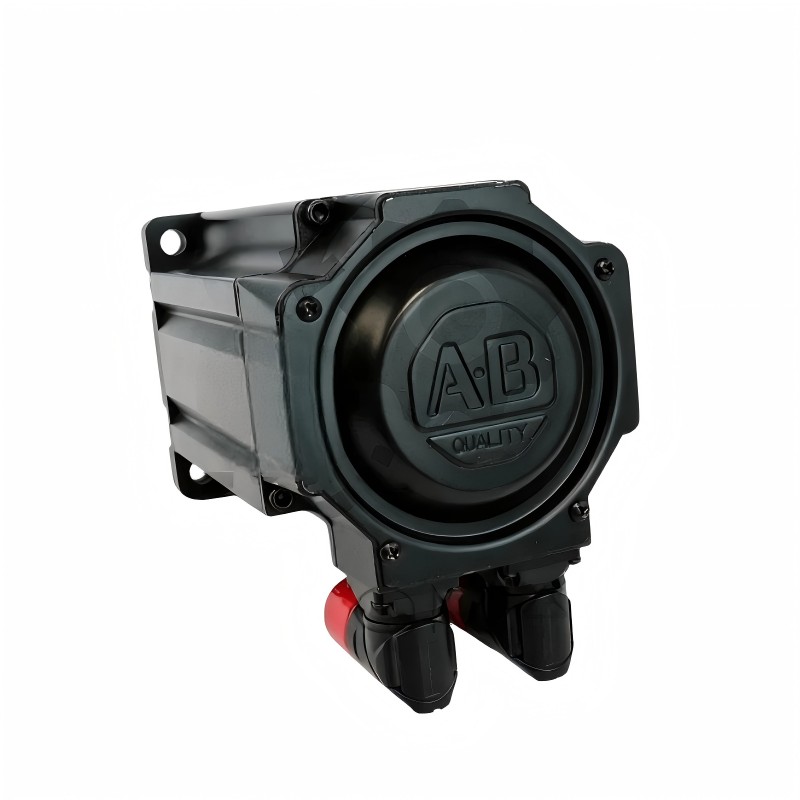

The Allen Bradley MPL-A4530K-SK72AA Servo Motor is an industrial AC servo motor designed for use in high-performance motion control systems. As part of the Allen Bradley MPL family of servo motors, the MPL-A4530K-SK72AA is intended for applications where accurate positioning, controlled acceleration, repeatable motion, and coordinated machine operation are important.
Servo motors are widely used in industrial automation because they allow a motion-control system to manage motor movement according to commands from a servo drive and controller. In a typical application, the controller generates the desired motion profile, the servo drive regulates electrical power to the motor, and the feedback system provides information required for accurate closed-loop control.
The MPL-A4530K-SK72AA has a listed frame size of 130 mm and a weight of 7.3 kg. Its industrial construction makes it suitable for integration into automated machinery, positioning equipment, material-handling systems, packaging machines, robotics, and other applications requiring controlled rotary motion.
For engineering, replacement, and procurement purposes, the complete catalog number should be retained because the individual characters in the MPL-A4530K-SK72AA designation identify a specific motor configuration. Electrical characteristics, feedback configuration, shaft arrangement, connector configuration, brake options, and other detailed characteristics should be verified against the motor nameplate and the applicable system documentation before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Family | MPL Servo Motor |
| Model | MPL-A4530K-SK72AA |
| Product Type | AC Servo Motor |
| Motor Technology | Industrial Permanent-Magnet Servo Motor |
| Frame Size | 130 mm |
| Weight | 7.3 kg |
| Application | Industrial Motion Control |
| Control Method | Closed-Loop Servo Control |
| Typical System | Servo Drive + Controller + Feedback System |
| Mounting | Machine-mounted servo motor |
| Typical Applications | Automated Machinery, Positioning, Material Handling, Packaging, Robotics |
| Electrical Specifications | Verify from motor nameplate and system documentation |
| Feedback Configuration | Verify exact motor configuration |
| Shaft Configuration | Verify exact motor configuration |
| Brake Configuration | Verify exact motor configuration |
| Connector Configuration | Verify exact motor configuration |
The 130 mm frame size and 7.3 kg weight are the specified physical identification information for this model. Exact electrical and mechanical performance specifications should not be assumed solely from the model number without confirming the applicable configuration.
What Is the Allen Bradley MPL-A4530K-SK72AA?
The MPL-A4530K-SK72AA is an Allen Bradley servo motor intended to operate as part of an integrated industrial motion-control system.
Unlike a conventional motor used primarily for continuous rotation, a servo motor operates as part of a feedback-controlled system. The controller determines the desired movement, the servo drive supplies controlled electrical power, and feedback information allows the system to monitor motor movement.
This architecture allows the machine to perform controlled operations such as:
- Positioning
- Speed regulation
- Controlled acceleration
- Controlled deceleration
- Coordinated machine movement
- Repetitive indexing
- Synchronized motion
- Automated positioning sequences
The motor therefore should be considered as one component of a complete motion-control system rather than as an independent drive device.
A simplified architecture is:
PLC / Motion Controller → Servo Drive → MPL-A4530K-SK72AA Servo Motor → Mechanical Load
With feedback information returning through the appropriate feedback path, the controller and drive can continuously coordinate motor operation.
Servo Motor Working Principle
The MPL-A4530K-SK72AA operates within a closed-loop motion-control architecture.
The basic operating sequence is:
- The automation controller determines the required motion.
- A motion command is transmitted to the servo drive.
- The servo drive generates the appropriate electrical output for the motor.
- The servo motor produces controlled rotational movement.
- Feedback information is used by the control system to monitor motor behavior.
- The servo system adjusts operation to maintain the commanded motion.
This feedback-based approach allows servo systems to achieve substantially greater motion control than basic open-loop motor systems.
The exact feedback technology and motor electrical characteristics depend on the specific motor configuration and should be verified before commissioning.
Main Functions of the MPL-A4530K-SK72AA
The primary role of the MPL-A4530K-SK72AA is controlled rotary motion within an automated machine.
Its functions can include:
Precision Motion
The motor can be incorporated into systems requiring repeatable movement and accurate positioning.
Speed Control
The servo drive can regulate motor speed according to the programmed motion profile.
Acceleration and Deceleration
Controlled acceleration and deceleration can help reduce mechanical shock and improve machine-cycle consistency.
Positioning
Servo systems are commonly used where the motor must move to defined positions rather than simply run continuously.
Coordinated Motion
Multiple servo axes can be coordinated through an industrial motion controller for synchronized machine operations.
Dynamic Machine Operation
Servo motors are suitable for machines that repeatedly change speed, direction, or position during normal operation.
Role in Industrial Automation
The MPL-A4530K-SK72AA can form one axis of an industrial motion-control system.
A complete servo axis normally contains several functional layers:
Motion Controller
The controller generates the required movement profile and coordinates machine sequences.
Servo Drive
The drive converts controller commands into controlled electrical power for the motor.
Servo Motor
The MPL-A4530K-SK72AA converts electrical energy into mechanical rotation.
Feedback System
Feedback provides motion information to the control system.
Mechanical Transmission
The motor may drive a gearbox, coupling, belt, ballscrew, rotary table, conveyor, or another mechanical assembly.
The performance of the overall machine therefore depends on the correct matching of the motor, drive, controller, feedback system, and mechanical load.
Industrial Applications
The Allen Bradley MPL-A4530K-SK72AA can be used in industrial machinery requiring controlled rotary motion.
Typical application areas include:
- Packaging Machinery
- Automated Assembly Equipment
- Material Handling Systems
- Conveyor Systems
- Machine Tools
- Robotics
- Pick-and-Place Equipment
- Printing Machinery
- Labeling Equipment
- Semiconductor Equipment
- Automated Inspection Machines
- Processing Machinery
- Indexing Systems
- Precision Positioning Equipment
- Production Automation Systems
The actual suitability of the motor for a specific machine depends on required torque, speed, duty cycle, load inertia, mechanical transmission, environmental conditions, and the corresponding servo drive configuration.
Mechanical Integration
Correct mechanical installation is important for maintaining servo performance and avoiding premature motor or machine-component failure.
The 130 mm frame size should be considered when designing or checking the motor mounting arrangement.
Before installation, engineers should verify:
- Mounting dimensions
- Motor orientation
- Shaft arrangement
- Coupling compatibility
- Load alignment
- Mechanical clearance
- Cable routing
- Cooling requirements
- Motor accessibility
- Mechanical load capacity
The motor shaft should be correctly aligned with the driven equipment. Misalignment can produce excessive radial or axial forces and may lead to vibration, coupling wear, bearing stress, or reduced service life.
A flexible coupling may be used where appropriate, but the coupling must be compatible with the motor and driven load.
Servo Drive Integration
The MPL-A4530K-SK72AA should be matched with a compatible servo drive based on the exact motor configuration.
Before connecting the motor to a drive, technicians should verify:
- Motor catalog number
- Drive compatibility
- Motor voltage requirements
- Rated current requirements
- Feedback interface
- Motor cable requirements
- Connector arrangement
- Brake requirements, if applicable
- Drive firmware or configuration requirements
- Motor identification parameters
Using an incorrectly configured servo drive can cause poor motion performance or generate drive faults.
The motor nameplate should therefore be used as the primary reference for electrical identification during commissioning.
Installation Guidelines
1. Verify the Motor Identification
Before installation, confirm that the motor is specifically identified as:
Allen Bradley MPL-A4530K-SK72AA
Check the nameplate and compare it with the machine bill of materials and servo-drive configuration.
2. Inspect the Motor
Before mounting, inspect the motor for:
- Physical damage
- Damaged connectors
- Damaged cables
- Shaft damage
- Contamination
- Signs of moisture
- Loose hardware
- Storage-related deterioration
Do not install a motor showing visible mechanical or electrical damage until it has been evaluated.
3. Check Mechanical Compatibility
Confirm that the motor mounting arrangement matches the machine.
The supplied 130 mm frame size should be considered during mechanical design and replacement work.
4. Mount the Motor
Install the motor securely using the appropriate mounting hardware.
Avoid forcing the motor into position if the mounting holes or shaft alignment do not match the machine.
5. Check Shaft Alignment
Align the motor shaft carefully with the driven component.
Excessive misalignment can increase vibration and mechanical loading.
6. Connect Motor Cables
Motor and feedback cables should be installed according to the applicable Allen Bradley motion-system requirements.
Cable routing should minimize exposure to electrical noise and avoid unnecessary mechanical stress.
7. Verify Grounding
Appropriate grounding and bonding should be established according to the machine electrical design.
Good grounding practices can reduce electrical interference and improve system reliability.
Commissioning Procedure
After mechanical installation, the servo axis should be commissioned systematically.
Step 1: Confirm Motor Identification
Verify the complete MPL-A4530K-SK72AA catalog number.
Step 2: Verify Drive Configuration
Confirm that the servo drive has been configured for the correct motor.
Step 3: Check Feedback
Verify that the feedback connection is correctly installed and recognized by the control system.
Step 4: Check Motor Rotation
If appropriate, perform a controlled low-speed test to confirm the expected direction of rotation.
Step 5: Test Without Full Production Load
Where machine design permits, initially operate the axis under controlled conditions before applying the normal production load.
Step 6: Check Motion Response
Observe:
- Acceleration
- Deceleration
- Positioning
- Vibration
- Noise
- Following behavior
- Drive status
- Fault messages
Step 7: Apply the Normal Load
Once the basic operation has been verified, gradually introduce the normal machine load.
Step 8: Validate the Complete Motion Sequence
Run the machine through its intended operating cycle and confirm that the servo axis responds correctly.
Troubleshooting the MPL-A4530K-SK72AA
Servo motor problems should be diagnosed as a complete motor-drive-controller-mechanical system rather than automatically assuming that the motor itself has failed.
Motor Does Not Rotate
Possible causes include:
- Servo drive not enabled
- Incorrect drive configuration
- Missing motion command
- Feedback communication problem
- Motor cable problem
- Drive fault
- Mechanical obstruction
- Incorrect control-system configuration
Check the drive status and fault information before replacing the motor.
Servo Drive Reports a Motor Fault
A motor-related fault may result from:
- Incorrect motor configuration
- Wiring problems
- Feedback problems
- Excessive load
- Mechanical obstruction
- Electrical connection problems
- Motor temperature conditions
- Drive configuration errors
The exact alarm code should be identified before troubleshooting further.
Excessive Motor Vibration
Excessive vibration can be caused by:
- Mechanical misalignment
- Coupling problems
- Unbalanced load
- Bearing condition
- Incorrect tuning
- Mechanical looseness
- Resonance
- Damaged rotating components
Mechanical alignment should be checked before concluding that the motor has an internal electrical fault.
Positioning Is Inaccurate
Positioning problems can originate from several parts of the system.
Possible causes include:
- Incorrect feedback configuration
- Incorrect scaling
- Servo tuning problems
- Mechanical backlash
- Coupling slippage
- Excessive load
- Incorrect motion parameters
- Mechanical transmission problems
The servo drive and controller should be checked together with the mechanical system.
Motor Overheating
Potential causes include:
- Excessive load
- High duty cycle
- Insufficient cooling
- Mechanical friction
- Incorrect drive configuration
- Excessive acceleration/deceleration
- Environmental temperature
- Motor or drive-related problems
The actual operating conditions should be compared with the permitted operating requirements for the specific motor configuration.
Maintenance Recommendations
Although servo motors are designed for industrial operation, preventive maintenance can help identify problems before they affect machine production.
Inspect Mechanical Connections
Check motor mounting hardware and mechanical couplings periodically.
Check Cables
Inspect motor and feedback cables for:
- Abrasion
- Crushing
- Excessive bending
- Connector damage
- Loose connections
- Contamination
Monitor Vibration
Changes in vibration can provide an early indication of mechanical problems.
Monitor Temperature
Abnormal temperature increases can indicate excessive load, cooling problems, mechanical friction, or incorrect system operation.
Check Servo Alarms
Repeated servo faults should be investigated rather than repeatedly reset without identifying the underlying cause.
Inspect the Mechanical Load
The motor may be operating correctly while the connected machine develops a mechanical problem. Regular inspection of bearings, couplings, gearboxes, belts, screws, and other transmission components can help prevent unnecessary motor replacement.
Servo System Architecture
The MPL-A4530K-SK72AA is normally part of a larger automation architecture.
A typical system can be represented as:
Industrial Controller
↓
Motion Control Network
↓
Servo Drive
↓
MPL-A4530K-SK72AA Servo Motor
↓
Mechanical Transmission
↓
Machine Load
Feedback information is integrated into the control loop so that the motion controller and servo drive can regulate the axis.
For multi-axis equipment, several servo motors may operate simultaneously while a controller coordinates their movement.
This architecture is commonly used in machines requiring synchronized positioning, indexing, speed changes, and repeatable production cycles.
Replacement Considerations
When replacing an MPL-A4530K-SK72AA, the complete catalog number should be checked carefully.
The following information should be compared with the existing motor:
- Manufacturer
- Complete catalog number
- Frame size
- Weight
- Mounting arrangement
- Shaft configuration
- Feedback configuration
- Connector arrangement
- Brake configuration
- Motor cable
- Servo-drive compatibility
- Machine load requirements
The MPL-A4530K-SK72AA should not be replaced solely on the basis of frame size or physical appearance.
Two servo motors can have similar physical dimensions while having different electrical, feedback, or mechanical characteristics.
For replacement planning, the exact nameplate information is therefore more important than general family-level similarity.
Physical Dimensions and Weight
The specified physical information for the Allen Bradley MPL-A4530K-SK72AA is:
- Frame Size: 130 mm
- Weight: 7.3 kg
The 130 mm frame size is relevant when checking machine mounting and installation space.
The 7.3 kg weight should be considered during handling, installation, maintenance, and mechanical support planning.
When installing the motor into machinery, technicians should also account for the weight of connected couplings, brackets, cables, and other components rather than considering the motor weight alone.
Engineering Best Practices
Several practices can improve the reliability of an MPL-A4530K-SK72AA servo axis.
Match the Motor and Drive
The motor and servo drive should be configured as a compatible combination.
Minimize Mechanical Misalignment
Correct alignment helps reduce vibration and mechanical stress.
Protect Feedback Wiring
Feedback signals can be sensitive to electrical interference. Proper cable routing and grounding are important.
Avoid Unnecessary Cable Stress
Motor and feedback cables should not be sharply bent, crushed, or subjected to repeated mechanical movement beyond their intended design.
Monitor Motion Performance
Changes in positioning accuracy, vibration, acceleration behavior, or motor temperature can indicate developing problems.
Investigate Repeated Faults
Repeated drive alarms should be analyzed rather than continuously reset.
Verify Replacement Parts
Always compare the complete catalog number and system configuration before installing a replacement motor.
Key Advantages
The Allen Bradley MPL-A4530K-SK72AA offers several characteristics relevant to industrial motion-control applications:
- Industrial servo motor design
- Suitable for closed-loop motion systems
- 130 mm frame size
- 7.3 kg listed weight
- Suitable for automated positioning applications
- Compatible with integrated servo-control architectures when correctly matched
- Suitable for coordinated machine motion
- Applicable to demanding industrial automation environments
- Supports precision-oriented machine operation
- Designed for integration into complete motion-control systems
The actual performance of the servo axis depends on the motor configuration, servo drive, controller, feedback system, mechanical load, tuning, and installation conditions.
Technical FAQs
What is the Allen Bradley MPL-A4530K-SK72AA?
The Allen Bradley MPL-A4530K-SK72AA is an industrial AC servo motor designed for integration into closed-loop motion-control systems.
What is the frame size of the MPL-A4530K-SK72AA?
The specified frame size is 130 mm.
How much does the MPL-A4530K-SK72AA weigh?
The specified weight is 7.3 kg.
What applications can use this servo motor?
It can be integrated into automated machinery such as packaging systems, positioning equipment, material-handling machines, assembly equipment, robotics, and other industrial motion-control applications, provided the complete motor and drive requirements are compatible.
Does the motor operate by itself?
A servo motor normally operates as part of a larger motion-control system. A servo drive, controller, feedback system, and mechanical load are typically involved.
What should be checked before replacing the motor?
The complete catalog number, motor nameplate, frame size, mounting arrangement, feedback configuration, shaft arrangement, connector configuration, brake configuration if applicable, and servo-drive compatibility should be checked.
Why is servo feedback important?
Feedback allows the motion-control system to monitor motor movement and regulate the axis according to the commanded motion.
What can cause inaccurate positioning?
Potential causes include feedback problems, incorrect scaling, servo tuning, mechanical backlash, coupling slippage, excessive load, or problems elsewhere in the motion-control system.
What can cause excessive servo motor vibration?
Mechanical misalignment, coupling problems, load imbalance, resonance, incorrect tuning, loose mounting, or rotating-component problems can contribute to vibration.
Can another MPL motor automatically replace the MPL-A4530K-SK72AA?
No. A different MPL motor should not be assumed to be interchangeable solely because it belongs to the same product family. The complete electrical, feedback, mechanical, and drive-system requirements must be verified.
Conclusion
The Allen Bradley MPL-A4530K-SK72AA Servo Motor is an industrial motion-control motor designed for integration into closed-loop automation systems requiring controlled and repeatable rotary movement. With a specified 130 mm frame size and 7.3 kg weight, the motor can be incorporated into a variety of automated machinery and precision-oriented motion applications.
Its operation should be considered within the complete servo architecture, including the motion controller, servo drive, feedback system, mechanical transmission, and machine load. Correct motor-drive matching, mechanical alignment, cable installation, feedback configuration, and commissioning are essential for reliable operation.
For replacement or maintenance work, technicians should verify the complete MPL-A4530K-SK72AA catalog number and motor nameplate information before installation. Electrical characteristics, feedback configuration, shaft arrangement, connector details, brake options, and other configuration-specific parameters should be confirmed against the applicable equipment documentation rather than assumed from the model family alone.
When correctly integrated into a compatible motion-control system, the Allen Bradley MPL-A4530K-SK72AA provides a practical servo-motor platform for automated positioning, coordinated machine movement, material handling, packaging, assembly, and other industrial automation applications.
