Product Overview

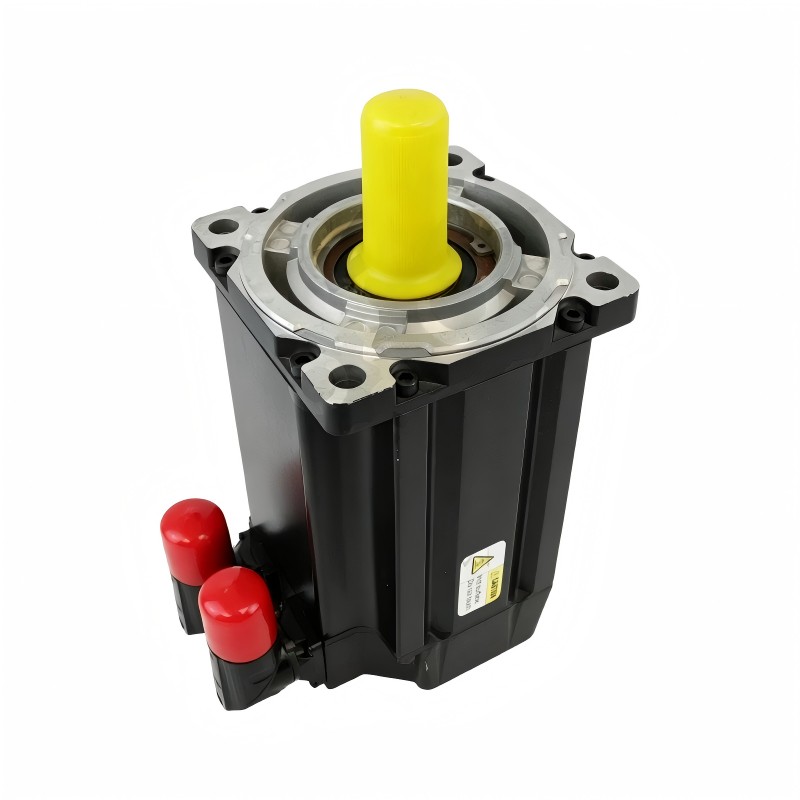

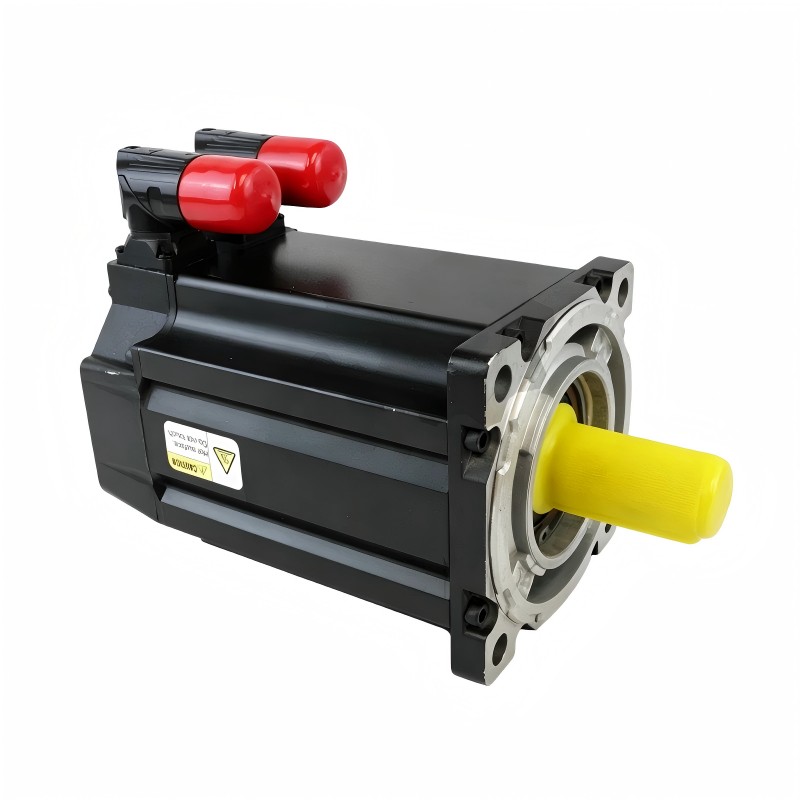

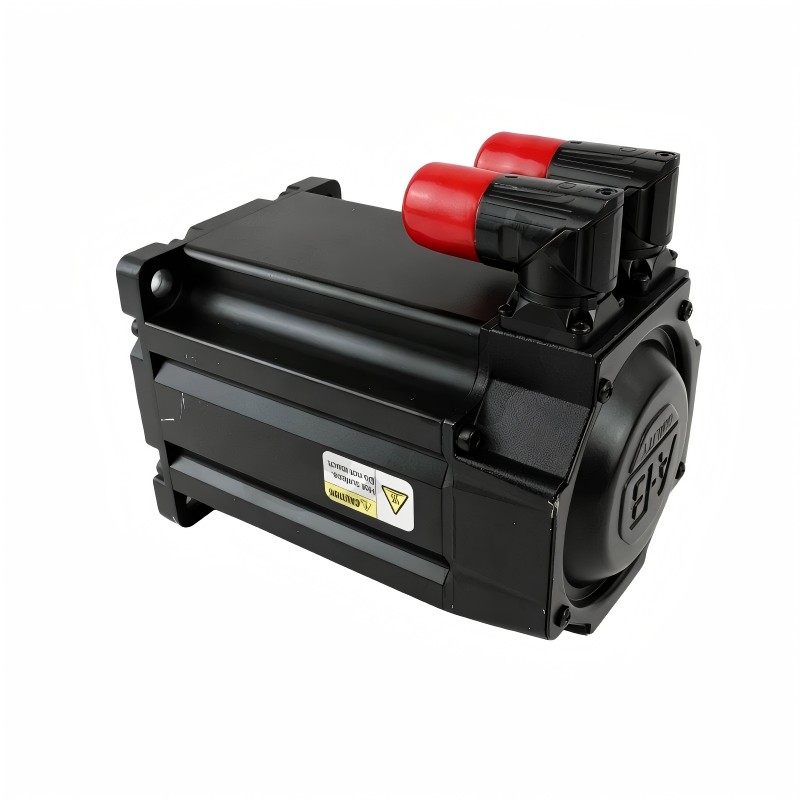

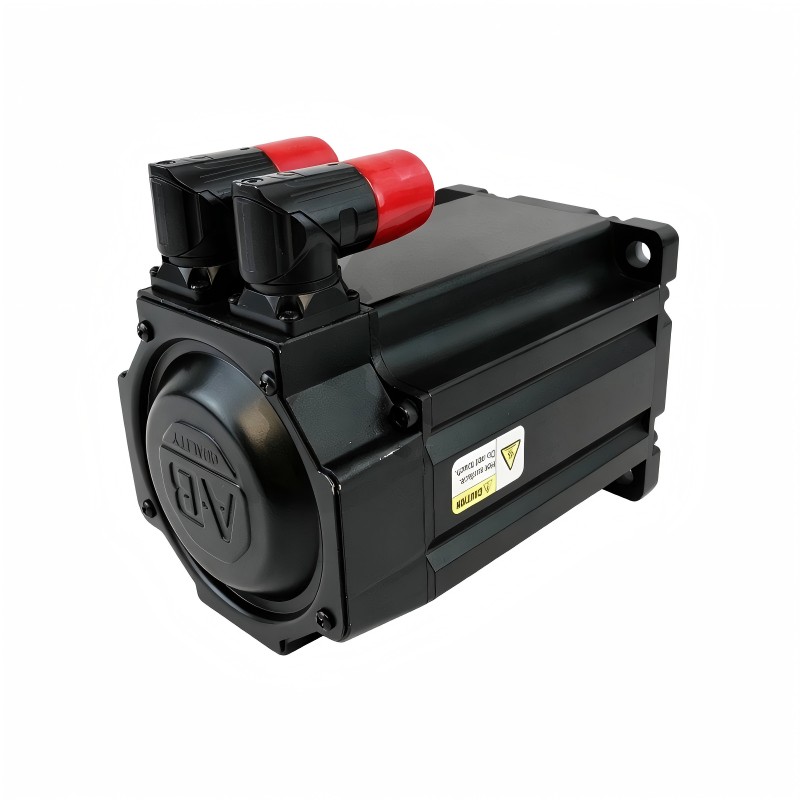

The Allen Bradley MPL-A4530K-SJ74AA Servo Motor is an industrial AC servo motor designed for automated motion-control applications. It is intended for machinery requiring controlled rotary movement, repeatable positioning, coordinated axis operation, and consistent motion performance.

The MPL-A4530K-SJ74AA has a specified 130 mm frame size and a weight of 7.3 kg. These characteristics are important when evaluating machine mounting arrangements, mechanical support requirements, replacement compatibility, and the physical design of a servo-driven axis.

In an industrial motion system, the servo motor works together with a compatible servo drive, controller, feedback system, and mechanical load. The controller establishes the desired motion, while the servo drive controls the electrical power delivered to the motor. Feedback information is used within the motion-control loop to regulate the motor’s actual operation.

This architecture allows the MPL-A4530K-SJ74AA to be incorporated into applications where precise and repeatable machine movement is required.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Product Series	MPL Servo Motor Series
Model	MPL-A4530K-SJ74AA
Product Type	AC Servo Motor
Application	Industrial Motion Control
Motor Technology	Permanent-Magnet Servo Motor
Frame Size	130 mm
Weight	7.3 kg
Control Architecture	Closed-Loop Servo Control
Typical System	Motion Controller + Servo Drive + Servo Motor
Typical Applications	Packaging, Positioning, Assembly, Material Handling, Machine Automation

Specification note: The supplied specifications for this model are 130 mm frame size and 7.3 kg weight. Exact electrical and mechanical characteristics, including rated power, torque, speed, voltage, current, feedback configuration, shaft dimensions, mounting-hole pattern, connector arrangement, and brake configuration, should be verified against the applicable motor nameplate and technical documentation.

---

What Is the Allen Bradley MPL-A4530K-SJ74AA?

The Allen Bradley MPL-A4530K-SJ74AA is a servo motor designed to produce controlled rotary motion in industrial automation equipment.

A servo motor normally forms part of a closed-loop motion-control system. Instead of operating independently, it receives controlled electrical power from a servo drive, which itself responds to commands from a motion controller.

A simplified system architecture is:

Motion Controller → Servo Drive → MPL-A4530K-SJ74AA → Mechanical Load

The feedback path provides operating information:

Motor / Feedback → Servo Drive → Controller

This arrangement enables the machine to coordinate the motor’s operation with programmed movement requirements.

Typical servo applications may require the motor to accelerate, decelerate, stop, hold a position, reverse direction, or synchronize with another machine axis. The servo system is designed around these controlled motion requirements.

---

Servo Motor Working Principle

The MPL-A4530K-SJ74AA works as part of a feedback-based servo system.

The motion controller generates a movement command according to the machine program. The command can relate to position, velocity, acceleration, direction, or coordinated axis movement.

The servo drive processes the command and supplies regulated electrical power to the motor.

The motor generates electromagnetic torque and produces rotary movement. This movement is transmitted to the machine through a suitable mechanical arrangement.

Feedback information is then used by the servo system to monitor actual operation.

The basic control sequence is:

Motion Command → Servo Drive → Motor → Mechanical Movement → Feedback → Control Adjustment

This closed-loop architecture enables the machine to continuously manage motor operation.

For example, an automated indexing machine can command a servo axis to move to a specific position, stop, perform a production operation, and then move to the next position. The servo system manages these repeated movements according to the machine program.

---

Main Functions

Controlled Rotary Motion

The main function of the MPL-A4530K-SJ74AA is to provide controlled rotary motion for industrial machine axes.

Positioning

Servo systems are suitable for applications where machine components must move repeatedly to defined positions.

Speed Regulation

The servo drive regulates motor speed according to the required motion profile.

Acceleration and Deceleration

The motor can participate in controlled acceleration and deceleration sequences defined by the motion-control system.

Synchronized Motion

The servo motor can be integrated into multi-axis systems where several movements must remain coordinated.

Repetitive Production Movement

Servo technology is commonly used in machinery that repeatedly performs programmed motion cycles.

---

Role in Industrial Automation

The MPL-A4530K-SJ74AA is normally one component of a complete industrial motion-control architecture.

A typical arrangement consists of:

PLC / Motion Controller

↓

Motion Program

↓

Servo Drive

↓

MPL-A4530K-SJ74AA Servo Motor

↓

Mechanical Transmission

↓

Machine Load

Feedback information completes the control loop.

This architecture enables a machine controller to coordinate motor movement with other production functions.

For example, a packaging machine may use a servo motor to control product indexing while another axis performs cutting or sealing. The controller synchronizes these operations to achieve the required production sequence.

---

Industrial Applications

Packaging Machinery

Servo motors can be used for indexing, product positioning, cutting, sealing, labeling, and synchronized material movement.

Automated Assembly

Assembly equipment can use servo axes to position components, tools, and workpieces.

Material Handling

Servo-driven mechanisms can provide controlled movement for transfer equipment, positioning systems, conveyors, and automated handling machinery.

Machine Tools

Servo motors are commonly incorporated into machine axes requiring programmed positioning and controlled movement.

Printing Equipment

Printing and converting machinery may require synchronized movement between multiple rollers and mechanical sections.

Inspection Systems

Automated inspection equipment can use servo axes to position cameras, sensors, workpieces, or inspection tools.

General Industrial Automation

The MPL-A4530K-SJ74AA can be considered for automated machinery requiring controlled rotary motion when the motor, drive, controller, and mechanical load are correctly matched.

---

Mechanical Integration

The specified 130 mm frame size is an important mechanical parameter for machine design.

The mounting structure must be sufficiently rigid and compatible with the motor’s actual mounting arrangement.

Mechanical integration should consider:

• Mounting surface
• Motor alignment
• Shaft arrangement
• Coupling compatibility
• Mechanical load
• Radial forces
• Axial forces
• Gearbox requirements
• Vibration
• Thermal conditions
• Cable routing

Correct shaft alignment is particularly important for servo applications.

Misalignment may increase vibration and mechanical stress and can contribute to premature wear of couplings, bearings, and connected equipment.

The specified 7.3 kg weight should also be considered when designing brackets, supports, vertical mounting structures, and moving machine assemblies.

---

Servo Drive Integration

The MPL-A4530K-SJ74AA operates through a compatible servo drive.

The servo drive serves as the controlled electrical interface between the motion controller and motor.

Depending on the system, the drive manages functions such as:

• Motor power
• Speed regulation
• Torque control
• Acceleration
• Deceleration
• Feedback processing
• Fault monitoring
• Motion response

Before installing the motor, the complete motor-drive combination should be verified.

Important considerations include:

• Complete motor catalog number
• Motor electrical requirements
• Servo drive compatibility
• Feedback configuration
• Motor cable configuration
• Controller configuration
• Brake requirements where applicable
• Mechanical load

Exact compatibility should be confirmed from the applicable system documentation rather than assumed from the MPL product family.

---

Installation Guidelines

1. Confirm Motor Identification

Verify the complete catalog number:

MPL-A4530K-SJ74AA

Check the motor nameplate before installation.

2. Inspect the Motor

Inspect for:

• Housing damage
• Shaft damage
• Connector damage
• Cable damage
• Corrosion
• Contamination
• Impact damage
• Abnormal mechanical conditions

3. Prepare the Mounting Structure

The mounting surface should be clean, rigid, and properly aligned.

The support structure should accommodate the motor’s 7.3 kg weight as well as the dynamic forces generated during operation.

4. Install the Motor

Secure the motor using the appropriate machine mounting arrangement.

Avoid excessive mechanical force during installation.

5. Align the Shaft

Ensure that the motor shaft and driven mechanism are correctly aligned.

A suitable coupling should be used for the specific mechanical application.

6. Connect Motor and Feedback Cables

Make electrical connections according to the applicable system wiring configuration.

Protect cables from abrasion, excessive bending, crushing, heat, and electrical interference.

7. Verify Grounding

Check protective grounding and system bonding before applying power.

---

Commissioning Procedure

Step 1: Inspect the Installation

Verify:

• Motor mounting
• Coupling
• Shaft alignment
• Mechanical load
• Cable routing
• Connectors

Step 2: Check Drive Configuration

Verify that the servo drive is configured for the installed motor.

Incorrect configuration may cause drive faults or abnormal motion.

Step 3: Verify Feedback

Confirm that the feedback connection is correctly installed and recognized.

Step 4: Perform an Initial Motion Test

Where appropriate, perform a controlled low-risk movement test.

Observe:

• Direction
• Acceleration
• Deceleration
• Vibration
• Noise
• Drive status
• Fault indications

Step 5: Test Positioning

If the machine uses position control, perform controlled movements between known positions.

Step 6: Test Normal Operation

After successful initial testing, operate the machine under controlled production conditions and monitor the motor and servo drive.

---

Troubleshooting the MPL-A4530K-SJ74AA

Motor Does Not Rotate

Potential causes include:

• Servo drive disabled
• Incorrect motor configuration
• Feedback fault
• Controller inhibit
• Motor power connection problem
• Drive alarm
• Mechanical obstruction

The complete servo chain should be checked before identifying the motor as the source of the problem.

Servo Fault During Startup

Possible areas of investigation include:

• Motor parameters
• Feedback connection
• Motor cabling
• Drive configuration
• Grounding
• Mechanical loading

Record the exact alarm information before replacing components.

Excessive Vibration

Possible causes include:

• Mechanical misalignment
• Loose mounting
• Coupling problems
• Machine resonance
• Incorrect motion parameters
• Abnormal mechanical load

Inspect both the motor and the connected mechanical system.

Abnormal Noise

Possible sources include:

• Bearings
• Coupling
• Gearbox
• Mechanical resonance
• Shaft misalignment
• Other machine components

A complete mechanical inspection should be performed.

Positioning Error

Possible causes include:

• Feedback problems
• Mechanical backlash
• Coupling movement
• Excessive load
• Incorrect axis configuration
• Mechanical compliance
• Servo-drive configuration problems

The feedback loop and mechanical transmission should be evaluated together.

---

Maintenance Recommendations

Motor Inspection

Inspect the motor housing, mounting points, and external condition for signs of damage.

Cable Inspection

Check motor and feedback cables for:

• Abrasion
• Cuts
• Excessive bending
• Loose connections
• Connector damage
• Contamination

Mechanical Inspection

Inspect couplings, gearboxes, belts, screws, and other mechanical transmission components for wear or looseness.

Vibration Monitoring

Changes in vibration can indicate developing mechanical or motor-related problems.

Temperature Monitoring

Unexpected temperature increases should be investigated.

Potential causes include excessive mechanical loading, friction, cooling problems, or abnormal operating conditions.

Fault History

Record servo-drive alarms, motor faults, machine stoppages, and maintenance activities to help identify recurring problems.

---

Physical Dimensions and Weight

The specified physical information for the Allen Bradley MPL-A4530K-SJ74AA is:

Parameter	Value
Frame Size	130 mm
Weight	7.3 kg

The 130 mm frame size should be considered when checking mounting compatibility.

The 7.3 kg weight should be considered when designing support structures and moving machine assemblies.

For detailed mechanical fabrication, additional information such as overall housing dimensions, shaft geometry, mounting-hole locations, and connector positions should be verified from the applicable product documentation.

---

Servo System Architecture

A typical motion-control architecture using the MPL-A4530K-SJ74AA can be represented as:

Industrial Controller

↓

Motion Command

↓

Servo Drive

↓

MPL-A4530K-SJ74AA Servo Motor

↓

Mechanical Transmission

↓

Machine Load

↓

Feedback

The controller establishes the desired movement, while the servo drive regulates the motor.

The mechanical transmission converts motor rotation into the required machine movement.

Feedback information allows the control system to monitor actual motor behavior and maintain the desired motion response.

---

Replacement Considerations

When replacing an MPL-A4530K-SJ74AA, the complete catalog number should be verified.

Important factors include:

• Full motor catalog number
• Frame size
• Weight
• Electrical characteristics
• Feedback configuration
• Mounting arrangement
• Shaft configuration
• Connector arrangement
• Brake configuration where applicable
• Servo drive compatibility
• Controller configuration
• Mechanical load

The 130 mm frame size and 7.3 kg weight provide useful identification information but are not sufficient to establish complete compatibility.

Another servo motor with the same frame size may have different electrical, mechanical, feedback, or interface characteristics.

---

Engineering Best Practices

Match the Complete Motion System

The motor should be evaluated together with its controller, servo drive, feedback system, mechanical transmission, and machine load.

Maintain Mechanical Alignment

Correct shaft alignment helps reduce vibration and unnecessary mechanical stress.

Protect Feedback Wiring

Feedback wiring is essential to closed-loop operation. Damaged cables or poor connections can result in drive faults and unstable motion.

Record Motor Identification

The complete motor catalog number should be documented before removal and replacement.

Verify Configuration

After installing the motor, verify the relevant servo-drive and motion-axis configuration before normal operation.

Investigate Repeated Faults

Recurring servo faults should be diagnosed systematically instead of repeatedly replacing the motor without identifying the underlying cause.

---

Key Advantages

The Allen Bradley MPL-A4530K-SJ74AA provides characteristics relevant to industrial motion applications:

• 130 mm frame size
• 7.3 kg weight
• Industrial AC servo motor architecture
• Closed-loop motion-control operation
• Controlled rotary movement
• Suitable for automated positioning
• Suitable for synchronized machine axes
• Applicable to repetitive production processes
• Integration into industrial automation systems
• Suitable for controlled speed and positioning applications

---

Technical FAQs

What is the Allen Bradley MPL-A4530K-SJ74AA?

The MPL-A4530K-SJ74AA is an Allen Bradley industrial AC servo motor designed for integration into closed-loop motion-control systems.

What is the frame size?

The specified frame size is 130 mm.

What is the motor weight?

The specified weight is 7.3 kg.

What is the main function of this servo motor?

The motor provides controlled rotary motion for automated machinery requiring positioning, speed regulation, acceleration, deceleration, and coordinated axis movement.

Does the motor require a servo drive?

Yes. It normally operates as part of a servo system consisting of a compatible drive, controller, feedback system, and mechanical load.

Can another 130 mm motor replace it?

Not automatically. Frame size alone does not confirm compatibility. Electrical characteristics, feedback, shaft configuration, mounting arrangement, connectors, drive compatibility, and machine requirements must also be verified.

What should be checked before installation?

Verify the complete motor catalog number, mounting arrangement, shaft alignment, cabling, feedback connections, grounding, servo-drive configuration, and mechanical load.

What can cause excessive vibration?

Possible causes include misalignment, loose mounting, coupling problems, machine resonance, incorrect motion parameters, or abnormal mechanical loading.

How should the MPL-A4530K-SJ74AA be maintained?

Maintenance should include inspection of the motor, mounting hardware, cables, connectors, mechanical transmission components, vibration, temperature, and servo-drive fault history.

---

Conclusion

The Allen Bradley MPL-A4530K-SJ74AA Servo Motor is an industrial servo motor designed for controlled rotary motion in automated machinery. With a specified 130 mm frame size and 7.3 kg weight, it provides important physical characteristics for machine integration, support design, replacement planning, and maintenance.

The motor operates as part of a complete closed-loop motion-control architecture involving a controller, servo drive, feedback system, mechanical transmission, and machine load. Proper integration of these elements is essential for repeatable positioning, controlled speed, synchronized movement, and reliable machine operation.

For installation or replacement, the complete MPL-A4530K-SJ74AA catalog designation should be checked carefully. Exact electrical ratings, feedback characteristics, shaft dimensions, mounting details, connector configuration, and servo-drive compatibility should be confirmed against the applicable documentation and motor nameplate before commissioning.
