Product Overview

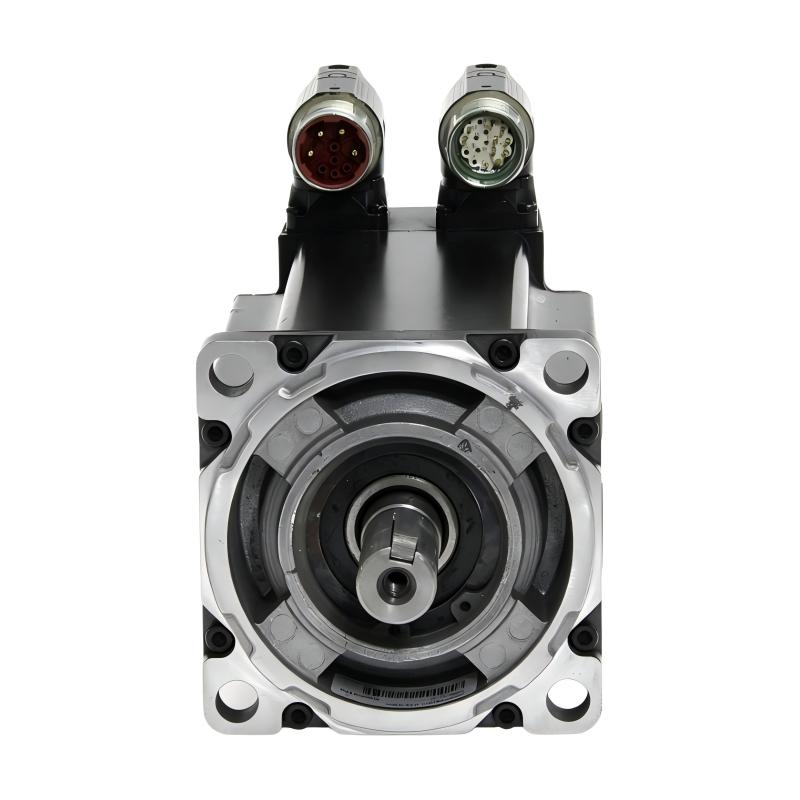

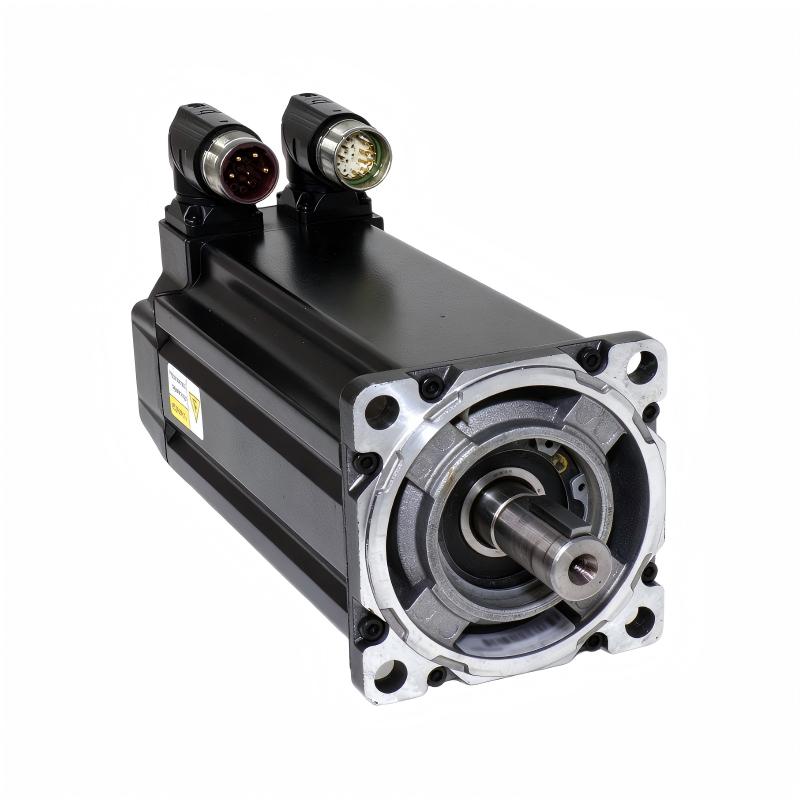

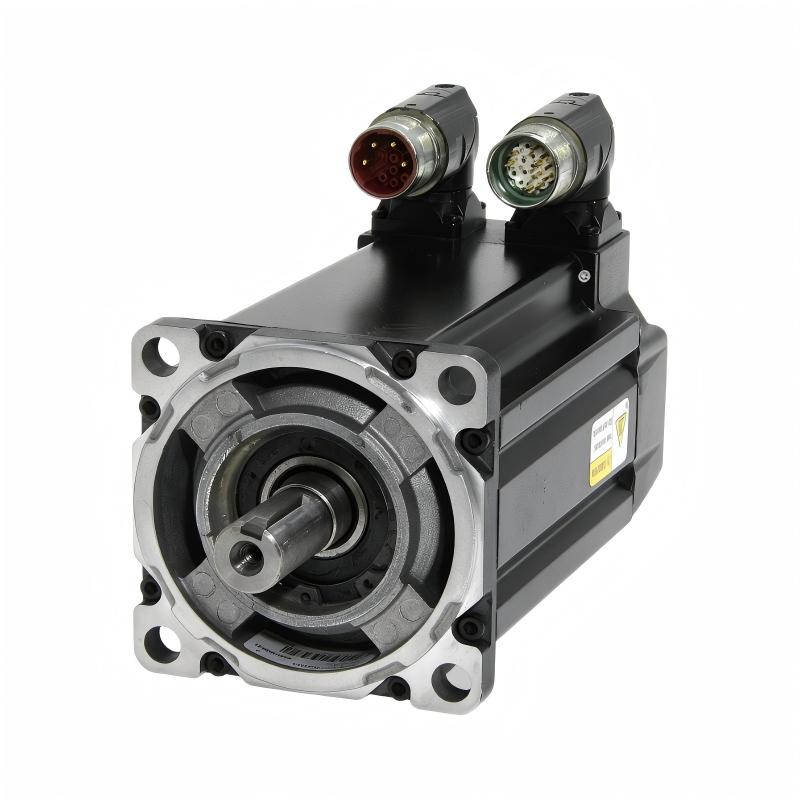

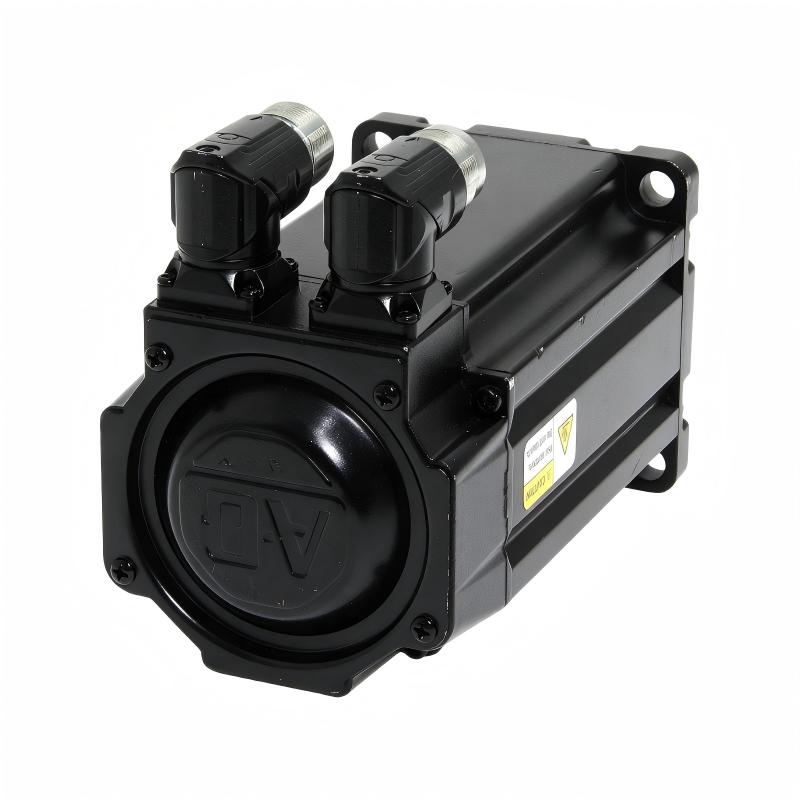

The Allen Bradley MPL-A4530F-MJ74AA Servo Motor is an industrial permanent-magnet servo motor designed for integration into high-performance motion control systems. As part of the Allen Bradley MPL family of servo motors, the MPL-A4530F-MJ74AA is intended for applications where controlled acceleration, accurate positioning, repeatable motion, and coordinated machine operation are required.
Servo motors are fundamental components in modern automation systems because they allow a controller and servo drive to regulate mechanical motion according to a programmed process. Unlike a conventional motor that may primarily operate at a relatively fixed speed, a servo motor works as part of a closed-loop motion system in which command signals, motor operation, and feedback are coordinated to achieve the required movement.
The MPL-A4530F-MJ74AA has a specified 130 mm frame size and a weight of 7.3 kg. These physical characteristics are important when engineers design machine structures, calculate mounting requirements, plan replacement procedures, or determine the available installation space inside an automation system.
The motor can be used in applications involving automated machinery, material handling, packaging, assembly, indexing, machine tools, and other industrial equipment requiring controlled rotary motion. The exact electrical ratings, feedback configuration, connector arrangement, shaft configuration, and drive compatibility should be confirmed against the motor nameplate and the applicable technical documentation for the specific installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Family | MPL Servo Motor |
| Model | MPL-A4530F-MJ74AA |
| Product Type | Servo Motor |
| Motor Technology | Permanent-Magnet Servo Motor |
| Frame Size | 130 mm |
| Weight | 7.3 kg |
| Application | Industrial Motion Control |
| Control System | Servo Drive / Closed-Loop Motion System |
| Typical Use | Automated Machinery, Positioning, Packaging, Assembly, Material Handling |
| Installation | Machine-Mounted |
| Feedback | Verify according to specific motor configuration |
| Electrical Ratings | Verify from motor nameplate and applicable documentation |
| Shaft / Mounting Details | Verify according to specific motor configuration |
What Is the Allen Bradley MPL-A4530F-MJ74AA?
The Allen Bradley MPL-A4530F-MJ74AA is a servo motor intended to provide controlled rotary motion within an industrial automation system.
A servo motor does not normally operate as an isolated component. Instead, it forms part of a coordinated motion-control architecture that can include:
PLC or Motion Controller → Servo Drive → Servo Motor → Mechanical Load
Feedback from the motor or motion system is used by the control architecture to monitor actual motion and support accurate control.
For a machine requiring precise positioning, simply rotating a motor is not enough. The system may need to accelerate to a defined speed, move a mechanical axis through a specified distance, stop at a particular position, reverse direction, or synchronize its movement with another axis. Servo technology is designed to support these requirements.
The MPL-A4530F-MJ74AA can therefore be considered a motion-producing element within a larger automation platform rather than simply a conventional AC motor.
Servo Motor Operating Principle
The basic operating process begins with a motion command generated by a controller. The controller determines the required movement based on the machine program.
The servo drive receives the command and converts it into an appropriate electrical output for the motor. The motor then generates controlled rotational movement.
A feedback mechanism associated with the servo system provides information about actual motor or axis behavior. The control system can compare commanded movement with actual movement and make corrections as required.
A simplified control loop can be represented as:
Motion Command → Servo Drive → MPL-A4530F-MJ74AA → Mechanical Load → Feedback → Control System
This closed-loop approach enables a servo system to respond dynamically to changing machine requirements.
The exact feedback technology and electrical configuration of the MPL-A4530F-MJ74AA should be verified from the specific motor documentation rather than assumed from the model number alone.
Main Functions
Controlled Rotary Motion
The primary purpose of the MPL-A4530F-MJ74AA is to provide controlled rotary motion to a machine mechanism.
The motor can be integrated with mechanical transmission components such as couplings, belts, gears, screws, or other machine-axis mechanisms, depending on the application.
Positioning
Servo systems are frequently used where the machine must repeatedly move to defined positions.
Examples include:
- Pick-and-place mechanisms
- Indexing systems
- Automated assembly equipment
- Packaging machinery
- Material positioning systems
- Machine axes
Speed Control
A servo drive can regulate motor speed according to the motion command.
This allows the motor to participate in applications where different operating speeds are required during acceleration, processing, positioning, and deceleration.
Acceleration and Deceleration
Controlled acceleration and deceleration help reduce mechanical shock and allow machine movements to be coordinated with the production process.
The actual acceleration and deceleration performance depends on the complete servo system, including drive configuration, load inertia, mechanical transmission, and application settings.
Motion Synchronization
Multiple servo motors can be coordinated by a suitable motion controller and drive system.
This is useful in machines where several axes must move together or maintain a defined relationship during production.
Role in Industrial Automation
The MPL-A4530F-MJ74AA can function as the motor element of a larger industrial motion-control system.
A typical automation architecture may include:
- Controller – generates motion commands.
- Motion Network – transfers control information.
- Servo Drive – controls motor electrical operation.
- MPL Servo Motor – produces mechanical rotation.
- Mechanical Transmission – transfers motor motion to the machine axis.
- Feedback System – provides motion information for closed-loop control.
- Machine Load – performs the required production task.
This architecture allows machine builders to separate control logic, electrical motor control, and mechanical motion while maintaining coordinated operation.
For example, a packaging machine may use servo motors to control the movement of material, rollers, cutting mechanisms, or positioning assemblies. The controller coordinates these axes while the servo drives regulate individual motors.
Industrial Applications
The Allen Bradley MPL-A4530F-MJ74AA Servo Motor can be considered for a variety of industrial motion applications where the required motor specifications and mechanical requirements are properly matched.
Packaging Machinery
Servo motors are commonly used in packaging equipment for coordinated positioning, material handling, indexing, and controlled mechanical movement.
Automated Assembly
Assembly machines often require repeatable motion between multiple process stations. Servo-controlled axes can provide the movement required for positioning components and tools.
Material Handling
Automated material-handling equipment may require controlled acceleration, deceleration, positioning, and synchronization.
Conveyor Systems
Servo technology can be used where conveyor movement must be coordinated with other machine axes rather than simply operated continuously at a fixed speed.
Machine Tools
Servo motors can form part of controlled machine axes where accurate movement and repeatability are important.
Printing Equipment
Printing and converting machinery can require coordinated motion between rollers, material feeds, and processing mechanisms.
Robotics and Automation Equipment
Servo motors are commonly used as motion elements in automated machinery requiring controlled rotary movement.
The actual suitability of the MPL-A4530F-MJ74AA should always be evaluated using the complete motor, drive, controller, load, and mechanical-system requirements.
Mechanical Integration
Correct mechanical installation is important for achieving reliable servo performance.
The 130 mm frame size of the MPL-A4530F-MJ74AA should be considered when designing or verifying the motor mounting arrangement.
Before installation, engineers should confirm:
- Motor mounting dimensions
- Available cabinet or machine space
- Shaft arrangement
- Coupling requirements
- Load alignment
- Mechanical clearance
- Cable routing
- Motor orientation
- Mounting strength
- Cooling conditions
The motor should be securely mounted to a rigid machine structure.
Misalignment between the motor shaft and driven equipment can introduce unnecessary mechanical loading and vibration. Flexible couplings may be used where appropriate, but their selection must match the mechanical characteristics of the application.
The exact shaft and mounting dimensions should be confirmed from the applicable product documentation rather than estimated from the 130 mm frame size.
Servo Drive Integration
The MPL-A4530F-MJ74AA should be integrated with a suitable servo drive capable of supporting the motor’s specific electrical and feedback requirements.
A complete drive selection process should consider:
- Motor identification
- Motor electrical ratings
- Feedback configuration
- Required operating speed
- Required torque
- Load inertia
- Acceleration requirements
- Deceleration requirements
- Duty cycle
- Control architecture
- Communication requirements
- Safety requirements
The drive must be configured with the correct motor information.
Incorrect motor configuration can lead to poor motion performance, alarms, unstable operation, or potential equipment damage.
Because exact electrical specifications and feedback characteristics have not been provided here, the correct drive and configuration should be verified against the motor nameplate and applicable Allen Bradley documentation.
Installation Guidelines
1. Verify the Motor Identification
Before installation, verify the complete model:
MPL-A4530F-MJ74AA
Do not rely only on the general MPL series designation because different motor variants can have different electrical and mechanical characteristics.
2. Inspect the Motor
Inspect the motor before mounting it.
Check for:
- Physical damage
- Damaged connectors
- Damaged cables
- Contamination
- Loose mounting components
- Signs of moisture
- Abnormal shaft condition
Any damage should be investigated before the motor is connected to the drive.
3. Confirm Mechanical Compatibility
Verify the motor mounting arrangement and machine interface.
The specified frame size is:
130 mm
The machine structure should provide sufficient mechanical support for the motor’s 7.3 kg weight.
4. Install the Motor Securely
Use the appropriate mounting hardware and ensure the motor is securely attached to the machine structure.
Loose mounting can result in vibration and mechanical movement during operation.
5. Check Shaft Alignment
The motor shaft should be correctly aligned with the driven mechanism.
Improper alignment can increase mechanical stress and reduce the service life of the motor and connected components.
6. Connect Motor and Feedback Wiring
Motor power and feedback connections should be made according to the applicable wiring documentation.
Do not assume connector pin assignments or feedback wiring based solely on the model number.
7. Check Grounding
Proper grounding and cable installation are important for industrial servo systems.
Power and signal cables should be routed appropriately to reduce the possibility of electrical interference.
Commissioning Procedure
After installation, commissioning should be performed systematically.
Step 1: Verify Mechanical Installation
Confirm that:
- The motor is securely mounted.
- The mechanical load is correctly connected.
- Couplings are correctly installed.
- No excessive mechanical resistance is present.
Step 2: Verify Wiring
Check motor power connections, feedback connections, grounding, and associated control wiring.
Step 3: Configure the Servo Drive
Enter the correct motor identification and required configuration parameters into the servo drive.
Step 4: Check Feedback
Confirm that the drive receives valid feedback information.
If feedback is incorrect, the system should not be operated under normal production conditions.
Step 5: Perform a Controlled Test
Use a controlled commissioning procedure to verify motor direction and basic movement.
Step 6: Test Acceleration and Deceleration
Gradually test the required motion profile while monitoring the motor, drive, and mechanical load.
Step 7: Verify Positioning
If the application requires positioning, verify that commanded and actual movements correspond correctly.
Step 8: Monitor System Behavior
During commissioning, observe:
- Motor vibration
- Abnormal noise
- Drive alarms
- Feedback behavior
- Mechanical temperature
- Motion stability
- Unexpected movement
Only after the system has been verified should it be placed into normal production service.
Troubleshooting the MPL-A4530F-MJ74AA
Servo motor troubleshooting should consider the entire motion system rather than the motor alone.
Motor Does Not Rotate
Possible areas to inspect include:
- Servo drive status
- Drive enable condition
- Motor wiring
- Feedback connection
- Controller command
- Safety circuit
- Drive alarm
- Motor configuration
- Mechanical obstruction
A motor that does not rotate does not necessarily indicate a failed motor.
Motor Rotates in the Wrong Direction
Check the motion configuration and motor-drive setup.
Incorrect direction can result from configuration or control settings rather than from a mechanical motor fault.
Verify the commanded direction and applicable drive parameters before changing wiring.
Positioning Error
Positioning problems may be related to:
- Incorrect system configuration
- Feedback problems
- Mechanical backlash
- Coupling problems
- Excessive load
- Incorrect tuning
- Mechanical misalignment
- Controller configuration
The motor, drive, feedback system, and mechanical transmission should be evaluated together.
Excessive Vibration
Possible causes include:
- Mechanical misalignment
- Loose mounting
- Coupling problems
- Excessive load
- Incorrect servo tuning
- Mechanical resonance
- Damaged mechanical components
The motor mounting and connected machine mechanism should be inspected before replacing the motor.
Overheating
Abnormal temperature can be associated with:
- Excessive load
- Poor mechanical conditions
- Insufficient cooling
- Incorrect operating conditions
- Excessive duty cycle
- Electrical configuration problems
The operating conditions should be compared with the requirements of the specific motor and drive system.
Maintenance Recommendations
Regular maintenance can improve servo-system reliability.
Mechanical Inspection
Periodically inspect:
- Motor mounting
- Couplings
- Mechanical alignment
- Shaft interface
- Machine vibration
- Mounting hardware
Cable Inspection
Check motor and feedback cables for:
- Abrasion
- Bending damage
- Connector damage
- Loose connections
- Environmental contamination
Monitor Motion Performance
Changes in vibration, noise, positioning behavior, or acceleration response may indicate developing mechanical or electrical problems.
Trend monitoring can help identify changes before they result in an unexpected machine shutdown.
Keep the Installation Environment Suitable
The motor should operate within the environmental conditions specified for the equipment.
Excessive contamination, moisture, heat, or vibration can affect long-term reliability.
Physical Dimensions and Weight
The supplied physical information for the Allen Bradley MPL-A4530F-MJ74AA is:
| Physical Parameter | Value |
|---|---|
| Frame Size | 130 mm |
| Weight | 7.3 kg |
The 7.3 kg weight should be considered when designing motor mounting structures, handling the motor during installation, planning replacement procedures, and calculating equipment transportation requirements.
The frame size is useful for preliminary machine-layout planning, but it should not be treated as a complete substitute for detailed mounting drawings.
Servo System Architecture
A typical industrial motion-control arrangement using the MPL-A4530F-MJ74AA can be represented as:
Industrial Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A4530F-MJ74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load
↕
Feedback System
The controller determines what movement is required, while the servo drive manages the motor’s electrical operation.
The mechanical system then converts motor rotation into the desired machine movement.
This separation of functions makes servo technology particularly useful for complex automated machinery.
Replacement Considerations
When replacing an existing servo motor, technicians should verify the complete model number rather than selecting a motor based only on frame size.
For the target motor, the identification is:
Allen Bradley MPL-A4530F-MJ74AA
The following information should be checked before replacement:
- Full catalog number
- Motor frame size
- Motor weight
- Electrical ratings
- Feedback configuration
- Shaft configuration
- Mounting arrangement
- Connector configuration
- Drive compatibility
- Controller configuration
- Application load requirements
The MPL-A4530F-MJ74AA has a specified 130 mm frame size and 7.3 kg weight, but these two values alone are not sufficient to establish complete interchangeability with another MPL motor.
A visually similar servo motor may have different electrical or feedback characteristics.
Engineering Best Practices
Several engineering practices can improve the reliability of an MPL-A4530F-MJ74AA servo installation.
Match the Motor to the Application
Motor selection should consider the complete mechanical load rather than relying only on physical size.
Verify Drive Configuration
The servo drive should be configured for the exact motor being used.
Minimize Mechanical Misalignment
Proper alignment helps reduce unnecessary loads and vibration.
Protect Feedback Wiring
Feedback signals are important to closed-loop servo operation. Proper cable routing and secure connections are therefore essential.
Monitor Machine Behavior
Changes in motion performance can provide useful information about developing mechanical or electrical problems.
Document the Installation
Record the motor model, installation location, drive configuration, replacement history, and relevant commissioning information.
Good documentation can significantly reduce troubleshooting time during future maintenance.
Key Advantages
Industrial Servo Technology
The MPL-A4530F-MJ74AA provides a servo-motor solution for applications requiring controlled and coordinated rotary movement.
130 mm Frame Size
The specified 130 mm frame size provides an important mechanical reference for machine designers and maintenance engineers.
7.3 kg Construction
The specified 7.3 kg weight provides useful information for machine mounting, handling, transportation, and replacement planning.
Closed-Loop Motion Integration
As part of a suitable servo system, the motor can participate in feedback-based motion control.
Suitable for Automated Machinery
Servo technology is widely applicable to machines requiring repeatable positioning, controlled speed, acceleration, and coordinated movement.
Integration into Industrial Motion Systems
The MPL-A4530F-MJ74AA can form part of an industrial motion architecture consisting of controllers, servo drives, feedback systems, and mechanical equipment.
Technical FAQs
What is the Allen Bradley MPL-A4530F-MJ74AA?
The Allen Bradley MPL-A4530F-MJ74AA is an industrial servo motor designed for integration into closed-loop motion-control systems.
What is the frame size of the MPL-A4530F-MJ74AA?
The specified frame size is 130 mm.
How much does the MPL-A4530F-MJ74AA weigh?
The specified weight is 7.3 kg.
What is the main purpose of this servo motor?
Its primary purpose is to provide controlled rotary motion within an industrial automation or motion-control system.
Can the MPL-A4530F-MJ74AA be used for positioning applications?
Servo motors are commonly used for controlled positioning applications. The suitability of this specific motor depends on the required load, speed, torque, feedback configuration, drive, and complete machine design.
Does the motor work directly from a standard PLC output?
A servo motor is normally operated through a compatible servo drive rather than being connected directly to a conventional PLC output.
What should be checked before replacing the motor?
The complete catalog number, frame size, electrical characteristics, feedback arrangement, shaft configuration, mounting requirements, and drive compatibility should be verified.
Can the frame size determine motor compatibility?
No. Frame size provides a mechanical reference, but complete motor compatibility requires verification of electrical, feedback, mechanical, and drive-system characteristics.
What can cause servo positioning problems?
Possible causes include incorrect configuration, feedback problems, mechanical backlash, coupling issues, excessive load, poor alignment, tuning problems, or controller-related settings.
How should the MPL-A4530F-MJ74AA be maintained?
Maintenance should include inspection of motor mounting, mechanical alignment, cables, connectors, machine vibration, and overall motion performance. The applicable maintenance requirements for the specific installation should also be followed.
Conclusion
The Allen Bradley MPL-A4530F-MJ74AA Servo Motor is an industrial motion-control component intended to provide controlled rotary movement as part of a suitable servo system. Its integration with a servo drive, controller, feedback system, and mechanical load allows it to participate in applications requiring coordinated movement, repeatable positioning, controlled acceleration, and precise machine operation.
For the supplied configuration, the MPL-A4530F-MJ74AA has a 130 mm frame size and a weight of 7.3 kg. These specifications are important for mechanical design, machine integration, installation planning, and replacement logistics.
When installing or replacing this motor, engineers should verify the complete model number and confirm all electrical, feedback, mechanical, and drive-interface requirements for the specific application. Correct motor identification, secure mechanical mounting, appropriate drive configuration, proper feedback wiring, and systematic commissioning are essential for achieving stable and reliable servo-system performance.
The Allen Bradley MPL-A4530F-MJ74AA can therefore serve as a practical servo-motor component for industrial automation equipment where controlled motion and integration with a closed-loop motion architecture are required.
