Product Overview

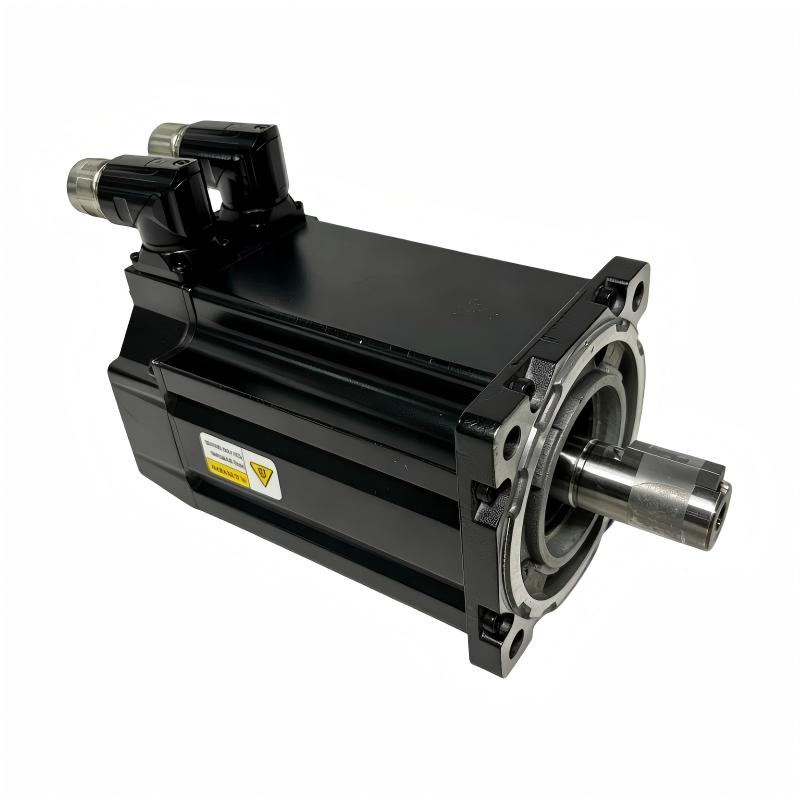

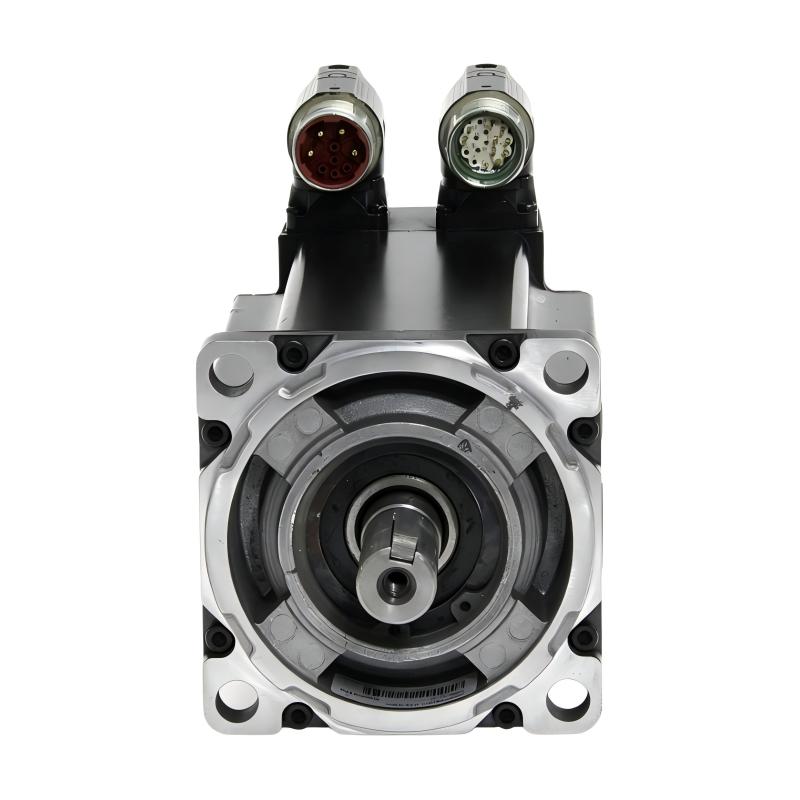

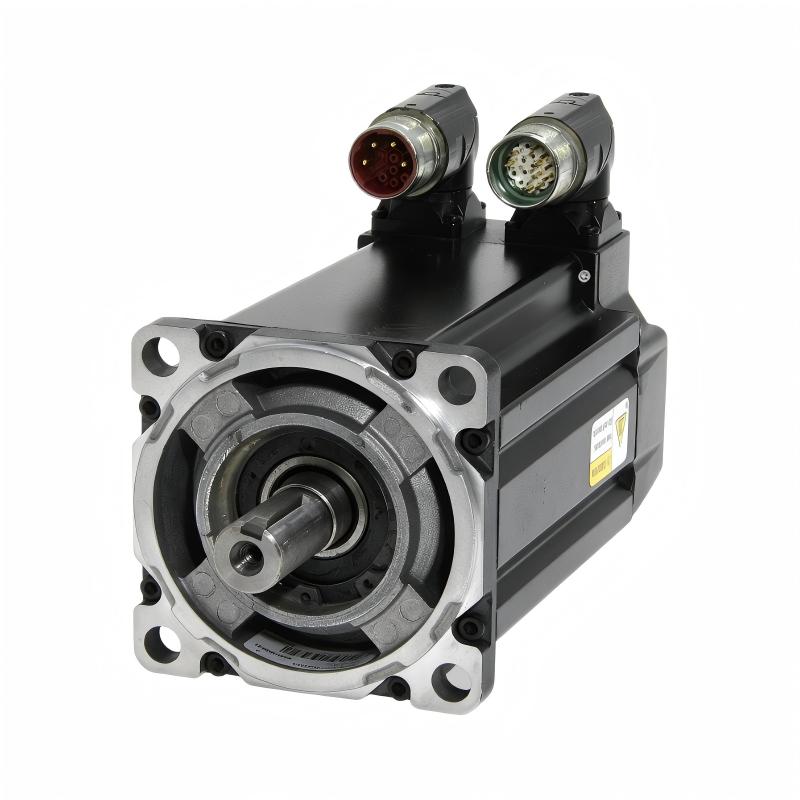

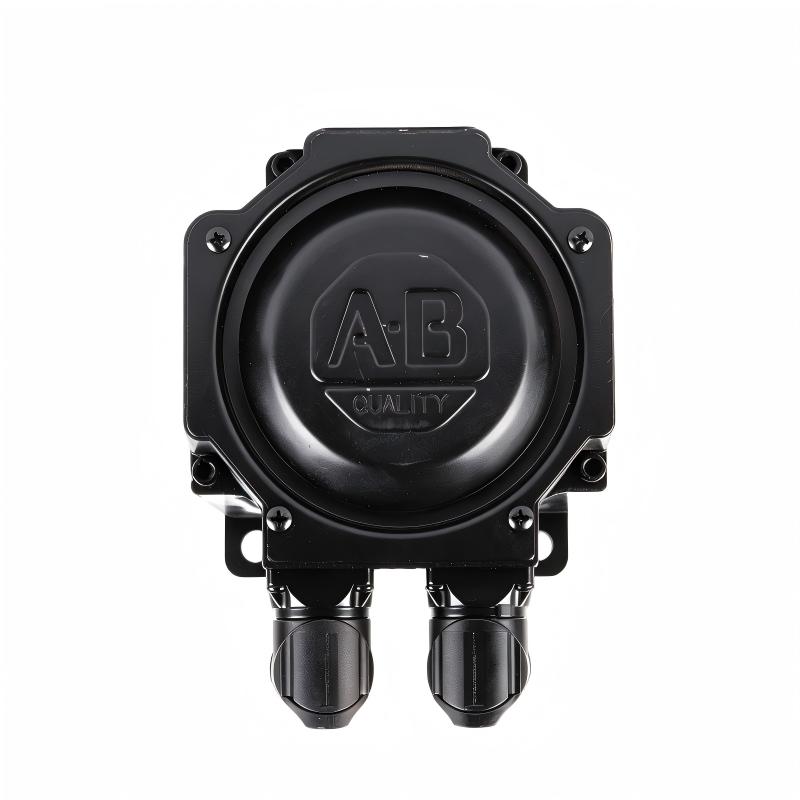

The Allen Bradley MPL-A4530F-HK74AA Servo Motor is an industrial AC servo motor designed for automated machinery requiring precise, controlled, and repeatable rotary movement. As part of the Allen Bradley MPL servo motor family, the MPL-A4530F-HK74AA is intended to operate within an integrated motion-control system that combines a motion controller, servo drive, motor, feedback system, and mechanical load.

The motor has a 130 mm frame size and a weight of 7.3 kg. These physical characteristics are important when evaluating machine mounting requirements, replacement compatibility, mechanical support, handling, and available installation space.

Servo motors are commonly used where conventional motor control is insufficient for the required machine operation. Instead of simply turning a motor on or off, a servo system can command controlled positioning, speed changes, acceleration, deceleration, indexing, and coordinated movement.

A simplified motion-control architecture can be represented as:

Motion Controller → Servo Drive → MPL-A4530F-HK74AA Servo Motor → Mechanical Load

Feedback information is incorporated into the control loop so that the servo system can monitor and regulate actual motor movement.

The exact electrical ratings, feedback configuration, shaft dimensions, connector details, and other performance specifications should be verified against the individual motor nameplate and applicable technical documentation before installation or system design.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A4530F-HK74AA
Product Family	MPL Servo Motor
Product Type	AC Servo Motor
Application Category	Industrial Motion Control
Frame Size	130 mm
Weight	7.3 kg
Primary Function	Controlled rotary motion
Control Architecture	Closed-loop servo control
Typical System	Motion Controller + Servo Drive + Motor
Installation	Machine-mounted
Feedback	Configuration dependent; verify before commissioning
Electrical Ratings	Verify from motor nameplate
Mechanical Configuration	Verify according to applicable motor documentation

---

What Is the Allen Bradley MPL-A4530F-HK74AA?

The Allen Bradley MPL-A4530F-HK74AA is an industrial servo motor designed to provide controlled mechanical rotation in automated machinery.

Within a servo system, the motor works together with a compatible servo drive and motion controller. The controller determines the required movement, while the servo drive regulates the electrical operation of the motor.

Feedback information allows the control system to monitor actual movement and make corrections when required.

This architecture makes servo motors useful for applications where machines need:

• Accurate positioning
• Repeatable movement
• Controlled speed
• Smooth acceleration
• Controlled deceleration
• Repetitive indexing
• Coordinated axis movement
• Automated machine synchronization

The MPL-A4530F-HK74AA should therefore be evaluated as one component of a complete motion-control system.

---

Servo Motor Working Principle

The operation of the MPL-A4530F-HK74AA can be understood through the interaction of five main elements: the controller, servo drive, motor, feedback system, and mechanical load.

Motion Command

The motion controller generates a command according to the machine program.

The command may define a target position, movement distance, speed, acceleration profile, or coordinated axis operation.

Servo Drive Processing

The servo drive receives the command and determines the electrical control required to operate the motor.

It acts as the primary electrical interface between the controller and servo motor.

Motor Rotation

The MPL-A4530F-HK74AA converts electrical energy into mechanical rotary motion.

The motor shaft can be connected to the machine through an appropriate coupling or mechanical transmission.

Feedback Monitoring

Feedback information allows the servo system to determine the actual operating condition of the motor.

The drive can compare the requested motion with the actual movement and adjust motor operation accordingly.

Closed-Loop Control

The control loop continuously works to maintain the desired motion condition.

This closed-loop principle is fundamental to servo-based industrial automation.

---

Main Functions

Precision Positioning

The MPL-A4530F-HK74AA can be incorporated into machine axes requiring controlled and repeatable positioning.

Speed Regulation

The servo drive can regulate motor operation according to the required machine speed profile.

Controlled Acceleration

Controlled acceleration allows the machine to gradually increase motor movement according to its programmed motion profile.

Controlled Deceleration

Controlled stopping helps coordinate machine movement with the required production sequence.

Repetitive Indexing

Automated machinery can use servo motors to repeatedly move components between defined positions.

Coordinated Motion

Multiple servo motors can operate together under a motion controller to synchronize different machine axes.

Dynamic Operation

Servo systems are suitable for machines that frequently change position, speed, or direction during production.

---

Role in Industrial Automation

The MPL-A4530F-HK74AA can function as the rotary actuator in an industrial motion-control architecture.

A typical system can be represented as:

PLC / Motion Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A4530F-HK74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load

Feedback information forms part of the closed-loop control process.

This architecture allows the motor to participate in automated machine operations such as:

• Axis positioning
• Product indexing
• Conveyor synchronization
• Automated assembly
• Material handling
• Packaging
• Machine-tool movement
• General production automation

The actual configuration depends on the machine design and selected control equipment.

---

Industrial Applications

Packaging Machinery

Packaging equipment often requires controlled positioning for feeding, indexing, cutting, sealing, labeling, and product handling.

Servo motors can provide the movement required for these operations.

Automated Assembly Equipment

Assembly machines may use servo-driven axes to position components accurately during production.

Material Handling

Servo motors can be used for controlled movement in transfer mechanisms, positioning equipment, conveyors, and other automated handling systems.

Machine Tools

Machine tools rely on controlled movement of mechanical axes. Servo motors can provide the rotary input required by the machine’s transmission system.

Printing Equipment

Printing machinery may require synchronized movement between multiple sections. Servo control can support coordinated operation.

Robotics and Automated Machinery

Servo motors are widely used as motion elements in automated mechanical systems requiring controlled movement.

Manufacturing Equipment

Production machines can use servo motors for repetitive indexing, positioning, and coordinated movement.

General Industrial Automation

The MPL-A4530F-HK74AA can be considered for applications requiring industrial servo motion when the motor’s complete electrical and mechanical characteristics match the machine requirements.

---

Mechanical Integration

Proper mechanical integration is essential for reliable servo operation.

Before installing the MPL-A4530F-HK74AA, the complete mechanical arrangement should be evaluated.

Important considerations include:

• Motor frame size
• Mounting arrangement
• Shaft alignment
• Coupling arrangement
• Mechanical load
• Load inertia
• Bearing loading
• Machine vibration
• Installation clearance
• Cable routing

The supplied 130 mm frame size should be considered when designing or checking the motor mounting structure.

The 7.3 kg weight should also be considered when handling and supporting the motor.

Incorrect shaft alignment can produce excessive mechanical loading, vibration, coupling wear, and reduced machine accuracy.

---

Servo Drive Integration

The MPL-A4530F-HK74AA must be integrated with a servo drive that is appropriate for the complete motor configuration.

The servo drive receives motion commands from the controller and provides controlled electrical power to the motor.

The basic architecture is:

Motion Controller → Servo Drive → MPL-A4530F-HK74AA → Mechanical Load

Feedback information is used to support closed-loop regulation.

Before commissioning, verify:

• Complete motor model
• Motor nameplate information
• Servo drive compatibility
• Feedback configuration
• Motor wiring
• Feedback wiring
• Drive parameters
• Controller configuration
• Mechanical load requirements

Drive compatibility should be confirmed using the complete motor and system specifications rather than assuming compatibility based only on the MPL product family.

---

Installation Guidelines

Verify Motor Identification

Confirm that the installed motor is the correct Allen Bradley MPL-A4530F-HK74AA model.

The full model designation should be compared with the machine documentation and existing motor identification.

Inspect Before Installation

Check the motor for:

• Physical damage
• Connector damage
• Cable damage
• Contamination
• Corrosion
• Loose components
• Storage-related damage

Prepare the Mounting Structure

The motor mounting surface should be rigid and suitable for the specified frame size.

Provide sufficient access for installation, wiring, inspection, and future maintenance.

Check Shaft Alignment

The motor shaft should be correctly aligned with the driven mechanism.

Mechanical alignment should be checked before the machine is operated at normal production conditions.

Connect Motor Wiring

Connect the motor according to the applicable system wiring documentation.

Connector pin assignments should not be assumed solely from the model designation.

Connect Feedback

Where applicable, the feedback connection should be matched correctly with the servo drive and control system.

Verify Grounding

Follow appropriate grounding and industrial wiring practices throughout the servo installation.

---

Commissioning Procedure

A controlled commissioning procedure helps reduce startup risks and makes it easier to identify electrical or mechanical problems.

Step 1: Inspect the Mechanical Installation

Confirm that the motor is securely mounted and that the mechanical load can move correctly.

Step 2: Verify Electrical Connections

Check motor power connections, feedback connections, grounding, and cable routing.

Step 3: Confirm Motor Parameters

Verify that the servo drive configuration corresponds to the installed motor.

Step 4: Verify Motion Controller Configuration

Check that the correct machine axis and motion commands are assigned to the servo system.

Step 5: Perform an Initial Motion Test

Use a controlled movement command and observe:

• Motor direction
• Motor response
• Vibration
• Noise
• Drive status
• Fault indications

Step 6: Test the Motion Profile

Verify positioning, acceleration, deceleration, indexing, and synchronization as applicable to the machine.

Step 7: Perform Production Validation

Run representative machine cycles and confirm stable operation before returning the equipment to normal production.

---

Troubleshooting the MPL-A4530F-HK74AA

Motor Does Not Rotate

Possible causes include:

• Servo drive fault
• Incorrect motor configuration
• Missing motion command
• Motor wiring problem
• Feedback problem
• Mechanical obstruction
• Controller configuration issue

The entire control path should be checked rather than immediately replacing the motor.

Motor Rotates in the Wrong Direction

Unexpected direction may be associated with machine-axis configuration, motion commands, control parameters, or wiring.

Verify the intended machine direction and axis configuration.

Excessive Vibration

Potential causes include:

• Mechanical misalignment
• Loose motor mounting
• Coupling problems
• Machine resonance
• Excessive load
• Servo tuning conditions
• Mechanical damage

Mechanical causes should be investigated before concluding that the motor has failed.

Positioning Error

Positioning problems may be associated with:

• Feedback issues
• Incorrect configuration
• Mechanical backlash
• Coupling problems
• Excessive load
• Mechanical wear
• Servo tuning

The complete motion system should be evaluated.

Intermittent Faults

Intermittent problems may be caused by:

• Loose connectors
• Damaged cables
• Feedback interruptions
• Electrical interference
• Mechanical vibration
• Configuration problems
• Environmental conditions

Drive fault history and operating conditions can provide useful information during diagnosis.

---

Maintenance Recommendations

Inspect Mounting Hardware

Regularly inspect mounting hardware for looseness or mechanical movement.

Check Motor Cables

Inspect power and feedback cables for abrasion, excessive bending, connector damage, or other physical problems.

Monitor Vibration

Unexpected changes in vibration can indicate mechanical alignment problems or changes in the machine transmission.

Monitor Temperature

Abnormal motor temperature should be investigated to determine whether the cause is electrical, mechanical, environmental, or load-related.

Inspect the Mechanical Transmission

Check connected mechanical components such as:

• Couplings
• Gearboxes
• Belts
• Screws
• Bearings
• Mechanical guides

A problem in one of these components can appear as a servo motor problem.

Maintain the Installation Environment

Keep the motor and associated equipment in an appropriate industrial environment and protect the installation from unnecessary contamination and mechanical damage.

---

Physical Dimensions and Weight

The supplied physical specifications for the Allen Bradley MPL-A4530F-HK74AA are:

Physical Parameter	Value
Frame Size	130 mm
Weight	7.3 kg

The 130 mm frame size is important for mechanical mounting and machine-space planning.

The 7.3 kg weight should be considered during transportation, handling, mounting, and mechanical support design.

Exact overall dimensions, shaft dimensions, mounting-hole arrangement, connector orientation, and other mechanical characteristics should be verified from the applicable documentation before detailed machine design.

---

Servo System Architecture

The MPL-A4530F-HK74AA normally operates as part of a complete servo-control system.

A simplified architecture is:

PLC / Motion Controller
↓
Motion Profile
↓
Servo Drive
↓
MPL-A4530F-HK74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load

The feedback system provides information used for closed-loop motion regulation.

In multi-axis machinery, multiple servo motors can operate under coordinated controller commands.

This makes servo architecture suitable for complex automated equipment where machine movement must be synchronized with production processes.

---

Replacement Considerations

When replacing an existing MPL-A4530F-HK74AA, the complete model identification should be verified.

Important information includes:

• Full motor model
• Frame size
• Motor nameplate
• Feedback configuration
• Mechanical mounting
• Shaft configuration
• Connector arrangement
• Servo drive
• Controller configuration
• Machine-axis application

The supplied 130 mm frame size and 7.3 kg weight are useful physical identification characteristics, but they do not by themselves establish electrical or mechanical interchangeability.

The replacement motor should be verified against the complete requirements of the original installation.

---

Engineering Best Practices

Evaluate the Complete Motion System

The servo motor should always be evaluated together with the servo drive, controller, feedback system, and mechanical load.

Maintain Mechanical Alignment

Proper alignment helps reduce vibration, mechanical stress, and unnecessary wear.

Verify Servo Drive Parameters

Incorrect motor parameters can result in faults or poor motion performance.

Minimize Mechanical Backlash

Backlash in the machine transmission can affect positioning accuracy even when the servo system is operating correctly.

Protect Feedback Connections

Feedback wiring should be properly routed and secured to reduce the possibility of intermittent signal problems.

Maintain Documentation

Record the motor model, drive configuration, machine axis, wiring arrangement, and commissioning parameters to simplify future maintenance.

---

Key Advantages

The Allen Bradley MPL-A4530F-HK74AA Servo Motor offers characteristics suitable for industrial motion-control systems:

• 130 mm frame size
• 7.3 kg weight
• Industrial AC servo motor design
• Closed-loop motion-control architecture
• Suitable for controlled positioning
• Suitable for repetitive motion
• Suitable for coordinated machine-axis operation
• Supports controlled acceleration and deceleration
• Suitable for automated manufacturing equipment
• Suitable for precision motion applications when correctly integrated

---

Technical FAQs

What is the Allen Bradley MPL-A4530F-HK74AA?

The Allen Bradley MPL-A4530F-HK74AA is an industrial AC servo motor designed for integration into automated closed-loop motion-control systems.

What is the frame size of the MPL-A4530F-HK74AA?

The supplied frame size is 130 mm.

What is the weight of the MPL-A4530F-HK74AA?

The supplied weight is 7.3 kg.

What is the primary function of this motor?

The motor converts controlled electrical energy supplied by a compatible servo drive into mechanical rotary motion for an automated machine.

What applications can use this servo motor?

Potential applications include packaging machinery, automated assembly systems, material handling, machine tools, robotics, production machinery, and other industrial motion-control applications.

Does the MPL-A4530F-HK74AA require a servo drive?

Yes. A servo motor normally operates as part of a larger motion-control system containing a compatible servo drive and controller.

What should be checked before installation?

Verify the complete motor model, nameplate information, frame size, mechanical mounting, feedback arrangement, motor wiring, servo drive, controller configuration, and machine requirements.

What can cause inaccurate positioning?

Possible causes include feedback problems, incorrect configuration, mechanical backlash, coupling problems, excessive load, machine wear, or servo tuning conditions.

What should be checked when excessive vibration occurs?

Inspect the motor mounting, shaft alignment, coupling, mechanical load, machine resonance, and servo configuration.

Can another MPL servo motor automatically replace the MPL-A4530F-HK74AA?

No. Replacement compatibility should be confirmed using the complete electrical, mechanical, feedback, and control-system requirements.

---

Conclusion

The Allen Bradley MPL-A4530F-HK74AA Servo Motor is an industrial AC servo motor designed for controlled rotary movement in automated machinery. With a supplied 130 mm frame size and 7.3 kg weight, it provides important physical characteristics for machine integration, mounting, handling, and replacement planning.

The MPL-A4530F-HK74AA operates as part of a closed-loop motion-control architecture in which the motion controller generates commands, the servo drive regulates motor operation, and the motor delivers mechanical movement to the machine. Feedback information supports continuous regulation of the motion process.

Potential applications include packaging equipment, automated assembly, material handling, machine tools, robotics, production machinery, and other industrial systems requiring repeatable and controlled movement.

For installation, commissioning, troubleshooting, and replacement, the complete MPL-A4530F-HK74AA model designation should be verified together with the motor nameplate, mechanical configuration, feedback arrangement, servo drive, and machine-axis requirements. Exact electrical and mechanical characteristics not specified here should be confirmed for the individual motor before final integration.

Proper mechanical alignment, correct servo-drive configuration, secure motor and feedback connections, controlled commissioning, and preventive maintenance can help support reliable operation of the Allen Bradley MPL-A4530F-HK74AA Servo Motor in industrial automation and precision motion-control applications.
