Product Overview

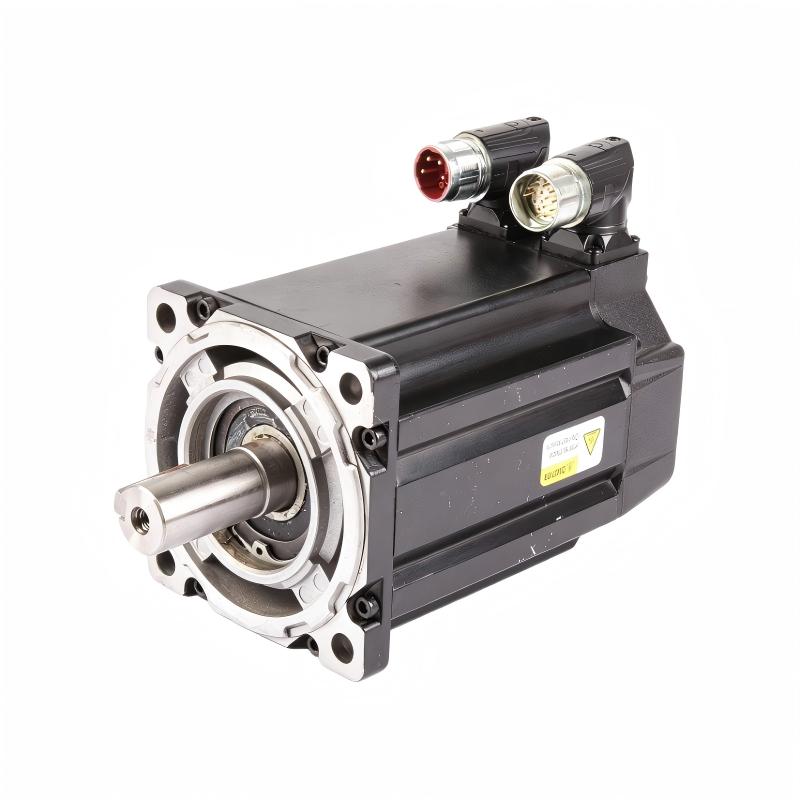

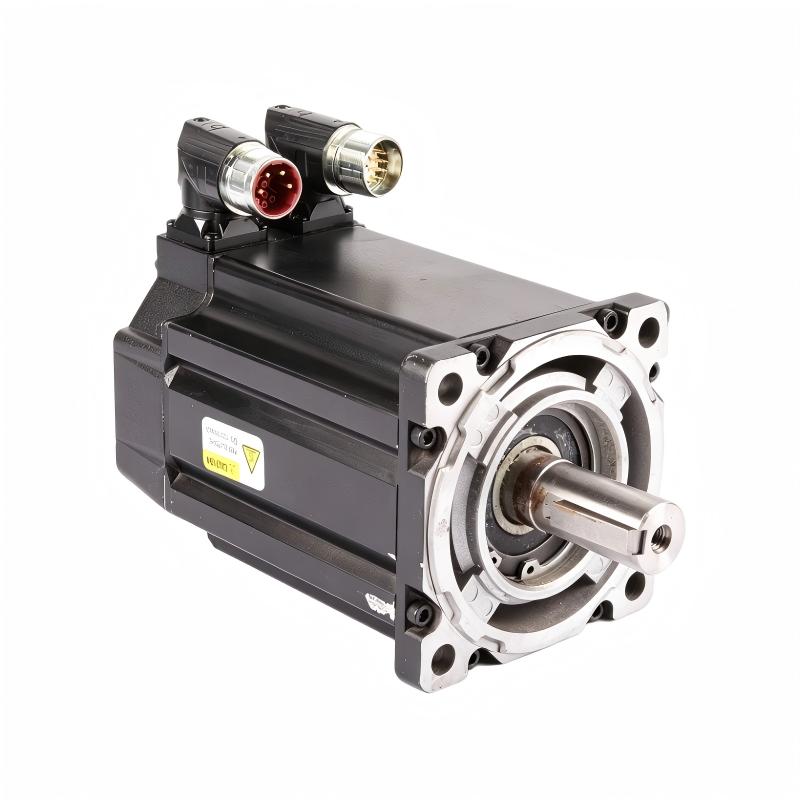

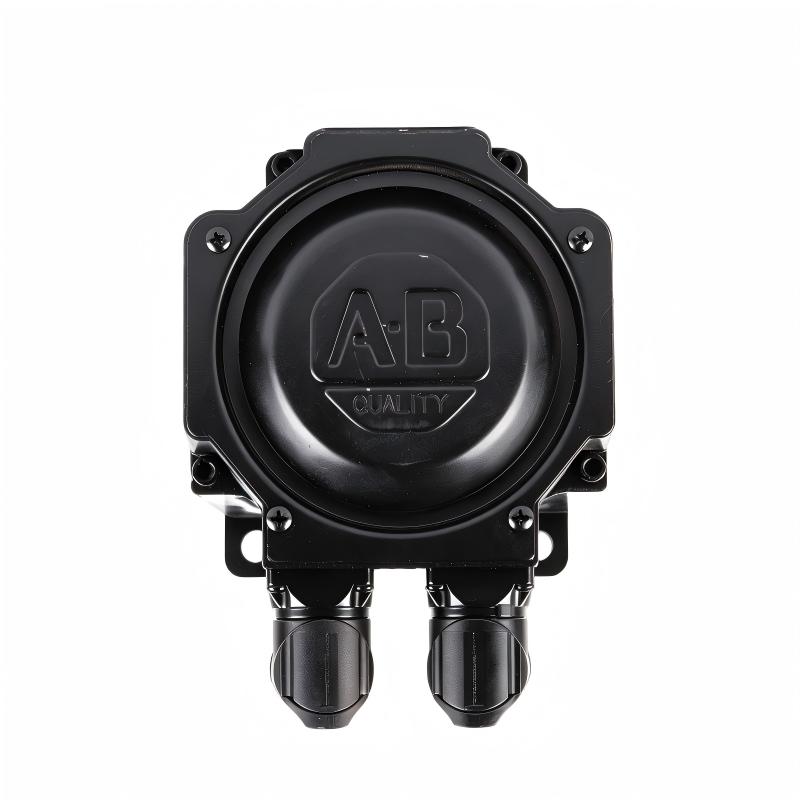

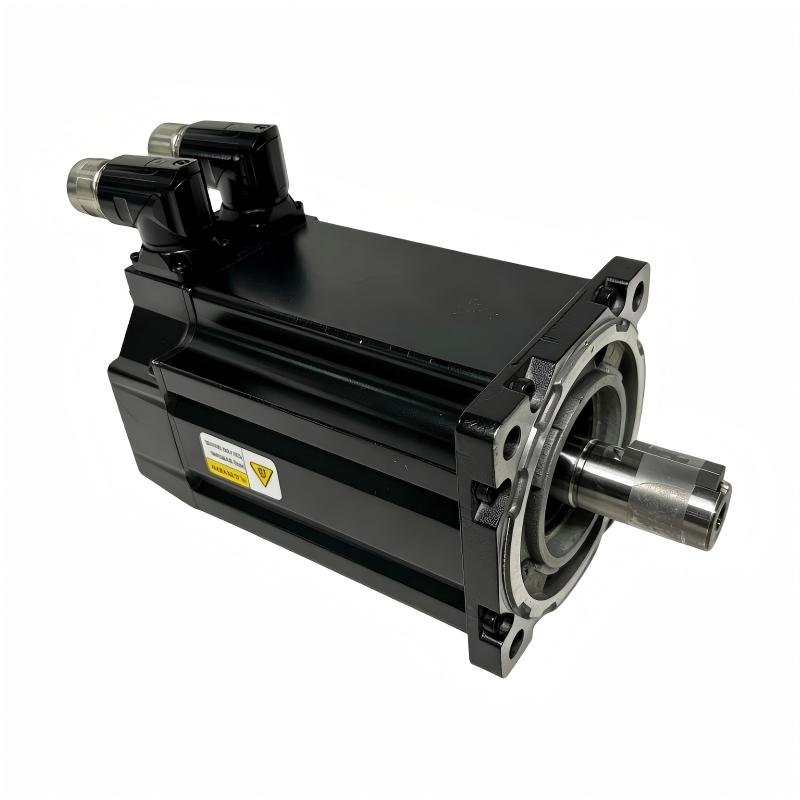

The Allen Bradley MPL-A4530F-HK72AA Servo Motor is an industrial AC servo motor designed for automated machinery requiring controlled rotary motion, repeatable positioning, coordinated movement, and responsive machine-axis operation. As a member of the Allen Bradley MPL servo motor family, the MPL-A4530F-HK72AA is intended to function as part of an integrated motion-control system rather than as a standalone motor.

The motor has a 130 mm frame size and a weight of 7.3 kg. These physical characteristics are important when evaluating machine mounting requirements, replacement compatibility, cabinet or machine-space planning, and motor-handling requirements.

In a typical industrial automation architecture, the motor works together with a motion controller and servo drive. The controller generates the desired motion command, the servo drive processes the command and supplies controlled electrical power to the motor, and the motor converts that electrical energy into mechanical rotation. Feedback within the servo system allows actual motion to be monitored and regulated.

A simplified architecture can be represented as:

Motion Controller → Servo Drive → MPL-A4530F-HK72AA Servo Motor → Mechanical Load

The MPL-A4530F-HK72AA can therefore support applications where machine movement needs to be controlled according to a defined position, speed, acceleration, deceleration, or synchronization requirement.

Exact electrical ratings, feedback characteristics, shaft dimensions, connector configuration, and other detailed performance specifications should be verified from the motor nameplate and applicable documentation for the specific installation.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A4530F-HK72AA
Product Family	MPL Servo Motor
Product Type	AC Servo Motor
Application Category	Industrial Motion Control
Frame Size	130 mm
Weight	7.3 kg
Primary Function	Precision rotary motion
Control Architecture	Closed-loop servo control
Typical System	Motion Controller + Servo Drive + Servo Motor
Installation	Machine-mounted
Feedback	Configuration dependent; verify before installation
Electrical Ratings	Verify from motor nameplate
Mechanical Configuration	Verify according to specific motor documentation

---

What Is the Allen Bradley MPL-A4530F-HK72AA?

The Allen Bradley MPL-A4530F-HK72AA is an industrial servo motor used to provide controlled rotary movement within automated equipment.

A servo motor is different from a basic motor application because it operates as part of a coordinated feedback-control system. The motor is commanded by a servo drive, while feedback information is used to help the control system determine the actual motion condition.

This arrangement is particularly useful when machinery needs controlled and repeatable movement.

Typical functions associated with a servo motor system include:

• Position control
• Speed regulation
• Controlled acceleration
• Controlled deceleration
• Repetitive indexing
• Axis synchronization
• Coordinated machine movement
• Automated positioning
• Motion-profile execution

The MPL-A4530F-HK72AA can therefore form the mechanical motion element of a larger Allen Bradley industrial automation architecture.

---

Servo Motor Working Principle

The MPL-A4530F-HK72AA operates according to the general principles of closed-loop servo control.

1. Motion Command

The automation controller determines the required machine movement according to the programmed sequence.

The command may represent a target position, movement profile, speed condition, or coordinated machine operation.

2. Servo Drive Processing

The servo drive receives the command and determines the electrical control required to produce the requested motor movement.

The drive is responsible for regulating the motor according to the configured control strategy.

3. Motor Operation

The MPL-A4530F-HK72AA converts the electrical input from the servo drive into mechanical rotary motion.

The motor shaft can drive a mechanical transmission such as a coupling, gearbox, belt, screw mechanism, or other machine mechanism.

4. Feedback

Feedback information is used by the servo system to monitor actual motor movement.

This information allows the drive and controller to compare the commanded condition with the actual operating condition.

5. Closed-Loop Regulation

When actual motion differs from the desired motion, the servo system can make appropriate corrections.

This closed-loop operation is one of the main reasons servo motors are used in precision industrial automation.

---

Main Functions of the MPL-A4530F-HK72AA

Precision Positioning

The motor can provide controlled rotary movement for machine axes that require repeatable positioning.

Speed Regulation

The servo drive controls motor operation according to the machine’s required speed profile.

Controlled Acceleration

Servo control allows machinery to accelerate according to a defined motion profile rather than simply starting at full operating speed.

Controlled Deceleration

Controlled deceleration can help coordinate stopping points and reduce unnecessary mechanical shock.

Repetitive Indexing

Automated machines can use servo motors to repeatedly move components between defined positions.

Multi-Axis Coordination

Several servo motors can operate under a common motion-control system for synchronized machine operations.

Dynamic Motion

Servo systems are suitable for machinery that frequently changes position, speed, or movement direction during normal operation.

---

Role in Industrial Automation

The MPL-A4530F-HK72AA can operate as an actuator within an industrial motion-control architecture.

A typical system can include:

PLC / Motion Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A4530F-HK72AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load

The feedback portion of the system provides information used for motion regulation.

This architecture allows the motor to participate in machine functions such as:

• Automated positioning
• Product indexing
• Conveyor synchronization
• Machine-axis movement
• Automated assembly
• Material handling
• Packaging operations
• Precision manufacturing

The actual system architecture depends on the machine design and selected control equipment.

---

Industrial Applications

Packaging Machinery

Packaging equipment frequently requires precise movement for product feeding, indexing, sealing, cutting, labeling, and other automated processes.

A servo motor can provide controlled movement of machine mechanisms while maintaining synchronization with the production sequence.

Automated Assembly

Assembly equipment may use servo-driven axes to position components during automated manufacturing.

Material Handling

Servo motors can control automated transfer mechanisms, conveyors, positioning systems, and other material-handling equipment.

Machine Tools

Machine tools require controlled movement of mechanical axes. A servo motor can provide the rotary motion required by a screw, gearbox, or other transmission mechanism.

Printing Machinery

Printing systems may require synchronization between different machine sections. Servo control can support coordinated movement across multiple axes.

Robotics

Robotic and automated mechanical systems frequently rely on servo motors for controlled movement.

Production Machinery

Automated production lines can use servo motors for repetitive positioning, indexing, and synchronized machine movement.

General Industrial Automation

The MPL-A4530F-HK72AA can be considered for industrial motion applications when its complete electrical, mechanical, feedback, and drive requirements match the machine design.

---

Mechanical Integration

Correct mechanical integration is essential for reliable operation.

Before mounting the MPL-A4530F-HK72AA, engineers should evaluate the complete mechanical arrangement.

Important considerations include:

• Motor mounting
• Frame size
• Shaft alignment
• Coupling arrangement
• Mechanical load
• Load inertia
• Bearing loading
• Machine vibration
• Installation clearance
• Cable routing

The supplied 130 mm frame size should be considered when checking the motor mounting arrangement.

The motor’s 7.3 kg weight should also be included in mechanical support and handling calculations.

Poor mechanical alignment may result in:

• Excessive vibration
• Coupling wear
• Increased bearing loading
• Mechanical noise
• Reduced positioning accuracy
• Premature component wear

Mechanical alignment should therefore be checked carefully during installation.

---

Servo Drive Integration

The MPL-A4530F-HK72AA should be used with a compatible servo drive selected according to the complete motor configuration.

The servo drive provides the electrical interface between the controller and motor.

A simplified control path is:

Motion Controller → Servo Drive → MPL-A4530F-HK72AA → Mechanical Load

Feedback information is used by the servo system to support closed-loop regulation.

Before commissioning, engineers should verify:

• Complete motor model
• Motor nameplate information
• Servo drive compatibility
• Feedback configuration
• Motor cable configuration
• Feedback cable configuration
• Drive parameters
• Controller configuration
• Mechanical load requirements

Compatibility should not be assumed solely from the MPL family designation.

---

Installation Guidelines

Verify the Product Model

Confirm that the motor is the correct Allen Bradley MPL-A4530F-HK72AA model before installation.

The complete model number should be compared with the machine’s original motor identification and control-system configuration.

Inspect the Motor

Before installation, inspect the motor for:

• Physical damage
• Connector damage
• Cable damage
• Contamination
• Corrosion
• Loose components
• Signs of improper storage

Prepare the Mounting Location

The mounting surface should provide adequate mechanical rigidity.

Sufficient clearance should be provided for installation, inspection, cable routing, and maintenance.

Align the Motor

The motor shaft should be correctly aligned with the connected mechanical equipment.

Alignment should be checked before normal operation.

Connect Motor Wiring

Connect the motor according to the applicable installation documentation.

Do not infer connector pin assignments solely from the model number.

Connect Feedback

Where the servo system uses feedback, verify that the feedback connection corresponds correctly with the selected servo drive.

Incorrect feedback connections may prevent normal servo operation.

Verify Grounding

Proper grounding and industrial wiring practices should be followed during installation.

---

Commissioning Procedure

A controlled commissioning process can help identify electrical and mechanical problems before the machine enters production.

Step 1: Mechanical Inspection

Confirm that the motor is securely mounted and mechanically connected.

Check that the driven mechanism can move without unexpected obstruction.

Step 2: Wiring Inspection

Verify motor connections, feedback connections, grounding, and cable routing.

Step 3: Motor Configuration

Confirm that the servo drive is configured for the installed motor.

Step 4: Controller Configuration

Check the motion-control program and verify that the intended axis is assigned to the correct servo system.

Step 5: Initial Motion Test

Perform a controlled low-risk movement test.

Observe:

• Rotation direction
• Motor response
• Vibration
• Noise
• Drive status
• Fault indications

Step 6: Motion Profile Test

Test the required positioning, acceleration, deceleration, and synchronization functions.

Step 7: Production Validation

Run representative machine cycles and confirm that the complete motion system performs consistently.

---

Troubleshooting the MPL-A4530F-HK72AA

Motor Does Not Start

Possible causes include:

• Servo drive fault
• Incorrect motor configuration
• Missing motion command
• Wiring problem
• Feedback problem
• Mechanical obstruction
• Controller configuration problem

The controller, drive, motor, and feedback path should be inspected as a complete system.

Motor Rotates in the Wrong Direction

Unexpected motor direction can be related to machine configuration, motion commands, axis settings, or wiring.

Verify the configured axis direction and machine sequence before making wiring changes.

Excessive Vibration

Possible causes include:

• Mechanical misalignment
• Loose mounting
• Coupling problems
• Machine resonance
• Excessive load
• Servo tuning issues
• Mechanical damage

Mechanical inspection should be performed before replacing the motor.

Positioning Error

Positioning inaccuracies may result from:

• Feedback problems
• Incorrect configuration
• Mechanical backlash
• Coupling problems
• Excessive mechanical load
• Machine wear
• Servo tuning conditions

Both mechanical and electrical factors should be evaluated.

Intermittent Faults

Intermittent servo problems may be associated with:

• Loose connectors
• Damaged cables
• Feedback interruptions
• Electrical interference
• Mechanical vibration
• Configuration problems
• Environmental conditions

Reviewing drive fault history and the conditions under which the fault occurs can help narrow the cause.

---

Maintenance Recommendations

Inspect Mounting Hardware

Check motor mounting hardware periodically for looseness.

Check Motor and Feedback Cables

Inspect cables for abrasion, excessive bending, damage, loose connectors, or contamination.

Monitor Vibration

Unexpected changes in vibration may indicate mechanical alignment problems or changes in the connected machine.

Monitor Temperature

Unusual temperature increases should be investigated rather than treated as normal operating behavior.

Inspect the Mechanical Transmission

The servo motor should not automatically be identified as the source of a machine-motion problem.

Inspect connected:

• Couplings
• Gearboxes
• Belts
• Screws
• Bearings
• Mechanical guides
• Other transmission components

Maintain the Installation Environment

Keep the motor and surrounding equipment in a suitable industrial environment and protect the installation from unnecessary contamination or mechanical damage.

---

Physical Dimensions and Weight

The supplied physical specifications for the Allen Bradley MPL-A4530F-HK72AA are:

Physical Parameter	Value
Frame Size	130 mm
Weight	7.3 kg

The 130 mm frame size should be considered when evaluating mounting compatibility and machine-space requirements.

The 7.3 kg weight should be considered when handling, transporting, supporting, and mounting the motor.

Exact overall motor dimensions, shaft dimensions, mounting-hole details, connector orientation, and other mechanical characteristics should be verified from the applicable documentation before detailed mechanical design.

---

Servo System Architecture

The MPL-A4530F-HK72AA is normally integrated into a complete servo-control architecture.

A simplified system can be represented as:

PLC / Motion Controller
↓
Motion Profile
↓
Servo Drive
↓
MPL-A4530F-HK72AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load

The feedback system provides information needed for closed-loop motion regulation.

In a multi-axis machine, multiple servo motors can operate under coordinated controller commands, allowing several machine mechanisms to work together.

This architecture is useful in automated production equipment where timing, position, and movement must be coordinated.

---

Replacement Considerations

When replacing an existing MPL-A4530F-HK72AA, the complete model identification should be checked carefully.

Important information includes:

• Full motor model
• Frame size
• Motor nameplate
• Feedback configuration
• Mechanical mounting
• Shaft configuration
• Connector arrangement
• Servo drive
• Controller configuration
• Machine-axis application

The supplied 130 mm frame size and 7.3 kg weight are useful physical identification characteristics, but they are not sufficient by themselves to establish interchangeability.

A replacement motor should match the complete electrical, mechanical, feedback, and control requirements of the original installation.

---

Engineering Best Practices

Evaluate the Complete Servo System

The motor should be considered together with the servo drive, controller, feedback system, and mechanical load.

Maintain Shaft Alignment

Correct alignment reduces unnecessary mechanical loading and can improve machine reliability.

Verify Drive Configuration

Incorrect motor configuration can result in servo faults, poor positioning, or unexpected motion.

Reduce Mechanical Backlash

Mechanical backlash can reduce positioning accuracy even when the servo motor and drive are functioning normally.

Protect Feedback Connections

Feedback wiring is an important part of the closed-loop control system. Proper installation and cable routing can help reduce intermittent signal problems.

Record Installation Information

Document the motor model, drive configuration, machine axis, wiring arrangement, and commissioning settings for future maintenance.

---

Key Advantages

The Allen Bradley MPL-A4530F-HK72AA Servo Motor provides characteristics suitable for industrial motion-control applications:

• 130 mm frame size
• 7.3 kg weight
• Industrial AC servo motor design
• Closed-loop motion-control architecture
• Suitable for precision positioning
• Suitable for repetitive motion
• Suitable for coordinated machine-axis operation
• Supports controlled acceleration and deceleration
• Suitable for automated manufacturing equipment
• Can be integrated into industrial servo systems when correctly matched

---

Technical FAQs

What is the Allen Bradley MPL-A4530F-HK72AA?

The Allen Bradley MPL-A4530F-HK72AA is an industrial AC servo motor intended for use in automated closed-loop motion-control systems.

What is the frame size of the MPL-A4530F-HK72AA?

The supplied frame size is 130 mm.

How much does the MPL-A4530F-HK72AA weigh?

The supplied weight is 7.3 kg.

What is the primary function of this servo motor?

The motor converts controlled electrical power from a compatible servo drive into mechanical rotary motion for an automated machine.

What types of equipment can use this motor?

Potential applications include packaging machinery, assembly equipment, material handling systems, machine tools, robotics, automated production lines, and other industrial motion-control equipment.

Does the MPL-A4530F-HK72AA operate as a standalone motor?

No. A servo motor normally operates as part of a larger system consisting of a motion controller, compatible servo drive, feedback system, and mechanical load.

What should be checked before installing the motor?

The complete model number, motor nameplate, frame size, mechanical mounting, feedback arrangement, motor wiring, servo drive, and controller configuration should be verified.

What can cause positioning errors?

Possible causes include feedback problems, incorrect configuration, mechanical backlash, coupling problems, excessive load, mechanical wear, or servo tuning conditions.

What should be checked if the motor vibrates excessively?

Inspect mounting, shaft alignment, coupling condition, mechanical load, machine resonance, and servo configuration.

Can another MPL motor replace the MPL-A4530F-HK72AA?

A different MPL motor should not automatically be considered interchangeable. Complete electrical, mechanical, feedback, and control-system compatibility should be verified before replacement.

---

Conclusion

The Allen Bradley MPL-A4530F-HK72AA Servo Motor is an industrial AC servo motor designed to provide controlled rotary motion within automated machinery. Its supplied 130 mm frame size and 7.3 kg weight provide important physical information for machine integration, replacement planning, handling, and mounting.

The motor operates as part of a complete closed-loop motion-control system. A motion controller generates commands, a servo drive regulates motor operation, the MPL-A4530F-HK72AA produces mechanical movement, and feedback information supports continuous motion regulation.

The motor can be used in applications involving precision positioning, repetitive indexing, coordinated machine movement, material handling, packaging, assembly, machine tools, and general industrial automation when the complete system requirements are satisfied.

For installation and replacement, the full MPL-A4530F-HK72AA model designation should be verified together with the motor nameplate, mechanical configuration, feedback arrangement, servo drive, and machine-axis requirements. Exact electrical and mechanical characteristics not specified here should be confirmed for the individual motor before commissioning.

Proper mechanical alignment, correct drive configuration, secure wiring, controlled commissioning, and preventive maintenance can help support reliable operation of the MPL-A4530F-HK72AA in industrial motion-control applications.
