Product Overview

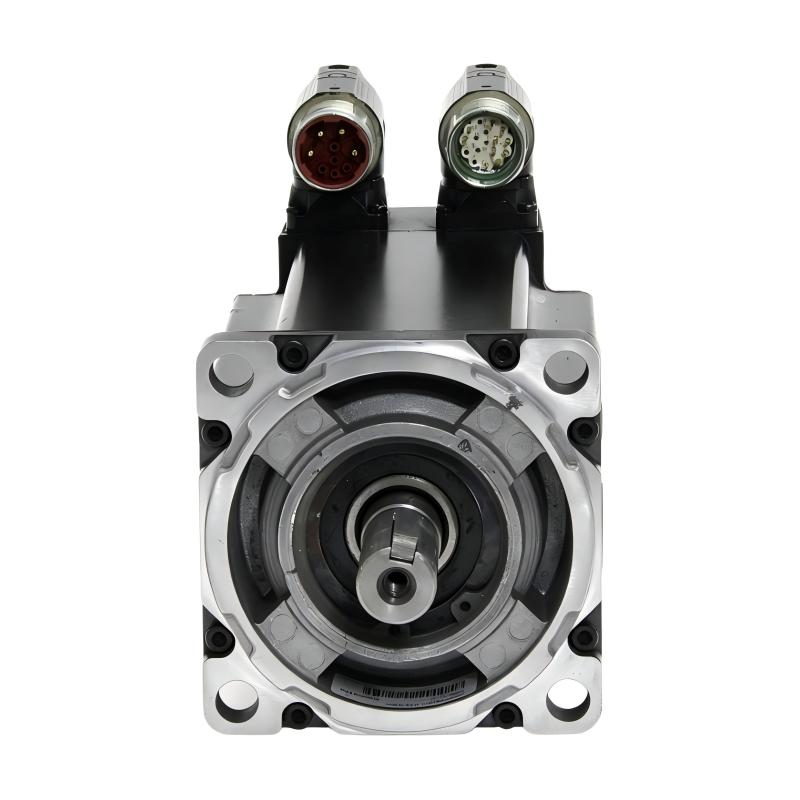

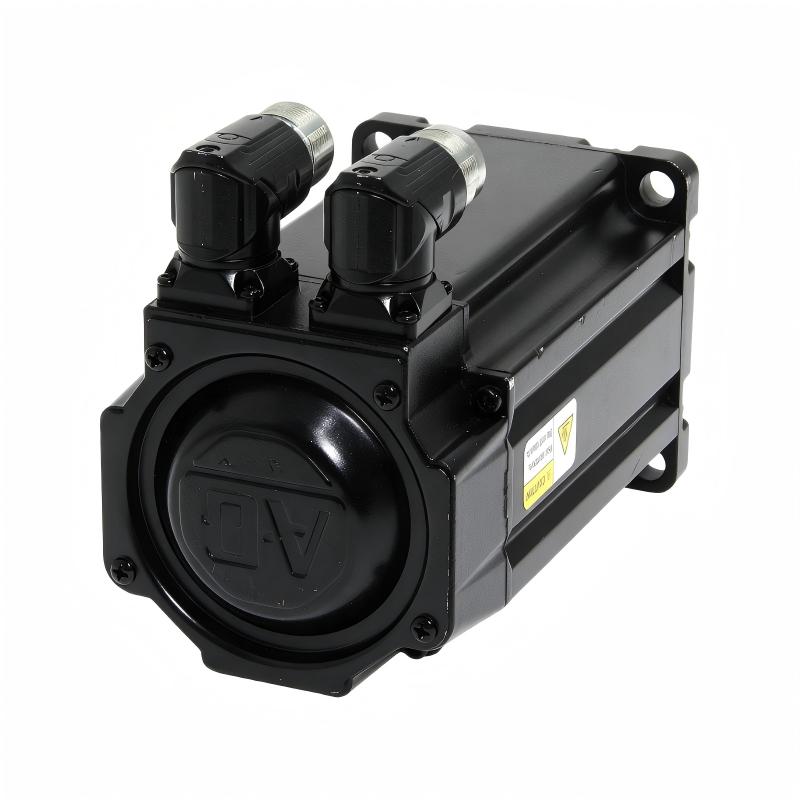

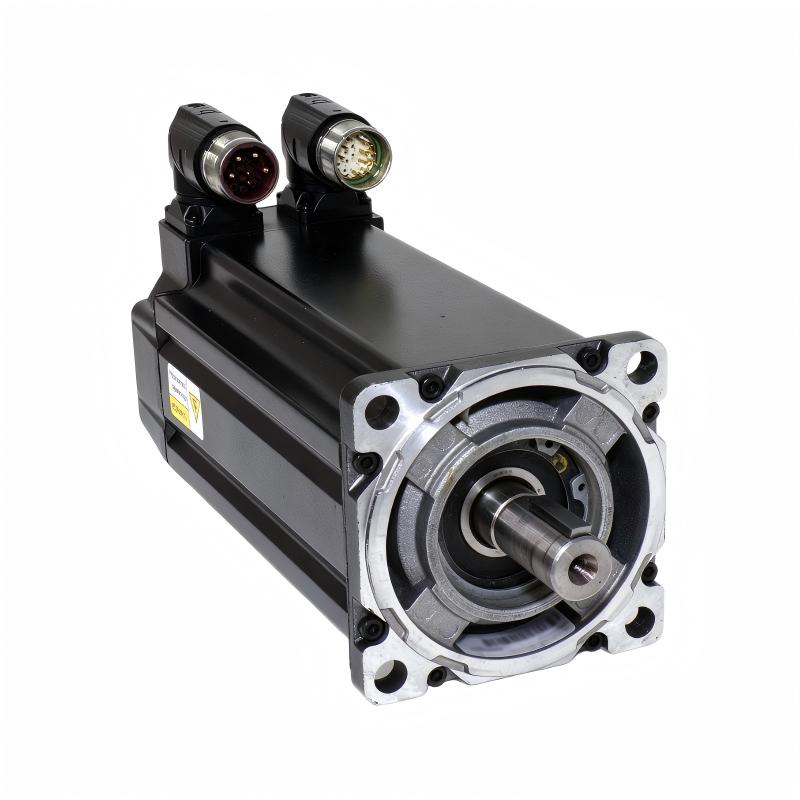

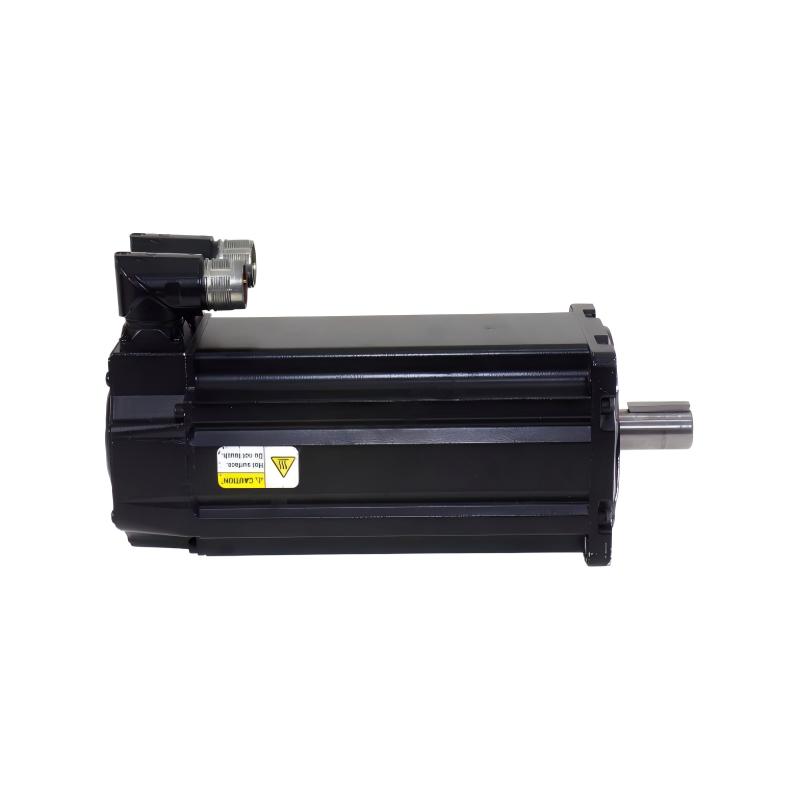

The Allen Bradley MPL-A4530F-HJ72AA Servo Motor is an industrial AC servo motor designed for precision motion-control applications where accurate positioning, controlled acceleration, repeatable movement, and coordinated machine operation are required. As part of the Allen Bradley MPL family of servo motors, the MPL-A4530F-HJ72AA can be incorporated into integrated motion-control systems where a servo drive, controller, feedback system, and mechanical load work together as a closed-loop automation architecture.

With a 130 mm frame size and a weight of 7.3 kg, the MPL-A4530F-HJ72AA provides a substantial mechanical platform for industrial machinery requiring controlled rotary motion. Its application can extend across automated manufacturing equipment, material handling systems, packaging machinery, machine tools, assembly equipment, and other precision motion applications.

A servo motor differs from a conventional induction motor because it operates as part of a coordinated motion-control system. The motor does not simply rotate continuously at a fixed operating condition. Instead, its motion is controlled through commands from the automation system and servo drive, while feedback is used to monitor motor position and movement.

A typical architecture can be represented as:

Motion Controller → Servo Drive → MPL-A4530F-HJ72AA Servo Motor → Mechanical Load

with feedback information returning through the motor/drive control system to support accurate motion regulation.

The exact electrical ratings, feedback configuration, shaft arrangement, connector configuration, and performance characteristics should be verified against the motor nameplate and the applicable technical documentation for the specific MPL-A4530F-HJ72AA unit.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A4530F-HJ72AA
Product Family	MPL Servo Motor
Product Type	AC Servo Motor
Motor Category	Industrial Motion-Control Motor
Frame Size	130 mm
Weight	7.3 kg
Primary Function	Precision rotary motion control
Control Method	Closed-loop servo control
Typical System	Servo Drive + Motion Controller + Motor
Application	Industrial Automation and Precision Motion
Installation	Machine-mounted
Feedback	Verify according to motor configuration
Electrical Ratings	Verify according to nameplate and application documentation

---

What Is the Allen Bradley MPL-A4530F-HJ72AA?

The MPL-A4530F-HJ72AA is an Allen Bradley industrial servo motor intended for integration into automated motion systems.

Servo motors are commonly used when a machine needs controlled movement rather than simple motor rotation. In a servo application, the automation controller generates a motion command, the servo drive processes that command, and the motor produces the required mechanical movement.

The feedback system provides information about motor behavior so that the drive can continuously regulate operation.

This closed-loop arrangement enables the automation system to perform tasks such as:

• Positioning
• Speed regulation
• Controlled acceleration
• Controlled deceleration
• Repetitive indexing
• Coordinated machine movement
• Electronic synchronization
• Motion profile execution

The MPL-A4530F-HJ72AA therefore functions as one component of a larger motion-control architecture rather than as an isolated motor.

---

Servo Motor Working Principle

The operating principle of the MPL-A4530F-HJ72AA can be understood through the interaction of the controller, drive, motor, feedback system, and mechanical load.

1. Motion Command

The machine controller determines the required movement based on the programmed motion sequence.

For example, the controller may request the motor to move a machine axis to a particular position or follow a defined speed profile.

2. Servo Drive Processing

The servo drive receives the command and determines the electrical control signals required by the motor.

The drive regulates motor operation according to the required motion profile.

3. Motor Rotation

The MPL-A4530F-HJ72AA converts electrical energy into mechanical rotational motion.

The motor shaft transfers torque to the connected machine mechanism.

4. Feedback

Feedback information is used by the servo system to determine the actual motor position or movement condition.

The drive compares the commanded condition with the actual operating condition and continuously adjusts motor control.

5. Closed-Loop Correction

If the actual motor movement differs from the commanded motion, the servo control system can make corrections.

This closed-loop process is fundamental to precision industrial motion control.

---

Main Functions of the MPL-A4530F-HJ72AA

The MPL-A4530F-HJ72AA can contribute to several important functions in an automated machine.

Precision Positioning

Servo systems can move machine axes to defined positions with high repeatability when correctly configured and mechanically integrated.

Speed Control

The servo drive controls motor speed according to the required machine operation.

Acceleration and Deceleration

Controlled acceleration and deceleration help reduce mechanical shock and allow machines to follow programmed motion profiles.

Coordinated Motion

Multiple servo axes can be coordinated by the motion controller for synchronized machine operations.

Repetitive Motion

Servo motors are well suited to applications that repeatedly perform the same positioning or movement cycle.

Dynamic Machine Operation

A properly configured servo system can respond to changing motion commands and load conditions during automated production.

---

Role in Industrial Automation

The MPL-A4530F-HJ72AA can serve as the rotating actuator within an industrial motion-control system.

A complete automation architecture may contain:

PLC or Motion Controller → Servo Network → Servo Drive → MPL Servo Motor → Mechanical Transmission → Machine Axis

The controller determines the required machine sequence, while the servo drive handles the electrical control of the motor.

The motor then provides the mechanical output required by the machine.

This architecture is particularly useful when machine operations require coordinated movement rather than basic motor starting and stopping.

The MPL-A4530F-HJ72AA can therefore be considered part of the motion layer of an industrial automation system.

---

Industrial Applications

Packaging Machinery

Servo motors are widely used in packaging equipment where precise positioning and synchronization are important.

Typical operations may include:

• Product indexing
• Conveyor synchronization
• Material positioning
• Cutting operations
• Sealing mechanisms
• Labeling systems

Material Handling

Automated material-handling systems can use servo motors for controlled positioning of conveyors, transfer mechanisms, and automated axes.

Machine Tools

Precision machine tools require controlled axis movement and repeatable positioning. Servo motors can provide the mechanical motion required by these systems.

Assembly Machinery

Automated assembly equipment frequently uses servo-driven mechanisms to position components accurately.

Robotics and Automation Equipment

Servo motors are fundamental components in many robotic and automated mechanical systems where controlled movement is required.

Printing Machinery

Printing equipment often requires synchronized movement between multiple machine sections. Servo control can help maintain coordinated motion.

Semiconductor and Electronics Equipment

Precision automation equipment may use servo motors for controlled positioning and repetitive machine movement.

General Manufacturing

The MPL-A4530F-HJ72AA can be considered for industrial machines requiring closed-loop rotary motion control when its complete electrical and mechanical specifications match the application.

---

Mechanical Integration

Correct mechanical integration is essential for reliable servo motor operation.

Before installation, engineers should evaluate:

• Motor mounting arrangement
• Coupling method
• Mechanical load
• Shaft alignment
• Bearing loads
• Inertia relationship
• Machine vibration
• Available installation space
• Cable routing
• Environmental conditions

The supplied 130 mm frame size should be considered during machine design and replacement planning.

The motor’s 7.3 kg weight should also be considered when designing mounting brackets, motor supports, machine frames, and handling procedures.

Improper mechanical alignment can create excessive loads and vibration, which may negatively affect motor and machine performance.

---

Servo Drive Integration

The MPL-A4530F-HJ72AA should be integrated with a compatible servo drive and motion-control system.

The drive serves as the electrical interface between the automation controller and motor.

A typical system includes:

Controller → Motion Command → Servo Drive → Motor → Mechanical Load

Feedback information is returned to the drive/control architecture to support closed-loop motion regulation.

Before commissioning, the engineer should verify:

• Servo motor model
• Motor nameplate information
• Servo drive compatibility
• Feedback configuration
• Motor cable arrangement
• Control architecture
• Drive parameter settings
• Mechanical load requirements

The exact compatible drive and feedback configuration should be confirmed from the complete motor part number and system documentation rather than assumed from the MPL family designation alone.

---

Installation Guidelines

Verify the Motor Identification

Before installation, confirm that the motor is the correct Allen Bradley MPL-A4530F-HJ72AA model.

Record the motor identification information and compare it with the machine’s existing configuration.

Inspect the Motor

Before mounting, inspect the motor for:

• Physical damage
• Damaged connectors
• Damaged cable components
• Contamination
• Corrosion
• Loose mounting hardware
• Signs of improper storage

Do not install a motor that shows unexplained physical damage.

Prepare the Mounting Surface

The mounting surface should be mechanically rigid and suitable for the motor frame.

Because the motor has a 130 mm frame size, adequate mounting clearance should be provided.

Align the Mechanical Load

Motor and load alignment is important.

Misalignment may cause:

• Vibration
• Excessive bearing loading
• Coupling wear
• Mechanical noise
• Reduced machine accuracy

Connect the Motor

Connect the motor according to the applicable wiring and system documentation.

Do not assume connector pin assignments solely from the model number.

Connect Feedback

If the application uses a motor feedback system, ensure that the feedback connection is correctly matched to the servo drive.

Incorrect feedback wiring can prevent proper closed-loop operation.

Verify Grounding

Appropriate grounding and cable installation practices should be followed to reduce electrical interference and improve system reliability.

---

Commissioning Procedure

A structured commissioning procedure helps reduce startup problems.

Step 1: Verify Installation

Check the motor mounting, mechanical coupling, cables, connectors, and grounding.

Step 2: Confirm Motor Data

Verify the motor nameplate information against the configured servo drive parameters.

Step 3: Verify Drive Configuration

The servo drive should be configured for the correct motor and feedback arrangement.

Step 4: Check Mechanical Movement

Before applying the full operating command, verify that the connected machine mechanism can move freely and safely.

Step 5: Perform Initial Servo Test

Use a controlled commissioning procedure to test basic motor movement.

Monitor:

• Motor direction
• Vibration
• Noise
• Following behavior
• Drive status
• Fault indications

Step 6: Test Motion Profile

After basic movement is verified, test the machine’s intended positioning, acceleration, and deceleration functions.

Step 7: Validate Production Operation

Run the machine through representative operating cycles and confirm that the servo system performs consistently.

---

Troubleshooting the MPL-A4530F-HJ72AA

Motor Does Not Rotate

Possible causes include:

• Incorrect drive configuration
• Missing control command
• Drive fault
• Incorrect motor connection
• Feedback problem
• Mechanical obstruction
• Incorrect parameter configuration

The controller, drive, motor, and feedback system should be checked as a complete system.

Motor Rotates in the Wrong Direction

Incorrect direction can be associated with motion configuration, command settings, wiring, or machine configuration.

Verify the intended direction through the control system and applicable commissioning documentation.

Excessive Vibration

Possible causes include:

• Mechanical misalignment
• Loose mounting
• Coupling problems
• Machine resonance
• Excessive mechanical load
• Incorrect servo tuning
• Mechanical damage

Mechanical causes should be investigated before replacing the motor.

Positioning Error

Positioning problems may be related to:

• Incorrect servo configuration
• Feedback issues
• Mechanical backlash
• Coupling problems
• Excessive load
• Incorrect tuning
• Mechanical wear

The complete motion-control system should be evaluated.

Servo Fault

When a servo fault occurs, first record the drive fault information.

Check:

• Motor wiring
• Feedback wiring
• Drive status
• Motor configuration
• Mechanical load
• Controller commands
• Environmental conditions

Avoid replacing the motor before identifying the actual fault condition.

---

Maintenance Recommendations

Although servo motors are designed for industrial operation, preventive maintenance remains important.

Inspect Mounting Hardware

Periodically inspect motor mounting hardware for looseness or mechanical movement.

Check Cable Connections

Inspect motor and feedback connections for damage, looseness, contamination, or mechanical stress.

Monitor Vibration

Unexpected vibration can indicate mechanical alignment problems, coupling issues, bearing problems, or machine resonance.

Monitor Operating Temperature

Abnormal temperature increases should be investigated rather than ignored.

Inspect the Mechanical Transmission

The motor may be functioning correctly while the connected gearbox, coupling, belt, screw, or other mechanical component develops a problem.

Maintain Clean Installation Conditions

Keep the motor and surrounding machine area free from excessive contamination that could affect operation or cooling.

---

Physical Dimensions and Weight

The supplied mechanical information for the Allen Bradley MPL-A4530F-HJ72AA is:

Physical Parameter	Value
Frame Size	130 mm
Weight	7.3 kg

The 130 mm frame size is useful when determining mounting compatibility and available machine space.

The 7.3 kg weight should be considered when designing mechanical supports and when handling the motor during installation or replacement.

Other physical details, such as exact shaft dimensions, mounting-hole pattern, connector orientation, or overall envelope dimensions, should be verified from the applicable motor documentation before mechanical design work.

---

Servo System Architecture

The MPL-A4530F-HJ72AA normally functions as part of a complete servo system rather than as a standalone motor.

A simplified architecture is:

PLC / Motion Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A4530F-HJ72AA Servo Motor
↓
Mechanical Transmission
↓
Machine Axis / Load

Feedback information forms the closed-loop portion of the system.

This architecture allows the controller and servo drive to coordinate motor movement with the machine’s programmed operating sequence.

For multi-axis machinery, several servo motors may operate simultaneously under a coordinated motion-control strategy.

---

Replacement Considerations

When replacing an existing MPL-A4530F-HJ72AA, the complete model number should be checked carefully.

Important identification information includes:

• Manufacturer
• Complete motor model
• Frame size
• Motor nameplate
• Feedback configuration
• Connector arrangement
• Mechanical mounting
• Shaft configuration
• Existing servo drive
• Machine application

The 130 mm frame size and 7.3 kg weight provide useful physical identification information, but they should not be used alone to determine electrical or mechanical interchangeability.

A motor that appears physically similar may have different electrical, feedback, or mechanical characteristics.

For replacement projects, the complete part number and original machine configuration should therefore be verified before installation.

---

Engineering Best Practices

Several practices can improve the reliability of an MPL-A4530F-HJ72AA servo system.

Match the Complete System

Do not evaluate the motor separately from its servo drive, controller, feedback system, and mechanical load.

Check Motor and Drive Parameters

Incorrect motor parameters can lead to poor motion performance or drive faults.

Minimize Mechanical Backlash

Mechanical backlash can reduce positioning accuracy even when the servo motor and drive are operating correctly.

Use Proper Cable Routing

Power and feedback cables should be installed according to applicable industrial wiring practices.

Monitor Motion Performance

Monitoring position error, vibration, temperature, and drive status can help identify developing problems.

Document the Installation

Record the motor model, drive configuration, machine axis, wiring arrangement, and commissioning settings. This information can simplify future maintenance.

---

Key Advantages

The Allen Bradley MPL-A4530F-HJ72AA Servo Motor offers several characteristics suitable for industrial motion-control systems:

• 130 mm frame size
• 7.3 kg weight
• Industrial AC servo motor design
• Closed-loop motion-control capability
• Suitable for precision positioning applications
• Suitable for coordinated machine movement
• Compatible with servo-based automation architectures when properly matched
• Suitable for repetitive motion applications
• Supports controlled acceleration and deceleration
• Useful for automated manufacturing equipment
• Designed to operate as part of an integrated motion-control system

---

Technical FAQs

What is the Allen Bradley MPL-A4530F-HJ72AA?

The Allen Bradley MPL-A4530F-HJ72AA is an industrial AC servo motor intended for integration into closed-loop motion-control systems.

What is the frame size of the MPL-A4530F-HJ72AA?

The supplied frame size is 130 mm.

How much does the MPL-A4530F-HJ72AA weigh?

The supplied weight is 7.3 kg.

What is the main function of this servo motor?

Its primary function is to convert controlled electrical power from a compatible servo drive into precise mechanical rotary motion for an automated machine.

Where can the MPL-A4530F-HJ72AA be used?

Potential applications include packaging machinery, material handling equipment, machine tools, assembly systems, automated manufacturing equipment, and other precision motion-control applications.

Does the motor work independently?

No. A servo motor normally operates as part of a larger system consisting of a motion controller, servo drive, motor, feedback arrangement, and mechanical load.

What should be checked before replacing the motor?

The complete motor model, frame size, nameplate information, feedback configuration, mechanical mounting, shaft arrangement, servo drive, and machine application should be verified.

Can any servo drive be connected to the MPL-A4530F-HJ72AA?

A compatible servo drive must be selected according to the motor’s complete electrical and feedback configuration. Compatibility should be confirmed from the applicable technical documentation rather than assumed from the motor family alone.

What can cause servo positioning problems?

Positioning problems can result from incorrect configuration, feedback issues, mechanical backlash, coupling problems, excessive load, tuning issues, or other mechanical and electrical conditions.

How should the MPL-A4530F-HJ72AA be maintained?

Maintenance should include inspection of mounting hardware, cables, connectors, mechanical coupling, vibration, temperature, and overall machine condition.

---

Conclusion

The Allen Bradley MPL-A4530F-HJ72AA Servo Motor is an industrial motion-control motor designed to operate as part of a closed-loop servo architecture. With a supplied 130 mm frame size and 7.3 kg weight, it provides a substantial mechanical platform for automated equipment requiring controlled and repeatable rotary motion.

In a complete automation system, the motor works together with a compatible servo drive, motion controller, feedback system, and mechanical transmission. This arrangement allows industrial machinery to perform controlled positioning, speed regulation, acceleration, deceleration, indexing, and coordinated movement.

For installation and replacement, the complete MPL-A4530F-HJ72AA identification should be verified together with the motor nameplate, mechanical configuration, feedback arrangement, and associated servo drive. Exact electrical and mechanical characteristics not listed here should be confirmed for the specific motor before commissioning.

With correct system matching, mechanical alignment, electrical installation, commissioning, and preventive maintenance, the MPL-A4530F-HJ72AA can serve as a reliable component in precision industrial automation and motion-control applications.
