Product Overview

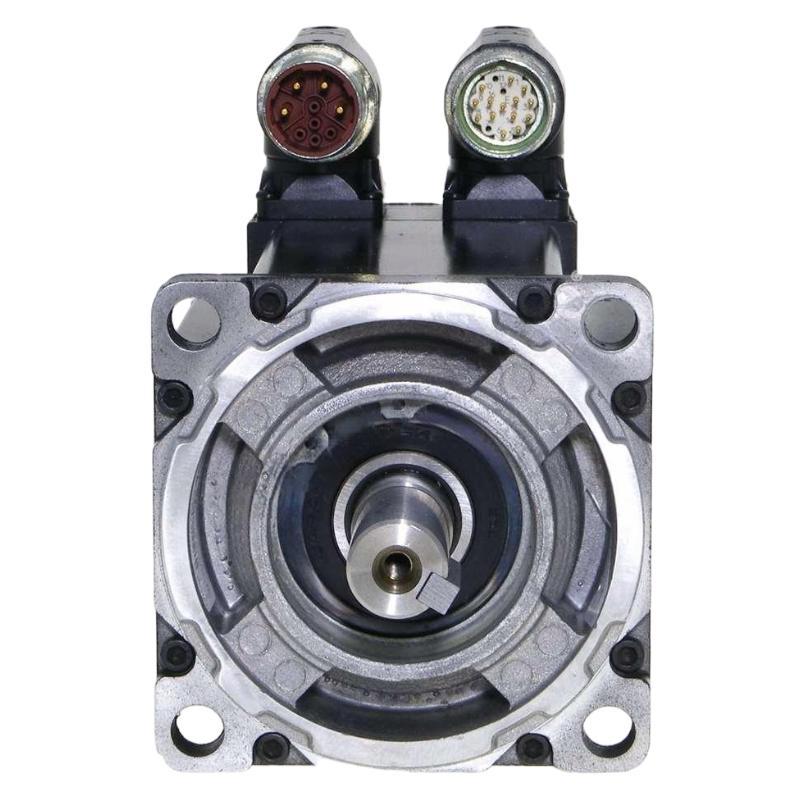

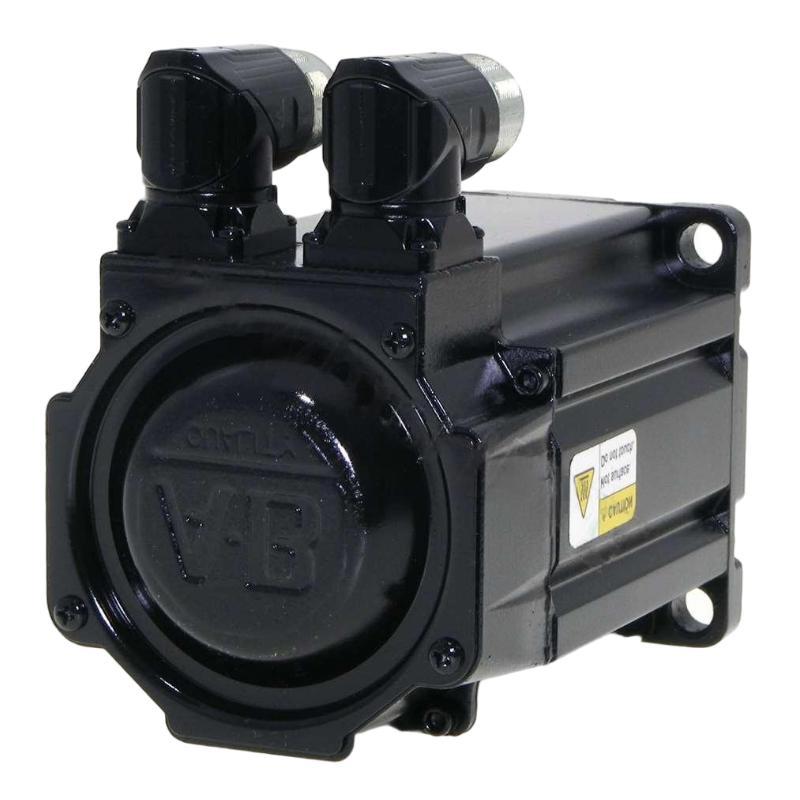

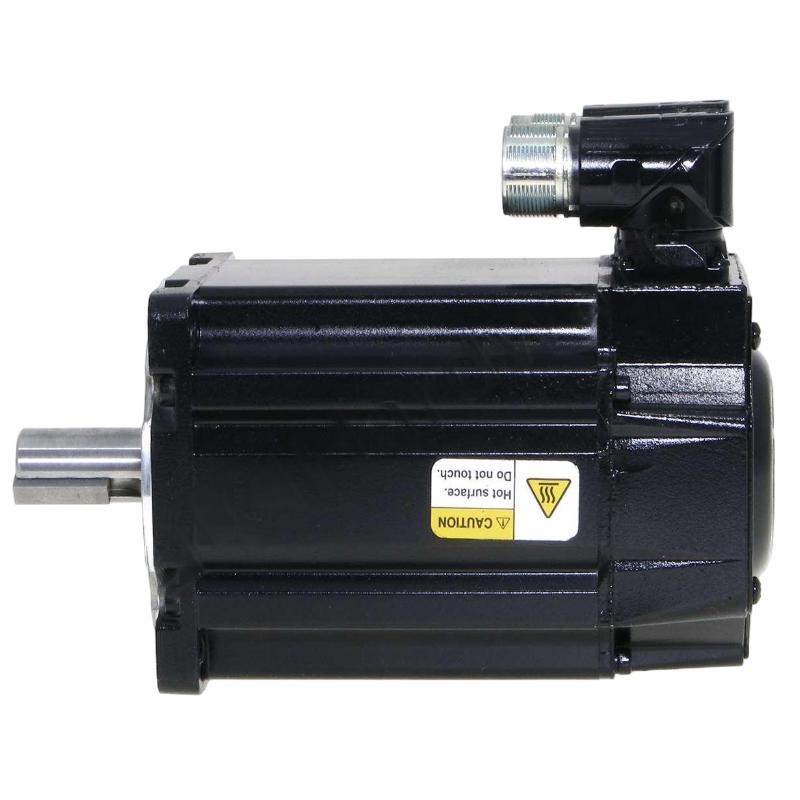

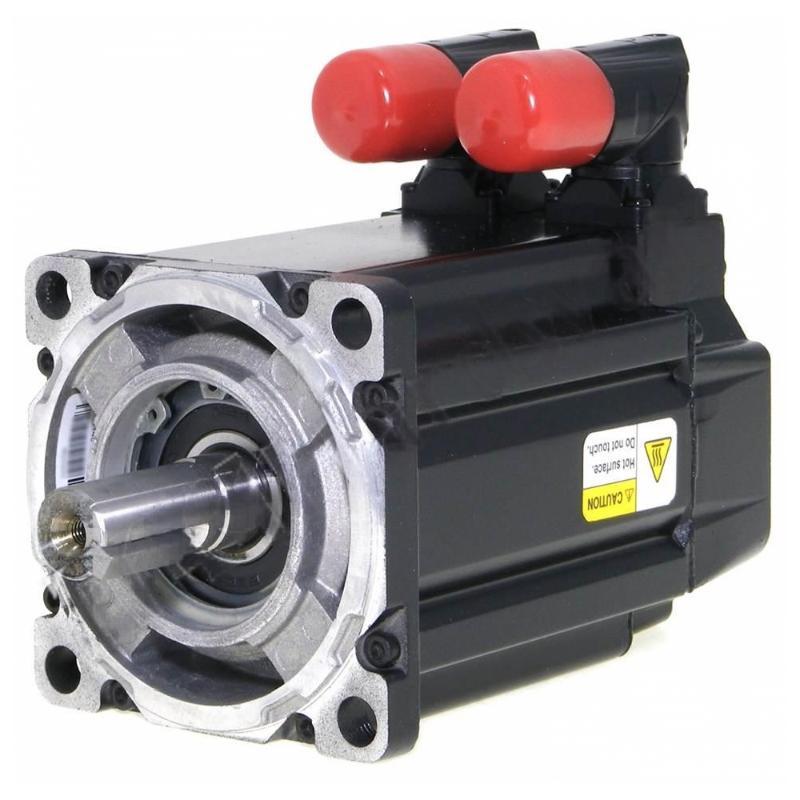

The Allen Bradley MPL-A420P-HJ74AA Servo Motor is an industrial AC servo motor designed for integration into automated motion-control systems. As a member of the Allen Bradley MPL servo motor family, the MPL-A420P-HJ74AA is intended for applications that require controlled rotary motion, repeatable positioning, coordinated machine movement, and responsive servo performance.
Servo motors are fundamental components in modern automation equipment because they provide controlled mechanical movement based on commands from a servo drive and motion controller. When properly integrated, the motor becomes part of a closed-loop motion system in which command signals, drive control, motor operation, and feedback work together to achieve the required machine movement.
The supplied specifications identify the MPL-A420P-HJ74AA with a 115 mm frame size and a weight of 4.3 kg. These physical parameters are useful when evaluating mechanical installation space, machine structure, replacement requirements, transportation, and spare-parts management.
The motor can be considered for industrial machinery such as packaging equipment, assembly systems, material handling machinery, automated production equipment, machine tools, and other applications requiring controlled servo motion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A420P-HJ74AA |
| Product Type | AC Servo Motor |
| Product Family | MPL Series |
| Motor Technology | Permanent Magnet Servo Motor |
| Frame Size | 115 mm |
| Weight | 4.3 kg |
| Application | Industrial Motion Control |
| Control Method | Closed-Loop Servo Control |
| Installation | Machine-Mounted |
| Drive Interface | Compatible Servo Drive |
| Feedback | Verify according to motor nameplate and system configuration |
| Electrical Ratings | Verify according to applicable motor documentation |
| Typical Applications | Packaging, Assembly, Material Handling, Machine Automation, Motion Systems |
Specification note: Exact rated speed, torque, voltage, current, feedback type, shaft dimensions, connector configuration, and other electrical or mechanical characteristics should be confirmed from the specific motor nameplate and applicable technical documentation before installation or replacement.
What Is the Allen Bradley MPL-A420P-HJ74AA?
The Allen Bradley MPL-A420P-HJ74AA is a servo motor designed to provide controlled rotary motion within an industrial automation system.
A servo motor normally operates together with a servo drive and motion controller rather than functioning as a standalone motor. The controller establishes the required motion profile, while the servo drive regulates the electrical power supplied to the motor. Feedback information allows the system to monitor actual motor operation and make continuous corrections.
A simplified motion-control architecture is:
Motion Controller → Servo Drive → MPL-A420P-HJ74AA → Mechanical Load
with feedback information returning to the servo control system.
This architecture allows the motor to participate in applications where speed, position, acceleration, and coordinated movement must be controlled.
The supplied 115 mm frame size provides an important reference for mechanical integration. The 4.3 kg weight should also be considered when designing the motor support structure and when planning maintenance or replacement operations.
Servo Motor Working Principle
The MPL-A420P-HJ74AA operates as one element of a closed-loop motion-control system.
The general operating process is:
- The motion controller generates a movement command.
- The servo drive receives and processes the command.
- The drive supplies controlled electrical power to the motor.
- The motor produces the required rotary motion.
- The mechanical system transfers the motor output to the machine load.
- Feedback information is monitored by the control system.
- The servo drive adjusts motor operation to maintain the desired motion.
This closed-loop process makes servo motors suitable for machinery requiring repeatable movement.
For example, an automated machine may command an axis to accelerate to a particular operating condition, move through a defined motion profile, decelerate, and reach a target position. The servo system continuously monitors operation throughout the movement.
The final motion performance depends on the motor, servo drive, controller, feedback system, mechanical transmission, load inertia, and servo tuning.
Main Functions
The MPL-A420P-HJ74AA can provide several important functions within an industrial motion-control system.
Controlled Rotary Motion
The motor converts electrical energy supplied by the servo drive into mechanical rotary movement.
Positioning
When used with an appropriate closed-loop servo system, the motor can participate in precise machine positioning.
Speed Regulation
The servo drive can control motor speed according to the programmed motion profile and machine requirements.
Acceleration and Deceleration
Controlled acceleration and deceleration allow the machine to transition between operating conditions in a predictable manner.
Repetitive Motion
Servo motors are well suited to automated equipment performing repeated machine cycles.
Coordinated Movement
Multiple servo axes can be coordinated by a motion controller for synchronized machine operations.
Role in Industrial Automation
The MPL-A420P-HJ74AA can function as the motor element of an automated motion axis.
In a typical automation system, the controller determines the required movement, while the servo drive translates the command into controlled electrical output for the motor.
A simplified architecture is:
PLC / Motion Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A420P-HJ74AA Servo Motor
↓
Mechanical Transmission
↓
Machine Load
Feedback is incorporated into the control loop so the system can monitor actual operation.
This arrangement is useful in machines where movement must be repeatable and coordinated with other machine functions.
Industrial Applications
Packaging Machinery
Servo motors are frequently used in packaging equipment for indexing, positioning, feeding, cutting, sealing, and other controlled movements.
The motor can be integrated into a larger motion system where machine operations must occur at repeatable positions and timings.
Automated Assembly
Assembly machinery often requires controlled movement of components, tools, fixtures, or workpieces.
Servo-controlled axes can provide the required repeatability for automated assembly sequences.
Material Handling
Automated transfer systems, positioning mechanisms, conveyors, and indexing equipment can use servo motors when controlled movement is required.
Machine Tools
Servo motors can be incorporated into machine-tool axes where coordinated movement and controlled positioning are necessary.
Printing and Converting
Printing, labeling, winding, and converting equipment can require coordinated motion between multiple mechanical elements.
Servo systems provide a method of synchronizing these movements.
Production Automation
Automated production equipment can use servo motors to execute repeatable machine cycles under PLC or motion-controller supervision.
Robotic Machinery
Servo motors are widely used in automated mechanisms and robotic equipment where controlled movement is required.
Mechanical Integration
The 115 mm frame size is an important consideration when installing the MPL-A420P-HJ74AA into a machine.
Before mechanical installation, engineers should verify:
- Mounting dimensions
- Mounting-hole arrangement
- Shaft dimensions
- Shaft extension
- Coupling type
- Mechanical alignment
- Available clearance
- Motor cable routing
- Load characteristics
- Environmental conditions
The supplied motor weight is 4.3 kg.
The mounting structure should therefore be designed to safely support the motor and the dynamic forces generated during operation.
Mechanical alignment is especially important. Improper shaft alignment can increase vibration, coupling stress, bearing loading, and overall machine wear.
Servo Drive Integration
The MPL-A420P-HJ74AA must be integrated with a compatible servo drive.
The correct drive should be selected based on the complete motor configuration rather than simply matching the manufacturer’s name.
Important compatibility considerations include:
- Complete motor model
- Motor electrical ratings
- Feedback configuration
- Servo drive capacity
- Control architecture
- Application load
- Motion requirements
- Safety requirements
- Cable and connector configuration
The drive should be configured using the correct motor parameters before the axis is placed into normal operation.
Installation Guidelines
Verify the Motor Model
Before installation, confirm that the motor identification matches MPL-A420P-HJ74AA.
Check the nameplate and available motor documentation.
Inspect the Motor
Inspect the housing, shaft, mounting surface, cables, and connectors for signs of physical damage.
Prepare the Mounting Structure
The machine mounting structure should be rigid and correctly dimensioned for the 115 mm frame size.
Install the Motor
Secure the motor using appropriate mounting hardware.
Avoid applying unnecessary impact or force to the motor shaft.
Align the Shaft
The motor shaft should be properly aligned with the driven mechanical system.
Use an appropriate coupling and verify the mechanical alignment before operation.
Connect the Motor
Connect motor power and feedback circuits to the compatible servo drive according to the applicable wiring requirements.
Verify Grounding
Ensure that the motor and machine grounding arrangement complies with the system’s electrical design and applicable safety requirements.
Commissioning Procedure
A systematic commissioning procedure can reduce the risk of incorrect movement or equipment damage.
1. Inspect All Connections
Check power, feedback, grounding, and control wiring.
2. Verify Drive Configuration
Confirm that the servo drive is configured for the correct motor.
3. Check Feedback Operation
Verify that the drive correctly detects the motor feedback system.
4. Check the Mechanical Axis
Ensure that the machine mechanism can move without interference or unexpected mechanical resistance.
5. Perform Initial Low-Speed Testing
Start with controlled motion and observe the motor and machine.
6. Verify Direction
Confirm that the commanded direction matches the actual mechanical direction.
7. Adjust Servo Tuning
Tune the motion axis according to the actual machine characteristics.
8. Verify Positioning
Check repeatability and positioning performance under controlled conditions.
9. Test the Complete Machine Sequence
After individual-axis testing has been completed, verify the complete automated machine cycle.
Troubleshooting
Motor Does Not Start
Possible causes include:
- Servo drive not enabled
- Incorrect motor parameters
- Missing motor power
- Feedback connection problem
- Drive alarm
- Control command problem
- Mechanical obstruction
The servo drive diagnostic information should be checked before replacing the motor.
Motor Rotates but Does Not Reach the Expected Position
Possible causes include:
- Incorrect feedback configuration
- Incorrect position scaling
- Mechanical backlash
- Coupling problems
- Incorrect motion parameters
- Servo tuning problems
Both the electronic control system and mechanical transmission should be inspected.
Excessive Vibration
Possible causes include:
- Shaft misalignment
- Coupling problems
- Machine resonance
- Incorrect servo tuning
- Excessive mechanical load
- Mechanical wear
Vibration should be evaluated across the complete motor and machine system.
Motor Temperature Is Too High
Possible causes may include:
- Excessive load
- Excessive duty cycle
- Poor cooling
- Mechanical resistance
- Incorrect operating conditions
- Incorrect drive configuration
The motor should be operated within its specified thermal and electrical limits.
Intermittent Servo Fault
An intermittent fault may originate from:
- Loose connectors
- Damaged cables
- Feedback problems
- Electrical interference
- Mechanical vibration
- Drive configuration
- Motor-related faults
Inspect the complete signal and power path rather than assuming the motor itself is defective.
Maintenance Recommendations
Regular inspection helps maintain reliable servo-system operation.
Inspect Mounting Hardware
Check that the motor remains securely mounted.
Check Mechanical Couplings
Inspect couplings for wear, looseness, or alignment problems.
Inspect Motor Cables
Look for abrasion, bending damage, loose connections, and other physical problems.
Monitor Operating Temperature
Unexpected temperature increases should be investigated.
Monitor Vibration
Changes in vibration can indicate mechanical or servo-control problems.
Check Connectors
Keep motor and feedback connectors clean, secure, and protected from mechanical damage.
Monitor Servo Performance
Changes in positioning accuracy, response, noise, or alarm frequency may indicate developing problems.
Replacement Considerations
When replacing an Allen Bradley MPL-A420P-HJ74AA, the complete model number should be checked carefully.
Important identification information includes:
- Manufacturer
- Full motor model
- Frame size
- Motor nameplate information
- Feedback configuration
- Mounting arrangement
- Shaft configuration
- Connector arrangement
- Compatible servo drive
- Machine application
The supplied physical specifications are:
Frame Size: 115 mm
Weight: 4.3 kg
A replacement should not be selected solely because it has the same frame size or similar physical appearance.
Electrical characteristics, feedback configuration, mechanical dimensions, and drive compatibility must also be confirmed.
Physical Size and Weight
The 115 mm frame size provides a useful mechanical classification for machine design and replacement planning.
The 4.3 kg weight is relevant for:
- Machine mounting
- Structural calculations
- Equipment transportation
- Maintenance handling
- Spare-parts management
- Packaging
- Replacement planning
Frame size does not represent the complete external dimensions of the motor. Exact overall length, shaft dimensions, mounting-hole locations, connector positions, and other mechanical details should be verified from the applicable motor drawing.
Servo System Architecture
A typical system incorporating the MPL-A420P-HJ74AA may contain several interconnected components.
| Component | Typical Function |
|---|---|
| PLC / Motion Controller | Generates motion commands |
| Servo Drive | Controls motor operation |
| MPL-A420P-HJ74AA | Provides rotary mechanical motion |
| Feedback System | Provides motion feedback |
| Motor Cable | Transfers electrical power and signals |
| Coupling | Connects the motor to the machine |
| Mechanical Load | Performs the required machine movement |
| HMI | Provides operator monitoring and control |
| Industrial Network | Exchanges control and diagnostic information |
The exact system architecture depends on the machine design and selected automation hardware.
Engineering Best Practices
Match the Motor to the Application
The motor should be selected according to the machine’s torque, speed, acceleration, duty cycle, and load requirements.
Evaluate Load Inertia
The inertia of the connected load affects servo response and tuning requirements.
Maintain Mechanical Alignment
Proper alignment helps reduce vibration and mechanical stress.
Protect Motor Cables
Power and feedback cables should be routed and protected appropriately.
Tune the Servo Axis
Servo tuning should be performed based on the actual machine mechanics rather than using arbitrary parameters.
Monitor Long-Term Performance
Trend monitoring can help identify changes in temperature, vibration, positioning behavior, or fault frequency.
Verify Replacement Parts
Always verify the complete model number before purchasing or installing a replacement motor.
Key Advantages
- 115 mm frame size for industrial machine integration
- 4.3 kg weight for practical installation and replacement handling
- Designed for closed-loop servo motion systems
- Suitable for controlled rotary movement
- Suitable for automated positioning applications
- Supports coordinated machine movement when properly integrated
- Applicable to packaging and assembly machinery
- Suitable for material-handling and production equipment
- Can be integrated into Allen Bradley motion-control systems when compatibility is confirmed
- Supports repeatable automated machine operation
Technical FAQs
What is the Allen Bradley MPL-A420P-HJ74AA?
The Allen Bradley MPL-A420P-HJ74AA is an industrial AC servo motor designed for use in automated motion-control applications.
What is the frame size?
The supplied frame size is 115 mm.
What is the weight of the MPL-A420P-HJ74AA?
The supplied weight is 4.3 kg.
What does the MPL-A420P-HJ74AA do?
The motor converts controlled electrical power from a compatible servo drive into mechanical rotary motion for an automated machine axis.
Is this motor suitable for PLC-based automation?
It can be used as part of a PLC- or motion-controller-based automation system when paired with a compatible servo drive and correctly configured motion architecture.
Can any servo drive be connected to this motor?
No. Servo-drive compatibility should be verified using the complete motor model, electrical requirements, feedback configuration, and system design.
What should be checked before installation?
The motor model, frame size, mounting arrangement, shaft configuration, feedback system, electrical characteristics, drive compatibility, wiring, and machine load should be verified.
Does the 115 mm frame size represent the complete motor dimensions?
No. Frame size is a mechanical reference and does not provide every external dimension. Detailed mechanical drawings should be consulted when designing mounting hardware or replacing an existing motor.
What can cause servo motor vibration?
Possible causes include mechanical misalignment, coupling problems, machine resonance, excessive load, incorrect servo tuning, or mechanical wear.
How should the MPL-A420P-HJ74AA be maintained?
Maintenance should include inspection of mounting hardware, mechanical couplings, motor cables, connectors, operating temperature, vibration, and overall servo-system performance.
Conclusion
The Allen Bradley MPL-A420P-HJ74AA Servo Motor is an industrial AC servo motor intended for controlled motion applications in automated machinery. With a supplied 115 mm frame size and 4.3 kg weight, the motor provides useful physical information for machine integration, mechanical design, maintenance, transportation, and replacement planning.
When combined with a compatible servo drive and motion controller, the MPL-A420P-HJ74AA can form part of a closed-loop motion-control system capable of supporting controlled rotary movement, positioning, acceleration and deceleration, repetitive machine cycles, and coordinated automation operations.
For reliable installation, the complete motor and servo system should be evaluated together. Motor identification, electrical characteristics, feedback configuration, mechanical mounting, shaft alignment, drive compatibility, and machine load requirements should all be verified before commissioning. Proper installation, servo tuning, cable management, and preventive inspection can help maintain stable performance throughout the service life of the automation system.
