Product Overview

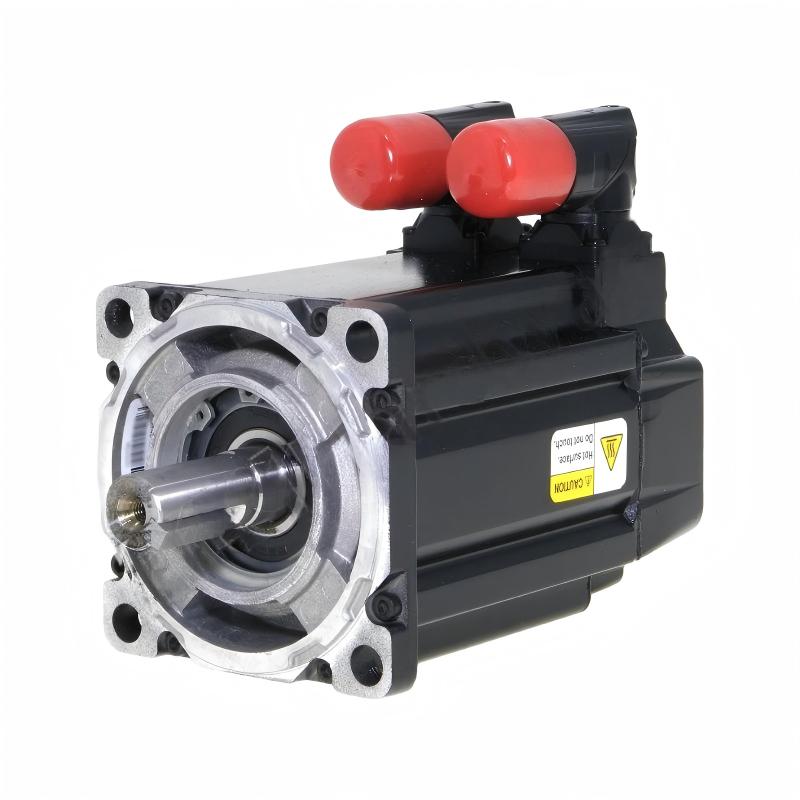

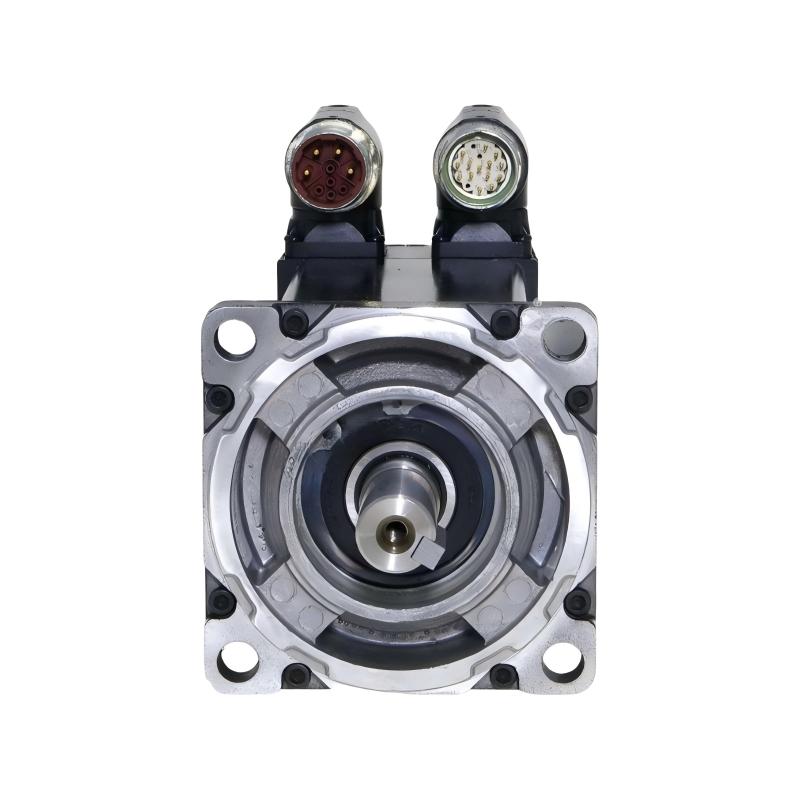

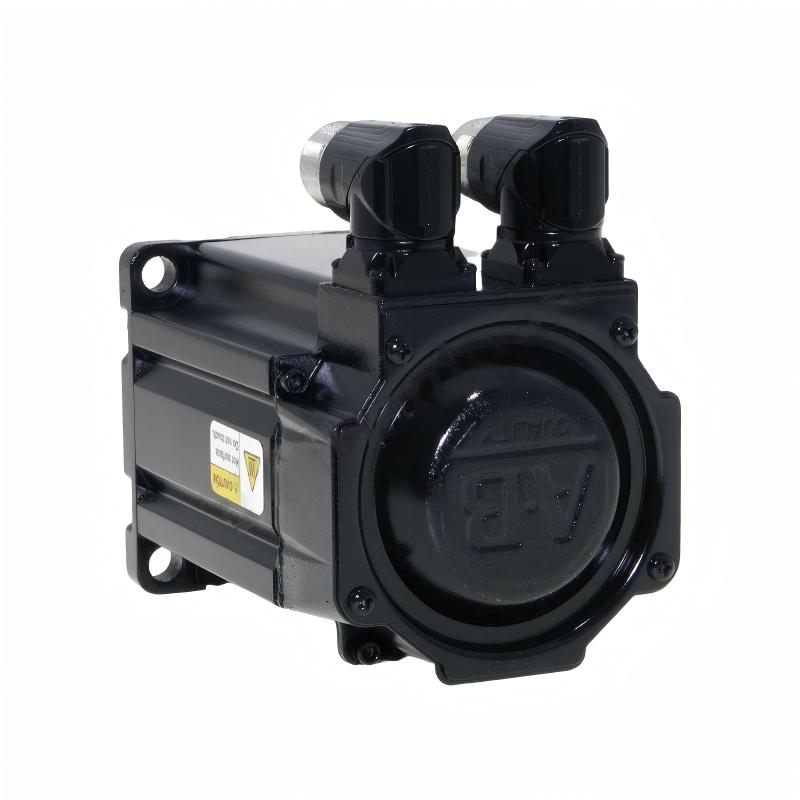

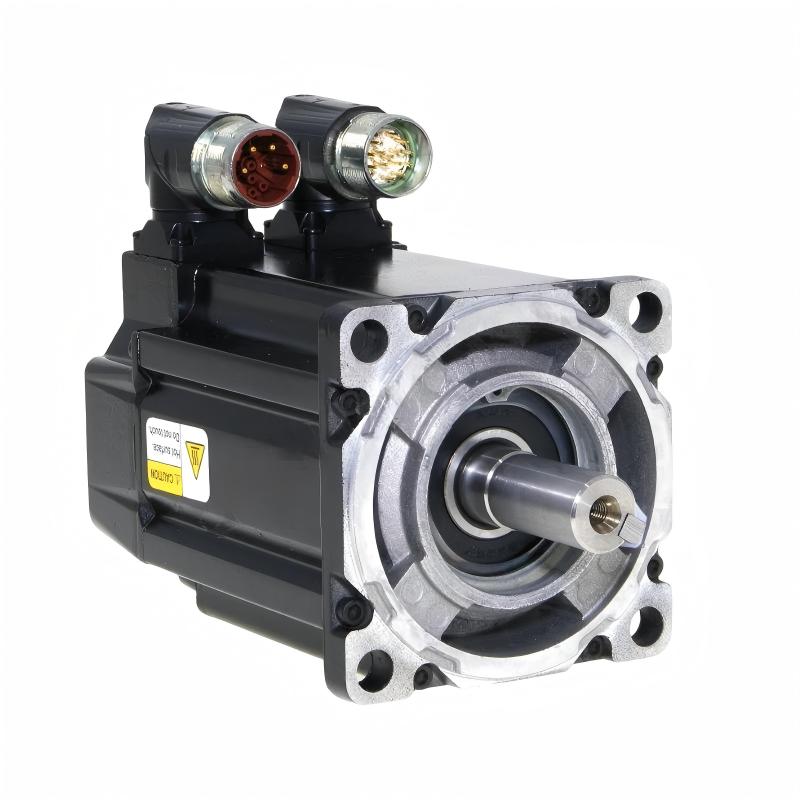

The Allen Bradley MPL-A420P-HJ72AA Servo Motor is an industrial AC servo motor designed for integration into high-performance motion control systems. As part of the Allen Bradley MPL series, this servo motor is intended for applications where accurate positioning, controlled acceleration and deceleration, repeatable motion, and coordinated machine operation are required.
The MPL-A420P-HJ72AA combines a compact industrial motor design with the dynamic characteristics required by automated machinery. It can be integrated with a compatible Allen Bradley servo drive and motion controller to create a closed-loop motion system in which the motor and drive work together to control machine movement.
The supplied mechanical information identifies the motor with a 115 mm frame size and a weight of 4.3 kg. These values are particularly useful when engineers are evaluating cabinet layouts, machine-space requirements, mechanical mounting arrangements, replacement logistics, and overall equipment weight.
Typical servo applications include automated production machinery, packaging equipment, material handling systems, assembly equipment, machine tools, robotics, and other industrial systems requiring controlled rotary motion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A420P-HJ72AA |
| Product Type | AC Servo Motor |
| Product Family | MPL Series |
| Motor Technology | Permanent Magnet Servo Motor |
| Frame Size | 115 mm |
| Weight | 4.3 kg |
| Application | Industrial Motion Control |
| Control System | Servo Drive and Motion Controller |
| Operating Mode | Closed-Loop Motion Control |
| Typical Applications | Automation Machinery, Packaging, Assembly, Material Handling, Motion Systems |
| Installation | Machine-Mounted |
| Feedback | Verify according to motor nameplate and system configuration |
| Electrical Ratings | Verify according to the specific motor documentation |
Note: Exact electrical ratings, feedback configuration, shaft dimensions, connector arrangement, rated speed, torque characteristics, and drive compatibility should be confirmed from the motor nameplate and applicable Allen Bradley documentation before installation or replacement.
What Is the Allen Bradley MPL-A420P-HJ72AA?
The Allen Bradley MPL-A420P-HJ72AA is a servo motor intended to provide controlled mechanical rotation in industrial automation equipment.
Unlike a conventional induction motor that is often operated primarily for continuous-speed applications, a servo motor is normally used as part of a complete motion-control system. The controller determines the required motion, the servo drive regulates motor operation, and feedback information allows the control system to monitor the motor’s actual position or operating condition.
A simplified servo architecture can be represented as:
Motion Controller → Servo Drive → MPL-A420P-HJ72AA Servo Motor → Mechanical Load
with feedback information returning through the motor’s feedback system to the drive and controller.
This closed-loop arrangement allows automated machinery to perform repeatable positioning and coordinated movement.
The 115 mm frame size provides an important mechanical reference for engineers designing the motor mounting structure. The 4.3 kg weight should also be considered when calculating machine-axis loading, mounting support, transportation requirements, and replacement handling.
Servo Motor Working Principle
The MPL-A420P-HJ72AA operates as part of a coordinated servo system rather than as an isolated motor.
The basic operating sequence is:
- The motion controller generates a motion command.
- The servo drive interprets the command.
- The drive supplies controlled electrical power to the motor.
- The servo motor generates mechanical torque.
- The connected machine mechanism moves.
- Feedback information is monitored by the servo system.
- The controller and drive continuously adjust operation according to the required motion.
This feedback-based control is important in applications where the machine must reach a specified position accurately and repeatedly.
During acceleration, the servo drive controls motor output to achieve the commanded motion. During deceleration, the system regulates the motor according to the programmed motion profile. When the axis reaches its target position, the servo system can maintain the required position according to the configured control strategy.
The actual performance of the complete system depends on the motor, drive, controller, mechanical transmission, feedback system, tuning parameters, and machine load.
Main Functions
The Allen Bradley MPL-A420P-HJ72AA can contribute several important functions to an industrial motion-control system.
Precise Rotary Motion
The motor converts electrical energy into controlled mechanical rotation for machine-axis movement.
Position Control
When integrated into an appropriate closed-loop servo system, the motor can participate in accurate positioning operations.
Speed Regulation
The servo drive can regulate motor speed according to the programmed motion profile.
Acceleration and Deceleration
Controlled acceleration and deceleration help machinery achieve smooth motion while reducing unnecessary mechanical shock.
Repetitive Motion
Servo systems are particularly useful where the same movement must be repeated with consistent timing and positioning.
Coordinated Axis Movement
Multiple servo motors can be coordinated by a motion controller for synchronized machine operations.
Role in Industrial Automation
The MPL-A420P-HJ72AA can serve as the mechanical motion element of an automated axis.
In a typical Allen Bradley automation architecture, the motion controller determines what the machine should do, while the servo drive controls how the motor performs the required movement.
A simplified system structure is:
PLC / Motion Controller
↓
Servo Command
↓
Servo Drive
↓
MPL-A420P-HJ72AA
↓
Mechanical Transmission
↓
Machine Load
Feedback from the motor and motion system is used to monitor operating conditions and support closed-loop control.
This architecture is useful for machinery requiring repeatable positioning, controlled speed, synchronized movement, and automated production cycles.
Industrial Applications
The MPL-A420P-HJ72AA can be considered for a wide range of industrial motion applications when its electrical and mechanical specifications match the machine requirements.
Packaging Machinery
Servo motors are commonly used for controlled movement in packaging equipment. Typical machine functions can include positioning, indexing, feeding, cutting, and synchronized material handling.
Assembly Equipment
Automated assembly machines frequently require accurate movement of components, tools, fixtures, and workpieces.
A servo axis can provide controlled positioning for these operations.
Material Handling
Servo-driven mechanisms can be used for automated conveyors, indexing systems, transfer mechanisms, and positioning equipment.
Machine Tools
Servo motors can form part of controlled machine axes where repeatable movement and coordinated operation are required.
Printing and Converting Machinery
Motion systems used in printing, labeling, winding, and converting equipment often require coordinated motor movement.
Automated Production Lines
The motor can contribute to production-line equipment where repeated motion sequences are controlled by a central automation system.
Robotics and Automated Mechanisms
Servo motors are widely used in robotic and automated mechanical systems because they can be controlled through a servo drive and motion controller.
Mechanical Integration
Mechanical integration is an important part of servo motor installation.
The 115 mm frame size should be considered when designing or checking the motor mounting arrangement.
Before installation, engineers should verify:
- Motor frame dimensions
- Mounting-hole arrangement
- Shaft dimensions
- Shaft extension
- Coupling requirements
- Mechanical alignment
- Load characteristics
- Available installation space
- Cable routing
- Motor weight
- Environmental conditions
The supplied motor weight is 4.3 kg. The mounting structure should be capable of securely supporting the motor and the dynamic forces generated during machine operation.
Incorrect alignment between the motor shaft and the driven mechanism can create excessive mechanical stress, vibration, bearing loading, or coupling problems.
Servo Drive Integration
The MPL-A420P-HJ72AA should be paired with a compatible servo drive based on the actual motor electrical characteristics and feedback configuration.
The drive provides the interface between the industrial control system and the motor.
Before commissioning, engineers should verify:
- Motor model
- Drive compatibility
- Motor voltage requirements
- Motor current requirements
- Feedback configuration
- Drive parameter settings
- Motor identification
- Command interface
- Safety configuration
- Application load characteristics
The motor should not be connected to a servo drive simply because both products belong to the same manufacturer or product family. Compatibility must be established using the complete motor and drive model information.
Installation Guidelines
1. Verify the Motor
Check the motor nameplate and confirm that the installed motor is the required MPL-A420P-HJ72AA.
Record the model and revision information before installation.
2. Inspect the Motor
Inspect the motor housing, shaft, mounting surface, connectors, and cables for visible damage.
Do not install a motor with damaged connectors or signs of mechanical impact.
3. Prepare the Mounting Surface
The machine mounting surface should be clean, rigid, and correctly aligned.
The mounting structure must accommodate the 115 mm frame size.
4. Install the Motor
Secure the motor using the appropriate mechanical mounting hardware and follow the applicable equipment installation requirements.
Avoid excessive force on the motor shaft during coupling installation.
5. Align the Mechanical System
The motor shaft should be properly aligned with the driven equipment.
Misalignment can increase vibration and mechanical loading.
6. Connect the Servo System
Connect the motor to the compatible servo drive according to the applicable wiring configuration.
Feedback connections must be correctly installed because closed-loop servo control depends on accurate feedback information.
7. Verify Grounding
Proper grounding and electrical installation practices should be followed according to the machine’s electrical design and applicable safety requirements.
Commissioning Procedure
A controlled commissioning process helps reduce the possibility of incorrect motion or equipment damage.
Step 1: Verify Wiring
Check motor power, feedback, grounding, and control connections.
Step 2: Confirm Motor Parameters
Enter or verify the required motor information in the servo drive.
Step 3: Check Feedback
Verify that the drive can correctly recognize the motor feedback system.
Step 4: Check Mechanical Movement
Confirm that the machine axis can move safely and that there are no mechanical obstructions.
Step 5: Perform Low-Speed Testing
Initial movement should be performed at a controlled speed.
Observe motor behavior, machine movement, and feedback response.
Step 6: Verify Direction
Confirm that commanded positive and negative directions correspond to the intended machine movement.
Step 7: Tune the Axis
Servo tuning should be performed according to the requirements of the actual machine.
Step 8: Test the Production Cycle
After basic motion has been verified, test the complete machine sequence under controlled operating conditions.
Troubleshooting
Motor Does Not Rotate
Possible causes include:
- Incorrect servo drive configuration
- Missing motor power
- Incorrect feedback connection
- Servo enable not active
- Control command not being received
- Drive fault
- Mechanical obstruction
Check the drive status and alarm information before replacing the motor.
Motor Rotates but Position Is Incorrect
Possible causes include:
- Incorrect feedback configuration
- Incorrect axis scaling
- Mechanical backlash
- Coupling problems
- Incorrect motion parameters
- Servo tuning problems
The entire motion system should be evaluated rather than assuming the motor itself is defective.
Excessive Vibration
Possible causes may include:
- Mechanical misalignment
- Poor coupling installation
- Machine resonance
- Incorrect servo tuning
- Excessive mechanical load
- Bearing or mechanical problems
Inspect both the motor and connected machinery.
Motor Overheating
Possible causes include:
- Excessive load
- Poor ventilation
- Incorrect operating conditions
- Excessive duty cycle
- Mechanical resistance
- Incorrect drive configuration
The motor should be operated within its specified electrical and thermal limits.
Servo Faults
A servo fault may originate from the motor, drive, feedback system, wiring, or machine mechanics.
The first troubleshooting step should be to identify the exact drive alarm or diagnostic condition and then follow the appropriate fault-isolation procedure.
Maintenance Recommendations
Servo motors generally require less routine mechanical maintenance than many conventional motor systems, but regular inspection remains important.
Inspect Motor Mounting
Check mounting hardware periodically for looseness or mechanical movement.
Check Couplings
Inspect the motor coupling and driven mechanism for wear, misalignment, or abnormal movement.
Inspect Cables
Motor and feedback cables should be checked for abrasion, excessive bending, loose connections, and mechanical damage.
Monitor Vibration
Unexpected vibration can indicate mechanical alignment problems, machine resonance, or other developing faults.
Monitor Temperature
Abnormal temperature increases may indicate excessive loading, poor cooling, or incorrect operating conditions.
Check Connectors
Connectors should remain secure and free from contamination or physical damage.
Replacement Considerations
When replacing an Allen Bradley servo motor, the complete model number should be verified rather than selecting a motor based only on frame size.
For the MPL-A420P-HJ72AA, important identification information includes:
- Manufacturer
- Complete model number
- Frame size
- Motor nameplate information
- Feedback configuration
- Mounting arrangement
- Shaft configuration
- Connector arrangement
- Compatible servo drive
- Machine application
The supplied physical information is:
Frame Size: 115 mm
Weight: 4.3 kg
A replacement motor should match the electrical, mechanical, feedback, and application requirements of the original system.
Physical Size and Weight
The 115 mm frame size is an important mechanical reference when planning machine installation.
The 4.3 kg weight is also relevant for:
- Machine structural calculations
- Motor mounting
- Equipment transportation
- Replacement handling
- Packaging design
- Spare-parts inventory
- Maintenance planning
Frame size should not be interpreted as a complete dimensional drawing. Exact motor length, shaft dimensions, mounting-hole dimensions, connector position, and other mechanical measurements should be confirmed from the applicable mechanical drawing before fabrication or replacement.
Servo System Architecture
A typical motion-control application using the MPL-A420P-HJ72AA can be organized into several functional layers.
| System Component | Typical Function |
|---|---|
| PLC / Motion Controller | Generates motion commands |
| Servo Drive | Controls motor current, speed, and motion response |
| MPL-A420P-HJ72AA | Converts electrical power into mechanical motion |
| Feedback System | Provides motor position or operating feedback |
| Coupling | Transfers motor torque to the machine |
| Mechanical Load | Performs the required machine movement |
| HMI | Provides operator control and monitoring |
| Industrial Network | Exchanges control and diagnostic information |
The exact architecture depends on the machine design and selected Allen Bradley automation platform.
Engineering Best Practices
For reliable operation of the MPL-A420P-HJ72AA, engineers should consider the complete motion system instead of evaluating the motor independently.
Match the Motor to the Load
The motor must be suitable for the machine’s required acceleration, speed, torque, and duty cycle.
Consider Mechanical Inertia
The inertia of the connected load can strongly influence servo response and tuning.
Minimize Shaft Misalignment
Correct mechanical alignment reduces unnecessary vibration and bearing loading.
Maintain Cable Integrity
Motor and feedback cables should be routed and protected appropriately.
Use Appropriate Servo Tuning
Servo gains should be adjusted according to the actual mechanical system.
Monitor Machine Performance
Changes in vibration, temperature, positioning behavior, or servo alarms may indicate developing problems.
Verify Replacement Parts
Always confirm the complete model number before ordering or installing replacement components.
Key Advantages
- 115 mm frame size for industrial machine integration
- 4.3 kg weight for manageable machine installation and replacement
- Designed for closed-loop industrial motion control
- Suitable for automated positioning applications
- Supports coordinated motion when integrated with an appropriate servo system
- Suitable for packaging, assembly, material handling, and other automation equipment
- Can be integrated into Allen Bradley motion-control architectures when compatibility is verified
- Supports repeatable and controlled machine movement
- Suitable for applications requiring coordinated servo operation
Technical FAQs
What is the Allen Bradley MPL-A420P-HJ72AA?
The Allen Bradley MPL-A420P-HJ72AA is an industrial AC servo motor designed for integration into automated motion-control systems.
What is the frame size of the MPL-A420P-HJ72AA?
The supplied frame size is 115 mm.
How much does the MPL-A420P-HJ72AA weigh?
The supplied weight is 4.3 kg.
What is the main function of this servo motor?
Its primary function is to convert controlled electrical power from a compatible servo drive into mechanical rotary motion for an automated machine axis.
Can the MPL-A420P-HJ72AA be used with any Allen Bradley servo drive?
No. Drive compatibility should be confirmed using the complete motor model, electrical requirements, feedback configuration, and applicable system documentation.
What applications can use this servo motor?
Potential applications include packaging machinery, assembly systems, material handling equipment, machine tools, automated production lines, and other industrial motion-control systems.
Does frame size determine complete motor dimensions?
No. A frame-size designation is only one mechanical reference. Exact motor length, shaft dimensions, mounting-hole locations, connectors, and other dimensions should be verified from the applicable mechanical drawing.
What should be checked before replacing this motor?
Verify the complete model number, motor nameplate, frame size, feedback configuration, mechanical mounting, shaft arrangement, drive compatibility, and machine application.
Conclusion
The Allen Bradley MPL-A420P-HJ72AA Servo Motor is an industrial motion-control motor designed for use in automated machinery requiring controlled and repeatable rotary movement. With a supplied 115 mm frame size and 4.3 kg weight, it provides useful mechanical information for machine design, installation, replacement planning, and equipment handling.
When integrated with a compatible servo drive and motion controller, the MPL-A420P-HJ72AA can participate in a closed-loop automation architecture for positioning, speed regulation, coordinated movement, and repetitive machine operations.
For installation or replacement, engineers should verify the complete motor model and all applicable electrical and mechanical characteristics. In particular, feedback configuration, shaft dimensions, mounting details, drive compatibility, and motor operating ratings should be confirmed before commissioning. Correct mechanical alignment, proper wiring, appropriate servo tuning, and regular condition monitoring are essential for maintaining reliable performance in industrial automation applications.
