Product Overview

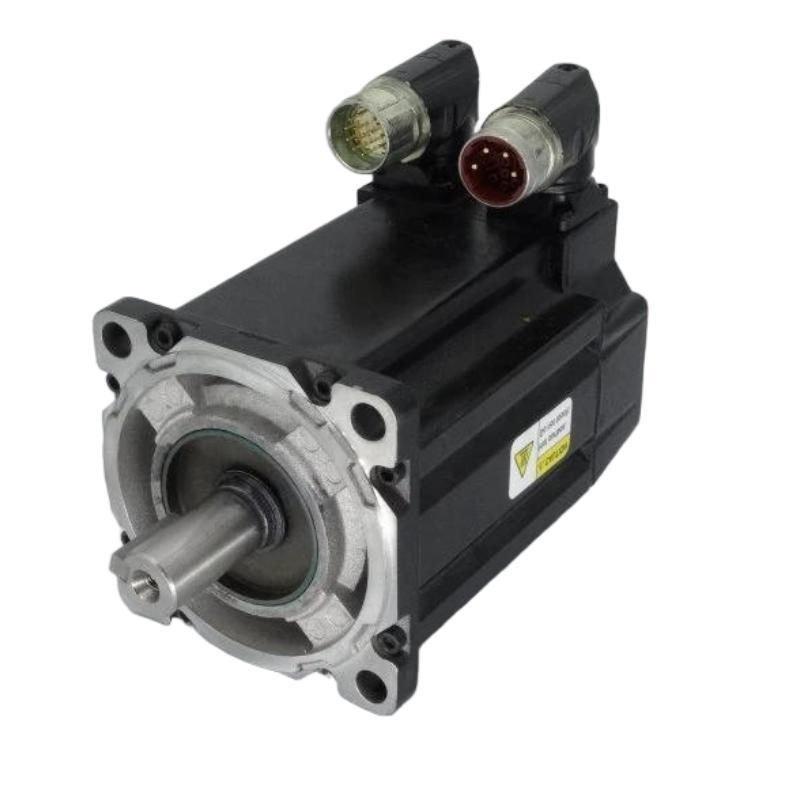

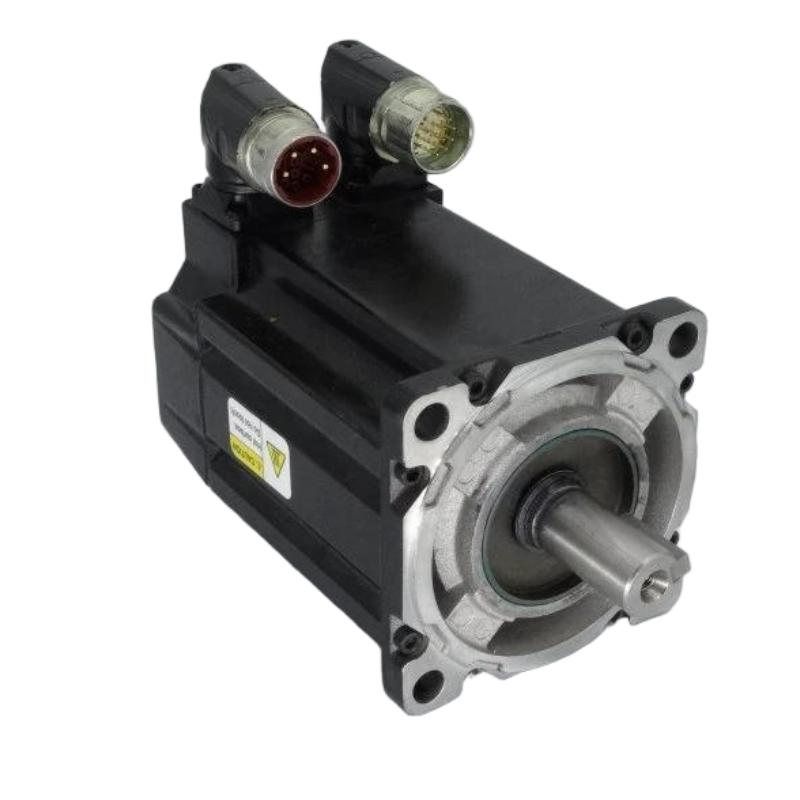

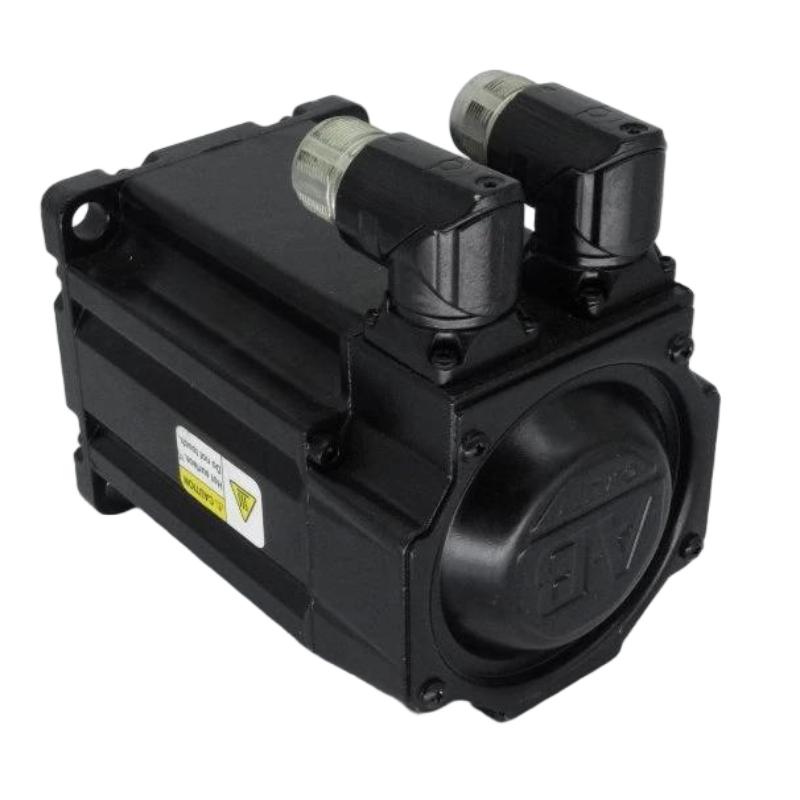

The Allen Bradley MPL-A420P-H-X230 Servo Motor is an industrial servo motor designed for integration into automated motion-control systems. As part of the Allen Bradley MPL servo motor family, it is intended for machinery where controlled rotary motion, repeatable positioning, coordinated movement, and responsive axis operation are required.
In a typical industrial motion system, the servo motor operates together with a compatible servo drive and motion controller. The controller generates the required movement commands, while the servo drive regulates the electrical power delivered to the motor. Feedback from the motor allows the motion system to monitor operating conditions and maintain the required movement.
The supplied mechanical specifications identify the MPL-A420P-H-X230 with a 115 mm frame size and a weight of 5.44 kg. These values are useful when planning motor mounting, machine structure, installation space, transportation, replacement procedures, and spare-parts inventory.
The motor can be considered for automated machinery such as packaging equipment, assembly systems, material handling equipment, machine tools, production machinery, and other industrial applications requiring controlled motion. Exact application suitability should always be determined from the complete motor and system specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A420P-H-X230 |
| Product Type | AC Servo Motor |
| Product Family | MPL Series |
| Motor Technology | Permanent Magnet Servo Motor |
| Frame Size | 115 mm |
| Weight | 5.44 kg |
| Application | Industrial Motion Control |
| Control Method | Closed-Loop Servo Control |
| Installation | Machine-Mounted |
| Drive Interface | Compatible Servo Drive |
| Feedback | Verify according to motor nameplate and system configuration |
| Electrical Ratings | Verify according to applicable motor documentation |
| Typical Applications | Packaging, Assembly, Material Handling, Machine Automation, Production Equipment |
Specification note: Exact motor torque, rated speed, voltage, current, feedback configuration, shaft dimensions, connector arrangement, duty characteristics, and other model-specific parameters should be confirmed from the motor nameplate and applicable technical documentation before installation or replacement.
What Is the Allen Bradley MPL-A420P-H-X230?
The Allen Bradley MPL-A420P-H-X230 is an industrial servo motor designed to generate controlled rotary motion for automated machine axes.
Unlike a motor used simply for continuous rotation, a servo motor is normally integrated into a closed-loop motion-control system. A motion controller determines the required movement, the servo drive controls motor operation, and feedback information helps the system monitor actual motor behavior.
A simplified architecture is:
Motion Controller → Servo Drive → MPL-A420P-H-X230 → Mechanical Load
with feedback information returned through the servo system.
This arrangement allows the motor to participate in automated positioning, speed regulation, acceleration and deceleration, and coordinated multi-axis movement.
The supplied 115 mm frame size is an important mechanical reference for machine integration. The 5.44 kg weight should also be included when evaluating motor mounting structures, equipment handling, transportation, and replacement requirements.
Servo Motor Working Principle
The MPL-A420P-H-X230 functions as part of a coordinated servo system.
The basic operating sequence is:
- The motion controller generates a movement command.
- The servo drive receives the command.
- The drive regulates electrical power supplied to the motor.
- The motor generates mechanical torque and rotary movement.
- The mechanical transmission transfers the motor output to the machine.
- Feedback information is monitored by the control system.
- The servo drive adjusts operation to follow the required motion.
This feedback-based approach is useful when machinery requires controlled and repeatable movement.
For example, a machine axis may be required to accelerate, move through a programmed profile, decelerate, and stop at a defined position. The servo system coordinates these operations according to configured control parameters.
Actual performance depends on the complete system, including the motor, servo drive, motion controller, feedback system, mechanical transmission, load inertia, and servo tuning.
Main Functions
Controlled Rotary Motion
The MPL-A420P-H-X230 converts controlled electrical power into mechanical rotary motion.
Position Control
When integrated with a suitable closed-loop servo system, the motor can participate in automated positioning operations.
Speed Regulation
The servo drive regulates motor speed according to the required machine motion profile.
Acceleration and Deceleration
Controlled acceleration and deceleration allow the machine to execute programmed movement smoothly and consistently.
Repetitive Motion
Servo motors are well suited to machines that repeatedly perform the same movement sequence.
Coordinated Motion
Multiple servo axes can be coordinated through a suitable motion controller to perform synchronized machine operations.
Role in Industrial Automation
The MPL-A420P-H-X230 can serve as the motor element of an automated machine axis.
A typical architecture may include:
PLC / Motion Controller
↓
Motion Command
↓
Servo Drive
↓
MPL-A420P-H-X230 Servo Motor
↓
Mechanical Transmission
↓
Machine Load
Feedback information is incorporated into the control loop to monitor motor operation.
This type of architecture is suitable for machinery where movement must be coordinated with other machine functions and production processes.
The motor can therefore contribute to indexing, positioning, automated feeding, transfer, synchronized rotation, and other controlled motion tasks.
Industrial Applications
Packaging Machinery
Packaging systems often require accurate and repeatable movement for feeding, indexing, positioning, cutting, sealing, and other machine functions.
A servo motor can provide controlled movement when its specifications are correctly matched to the application.
Automated Assembly
Assembly machinery may require precise movement of tools, fixtures, workpieces, and components.
Servo-controlled axes can coordinate these movements with the overall production sequence.
Material Handling
Automated handling systems can use servo motors for controlled positioning, indexing, transfer mechanisms, and machine-axis movement.
Machine Tools
Servo motors are commonly used in machine-tool systems where controlled axis movement and repeatability are required.
Printing and Converting
Printing and converting equipment can require synchronized movement between multiple mechanical elements. Servo systems can support coordinated machine operation.
Production Machinery
Automated production systems can use servo motors to execute repeated motion sequences under PLC or motion-controller supervision.
Automated Mechanical Equipment
Servo motors can be integrated into automated mechanisms where controlled rotary movement and repeatability are important.
Mechanical Integration
The 115 mm frame size should be considered during mechanical design and installation.
Before installing the MPL-A420P-H-X230, engineers should verify:
- Motor mounting dimensions
- Mounting-hole arrangement
- Shaft dimensions
- Shaft extension
- Coupling requirements
- Mechanical alignment
- Available installation space
- Cable routing
- Load characteristics
- Environmental conditions
The supplied motor weight is 5.44 kg.
The machine mounting structure should be sufficiently rigid to support the motor and accommodate the dynamic forces generated during operation.
Proper shaft alignment is particularly important. Misalignment can increase vibration, coupling stress, bearing loading, and mechanical wear.
Servo Drive Integration
The MPL-A420P-H-X230 should be connected to a servo drive that is confirmed to be compatible with the complete motor configuration.
Drive selection should not be based solely on the motor family or frame size.
Important compatibility factors include:
- Complete motor model
- Motor electrical characteristics
- Feedback configuration
- Servo drive capacity
- Motion-control architecture
- Machine load
- Required speed and acceleration
- Safety requirements
- Motor and feedback cabling
The servo drive should be correctly configured for the motor before normal operation.
Installation Guidelines
Verify Motor Identification

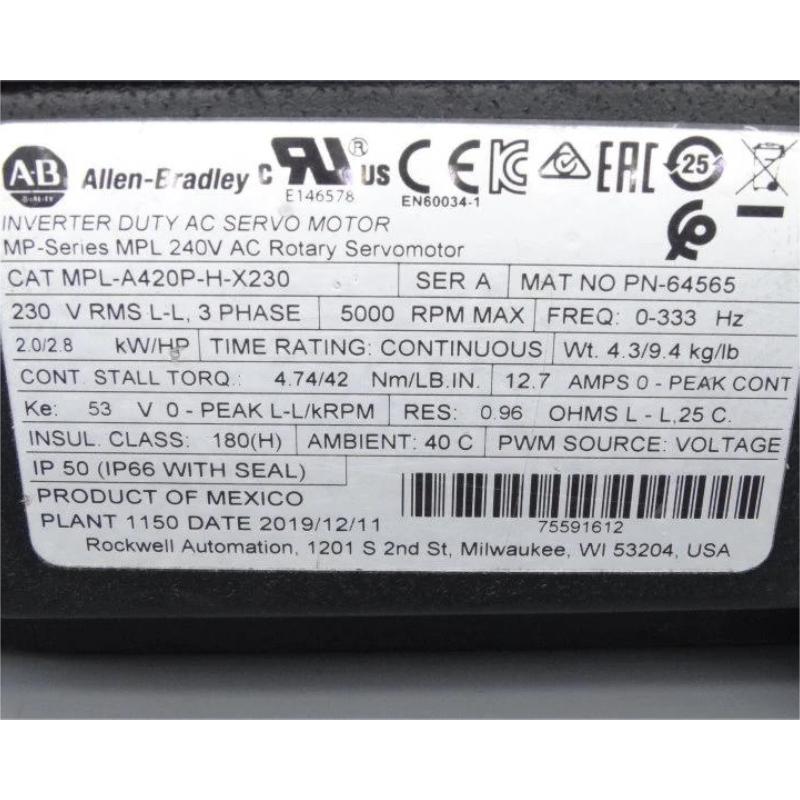

Confirm the complete motor model as MPL-A420P-H-X230 before installation.
Record the motor nameplate information for commissioning and future maintenance.
Inspect the Motor
Inspect the motor housing, shaft, mounting surfaces, connectors, and cables for visible damage.
Prepare the Mounting Structure
The machine mounting surface should be rigid and suitable for the 115 mm frame size.
Secure the Motor
Install the motor using suitable mounting hardware.
Avoid impact or excessive force on the motor shaft.
Align the Mechanical System
Correctly align the motor shaft with the driven mechanism.
Check coupling installation before operating the motor.
Connect the Servo System
Connect motor power and feedback wiring according to the applicable servo-system configuration.
Verify Grounding
Confirm that the motor grounding arrangement complies with the machine electrical design and applicable safety requirements.
Commissioning Procedure
A systematic commissioning process can help reduce the risk of unexpected movement or equipment damage.
Step 1: Verify Wiring
Check motor power, feedback, grounding, and control connections.
Step 2: Confirm Drive Configuration
Verify that the servo drive is configured for the correct motor.
Step 3: Check Feedback
Confirm that the drive correctly recognizes the motor feedback system.
Step 4: Inspect Mechanical Movement
Ensure that the machine axis can move freely without unexpected mechanical resistance.
Step 5: Perform Initial Motion Testing
Start with controlled movement and observe motor and machine behavior.
Step 6: Verify Direction
Confirm that commanded movement corresponds to the intended mechanical direction.
Step 7: Tune the Axis
Adjust servo-control parameters according to the actual mechanical system.
Step 8: Verify Positioning
Check positioning behavior and repeatability under controlled operating conditions.
Step 9: Test the Complete Machine
After individual-axis testing, verify the complete automated machine cycle.
Troubleshooting
Motor Does Not Rotate
Possible causes include:
- Servo drive not enabled
- Incorrect motor configuration
- Missing motor power
- Feedback connection problem
- Servo drive fault
- Incorrect motion command
- Mechanical obstruction
Check the drive diagnostic information before replacing the motor.
Incorrect Positioning
Possible causes include:
- Feedback configuration problems
- Incorrect scaling
- Mechanical backlash
- Coupling problems
- Incorrect motion parameters
- Servo tuning issues
The complete motion system should be checked.
Excessive Vibration
Possible causes include:
- Mechanical misalignment
- Coupling problems
- Machine resonance
- Incorrect servo tuning
- Excessive load
- Mechanical wear
Both mechanical and control-system conditions should be investigated.
Motor Overheating
Possible causes may include:
- Excessive load
- High duty cycle
- Poor cooling
- Mechanical resistance
- Incorrect operating conditions
- Incorrect servo configuration
The motor should be operated within its specified thermal and electrical limits.
Intermittent Operation
Possible causes include:
- Loose connectors
- Damaged motor cables
- Feedback interruptions
- Electrical interference
- Mechanical vibration
- Drive configuration issues
Inspect the complete motor-to-drive system before replacing components.
Maintenance Recommendations
Inspect Mounting Hardware
Check the motor mounting hardware periodically for looseness.
Inspect Mechanical Couplings
Check couplings for wear, looseness, or alignment problems.
Check Motor and Feedback Cables
Inspect cables for abrasion, excessive bending, damage, or loose connections.
Monitor Temperature
Unexpected increases in motor temperature should be investigated.
Monitor Vibration
Changes in vibration can indicate mechanical or servo-control problems.
Inspect Connectors
Keep connectors clean, secure, and protected from physical damage.
Monitor Motion Performance
Changes in positioning behavior, response, operating noise, or alarm frequency can indicate developing problems.
Replacement Considerations
When replacing the Allen Bradley MPL-A420P-H-X230, verify the complete model number and application requirements.
Important identification information includes:
- Manufacturer
- Complete model number
- Frame size
- Motor nameplate
- Feedback configuration
- Mounting arrangement
- Shaft configuration
- Connector arrangement
- Compatible servo drive
- Machine application
The supplied physical specifications are:
Frame Size: 115 mm
Weight: 5.44 kg
A replacement should not be selected solely according to frame size or physical appearance.
The electrical characteristics, feedback configuration, mechanical dimensions, and drive compatibility should all be confirmed before installation.
Physical Size and Weight
The 115 mm frame size provides an important reference for machine mounting and mechanical design.
The 5.44 kg weight is relevant to:
- Machine structural calculations
- Motor mounting
- Equipment transportation
- Maintenance handling
- Packaging
- Spare-parts management
- Replacement planning
Frame size does not represent the complete external dimensions of the motor. Exact motor length, shaft dimensions, mounting-hole locations, connector positions, and other mechanical measurements should be confirmed from the appropriate technical drawing.
Servo System Architecture
A typical automation system using the MPL-A420P-H-X230 may include:
| Component | Typical Function |
|---|---|
| PLC / Motion Controller | Generates motion commands |
| Servo Drive | Regulates motor operation |
| MPL-A420P-H-X230 | Produces controlled rotary motion |
| Feedback System | Provides motor operating feedback |
| Motor Cable | Transfers electrical power |
| Feedback Cable | Transfers feedback information |
| Coupling | Transfers motor torque to the machine |
| Mechanical Load | Performs the required machine movement |
| HMI | Provides operator monitoring and control |
| Industrial Network | Exchanges control and diagnostic information |
The exact architecture depends on the application and selected automation hardware.
Engineering Best Practices
Match Motor Capacity to the Machine
The motor should be selected according to the required torque, speed, acceleration, duty cycle, and load characteristics.
Evaluate Load Inertia
Connected-load inertia affects servo response and tuning requirements.
Maintain Mechanical Alignment
Correct alignment helps reduce vibration, mechanical stress, and coupling wear.
Protect Motor Cables
Power and feedback cables should be routed and protected appropriately.
Perform Servo Tuning
Servo parameters should be adjusted according to the actual machine mechanics.
Monitor Operating Conditions
Changes in temperature, vibration, positioning accuracy, or fault frequency should be investigated.
Verify Replacement Parts
Always confirm the complete model number and system compatibility before replacing a servo motor.
Key Advantages
- 115 mm frame size for industrial machine integration
- 5.44 kg weight for accurate mechanical and handling planning
- Designed for closed-loop industrial motion control
- Suitable for controlled rotary movement
- Suitable for automated positioning applications
- Supports repetitive machine movement
- Can participate in coordinated multi-axis operation
- Applicable to packaging and assembly equipment
- Suitable for material handling and production automation
- Can be integrated into Allen Bradley motion-control architectures when compatibility is verified
Technical FAQs
What is the Allen Bradley MPL-A420P-H-X230?
The Allen Bradley MPL-A420P-H-X230 is an industrial servo motor designed for integration into automated motion-control systems.
What is the frame size?
The supplied frame size is 115 mm.
How much does the MPL-A420P-H-X230 weigh?
The supplied weight is 5.44 kg.
What is the main function of the motor?
The motor converts controlled electrical power from a compatible servo drive into mechanical rotary motion for an automated machine axis.
What applications can use this servo motor?
Potential applications include packaging, assembly, material handling, production automation, machine tools, and other industrial motion-control equipment when the motor’s complete specifications match the application.
Can any Allen Bradley servo drive operate the MPL-A420P-H-X230?
No. Servo-drive compatibility should be confirmed using the complete motor model, electrical characteristics, feedback configuration, and system architecture.
What should be checked before installation?
The complete model number, motor nameplate, frame size, mounting arrangement, shaft configuration, feedback system, electrical characteristics, drive compatibility, wiring, and machine load should be verified.
Does the 115 mm frame size specify all motor dimensions?
No. Frame size is a mechanical reference and does not provide every external measurement. Detailed mechanical drawings should be consulted for machine design and mounting.
What can cause servo motor vibration?
Possible causes include mechanical misalignment, coupling problems, machine resonance, excessive load, incorrect servo tuning, or mechanical wear.
How should this servo motor be maintained?
Maintenance should include inspection of mounting hardware, couplings, cables, connectors, temperature, vibration, and overall servo-system performance.
Conclusion
The Allen Bradley MPL-A420P-H-X230 Servo Motor is an industrial servo motor designed for controlled motion applications in automated machinery. With a supplied 115 mm frame size and 5.44 kg weight, it provides important physical information for machine integration, mechanical design, maintenance, transportation, and replacement planning.
When integrated with a compatible servo drive and motion controller, the MPL-A420P-H-X230 can form part of a closed-loop motion-control system supporting controlled rotary movement, positioning, acceleration and deceleration, repetitive machine cycles, and coordinated automation operations.
For reliable installation, the complete servo system should be evaluated rather than relying only on the motor’s frame size or physical appearance. Electrical characteristics, feedback configuration, mechanical mounting, shaft alignment, drive compatibility, and machine load requirements should be verified before commissioning. Proper installation, servo tuning, cable management, and preventive maintenance can help maintain stable and reliable operation in industrial automation applications.
