Product Overview

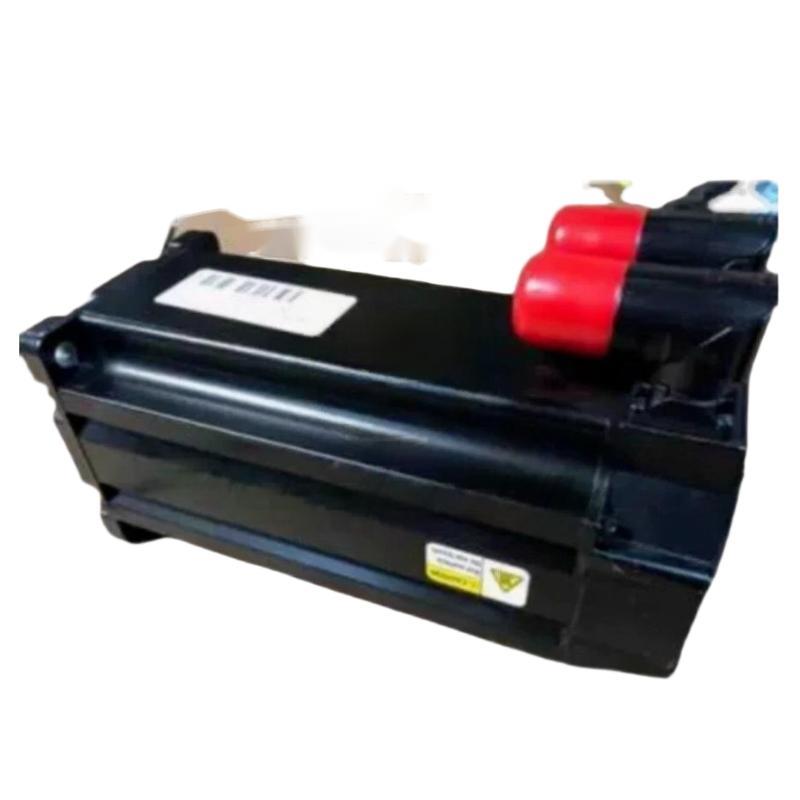

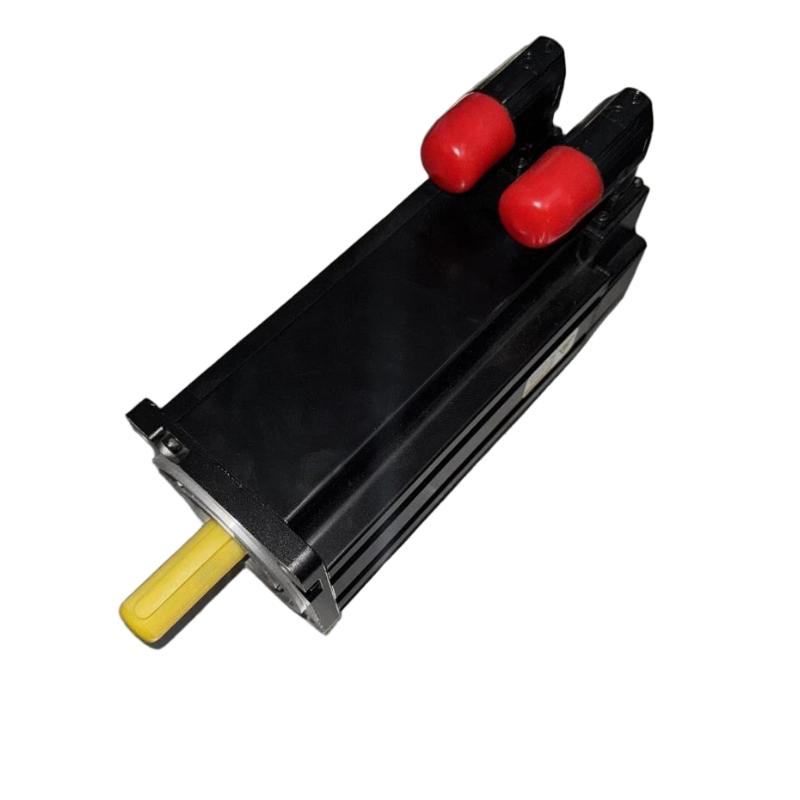

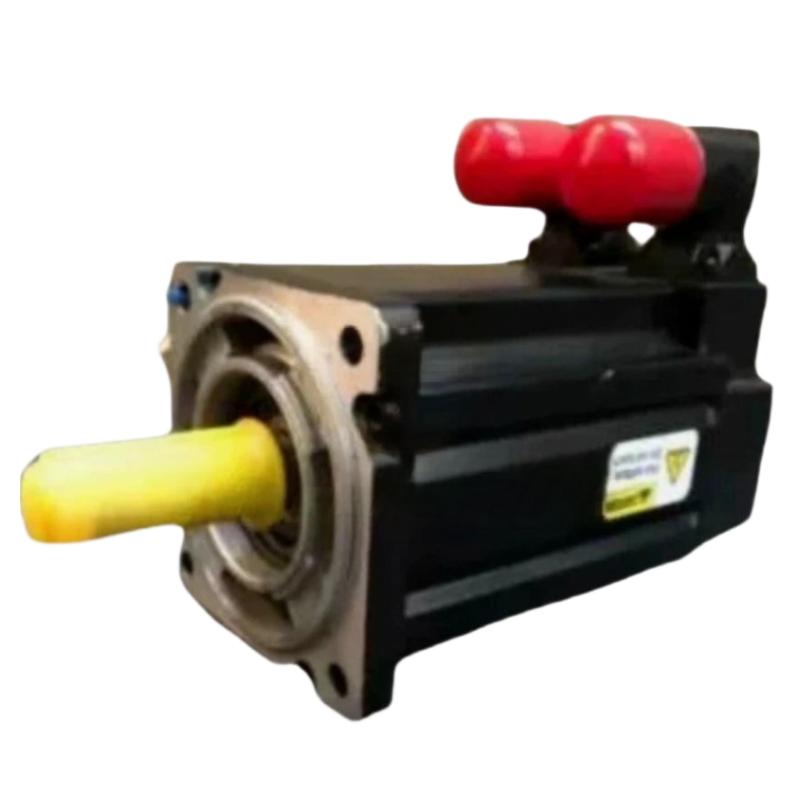

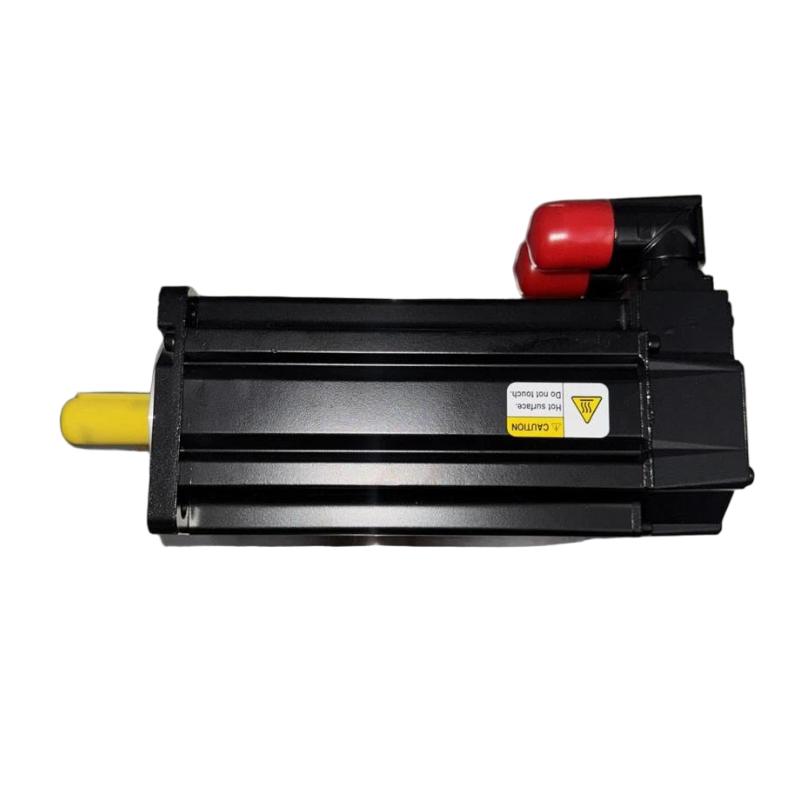

The Allen Bradley MPL-A330P-SK72AA Servo Motor is an industrial AC servo motor designed for precision motion-control applications in automated machinery and manufacturing systems. As part of the Allen Bradley MPL servo motor family, the MPL-A330P-SK72AA can be integrated into closed-loop motion systems where accurate positioning, controlled speed, smooth acceleration, and repeatable machine movement are required.

The motor has a 100 mm frame size and a listed weight of 4.6 kg, making it suitable for machine designs that require a relatively compact servo motor configuration while maintaining the mechanical characteristics needed for industrial motion applications.

A servo motor does not normally operate as an isolated component. It works together with a compatible servo drive, motion controller, feedback system, mechanical transmission, and machine load. The controller generates a motion command, the servo drive regulates electrical power supplied to the motor, and feedback allows the control system to monitor actual motor behavior.

The MPL-A330P-SK72AA can therefore form part of a complete motion-control architecture used in automated production equipment, positioning systems, packaging machinery, assembly equipment, material-handling systems, and other industrial machines.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A330P-SK72AA
Product Type	AC Servo Motor
Product Family	MPL Servo Motor
Motor Technology	Permanent-Magnet Servo Motor
Frame Size	100 mm
Weight	4.6 kg
Application	Industrial Motion Control
Control Architecture	Closed-Loop Servo System
Installation	Machine-Mounted
Typical System	Motion Controller + Servo Drive + Servo Motor
Typical Applications	Positioning, Packaging, Assembly, Material Handling, Automated Machinery

Specification note: Exact motor electrical ratings, continuous and peak torque, rated speed, operating voltage, current, feedback configuration, shaft dimensions, mounting dimensions, connector configuration, and environmental specifications should be verified from the motor nameplate and applicable documentation for the specific MPL-A330P-SK72AA configuration.

---

What Is the Allen Bradley MPL-A330P-SK72AA?

The MPL-A330P-SK72AA is an Allen Bradley servo motor intended for applications where controlled mechanical movement is required.

In an industrial automation system, the motor acts as the electromechanical actuator. The controller determines what movement is required, while the servo drive supplies controlled electrical power to the motor. Feedback from the motor allows the control system to compare commanded motion with actual motion.

A simplified servo architecture is:

Motion Controller → Servo Drive → MPL-A330P-SK72AA → Mechanical Load

with feedback operating through the appropriate control path:

Motor Feedback → Servo Drive / Controller → Motion Control

This closed-loop arrangement makes servo motors particularly useful for applications involving repeated positioning, coordinated movement, indexing, synchronization, and dynamic changes in speed.

The 100 mm frame size is an important mechanical reference for equipment designers and maintenance personnel when evaluating machine installation space and replacement requirements.

---

Servo Motor Working Principle

The MPL-A330P-SK72AA operates within a closed-loop servo system.

The motion controller produces a command based on the machine sequence. Depending on the application, this command can represent a required position, velocity, acceleration, or coordinated motion profile.

The servo drive interprets the command and controls the electrical power delivered to the motor.

The motor converts this electrical energy into mechanical rotation, which is transferred to the machine through a coupling, gearbox, belt, screw mechanism, or another suitable transmission system.

Feedback provides information about actual motor movement. The servo system uses this information to regulate operation and reduce the difference between commanded and actual motion.

The overall process can be summarized as:

Command → Drive Control → Motor Rotation → Mechanical Movement → Feedback → Correction

This architecture allows the motor to participate in precise and repeatable machine movement.

---

Main Functions

Precision Motion

The MPL-A330P-SK72AA can provide controlled rotary motion for automated machine mechanisms when paired with an appropriate servo drive and controller.

Positioning

Servo systems can be configured to move a machine axis to programmed positions with repeatable motion.

Speed Regulation

The servo drive can regulate motor speed according to the required machine operating profile.

Acceleration and Deceleration

Controlled acceleration and deceleration help reduce abrupt mechanical movement and allow the machine to follow programmed motion profiles.

Coordinated Motion

Multiple servo axes can be coordinated by an appropriate motion controller to perform synchronized machine operations.

Dynamic Response

Servo systems are designed for applications where the motor must respond to changing commands relatively quickly, such as indexing, repeated positioning, and coordinated production operations.

---

Role in Industrial Automation

The MPL-A330P-SK72AA can function as a motion actuator within a larger Allen Bradley automation architecture.

A typical system may include:

PLC / Motion Controller → Servo Drive → MPL-A330P-SK72AA → Mechanical Mechanism

The controller manages the machine sequence and motion requirements. The servo drive manages motor operation, while feedback allows the system to monitor actual movement.

This makes the servo motor useful in machines where conventional fixed-speed motors cannot provide the required positioning or motion control.

For example, an automated assembly machine may need to move a component to a precise location before a fastening or inspection operation begins. The servo system can control the corresponding axis according to the programmed motion sequence.

---

Industrial Applications

The MPL-A330P-SK72AA may be suitable for a variety of industrial automation applications when its electrical and mechanical specifications match the machine requirements.

Packaging Machinery

Servo motors can control indexing mechanisms, product feeding, positioning, and synchronized packaging operations.

Assembly Equipment

Automated assembly systems can use servo axes to move components into accurately controlled positions.

Material Handling

Servo-controlled mechanisms can be used for transfer, positioning, indexing, and coordinated material movement.

Machine Tools

Servo motors are widely used in machine axes where controlled positioning and repeatable movement are required.

Printing and Converting

Servo motion can support synchronized material feeding, positioning, and other controlled movement functions.

Automated Inspection

The motor can be used to position inspection equipment or workpieces according to programmed motion sequences.

Production Machinery

Servo motors can provide controlled movement for specialized manufacturing equipment where speed and position must be coordinated.

---

Mechanical Integration

The 100 mm frame size should be considered when designing or inspecting the motor mounting arrangement.

Before installing the MPL-A330P-SK72AA, engineers should verify the complete mechanical interface rather than relying only on frame size.

Important considerations include:

• Mounting arrangement
• Shaft configuration
• Coupling type
• Machine-side interface
• Available installation clearance
• Motor orientation
• Cable routing
• Load characteristics
• Shaft alignment
• Mechanical support

Correct shaft alignment is particularly important. Misalignment can increase mechanical loading and may cause vibration, coupling wear, bearing stress, or reduced machine performance.

The motor should be installed according to the applicable mechanical installation requirements for the specific machine.

---

Servo Drive Integration

The MPL-A330P-SK72AA should be connected to a servo drive that is confirmed to support the specific motor configuration.

The servo drive is responsible for controlling the electrical operation of the motor. Depending on the system architecture, it may also handle feedback processing, motion commands, motor protection, diagnostics, and communication with the controller.

Before commissioning, engineers should verify:

• Motor and drive compatibility
• Motor identification
• Feedback configuration
• Drive configuration
• Electrical ratings
• Control architecture
• Firmware or configuration requirements
• Machine safety conditions

A servo drive should not be selected solely according to the physical appearance or frame size of the motor.

---

Installation Guidelines

Verify the Motor Model

Confirm the complete catalog number:

MPL-A330P-SK72AA

Check the motor label before installation or replacement.

Confirm the Mechanical Interface

Verify that the motor’s mounting arrangement matches the machine.

The specified 100 mm frame size should be included in the mechanical compatibility check.

Inspect the Motor

Before installation, inspect the motor for:

• Physical damage
• Connector damage
• Shaft damage
• Mounting damage
• Contamination
• Signs of impact or improper handling

Install the Coupling Correctly

The coupling should be installed according to the machine manufacturer’s requirements.

Avoid excessive mechanical force when installing the coupling onto the motor shaft.

Check Alignment

The motor shaft and driven equipment should be correctly aligned.

Incorrect alignment can introduce additional mechanical stress.

Connect Motor and Feedback Cables

All electrical connections should be checked carefully before energizing the system.

Feedback wiring is particularly important because incorrect feedback signals can prevent normal closed-loop servo operation.

Verify Grounding

The motor and associated drive system should be grounded according to the applicable electrical installation requirements.

---

Commissioning Procedure

A controlled commissioning process can reduce the risk of unexpected machine movement.

1. Confirm Motor Identification

Verify that the installed motor is the correct MPL-A330P-SK72AA.

2. Verify Drive Configuration

Confirm that the servo drive has been configured for the installed motor and feedback arrangement.

3. Check Wiring

Inspect motor power, feedback, grounding, and control connections.

4. Confirm Machine Safety

Ensure that emergency-stop and other applicable machine safety functions are operational before testing.

5. Test at Low Speed

Perform the initial motion test at a controlled speed and under safe machine conditions.

6. Check Rotation

Confirm that the direction of motor rotation matches the programmed machine movement.

7. Verify Positioning

Test the required movement and verify that the machine reaches its intended position.

8. Tune the System

Servo tuning should be performed according to the motor, drive, mechanical load, and required machine response.

9. Test Normal Operation

After basic operation has been verified, perform the machine’s normal motion sequence and monitor for faults, vibration, abnormal noise, or positioning errors.

---

Troubleshooting

Motor Does Not Move

If the MPL-A330P-SK72AA does not rotate, check:

• Servo enable status
• Drive alarms
• Motor power connections
• Feedback connections
• Controller commands
• Safety circuits
• Mechanical obstruction
• Drive configuration

A non-moving motor does not necessarily indicate a failed motor.

Servo Drive Reports a Fault

A drive fault may be caused by:

• Feedback problems
• Incorrect configuration
• Excessive mechanical load
• Electrical wiring problems
• Improper tuning
• Safety-system conditions
• Drive-related faults

The drive diagnostic information should be reviewed before replacing the motor.

Positioning Is Inaccurate

Possible causes include:

• Incorrect servo tuning
• Mechanical backlash
• Coupling problems
• Excessive load
• Feedback problems
• Incorrect motion parameters
• Mechanical misalignment

Both the electrical control system and mechanical transmission should be inspected.

Excessive Vibration

Potential causes include:

• Poor shaft alignment
• Mechanical resonance
• Incorrect tuning
• Coupling problems
• Load imbalance
• Mechanical wear

The machine should be inspected before making major control-parameter changes.

Abnormal Motor Noise

Unusual noise can be associated with mechanical alignment, coupling condition, excessive load, bearing condition, or other system-related issues.

The motor should be evaluated together with the connected mechanical system.

---

Maintenance Recommendations

Although servo motors are designed for industrial service, preventive inspection can help identify developing problems.

Check Motor Mounting

Verify that mounting hardware remains secure.

Inspect the Coupling

Look for wear, damage, looseness, or alignment problems.

Inspect Cables

Check motor and feedback cables for:

• Abrasion
• Cuts
• Loose connections
• Mechanical stress
• Connector damage

Monitor Operating Behavior

Changes in vibration, noise, positioning accuracy, or acceleration response can indicate developing problems.

Keep the Installation Environment Suitable

Avoid excessive dust, moisture, heat, contamination, and vibration where these conditions are not permitted by the equipment design.

Record Maintenance Information

Maintaining records of motor replacement, drive configuration, tuning, and machine performance can simplify future troubleshooting.

---

Replacement Considerations

When replacing an Allen Bradley MPL-A330P-SK72AA, the complete catalog number should be checked carefully.

Important replacement information includes:

• Full motor model
• Frame size
• Nameplate information
• Feedback configuration
• Mechanical mounting arrangement
• Shaft configuration
• Connector arrangement
• Servo drive compatibility
• Machine load
• Controller configuration

The supplied physical information is:

Frame Size: 100 mm
Weight: 4.6 kg

A motor should not be considered interchangeable solely because another motor has the same frame size or similar appearance.

The electrical characteristics and feedback configuration must also be compatible with the complete motion-control system.

---

Physical Size and Weight

The Allen Bradley MPL-A330P-SK72AA has a specified 100 mm frame size and a listed weight of 4.6 kg.

The frame size is useful when planning machine installation and evaluating replacement motors. It provides a mechanical classification but does not represent every physical dimension of the motor.

For detailed mechanical design, engineers should separately verify:

• Overall motor length
• Mounting-hole dimensions
• Shaft dimensions
• Shaft extension
• Connector locations
• Cable exit arrangement
• Required installation clearance

The 4.6 kg weight should also be considered during installation, transportation, machine-axis design, and maintenance handling.

---

Typical Servo System Architecture

A complete motion-control system using the MPL-A330P-SK72AA can contain several interconnected elements.

Component	Typical Function
Motion Controller	Generates programmed motion commands
Servo Drive	Controls motor electrical operation
MPL-A330P-SK72AA	Provides controlled mechanical rotation
Feedback System	Provides actual motion information
Coupling	Transfers motor movement to the machine
Mechanical Load	Performs the required machine operation
Safety System	Controls safe machine operation
HMI	Provides operator monitoring and control

The exact architecture depends on the machine and selected control platform.

---

Engineering Considerations

Motor Sizing

Motor selection should account for load torque, acceleration requirements, duty cycle, inertia, speed requirements, and machine operating conditions.

Load Inertia

The relationship between motor inertia and mechanical load inertia can affect servo response and tuning requirements.

Mechanical Alignment

Proper alignment reduces unnecessary mechanical stress and helps maintain stable machine operation.

Cable Management

Motor and feedback cables should be routed and protected appropriately to reduce mechanical damage and electrical interference.

Servo Tuning

Tuning should be performed with the actual machine load installed whenever possible because machine mechanics can significantly affect servo response.

Configuration Documentation

Record important system configuration information after commissioning so maintenance personnel can reproduce the correct setup when servicing or replacing equipment.

---

Key Advantages

The Allen Bradley MPL-A330P-SK72AA Servo Motor provides several characteristics suitable for industrial motion applications:

• 100 mm frame size
• 4.6 kg listed weight
• Closed-loop servo motor operation
• Controlled rotary motion
• Precise positioning capability when properly configured
• Controlled acceleration and deceleration
• Suitable for coordinated machine movement
• Application in automated manufacturing systems
• Compact industrial mechanical format
• Integration with an appropriately matched servo drive and motion controller

---

Technical FAQs

What is the Allen Bradley MPL-A330P-SK72AA?

The MPL-A330P-SK72AA is an Allen Bradley industrial AC servo motor designed for controlled motion applications.

What is the frame size?

The specified frame size is 100 mm.

What is the weight?

The specified weight is 4.6 kg.

What is the purpose of this servo motor?

The motor converts controlled electrical power from a compatible servo drive into mechanical rotation for automated machine movement.

Does the motor operate independently?

The MPL-A330P-SK72AA is normally used as part of a complete servo system consisting of a motor, servo drive, motion controller, feedback system, and mechanical load.

What can cause a servo motor to stop unexpectedly?

Possible causes include drive faults, feedback problems, safety-system activation, incorrect configuration, mechanical obstruction, wiring problems, or excessive load.

Why is feedback important?

Feedback provides information about actual motor movement, allowing the servo system to regulate operation according to the commanded motion.

Can another 100 mm frame motor directly replace this model?

Not necessarily. Frame size alone does not establish electrical, feedback, mechanical, or drive compatibility. The complete motor catalog number and system configuration should be checked.

What should be checked before commissioning?

Motor identification, drive compatibility, electrical connections, feedback wiring, grounding, mechanical alignment, safety functions, and machine operating conditions should all be verified.

---

Conclusion

The Allen Bradley MPL-A330P-SK72AA Servo Motor is an industrial motion-control motor designed to operate as part of a closed-loop servo system. With a 100 mm frame size and a listed 4.6 kg weight, it provides a defined mechanical format for automated machinery and machine-axis applications.

The motor works together with a compatible servo drive and motion controller to convert electrical commands into controlled mechanical movement. Feedback enables the system to monitor actual motor behavior and support accurate positioning, speed regulation, coordinated motion, and repeatable machine operation.

For installation or replacement, the complete MPL-A330P-SK72AA catalog number should be verified along with the motor’s electrical characteristics, feedback configuration, mechanical mounting requirements, and compatible drive system. Exact technical parameters should be confirmed from the specific motor nameplate and applicable technical documentation.

With appropriate sizing, mechanical alignment, electrical integration, servo tuning, and preventive maintenance, the MPL-A330P-SK72AA can be incorporated into a wide range of industrial automation and precision motion-control systems.
