Product Overview

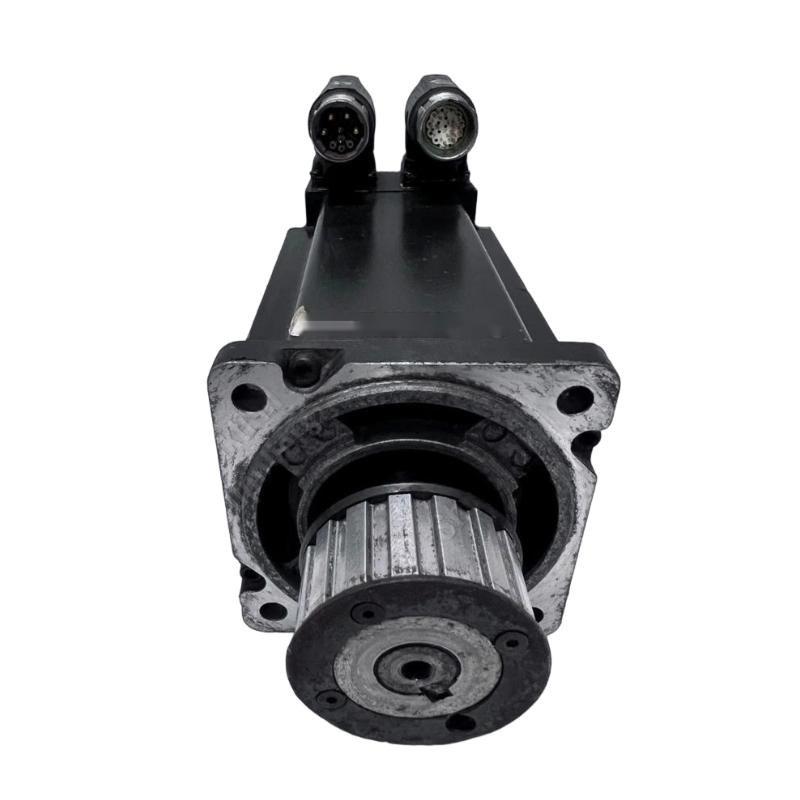

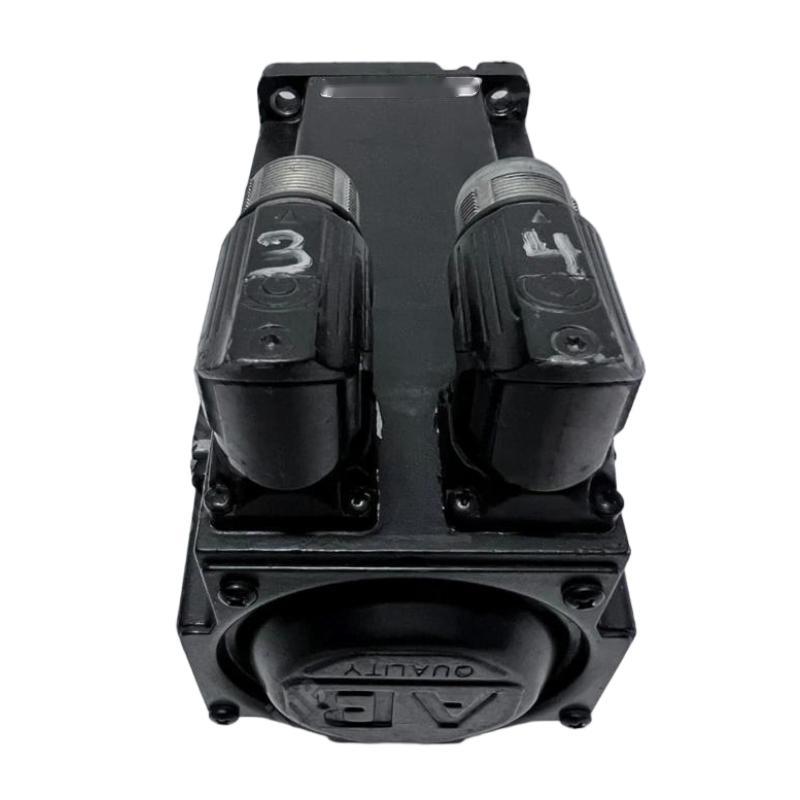

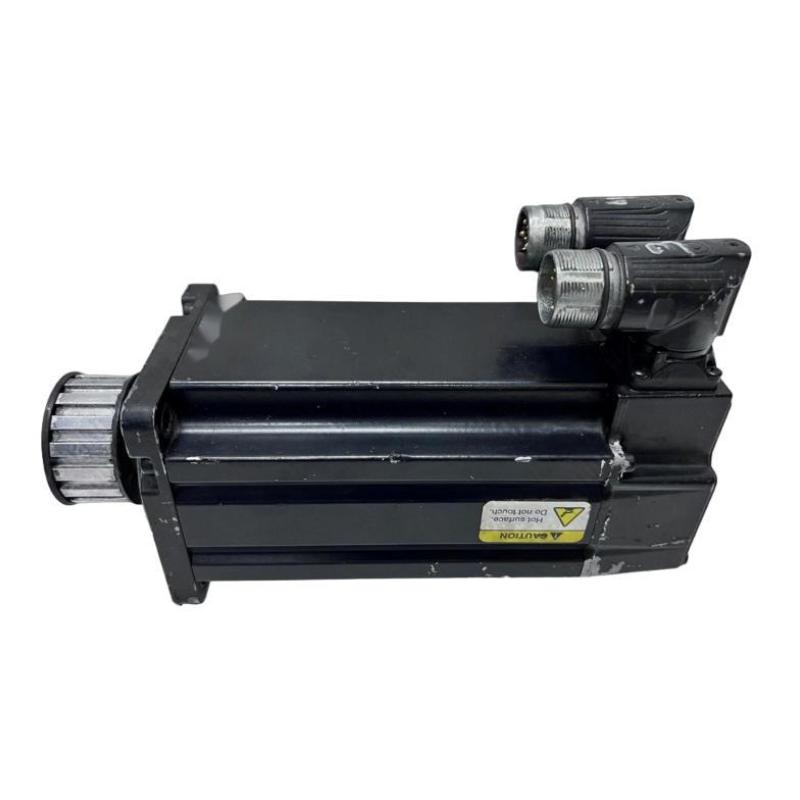

The Allen Bradley MPL-A330P-SJ74AA Servo Motor is an industrial AC servo motor designed for high-performance motion control applications within automated manufacturing and machine systems. As part of the Allen Bradley MPL family of servo motors, the MPL-A330P-SJ74AA can be integrated into coordinated motion-control architectures where accurate positioning, controlled acceleration, repeatable movement, and responsive motor performance are required.

With a 100 mm frame size and a listed weight of 4.6 kg, the MPL-A330P-SJ74AA provides a compact mechanical form factor for applications where machine builders need to balance motor performance with available installation space.

Servo motors such as the MPL-A330P-SJ74AA are normally used together with a compatible servo drive, controller, feedback system, mechanical transmission, and machine load. The complete motion system allows the controller to command a target position, velocity, or torque while the drive regulates motor operation according to feedback and application requirements.

Typical application areas include automated machinery, packaging equipment, material handling systems, assembly machines, indexing mechanisms, robotics-related equipment, and other industrial motion-control applications.

---

Technical Specifications

Parameter	Specification
Manufacturer	Allen Bradley
Model	MPL-A330P-SJ74AA
Product Type	AC Servo Motor
Product Family	MPL Servo Motor
Motor Technology	Permanent-Magnet Servo Motor
Frame Size	100 mm
Weight	4.6 kg
Application	Industrial Motion Control
Control Method	Servo Drive-Based Closed-Loop Control
Feedback	Application-dependent feedback system
Installation	Machine-mounted
Typical System	Servo Motor + Servo Drive + Motion Controller
Typical Applications	Automation Machinery, Packaging, Assembly, Material Handling, Positioning Systems

Note: Exact electrical ratings, rated speed, continuous torque, peak torque, voltage, current, feedback configuration, shaft dimensions, connector arrangement, and environmental ratings should be verified from the motor nameplate and the applicable Allen Bradley documentation for the specific MPL-A330P-SJ74AA configuration.

---

What Is the Allen Bradley MPL-A330P-SJ74AA?

The MPL-A330P-SJ74AA is an Allen Bradley servo motor intended for applications requiring controlled rotary motion and accurate machine movement.

Unlike a conventional induction motor that is commonly operated primarily according to speed and load requirements, a servo motor forms part of a closed-loop motion system. The motor works with a servo drive and feedback device so that the control system can continuously regulate the motor’s behavior.

A typical motion-control structure can be represented as:

Motion Controller → Servo Drive → MPL-A330P-SJ74AA Motor → Mechanical Load

with feedback returning through the appropriate feedback path:

Motor / Feedback → Servo Drive → Motion Controller

This closed-loop architecture enables the automation system to compare commanded motion with actual motor behavior and make corrective adjustments.

The 100 mm frame size provides a useful mechanical reference when engineers are evaluating cabinet-to-machine interfaces, motor mounting arrangements, machine envelope requirements, and replacement options.

---

Servo Motor Working Principle

The MPL-A330P-SJ74AA operates as part of a coordinated servo-control system.

The motion controller first determines the required movement according to the machine program. This command can represent a desired position, velocity, acceleration profile, or other motion requirement.

The servo drive receives the command and controls electrical power supplied to the motor. The motor then converts electrical energy into controlled mechanical rotation.

Feedback from the motor is used by the control system to determine actual motion. If the actual motor position or speed differs from the commanded value, the control system can adjust the drive output accordingly.

This closed-loop operation provides several important characteristics:

• Accurate positioning
• Repeatable movement
• Controlled acceleration and deceleration
• Rapid response to motion commands
• Coordinated multi-axis operation
• Controlled torque generation
• Improved machine synchronization

The actual performance of a complete servo system depends on the motor, drive, controller, feedback configuration, mechanical transmission, tuning parameters, and machine load.

---

Main Functions of the MPL-A330P-SJ74AA

The MPL-A330P-SJ74AA can perform several important functions within an industrial motion system.

Precision Rotary Motion

The motor converts electrical commands from the servo drive into controlled rotary movement for the connected machine mechanism.

Position Control

When integrated with an appropriate feedback and motion-control system, the motor can participate in accurate positioning operations.

Speed Regulation

The servo drive can regulate motor speed according to the motion profile required by the machine.

Acceleration and Deceleration

Controlled acceleration and deceleration help the machine achieve smoother movement and reduce unnecessary mechanical shock.

Dynamic Motion Response

Servo systems are designed to respond rapidly to changing motion commands, making them suitable for machines requiring frequent starts, stops, indexing, or direction changes.

Coordinated Motion

The motor can operate as one axis within a larger multi-axis automation system where several motors must operate according to a synchronized motion program.

---

Role in Industrial Automation

The MPL-A330P-SJ74AA can serve as the electromechanical motion element between an industrial controller and a machine mechanism.

A typical automation architecture may include:

PLC / Motion Controller → Servo Drive → MPL-A330P-SJ74AA → Mechanical Transmission → Machine Load

The controller determines the desired machine movement. The servo drive manages the electrical operation of the motor, while feedback allows the system to monitor actual motion.

This architecture is useful for machines where simple motor ON/OFF control is insufficient.

For example, an automated packaging machine may require a motor to move material to a precise location before another machine operation begins. A servo system can coordinate the motor’s position and movement with the rest of the machine sequence.

---

Industrial Applications

The Allen Bradley MPL-A330P-SJ74AA can be considered for a wide range of industrial motion-control applications where its mechanical configuration and electrical characteristics are suitable.

Packaging Machinery

Servo motors are commonly used for controlled movement in packaging equipment, including indexing, feeding, positioning, and synchronized mechanisms.

Assembly Machines

Automated assembly equipment can use servo motors to position components accurately during production sequences.

Material Handling

Servo-controlled movement can be applied to conveyors, transfer mechanisms, positioning systems, and other material-handling equipment.

Machine Tools

Servo motors are widely used in machine-tool axes where controlled positioning and repeatability are important.

Printing and Converting Equipment

Controlled motor movement is useful in applications requiring synchronized feeding, tension control, or precise positioning.

Automated Inspection Systems

Motion axes can position products or inspection devices according to programmed movement profiles.

Robotics and Automated Machinery

Servo motors can form individual motion axes in robotic or specialized automated equipment when matched with the appropriate controller and drive architecture.

---

Mechanical Integration

The mechanical installation of the MPL-A330P-SJ74AA should begin with verification of the machine mounting arrangement.

The supplied 100 mm frame size should be considered when evaluating the motor mounting interface and available machine space.

Before installation, engineers should verify:

• Motor mounting dimensions
• Shaft configuration
• Coupling requirements
• Machine-side mounting arrangement
• Available clearance
• Cable routing
• Mechanical load characteristics
• Alignment requirements
• Motor orientation
• Environmental conditions

The motor shaft should be correctly aligned with the driven mechanism. Misalignment can increase mechanical loading and may reduce the service life of the motor, coupling, bearings, or connected equipment.

A suitable coupling should be selected according to the actual application requirements.

---

Servo Drive Integration

The MPL-A330P-SJ74AA should be integrated with a servo drive that is confirmed to support the specific motor configuration.

The drive performs several important functions, including:

• Supplying controlled electrical power
• Regulating motor operation
• Processing feedback
• Controlling acceleration and deceleration
• Managing commanded speed or position
• Monitoring operating conditions
• Reporting system faults

Exact drive compatibility should not be determined solely from the motor model name. The complete motor catalog number, feedback arrangement, electrical ratings, drive family, firmware requirements, and application configuration should be checked before commissioning.

---

Installation Guidelines

Proper installation is important for reliable servo operation.

1. Verify the Motor Identification

Confirm the complete MPL-A330P-SJ74AA model number before installation.

Compare the replacement motor with the original motor if this is a maintenance replacement.

2. Check the Mechanical Interface

Confirm that the motor mounting arrangement is compatible with the machine.

The 100 mm frame size should be included in mechanical design and replacement checks.

3. Inspect the Shaft and Coupling

Check the motor shaft and coupling for damage before installation.

The coupling should be installed according to the mechanical manufacturer’s requirements.

4. Maintain Shaft Alignment

Accurate alignment helps reduce unwanted radial and axial loading.

Improper alignment can result in vibration, noise, increased bearing load, and premature mechanical wear.

5. Route Motor Cables Correctly

Motor and feedback cables should be routed carefully and protected from mechanical damage.

Where required by the system design, appropriate separation between power and low-level feedback wiring should be maintained.

6. Connect Feedback Correctly

Feedback wiring is critical for closed-loop servo operation.

Incorrect feedback connections can result in position errors, drive faults, or failure to enable the motor.

7. Verify Grounding

Proper grounding should be established according to the applicable installation requirements and the overall machine electrical design.

8. Inspect Before Energizing

Before power is applied, verify:

• Motor mounting
• Coupling installation
• Cable connections
• Feedback connections
• Grounding
• Drive configuration
• Machine safety conditions

---

Commissioning Procedure

A structured commissioning process helps reduce the risk of unexpected motion.

Step 1: Confirm Motor and Drive Compatibility

Verify that the servo drive is configured for the installed motor.

Step 2: Enter Motor Information

Configure the required motor identification and electrical parameters according to the applicable system documentation.

Step 3: Verify Feedback

Check that the drive correctly recognizes the motor feedback system.

Step 4: Check Rotation Direction

Perform a controlled low-speed test to confirm that motor rotation corresponds to the machine command.

Step 5: Verify Motion Limits

Check software and hardware limits where applicable.

Step 6: Perform Servo Tuning

Servo tuning should be performed according to the machine load and desired dynamic response.

Step 7: Test Under Controlled Conditions

Start with a low-risk test condition before operating the machine at normal production speed.

Step 8: Verify Machine Performance

Check positioning accuracy, movement smoothness, acceleration, deceleration, synchronization, and fault behavior.

---

Troubleshooting the MPL-A330P-SJ74AA

Servo motor faults should be investigated as part of the complete motion-control system rather than assuming the motor itself is defective.

Motor Does Not Rotate

Possible causes include:

• Drive not enabled
• Incorrect drive configuration
• Feedback problem
• Wiring problem
• Safety circuit active
• Controller command missing
• Drive fault
• Mechanical obstruction

Check the drive status and diagnostic information before replacing the motor.

Servo Fault During Operation

A servo fault may be associated with:

• Feedback problems
• Excessive mechanical load
• Incorrect tuning
• Wiring problems
• Drive configuration
• Overtemperature conditions
• Mechanical interference
• Communication or controller issues

The specific drive diagnostic code should be reviewed to identify the appropriate troubleshooting path.

Positioning Error

Position errors can result from:

• Incorrect tuning
• Mechanical backlash
• Coupling problems
• Excessive load
• Feedback problems
• Incorrect motion parameters
• Mechanical misalignment

The complete mechanical and control system should be evaluated.

Excessive Vibration

Potential causes include:

• Poor shaft alignment
• Mechanical resonance
• Improper servo tuning
• Coupling problems
• Damaged bearings
• Machine imbalance

Mechanical inspection should be performed before changing control parameters.

Abnormal Noise

Unusual noise may indicate mechanical problems, incorrect installation, excessive loading, or abnormal motor operation.

The motor should be inspected together with the coupling and driven mechanism.

---

Maintenance Recommendations

Servo motors generally require less routine maintenance than many mechanically complex drive systems, but regular inspection remains important.

Inspect Motor Mounting

Check that the motor remains securely mounted and that mounting hardware has not loosened.

Inspect Couplings

Check for signs of wear, misalignment, or mechanical damage.

Monitor Vibration

Unexpected changes in vibration can indicate mechanical or motor-related problems.

Check Cable Condition

Inspect motor and feedback cables for cuts, abrasion, loose connections, or other physical damage.

Monitor Servo Performance

Unexpected changes in positioning accuracy, response, vibration, or operating behavior can indicate developing problems.

Maintain the Machine Environment

Excessive dust, moisture, heat, vibration, and contamination can affect the service life of industrial electrical and mechanical equipment.

---

Replacement Considerations

When replacing an Allen Bradley MPL-A330P-SJ74AA Servo Motor, technicians should verify the complete catalog number rather than selecting a replacement solely according to physical appearance.

Important identification information includes:

• Full motor catalog number
• Frame size

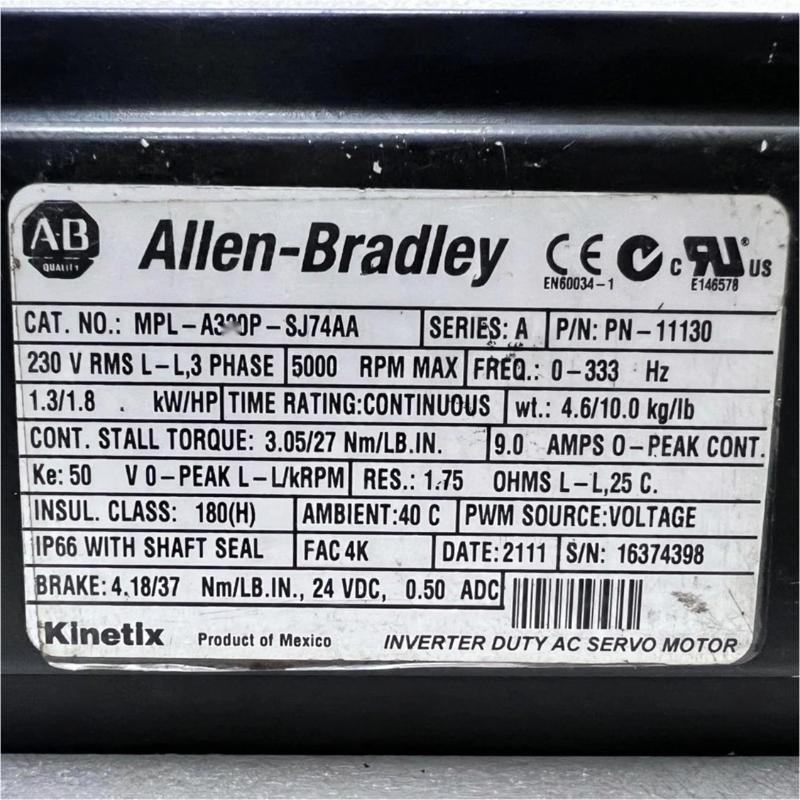

• Motor nameplate information
• Feedback configuration
• Mechanical mounting arrangement
• Shaft configuration
• Connector arrangement
• Compatible servo drive
• Machine application
• Existing controller configuration

The supplied physical information for this model is:

Frame Size: 100 mm
Weight: 4.6 kg

A replacement should be checked against the original motor and the complete motion-system configuration before installation.

---

Physical Dimensions and Weight

The MPL-A330P-SJ74AA has a listed 100 mm frame size and a listed weight of 4.6 kg.

The frame size is an important mechanical reference for machine designers and maintenance engineers. It can help determine whether the motor is suitable for a particular mounting arrangement.

The weight should also be considered when planning:

• Motor mounting
• Machine-axis design
• Handling during installation
• Replacement procedures
• Shipping and storage
• Mechanical support requirements

The frame size should not, however, be treated as a complete dimensional specification. Exact mounting-hole dimensions, shaft dimensions, overall motor length, and connector locations should be confirmed from the applicable motor documentation before mechanical fabrication.

---

System Integration

A complete servo-controlled machine can contain several interconnected components.

System Component	Typical Function
Motion Controller	Generates motion commands
Servo Drive	Controls motor electrical operation
MPL-A330P-SJ74AA	Converts electrical energy into controlled mechanical motion
Feedback System	Provides actual motor-motion information
Coupling	Transfers motor rotation to the machine
Mechanical Load	Performs the required machine movement
Safety System	Provides machine protection and controlled shutdown
HMI	Provides operator control and diagnostics

The exact architecture depends on the machine design.

A properly configured servo system allows the motor to work as one coordinated element within a larger automation platform.

---

Engineering Best Practices

Several engineering practices can improve servo-system reliability.

Use Correct Motor Sizing

The motor should be selected according to the actual load, acceleration requirements, duty cycle, inertia, and required motion profile.

Match the Drive Carefully

Drive and motor compatibility should be verified before commissioning.

Consider Load Inertia

A large mismatch between motor inertia and machine-load inertia can affect servo response and tuning.

Maintain Mechanical Alignment

Correct alignment reduces unnecessary mechanical stress.

Separate Power and Feedback Wiring

Where applicable, appropriate cable routing helps reduce electrical interference.

Perform Controlled Commissioning

Initial testing should be performed at safe conditions before full machine operation.

Record Configuration

Motor, drive, controller, tuning, and machine configuration information should be documented for future maintenance.

---

Key Advantages

The Allen Bradley MPL-A330P-SJ74AA provides several characteristics relevant to industrial motion applications:

• 100 mm frame size for machine integration
• 4.6 kg listed weight
• Servo-based closed-loop motion control
• Accurate positioning capability when properly configured
• Controlled acceleration and deceleration
• Fast response to motion commands
• Suitability for automated machinery
• Integration into multi-axis motion systems
• Compact industrial motor construction
• Compatibility with appropriately matched servo-control architectures

---

Technical FAQs

What is the Allen Bradley MPL-A330P-SJ74AA?

The MPL-A330P-SJ74AA is an Allen Bradley AC servo motor designed for industrial motion-control applications.

What is the frame size of the MPL-A330P-SJ74AA?

The listed frame size is 100 mm.

How much does the MPL-A330P-SJ74AA weigh?

The listed weight is 4.6 kg.

What is the purpose of a servo motor?

A servo motor converts controlled electrical power into precise mechanical motion. When combined with a suitable servo drive and feedback system, it can support controlled position, speed, and torque operation.

Can the MPL-A330P-SJ74AA be used without a servo drive?

A servo motor is normally operated as part of a servo-control system. The appropriate drive provides the controlled electrical power and manages motor operation.

What can cause servo positioning errors?

Positioning errors may be related to tuning, mechanical backlash, coupling problems, load conditions, feedback issues, configuration, or other components of the motion system.

What should be checked before replacing the motor?

The complete model number, frame size, mechanical interface, feedback configuration, drive compatibility, electrical characteristics, and machine requirements should be verified.

Is the 100 mm frame size the complete motor dimension?

No. Frame size is a mechanical reference and does not provide every physical dimension of the motor. Exact mounting, shaft, length, and connector dimensions should be confirmed separately.

What applications can use the MPL-A330P-SJ74AA?

Potential applications include packaging equipment, assembly machinery, material handling, positioning systems, automated production equipment, machine tools, and other industrial motion-control systems where the motor’s specifications are suitable.

---

Conclusion

The Allen Bradley MPL-A330P-SJ74AA Servo Motor is an industrial servo motor intended for controlled motion applications in automated machinery. With a listed 100 mm frame size and 4.6 kg weight, it provides a defined mechanical format for machine integration and replacement planning.

Its primary role is to convert controlled electrical power from a servo drive into precise mechanical movement. When integrated with an appropriate motion controller, servo drive, feedback system, and mechanical load, the MPL-A330P-SJ74AA can participate in closed-loop positioning, speed regulation, coordinated movement, and automated machine operations.

For installation or replacement, engineers should verify the complete motor catalog number together with the drive configuration, feedback arrangement, mechanical mounting requirements, and machine operating conditions. Exact electrical and mechanical parameters should be confirmed from the motor nameplate and applicable technical documentation before commissioning.

With correct system matching, mechanical installation, feedback connection, servo tuning, and preventive maintenance, the MPL-A330P-SJ74AA can serve as a reliable motion-control component in a wide range of industrial automation systems.
