Allen-Bradley 2711P-RN6K Industrial Automation Product Guide

1. Product Overview

The Allen-Bradley 2711P-RN6K is a catalog number associated with the PanelView Plus family of industrial operator-interface equipment. When identifying this part, it is important to distinguish between a complete HMI terminal and a component or accessory intended for use with a compatible terminal.

An industrial Human-Machine Interface (HMI) provides a graphical connection between an operator and an automated machine. Depending on the equipment configuration, an HMI system can display process values, operating modes, alarm messages, production information, and diagnostic data.

The 2711P-RN6K should not automatically be treated as a complete touchscreen terminal. The exact catalog description needs to be confirmed before assigning display specifications, communication interfaces, dimensions, or weight. This distinction matters because an accessory or internal module may have very different installation requirements from a complete operator terminal.

For purchasing, maintenance, or replacement planning, the safest approach is to verify the full part number on the product label and match it to the intended PanelView Plus hardware configuration.

2. Product Identification and Main Parameters

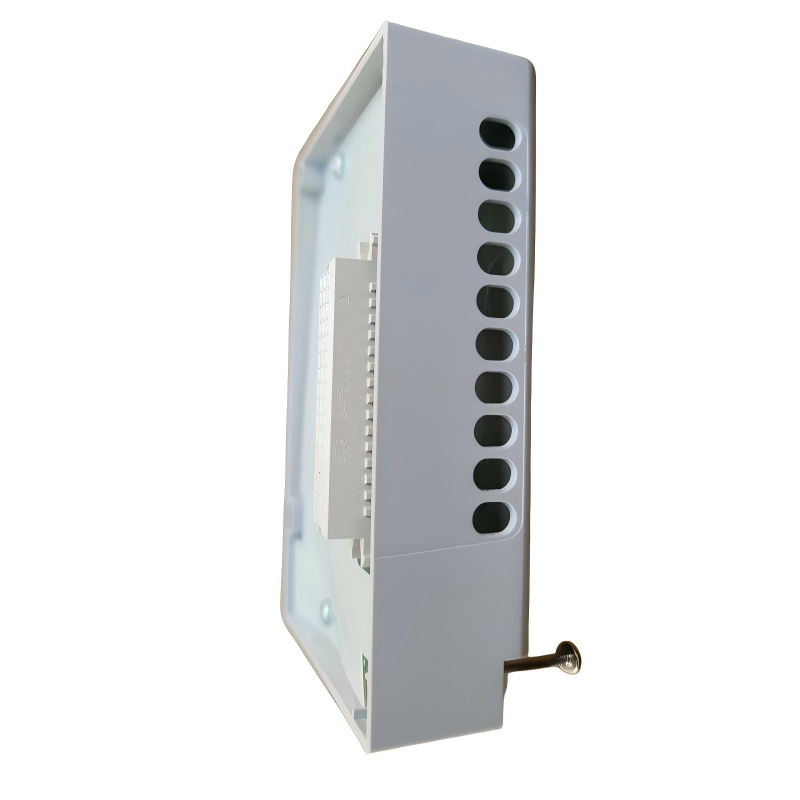

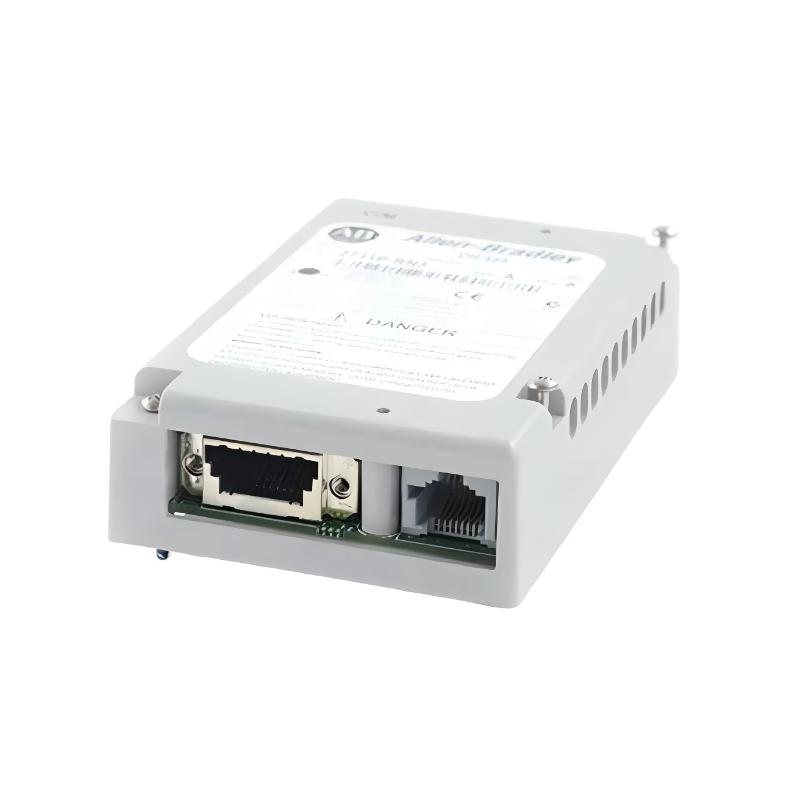

The 2711P-RN6K is a conformal-coated communication module designed for compatible PanelView Plus 700–1500 terminals. It supports legacy DH+ and DH-485 industrial communication networks.

The module is intended to add specific communication capabilities to a compatible operator terminal. It is not a complete HMI, does not have its own operator display, and should not be specified using the screen size or front-panel dimensions of the terminal into which it is installed.

Important: The 0.33 kg figure is an approximate module weight. Do not use shipping-package dimensions as the physical dimensions of the installed module. For cabinet calculations or mechanical design, use a verified drawing for the actual component.

3. Detailed Product Introduction

3.1 What the module does

The 2711P-RN6K is designed to provide legacy network connectivity for compatible PanelView Plus operator terminals. Its main purpose is to allow a suitable terminal configuration to communicate with equipment using supported DH+ or DH-485 networks.

In older industrial installations, these communication networks may connect operator terminals with programmable controllers and other automation equipment. They can remain important in factories where the original control system has been operating reliably for many years and a complete system replacement would require substantial engineering work.

The module allows the operator terminal to participate in a compatible network without requiring the entire automation system to be redesigned solely to change the operator-interface communication method.

3.2 Meaning of the conformal coating

The letter “K” in the catalog number identifies a conformal-coated version of the communication module.

Conformal coating is a protective layer applied to electronic assemblies to help reduce the effects of certain environmental contaminants, including moisture and corrosive residues, depending on the coating system and installation conditions.

This can be useful in industrial environments where electronic components may be exposed to more demanding conditions than those found in a clean office environment.

However, conformal coating does not make the module waterproof, dustproof, or suitable for every corrosive atmosphere. The complete terminal assembly must still be installed within its specified environmental limits.

3.3 Relationship with the PanelView Plus terminal

The 2711P-RN6K is a component of a larger operator-terminal assembly. It does not perform the same function as the terminal’s display, logic module, or application software.

A complete HMI installation typically includes the following elements:

• A display and operator-input assembly.

• A compatible logic module and application environment.

• The required communication hardware.

• A suitable power source.

• Network cabling and compatible control equipment.

• An application configured for the intended controller and machine.

The 2711P-RN6K addresses the communication-module portion of this arrangement. Correct operation therefore depends on the host terminal, installed hardware, application configuration, and connected network.

4. Technical Function and Communication Capabilities

4.1 DH+ communication

DH+ is a legacy industrial network technology associated with certain established programmable-controller systems. It has been used to exchange control-related information between compatible devices.

When the 2711P-RN6K is installed in a supported configuration, it can provide the communication path needed by an application designed to use the relevant DH+ network.

This may allow an operator terminal to display controller data, present equipment status, and provide configured operator commands. The actual data exchange depends on the controller, communication settings, application, and network design.

4.2 DH-485 communication

DH-485 is another legacy industrial communication network. It is distinct from DH+, and the two should not be treated as interchangeable protocols.

A system using DH-485 requires compatible devices, correct wiring, suitable network settings, and application support.

Before replacing a communication module, determine which network the machine actually uses. Selecting a module because it appears similar or belongs to the same general product family is not sufficient.

4.3 Compatibility with legacy control equipment

Legacy communication support is especially relevant when an older machine remains operational but its HMI communication hardware requires replacement.

For example, a production line may use a controller that communicates over a legacy network. If the operator terminal and controller are both configured for that network, replacing the communication module with an incompatible Ethernet-only component could interrupt communication even if the replacement fits physically.

The 2711P-RN6K should therefore be evaluated as part of the entire communication path, not as an isolated electronic component.

5. Product Applications

5.1 Legacy PLC and HMI installations

The module can be used in compatible installations where an existing operator terminal needs to communicate with supported legacy controllers.

Retaining the appropriate communication module can help preserve an established architecture when the original controller, HMI application, and network remain in service.

5.2 Manufacturing equipment

In manufacturing machinery, a compatible HMI may use the module to access controller information such as machine state, operating mode, production counters, and alarm conditions.

The communication module provides network connectivity; the actual display and operator functions are determined by the terminal and its application.

5.3 Material handling and conveyor systems

Conveyor installations often contain controllers, motor starters, sensors, and operator stations that must exchange information reliably.

Where a compatible legacy network is already in use, this module may help maintain the communication arrangement between the operator terminal and the control system.

5.4 Utility and process equipment

Some older utility and process installations retain legacy controllers because changing a validated control architecture can be costly and time-consuming.

A compatible communication module can support continued operation of the existing operator interface, provided the complete system remains within its operating and maintenance requirements.

5.5 Maintenance and spare-parts replacement

The module is relevant to maintenance teams responsible for keeping older HMI installations operational.

A verified spare can reduce the time required to restore a failed communication path. The replacement must match the installed terminal configuration and required protocol.

6. Product Advantages

6.1 Supports established communication networks

The principal advantage of the 2711P-RN6K is its support for DH+ and DH-485 communication in compatible PanelView Plus installations.

This can be valuable when the rest of the control system depends on a legacy network and cannot be replaced immediately.

6.2 Helps preserve existing HMI applications

When the host terminal, application, and controller remain compatible, retaining the required communication module can help preserve the existing operator workflow.

This may avoid the need for an immediate redesign of every operator screen or a complete change to the control-system architecture.

6.3 Conformal-coated construction

The protective coating is a useful feature in installations where electronic components may encounter certain environmental contaminants.

Its practical benefit depends on the environmental conditions, installation quality, and limits of the coating. It should be treated as an additional protective measure rather than a substitute for proper enclosure design.

6.4 Compact component-level installation

Because this is a communication module rather than a complete terminal, its purpose is to extend the capability of a compatible HMI assembly without adding another independent operator station.

Its installed dimensions and mounting arrangement depend on the host hardware, so compatibility must be checked before ordering.

6.5 Useful for maintaining older machinery

A module of this type may be important where a production machine has been designed around a particular controller and communication protocol.

Maintaining the correct module can be more practical in the short term than undertaking an unplanned migration of the HMI, controller, network, and application simultaneously.

6.6 Supports targeted replacement

If the failure is limited to the communication module, replacing that component may be a more focused repair than replacing the entire operator terminal.

This should only be attempted after troubleshooting confirms the module is the cause of the problem. Wiring faults, network configuration errors, controller faults, and failures in the host terminal can produce similar symptoms.

7. Limitations and Important Considerations

The 2711P-RN6K is a legacy component, so several points should be considered before purchasing or installing it.

– Discontinued status: New stock may be limited, and used or refurbished units may have different histories and warranty conditions.

– Protocol compatibility: DH+ and DH-485 are different network types. Confirm the protocol used by the existing system.

– Host-terminal compatibility: The module is intended for compatible PanelView Plus 700–1500 configurations. Confirm the exact terminal and logic-module combination.

– Conformal coating: The coating does not establish a specific IP rating or guarantee suitability for every harsh environment.

– Mechanical dimensions: The module’s dimensions should be obtained from a verified drawing. Do not use the terminal’s external dimensions as the module dimensions.

– Replacement testing: After installation, verify communication, application behavior, alarm reporting, and operator commands before returning the machine to normal production.

– Network migration: If the long-term goal is to move away from DH+ or DH-485, plan for controller compatibility, application changes, wiring, testing, and commissioning rather than substituting an unrelated module.

8. Brand and Product Series

Brand overview

Allen-Bradley is an industrial automation brand associated with programmable controllers, operator interfaces, motor control, industrial communication, and related control equipment.

Within an automation installation, its products may operate together as a system comprising a controller, an operator terminal, communication modules, distributed I/O, and machine-level devices.

PanelView Plus product family

PanelView Plus is a family of industrial operator-interface terminals. Different generations and configurations have supported different display sizes, input methods, logic modules, communication options, and software environments.

The 2711P-RN6K is not a display-size model in the same sense as a complete PanelView terminal. It is a communication accessory for compatible terminals in the specified range.

This distinction is important when selecting replacement parts: a terminal catalog number and a communication-module catalog number describe different hardware.

9. Five Related Models and Components

The following models are related to the same product family or to the communication and logic functions of compatible PanelView Plus installations. They are useful for comparison, but they are not all interchangeable with the 2711P-RN6K.

Selection guidance: The 2711P-RN6 is the closest comparison because it supports the same two legacy network types without the conformal-coated configuration. The RN15S and RN15SK models support a different network, so they should not be chosen as direct substitutes for a DH+ or DH-485 installation.

The RP7 and RP7A models serve a different purpose: they are logic modules. They are included as related components within the PanelView Plus hardware ecosystem, not as equivalent communication modules.

10. Five Other Popular Models from the Same Brand

The following table includes a selection of industrial automation products that may be relevant when maintaining or upgrading a control system built around an operator terminal.

Their roles differ: some are complete HMI terminals, while others are controllers or communication components. Dimensions and weight must be checked against the exact hardware variant before mechanical planning.

These are examples of related industrial automation products rather than direct substitutes for the 2711P-RN6K. A newer HMI may replace an older operator terminal after an engineering review, while a controller or I/O adapter has a different role in the system.

For any model being purchased, confirm the exact catalog number, installed revision, supply requirements, communication options, and mechanical specifications.

11. Recommended Checks Before Buying a Replacement

Before ordering a 2711P-RN6K, establish the following information:

1. Confirm the complete part number. Read the module label directly, including the final suffix.

2. Identify the host terminal. Record the complete PanelView Plus catalog number and hardware revision.

3. Identify the network. Confirm whether the existing application uses DH+ or DH-485.

4. Inspect the connections. Compare the connector arrangement, terminal wiring, and network cable requirements.

5. Check the operating environment. Determine whether the conformal-coated version is required by the installation conditions.

6. Check the logic-module configuration. Ensure that the host terminal contains the appropriate compatible hardware.

7. Confirm physical fit. Obtain the module drawing and verify clearances and installation requirements.

8. Plan functional testing. After replacement, verify communications with the controller, screen data updates, alarms, and permitted operator actions.

9. Retain the application backup. Keep the HMI project and configuration details available in case additional troubleshooting is required.

10. Consider long-term lifecycle planning. If the equipment is critical to production, assess whether continued use of legacy communication hardware remains practical.

12. Maintenance and Troubleshooting

When an operator terminal loses communication, the communication module should not automatically be assumed to be defective.

A structured troubleshooting process can help distinguish a failed module from a network or configuration problem.

For maintenance purposes, it is also useful to record the existing network settings and module configuration before making changes. That record can reduce diagnostic time if the replacement does not behave as expected.

13. Overall Product Assessment

The Allen-Bradley 2711P-RN6K is a conformal-coated DH+/DH-485 communication module for compatible PanelView Plus 700–1500 terminals. Its primary purpose is to support legacy industrial network connectivity, rather than to provide an independent operator display.

Its main advantages are support for established communication architectures, a protective coating intended for certain demanding environments, and the ability to replace a specific communication component without necessarily replacing the entire HMI assembly.

The main limitations are its discontinued status, dependence on compatible host hardware, and the need to verify the precise network protocol and installation requirements.

For a straightforward maintenance replacement, the 2711P-RN6 is the closest related model to compare, but its lack of the conformal-coated configuration may matter in the intended environment. For any alternative module, confirm the host terminal, communication protocol, connector arrangement, and mechanical fit before purchase.

For a longer-term modernization project, compare the cost and risk of maintaining the legacy module with the engineering effort needed to migrate the HMI and control system to a supported communication architecture.
