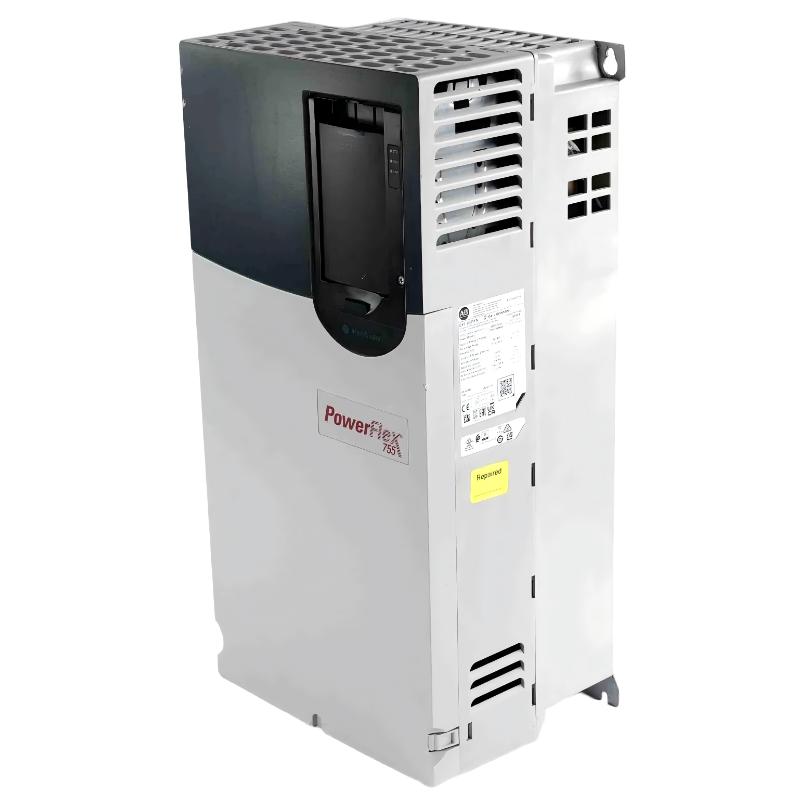

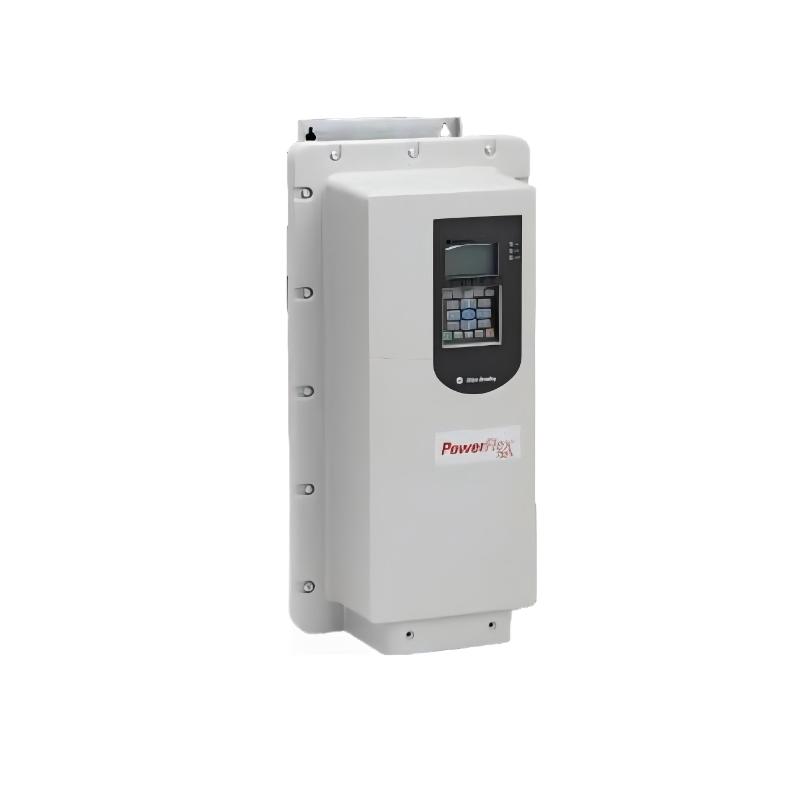

Allen-Bradley 20G1ANF082JA0NNNNN PowerFlex 755 AC Drive

1. Product Overview

The Allen-Bradley 20G1ANF082JA0NNNNN is a high-power AC variable frequency drive from the PowerFlex 755 series. It is designed for industrial motor-control applications where reliable speed regulation, controlled acceleration and deceleration, communication capability, and flexible drive configuration are required.

This model is designed for a 690 VAC, three-phase power system and provides an 82 A normal-duty output rating. Its normal-duty power rating is 75 kW, while the heavy-duty rating is 55 kW. The drive uses a Frame 6 mechanical configuration and forced-air cooling.

A particularly important feature of the JA0 configuration is the inclusion of an internal dynamic-braking transistor. This makes the model suitable for applications in which the motor needs controlled deceleration and where regenerative energy during braking needs to be handled through an external braking resistor arrangement.

The drive also incorporates EtherNet/IP communication, allowing it to be integrated into an industrial automation network and connected with programmable controllers, operator interfaces, supervisory systems, and other compatible automation equipment.

---

2. Basic Product Information

Parameter	Specification
Brand	Allen-Bradley
Product Series	PowerFlex 755
Product Type	AC Variable Frequency Drive
Catalog Number	20G1ANF082JA0NNNNN
Drive Family	PowerFlex 755 AC Drive
Voltage Class	690 VAC
Input Phase	3 Phase
Normal-Duty Power	75 kW
Heavy-Duty Power	55 kW
Normal-Duty Current	82 A
Heavy-Duty Current	61 A
Frame Size	Frame 6
Cooling Method	Forced Air
Communication	Embedded EtherNet/IP
Dynamic Braking	Internal Dynamic-Braking Transistor
Input Configuration	AC Input with Precharge
DC Terminals	No DC Terminals
Protection / Enclosure	IP20 / IP00, Open Type
EMC / Filtering	Filtered configuration
HIM	No HIM / Blank configuration
CM Jumper	Installed
Approximate Dimensions	665.5 × 308 × 346.4 mm
Approximate Weight	48 kg
Mounting	Panel / Cabinet Installation
Main Function	Variable-Speed AC Motor Control

---

3. Detailed Technical Parameters

Technical Parameter	20G1ANF082JA0NNNNN Specification
Model	20G1ANF082JA0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 755
Drive Type	AC Variable Frequency Drive
Input Voltage	690 VAC nominal
Input Configuration	Three-phase AC input
Input Frequency	Industrial AC supply frequency range
Output	Three-phase variable-frequency AC output
Normal-Duty Current	82 A
Heavy-Duty Current	61 A
Normal-Duty Rating	75 kW
Heavy-Duty Rating	55 kW
Frame	Frame 6
Cooling	Forced air
Communication	Embedded EtherNet/IP
Dynamic Braking	Yes, internal dynamic-braking transistor
DC Bus Terminals	Not provided in this configuration
Input Precharge	Yes
EMC / Filtering	Filtered
CM Jumper	Installed
HIM	Blank / no HIM
Protection	IP20 / IP00
Enclosure Type	Open Type
Approx. Height	665.5 mm
Approx. Width	308 mm
Approx. Depth	346.4 mm
Approx. Dimensions	665.5 × 308 × 346.4 mm
Approx. Weight	48 kg
Installation	Electrical cabinet / control panel
Cooling Requirement	Forced-air ventilation
Application Type	Industrial motor speed and torque control

---

4. Product Introduction

The 20G1ANF082JA0NNNNN belongs to the PowerFlex 755 family of industrial AC drives. This family is intended for applications where a standard fixed-speed motor starter is not enough and the process requires adjustable speed, controlled torque, smoother starting, controlled stopping, or integration with an automation system.

With an 82 A normal-duty rating and 75 kW normal-duty power rating, this model is positioned for relatively large industrial motors. It is suitable for machinery and process systems where the motor load can change considerably during operation.

The drive is built around a three-phase 690 VAC industrial power architecture. The 690 V class is particularly useful in higher-power installations because higher system voltage can allow the required motor power to be transferred with lower current compared with an equivalent lower-voltage system.

The JA0 configuration also includes an internal dynamic-braking transistor. This is an important difference from configurations without the braking transistor. When the driven machine needs rapid or controlled deceleration, the drive can be configured with an appropriate external braking resistor system to dissipate braking energy.

The embedded EtherNet/IP capability also makes the drive suitable for modern industrial automation systems. Instead of treating the drive as an isolated motor controller, it can be incorporated into a larger control architecture where operating commands, speed references, status information, alarms, and diagnostic information can be exchanged with the automation controller.

---

5. Understanding the Model Number

The complete catalog number is:

20G1ANF082JA0NNNNN

The model number identifies a particular PowerFlex 755 drive configuration rather than simply identifying the power rating.

Model Section	General Identification
20G	PowerFlex 755 AC drive family
1	Drive configuration identifier
A / N / F	Configuration and voltage-class information
082	82 A current class
JA0	Specific factory configuration including dynamic-braking transistor
NNNNN	Additional option/configuration positions

The most important practical information is the combination of PowerFlex 755 + 690 VAC + 82 A + 75 kW ND + 55 kW HD + Frame 6 + JA0 dynamic-braking configuration.

When selecting a replacement, it is important not to choose a drive solely because the power rating appears similar. Input voltage, motor current, duty rating, frame size, braking requirements, communications, enclosure arrangement, filtering, and installed options should all be checked.

---

6. Normal-Duty and Heavy-Duty Ratings

One of the important characteristics of the 20G1ANF082JA0NNNNN is that it has two different power ratings depending on the application duty.

Rating	Current	Power
Normal Duty	82 A	75 kW
Heavy Duty	61 A	55 kW

The 75 kW normal-duty rating is suitable for applications where the motor generally operates with a comparatively moderate overload requirement.

The 55 kW heavy-duty rating provides a lower continuous power rating but is intended for applications with more demanding overload or torque requirements.

This distinction is important when applying the drive to conveyors, crushers, mixers, hoists, compressors, process machinery, and other equipment where starting torque and overload conditions can be significant.

The drive should therefore be selected according to the actual motor full-load current and application duty rather than simply matching the motor nameplate kW.

---

7. Dynamic Braking Function

The JA0 configuration includes an internal dynamic-braking transistor.

This is one of the major configuration characteristics of the 20G1ANF082JA0NNNNN.

During deceleration, the motor can return energy to the drive DC bus. If the machine is decelerating rapidly or has a high-inertia load, the DC bus voltage can rise.

A braking system can be used to manage this energy. The internal dynamic-braking transistor provides the switching function required for an appropriate external braking resistor arrangement.

This feature can be valuable for applications such as:

• Conveyors with large moving loads
• Material-handling machinery
• Centrifugal equipment requiring controlled stopping
• High-inertia rotating machinery
• Machine tools
• Industrial production equipment
• Hoisting-related machinery where the complete braking system is appropriately engineered
• Machinery requiring relatively rapid deceleration

The exact braking resistor selection should always be based on the machine inertia, stopping time, duty cycle, motor characteristics, and drive application requirements.

---

8. Embedded EtherNet/IP Communication

The 20G1ANF082JA0NNNNN includes embedded EtherNet/IP communication.

This allows the drive to become part of an industrial control network rather than operating as a standalone speed controller.

Typical information exchanged through the network can include:

• Start and stop commands
• Speed references
• Motor operating status
• Output frequency
• Current information
• Drive status
• Fault information
• Warning information
• Control commands
• Diagnostic information
• Process-related drive parameters

This type of connectivity is especially useful in automated manufacturing environments where several drives need to be managed from a central control system.

It can also reduce the amount of conventional hardwired control required for certain control architectures.

---

9. Electrical Characteristics

The drive is intended for a 690 VAC three-phase industrial power system.

The output is variable-frequency three-phase AC, allowing the connected motor to operate at adjustable speed.

The drive can control motor acceleration and deceleration rather than simply switching the motor directly between an off state and full-speed operation.

This provides several practical benefits.

For example, a conveyor can be accelerated gradually rather than starting abruptly. A pump can be operated at a controlled speed instead of continuously running at full speed. A fan can adjust its speed according to the process requirement. Industrial machinery can also use controlled acceleration and deceleration to reduce mechanical shock.

---

10. Dimensions and Weight

Physical size is particularly important when installing a Frame 6 industrial drive into an existing electrical cabinet.

Physical Parameter	Specification
Model	20G1ANF082JA0NNNNN
Height	Approx. 665.5 mm
Width	Approx. 308 mm
Depth	Approx. 346.4 mm
Overall Approx. Size	665.5 × 308 × 346.4 mm
Approx. Weight	48 kg
Frame	Frame 6
Cooling	Forced air
Installation	Cabinet / panel

The approximately 48 kg weight should be considered when designing the mounting structure.

The cabinet should provide sufficient mechanical support and adequate ventilation around the drive.

Clearance should also be considered for incoming power cables, motor cables, control wiring, network cables, maintenance access, and airflow.

---

11. Cooling and Cabinet Installation

The 20G1ANF082JA0NNNNN uses forced-air cooling.

At 75 kW, the drive can generate substantial heat during operation. Proper cabinet ventilation is therefore important.

A suitable installation should provide:

• Adequate air circulation
• Appropriate cabinet ventilation
• Sufficient clearance around air intake and exhaust areas
• Proper mounting support
• Suitable cable routing
• Separation of power and low-level control wiring where appropriate
• Easy access for maintenance
• Adequate environmental protection

The actual cabinet design should take into account the drive’s heat dissipation, other heat-producing components, ambient temperature, altitude, enclosure construction, and ventilation method.

---

12. Protection and Enclosure

The drive is associated with an IP20 / IP00 open-type configuration.

This means the drive itself should not be treated as a fully sealed outdoor enclosure.

For industrial installations, it is normally integrated into a suitable electrical cabinet or control enclosure that provides the required environmental protection.

The final enclosure should be selected according to:

• Dust exposure
• Moisture
• Chemical environment
• Ambient temperature
• Required personnel protection
• Cabinet cooling requirements
• Installation location
• Electrical code requirements
• Maintenance requirements

This is especially important in production environments where the drive may be exposed to dust, oil mist, humidity, vibration, or other industrial contaminants.

---

13. Main Applications

The 20G1ANF082JA0NNNNN is suitable for a broad range of industrial motor-control applications.

Conveyor Systems

Conveyors are one of the natural applications for a variable frequency drive.

The drive can provide controlled acceleration and deceleration, adjustable conveyor speed, and network-based control.

For large material-handling systems, the 75 kW normal-duty rating provides substantial motor-control capacity.

The dynamic-braking configuration can also be useful where the conveyor needs controlled stopping and the application has significant rotating or moving mass.

---

Pumps

The drive can be used for large industrial pump systems where variable-speed operation is required.

Speed control can allow the pump to operate according to changing process requirements rather than simply running continuously at one fixed speed.

Typical applications include:

• Industrial water systems
• Process pumps
• Cooling-water systems
• Circulation systems
• Large fluid-handling equipment
• Industrial utility systems

---

Fans and Blowers

Large fans and blowers can benefit from adjustable-speed operation.

Instead of operating at a fixed speed under all conditions, the motor can be controlled according to the required airflow or process condition.

This can be useful in:

• Industrial ventilation
• Process-air systems
• Large exhaust systems
• Cooling systems
• Material-processing equipment

---

Material Handling

The drive is well suited to larger material-handling machinery where controlled motor operation is required.

Possible equipment includes:

• Conveyors
• Transfer systems
• Feed systems
• Bulk-material handling
• Industrial lifting-related machinery
• Processing lines

The dynamic-braking capability can be especially relevant where the driven equipment has substantial inertia.

---

Manufacturing Machinery

The drive can be incorporated into manufacturing equipment where adjustable motor speed is required.

Examples include:

• Production machinery
• Processing machinery
• Large machine systems
• Automated material-processing equipment
• Industrial mixers
• Machinery with variable production rates

---

Process Equipment

Process industries often require motors to operate at different speeds depending on the production condition.

The 20G1ANF082JA0NNNNN can provide the variable-speed control needed for large process motors.

Its network connectivity also allows drive status and operating information to be integrated into a larger automation system.

---

14. Advantages of the 20G1ANF082JA0NNNNN

14.1 High Power Capacity

The 75 kW normal-duty rating makes this model suitable for relatively large industrial motors.

It provides significantly more capacity than smaller PowerFlex 755 models in the same voltage family.

---

14.2 690 VAC Compatibility

The 690 VAC design is suitable for high-power industrial electrical systems.

Using a higher voltage class can be useful in installations where large motor power needs to be transferred efficiently through the electrical system.

---

14.3 Dynamic-Braking Transistor

The JA0 configuration includes an internal dynamic-braking transistor.

This gives the drive an important additional capability for applications requiring controlled deceleration and management of regenerative energy.

---

14.4 Embedded EtherNet/IP

The integrated EtherNet/IP interface simplifies integration into an industrial automation architecture.

This can be useful when a facility has multiple drives that need to be monitored and controlled from a central automation system.

---

14.5 Flexible Industrial Motor Control

The drive can provide adjustable motor speed and controlled acceleration and deceleration.

This makes it more flexible than a basic fixed-speed motor starter for many industrial applications.

---

14.6 Suitable for Large Industrial Machinery

With an 82 A normal-duty rating, the model can be used with substantially larger motors than compact general-purpose drives.

This makes it suitable for large conveyors, pumps, fans, process machinery, and other industrial equipment.

---

14.7 Frame 6 Construction

The Frame 6 design provides a standardized mechanical platform within the PowerFlex 755 family.

This is useful when several drives are being incorporated into a common equipment or cabinet design.

---

15. Five Recommended Models from the Same Series

The following models are closely related PowerFlex 755 configurations in the 690 VAC family.

Model	Voltage	Normal-Duty Current	Normal-Duty Power	Heavy-Duty Current	Heavy-Duty Power	Frame	Dynamic Braking	Approx. Dimensions	Approx. Weight
20G1ANF061JA0NNNNN	690 VAC	61 A	55 kW	50 A	45 kW	Frame 6	Yes	Frame 6; approx. 665.5 × 308 × 346.4 mm*	Approx. 48 kg*
20G1ANF098JA0NNNNN	690 VAC	98 A	90 kW	82 A	75 kW	Frame 6	Yes	Frame 6; configuration dependent	Configuration dependent
20G1ANF119JA0NNNNN	690 VAC	119 A	110 kW	98 A	90 kW	Frame 6	Yes	Frame 6; configuration dependent	Configuration dependent
20G1ANF142JA0NNNNN	690 VAC	142 A	132 kW	119 A	110 kW	Frame 6	Yes	Frame 6; configuration dependent	Configuration dependent
20G1ANF171JA0NNNNN	690 VAC	171 A	160 kW	142 A	132 kW	Frame 7	Yes	Frame 7; configuration dependent	Configuration dependent

*Physical dimensions and weight for related configurations should be checked against the exact catalog configuration before final cabinet or mounting design.

---

16. Same-Series Comparison

The five models above provide a useful progression around the 82 A target model.

Parameter	20G1ANF061JA0NNNNN	20G1ANF082JA0NNNNN	20G1ANF098JA0NNNNN	20G1ANF119JA0NNNNN	20G1ANF142JA0NNNNN
Voltage	690 VAC	690 VAC	690 VAC	690 VAC	690 VAC
Normal-Duty Current	61 A	82 A	98 A	119 A	142 A
Normal-Duty Power	55 kW	75 kW	90 kW	110 kW	132 kW
Heavy-Duty Current	50 A	61 A	82 A	98 A	119 A
Heavy-Duty Power	45 kW	55 kW	75 kW	90 kW	110 kW
Frame	6	6	6	6	6
Cooling	Forced Air	Forced Air	Forced Air	Forced Air	Forced Air
EtherNet/IP	Yes	Yes	Yes	Yes	Yes
Dynamic-Braking Transistor	Yes	Yes	Yes	Yes	Yes
Dimensions	Configuration dependent	665.5 × 308 × 346.4 mm approx.	Configuration dependent	Configuration dependent	Configuration dependent
Weight	Configuration dependent	48 kg approx.	Configuration dependent	Configuration dependent	Configuration dependent

The 20G1ANF061JA0NNNNN is the lower-current option in this comparison.

The 20G1ANF082JA0NNNNN sits between the 61 A and 98 A versions and provides a 75 kW normal-duty rating.

The 20G1ANF098JA0NNNNN provides additional current and power capacity when the 82 A model is not sufficient.

The 119 A and 142 A versions move further into higher-power industrial motor applications.

---

17. Five Commonly Encountered Allen-Bradley Models

The following models are useful related Allen-Bradley drives for comparison across different PowerFlex families.

Model	Series	Voltage Class	Current / Power Class	Frame / Size	Cooling	Approx. Dimensions	Approx. Weight
25B-D2P3N114	PowerFlex 525	480 VAC class	Approx. 2.3 A class	Compact	Fan cooled	Compact-frame dimensions, configuration dependent	Configuration dependent
25B-D017N104	PowerFlex 525	480 VAC class	Approx. 17 A class	Compact	Fan cooled	Compact-frame dimensions, configuration dependent	Configuration dependent
20F11NC2P2JA0NNNNN	PowerFlex 753	480 VAC class	Approx. 2.2 A class	Small-frame configuration	Forced air	Configuration dependent	Configuration dependent
20G1ANF061JA0NNNNN	PowerFlex 755	690 VAC	61 A ND / 50 A HD	Frame 6	Forced air	Approx. Frame 6 dimensions	Approx. 48 kg class*
20G1ANF098JA0NNNNN	PowerFlex 755	690 VAC	98 A ND / 82 A HD	Frame 6	Forced air	Frame 6 configuration	Configuration dependent

*Exact dimensions and weight can vary with the complete factory configuration.

---

18. PowerFlex 525 Compared with PowerFlex 755

The PowerFlex 525 family is generally associated with more compact drive installations and smaller motor applications.

The PowerFlex 755 family is designed for larger and more demanding industrial applications where greater power, more extensive control functionality, and broader system integration capabilities are required.

For example, the 25B-D2P3N114 is in a substantially smaller current class than the 20G1ANF082JA0NNNNN.

By comparison, the 20G1ANF082JA0NNNNN is a high-power 690 VAC Frame 6 drive with an 82 A normal-duty rating and 75 kW normal-duty capacity.

Therefore, these models should not be viewed as direct one-for-one replacements. They belong to different application ranges and have substantially different electrical and mechanical characteristics.

---

19. JA0 Versus Similar JN0 Configuration

One particularly useful comparison is between the JA0 and JN0 versions of the same basic 690 VAC PowerFlex 755 family.

Feature	JA0 Configuration	JN0 Configuration
Dynamic-Braking Transistor	Yes	No
690 VAC Class	Yes	Yes
EtherNet/IP	Yes	Yes
Frame 6 for 82 A Version	Yes	Yes
Forced-Air Cooling	Yes	Yes
Normal-Duty Rating	75 kW	75 kW
Heavy-Duty Rating	55 kW	55 kW
Main Difference	Includes dynamic-braking transistor	No dynamic-braking transistor

For a machine that requires dynamic braking, the distinction between these configurations can be important.

The complete catalog number should therefore be checked rather than treating every 20G1ANF082 model as identical.

---

20. Typical Industrial Application Areas

The 20G1ANF082JA0NNNNN can be considered for a wide range of industrial systems, including:

Application Area	Typical Motor-Control Requirement
Conveyors	Adjustable speed, controlled acceleration, controlled stopping
Pumps	Variable flow and pressure control
Fans	Adjustable airflow
Blowers	Variable process-air control
Material Handling	Speed and torque control
Process Machinery	Adjustable production speed
Mixers	Controlled starting and variable speed
Industrial Machinery	Motor speed and torque regulation
Production Lines	Coordinated motor operation
Large Utility Systems	Variable-speed operation
Heavy Industrial Equipment	High-power motor control
Automated Machinery	Networked drive control

---

21. Advantages in Automation Systems

The biggest practical advantage of this model is that it can serve as both a motor-speed controller and an integrated automation component.

A traditional motor starter generally provides basic starting and stopping.

A variable frequency drive can provide much more control.

The 20G1ANF082JA0NNNNN can regulate motor speed, control acceleration, control deceleration, provide operating information, communicate with the automation system, and support application-specific braking requirements.

This makes it particularly useful in machines where motor speed is directly related to production rate or process conditions.

---

22. Advantages for Maintenance

Network connectivity can also make maintenance easier.

Instead of relying only on local indicators, drive operating information can be incorporated into an automation system.

This can help maintenance personnel identify operating conditions and drive-related problems more efficiently.

The drive can also provide useful operating and diagnostic information to the control system, depending on the installed control architecture and parameter configuration.

---

23. Advantages for Large Motors

For large industrial motors, starting and stopping can create considerable mechanical stress.

Using variable-speed control allows the machine to ramp the motor up rather than applying full operating conditions immediately.

The same principle applies to stopping.

Controlled deceleration can reduce sudden mechanical changes and can provide more predictable machine behavior.

For applications involving large rotating inertia, the dynamic-braking capability of the JA0 configuration can provide another useful tool for managing deceleration.

---

24. Installation Considerations

Before installing the 20G1ANF082JA0NNNNN, several factors should be checked.

Electrical System

The available power supply should match the drive’s voltage class and electrical requirements.

The upstream protective equipment should be selected appropriately for the installation.

Motor

The motor’s voltage, rated current, power, frequency, insulation system, and operating requirements should be compatible with the drive application.

Cabinet

Because the drive is approximately 665.5 mm high, 308 mm wide, and 346.4 mm deep, the cabinet should provide sufficient physical room.

Additional clearance is also required for wiring and cooling.

Weight

At approximately 48 kg, the drive requires a suitable mounting structure.

The cabinet backplate and mounting hardware should be capable of supporting the drive securely.

Cooling

Forced-air cooling means that airflow must not be obstructed.

The cabinet’s thermal design should account for the drive’s heat generation and the heat generated by other equipment installed nearby.

---

25. Selection Checklist

When selecting the 20G1ANF082JA0NNNNN for a project, the following points should be checked:

Selection Item	What to Check
Motor Voltage	Confirm compatibility with the drive output system
Motor Current	Compare actual motor full-load current with the drive rating
Motor Power	Confirm the required kW rating
Duty	Determine whether normal-duty or heavy-duty operation applies
Supply Voltage	Confirm 690 VAC three-phase system
Braking	Determine whether dynamic braking is required
Communication	Confirm EtherNet/IP requirements
Cabinet	Confirm physical dimensions and mounting space
Weight	Allow for approximately 48 kg
Cooling	Provide sufficient forced-air ventilation
Environment	Check temperature, humidity, dust and other conditions
Cable Routing	Provide appropriate power, motor, control and network routing
Protection	Select appropriate external protective equipment
Motor Parameters	Configure the drive according to the actual motor
Control Method	Define the required speed, torque and command structure
Maintenance Access	Leave sufficient room for service and inspection

---

26. Why the 20G1ANF082JA0NNNNN Is a High-Capacity PowerFlex 755 Model

The 20G1ANF082JA0NNNNN occupies a substantial position within the 690 VAC PowerFlex 755 range.

Its combination of:

• 690 VAC operation
• 82 A normal-duty current
• 61 A heavy-duty current
• 75 kW normal-duty power
• 55 kW heavy-duty power
• Frame 6 construction
• Forced-air cooling
• Embedded EtherNet/IP
• Internal dynamic-braking transistor
• Filtered configuration

makes it suitable for demanding industrial motor-control systems.

It is not intended as a small compact machine drive. Its physical size, weight, electrical rating, and cooling requirements place it firmly in the category of larger industrial variable-frequency drives.

---

27. Technical Summary

Parameter	Final Specification
Model	20G1ANF082JA0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 755
Product Type	Industrial AC Variable Frequency Drive
Input Voltage	690 VAC
Phases	3 Phase
Normal-Duty Current	82 A
Normal-Duty Power	75 kW
Heavy-Duty Current	61 A
Heavy-Duty Power	55 kW
Frame	6
Cooling	Forced Air
Communication	Embedded EtherNet/IP
Dynamic Braking	Internal Dynamic-Braking Transistor
Input	AC with Precharge
DC Terminals	None
Filtering	Filtered
CM Jumper	Installed
HIM	Blank / No HIM
Enclosure	IP20 / IP00 Open Type
Height	Approx. 665.5 mm
Width	Approx. 308 mm
Depth	Approx. 346.4 mm
Dimensions	Approx. 665.5 × 308 × 346.4 mm
Weight	Approx. 48 kg
Primary Application	Large Industrial Motor Control
Typical Applications	Conveyors, pumps, fans, blowers, process machinery, material handling, production equipment

---

28. Final Product Description

The Allen-Bradley 20G1ANF082JA0NNNNN PowerFlex 755 AC Drive is a high-power industrial variable frequency drive designed for three-phase 690 VAC motor-control applications.

With an 82 A normal-duty rating and 75 kW normal-duty capacity, it can handle substantially larger motors than compact variable-frequency drives. Its 55 kW heavy-duty rating at 61 A also allows it to be applied to more demanding motor loads when the appropriate duty classification is used.

The drive’s Frame 6 construction and forced-air cooling system are designed for industrial installations, while its approximate 665.5 × 308 × 346.4 mm dimensions and 48 kg weight should be taken into account during cabinet design and installation.

The integrated EtherNet/IP communication capability allows the drive to participate in a networked automation system, making it suitable for modern production lines and process-control environments.

Another important characteristic is the JA0 dynamic-braking configuration. The internal dynamic-braking transistor provides the drive with a braking-control capability that can be useful in applications involving high inertia or controlled stopping, provided the complete braking system is correctly designed.

Overall, the 20G1ANF082JA0NNNNN is intended for large industrial motor applications where adjustable speed, controlled acceleration and deceleration, network communication, and a higher-power 690 VAC drive platform are required.

For equipment selection, the most important points to verify are the actual motor current, required duty, supply voltage, braking requirements, cabinet dimensions, cooling conditions, communication architecture, and the exact factory configuration represented by the complete catalog number.
