Allen-Bradley 20F1ANE192JN0NNNNN — Detailed Product Specifications, Product Introduction, Applications, Advantages and Related Models

1. Product Overview

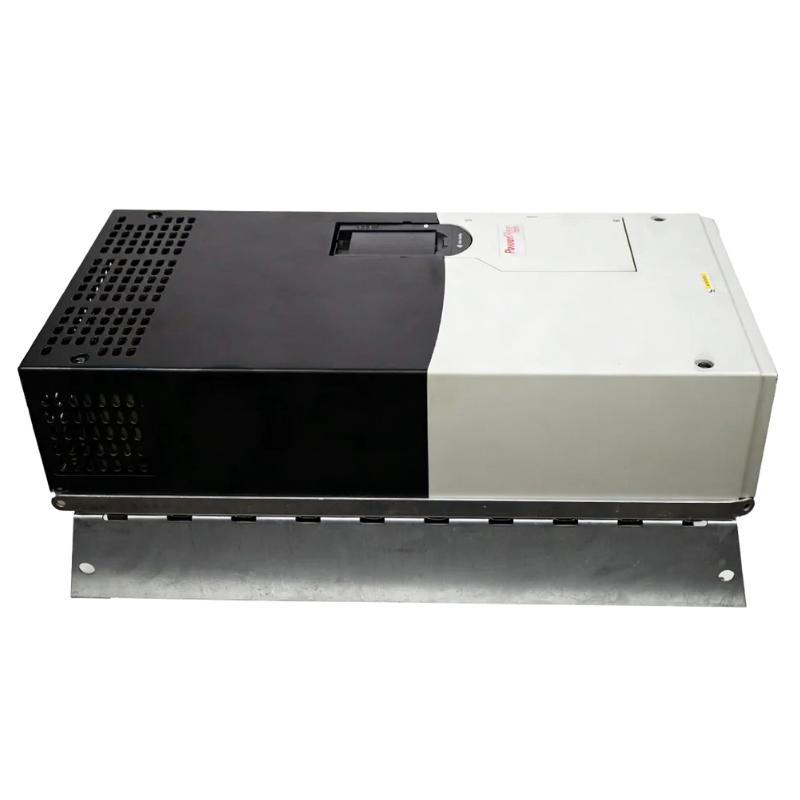

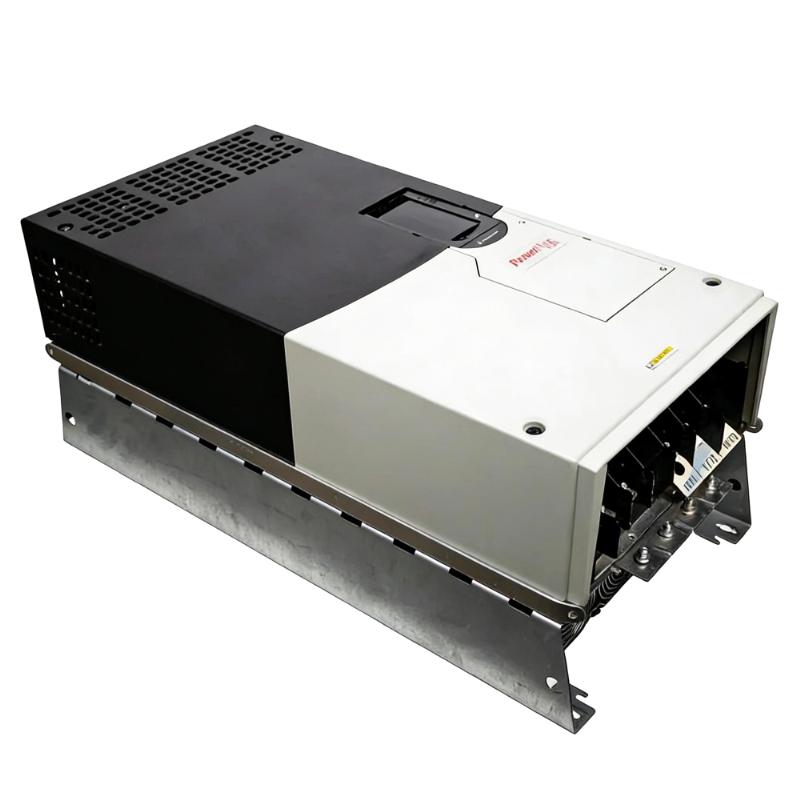

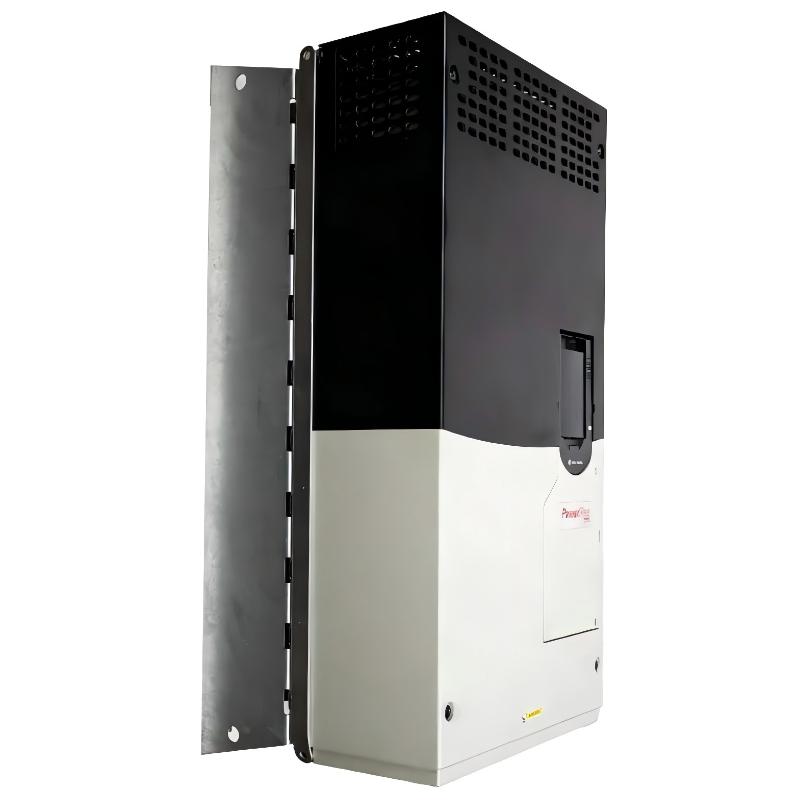

The Allen-Bradley 20F1ANE192JN0NNNNN is a high-capacity PowerFlex 753 air-cooled AC drive designed for large industrial three-phase motor applications.

It is a 600 VAC, 3-phase drive with a continuous output-current rating of 192 A. The drive is rated for 200 HP under normal-duty conditions and 150 HP under heavy-duty conditions, placing it firmly in the large industrial motor-control category.

This particular configuration uses a Frame 7 construction, forced-air cooling, an open-type enclosure, embedded I/O, AC input with precharge, no DC terminals, EMC filtering, an installed CM jumper and a blank/no-HIM configuration.

One of the most important details in the model number is the JN configuration.

The J configuration indicates that the CM jumper is installed, while the N configuration indicates that there is no internal dynamic-braking transistor.

This makes the model particularly suitable for large industrial applications where high-power variable-speed control is required but an internal dynamic-braking transistor is not part of the selected configuration.

The model is currently an active configuration and is positioned as a high-power member of the PowerFlex 753 family.

---

2. Brand and Series

Category	Specification
Brand	Allen-Bradley
Product Family	PowerFlex
Series	PowerFlex 753
Product Group	PowerFlex 750-Series
Product Type	Air-Cooled AC Drive
Configuration	753 AC Packaged Drive
Voltage Class	600 VAC
Input Phase	3 Phase
Output Phase	3 Phase
Output Current	192 A
Normal-Duty Rating	200 HP
Heavy-Duty Rating	150 HP
Frame	7
Cooling	Forced Air
Enclosure	Open Type
Embedded I/O	Yes
Dynamic Braking	None
Internal DB Transistor	No
EMC Filtering	Filtered
CM Jumper	Installed
Input	AC Input with Precharge
DC Terminals	None
HIM	Blank / No HIM

The PowerFlex 753 series is designed for industrial applications that require considerably more motor-control capability than a small general-purpose drive.

The family covers a broad range of industrial motor sizes and voltage classes, with the larger Frame 6 and Frame 7 configurations intended for high-power machinery.

The 20F1ANE192JN0NNNNN sits toward the high-power end of the 600 VAC range and is particularly well suited to large pumps, fans, blowers, conveyors, mixers and other industrial machines.

---

3. Exact Product Identification

Parameter	Specification
Model	20F1ANE192JN0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 753
Product Type	Air-Cooled AC Drive
Voltage Class	600 VAC
Input Phase	3 Phase
Output Phase	3 Phase
Output Current	192 A
Normal-Duty Rating	200 HP
Heavy-Duty Rating	150 HP
Approx. Normal-Duty Power	149.1 kW
Approx. Heavy-Duty Power	111.9 kW
Frame	7
Cooling	Forced Air
Enclosure	Open Type
Input Configuration	AC Input with Precharge
DC Terminals	None
EMC Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	None
Internal Dynamic-Braking Transistor	No
Embedded I/O	Yes
HIM	Blank / No HIM
Approx. Height	881.5 mm
Approx. Width	430 mm
Approx. Depth	349.6 mm
Approx. Weight	72.6 kg

The core electrical specifications of the model are 192 A, 600 VAC, 200 HP normal duty and 150 HP heavy duty.

The manufacturer description also identifies the configuration as Frame 7, forced air, AC input with precharge, no DC terminals, filtered, CM jumper installed and without dynamic braking.

---

4. Main Electrical Parameters

Electrical Parameter	Specification
Model	20F1ANE192JN0NNNNN
Rated Voltage	600 VAC
Input Phase	3 Phase
Output Phase	3 Phase
Output Current	192 A
Normal-Duty Motor Rating	200 HP
Heavy-Duty Motor Rating	150 HP
Approx. ND Power	149.1 kW
Approx. HD Power	111.9 kW
Input Type	AC Input with Precharge
DC Terminals	None
Frame Size	7
Cooling	Forced Air
Enclosure	Open Type
EMC Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	None
Embedded I/O	Yes
HIM	Blank / No HIM

The 192 A output-current rating is one of the most important characteristics of this drive.

It provides enough capacity for large industrial motors while retaining the flexibility of variable-frequency speed control.

The actual motor should still be selected according to its nameplate current, voltage, duty cycle, torque requirements and operating conditions rather than simply matching horsepower.

---

5. 600 VAC Three-Phase Operation

The 20F1ANE192JN0NNNNN is designed for a 600 VAC three-phase industrial power system.

This makes it suitable for high-power industrial installations where large three-phase motors are used.

The drive receives three-phase AC input power and converts it into controlled variable-frequency output power for the motor.

A simplified operating sequence is:

Three-Phase AC Supply

↓

Input and Precharge Section

↓

DC-Link Power Section

↓

Power Switching Stage

↓

Variable-Frequency Three-Phase Output

↓

Large AC Motor

↓

Industrial Machine

This allows the motor to accelerate, run at different speeds and decelerate according to the machine-control requirements.

---

6. 192 A Output Capacity

The drive provides a 192 A output-current rating.

This places it in a high-capacity industrial drive category.

The capacity is appropriate for large motors used in applications such as:

• Large centrifugal pumps
• Cooling-water pumps
• Industrial fans
• Large blowers
• Heavy conveyors
• Material-handling systems
• Large mixers
• Agitators
• Industrial ventilation
• Process machinery
• Cooling systems
• Large rotating equipment

The 192 A rating gives the drive considerable flexibility for large industrial motor control.

---

7. 200 HP Normal-Duty Rating

The normal-duty rating is:

200 HP

This corresponds to approximately:

149.1 kW

A 200 HP normal-duty rating makes the drive especially attractive for variable-torque applications.

Typical examples include:

• Large centrifugal pumps
• Large fans
• Large blowers
• Cooling systems
• Air-handling equipment
• Water circulation systems
• Industrial ventilation

Variable-speed operation can allow these machines to match their operating speed to actual process demand.

---

8. 150 HP Heavy-Duty Rating

The heavy-duty rating is:

150 HP

which is approximately:

111.9 kW.

Heavy-duty applications generally place greater demands on the drive because of higher torque requirements, more demanding acceleration or more severe operating conditions.

Potential applications include:

• Heavy conveyors
• Mixers
• Agitators
• Material-handling equipment
• Process machinery
• High-load rotating equipment
• Machinery with demanding acceleration requirements

The motor nameplate current and actual duty cycle should always be checked before final drive selection.

---

9. Normal-Duty Versus Heavy-Duty

Characteristic	Normal Duty	Heavy Duty
Model	20F1ANE192JN0NNNNN	20F1ANE192JN0NNNNN
Motor Rating	200 HP	150 HP
Approx. Power	149.1 kW	111.9 kW
Typical Load	Variable Torque	Higher-Demand Torque
Large Pump	Excellent	Very Good
Large Fan	Excellent	Very Good
Large Blower	Excellent	Very Good
Conveyor	Very Good	Excellent
Mixer	Very Good	Excellent
Agitator	Very Good	Excellent
High-Inertia Machine	Requires Braking Evaluation	Requires Braking Evaluation

The distinction between normal duty and heavy duty is important when selecting the drive.

A large centrifugal pump can operate under a very different load profile from a conveyor or mixer.

The same 192 A drive therefore has different usable horsepower ratings depending on the application duty.

---

10. Frame 7 Construction

The 20F1ANE192JN0NNNNN uses a Frame 7 mechanical platform.

Frame 7 is used for high-current configurations in the PowerFlex 753 family.

The larger frame provides the necessary physical space for:

• Power semiconductors
• Cooling components
• Power terminals
• Internal bus structures
• Control electronics
• Protection components
• Airflow paths

Because the drive is considerably larger than compact PowerFlex models, cabinet planning is important.

The installer should consider:

• Mounting space
• Cable-entry space
• Cooling airflow
• Service access
• Heat dissipation
• Power-cable routing
• Control-cable routing
• Mechanical support

---

11. Dimensions and Weight

For engineering and cabinet-planning purposes, the Frame 7 platform is approximately:

881.5 mm × 430 mm × 349.6 mm

with the orientation:

Height × Width × Depth

The approximate drive weight is:

72.6 kg

Mechanical Parameter	Specification
Model	20F1ANE192JN0NNNNN
Frame	7
Height	Approx. 881.5 mm
Width	Approx. 430 mm
Depth	Approx. 349.6 mm
Weight	Approx. 72.6 kg
Enclosure	Open Type
Cooling	Forced Air
Installation	Cabinet / Panel
Mechanical Class	Large Industrial Drive

The dimensions and weight should be treated as approximate engineering values for the Frame 7 platform.

For final cabinet fabrication, the actual mechanical drawing for the specific drive revision should be used.

A large drive of this size also needs additional clearance around the enclosure for wiring, ventilation and maintenance.

---

12. Open-Type Enclosure

The model uses an open-type enclosure configuration.

This means the drive is intended to be installed inside an appropriately designed electrical enclosure or protected industrial cabinet.

The surrounding cabinet should protect the drive against unsuitable environmental conditions such as:

• Excessive dust
• Moisture
• Condensation
• Oil contamination
• Conductive particles
• Corrosive contamination
• Mechanical impact
• Excessive temperature

The cabinet must also provide suitable airflow.

For a 192 A Frame 7 drive, thermal management should be considered part of the overall system design rather than as an afterthought.

---

13. Forced-Air Cooling

The drive uses forced-air cooling.

The high-power switching components generate heat during normal operation.

The cooling system removes this heat and helps maintain the internal components within their intended operating range.

For reliable operation, the installation should maintain:

• Adequate airflow
• Clean air passages
• Proper fan operation
• Sufficient cabinet ventilation
• Suitable ambient temperature
• Appropriate separation from heat-generating equipment

Dust accumulation can restrict airflow.

Blocked airflow can increase internal temperature and may reduce the service life of power electronics and cooling components.

---

14. EMC Filtering

The 20F1ANE192JN0NNNNN uses a filtered EMC configuration.

Variable-frequency drives operate by switching power electronics at high speed.

This switching action can produce high-frequency electrical noise.

The filtering configuration helps manage conducted electromagnetic interference within the drive system.

However, EMC performance also depends heavily on installation practice.

Important considerations include:

• Grounding
• Cable shielding
• Motor-cable routing
• Control-cable routing
• Cabinet bonding
• Cable separation
• Proper termination

A properly configured drive still requires a properly designed installation.

---

15. CM Jumper Installed

The model specifies:

CM Jumper Installed

This is an important distinction in the configuration.

The common-mode jumper arrangement can influence the drive’s grounding and common-mode electrical behavior.

When replacing an existing drive, the replacement configuration should therefore be checked carefully.

It is not enough to match only:

600 VAC + 192 A + 200 HP

The detailed catalog-number configuration should also be considered.

---

16. Dynamic Braking Configuration

The 20F1ANE192JN0NNNNN has:

Dynamic Braking: None

and:

No Internal Dynamic-Braking Transistor

This is one of the most important characteristics of the model.

The configuration uses JN, where the final configuration character indicates that there is no internal dynamic-braking transistor.

This should be considered whenever the machine has substantial inertia or requires rapid deceleration.

The drive can still control motor speed normally.

The difference is that the internal braking-transistor option is not included.

---

17. Why Dynamic Braking Matters

When a motor decelerates, the rotating motor and load can return energy toward the drive.

This is especially significant with:

• Large motors
• Large fans
• Heavy conveyors
• High-speed rotating machinery
• Large mixers
• High-inertia equipment
• Rapid stopping applications

If the application requires significant regenerative-energy management, the system designer should determine the appropriate braking solution.

Possible system approaches may include:

• Longer deceleration times
• Mechanical braking
• Regenerative solutions
• External braking arrangements
• Other engineered energy-management methods

The appropriate method depends on the machine’s inertia, speed, stopping time and operating cycle.

---

18. JN Versus AN Configuration

A useful way to understand the model is to compare it with the older AN configuration.

Feature	20F1ANE192JN0NNNNN	20F1ANE192AN0NNNNN
Voltage	600 VAC	600 VAC
Current	192 A	192 A
Normal Duty	200 HP	200 HP
Heavy Duty	150 HP	150 HP
Frame	7	7
Input	AC with Precharge	AC with Precharge
DC Terminals	None	None
EMC Filtering	Filtered	Filtered
CM Jumper	Installed	Removed
Dynamic Braking	None	None
Embedded I/O	Yes	Yes
HIM	Blank / No HIM	Blank / No HIM
Cooling	Forced Air	Forced Air
Enclosure	Open Type	Open Type

The primary configuration difference shown here is the CM jumper arrangement.

The JN model has the CM jumper installed, while the AN model has it removed.

This can matter when replacing an older installation or comparing two otherwise similar catalog numbers.

---

19. Product Introduction

The 20F1ANE192JN0NNNNN is designed to provide variable-speed control for large industrial AC motors.

Instead of connecting the motor directly to a fixed-frequency power supply and allowing it to operate at essentially one speed, the drive produces a controlled output.

This makes it possible to regulate motor speed according to process requirements.

A typical control sequence is:

Start Command

↓

Controlled Acceleration

↓

Operating Speed

↓

Variable-Speed Adjustment

↓

Controlled Deceleration

↓

Stop

This type of control is valuable in industrial systems where mechanical stress, process conditions, production requirements or energy consumption need to be managed.

---

20. Large Motor Control

The 192 A capacity makes the drive suitable for substantial industrial motors.

The drive can provide:

• Adjustable motor speed
• Controlled acceleration
• Controlled deceleration
• Process-based speed control
• Industrial automation integration
• Motor-control flexibility
• Large motor capacity
• Centralized control

The exact control strategy depends on the motor and machine.

For final application selection, the motor’s actual current, torque and duty cycle should be considered.

---

21. Large Pump Applications

Large pumps are one of the strongest application areas for this drive.

Potential applications include:

• Industrial water pumps
• Process pumps
• Cooling-water pumps
• Water-transfer pumps
• Water-treatment systems
• Wastewater systems
• Cooling towers
• Industrial circulation systems
• Large utility pumps

The 200 HP normal-duty rating makes the drive particularly attractive for large variable-torque pump applications.

---

22. Pump Speed Regulation

A pump does not always need to operate at maximum speed.

The drive can adjust pump speed according to process requirements.

For example:

Low Demand

↓

Reduced Motor Speed

↓

Reduced Flow

↓

Higher Demand

↓

Increased Motor Speed

↓

Higher Flow

This gives the control system more flexibility.

In suitable centrifugal-pump applications, reducing speed can also create substantial energy-saving opportunities because pump power demand is strongly related to speed.

The actual savings depend on the pump characteristics and process operating profile.

---

23. Large Fan Applications

The drive is also well suited to large industrial fans.

Typical applications include:

• Factory ventilation
• Industrial exhaust
• Large air-handling systems
• Cooling fans
• Furnace ventilation
• Dust collection
• Process ventilation
• Industrial HVAC systems
• Combustion-air systems

Variable-speed operation allows airflow to be adjusted according to actual process demand.

This can prevent unnecessary operation at full speed.

---

24. Large Blower Applications

Large blowers often require substantial motor power.

The drive can be used in:

• Wastewater aeration
• Pneumatic conveying
• Process-air systems
• Industrial drying
• Combustion-air systems
• Dust collection
• Industrial ventilation
• Air-pressure systems

The 192 A output capacity gives the drive substantial capability for large blower motors.

---

25. Conveyor Applications

Large conveyors are another important application category.

Potential systems include:

• Bulk-material conveyors
• Heavy production conveyors
• Transfer conveyors
• Material-handling systems
• Industrial logistics equipment
• Mining-related conveying systems
• Large production lines

Controlled acceleration can reduce sudden mechanical stress on:

• Belts
• Couplings
• Gearboxes
• Shafts
• Bearings

Controlled speed also allows the conveyor to operate according to production requirements.

However, braking requirements should be reviewed carefully for high-inertia conveyors because this particular model does not include an internal dynamic-braking transistor.

---

26. Large Mixer Applications

Large industrial mixers frequently need controlled speed.

A typical sequence may be:

Low-Speed Start

↓

Controlled Acceleration

↓

Mixing Speed

↓

Process Hold

↓

Controlled Deceleration

↓

Stop

The drive can provide the variable-speed operation required for this type of machinery.

For high-inertia mixing equipment, the deceleration-energy requirement should be calculated during system design.

---

27. Agitator Applications

Large agitators are common in process systems.

Potential applications include:

• Water treatment
• Industrial processing
• Slurry systems
• Tank mixing
• Material blending
• Process production
• Chemical processing

The drive can adjust agitator speed according to the requirements of different process stages.

This is useful when the machine needs different operating speeds for startup, mixing and final processing.

---

28. Cooling-System Applications

The drive can be used in large cooling systems involving:

• Cooling pumps
• Cooling fans
• Circulation pumps
• Cooling towers
• Large air-handling equipment
• Industrial heat-transfer systems

A controller can adjust motor speed according to:

• Temperature
• Pressure
• Flow
• Process demand

This creates a flexible automated cooling system.

---

29. Industrial Ventilation

Industrial ventilation requirements can change substantially throughout the day.

Airflow demand may depend on:

• Production rate
• Number of machines operating
• Temperature
• Pressure
• Process conditions
• Environmental requirements

A variable-frequency drive allows the fan speed to follow actual demand.

This is generally more flexible than operating a large fan continuously at full speed.

---

30. Material-Handling Applications

Large material-handling systems can involve heavy loads and substantial inertia.

Examples include:

• Bulk material handling
• Mining conveyors
• Production conveyors
• Transfer systems
• Storage systems
• Large processing equipment

The 192 A drive provides enough capacity for large motors used in these systems when the motor’s electrical requirements remain within the applicable drive rating.

Again, the braking arrangement should be evaluated separately where rapid stopping is required.

---

31. Process Machinery

The model can also be applied to many types of industrial process equipment.

Examples include:

• Process pumps
• Large mixers
• Agitators
• Blowers
• Fans
• Cooling equipment
• Material-handling equipment
• Large rotating machines
• Production machinery

The drive becomes the controlled electrical power stage between the automation system and the motor.

---

32. Major Product Advantages

32.1 High 192 A Output Capacity

The 192 A output rating gives the drive substantial capability for large industrial motors.

This is one of its most important advantages.

---

32.2 200 HP Normal-Duty Capability

The 200 HP normal-duty rating makes the drive particularly suitable for large variable-torque machines.

Pumps, fans and blowers are important examples.

---

32.3 150 HP Heavy-Duty Capability

The 150 HP heavy-duty rating provides strong capacity for more demanding mechanical loads.

---

32.4 600 VAC Three-Phase Architecture

The 600 VAC three-phase configuration is appropriate for high-power industrial motor systems.

---

32.5 Frame 7 High-Power Platform

The Frame 7 construction is designed for high-current industrial applications.

---

32.6 Embedded I/O

Embedded I/O allows basic control and status signals to be integrated without requiring every function to be implemented through additional hardware.

---

32.7 EMC Filtering

The filtered configuration supports electromagnetic-noise management.

---

32.8 Installed CM Jumper

The JN configuration includes the CM jumper installed.

This provides a defined common-mode configuration that should be considered during system grounding and EMC design.

---

32.9 No-HIM Configuration

The blank/no-HIM configuration is convenient for systems that are controlled through centralized automation equipment.

It can also be appropriate when the drive is installed inside an electrical cabinet.

---

32.10 High-Power Industrial Flexibility

The drive can serve a wide range of large motor applications.

Its 192 A capacity places it in a useful range between the smaller 144 A configuration and larger 242 A or 289 A configurations.

---

33. Energy-Saving Potential

Variable-frequency drives can provide substantial energy-saving opportunities in appropriate variable-torque applications.

The most relevant loads include:

• Centrifugal pumps
• Fans
• Blowers
• Cooling systems
• Air-handling equipment

The potential benefit comes from reducing motor speed when full output is not required.

For example:

100% Process Demand

→

High Speed

→

High Flow

versus:

Reduced Process Demand

→

Lower Speed

→

Lower Flow

This allows the motor and machine to operate closer to the actual process requirement.

The real energy-saving result depends on the complete system.

---

34. Controlled Acceleration

Large motors can impose significant mechanical stress during startup.

A drive can provide a controlled acceleration curve rather than an abrupt application of full operating conditions.

A typical profile might be:

0 Hz

↓

10 Hz

↓

20 Hz

↓

30 Hz

↓

40 Hz

↓

Operating Speed

The exact acceleration time depends on:

• Motor characteristics
• Load inertia
• Required production cycle
• Mechanical limitations
• Process requirements

Controlled acceleration can reduce mechanical shock on the machine.

---

35. Controlled Deceleration

Deceleration is especially important for large rotating equipment.

When a motor slows down, the mechanical energy stored in the rotating system can move back toward the electrical system.

For this reason, the deceleration strategy should be considered during application engineering.

The 20F1ANE192JN0NNNNN does not include an internal dynamic-braking transistor.

Therefore, applications requiring aggressive deceleration should receive additional braking analysis.

---

36. Braking Evaluation

The following factors should be considered:

Braking Factor	Importance
Motor Horsepower	High
Motor Speed	High
Motor Current	High
Machine Inertia	Very High
Load Inertia	Very High
Deceleration Time	Very High
Number of Stops	High
Stopping Frequency	High
Required Stop Accuracy	High
Regenerative Energy	Very High
Mechanical Brake	Application Dependent

For machines that naturally decelerate slowly, the lack of an internal braking transistor may not be a problem.

For machines that require rapid stopping, a separate braking strategy may be necessary.

---

37. Cabinet Design

The approximate physical dimensions are:

881.5 mm high

430 mm wide

349.6 mm deep

The approximate weight is:

72.6 kg

A cabinet designer should also reserve additional space for:

• Power wiring
• Motor wiring
• Control wiring
• Cooling airflow
• Maintenance
• Cable bending
• Adjacent equipment
• Service access

The cabinet structure must be strong enough to safely support the drive.

---

38. Electrical Installation

A proper installation should consider:

• 600 VAC supply
• Three-phase power
• Input protection
• Grounding
• Motor cable selection
• Control cable selection
• EMC practices
• Cabinet ventilation
• Ambient temperature
• Motor current
• Motor insulation
• Braking requirements
• Maintenance access

The drive should not be selected solely by horsepower.

The motor nameplate current is one of the most important selection parameters.

---

39. Motor Selection

Motor Parameter	Importance
Motor Voltage	Critical
Full-Load Current	Critical
Horsepower	Important
Rated Frequency	Important
Rated Speed	Important
Torque	Critical
Duty Cycle	Critical
Motor Inertia	Important
Load Inertia	Important
Acceleration Time	Important
Deceleration Time	Critical
Braking Requirement	Critical
Ambient Temperature	Important
Installation Altitude	Important

A motor with the same horsepower rating can have a different full-load current depending on voltage, efficiency, power factor and design.

For this reason, the actual motor nameplate should always be reviewed.

---

40. Preventive Maintenance

A high-power Frame 7 drive benefits from a structured maintenance program.

Maintenance Area	Recommended Action
Cooling Fans	Check operation
Airflow	Keep unobstructed
Cabinet Filters	Clean or replace
Power Connections	Inspect
Grounding	Inspect
Motor Connections	Inspect
Control Terminals	Check
Cabinet Interior	Keep clean
Temperature	Monitor
Fault History	Review
Mounting	Check
Ventilation	Verify
EMC Connections	Inspect
Motor Operation	Monitor

Cooling should receive particular attention.

A dirty cabinet or blocked airflow can increase internal temperature.

---

41. Routine Inspection

A practical inspection routine can include:

Visual Inspection

Check for:

• Dust
• Moisture
• Loose wiring
• Discoloration
• Mechanical damage
• Fan problems
• Abnormal noise

Electrical Inspection

Check:

• Power connections
• Ground connections
• Motor connections
• Control terminals
• EMC connections

Thermal Inspection

Monitor:

• Cabinet temperature
• Drive temperature
• Cooling airflow
• Fan operation
• Signs of overheating

Regular inspection can help identify problems before they become major failures.

---

42. Five Same-Series or Closely Related Models

The following five models provide useful comparisons within the same PowerFlex 753 600 VAC family.

Model	Voltage	Output Current	Normal Duty	Heavy Duty	Frame	Dynamic Braking	Approx. Dimensions	Approx. Weight
20F1ANE125JN0NNNNN	600 VAC	125 A	125 HP	100 HP	6	None	665.5 × 308 × 346.4 mm class	Approx. 38.6 kg
20F1ANE144JN0NNNNN	600 VAC	144 A	150 HP	125 HP	6	None	665.5 × 308 × 346.4 mm class	Approx. 38.6 kg
20F1ANE192JN0NNNNN	600 VAC	192 A	200 HP	150 HP	7	None	881.5 × 430 × 349.6 mm class	Approx. 72.6 kg
20F1ANE242JN0NNNNN	600 VAC	242 A	250 HP	200 HP	7	None	881.5 × 430 × 349.6 mm class	Approx. 72.6 kg
20F1ANE289JN0NNNNN	600 VAC	289 A	300 HP	250 HP	7	None	881.5 × 430 × 349.6 mm class	Approx. 72.6 kg

These models provide a clear progression around the 192 A configuration.

The 125 A and 144 A versions belong to Frame 6.

The 192 A, 242 A and 289 A versions belong to Frame 7.

The 192 A model therefore represents an important transition point in the high-power range.

The 242 A and 289 A configurations provide additional current capacity when the motor requires more than 192 A.

The 144 A model can be considered when the motor’s current requirement is lower and a smaller Frame 6 solution is preferred.

---

43. Same-Series Capacity Comparison

Model	Output Current	Normal Duty	Heavy Duty	Approx. ND Power	Approx. HD Power	Frame
20F1ANE125JN0NNNNN	125 A	125 HP	100 HP	93.2 kW	74.6 kW	6
20F1ANE144JN0NNNNN	144 A	150 HP	125 HP	111.9 kW	93.2 kW	6
20F1ANE192JN0NNNNN	192 A	200 HP	150 HP	149.1 kW	111.9 kW	7
20F1ANE242JN0NNNNN	242 A	250 HP	200 HP	186.4 kW	149.1 kW	7
20F1ANE289JN0NNNNN	289 A	300 HP	250 HP	223.7 kW	186.4 kW	7

The 192 A model sits almost exactly in the middle of these five high-power configurations.

It offers substantially more capacity than the 144 A model while remaining below the 242 A and 289 A versions.

---

44. Five Same-Brand Popular Related Models

For comparison with smaller and more compact products from the same brand, the following models are useful.

Model	Series	Voltage Class	Output Current	Normal Duty	Heavy Duty	Approx. Dimensions	Approx. Weight
25B-D1P4N104	PowerFlex 525	480 VAC class	1.4 A	0.5 HP	Application dependent	152 × 72 × 172 mm	Approx. 1.10 kg
25B-D6P0N114	PowerFlex 525	480 VAC class	6.0 A	3 HP	Application dependent	180 × 87 × 172 mm	Approx. 1.60 kg
25B-D017N104	PowerFlex 525	480 VAC class	17 A	10 HP	Application dependent	220 × 109 × 184 mm	Approx. 2.30 kg
25B-D030N114	PowerFlex 525	480 VAC class	30 A	20 HP ND	15 HP	260 × 130 × 212 mm	Approx. 3.20 kg
25B-D043N114	PowerFlex 525	480 VAC class	43 A	30 HP ND	25 HP	Compact Frame E	Approx. 4 kg class

These models are intended for considerably smaller motor applications than the 20F1ANE192JN0NNNNN.

They are useful as same-brand alternatives when the required motor size is much smaller.

They should not be regarded as direct electrical replacements for the 192 A, 600 VAC PowerFlex 753 drive.

---

45. Comparison Between High-Power and Compact Models

Feature	20F1ANE192JN0NNNNN	25B-D030N114
Series	PowerFlex 753	PowerFlex 525
Voltage Class	600 VAC	480 VAC class
Output Current	192 A	30 A
Normal Duty	200 HP	20 HP
Heavy Duty	150 HP	15 HP
Frame	7	D
Cooling	Forced Air	Compact Drive Cooling
Enclosure	Open Type	Compact Enclosure
Approx. Dimensions	881.5 × 430 × 349.6 mm	260 × 130 × 212 mm
Approx. Weight	72.6 kg	3.20 kg
Typical Application	Large Industrial Machinery	Small/Medium Industrial Machinery

The difference illustrates the very different application classes represented by the two PowerFlex families.

The 20F1ANE192JN0NNNNN is a large industrial drive.

The 25B-D030N114 is a compact drive intended for substantially smaller machines.

---

46. Five Related PowerFlex 753 Models by Motor Capacity

Model	Voltage	Current	Normal Duty	Heavy Duty	Frame	Typical Application
20F1ANE125JN0NNNNN	600 VAC	125 A	125 HP	100 HP	6	Large pump / fan
20F1ANE144JN0NNNNN	600 VAC	144 A	150 HP	125 HP	6	Large pump / blower
20F1ANE192JN0NNNNN	600 VAC	192 A	200 HP	150 HP	7	Large pump / fan / conveyor
20F1ANE242JN0NNNNN	600 VAC	242 A	250 HP	200 HP	7	Very large industrial equipment
20F1ANE289JN0NNNNN	600 VAC	289 A	300 HP	250 HP	7	Very large motor systems

This progression makes it easier to understand where the 192 A model fits.

If a motor is around the 200 HP normal-duty class and its actual current requirement is within 192 A, the 20F1ANE192JN0NNNNN becomes a natural candidate.

If the current requirement approaches or exceeds 192 A, the larger 242 A or 289 A configurations should be evaluated.

---

47. Comparison With the 144 A Model

Feature	20F1ANE144JN0NNNNN	20F1ANE192JN0NNNNN
Voltage	600 VAC	600 VAC
Output Current	144 A	192 A
Normal Duty	150 HP	200 HP
Heavy Duty	125 HP	150 HP
Frame	6	7
Dynamic Braking	None	None
EMC Filtering	Filtered	Filtered
CM Jumper	Installed	Installed
Embedded I/O	Yes	Yes
HIM	Blank / No HIM	Blank / No HIM
Cooling	Forced Air	Forced Air
Approx. Height	665.5 mm	881.5 mm
Approx. Width	308 mm	430 mm
Approx. Depth	346.4 mm	349.6 mm
Approx. Weight	38.6 kg class	72.6 kg class

The 192 A configuration provides substantially more current and horsepower capacity.

It also moves from Frame 6 to Frame 7.

This means that upgrading from a 144 A drive to a 192 A drive may require more than simply changing the electrical unit.

The cabinet and mounting arrangement may also need to be reconsidered.

---

48. Comparison With the 242 A Model

Feature	20F1ANE192JN0NNNNN	20F1ANE242JN0NNNNN
Voltage	600 VAC	600 VAC
Output Current	192 A	242 A
Normal Duty	200 HP	250 HP
Heavy Duty	150 HP	200 HP
Frame	7	7
Dynamic Braking	None	None
EMC Filtering	Filtered	Filtered
CM Jumper	Installed	Installed
Embedded I/O	Yes	Yes
HIM	Blank / No HIM	Blank / No HIM
Cooling	Forced Air	Forced Air
Approx. Height	881.5 mm	Frame 7 class
Approx. Width	430 mm	Frame 7 class
Approx. Depth	349.6 mm	Frame 7 class
Approx. Weight	72.6 kg class	72.6 kg class

The 242 A version is essentially the next major capacity step above the 192 A model.

The choice between them should be based primarily on actual motor current and application duty.

---

49. Comparison With the 289 A Model

Feature	20F1ANE192JN0NNNNN	20F1ANE289JN0NNNNN
Voltage	600 VAC	600 VAC
Output Current	192 A	289 A
Normal Duty	200 HP	300 HP
Heavy Duty	150 HP	250 HP
Frame	7	7
Dynamic Braking	None	None
EMC Filtering	Filtered	Filtered
CM Jumper	Installed	Installed
Embedded I/O	Yes	Yes
HIM	Blank / No HIM	Blank / No HIM
Cooling	Forced Air	Forced Air
Enclosure	Open Type	Open Type
Approx. Dimensions	881.5 × 430 × 349.6 mm class	Frame 7 class
Approx. Weight	72.6 kg class	72.6 kg class

The 289 A version is intended for substantially larger motor applications.

The 192 A model is therefore the better choice when the motor is within the 200 HP normal-duty class and does not require the additional capacity of the larger drive.

---

50. Detailed Technical Parameter Table

Category	Parameter	Specification
Product	Model	20F1ANE192JN0NNNNN
Product	Brand	Allen-Bradley
Product	Series	PowerFlex 753
Product	Product Family	PowerFlex 750-Series
Product	Product Type	Air-Cooled AC Drive
Product	Configuration	753 AC Packaged Drive
Electrical	Voltage Class	600 VAC
Electrical	Input Phase	3 Phase
Electrical	Output Phase	3 Phase
Electrical	Output Current	192 A
Electrical	Normal-Duty Rating	200 HP
Electrical	Heavy-Duty Rating	150 HP
Electrical	Approx. ND Power	149.1 kW
Electrical	Approx. HD Power	111.9 kW
Electrical	Input Type	AC Input with Precharge
Electrical	DC Terminals	None
Mechanical	Frame	7
Mechanical	Enclosure	Open Type
Mechanical	Height	Approx. 881.5 mm
Mechanical	Width	Approx. 430 mm
Mechanical	Depth	Approx. 349.6 mm
Mechanical	Weight	Approx. 72.6 kg
Cooling	Cooling Type	Forced Air
Filtering	EMC Filtering	Filtered
Grounding	CM Jumper	Installed
Braking	Dynamic Braking	None
Braking	Internal DB Transistor	No
Interface	Embedded I/O	Yes
Interface	HIM	Blank / No HIM
Input	Precharge	Yes
Input	DC Bus Terminals	None
Installation	Mounting	Cabinet / Panel
Installation	Enclosure Requirement	Protected Industrial Enclosure
Application	Normal-Duty Motor Class	200 HP
Application	Heavy-Duty Motor Class	150 HP
Application	Typical Loads	Pumps, fans, blowers, conveyors, mixers and process machinery

---

51. Quick Parameter Summary

Parameter	Specification
Model	20F1ANE192JN0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 753
Product Type	Air-Cooled AC Drive
Voltage	600 VAC
Phase	3 Phase
Output Current	192 A
Normal Duty	200 HP
Heavy Duty	150 HP
Normal-Duty Power	Approx. 149.1 kW
Heavy-Duty Power	Approx. 111.9 kW
Frame	7
Cooling	Forced Air
Enclosure	Open Type
EMC Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	None
Internal DB Transistor	No
Embedded I/O	Yes
HIM	Blank / No HIM
Input	AC with Precharge
DC Terminals	None
Height	Approx. 881.5 mm
Width	Approx. 430 mm
Depth	Approx. 349.6 mm
Weight	Approx. 72.6 kg

---

52. Application Suitability

Application	Suitability	Reason
Large Centrifugal Pump	Excellent	200 HP ND capability
Large Cooling Pump	Excellent	High current capacity
Large Industrial Fan	Excellent	Variable-speed operation
Large Blower	Excellent	High motor capacity
Heavy Conveyor	Very Good	High current capability
Bulk Material Handling	Very Good	Large motor capacity
Large Mixer	Very Good	Variable-speed control
Large Agitator	Very Good	Adjustable motor speed
Cooling Tower	Excellent	Large fan/pump capability
Industrial Ventilation	Excellent	Variable-speed airflow
High-Inertia Machinery	Requires Evaluation	No internal DB transistor
Rapid-Deceleration Machinery	Requires Additional Engineering	No internal DB transistor
Small Motor	Poor Choice	Excessive capacity
Compact Machine	Poor Choice	Large Frame 7 construction

---

53. Advantages for Pump Systems

For large pumps, the main advantages include:

• Adjustable flow
• Controlled acceleration
• Controlled operating speed
• Reduced mechanical shock
• Process-based speed regulation
• Potential energy savings
• Centralized automation
• High-power motor capacity

The drive is particularly well suited to large centrifugal pump systems where variable speed can be used to match process demand.

---

54. Advantages for Fan Systems

For large industrial fans, the drive provides:

• Adjustable airflow
• Variable operating speed
• Controlled startup
• Controlled acceleration
• Reduced mechanical stress
• Potential energy savings
• Automated process control

This makes it useful in large ventilation and cooling systems.

---

55. Advantages for Blower Systems

For large blowers, the drive can provide:

• Variable airflow
• Process-based speed control
• Controlled acceleration
• Controlled operation
• Large motor capacity
• Integration with automation systems

This can be valuable in wastewater, pneumatic conveying, process-air and industrial ventilation applications.

---

56. Advantages for Conveyor Systems

For large conveyors, the drive can provide:

• Smooth acceleration
• Controlled startup
• Adjustable operating speed
• Reduced mechanical shock
• Production-speed control
• Centralized automation

The main point requiring additional attention is braking.

If the conveyor has high inertia or requires rapid stopping, the braking system should be engineered separately because the JN configuration does not contain an internal dynamic-braking transistor.

---

57. Advantages for Large Mixers

For large mixers, the drive provides:

• Controlled startup
• Adjustable mixing speed
• Process-specific speed profiles
• Controlled operation
• Centralized automation
• Large motor capacity

This is useful where the machine operates at different speeds during different production stages.

---

58. Advantages for Cooling Systems

For large cooling systems, the drive can control:

• Cooling pumps
• Circulation pumps
• Large cooling fans
• Cooling towers
• Air-handling equipment

Motor speed can be adjusted based on:

• Temperature
• Pressure
• Flow
• Process demand

This allows the cooling system to respond dynamically instead of operating continuously at a fixed speed.

---

59. Industrial Automation Integration

The 20F1ANE192JN0NNNNN can function as the motor-power stage in a larger industrial automation system.

A typical architecture is:

Field Sensors

↓

Controller

↓

Speed / Start / Stop Command

↓

20F1ANE192JN0NNNNN

↓

Large AC Motor

↓

Industrial Machine

↓

Process Feedback

The embedded I/O supports basic drive-level integration.

The blank/no-HIM configuration is also useful when operators and engineers interact with the drive through a centralized control system.

---

60. Cabinet and Mechanical Planning

The physical size of this drive should be taken seriously during system design.

Approximate drive dimensions:

881.5 mm × 430 mm × 349.6 mm

Approximate weight:

72.6 kg

The cabinet designer should consider not only the physical body of the drive but also:

• Wiring space
• Airflow
• Service clearance
• Power cable bending
• Control cable routing
• Heat dissipation
• Adjacent components
• Maintenance access

A drive this large should be mechanically supported correctly.

---

61. Electrical Protection and Wiring

A complete installation should be designed around the actual electrical system.

Important considerations include:

• 600 VAC supply
• Three-phase power
• Input protection
• Grounding
• Motor cable rating
• Control wiring
• EMC installation
• Cabinet thermal design
• Motor current
• Motor insulation
• Braking requirements
• Available fault current

The final electrical design should be based on the applicable installation requirements and the actual motor and system characteristics.

---

62. Motor Matching

The best motor-selection approach is to start with the motor nameplate.

Important values include:

Voltage

Current

Horsepower

Frequency

Speed

Power factor

Efficiency

Duty

Torque

The drive should then be selected according to the actual electrical and mechanical requirements.

A 200 HP motor is not automatically suitable simply because the drive is labeled 200 HP.

The actual motor current must also be within the appropriate drive rating.

---

63. Recommended Selection Process

A practical selection process is:

Step 1 — Identify Motor Voltage

Confirm that the motor and drive are compatible with the 600 VAC class.

Step 2 — Identify Motor Current

Check the actual full-load current on the motor nameplate.

Step 3 — Determine Duty

Determine whether the machine is a normal-duty or heavy-duty application.

Step 4 — Evaluate Acceleration

Determine whether the drive can provide the required acceleration performance.

Step 5 — Evaluate Deceleration

Determine whether regenerative energy will be significant.

Step 6 — Evaluate Braking

Because this model has no internal DB transistor, braking requirements should be reviewed carefully.

Step 7 — Check Cabinet Space

Allow for the Frame 7 dimensions and wiring space.

Step 8 — Check Cooling

Verify that the cabinet can dissipate the drive’s heat.

Step 9 — Confirm Control Architecture

Determine whether embedded I/O and centralized control meet the application’s requirements.

---

64. Why the 20F1ANE192JN0NNNNN Is a Strong High-Power Choice

The model combines several useful characteristics in one configuration.

It provides:

600 VAC

192 A

200 HP ND

150 HP HD

Frame 7

Forced Air

Embedded I/O

Filtered EMC Configuration

CM Jumper Installed

AC Input with Precharge

No DC Terminals

No Internal Dynamic Braking

Blank / No HIM

This makes it a strong candidate for large industrial motor systems where high current capacity and variable-speed control are more important than an integrated braking transistor.

---

65. Important Points When Replacing an Existing Drive

When using this model as a replacement, do not compare only the first part of the catalog number.

The following items should all be checked:

• Voltage
• Current
• Horsepower
• Frame
• Input configuration
• DC terminals
• EMC configuration
• CM jumper
• Dynamic braking
• HIM configuration
• Cooling
• Enclosure
• Embedded I/O
• Cabinet dimensions
• Cable connections

The JN configuration is particularly important because it includes the CM jumper.

A replacement with a different configuration should not be assumed to be electrically identical.

---

66. Overall Technical Assessment

The Allen-Bradley 20F1ANE192JN0NNNNN is a high-power PowerFlex 753 air-cooled AC drive designed for large industrial three-phase motor applications.

Its primary electrical characteristics are:

600 VAC

3 Phase

192 A

200 HP Normal Duty

150 HP Heavy Duty

Frame 7

The approximate physical dimensions are:

881.5 mm × 430 mm × 349.6 mm

and the approximate weight is:

72.6 kg.

The drive uses forced-air cooling and an open-type enclosure.

It provides embedded I/O and uses a filtered EMC configuration with the CM jumper installed.

The input configuration is AC input with precharge and no DC terminals.

The model does not include an internal dynamic-braking transistor.

That last point is especially important when selecting the drive for large rotating machinery.

For applications such as large centrifugal pumps, industrial fans, blowers and cooling equipment, the drive can be an excellent choice.

These applications often benefit from variable-speed control and do not necessarily require aggressive braking.

For conveyors, mixers, agitators and high-inertia machinery, the drive can also provide excellent motor-control capability, but the braking strategy should be evaluated before installation.

The 192 A output capacity gives the model considerable industrial capability.

The 200 HP normal-duty rating makes it particularly suitable for large variable-torque systems.

The 150 HP heavy-duty rating provides a strong capacity level for more demanding loads.

The Frame 7 construction provides the physical structure necessary for this high-current class, but it also means that cabinet space, mechanical support and thermal management must be planned carefully.

The approximate 72.6 kg weight should be considered during cabinet construction and installation planning.

The JN configuration is also worth remembering.

The installed CM jumper distinguishes this configuration from the corresponding AN configuration.

Therefore, when replacing an existing drive, the complete catalog number should be checked rather than matching only voltage, current and horsepower.

---

67. Final Product Summary

Item	Final Specification
Model	20F1ANE192JN0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 753
Product Type	Air-Cooled AC Drive
Voltage	600 VAC
Phase	3 Phase
Current	192 A
Normal Duty	200 HP
Heavy Duty	150 HP
Approx. ND Power	149.1 kW
Approx. HD Power	111.9 kW
Frame	7
Cooling	Forced Air
Enclosure	Open Type
Input	AC with Precharge
DC Terminals	None
EMC Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	None
Internal DB Transistor	No
Embedded I/O	Yes
HIM	Blank / No HIM
Approx. Height	881.5 mm
Approx. Width	430 mm
Approx. Depth	349.6 mm
Approx. Weight	72.6 kg
Best Application Areas	Large Pumps, Fans, Blowers, Conveyors, Mixers, Agitators, Cooling and Process Machinery

In practical terms, the 20F1ANE192JN0NNNNN is a large-frame, high-current, 600 VAC industrial variable-frequency drive for approximately 200 HP normal-duty applications.

Its combination of 192 A output capacity, 200 HP normal-duty rating, 150 HP heavy-duty rating, Frame 7 construction, forced-air cooling, embedded I/O, filtered EMC configuration and installed CM jumper makes it well suited to demanding industrial motor-control systems.

The most important selection point is the absence of an internal dynamic-braking transistor.

For applications that do not require aggressive braking, this configuration can provide a straightforward and capable high-power drive solution.

For high-inertia or rapid-stop equipment, braking and regenerative-energy handling should be evaluated separately before final selection.
