Product Overview

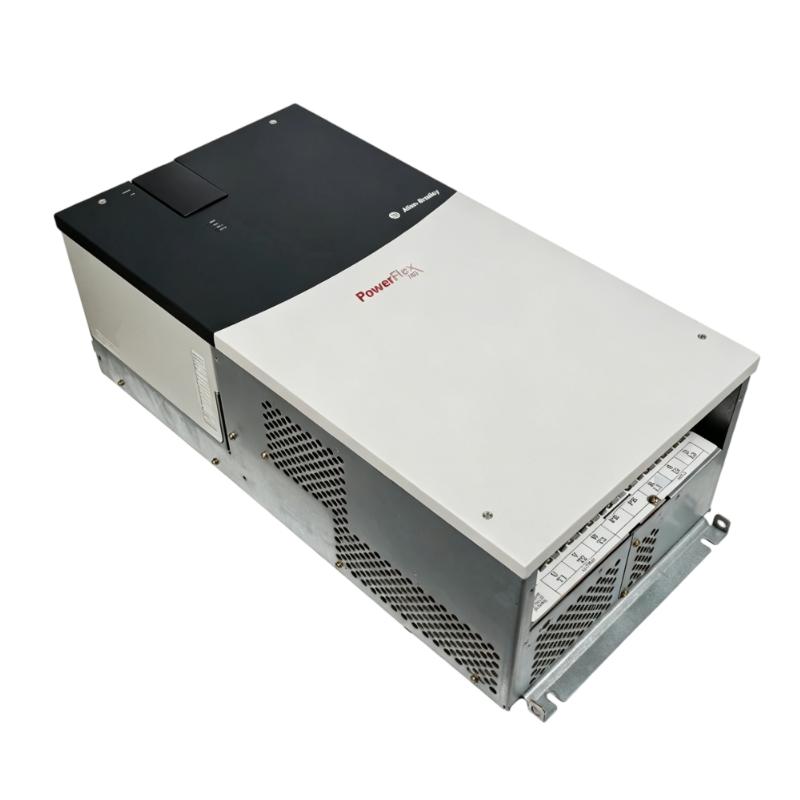

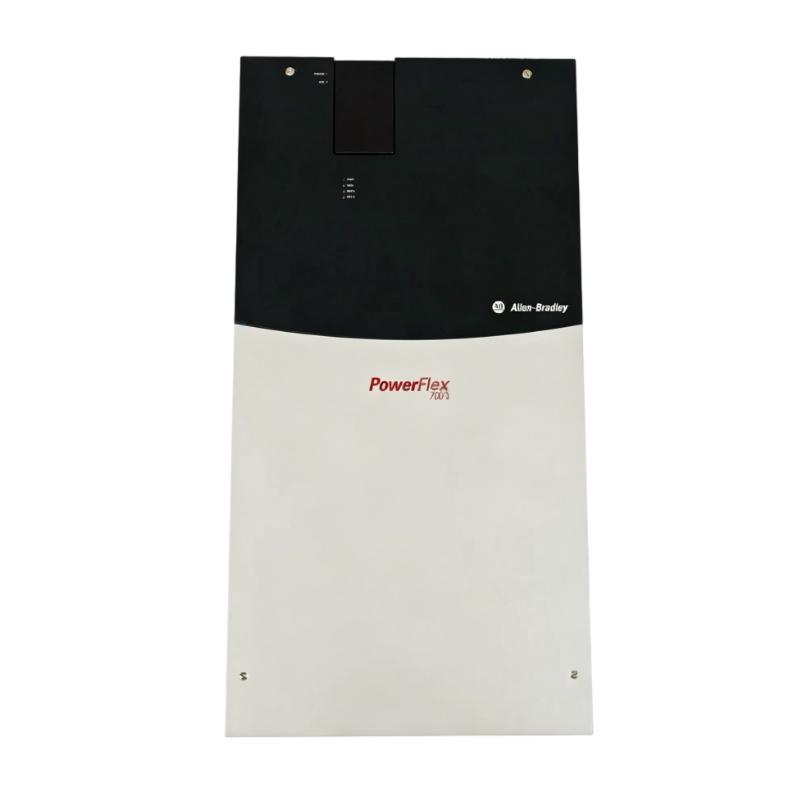

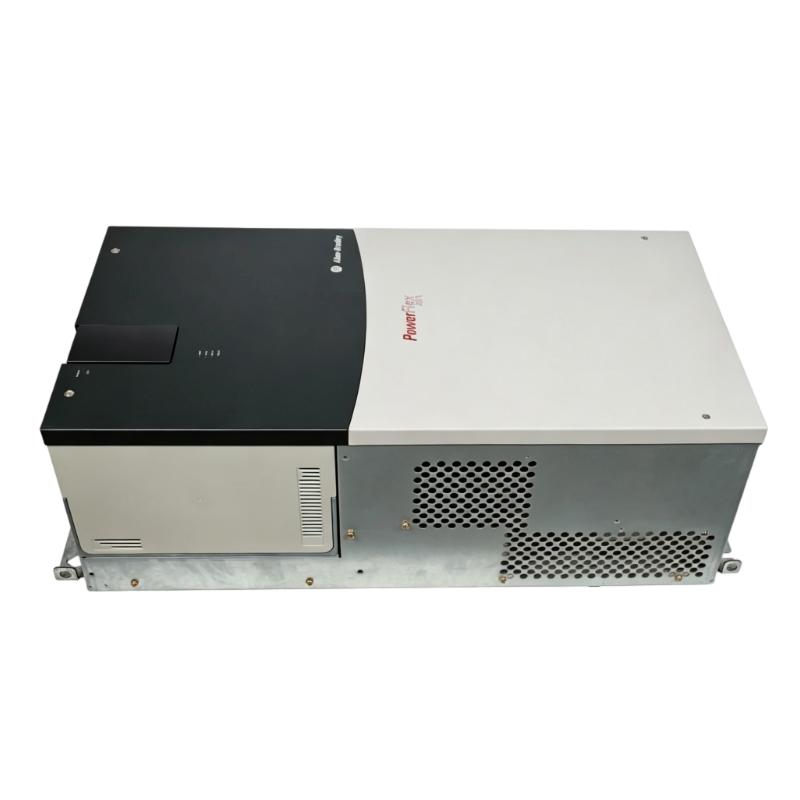

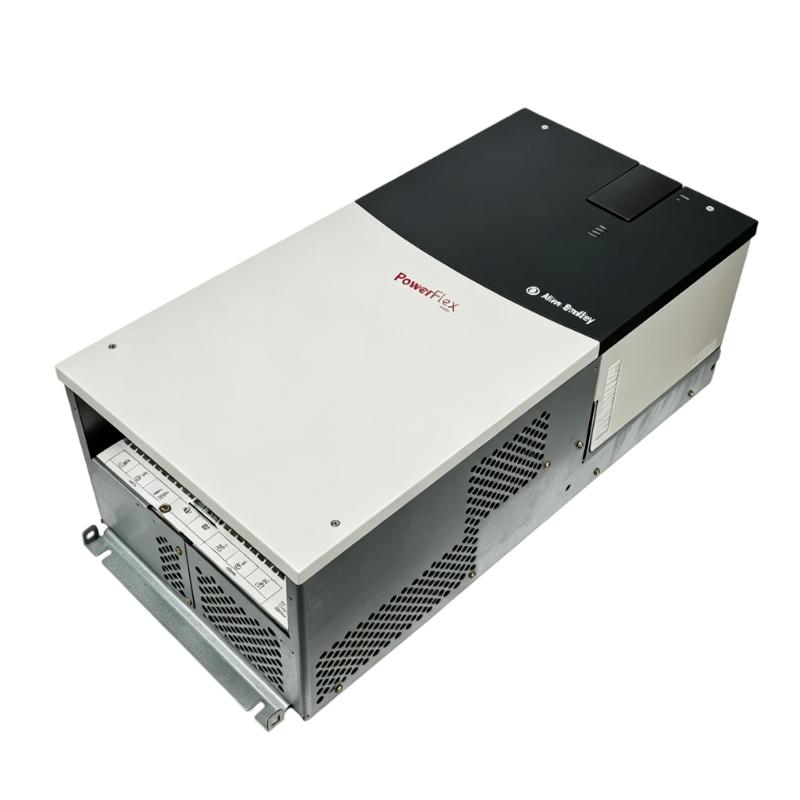

The Allen Bradley 20BP170A0ANNANC1 PowerFlex 700 AC Drive is an industrial AC drive used to control motor operation in demanding automation and process applications. It serves as the electrical control stage between the incoming power source and an AC motor, allowing motor operation to be coordinated with machine requirements.

In a conventional fixed-speed motor installation, the motor is largely governed by the electrical supply. A PowerFlex 700 drive adds an adjustable control layer, allowing the automation system to manage motor operation according to production speed, process demand, material flow, or machine sequencing.

The 20BP170A0ANNANC1 belongs to the PowerFlex 700 family and can be incorporated into systems containing Allen Bradley PLCs, operator interfaces, communication equipment, motor protection, and mechanical drive components.

For maintenance applications, the complete catalog number should be confirmed before replacement. The existing motor configuration, control connections, drive parameters, and installation conditions should also be reviewed to ensure that the replacement is suitable for the original application.

Technical Specifications

Product Features

The 20BP170A0ANNANC1 combines motor-speed control with the drive-level monitoring required in an industrial automation system.

Key characteristics include:

• Allen Bradley PowerFlex 700 AC drive
• Model 20BP170A0ANNANC1
• Intended for industrial AC motor applications
• Supports variable-speed motor operation
• Provides a controlled interface between power and motor
• Suitable for machine and process automation
• Supports integration with automation control systems
• Provides drive operating and diagnostic information
• Suitable for established PowerFlex 700 installations
• Useful for maintenance, replacement, and retrofit work

Application suitability should be evaluated from the complete motor-drive system. Electrical supply, motor characteristics, load behavior, control requirements, and installation conditions all need to be considered.

Working Principle

The 20BP170A0ANNANC1 receives electrical power from the plant distribution system and regulates the output delivered to the connected AC motor.

A simplified operating path is:

Incoming Electrical Power → PowerFlex 700 → AC Motor → Mechanical Equipment

The control process can be divided into the following stages:

1. Power Reception

   The drive receives electrical power from the upstream power system.

2. Electrical Conversion

   Internal power electronics process the incoming power for controlled motor operation.

3. Control Command

   The drive receives a motor operating command from the applicable control architecture.

4. Output Regulation

   The drive adjusts its motor-side output according to the requested operating condition and configured parameters.

5. Motor Operation

   The AC motor converts the controlled electrical energy into mechanical torque.

6. Machine Response

   The motor drives the connected mechanical equipment at the required operating condition.

7. Status Monitoring

   Drive status and diagnostic information can be used to evaluate operation and identify abnormal conditions.

The resulting control chain is:

Process Demand → Controller → PowerFlex 700 → Motor → Mechanical Output

This makes the drive an active part of the machine-control system rather than simply a power-transfer device.

Role in an Industrial Motor Control Architecture

The 20BP170A0ANNANC1 occupies the motor power-control layer within an automation system.

A typical arrangement is:

PLC / Controller → Drive Command → PowerFlex 700 → AC Motor → Machine

The PLC manages the process logic, sequencing, interlocking, and operating commands. The PowerFlex 700 then handles the electrical side of motor control.

This architecture is particularly useful in machinery where motor speed must follow changing production conditions. For example, a conveyor can require controlled acceleration during startup, a stable running speed during production, and a controlled slowdown before stopping.

From a maintenance perspective, this layered architecture provides a practical diagnostic sequence:

Control Command → Drive Status → Motor Output → Motor → Mechanical Load

Following this path helps determine whether an abnormal motor condition originates in the control system, drive, electrical circuit, motor, or machine.

Industrial Applications

The actual application should be determined from the motor characteristics, mechanical load, operating cycle, and drive configuration.

Installation and Maintenance

The 20BP170A0ANNANC1 should be treated as part of a complete electrical drive system during installation and service.

Recommended practices include:

• Confirm the complete 20BP170A0ANNANC1 catalog number.
• Verify the replacement unit against the existing PowerFlex 700 configuration.
• Record control and power connections before removal.
• Preserve relevant drive parameters and motor settings.
• Isolate the incoming electrical supply before maintenance.
• Follow applicable electrical discharge procedures.
• Inspect incoming power terminals.
• Check motor output connections and cable insulation.
• Verify grounding connections.
• Inspect cabinet ventilation and cooling paths.
• Check control and communication wiring.
• Confirm motor-related configuration before startup.
• Test motor direction at controlled operating conditions.
• Verify acceleration and deceleration response.
• Monitor drive status and diagnostic information.
• Gradually return the equipment to its normal operating load.

If a fault occurs only when the machine reaches a higher load, inspect the mechanical system and motor circuit alongside the drive. Excessive mechanical resistance or abnormal motor conditions can produce drive trips even when the drive itself is operating correctly.

Related Components

Recommended Related Models

Key Advantages

• Allen Bradley PowerFlex 700 AC drive.
• Model 20BP170A0ANNANC1.
• Suitable for industrial AC motor control.
• Supports variable-speed operation.
• Provides controlled motor power and speed management.
• Integrates with PLC-based automation systems.
• Suitable for machinery and process equipment.
• Provides drive-level operating and diagnostic information.
• Useful for established PowerFlex 700 maintenance and replacement applications.

Technical FAQs

What should be checked if the 20BP170A0ANNANC1 shows a fault immediately after installation?

Verify the drive catalog number, incoming power connections, motor wiring, grounding, control connections, and relevant configuration parameters. If the installation differs from the original configuration, the fault may result from wiring or setup rather than defective hardware.

Why can motor current increase even when the commanded speed remains unchanged?

Motor current is affected not only by speed but also by the torque required from the mechanical load. Increased material load, mechanical resistance, bearing problems, or process changes can therefore increase drive demand without a change in commanded speed.

How should an engineer troubleshoot a drive that operates normally without a production load?

The drive should be evaluated progressively as the machine is brought toward normal operating conditions. Monitoring drive status, motor behavior, current demand, and mechanical response under load can help identify problems that do not appear during unloaded testing.

What makes catalog-number verification important for PowerFlex 700 replacement work?

PowerFlex 700 units can have different configurations and application characteristics. Confirming the complete catalog number helps prevent the installation of a physically similar but functionally unsuitable unit and provides a reliable starting point for comparing the existing system configuration.
