Product Overview

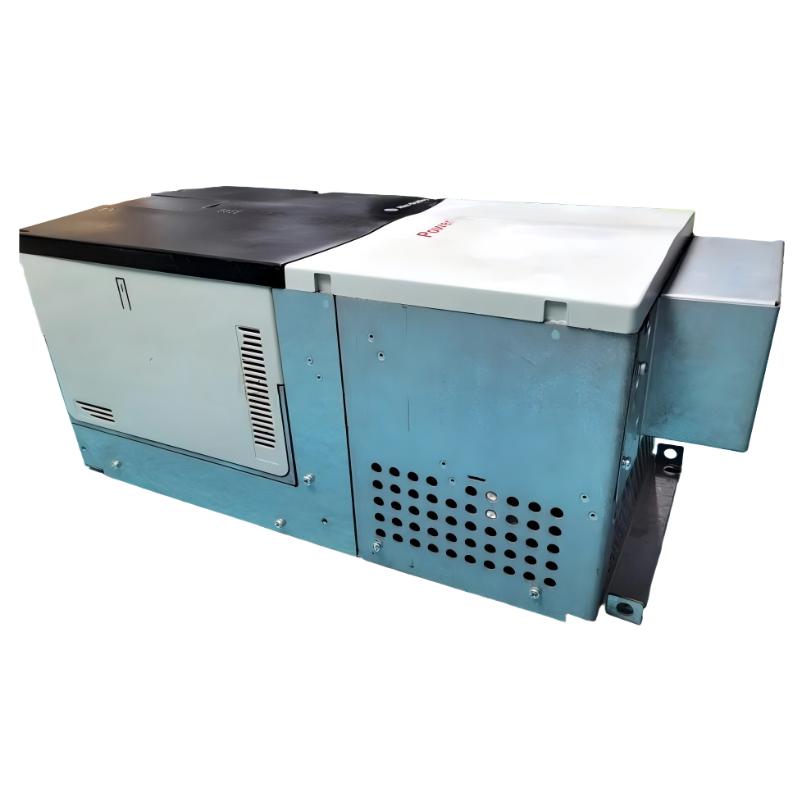

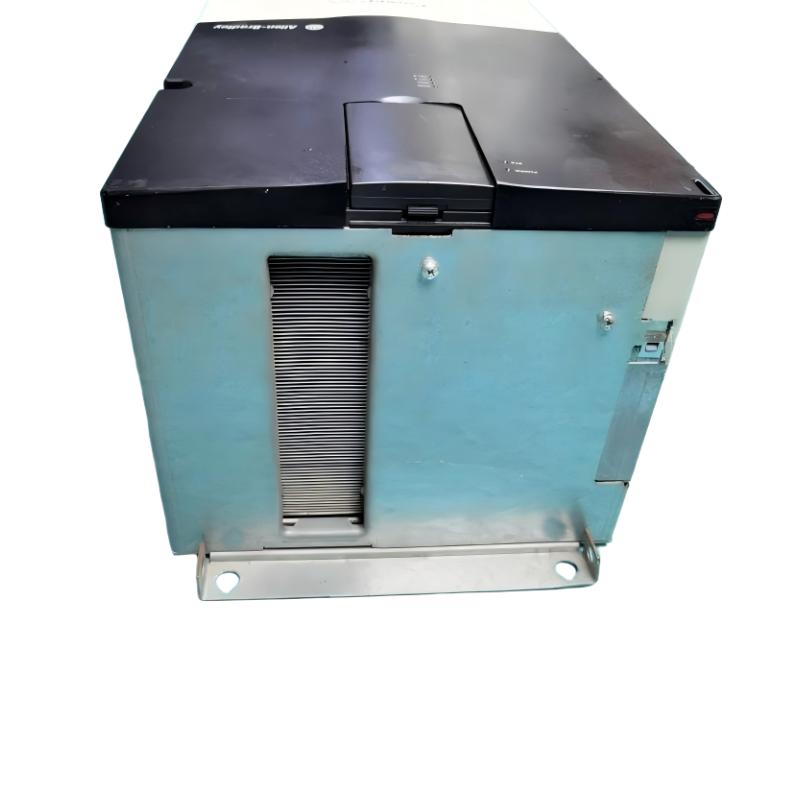

The Allen Bradley 20BD125A3ANNACC1 PowerFlex 700 AC Drive is a high-performance Variable Frequency Drive (VFD) from the renowned PowerFlex 700 series, designed to deliver precise speed, torque, and process control for demanding industrial automation applications. Developed by Allen Bradley, this AC drive combines advanced motor control technology, flexible communication capabilities, and comprehensive protection functions to maximize productivity while reducing energy consumption.

The 20BD125A3ANNACC1 converts fixed-frequency AC input power into adjustable voltage and frequency output, enabling connected motors to operate at precisely controlled speeds. This allows industrial equipment to achieve smoother acceleration, accurate process control, lower mechanical stress, and improved operational efficiency across a wide range of manufacturing environments.

Featuring a modular design, advanced diagnostics, and integrated monitoring functions, the PowerFlex 700 drive simplifies commissioning, enhances equipment reliability, and supports predictive maintenance strategies. Its rugged construction allows continuous operation under demanding industrial conditions while maintaining stable performance.

With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the drive is well suited for installation inside industrial control cabinets requiring high-performance motor control.

Typical applications include conveyor systems, pumps, compressors, fans, mixers, packaging machinery, material handling equipment, HVAC systems, mining equipment, water treatment facilities, and general industrial automation.

Technical Specifications

Function and Working Principle

The 20BD125A3ANNACC1 regulates motor speed by converting fixed-frequency AC power into a variable voltage and frequency output that matches application requirements.

Typical Power Flow

Three-Phase AC Supply

↓

Rectifier

↓

DC Bus

↓

IGBT Inverter

↓

20BD125A3ANNACC1 PowerFlex 700 Drive

↓

Three-Phase AC Motor

↓

Industrial Equipment

During operation, the drive continuously monitors motor conditions and adjusts output parameters to optimize performance.

Primary functions include:

• Variable speed control
• Accurate torque regulation
• Smooth acceleration and deceleration
• Soft starting and stopping
• Energy optimization
• Motor overload protection
• Fault monitoring and diagnostics
• Process PID control
• Industrial communication integration
• Real-time operational monitoring

This intelligent control architecture improves process stability while reducing mechanical wear and electrical energy consumption.

Role in Industrial Control Systems

Within industrial automation systems, the 20BD125A3ANNACC1 serves as the central motor control device between the PLC and the electric motor.

Typical automation architecture:

Industrial PLC

↓

20BD125A3ANNACC1 PowerFlex 700 AC Drive

↓

Three-Phase AC Motor

↓

Mechanical Equipment

↓

Industrial Process

The drive enables the PLC to precisely regulate motor speed, torque, and operating status while providing diagnostic information for maintenance personnel.

Industrial Applications

Manufacturing Automation

Typical applications include:

• Automated production lines
• Robotic systems
• Assembly equipment
• CNC machinery
• Packaging machines

Conveyor Systems

Ideal for:

• Material transport
• Warehouse automation
• Distribution centers
• Sorting systems
• Logistics equipment

Pumps and Water Treatment

Suitable for:

• Water supply systems
• Booster pumps
• Wastewater treatment
• Irrigation systems
• Chemical dosing equipment

Fans and HVAC Systems

Provides efficient speed control for:

• Ventilation systems
• Air handling units
• Cooling towers
• Industrial exhaust systems
• Building automation

Mining and Heavy Industry

Commonly installed in:

• Crushers
• Conveyors
• Processing equipment
• Ventilation systems
• Material handling machinery

Food and Beverage Processing

Frequently used for:

• Mixing equipment
• Bottling lines
• Packaging systems
• Conveyor applications
• Automated production equipment

Installation and System Integration

Before installation, engineers should verify:

• Input power compatibility
• Motor specifications
• Cabinet ventilation
• Grounding requirements
• Power cable sizing
• Control wiring
• Communication configuration
• Environmental conditions
• Protective devices
• System commissioning plan

Recommended Installation Procedure

1. Disconnect all power sources.
2. Mount the drive securely inside the control cabinet.
3. Connect the incoming power supply.
4. Connect the motor output terminals.
5. Install protective grounding.
6. Complete control wiring.
7. Configure communication parameters.
8. Verify electrical connections.
9. Restore system power.
10. Enter motor nameplate data.
11. Configure operating parameters.
12. Test motor rotation.
13. Verify protective functions.
14. Complete commissioning.
15. Record configuration settings.

Proper commissioning ensures stable operation, reliable protection, and maximum system efficiency.

Compatible System Components

Recommended Alternative Models

Key Advantages

• PowerFlex 700 high-performance platform
• Advanced vector motor control
• Smooth acceleration and deceleration
• High torque performance
• Integrated diagnostics and fault monitoring
• Energy-efficient motor operation
• Comprehensive motor protection
• Flexible industrial communication support
• Easy commissioning and maintenance
• Rugged industrial construction
• Dimensions 689.6 × 308.9 × 275.4 mm
• Approximate weight 37.19 kg

Technical FAQs

What is the Allen Bradley 20BD125A3ANNACC1?

The 20BD125A3ANNACC1 is a PowerFlex 700 AC Drive designed to provide precise variable-speed control for three-phase industrial AC motors.

What is its primary function?

Its primary function is to regulate motor speed and torque by converting fixed-frequency AC power into adjustable voltage and frequency output.

What are the physical dimensions?

The drive measures 689.6 × 308.9 × 275.4 mm.

What is the approximate weight?

The drive weighs approximately 37.19 kg.

Which motors are compatible?

It is designed for compatible three-phase AC industrial motors used in automation, material handling, pumping, ventilation, and manufacturing systems.

Which industries commonly use this drive?

The drive is widely used in manufacturing, mining, water treatment, food processing, HVAC, logistics, packaging, power generation, and general industrial automation.

Does the drive improve energy efficiency?

Yes. By matching motor speed to actual process demand, it significantly reduces unnecessary energy consumption and mechanical stress.

Does the drive include protection functions?

Yes. It includes overload, overvoltage, undervoltage, overtemperature, short-circuit, and fault diagnostic protection to improve system reliability.

Can the drive communicate with PLC systems?

Yes. The PowerFlex 700 platform supports multiple industrial communication options for seamless integration with Allen Bradley PLCs and industrial control networks.

Where is this drive typically installed?

It is typically installed inside industrial control cabinets powering pumps, conveyors, compressors, fans, mixers, packaging equipment, and other motor-driven machinery.

Conclusion

The Allen Bradley 20BD125A3ANNACC1 PowerFlex 700 AC Drive is a reliable and intelligent variable frequency drive designed for demanding industrial motor control applications. Its advanced vector control technology, comprehensive protection features, integrated diagnostics, and flexible communication capabilities enable precise motor control, improved process efficiency, and reduced maintenance costs.

With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the 20BD125A3ANNACC1 is well suited for cabinet-mounted industrial installations requiring dependable long-term performance. When integrated with compatible PLCs, HMIs, industrial networks, and AC motors, it delivers efficient, stable, and highly reliable automation across a wide range of industrial applications.
