Product Overview

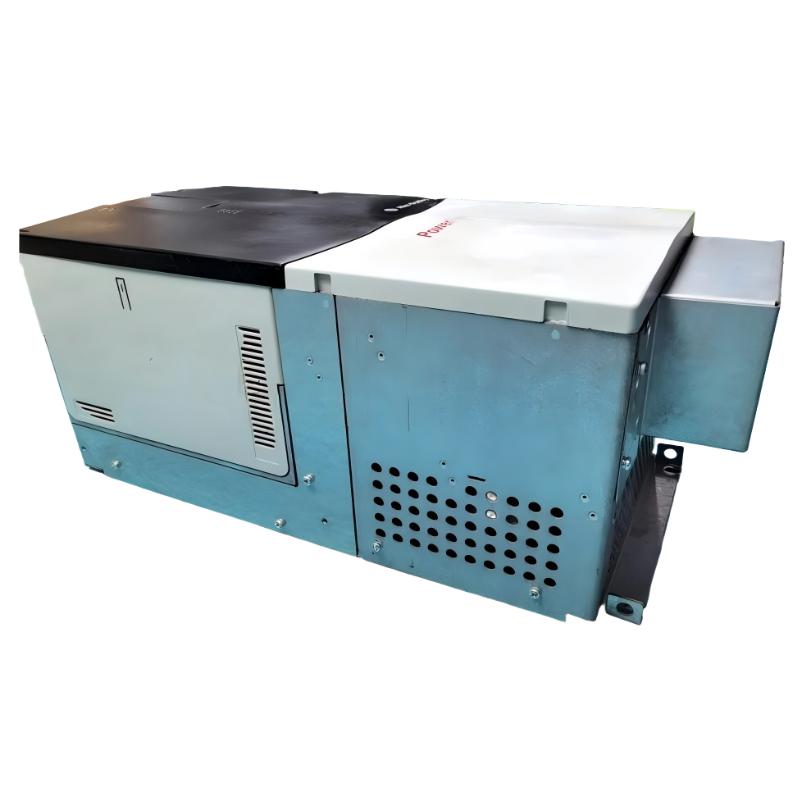

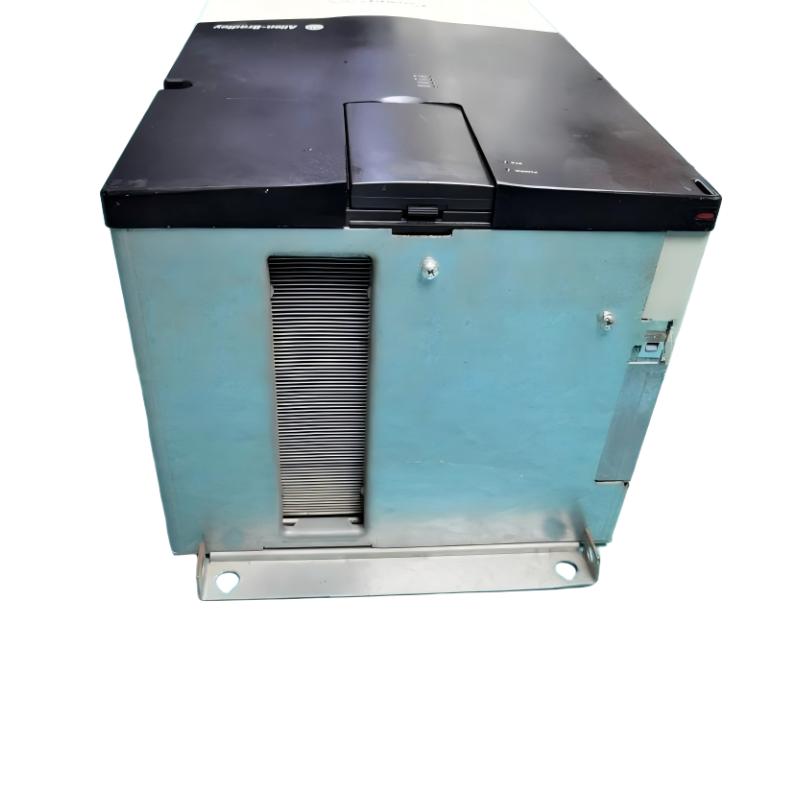

The Allen Bradley 20BD096A0ANNAND0 PowerFlex 700 AC Drive is a premium industrial Variable Frequency Drive (VFD) engineered for demanding motor control applications requiring outstanding speed accuracy, high torque performance, and long-term operational reliability. As a member of the trusted PowerFlex 700 family, this drive integrates advanced vector control technology, intelligent diagnostics, comprehensive protection features, and flexible system integration capabilities to improve machine productivity while reducing energy consumption and maintenance costs.
Designed for 480 VAC three-phase power systems, the 20BD096A0ANNAND0 provides a continuous output current of 96 A, supporting 75 HP (55 kW) Normal Duty and 60 HP (45 kW) Heavy Duty motor applications. By converting fixed-frequency AC input into adjustable voltage and frequency output, the drive enables smooth acceleration, precise speed regulation, stable torque output, and efficient motor operation across a broad range of industrial processes.
This configuration features 120 VAC Vector Control I/O, sensorless vector control, no Human Interface Module (blank plate), no internal communication module, no encoder feedback, no brake IGBT, no internal braking resistor, and an integrated EMC filter with a common-mode choke for improved electromagnetic compatibility.
With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the drive is designed for cabinet-mounted industrial installations where continuous-duty reliability, efficient cooling, and simplified maintenance are essential.
Typical applications include conveyors, pumps, compressors, fans, mixers, packaging equipment, HVAC systems, water treatment facilities, mining equipment, material handling systems, and OEM industrial machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Series | PowerFlex 700 |
| Model | 20BD096A0ANNAND0 |
| Product Type | AC Drive / Variable Frequency Drive |
| Input Voltage | 480 VAC, Three-Phase |
| Rated Output Current | 96 A |
| Normal Duty Rating | 75 HP (55 kW) |
| Heavy Duty Rating | 60 HP (45 kW) |
| Motor Control | Sensorless Vector Control |
| Control I/O | 120 VAC Vector Control |
| Human Interface Module | Blank Plate (No HIM Installed) |
| Communication | No Internal Communication Module |
| Encoder Feedback | Not Included |
| Brake IGBT | Not Installed |
| Internal Brake Resistor | Not Included |
| EMC Filter | Built-in EMC Filter with Common-Mode Choke |
| Protection Rating | IP20 / NEMA Type 1 |
| Cooling Method | Forced Air Cooling |
| Mounting Method | Cabinet / Panel Mount |
| Dimensions | 689.6 × 308.9 × 275.4 mm |
| Weight | Approximately 37.19 kg |
Function and Working Principle
The 20BD096A0ANNAND0 converts fixed-frequency three-phase AC power into adjustable voltage and frequency output, enabling precise control of AC motor speed and torque.
Typical Power Conversion Process
Three-Phase AC Input
↓
Rectifier
↓
DC Bus
↓
IGBT PWM Inverter
↓
↓
Three-Phase AC Motor
↓
Industrial Equipment
The drive continuously monitors output current, motor load, bus voltage, operating temperature, and output frequency. Advanced sensorless vector algorithms optimize motor performance, providing excellent low-speed torque, rapid dynamic response, smooth acceleration, and stable operation.
Key operating functions include:
- Precision motor speed regulation
- Sensorless vector control
- High starting torque
- Adjustable acceleration and deceleration
- Soft starting and stopping
- Automatic energy optimization
- Intelligent fault diagnostics
- Continuous operating status monitoring
- Comprehensive motor protection
- Expandable industrial networking
Role in Industrial Automation Systems
The 20BD096A0ANNAND0 serves as the intelligent motor control interface between industrial PLC controllers and three-phase AC motors.
Primary system functions include:
- Variable speed regulation
- Torque optimization
- Process automation
- Energy management
- Equipment protection
- Diagnostic monitoring
- PLC integration
- Flexible communication expansion
Optional communication adapters enable integration with EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, and other industrial automation networks.
Industrial Applications
Manufacturing Automation
Typical applications include:
- Automated production lines
- Conveyor systems
- Packaging equipment
- Robotic workstations
- Material handling machinery
Water and Wastewater Treatment
Suitable for:
- Booster pumps
- Aeration systems
- Filtration equipment
- Chemical dosing systems
- Municipal pumping stations
HVAC Systems
Common applications include:
- Air handling units
- Cooling towers
- Chillers
- Ventilation systems
- Building automation
Oil and Gas Industry
Frequently installed on:
- Compressors
- Pipeline pumps
- Transfer systems
- Auxiliary machinery
- Process equipment
Mining and Heavy Industry
Ideal for:
- Crushers
- Feeders
- Conveyors
- Mineral processing equipment
- Bulk material handling systems
OEM Machinery
Widely integrated into:
- Plastic processing equipment
- Textile machinery
- Woodworking machines
- Machine tools
- Customized automation equipment
Installation and System Integration
Before installation, engineers should verify:
- Input voltage compatibility
- Motor ratings
- Cabinet ventilation
- Protective grounding
- Cable sizing
- Environmental conditions
- Control wiring
- Optional communication requirements
- Maintenance clearance
Recommended Installation Procedure
- Disconnect all electrical power.
- Mount the drive securely inside the control cabinet.
- Connect the three-phase input supply.
- Connect the motor output terminals.
- Connect protective earth.
- Complete all control wiring.
- Install optional communication modules if required.
- Verify all electrical connections.
- Restore system power.
- Configure motor parameters.
- Adjust acceleration and deceleration settings.
- Configure protection functions.
- Verify motor rotation.
- Perform operational testing.
- Complete commissioning.
Routine inspection of cooling fans, ventilation channels, electrical terminals, and power wiring helps maximize operational reliability and service life.
Compatible System Components
| Component | Function |
|---|---|
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine automation |
| PowerFlex 700 AC Drive | Variable frequency motor control |
| PanelView Plus HMI | Operator interface |
| EtherNet/IP Adapter | Optional networking |
| DeviceNet Adapter | Optional fieldbus communication |
| Three-Phase AC Motor | Mechanical drive |
| Line Reactor | Harmonic reduction |
| Dynamic Braking Unit | External braking solution |
| Circuit Breaker | Electrical protection |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| 20BD096A0ANNAND0 | PowerFlex 700 AC Drive | High-power industrial automation |
| 20BD096A0ANNANC0 | PowerFlex 700 AC Drive | 24 VDC Vector Control I/O |
| 20BD096A3ANNAND0 | PowerFlex 700 AC Drive | HIM-equipped configuration |
| 20BD077A0ANNAND0 | PowerFlex 700 AC Drive | Lower-power applications |
| PowerFlex 755 | Variable Frequency Drive | Next-generation motor control |
Key Advantages
- Proven PowerFlex 700 architecture
- Continuous output current of 96 A
- Supports 75 HP (55 kW) Normal Duty
- Supports 60 HP (45 kW) Heavy Duty
- Advanced sensorless vector control
- 120 VAC Vector Control I/O
- Blank HIM configuration
- Expandable communication architecture
- Built-in EMC filter with common-mode choke
- Intelligent diagnostics
- Comprehensive motor protection
- Reliable continuous-duty operation
- Dimensions 689.6 × 308.9 × 275.4 mm
- Approximate weight 37.19 kg
Technical FAQs
What is the Allen Bradley 20BD096A0ANNAND0?
The 20BD096A0ANNAND0 is a PowerFlex 700 Variable Frequency Drive designed to provide high-performance speed and torque control for three-phase AC motors.
What is the rated output current?
The drive delivers a continuous output current of 96 A, supporting 75 HP (55 kW) Normal Duty and 60 HP (45 kW) Heavy Duty motor applications.
Does this model include a Human Interface Module?
No. It is supplied with a blank HIM plate, allowing an optional HIM to be installed if required.
Does the drive include an internal communication module?
No. This configuration is supplied without an internal communication module, enabling users to install optional network adapters based on application requirements.
Does the drive support encoder feedback?
No. The drive operates using sensorless vector control and does not include encoder feedback.
What are the physical dimensions?
The drive measures 689.6 × 308.9 × 275.4 mm.
What is the approximate weight?
The drive weighs approximately 37.19 kg.
Which industries commonly use this drive?
It is widely used in manufacturing, mining, HVAC, water treatment, packaging, oil and gas, logistics, and OEM industrial automation.
What protection functions are included?
The drive incorporates overload, overcurrent, overvoltage, undervoltage, overtemperature, ground fault, and short-circuit protection.
Why is preventive maintenance important?
Routine inspection of cooling components, ventilation passages, and electrical terminals helps improve reliability, reduce downtime, and extend equipment service life.
Conclusion
The Allen Bradley 20BD096A0ANNAND0 PowerFlex 700 AC Drive is a dependable industrial variable frequency drive designed for demanding high-power motor control applications. Combining advanced sensorless vector control, intelligent diagnostics, comprehensive protection functions, and flexible communication expansion, it delivers accurate speed regulation, efficient energy management, and long-term operational reliability.
With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the 20BD096A0ANNAND0 is an excellent cabinet-mounted solution for manufacturing, process industries, HVAC, water treatment, mining, material handling, and OEM machinery requiring reliable AC motor control.
