Product Overview

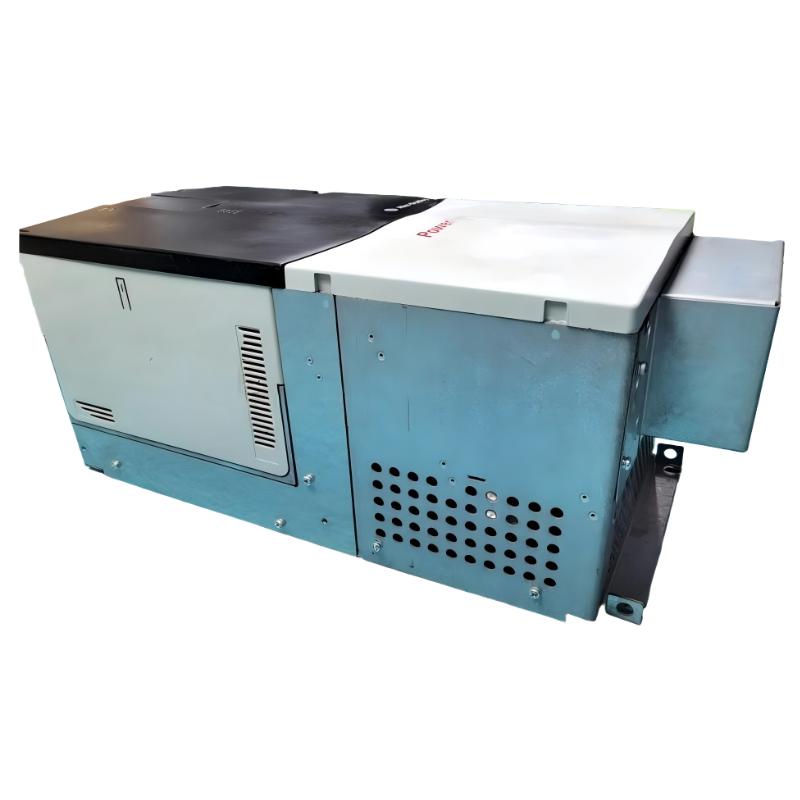

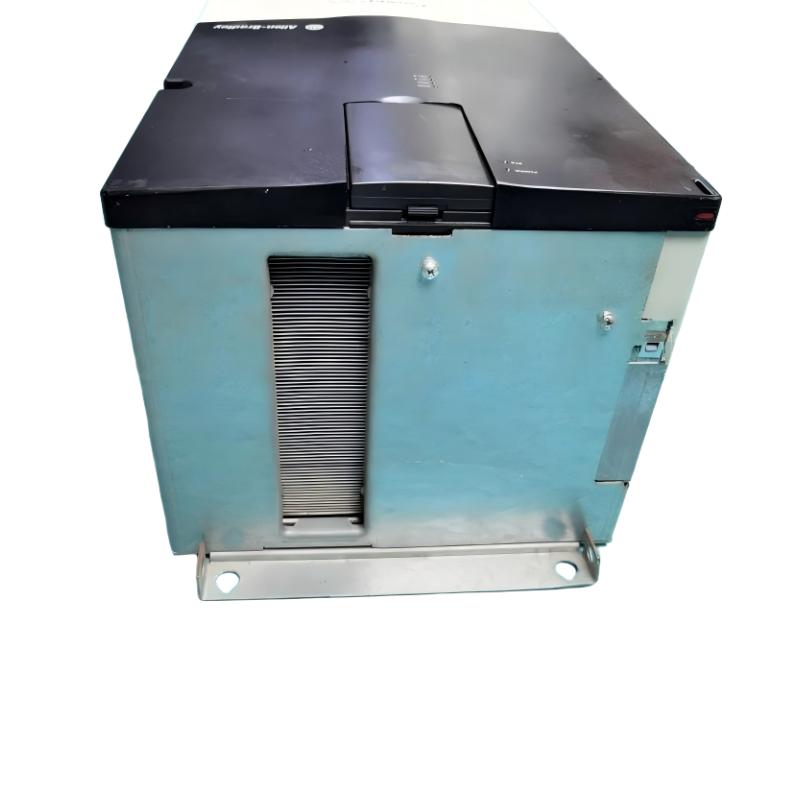

The Allen Bradley 20BD096A0ANNANC0 PowerFlex 700 AC Drive is a high-performance Variable Frequency Drive (VFD) developed for demanding industrial motor control applications. As a member of the PowerFlex 700 family, this AC drive combines advanced sensorless vector control, intelligent diagnostics, flexible configuration, and comprehensive motor protection to deliver reliable speed regulation, optimized torque performance, and improved energy efficiency.
Designed for 480 VAC three-phase power systems, the 20BD096A0ANNANC0 provides a continuous output current of 96 A, making it suitable for 75 HP (55 kW) Normal Duty and 60 HP (45 kW) Heavy Duty motor applications. By converting fixed-frequency AC input into adjustable voltage and frequency output, the drive enables smooth acceleration, precise speed control, and stable motor operation while minimizing mechanical stress and energy consumption.
This configuration features 24 VDC Vector Control I/O, sensorless vector control, a blank HIM (no local display module), no internal communication adapter, no encoder feedback, no brake IGBT, no internal braking resistor, and an integrated EMC filter with a common-mode choke. The modular architecture allows optional communication adapters to support EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, and other industrial networks.
With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the drive is designed for cabinet-mounted installations where dependable continuous-duty performance and simplified maintenance are essential.
Typical applications include conveyor systems, pumps, compressors, mixers, fans, packaging equipment, HVAC systems, water treatment facilities, mining equipment, material handling systems, and OEM industrial machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Series | PowerFlex 700 |
| Model | 20BD096A0ANNANC0 |
| Product Type | AC Drive / Variable Frequency Drive |
| Input Voltage | 480 VAC Three-Phase |
| Rated Output Current | 96 A |
| Normal Duty Rating | 75 HP (55 kW) |
| Heavy Duty Rating | 60 HP (45 kW) |
| Motor Control | Sensorless Vector Control |
| Control I/O | 24 VDC Vector Control |
| Human Interface Module | Blank Cover (No HIM Installed) |
| Communication | No Internal Communication Module |
| Encoder Feedback | Not Included |
| Brake IGBT | Not Installed |
| Internal Brake Resistor | Not Included |
| EMC Filter | Built-in EMC Filter with Common-Mode Choke |
| Protection Rating | IP20 / NEMA Type 1 |
| Cooling Method | Forced Air Cooling |
| Mounting Method | Cabinet / Panel Mount |
| Dimensions | 689.6 × 308.9 × 275.4 mm |
| Weight | Approximately 37.19 kg |
Function and Working Principle
The 20BD096A0ANNANC0 converts fixed-frequency three-phase AC power into adjustable voltage and frequency output, providing accurate control of AC motor speed and torque.
Typical Power Conversion Process
Three-Phase AC Input
↓
Rectifier
↓
DC Bus
↓
IGBT PWM Inverter
↓
↓
Three-Phase AC Motor
↓
Industrial Equipment
The drive continuously monitors voltage, current, motor load, output frequency, and operating temperature. Advanced sensorless vector control algorithms automatically optimize motor performance, delivering excellent low-speed torque, rapid response, and high operating efficiency.
Key operating functions include:
- Precision motor speed regulation
- Sensorless vector control
- High starting torque
- Adjustable acceleration and deceleration
- Soft start and controlled stopping
- Automatic energy optimization
- Intelligent fault diagnostics
- Continuous operating status monitoring
- Comprehensive motor protection
- Expandable communication capability
Role in Industrial Automation Systems
The 20BD096A0ANNANC0 functions as the intelligent motor control interface between PLC controllers and three-phase AC motors.
Its primary functions include:
- Variable speed regulation
- Torque optimization
- Energy management
- Process automation
- Equipment protection
- Fault diagnostics
- PLC integration
- Flexible network expansion
Optional communication adapters allow integration with modern industrial automation systems using EtherNet/IP, DeviceNet, ControlNet, and other industrial protocols.
Industrial Applications
Manufacturing Automation
Typical applications include:
- Automated production lines
- Conveyor systems
- Packaging machinery
- Robotic manufacturing cells
- Material handling equipment
Water and Wastewater Treatment
Suitable for:
- Booster pumps
- Filtration systems
- Aeration equipment
- Chemical dosing systems
- Municipal pumping stations
HVAC Systems
Common applications include:
- Air handling units
- Cooling towers
- Chillers
- Ventilation systems
- Building automation
Oil and Gas Industry
Frequently installed on:
- Compressors
- Pipeline pumps
- Transfer systems
- Auxiliary machinery
- Process equipment
Mining and Heavy Industry
Ideal for:
- Crushers
- Feeders
- Conveyors
- Mineral processing equipment
- Bulk material handling
OEM Machinery
Widely integrated into:
- Plastic processing equipment
- Textile machinery
- Machine tools
- Woodworking equipment
- Customized industrial automation systems
Installation and System Integration
Before installation, engineers should verify:
- Input voltage compatibility
- Motor specifications
- Cabinet ventilation
- Protective grounding
- Cable sizing
- Environmental operating conditions
- Control wiring
- Optional communication requirements
- Maintenance clearance
Recommended Installation Procedure
- Disconnect all electrical power.
- Mount the drive securely inside the control cabinet.
- Connect the three-phase input supply.
- Connect the motor output terminals.
- Install protective grounding.
- Complete all control wiring.
- Install optional communication adapters if required.
- Verify all electrical connections.
- Restore system power.
- Configure motor parameters.
- Set acceleration and deceleration values.
- Configure protection settings.
- Verify motor rotation.
- Perform functional testing.
- Complete commissioning.
Routine preventive maintenance should include inspection of cooling fans, ventilation channels, electrical terminals, and power components to maximize long-term reliability.
Compatible System Components
| Component | Function |
|---|---|
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine automation |
| PowerFlex 700 AC Drive | Variable frequency motor control |
| PanelView Plus HMI | Operator interface |
| EtherNet/IP Adapter | Optional industrial networking |
| DeviceNet Adapter | Optional communication |
| Three-Phase AC Motor | Mechanical drive |
| Line Reactor | Harmonic mitigation |
| Dynamic Braking Unit | External braking solution |
| Circuit Breaker | Electrical protection |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| 20BD096A0ANNANC0 | PowerFlex 700 AC Drive | Standard industrial automation |
| 20BD096A0ANNAND0 | PowerFlex 700 AC Drive | Standard industrial control |
| 20BD096A3ANNANC0 | PowerFlex 700 AC Drive | HIM-equipped configuration |
| 20BD077A0ANNANC0 | PowerFlex 700 AC Drive | Lower power applications |
| PowerFlex 755 | Variable Frequency Drive | Next-generation motor control |
Key Advantages
- Proven PowerFlex 700 architecture
- Continuous output current of 96 A
- Supports 75 HP (55 kW) Normal Duty
- Supports 60 HP (45 kW) Heavy Duty
- Advanced sensorless vector control
- 24 VDC Vector Control I/O
- Blank HIM configuration for flexible customization
- Expandable communication architecture
- Integrated EMC filter with common-mode choke
- Intelligent diagnostics
- Comprehensive motor protection
- Reliable continuous-duty operation
- Dimensions 689.6 × 308.9 × 275.4 mm
- Approximate weight 37.19 kg
Technical FAQs
What is the Allen Bradley 20BD096A0ANNANC0?
The 20BD096A0ANNANC0 is a PowerFlex 700 Variable Frequency Drive designed to provide precise speed and torque control for three-phase AC motors.
What is the rated output current?
The drive provides a continuous output current of 96 A, supporting 75 HP (55 kW) Normal Duty and 60 HP (45 kW) Heavy Duty motor applications.
Does this model include a Human Interface Module?
No. This configuration is supplied with a blank HIM cover, allowing users to install an optional Human Interface Module if required.
Does this drive include an internal communication module?
No. The drive is supplied without an internal communication adapter, but optional network modules can be added for industrial communication.
Does the drive support encoder feedback?
No. It operates using sensorless vector control without encoder feedback.
What are the physical dimensions?
The drive measures 689.6 × 308.9 × 275.4 mm.
What is the approximate weight?
The drive weighs approximately 37.19 kg.
Which industries commonly use this drive?
It is widely used in manufacturing, mining, HVAC, water treatment, packaging, material handling, oil and gas, and OEM automation equipment.
What protection functions are included?
The drive includes overload, overcurrent, overvoltage, undervoltage, overtemperature, ground fault, and short-circuit protection for reliable industrial operation.
Why is preventive maintenance recommended?
Routine inspection of cooling components, electrical terminals, ventilation channels, and power wiring helps improve reliability, reduce downtime, and extend equipment service life.
Conclusion
The Allen Bradley 20BD096A0ANNANC0 PowerFlex 700 AC Drive delivers reliable, high-performance motor control for demanding industrial automation systems. Combining advanced sensorless vector control, intelligent diagnostics, modular communication expansion, and comprehensive protection features, it provides accurate speed regulation, stable torque output, and long-term operational reliability.
With dimensions of 689.6 × 308.9 × 275.4 mm and an approximate weight of 37.19 kg, the 20BD096A0ANNANC0 is an ideal cabinet-mounted solution for manufacturing, process industries, HVAC, water treatment, mining, material handling, and OEM equipment requiring dependable AC motor control.
