Product Overview

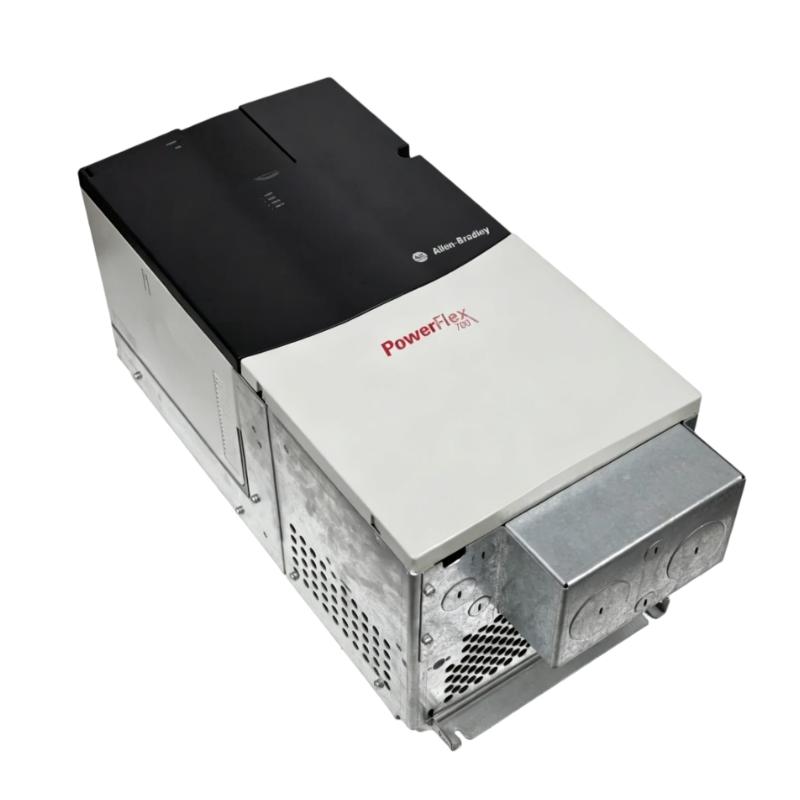

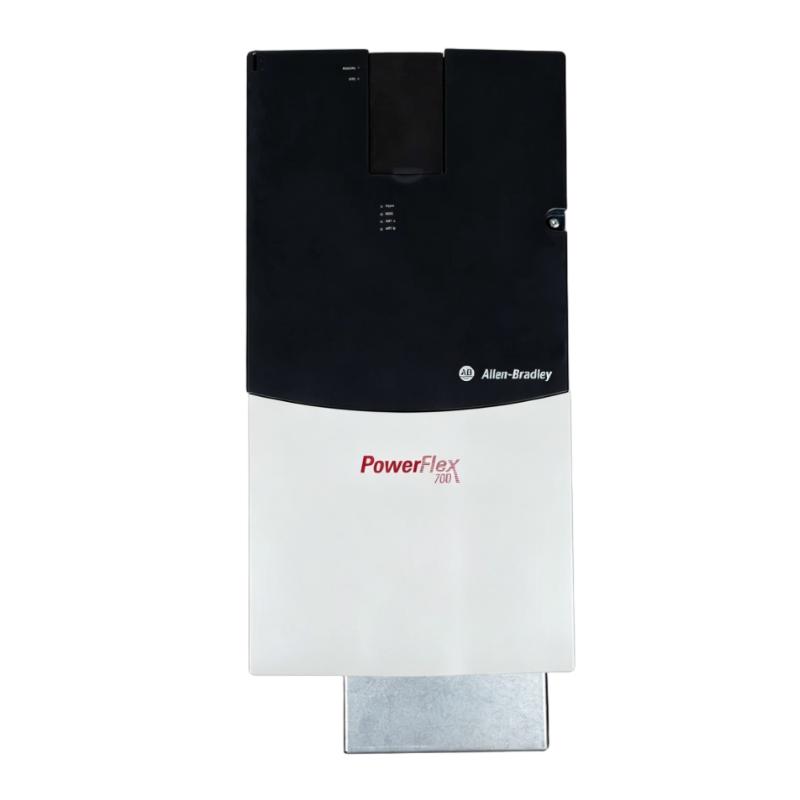

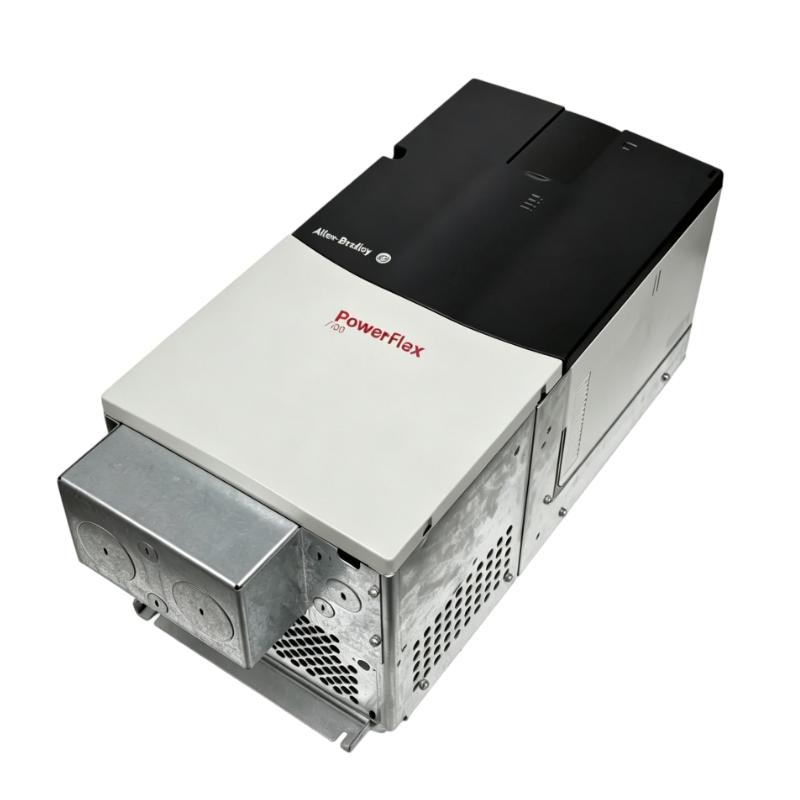

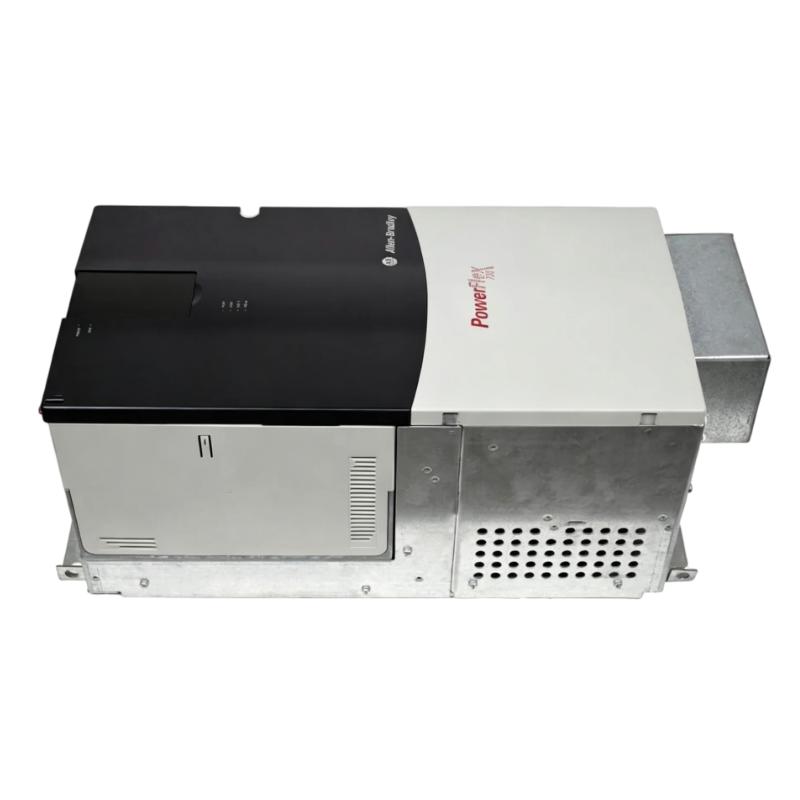

The Allen Bradley 20BC105GJANNANC0 PowerFlex 700 AC Drive is an industrial variable frequency drive used for controlling large AC motors in demanding automation and process applications.
In heavy-duty industrial environments, motor-driven equipment often requires precise speed adjustment, controlled acceleration, and coordinated operation with other automation devices. The PowerFlex 700 series provides the interface between the electrical power system and the motor, allowing control systems to manage motor performance according to production requirements.
The 20BC105GJANNANC0 is typically installed in larger motor control applications where higher-capacity drive equipment is required. It can be integrated with Allen Bradley automation platforms and industrial control architectures for applications such as material handling systems, process equipment, and large mechanical machinery.
For engineers maintaining industrial drive systems, this type of AC drive is usually considered a key component during commissioning, troubleshooting, and equipment upgrades. When abnormal motor behavior occurs, inspection should include drive configuration, incoming power, motor wiring, feedback signals, communication status, and mechanical loading conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 20BC105GJANNANC0 |
| Product Family | PowerFlex 700 |
| Product Type | AC Drive |
| Main Function | Variable Frequency Motor Control |
| System Role | Industrial Motor Control and Power Conversion |
| Application | Heavy-Duty Industrial Automation Systems |
| Dimensions | 1574.8 × 450.7 × 609.6 mm |
| Weight | 102.51 kg |
Product Features
The Allen Bradley 20BC105GJANNANC0 PowerFlex 700 AC Drive is designed for industrial motor control applications requiring a robust drive platform.
Key characteristics include:
- Allen Bradley PowerFlex 700 series AC drive
- Model 20BC105GJANNANC0
- Suitable for large industrial motor applications
- Supports adjustable motor speed control
- Used in automation and process control environments
- Integrates with industrial control systems
- Suitable for equipment requiring coordinated motor operation
- Applied in drive system installation and replacement projects
The drive configuration should be matched with the motor specifications, control requirements, and application conditions.
Working Principle
The 20BC105GJANNANC0 controls AC motor operation by converting fixed electrical input into a controlled output that regulates motor performance.
A typical operating structure is:
Power Supply → PowerFlex 700 AC Drive → AC Motor → Mechanical Equipment
The automation system sends operating commands, such as speed references or start/stop instructions, to the drive. The drive processes these signals and adjusts the electrical output delivered to the motor.
In practical industrial applications, this allows large motor-driven equipment to operate according to process requirements rather than running at a constant speed. For example:
- Conveying systems can adjust transport speed according to production flow.
- Pumps can modify operation based on process demand.
- Large mechanical equipment can achieve controlled acceleration and deceleration.
During commissioning or maintenance, drive parameters must be reviewed carefully because incorrect settings may affect motor response even when the drive hardware operates normally.
Role in an Industrial Drive System
The Allen Bradley 20BC105GJANNANC0 operates as the main motor control interface within an industrial automation system.
A simplified architecture can be shown as:
PLC / Control System → PowerFlex 700 Drive → Motor → Mechanical Load
The controller provides operating instructions, while the drive manages electrical power conversion and motor control.
For large industrial machines, the drive acts as a bridge between digital automation logic and physical mechanical movement. Its performance directly affects how smoothly motors respond to production requirements.
Industrial Applications
The Allen Bradley 20BC105GJANNANC0 PowerFlex 700 AC Drive is suitable for industrial systems requiring controlled operation of high-power motors.
| Application | Typical Use |
|---|---|
| Heavy Manufacturing Equipment | Controlling large motor-driven machinery |
| Material Handling Systems | Managing conveyor and transport equipment |
| Process Industry Equipment | Supporting variable-speed operation |
| Pumping Systems | Adjusting motor output according to demand |
| Large Fan Systems | Controlling ventilation equipment |
| Industrial Production Lines | Coordinating multiple motor sections |
| Plant Automation Systems | Integrating motor control into larger systems |
The final application depends on motor requirements, process conditions, and system design.
Installation and Maintenance
Installation of the 20BC105GJANNANC0 requires proper consideration of electrical connections, cabinet arrangement, and system integration.
Recommended maintenance procedures include:
- Verify drive model before installation
- Confirm motor compatibility
- Check incoming power connections
- Inspect motor cables and terminals
- Review drive parameter settings
- Check communication configuration
- Maintain proper cooling conditions
- Review fault records
- Inspect electrical connections regularly
- Verify system operation after servicing
For large industrial drives, preventive inspection is important because drive faults may affect entire production sections.
Related Components
The 20BC105GJANNANC0 is commonly integrated with the following system components:
| Component | Function |
|---|---|
| Allen Bradley PLC Controllers | Execute automation logic and send commands |
| Human Machine Interfaces | Provide operator monitoring and control |
| AC Motors | Convert electrical energy into mechanical movement |
| Feedback Devices | Provide motor operating information |
| Communication Modules | Enable network connection with automation systems |
| Circuit Protection Equipment | Protect electrical power circuits |
| Motor Control Cabinets | Provide drive installation environment |
These components work together to form a complete industrial motor control system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Allen Bradley 20BC105GJANNANC0 | PowerFlex 700 AC Drive | Heavy-duty motor control |
| Allen Bradley PowerFlex 700 Series | Variable Frequency Drive | Industrial automation applications |
| Allen Bradley PowerFlex 750 Series | Advanced AC Drive Platform | Complex motor control systems |
| Allen Bradley PowerFlex 70 Series | AC Drive | General machine applications |
| Allen Bradley Drive Accessories | Drive System Components | Installation and expansion |
Model selection should consider motor capacity, control method, installation environment, and existing automation architecture.
Key Advantages
- Allen Bradley PowerFlex 700 industrial AC drive.
- Suitable for large motor control applications.
- Supports adjustable speed operation.
- Integrates with Allen Bradley automation systems.
- Used in heavy industrial equipment.
- Supports drive system maintenance and upgrades.
Technical FAQs
What type of motor applications are suitable for the 20BC105GJANNANC0?
This drive is typically used in industrial applications requiring controlled operation of larger AC motors, such as heavy machinery, process equipment, and material handling systems.
What checks should be completed before commissioning this PowerFlex 700 drive?
Engineers should verify motor information, electrical connections, control parameters, communication settings, and mechanical load conditions before operation.
Why should mechanical load conditions be considered when troubleshooting drive faults?
Because excessive load, mechanical blockage, or abnormal machine movement can cause drive alarms even when the electrical drive section is operating correctly.
What maintenance actions help extend the service life of an industrial AC drive?
Regular inspection of electrical connections, cooling conditions, parameter settings, and operating history helps identify potential issues before equipment downtime occurs.
