Product Overview

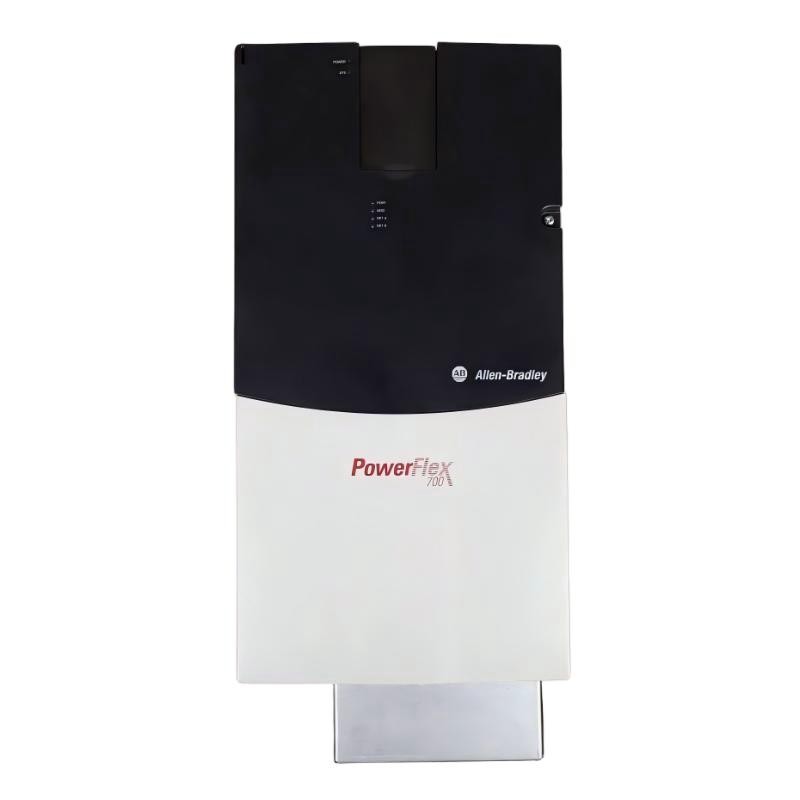

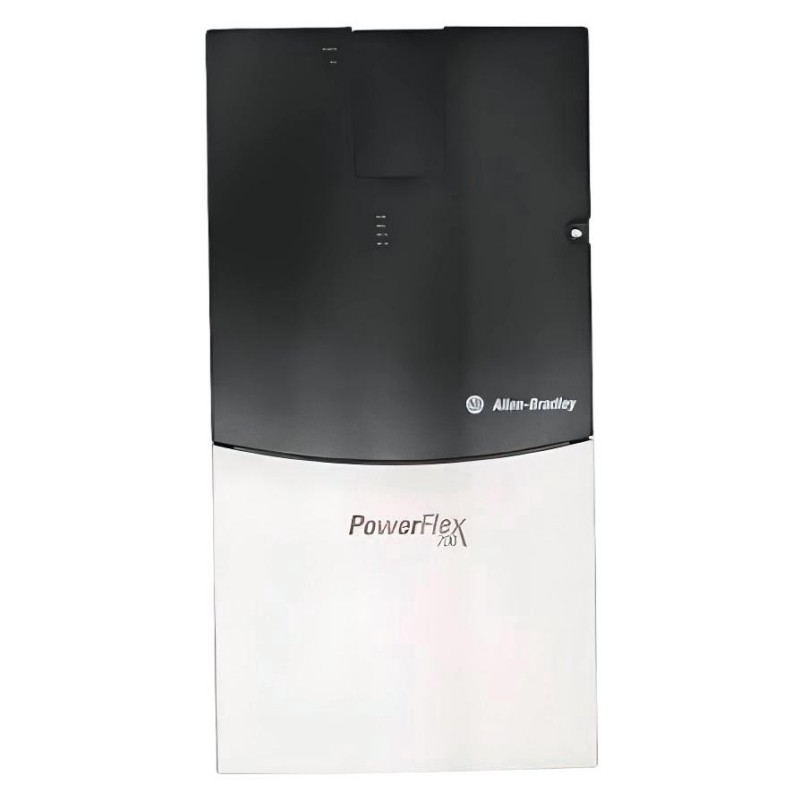

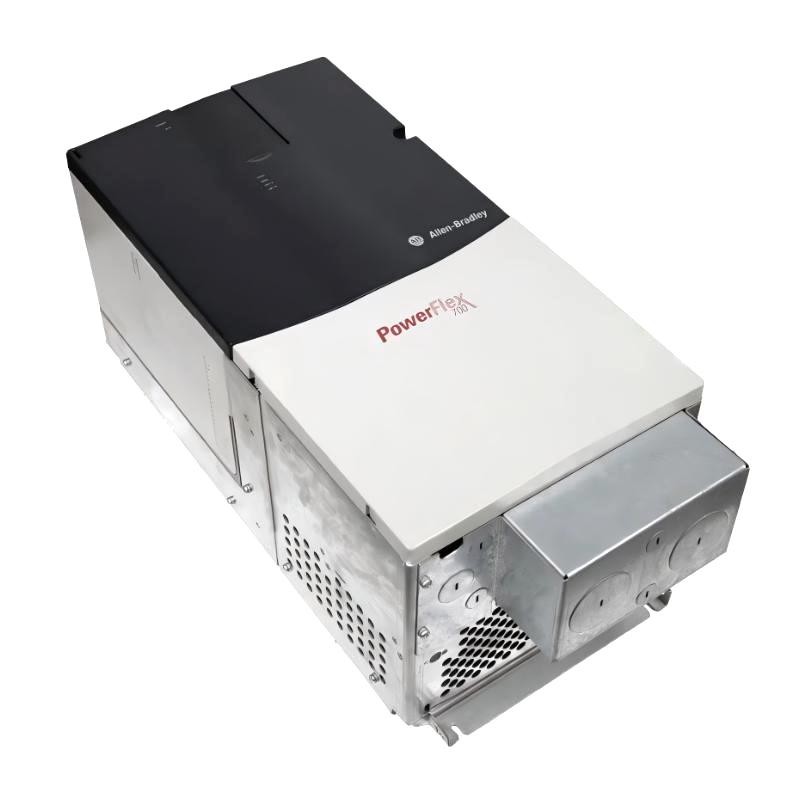

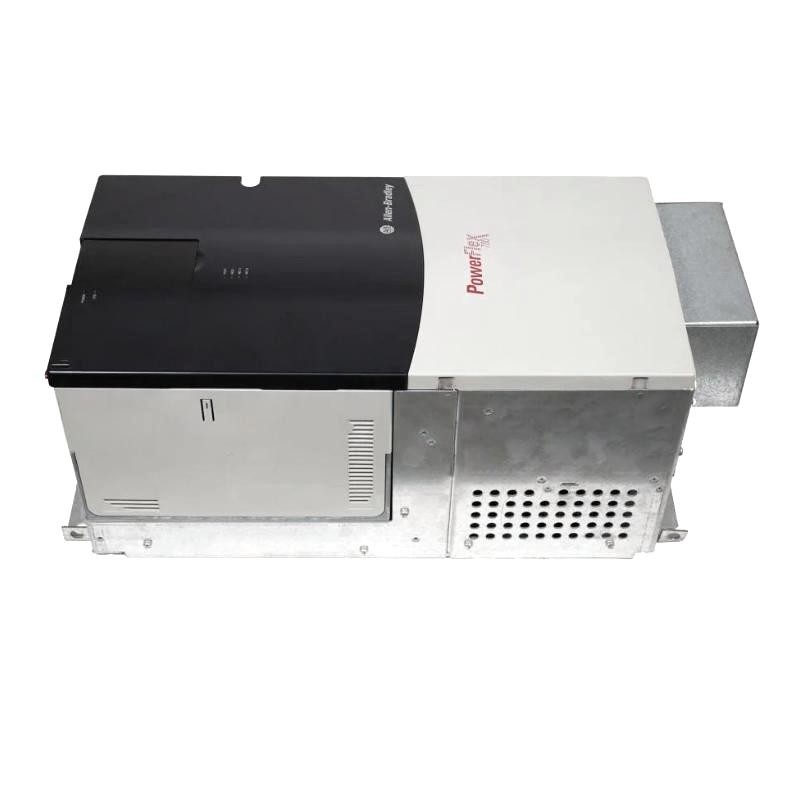

The Allen Bradley 20BB104A0ANNANC0 PowerFlex 700 AC Drive is an adjustable-frequency drive intended for industrial three-phase AC motor applications that require controlled speed, managed acceleration and deceleration, and integration with machine-level control systems. It belongs to the PowerFlex 700 20B family and is associated with the 240 V class. The 104 A configuration is rated at 40 HP for normal-duty operation and 30 HP for heavy-duty operation, subject to the applicable drive ratings and installation conditions.

The PowerFlex 700 regulates motor operation by varying the electrical output supplied to the connected motor. This allows machinery to operate at a speed appropriate to the process instead of running continuously at a fixed supply frequency. In applications such as conveyors, pumps, fans, mixers, and production machinery, the drive can adjust motor operation in response to a configured reference and the requirements of the surrounding control system.

Vector control is relevant where motor response must account for changes in load and operating conditions. The drive uses its configured motor data and control parameters to regulate operation according to the selected control mode. Correct motor information, appropriate tuning, and suitable acceleration and deceleration settings are important when the machine must move between operating speeds without creating unnecessary mechanical stress.

The 104 A rating distinguishes this configuration from lower-current PowerFlex 700 models such as the 70 A and 80 A variants. However, current rating alone does not establish whether a drive is suitable for a particular motor. Engineers must also consider the incoming voltage, motor nameplate current, normal-duty or heavy-duty requirements, overload profile, ambient conditions, and the installed options.

The 20BB104A0ANNANC0 is supplied without a drive-mounted Human Interface Module (HIM). This blank-plate arrangement means the commissioning plan must account for an appropriate supported method of accessing parameters, monitoring operating conditions, and diagnosing faults. The absence of a HIM does not remove the drive’s programmable functions, but the required interface must be available separately or through a supported system configuration.

The catalog configuration also indicates no brake IGBT, no internal drive-mounted braking resistor, no installed communication module, and no feedback option. These omissions are important when the drive is selected for a replacement project. If the application relies on dynamic braking, encoder feedback, or a dedicated network connection, those requirements must be evaluated separately before installation.

The standard 24V I/O arrangement supports integration with external machine-control circuits. A PLC or relay-based control system can issue compatible commands and receive configured status signals through the drive’s assigned inputs and outputs. The actual functions depend on the terminal assignments and parameter settings. Because this catalog configuration does not include an installed communication module, network-based control should not be assumed without confirming the required additional hardware.

The drive’s IP20 / NEMA Type 1 enclosure configuration is intended for a suitable industrial installation environment. Its conformally coated electronic assemblies provide additional protection against certain contaminants, but the coating does not make the unit suitable for unrestricted exposure to moisture, conductive dust, or corrosive conditions. Correct cabinet protection, grounding, cooling, and wiring practices remain necessary.

The 20BB104A0ANNANC0 also requires attention to the mechanical demands of the connected load. A high-inertia machine may return energy to the drive during deceleration, and a process that requires rapid stopping may need a braking arrangement beyond the hardware supplied with this configuration. Engineers should evaluate the stopping profile, load characteristics, and required braking performance before finalizing the installation.

In a typical automation architecture, the PLC manages the process sequence while the PowerFlex 700 performs the motor-control functions. External signals determine when the drive should operate and which reference it should follow, while the drive’s own control functions regulate the motor. This division allows motor behavior to be coordinated with sensors, interlocks, upstream equipment, and downstream processes.

The Allen Bradley 20BB104A0ANNANC0 PowerFlex 700 AC Drive is therefore best assessed as a specific high-current drive configuration rather than simply as a 40 HP unit. Its voltage class, duty ratings, control arrangement, I/O, feedback requirements, communication needs, and braking provisions must all match the intended machine.

Technical Specifications

Product Features

• 104 A output-current rating: Supports compatible motor applications within the specified drive and duty limits.
• 40 HP normal-duty rating: Provides the specified output rating for normal-duty operation in the applicable voltage class.
• 30 HP heavy-duty rating: Accommodates the specified heavy-duty rating when the motor and load meet the drive’s operating requirements.
• Vector-control operation: Regulates motor behavior according to the selected control mode and configured motor parameters.
• 240 V-class three-phase input: Supports compatible industrial power systems within the specified voltage range.
• 24V I/O interface: Connects the drive to external machine-control circuits.
• Conformally coated electronics: Adds protection against certain environmental contaminants.
• IP20 / NEMA Type 1 configuration: Requires installation in an appropriate environment with suitable protection and cooling.
• No installed communication module: Allows network requirements to be assessed separately.
• No internal braking hardware: Requires a separate assessment of braking needs for demanding deceleration profiles.
• No feedback option: Requires encoder or other feedback requirements to be evaluated against the exact drive configuration.

Working Principle

The 20BB104A0ANNANC0 converts incoming three-phase AC power into a controlled electrical output for the connected motor. Its power-conversion stages work with the drive’s control functions to adjust output voltage and frequency according to the selected operating mode and configured reference.

Three-Phase AC Supply → Rectifier → DC Bus → Inverter → AC Motor

The incoming supply enters the rectifier stage, where AC power is converted into DC power. This energy is maintained on the drive’s internal DC bus before being supplied to the inverter stage. The inverter switches the DC power to generate a controlled AC output for the motor.

In vector-control operation, the drive uses its configured motor data and control calculations to regulate motor response. The control system manages the relationship between motor flux, torque, and speed according to the selected mode. Correct motor parameters are essential because the drive’s response depends on the electrical characteristics of the connected motor and the requirements of the load.

When an external controller issues a run command or speed reference, the drive processes the signal according to the configured command source and parameter settings. The output changes according to the requested operating point, acceleration and deceleration ramps, current limits, and other configured constraints. The motor then responds to the controlled electrical output.

The standard 24V I/O provides the interface for compatible external commands and status signals. A PLC may issue a run command after confirming that the machine’s required interlocks are satisfied. Other assigned inputs can provide additional control functions, while configured outputs can return selected status information. These functions must be mapped and tested during commissioning.

The drive’s 104 A rating must be considered alongside the specified normal-duty and heavy-duty power ratings. A motor that falls within the horsepower rating may still exceed the permissible current or overload capability under particular operating conditions. Engineers should compare the motor nameplate information with the drive’s ratings and the machine’s actual load profile.

During deceleration, the motor may return energy to the drive’s DC bus. Because this configuration does not include a brake IGBT or internal drive-mounted braking resistor, the application must be assessed for regenerative-energy requirements. If the load requires rapid deceleration or repeated braking, compatible external braking equipment or an adjusted stopping profile may be necessary.

The absence of an installed communication module means that the drive’s network capabilities depend on separately selected, compatible hardware. Standard I/O can support external control, but a fieldbus or Ethernet-based interface requires a separate configuration assessment. Device addressing, controller programming, and communication setup must be completed where a network option is installed.

The blank-plate configuration also affects parameter access. Before operation, a supported programming or diagnostic method must be available to configure motor data, control sources, ramps, I/O assignments, and protection settings. These parameters should be verified before the drive is operated under production load.

During operation, the drive’s internal control and protection functions respond to the configured commands and operating limits. If the drive trips or fails to achieve the requested speed, diagnosis should include the incoming supply, motor wiring, control signals, parameter settings, and mechanical load. Corrective action should be based on the actual fault condition rather than on an assumption that the inverter itself is defective.

Through its power-conversion stages and configurable motor-control functions, the 20BB104A0ANNANC0 provides adjustable-speed operation for compatible industrial machinery.

Role in the Industrial Control Architecture

The 20BB104A0ANNANC0 occupies the motor-control layer of an industrial automation system. It receives electrical power, processes configured commands, and regulates the connected motor while coordinating with external control devices through its supported I/O.

Three-Phase AC Supply → PowerFlex 700 Drive → AC Motor

PLC / Control Circuit → 24V I/O → PowerFlex 700 → Motor Operation

The PLC manages the process sequence, while the PowerFlex 700 performs motor regulation. Network communication, feedback, and braking requirements must be assessed separately according to the actual installed configuration.

Industrial Applications

Installation and Maintenance

1. Verify the complete catalog number: Confirm that the installed unit matches 20BB104A0ANNANC0 and that its control, I/O, feedback, and braking configuration meets the application requirements.
2. Check the incoming supply: Verify compatibility with the specified 208–240 V-class three-phase supply and the applicable electrical installation requirements.
3. Confirm motor ratings: Compare the motor nameplate voltage, current, power, and frequency with the drive’s output ratings before connecting the motor.
4. Isolate electrical energy: Disconnect the drive from its supply and follow the prescribed lockout and DC-bus discharge verification procedures before servicing.
5. Inspect the installation environment: Ensure that the IP20 / NEMA Type 1 configuration is installed in a suitable enclosure or protected area with adequate cooling.
6. Verify grounding and power wiring: Check protective grounding, input terminals, motor connections, and conductor installation against the applicable wiring instructions.
7. Configure motor parameters: Enter the correct motor nameplate data and select the control settings required by the application.
8. Check the external control circuit: Verify the 24V I/O wiring, assigned command sources, and the expected behavior of connected control devices.
9. Arrange parameter access: Because a drive-mounted HIM is not included, confirm that a supported configuration and diagnostic method is available.
10. Evaluate braking requirements: Assess load inertia, stopping frequency, and deceleration time to determine whether additional braking hardware is necessary.
11. Commission the complete system: Test starting, stopping, speed changes, interlocks, fault responses, and operating limits under controlled conditions.
12. Maintain configuration records: Retain the drive identification, parameter settings, motor data, wiring diagrams, and service history for future maintenance.

If the drive fails to start, inspect the supply, control source, I/O assignments, and drive status. If faults occur during acceleration or deceleration, examine the motor load, current limits, ramp settings, and braking requirements. Do not bypass protective functions to restore operation.

Related Components

Recommended Related Models

Key Advantages

• Provides a 104 A output-current rating for compatible industrial motor applications.
• Supports 40 HP normal-duty and 30 HP heavy-duty operation in the specified voltage class.
• Uses vector control for regulated motor operation under changing load conditions.
• Provides standard 24V I/O for external machine-control integration.
• Includes conformally coated electronics and the specified EMC filter configuration.
• Allows communication, feedback, and braking requirements to be assessed according to the application.

Technical FAQs

How should the 104 A rating be evaluated when selecting a replacement drive?

Compare the existing drive’s rated output current, voltage class, normal-duty or heavy-duty rating, and overload requirements with the connected motor’s nameplate data. The replacement must also match the required control method and installed options; a similar horsepower rating alone is not sufficient.

Can the 20BB104A0ANNANC0 provide encoder-based feedback control?

The specified configuration is listed without a feedback option. If the application depends on encoder feedback, verify the exact catalog configuration and select a compatible feedback arrangement before installation. Do not assume that the required feedback hardware is included.

What should be considered when the drive controls a high-inertia load?

High-inertia loads can return energy to the drive during deceleration. Since this configuration does not include a brake IGBT or internal drive-mounted braking resistor, engineers should evaluate stopping time, braking frequency, and regenerative energy to determine whether compatible external braking equipment is required.

How can the drive be commissioned when no HIM is supplied?

A supported alternative method must be available for entering parameters, monitoring drive status, and troubleshooting faults. Before operation, verify motor data, command sources, I/O assignments, acceleration and deceleration settings, and applicable protection parameters.
