Product Overview

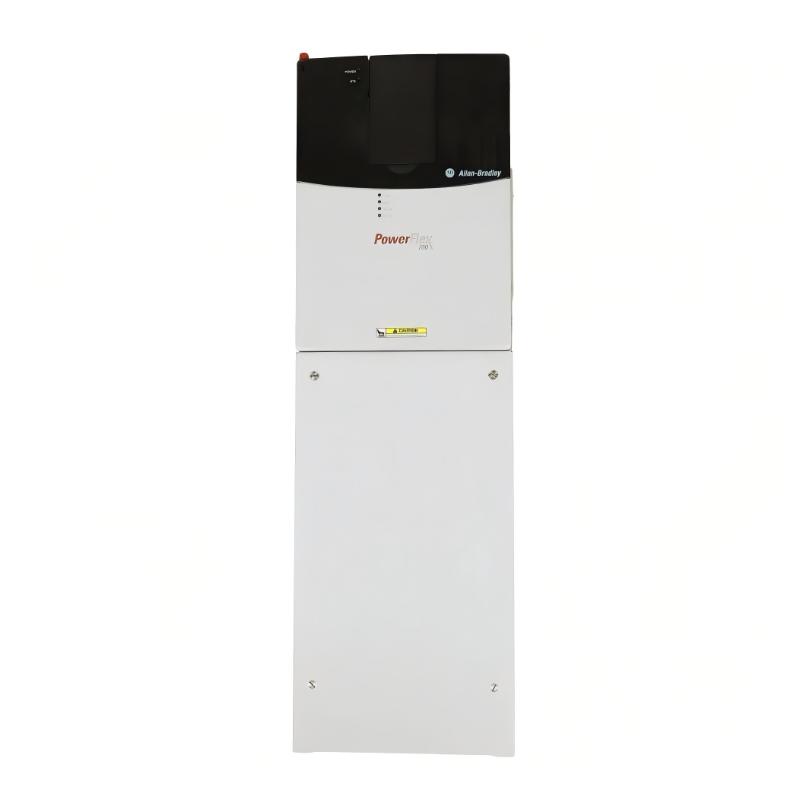

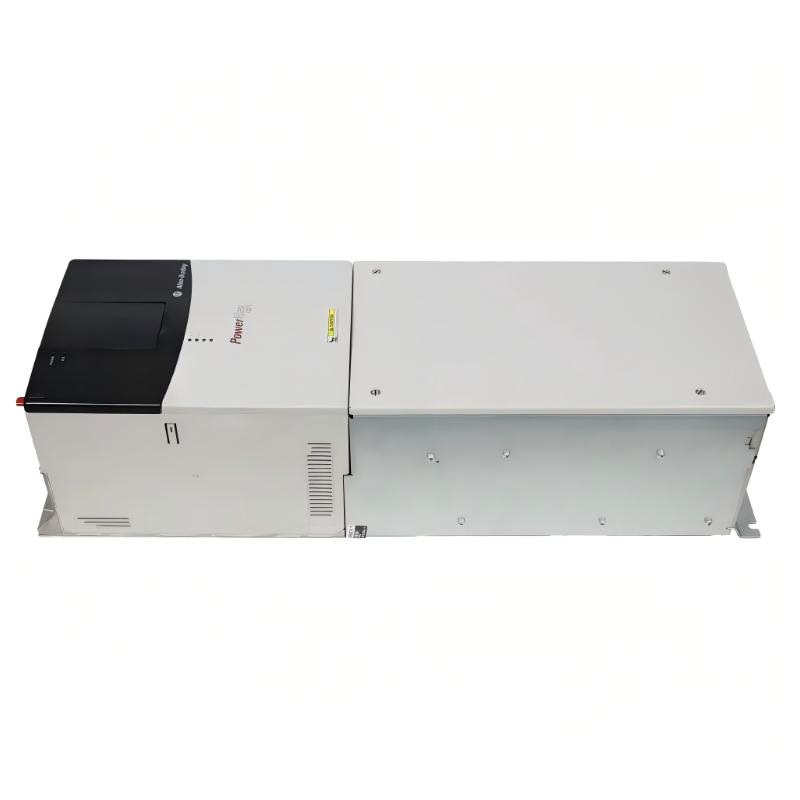

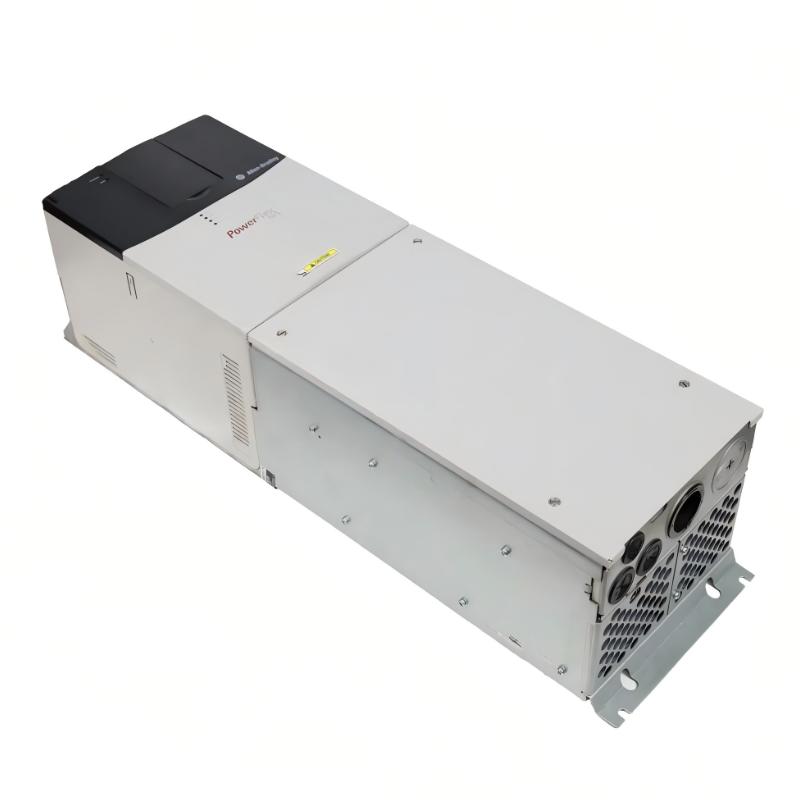

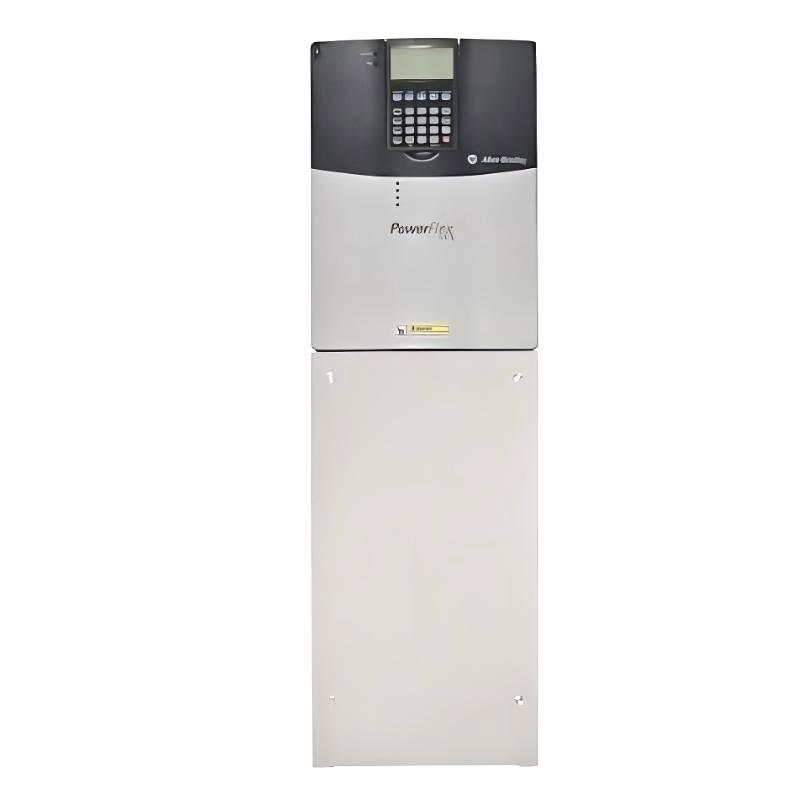

The Allen Bradley 20BB070A0ANNANC0 PowerFlex 700 AC Drive is a variable-frequency AC drive intended for industrial motor control applications requiring adjustable speed, controlled acceleration and deceleration, and integration with machine-level automation. This catalog number belongs to the PowerFlex 700 20B product family and is configured for a 240 V-class, three-phase supply, with a rated output current of 70 A. Its power rating is 25 HP for normal-duty applications and 20 HP for heavy-duty applications.

This particular configuration combines vector control with 24V I/O, an IP20 / NEMA Type 1 enclosure arrangement, and a conformally coated electronic assembly. It is supplied without a Human Interface Module (HIM), without a brake IGBT, without an internal drive-mounted braking resistor, without an installed communication module, and without a feedback option. These configuration details matter when specifying a replacement or integrating the drive into an existing machine, because the complete catalog number identifies more than the drive’s current and horsepower ratings.

The PowerFlex 700 is intended for applications in which the motor must operate at different speeds according to process demand. Rather than supplying the motor directly from a fixed-frequency source, the drive regulates its output to control motor operation. This allows equipment such as conveyors, pumps, fans, mixers, and material-handling machinery to operate according to the requirements of the production process.

Vector control gives the drive a control method suitable for applications that need more than basic frequency adjustment. With appropriate motor data, parameter settings, and a compatible control arrangement, the drive can regulate motor operation in response to changing speed and load demands. The exact performance depends on the selected control mode, motor characteristics, tuning, and application requirements.

The 20BB070A0ANNANC0 is configured for 240 V-class operation, including the specified 208–240 V input range associated with this drive rating. Its 70 A output-current rating and duty-specific horsepower values should be considered together when selecting a motor and assessing the intended load. A motor’s rated voltage, full-load current, overload requirements, and operating profile must all be checked before the drive is commissioned.

The drive includes standard 24V I/O for control signals. This allows compatible external devices to provide commands and status signals for functions such as starting, stopping, direction selection, and other configured drive operations. The actual behavior depends on the terminal configuration, parameter assignments, and external control circuit. Because this model does not include an installed communication module, network-based control should not be assumed to be available without evaluating the appropriate additional hardware.

The blank-plate configuration means that a drive-mounted HIM is not included. Commissioning and maintenance planning must therefore account for the available programming and parameter-access method. A compatible external interface or supported configuration tool may be required, depending on the intended setup and the installed drive hardware. The absence of a HIM does not mean the drive lacks programmable control functions.

The 20BB070A0ANNANC0 also does not include a brake IGBT or an internal drive-mounted braking resistor. Applications involving rapid deceleration, frequent stopping, or loads that return energy to the drive require a separate assessment of the braking arrangement. If dynamic braking is necessary, the selected hardware and circuit configuration must be compatible with the drive and suitable for the energy generated by the application.

Its conformal coating adds a protective layer to the electronic assemblies against certain environmental contaminants. The coating can be useful in industrial installations where environmental conditions warrant additional board-level protection, but it does not make the drive suitable for unrestricted exposure to dust, moisture, chemicals, or corrosive atmospheres. The IP20 / Type 1 configuration still requires an appropriate installation environment and protection against conditions outside the specified limits.

The PowerFlex 700 can be integrated into a control system using its standard I/O and supported drive interfaces. The controller determines the process sequence and issues commands, while the drive regulates motor operation according to its configuration. This division of responsibilities makes it possible to coordinate motor speed with sensors, machine interlocks, and other equipment without transferring the drive’s internal motor-control functions to the PLC.

The 20BB070A0ANNANC0 is best evaluated as a specific 70 A PowerFlex 700 configuration rather than simply as a generic 25 HP drive. Its voltage class, duty rating, vector-control configuration, I/O arrangement, coating, and omitted options all affect suitability for a particular machine. These details should be matched against the existing installation before the unit is selected for replacement or new equipment.

Technical Specifications

Product Features

• 70 A output-current rating: Supports compatible motor applications within the drive’s specified current and duty limits.
• Dual duty ratings: Rated at 25 HP for normal duty and 20 HP for heavy duty in the specified voltage class.
• Vector control: Supports controlled motor operation for applications with varying speed and load requirements.
• 208–240 V-class supply: Intended for compatible three-phase industrial power systems.
• 24V I/O configuration: Supports integration with external control circuits and standard machine-control signals.
• Conformal coating: Adds a protective layer to electronic assemblies against certain environmental contaminants.
• IP20 / Type 1 configuration: Intended for installation in an appropriate industrial environment with suitable enclosure protection.
• No installed communication module: Allows the system integrator to assess communication requirements separately.
• No internal braking hardware: Requires separate consideration of braking needs for applications with demanding deceleration requirements.
• No included HIM: Requires an appropriate method for drive configuration, parameter access, and maintenance.

Working Principle

The 20BB070A0ANNANC0 regulates the electrical power supplied to an AC motor by controlling the drive’s output voltage and frequency according to its configured operating mode. The controller or external command circuit provides the required operating reference, and the drive adjusts its output to achieve the requested motor behavior.

Three-Phase AC Supply → Power Conversion → DC Bus → Inverter Output → AC Motor

The incoming three-phase supply enters the drive’s power-conversion stage. The rectifier converts the incoming AC power into DC power, which is maintained on the internal DC bus. The inverter stage then switches this DC power to produce a controlled AC output for the motor.

The output frequency determines the motor’s synchronous speed relationship, while the output voltage and control strategy influence motor flux and torque production. In vector-control operation, the drive uses its configured motor model and control calculations to regulate the motor response more directly than a simple frequency-only control approach. Proper motor data and parameter setup are essential for achieving the expected performance.

When the machine controller requests a change in speed, the drive processes the reference according to the configured command source, acceleration and deceleration settings, and operating limits. The inverter adjusts the output to bring the motor toward the requested operating point. The ramp settings help determine how quickly the motor accelerates or decelerates, while protection and current limits constrain operation when necessary.

The 24V I/O arrangement provides a means of receiving external control signals and returning supported status information. A PLC, relay circuit, or other compatible control device can be connected according to the selected wiring and parameter assignments. For example, a machine controller may issue a run command after confirming that a guard is closed and the upstream equipment is ready. The drive then operates according to its configured start source and speed reference.

The drive’s control response also depends on the motor and load. A lightly loaded fan behaves differently from a high-inertia conveyor or a heavily loaded mixer. Engineers must configure the motor data, control mode, acceleration and deceleration times, and applicable current limits to match the machine’s mechanical characteristics.

The absence of a brake IGBT and internal braking resistor affects applications that need rapid deceleration or must dissipate regenerated energy. During deceleration, a motor can return energy to the DC bus. If the application generates more energy than the drive can accommodate through its normal control behavior, a compatible external braking solution or a revised deceleration strategy may be necessary. The braking arrangement must be designed according to the drive’s installation requirements.

The model’s blank-plate configuration means that a drive-mounted HIM is not supplied. Parameter setup, diagnostics, and maintenance therefore require a supported access method appropriate to the installed hardware and firmware. The configuration process should include verification of the control source, motor parameters, I/O assignments, protection settings, and intended operating limits.

During normal operation, the drive continuously responds to its configured commands while monitoring operating conditions through its internal control and protection functions. If a fault or limit condition occurs, the drive’s configured response can interrupt or restrict motor operation. Fault diagnosis should examine the drive status, incoming supply, motor wiring, control signals, parameter settings, and mechanical load rather than assuming that every abnormal condition originates in the inverter.

Through this power-conversion and vector-control process, the 20BB070A0ANNANC0 provides adjustable-speed motor operation for compatible industrial machinery.

Role in the Industrial Control Architecture

The 20BB070A0ANNANC0 occupies the motor-control layer of an industrial automation system. It receives electrical power and configured commands, regulates the connected motor, and exchanges supported control and status signals with the surrounding automation equipment.

Three-Phase AC Supply → PowerFlex 700 Drive → AC Motor

PLC / Control Circuit → 24V I/O → PowerFlex 700 → Motor Operation and Status Feedback

The PLC coordinates the overall process, while the PowerFlex 700 performs the motor-control functions. Any additional communication or braking requirements must be addressed through compatible hardware and a suitable system design.

Industrial Applications

Installation and Maintenance

1. Verify the complete catalog number: Confirm that the replacement is 20BB070A0ANNANC0 and matches the existing installation’s voltage, current, duty rating, I/O, and option configuration.
2. Check the incoming supply: Verify that the three-phase supply is compatible with the drive’s 208–240 V-class rating and meets the applicable installation requirements.
3. Confirm motor compatibility: Compare the motor nameplate voltage, rated current, power, frequency, and operating requirements with the drive’s ratings before connecting the motor.
4. Follow electrical isolation procedures: Disconnect the drive from the power source and verify that the DC bus has discharged to the required safe level before servicing.
5. Inspect the installation environment: Confirm that the IP20 / Type 1 drive is installed in a suitable enclosure or protected area with appropriate airflow and environmental control.
6. Check grounding and wiring: Verify protective grounding, input and motor conductor connections, terminal tightness, and the required separation between power and control wiring.
7. Configure the motor parameters: Enter the correct motor nameplate data and apply the control-mode settings required by the selected vector-control application.
8. Verify the command source: Confirm that the configured start, stop, direction, and speed-reference sources correspond to the actual 24V I/O wiring and external control circuit.
9. Plan the parameter-access method: Because the drive is supplied without a HIM, verify that a compatible method is available for commissioning, monitoring, and fault diagnosis.
10. Assess braking requirements: Determine whether the machine’s deceleration profile requires additional braking hardware, particularly where high inertia or frequent stopping is involved.
11. Test the operating sequence: Check acceleration, steady-state operation, deceleration, external interlocks, and fault responses under controlled commissioning conditions.
12. Maintain configuration records: Retain the parameter set, motor data, wiring diagrams, drive identification, and maintenance history for future troubleshooting and replacement work.

If the motor fails to start, verify the incoming supply, control source, assigned I/O, drive status, and motor parameters. If the drive trips during acceleration or deceleration, examine the load characteristics, current limits, ramp settings, and braking requirements before changing operating parameters.

Related Components

Recommended Related Models

Key Advantages

• Provides a 70 A output-current rating for compatible motor applications.
• Supports 25 HP normal-duty and 20 HP heavy-duty operation in the specified voltage class.
• Uses vector control for adjustable motor operation under varying load conditions.
• Provides standard 24V I/O for external control integration.
• Includes conformal coating for additional protection against certain environmental contaminants.
• Allows braking and communication requirements to be evaluated separately according to the actual application.

Technical FAQs

What is the difference between the 25 HP normal-duty rating and the 20 HP heavy-duty rating?

These ratings reflect different operating-duty conditions. The suitable rating depends on the motor’s current demand, overload requirements, and load profile. Selection should be based on the drive’s applicable current rating and the actual application rather than horsepower alone.

Can the 20BB070A0ANNANC0 be controlled directly over an industrial Ethernet network?

This catalog configuration does not include an installed communication module. Network control therefore requires evaluation of a compatible communication option and the host automation system. The drive’s standard 24V I/O can be used for supported external control signals when configured appropriately.

Does this model include a braking resistor for rapid deceleration?

No. The specified configuration does not include a brake IGBT or an internal drive-mounted braking resistor. If the application generates significant regenerative energy during deceleration, the required braking solution must be assessed separately and must be compatible with the drive.

What should be checked when replacing an existing PowerFlex 700 with this exact model?

Verify the voltage class, output current, duty rating, motor-control mode, 24V I/O arrangement, communication requirements, feedback requirements, and braking configuration. Also account for the missing HIM and confirm that a suitable parameter-access method is available before commissioning.
