- Allen-Bradley
- 1761-NET-DNI
- DeviceNet Interface Module
- USA
- 118 x 52.07 x 64.8 mm
- 0.23 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

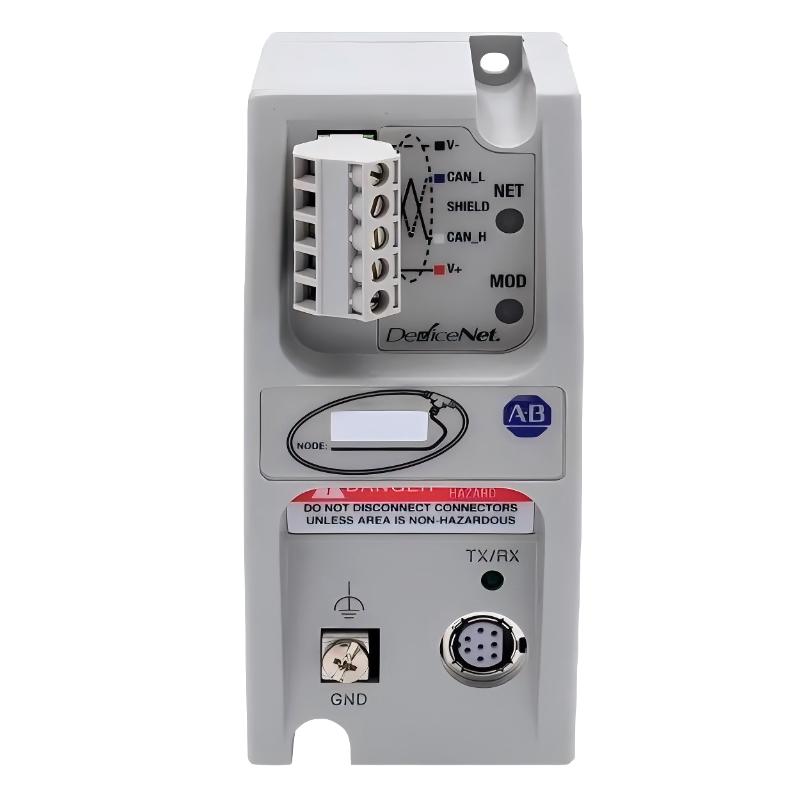

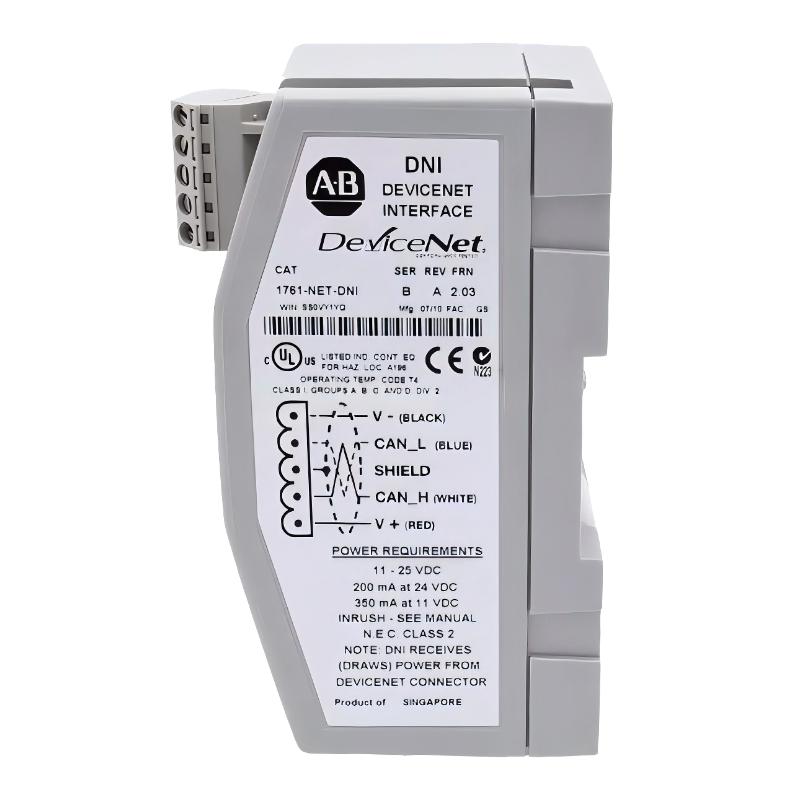

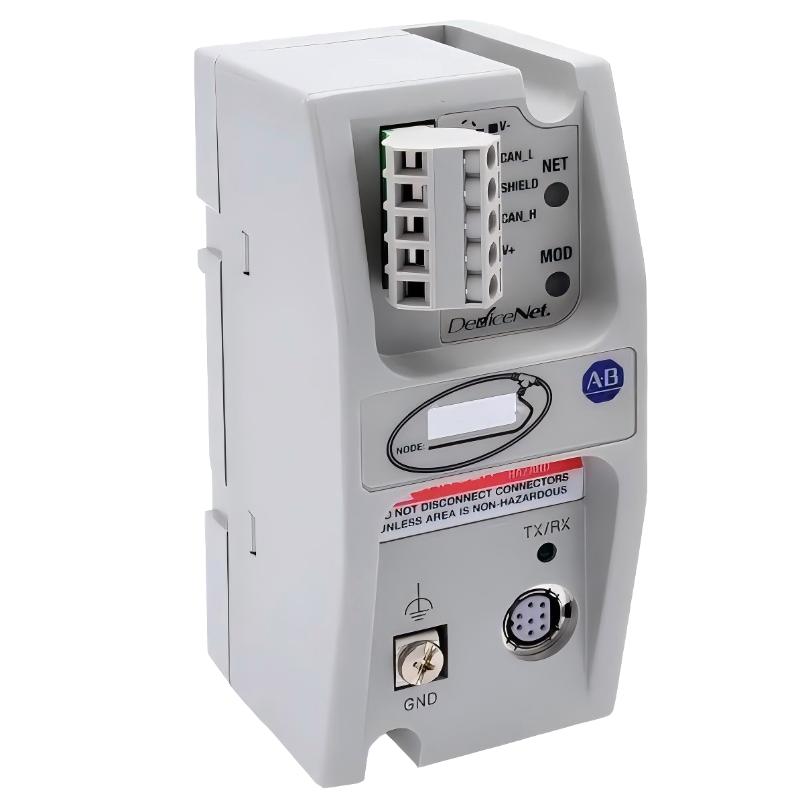

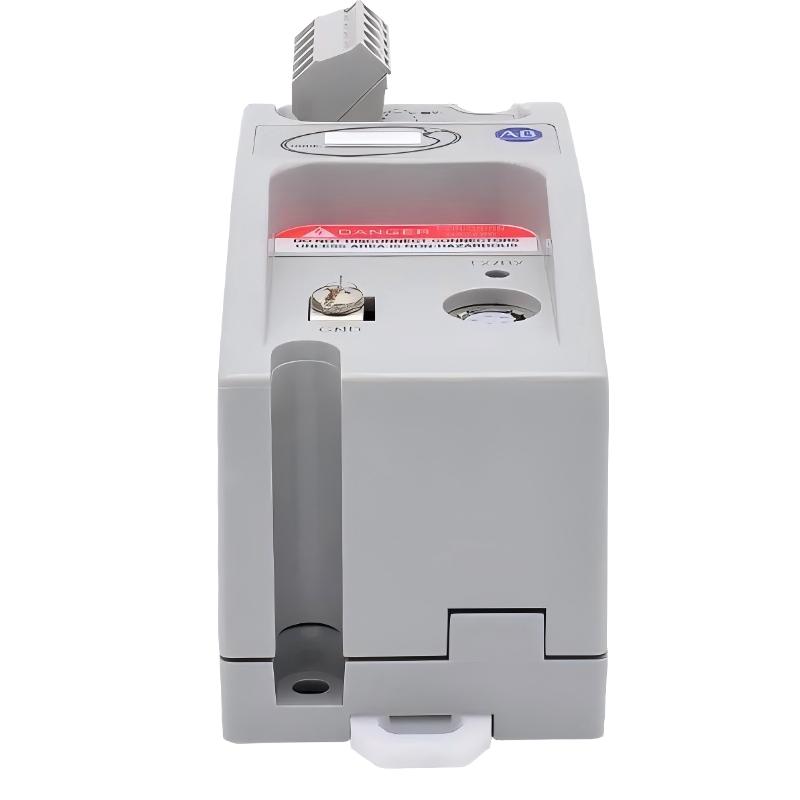

The Allen-Bradley 1761-NET-DNI is a DeviceNet Interface Module designed to enable communication between MicroLogix controllers and DeviceNet industrial networks. It acts as a gateway, allowing PLCs to exchange data with distributed I/O, drives, sensors, and other DeviceNet-compatible devices in automation systems.
It is commonly used in industrial environments where decentralized control and high-speed fieldbus communication are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | DeviceNet Interface Module |
| Manufacturer | Allen-Bradley |
| Model | 1761-NET-DNI |
| Function | Communication gateway to DeviceNet network |
| Supported Network | DeviceNet (CAN-based fieldbus) |
| Compatible Controllers | MicroLogix PLCs |
| Communication Role | Scanner / adapter interface support |
| Power Supply | 24V DC |
| Mounting Type | DIN rail / panel mounting |
| Operating Environment | Industrial automation environments |
| Dimensions | 118 × 52.07 × 64.8 mm |
| Weight | 0.23 kg |
| Construction | Industrial-grade communication module |
Function and Working Principle
The 1761-NET-DNI enables MicroLogix controllers to communicate over a DeviceNet network, which is based on the CAN protocol. It manages cyclic data exchange between the PLC and connected field devices such as sensors, actuators, and distributed I/O modules.
It functions by:
- Translating PLC data into DeviceNet messages
- Managing node addressing and network communication
- Enabling real-time I/O data exchange
- Supporting distributed automation architectures
This allows centralized control of decentralized industrial devices.
Industrial Role
The 1761-NET-DNI is used in:
- Distributed I/O systems
- Motor control networks
- Conveyor and packaging lines
- Automotive manufacturing systems
- Process automation with fieldbus architecture
It is especially useful in systems requiring deterministic real-time communication.
Installation and Integration
- DIN rail or panel mounting
- Powered by 24V DC supply
- Connects PLCs to DeviceNet trunk lines
- Requires node configuration for network setup
- Integrates with MicroLogix programming environments
Compatible Systems
- Allen-Bradley MicroLogix PLCs
- DeviceNet I/O modules
- PowerFlex drives
- Industrial sensors and actuators
- Rockwell Automation DeviceNet networks
Alternative / Replacement Options
| Model | Description |
|---|---|
| 1761-NET-ENI | Ethernet communication interface (modern alternative) |
| 1761-NET-ENIW | Enhanced Ethernet interface |
| 22-COMM series | DeviceNet communication adapters for drives |
| EtherNet/IP systems | Modern industrial network replacement |
| CompactLogix PLCs | Built-in high-speed network support |
Key Advantages
- Enables DeviceNet fieldbus connectivity
- Supports distributed industrial control systems
- Reliable real-time communication
- Easy integration with MicroLogix PLCs
- Reduces hardwired I/O complexity
- Industrial-grade robust communication design
Conclusion
The Allen-Bradley 1761-NET-DNI DeviceNet Interface Module provides a reliable communication bridge between MicroLogix controllers and DeviceNet networks. It enables efficient distributed automation by supporting real-time data exchange with field devices, making it suitable for industrial environments requiring scalable and networked control systems.
