Product Overview

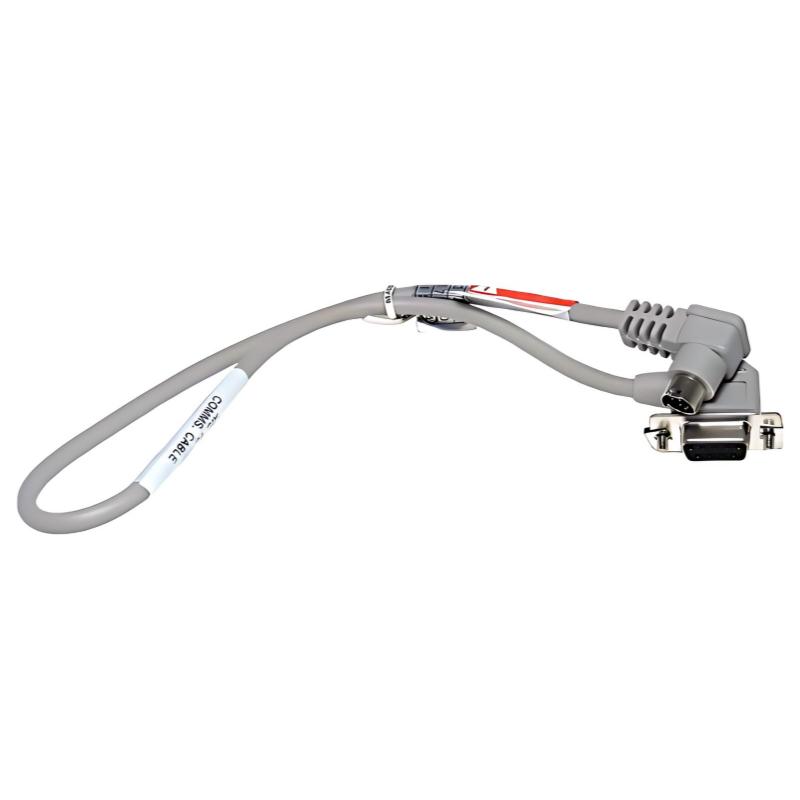

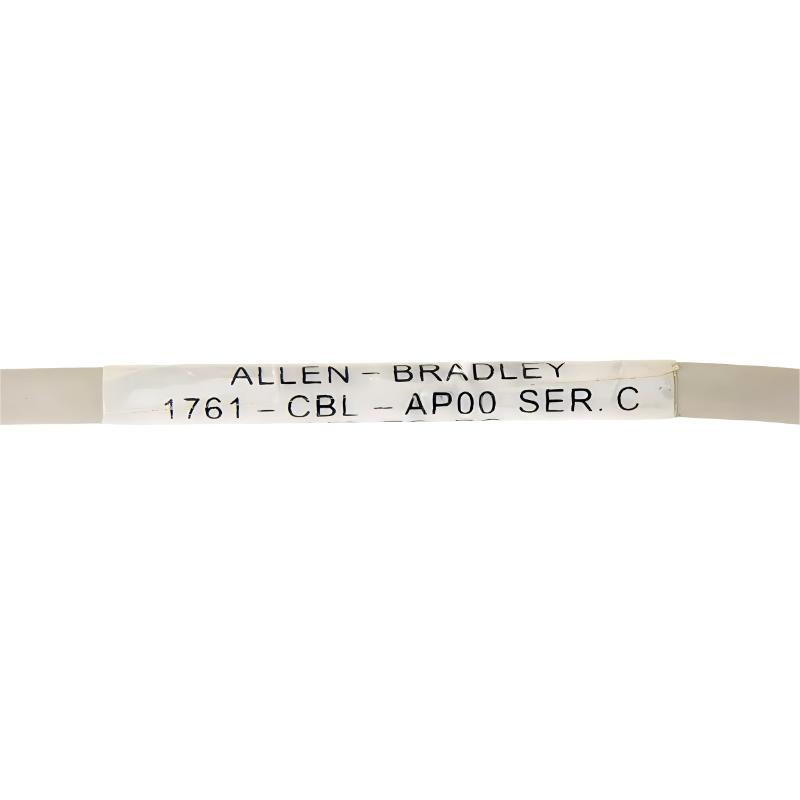

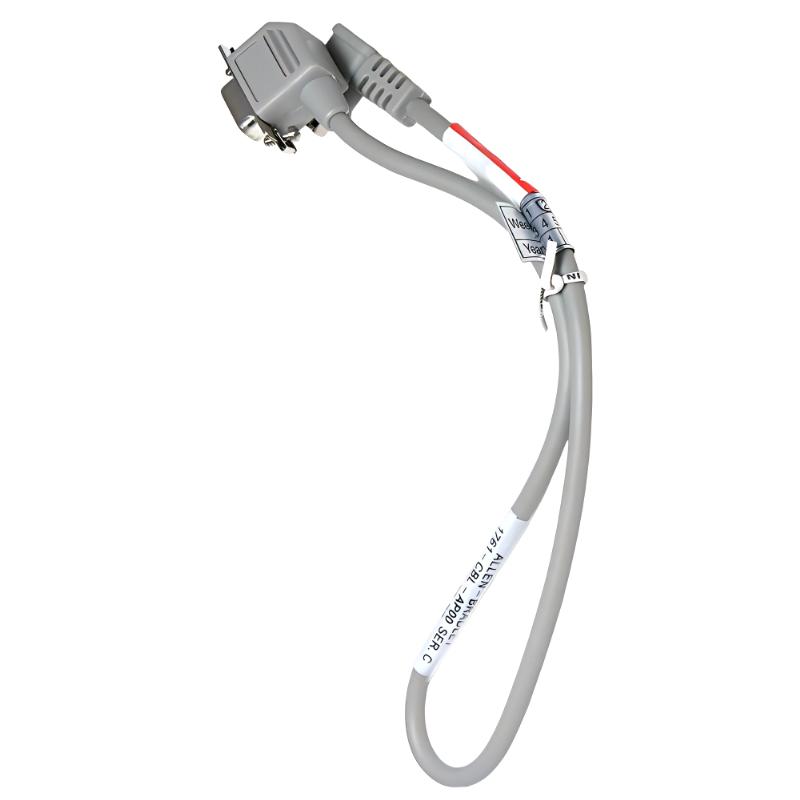

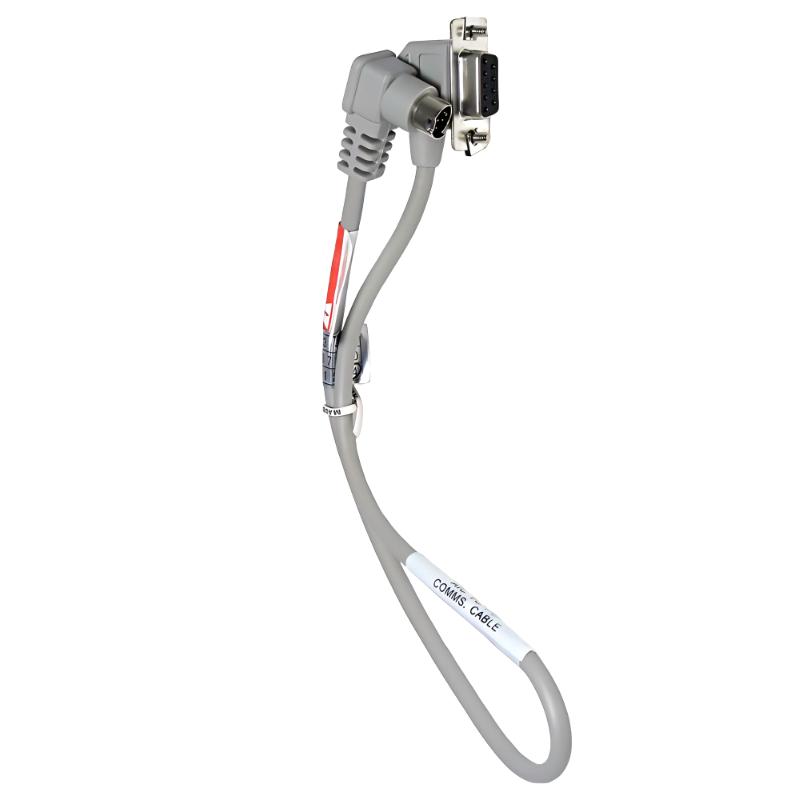

The Allen-Bradley 1761-CBL-AP00 is a communication and programming cable used primarily with MicroLogix PLC systems. It provides a reliable serial communication link between a MicroLogix controller and external programming or interface devices, enabling configuration, diagnostics, and data exchange.
This cable is commonly used in small to medium industrial automation systems for controller setup and maintenance tasks.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | PLC Communication / Programming Cable |
| Manufacturer | Allen-Bradley |
| Model | 1761-CBL-AP00 |
| Series | MicroLogix Accessories (1761-CBL series) |
| Application | PLC programming and communication |
| Compatible Systems | MicroLogix controllers |
| Connector Type | 8-pin Mini-DIN to 9-pin D-shell (RS-232) |
| Cable Length | 0.5 meter |
| Function | Data communication / configuration |
| Operating Environment | Industrial automation systems |
| Shipping Weight | 3 kg |
Function and Working Principle
The 1761-CBL-AP00 cable connects a MicroLogix PLC to programming or interface equipment using RS-232 serial communication. It transmits configuration commands, program data, and diagnostic information between the controller and external devices.
This allows engineers to:
- Upload and download PLC programs
- Perform system configuration and setup
- Diagnose controller status
- Communicate with interface modules
- Maintain and troubleshoot automation systems
Role in Industrial Automation Systems
This cable is used in systems where MicroLogix controllers require external programming or communication access. It supports:
- PLC commissioning and setup
- Maintenance and troubleshooting operations
- Small-scale automation systems
- Machine control configuration
- Industrial control panel programming
Industrial Applications
- Conveyor systems
- Small manufacturing machines
- Packaging equipment
- Basic automation control panels
- Industrial training and testing systems
Installation and Integration
- Connects MicroLogix PLC to programming devices or interface modules
- Used during setup and maintenance phases
- Requires RS-232 communication configuration
- Plug-and-play installation in compatible ports
- Suitable for temporary or permanent control panel wiring
Compatible System Components
- MicroLogix PLC controllers
- AIC+ interface modules
- ENI communication modules
- Programming PCs with RS-232 support
- Industrial control interfaces
Alternative Models
| Model | Description |
|---|---|
| 1761-CBL-PM02 | Programming cable for Pico controllers |
| 1761-NET-ENI | Ethernet interface module |
| 1756-CP3 | ControlLogix serial programming cable |
| USB-to-serial adapters | Modern PC communication alternatives |
| Ethernet programming solutions | Network-based PLC programming |
Key Advantages
- Reliable RS-232 communication
- Stable PLC programming connection
- Industrial-grade construction
- Simple plug-in configuration
- Supports maintenance and diagnostics
- Compatible with MicroLogix systems
Conclusion
The Allen-Bradley 1761-CBL-AP00 is a dedicated PLC communication cable designed for MicroLogix systems. It enables reliable programming and data exchange between controllers and external devices, making it an essential accessory for commissioning, maintenance, and troubleshooting in industrial automation applications.
