Field Case: Generator Fails to Parallel with Utility Grid

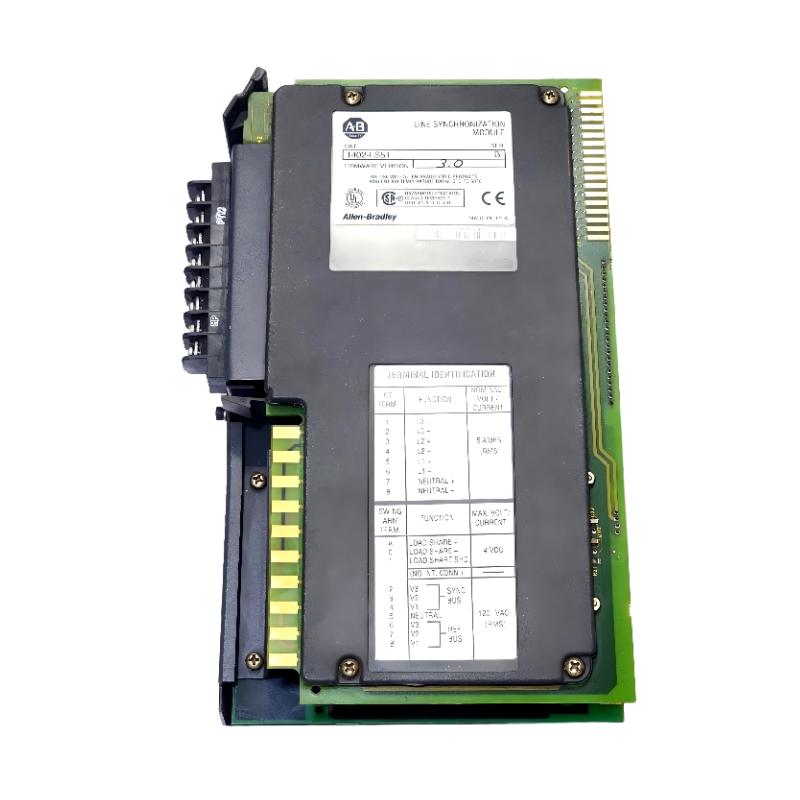

Allen-Bradley 1402-LS51 line synchronization module faults often present as failed breaker closure during generator-to-grid synchronization. In one power plant scenario, operators observed repeated synchronization attempts without successful breaker closure, despite apparently stable voltage and frequency matching on the HMI.

Fault Symptoms of 1402-LS51 Module

Typical field symptoms include:

• Breaker close command blocked during sync sequence
• Persistent phase angle mismatch alarm
• Unstable frequency slip readings
• Incorrect voltage comparison between buses

Observed Phase Angle & Voltage Mismatch Behavior

During commissioning diagnostics, engineers observed inconsistent synchronization measurements:

GRID_VOLTAGE = stable
GENERATOR_VOLTAGE = stable
FREQUENCY_SLIP = fluctuating (±0.3 Hz)
PHASE_ANGLE_ERROR = oscillating near threshold limit
SYNC_PERMISSION = repeatedly denied
BREAKER_STATUS = remains OPEN

Despite stable raw electrical values, the module continuously failed synchronization validation due to internal measurement inconsistency.

Root Cause Analysis (CT/PT Error & Signal Processing Deviation)

The 1402-LS51 relies on accurate CT/PT inputs and precise phase calculation algorithms. Common failure mechanisms include:

• Incorrect CT polarity causing inverted phase detection
• PT scaling mismatch leading to voltage comparison errors
• Signal noise affecting phase angle calculation stability
• Aging input conditioning circuits introducing measurement drift

In one field case, reversed CT wiring on a single phase caused continuous 180° phase error detection, fully blocking synchronization.

Diagnostic Workflow for Synchronization System

A structured electrical verification process is required:

1. Verify CT/PT polarity and secondary wiring integrity
2. Measure real phase rotation using external analyzer
3. Compare module readings with independent measurement tools
4. Check signal conditioning board for drift or noise influence
5. Review PLC block transfer data consistency

SYNC_DIAG /MODEL=1402-LS51 /PHASE_VERIFY /CT_POLARITY_CHECK /VOLTAGE_COMPARE

Repair & Recovery Actions

• Corrected CT polarity and rewired affected phase inputs
• Recalibrated PT scaling parameters in configuration table
• Replaced noisy signal conditioning interface module
• Validated synchronization sequence with external analyzer

After correction, synchronization succeeded within acceptable phase tolerance and breaker closed normally under load conditions.

Prevention Strategy for Synchronization Systems

• Always verify CT/PT polarity during commissioning
• Perform dual-instrument phase verification before sync enable
• Maintain shielding for all analog measurement wiring
• Regularly validate calibration drift in long-term operation
• Avoid relying solely on single-module readings for critical decisions

FAQs on 1402-LS51 Faults

Why does synchronization fail even when voltage and frequency look correct?

Because phase angle or CT/PT scaling errors can still violate internal synchronization thresholds.

Can wiring errors cause permanent sync blocking?

Yes. Incorrect CT polarity or phase rotation errors will continuously prevent breaker closure.

Is the module always faulty in sync failure cases?

No. Most failures are caused by external wiring, configuration, or measurement issues rather than hardware failure.

Engineering Summary

The Allen-Bradley 1402-LS51 line synchronization module is highly dependent on accurate analog measurement inputs and correct system configuration. Field failures are most often caused by CT/PT wiring errors, phase mismatch, or signal conditioning drift rather than internal module defects. Proper diagnostic separation between field wiring and module logic is essential for reliable synchronization performance.
